eduARM: Web Platform to Support the Teaching and Learning of the

ARM Architecture

Maria In

es Alves

, Ant

onio Duarte Ara

ujo

and Bruno Lima

Faculty of Engineering, University of Porto, Porto, Portugal

INESC TEC and Department of Electrical and Computer Engineering, Faculty of Engineering, University of Porto,

Porto, Portugal

INESC TEC and Department of Informatics Engineering, Faculty of Engineering, University of Porto, Porto, Portugal

Keywords:

Computer Architecture Teaching, ARM Architecture, Simulation, Learning Resources.

Abstract:

Computer architecture is a prevalent topic of study in Informatics and Electrical Engineering courses, though

students’ overall grasp of this subject’s concepts is many times hampered, mainly due to the lack of educational

tools that can intuitively represent the internal behaviour of a CPU. With the evolution of the ARM architecture

and its adoption in higher education institutions, the demand for this sort of tool has increased. Educational

tools, speciﬁcally developed for the ARMv8 processor, are scarce and inadequate for what is necessary in an

academic context. In order to contribute towards solving this problem, eduARM, a practical and interactive

web platform that simulates how a ARMv8 CPU functions, was developed and is presented through this paper.

Since this tool’s main purpose is to aid computer architecture students, contributing to an improvement in their

learning experience, it comprises varied concepts of computer architecture and organization in a simple and

intuitive manner, such as the internal structure of a CPU, in both its unicycle and pipelined versions, and

the effects of executing a set of instructions. As to better understand its value, the developed tool was then

validated through a case study with the participation of computer architecture students.

1 INTRODUCTION

Computer Architecture (CA) is a fundamental subject

in higher education technology courses, namely Infor-

matics and Electrical Engineering. Among other top-

ics, this course unit allows students to learn about the

major internal subsystems of a computer, the general

architecture of its platform, and assembly program-

ming.

The Central Processing Unit (CPU) itself and its

internal behaviour is a key study item, and one that

students tend to exhibit difﬁculties in understanding.

This problem is a result of the scarcity of intuitive ed-

ucational tools that can graphically represent the CPU

and the impact of executing a set of instructions (Nova

et al., 2013). A most ideal platform would encour-

age CA students to learn through interactive experi-

mentation, allowing them, for example, to thoroughly

consult the CPU’s datapath, in both its unicycle and

pipelined versions, for each instruction in a set writ-

ten in assembly language.

Another problem is raised with the evolution

and popularity of the ARM architecture, speciﬁcally

ARMv8. This is currently the most popular instruc-

tion set architecture (ISA) in the industry (Patterson

and Hennessy, 2016), that is widely used in smart-

phones, laptops, and other embedded systems. Con-

sequently, this caused certain higher education insti-

tutions to adapt their syllabus to include the teaching

of this architecture, replacing other common architec-

tures such as MIPS or RISC-V.

Similarly to what was already identiﬁed as a prob-

lem in the teaching of the most common processors

(Nova et al., 2013), suitable platforms for teaching

ARMv8 are scarce, which increases the need for de-

veloping an adequate software tool, capable of being

used by both teachers and students during classes.

The eduARM web platform serves as an intuitive

and interactive approach to learning the CPU and its

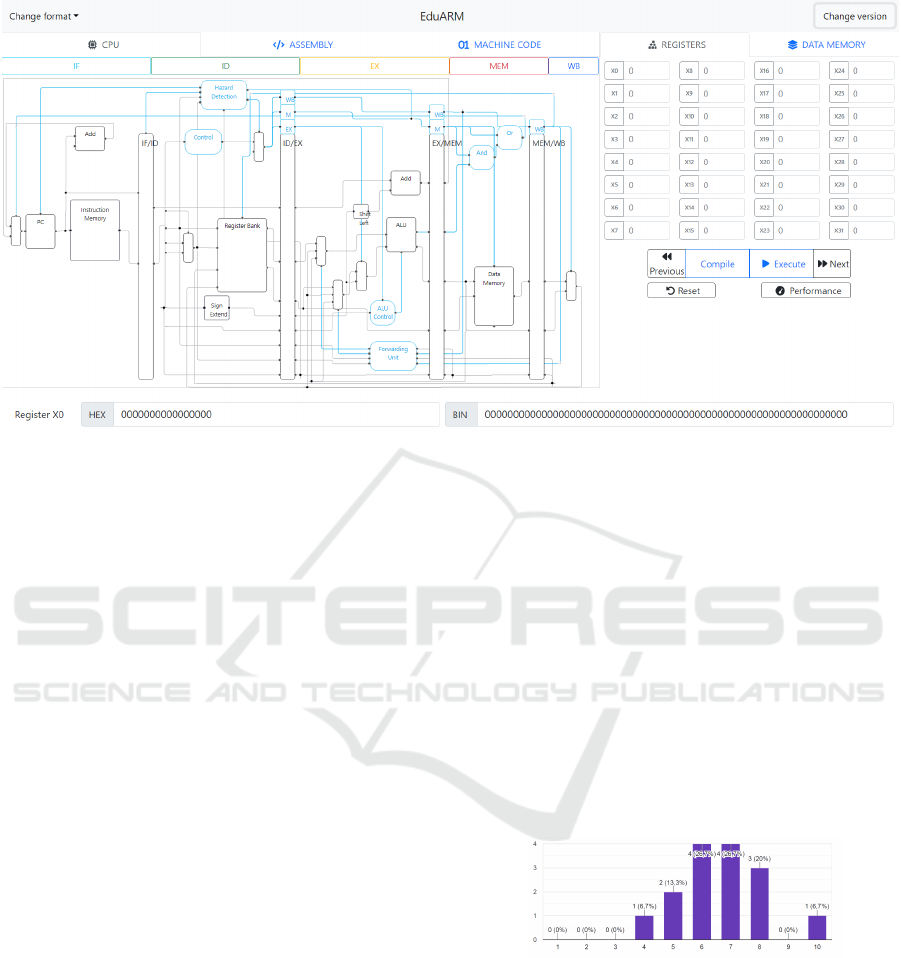

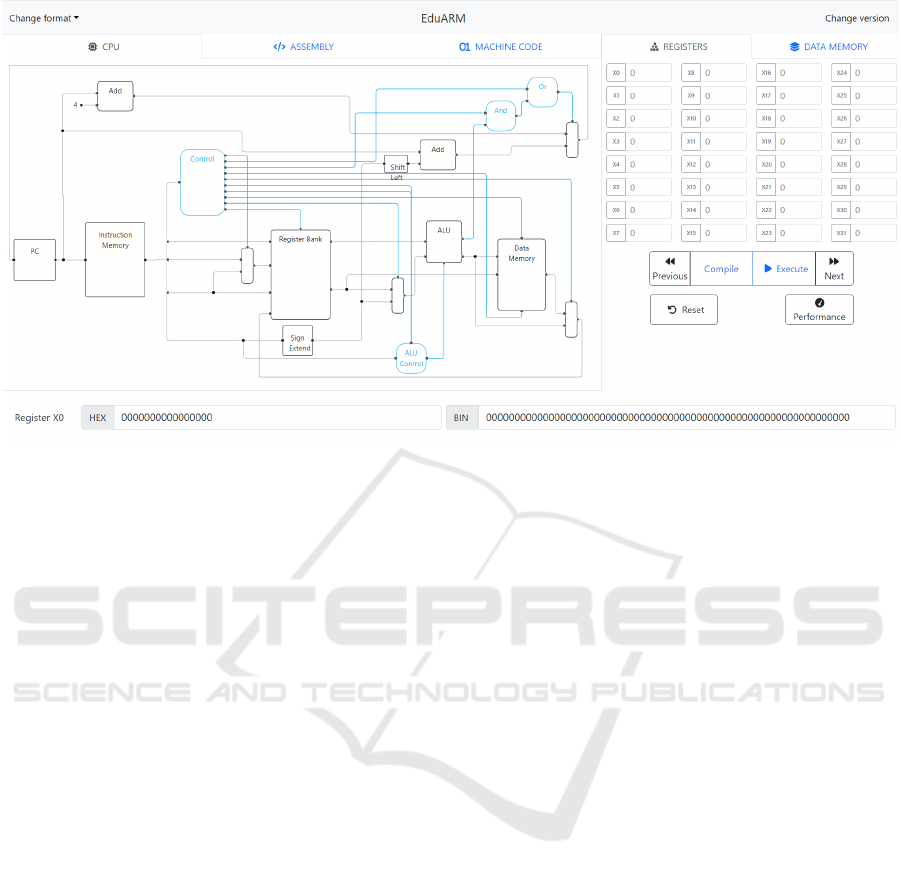

behaviour, supporting both its unicycle and pipelined

versions. The platform allows students to freely ex-

plore the CPU datapath in each stage of execution and

understand how a speciﬁc instruction impacts its com-

ponents’ values, write simple assembly programs and

debug them by inspecting the simulator’s results, and

check component latencies and the critical path of an

Alves, M., Araújo, A. and Lima, B.

eduARM: Web Platform to Support the Teaching and Lear ning of the ARM Architecture.

DOI: 10.5220/0011712800003470

In Proceedings of the 15th International Conference on Computer Supported Education (CSEDU 2023) - Volume 2, pages 341-348

ISBN: 978-989-758-641-5; ISSN: 2184-5026

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

341

instruction.

Following the present section, this document in-

cludes a review and discussion of related work on

tools for CA education in Section 2, followed by an

overview of the implementation process behind the

eduARM platform in Section 3, and a description of

its user interface in Section 4. The validation process

is detailed in Section 5, and, to ﬁnalize, conclusions

are disclosed in Section 6.

Although valuable projects in this domain were

found, showcased in the State of the Art, none are

capable of completely responding to this problem.

Nonetheless, these tools’ good practices and features

presented a solid starting point for the development of

the eduARM web platform, an intuitive and interac-

tive approach to teaching and learning of the ARMv8

architecture.

2 STATE OF THE ART

Throughout this section, several tools dedicated to

CA education are presented, their various features are

discussed, as well as their positive and negative as-

pects. Finally, a comparison is made between the pre-

sented tools, highlighting which features were con-

sidered the most important for the platform and what

contribution its development can give to the ﬁeld.

This section focuses solely on open-source tools

dedicated to RISC architectures, namely MIPS,

RISC-V and ARM, as these make up a much less

complicated processor compared to CISC architec-

tures (Gupta and Sharma, 2021), and are thus com-

monly adopted in CA courses.

SPIM is a self-contained MIPS simulator that

runs assembly language programs, considered the

most widely known and used MIPS simulator (Larus,

1990), both for education and the industry. Although

SPIM can be used for debugging assembly programs,

in order for the tool to thoroughly support the teach-

ing of CA, CPU datapath visualization is missing.

WebMIPS is an educational web-based MIPS sim-

ulation environment written in the ASP language.

This tool is a ﬁve stage MIPS pipeline simulator (Bra-

novic et al., 2004) and solely supports the MIPS ar-

chitecture and the pipeline version of the CPU, which

poses a great disadvantage. The platform can thus be

seen as outdated and easily surpassed by other similar,

more recent tools.

MARS, the Mips Assembly and Runtime Simu-

lator (Vollmar and Sanderson, 2006), was designed

as an alternative to SPIM, tackling most of its short-

comings and greatly outperforming it. Despite be-

ing a robust and useful tool for assembly debugging,

MARS has no CPU datapath visualization, no support

for pipelined architectures and is not available on the

Web.

DrMIPS is an open-source graphical simulator of

the MIPS processor, speciﬁcally designed for teach-

ing and learning CA (Nova et al., 2013). While this

project provides students with a robust and highly in-

tuitive tool that includes fundamental principles lec-

tured in CA, it exclusively supports the MIPS archi-

tecture, preventing its adoption in more recent higher

education courses. Nevertheless, its focus on edu-

cation and multitude of functionalities and visualiza-

tion make DrMIPS a valuable platform whose vision

served as a model for the tool presented in this paper.

RARS, or RISC-V Assembler and Runtime Sim-

ulator (Landers, 2017), is a direct port of the MIPS

simulator MARS. RARS, much like its MIPS counter-

part, focuses intensively on assembly debugging, con-

taining essentially the same features and also lacking

CPU datapath visualization and support for pipelined

architectures.

The BRISC-V Simulator is a browser-based as-

sembly programming simulator, which, together with

BRISC-V Explorer, makes up the BRISC-V Platform

(Agrawal et al., 2019). Similarly to several of the

already presented educational platforms, BRISC-V is

more focused on assembly debugging and does not in-

clude a display of the CPU datapath, as well as lack-

ing support for a pipeline version of the CPU.

The BRISC-V Explorer is an educational tool for

exploring CPU design, allowing the creation of single

or multi-core RISC-V processors. As the BRISC-V

Explorer provides a platform for CPU architecture de-

sign, this can be helpful for students to understand its

components on a deeper level. Since this tool is more

focused on architectural design, it is better suited for

more advanced CA classes (Agrawal et al., 2019).

VisUAL is an ARM emulator developed as a

cross-platform tool for ARM education, particularly

ARMv7 (Arif, 2015). Although this tool is not as fo-

cused on the CPU and its internal behaviour, and more

on assembly debugging, it includes multiple educa-

tional features that are useful for students and can be

taken into consideration while designing a new tool.

VisUAL only supports ARMv7, which was already re-

placed by ARMv8 in certain institutions, not being

suitable for aiding those students any longer.

The Graphical Micro-Architecture Simulator, also

called simply LEGv8 Simulator, is a web based

ARMv8-A ISA simulator, which, albeit still in BETA

version, delivers a complete and interactive environ-

ment for CPU visualization, both its unicycle and

pipelined versions (ARM, 2021). Despite being a

very complete platform, this simulator lacks certain

CSEDU 2023 - 15th International Conference on Computer Supported Education

342

important features for education, such as a data mem-

ory display, visualization of input and output values

in each component, and a more complete register ﬁle.

Component latencies and the critical path are also not

included in the platform.

WepSIM is a modular and intuitive online educa-

tional simulator of the CPU, supporting both MIPS

and RISC-V architectures (Garc

ıa-Carballeira et al.,

2019). Being available on the web, the platform is

highly portable and can be run from any web browser

or from a text-based command line. WepSIM, albeit a

complete platform, can be too dense or complex, and

does not support a pipeline version of the CPU nor

implementation of latencies and the critical path.

CREATOR is a generic web-based simulator for

assembly programming developed by the same au-

thors as WepSIM (Camarmas-Alonso et al., 2021).

Unlike its older counterpart, CREATOR does not in-

clude a display of the CPU datapath, as it is a tool

more focused on assembly programming instead of

CPU visualization and conﬁguration.

In order to efﬁciently analyse these existing tools

and what a new platform should include, a few key

requirements were established. The educational plat-

form should be available on the Web, through the

browser, removing the need for downloads and mak-

ing it accessible to anyone regardless of operating sys-

tems or platform speciﬁcations. The tool should allow

its users to visualize and examine the CPU datapath

and provide an area for assembly programming, so

students can write their own code, debug it, and ex-

plore its effects on the CPU. Both the unicycle and

pipelined versions of the processor should be sup-

ported, as well as latencies and the critical path, for

students to analyse the CPU’s performance. Finally,

the platform should support ARMv8, considering ed-

ucational tools for this architecture are scarce, as ex-

plained previously in Section 1.

To evaluate whether these tools would meet all the

requirements established for a complete and suitable

platform to teach the ARM architecture, table 1 is pro-

vided.

Despite each tool having its strengths and useful

features, none can satisfy all the requisites proposed.

More speciﬁcally, even though all of them can teach

assembly programming, only a few also focus on the

CPU and its datapath. Most lack support for both

the unicycle and pipeline versions of the processor,

as well as latency and critical path implementation.

Seeing as none of the works presented can com-

pletely respond to the problem identiﬁed, even more

so with most of them lacking support for ARMv8, a

platform that can aggregate the positive features of

these tools and provide what they are lacking would

be the ideal solution. It would also present a source of

innovation in the ﬁeld, which is what this project aims

to achieve, and whose implementation is thoroughly

explained in the next section.

3 IMPLEMENTATION

3.1 Requirements Speciﬁcation

The development of this educational platform must

take several CA concepts into account, handling

the multiple topics students learn in classes. After

analysing the state of the art and the functionalities

of existing educational tools, the requirements for a

new platform were speciﬁed as follows:

• Must be simple and intuitive, so students can eas-

ily interact with the platform and understand its

concepts, avoiding unnecessary elements or visual

clutter

• Represent the CPU datapath in both its unicycle

and pipelined versions, which the user can inter-

change accordingly

• Provide an interface for assembly coding, so stu-

dents can write their own instructions and explore

what happens in the CPU with their execution,

showing detailed information on all data and con-

trol signals, as well as display how these instruc-

tions are encoded in machine code

• Execute a set of instructions provided step-by-

step, allowing the user to forward or go back to a

certain instruction and understand what its effects

on the CPU are

• Allow visualization of registers and data memory

contents, as well as latencies and the CPU critical

path

• Be available on the Web, hence providing easy ac-

cess to anyone, regardless of their operating sys-

tem or computer speciﬁcations

Each of the requirements above was taken into

consideration while planning for the platform’s de-

velopment, ensuring that the ﬁnished product would

accomplish all objectives and adequately respond to

CA students’ needs.

3.2 Development Process

After the platform’s requirements speciﬁcation, the

ﬁrst step of development was to ensure it would run on

the web. A simple web app was created, and, within

it, two distinct layers were conceived - the fron-

tend, encapsulating all user interface-related work and

eduARM: Web Platform to Support the Teaching and Learning of the ARM Architecture

343

Table 1: Comparison of requirements met by the tools.

Web

CPU

datapath

Assembly

Unicycle &

pipeline

Latency &

critical path

ARMv8

SPIM No No Yes No No No

WebMIPS Yes Yes Yes No No No

MARS No No Yes No No No

DrMIPS No Yes Yes Yes Yes No

RARS No No Yes No No No

BRISC-V Yes Yes Yes Yes No No

VisUAL No No Yes No No No

LEGv8Sim Yes Yes Yes Yes No Yes

WepSIM Yes Yes Yes No Yes No

CREATOR Yes No Yes No Yes No

client-side operations, and the backend, handling the

server and all CPU simulation logic. Connecting

these segments allows the web platform to run in its

entirety, with each request sent by a user’s actions be-

ing received and handled server-side.

3.2.1 Simulation Logic

Having established the foundation for both layers, the

program’s backend was the ﬁrst to be thoroughly im-

plemented. To accurately simulate the CPU, each of

its components was simulated individually. In order

to achieve this, a JavaScript class was implemented

for every component, storing inputs, outputs, latency,

and its own distinct execution behaviour, which will

run when that component is scheduled to operate.

The order in which every component operates is

deﬁned through a JSON ﬁle, where all CPU ele-

ments are represented through objects. This conﬁg-

uration ﬁle is then used in another JavaScript class,

called ”CPU”, responsible for establishing the con-

nections between the various deﬁned components and

ultimately executing a program. This class encapsu-

lates all simulation logic, containing a method, ”exe-

cute”, that given an instruction’s machine code, will

compute the execution method of each component se-

quentially, in the order deﬁned by the JSON ﬁle. The

results of a CPU component’s operation are thus prop-

agated to its connected components, and, if the in-

struction changes registers or writes to memory, the

CPU’s register ﬁle and data memory are updated.

For students to understand exactly how much time

the unicycle processor takes to execute a set of in-

structions, latencies were implemented into the plat-

form. Additionally, the platform highlights the criti-

cal path of each instruction, deﬁned as the sequence

of components that, altogether, take the longest to ex-

ecute.

The same implementation method was applied to

the CPU’s pipeline version, which required the ad-

dition of pipeline registers, four in total, that act as

an intermediary between two pipeline stages, storing

values between cycles. Besides this, forwarding was

implemented into the platform, with the addition of

a forwarding unit capable of handling dependences

between instructions, as well as a hazard detection

unit that solves more complicated hazards that require

pipeline stalling.

As the CPU simulation logic implemented is sig-

niﬁcantly heavy on operations, running its calcula-

tions client-side would overload the user’s machine

and thus be extremely inefﬁcient. Having a dedicated

web server that runs the simulation and handles all

requests made on the frontend was the approach se-

lected to solve this problem, with the creation of an

application programming interface (API) able to com-

municate with the frontend layer and answer its re-

quests, receiving, altering, and sending back data.

4 USER INTERFACE

The application’s user interface was designed with the

objective of providing students with a user friendly

and interactive environment for studying. In order

to achieve this, the interface was kept mostly sim-

ple, avoiding any visual clutter and the addition of too

much information, which could end up confusing stu-

dents and ultimately doing more harm than good. The

ﬁnished product’s homepage is shown in Figure 1.

The platform’s most prominent element is the

CPU datapath, on its left side, with its components

and corresponding connections. In this visual rep-

resentation, control lines and related components are

colored blue. On top of the diagram, two more tabs

besides the CPU one can be seen: “Assembly” and

“Machine Code”. The former is dedicated to writing

assembly code, while the latter displays each instruc-

tion’s machine code after compiling a program.

On the screen’s rightmost area, the content of each

CSEDU 2023 - 15th International Conference on Computer Supported Education

344

Figure 1: Homepage of eduARM.

a register’s value, its hexadecimal and binary repre-

sentations will also be displayed in the two ﬁelds at

the bottom of the page, always on their 64-bit format.

The content of these can also be ﬁlled in by the user,

and the corresponding conversions will be made to the

After a user writes the code and changes the nec-

essary registers, the program is ready to be executed.

The user can press ”Compile” and the machine code

of each of the program’s instructions will appear in

the ”Machine Code” page, along with their position

on the instruction memory and their assembly code.

In the case of the platform identifying any compila-

tion errors, these will appear as an alert on top of the

page, and the program will not proceed unless these

are ﬁxed.

Having successfully compiled the program, the

user can then proceed by clicking the ”Execute” but-

ton, and the datapath will showcase, for each instruc-

tion, the internal behaviour of the CPU. Any changes

to data memory, in the case of executing memory ac-

cess instructions, can be checked in the ”Data Mem-

ory” tab, next to ”Registers”.

After execution, the datapath will display the state

of the last instruction written. The user can freely cy-

cle through instructions by using the ”Previous” and

”Next” buttons next to ”Execute”. Below this area,

the current instruction’s machine code and its differ-

ent ﬁelds are presented, also updating when cycling

through instructions. The instruction’s assembly code

is also displayed in this area and highlighted on the

code written in the ”Assembly” tab.

Connections that are considered relevant for each

instruction, that is, that carry any sort of relevant data,

are painted black. The various CPU components can

be hovered over in order to see their IDs, latencies,

inputs and outputs’ current values. These values can

also be converted to either their binary or hexadecimal

formats by selecting the desired representation with

the “Change format” button on the top left side of the

screen.

Additionally, two buttons entitled ”Reset” and

”Performance” are located below the execution con-

trols. The former will reset the program for the

user, setting all registers and memory values to zero

and reverting the datapath to its original state. ”Per-

formance” grants access to the CPU’s critical path,

whose connections and components will be high-

lighted red.

By connecting both the simulation logic and the

user interface, the platform is able to execute sim-

ple assembly programs and provide the correspond-

ing datapath visualization. This includes the results

of the assembly operations on the registers and the

data memory, as well as the input and output values

of each CPU component in that state.

The button ”Change version” in the top right cor-

ner of the page can be used to change between the

unicycle and pipelined versions of the CPU. While

the unicycle is the one chosen as default, the user can

press this button to switch to the pipeline version, pre-

sented in ﬁgure 2.

Five pipeline stages are represented with colors

on top of the datapath. Unlike the unicycle version,

a CPU state will represent the ﬁve stages in a clock

eduARM: Web Platform to Support the Teaching and Learning of the ARM Architecture

345

Figure 2: Pipeline datapath of eduARM.

cycle, which could have ﬁve instructions at the same

time. Because of this, the number of steps is now ﬁve

times higher, and the ”Previous” and ”Next” buttons

do not iterate through instructions, but rather through

clock cycles. Which instruction is in each stage can

be seen in the area below the execution buttons.

Regarding forwarding and hazard detection, when

either unit identiﬁes a problem, their datapath com-

ponent will be highlighted purple. If a stall occurs,

the processor will not do any relevant operations and

a ”bubble” is added to the instruction ﬂow.

This section closes the process behind the imple-

mentation of the platform, which was then tested by a

group of students through a case study, whose results

and discussion are presented in the next chapter.

5 VALIDATION

The developed platform, in order to completely ful-

ﬁll its intended objectives, must be validated by its

intended audience. This audience, in the case of ed-

uARM, is comprised of Informatics and Electrical En-

gineering students who are learning CA. It is only

possible to understand the true value of the platform

when it is tested by students.

The method deemed the most appropriate was val-

idating the platform through a survey, sent by e-mail

to former CA students of the Faculty of Engineering

of the University of Porto (FEUP). A total of 15 stu-

dents participated in this study, with 9 of them also

providing qualitative feedback and reporting bugs.

The survey sent to students opens with a small

contextualization of the work and explanation of the

study’s objectives, being followed by a total of 17

questions grouped into three different sections.

The ﬁrst group of questions relates to the back-

ground and general vision of the students on the CA

course. The purpose of this survey section was at-

tempting to understand what difﬁculties students felt

during the course, and how challenging the CPU and

its datapath are to comprehend.

Its ﬁrst question attempts to understand how stu-

dents perceive the CA course by asking them to

measure its difﬁculty. The majority of participants

(53,4%) claim the course has either a difﬁculty level

of 6 and 7 out of 10, as shown in Figure 3, which im-

plies the course unit is considered mildly challenging.

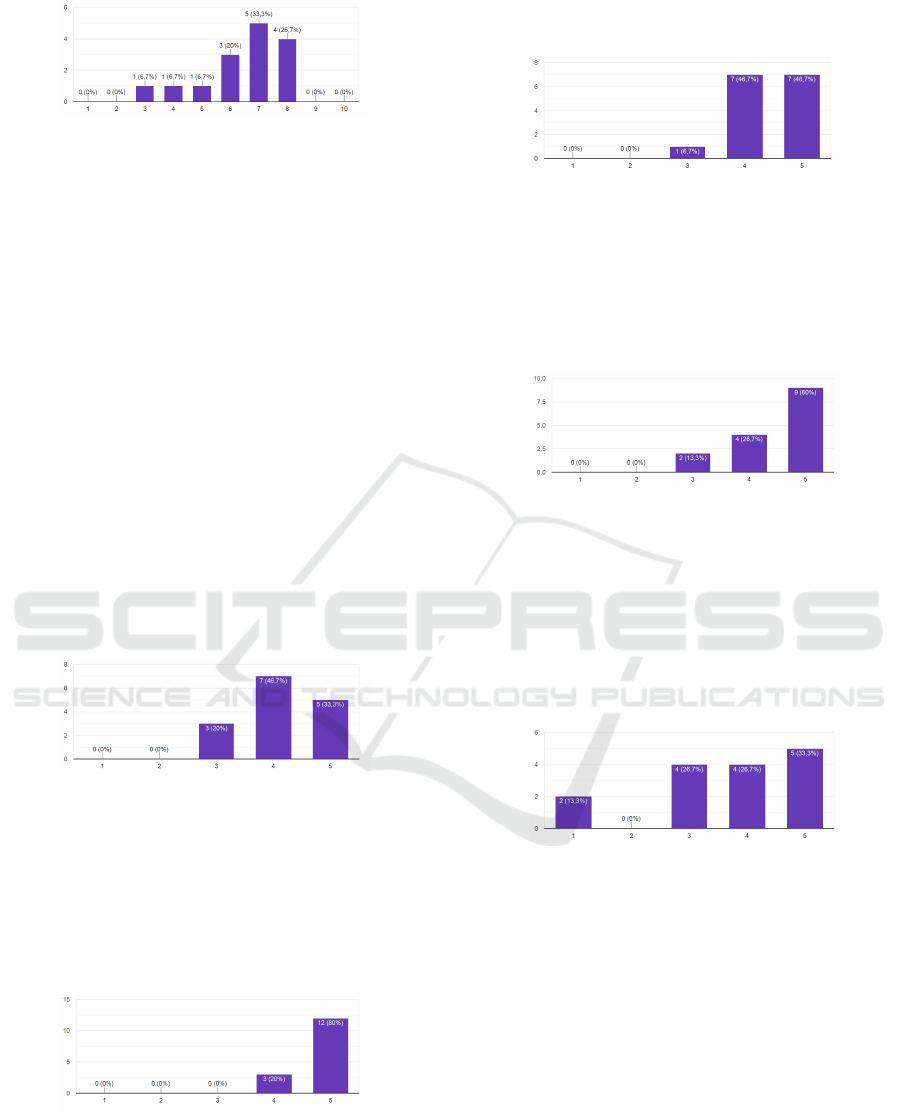

Figure 3: Results of Question 1.

The second question asks students to evaluate how

difﬁcult the CPU’s concepts and behaviour are to un-

derstand. As seen in Figure 4, results obtained were

diverse, similarly to question 1, with most participants

(80%) placing this subject’s difﬁculty level between

6 and 8, thus implying the majority of CA students

found the CPU rather difﬁcult to understand.

The ﬁnal question in the form’s ﬁrst section asks

students whether they believe having access to a

platform capable of simulating the CPU’s behaviour

CSEDU 2023 - 15th International Conference on Computer Supported Education

346

Figure 4: Results of Question 2.

would have helped them better understand these top-

ics, with 100% choosing the option ”Yes”.

The next survey section includes an exercise with

eight questions about the execution of a provided as-

sembly program, that should be solved using the plat-

form. The results obtained in this part are not as sig-

niﬁcant, since they mostly evaluate whether the stu-

dent chose the right answer or not, which could de-

pend on a variety of factors. Rather, the questions

presented in the exercise are merely intended to allow

the students to fully explore the platform’s features.

The form closes with an area for students to offer

their overall feedback, both quantitative and qualita-

tive.

The ﬁrst question of this feedback section, ques-

tion 12, asks students to quality the platform regard-

ing its usability and how intuitive it is. On a scale of

1 to 5, results were considered positive when equal to

4 or above, which was the case of Question 12, with

80% of the participants giving a 4 or the maximum

score of 5 to the interface, as seen in Figure 5.

Figure 5: Results of Question 12.

The next question’s purpose is to understand ex-

actly how useful the platform is for CA classes, ask-

ing students to measure how much they think having

access to the tool would have improved their compre-

hension of the lectured topics. The scores obtained

were, once again, very positive, as 80% of the stu-

dents chose the highest option, as shown in Figure 6.

Figure 6: Results of Question 13.

Afterward, question 14 aims to analyse how this

platform would make learning more enjoyable for stu-

dents. Most students (93,4% chose either option 4

or 5) seem to believe the platform would greatly im-

prove their learning experience, as illustrated through

Figure 7.

Figure 7: Results of Question 14.

The next question asks students to measure how

useful the platform would be for their studying out-

side the class. The majority of the participants agree

that having access to this platform would beneﬁt their

studying, with 86,7% selecting either option 4 or 5, as

seen in Figure 8.

Figure 8: Results of Question 15.

Question 16 inquires how much the students think

having access to the platform would have improved

their ﬁnal CA grade, when they frequented the course.

Each student’s response will naturally be inﬂuenced

by how low or high their ﬁnal grade was - neverthe-

less, more than half (60%) of the answers were posi-

tive, with scores of either 4 or 5, as shown in Figure

Figure 9: Results of Question 16.

The ﬁnal question of the survey is very straight-

forward, simply asking the participants whether they

would use the tested platform, were it available when

they had the CA course unit. Results were extremely

positive, with 100% of the students selecting option

”Yes”.

5.1 Threats to Validity

Since the form was sent during summer break, and the

study was already limited to a speciﬁc group of stu-

dents, adherence was low. Nonetheless, student feed-

back was highly positive, with the participants ﬁnd-

ing the platform adequate and useful for CA classes.

These results could be further improved if student ad-

eduARM: Web Platform to Support the Teaching and Learning of the ARM Architecture

347

herence to the survey was higher, whose low values

were a consequence of the timing chosen for valida-

tion.

Another important aspect that would reinforce the

platform’s validation is the inclusion of the pipelined

CPU version. Due to this version not yet being com-

pleted at the time of user testing, the survey only

contemplates the unicycle version of the CPU, which

limits the validity of the platform, as the pipelined

version is a key part of the project and essential for

understanding the CPU’s more complex behaviour.

Nevertheless, testing the unicycle brought forth valu-

able feedback on how to improve the interface, which

helps towards reﬁning the platform to become its best

possible version.

6 CONCLUSIONS

The platform described throughout this paper aspires

to be of use to both computer architecture teachers

and students in the academic community, as well

as presenting a source of innovation in the ﬁeld of

ARMv8 educational tools capable of simulating the

CPU.

Considering the use of simulators is believed to

greatly improve students’ understanding, this work

expects to aid in the comprehension of subjects that

would otherwise be difﬁcult to understand through

more conventional teaching methods. Thus, the

developed platform offers an interactive approach

to learning the CPU’s components and overall be-

haviour, for both its unicycle and pipelined versions.

The successful adoption of this platform in CA

classes would further emphasize that the goals of this

project were accomplished, and that CA students have

access to an intuitive and adequate platform capable

of helping them further comprehend the topics lec-

tured in classes and, ultimately, positively contribut-

ing to their academic success.

REFERENCES

Agrawal, R., Bandara, S., Ehret, A., Isakov, M., Mark, M.,

and Kinsy, M. A. (2019). The brisc-v platform: A

practical teaching approach for computer architecture.

In Proceedings of the Workshop on Computer Archi-

tecture Education, pages 1–8.

Arif, S. (2015). Visual - a highly visual arm emulator. https:

//salmanarif.bitbucket.io/visual/index.html.

ARM (2021). Graphical micro-architecture simulator.

https://www.arm.com/zh-TW/resources/education/

education-kits/legv8.

Branovic, I., Giorgi, R., and Martinelli, E. (2004). Web-

mips: a new web-based mips simulation environment

for computer architecture education. In Proceedings

of the 2004 workshop on Computer architecture edu-

cation: held in conjunction with the 31st International

Symposium on Computer Architecture, pages 19–es.

Camarmas-Alonso, D., Garc

ıa-Carballeira, F., Del-Pozo-

nal, E., and Mateos, A. C. (2021). A new generic

simulator for the teaching of assembly programming.

In 2021 XLVII Latin American Computing Conference

(CLEI), pages 1–9. IEEE.

Garc

ıa-Carballeira, F., Calder

on-Mateos, A., Alonso-

Monsalve, S., and Prieto-Cepeda, J. (2019). Wepsim:

an online interactive educational simulator integrating

microdesign, microprogramming, and assembly lan-

guage programming. IEEE Transactions on Learning

Technologies, 13(1):211–218.

Gupta, K. and Sharma, T. (2021). Changing trends in com-

puter architecture : A comprehensive analysis of arm

and x86 processors. International Journal of Scien-

tiﬁc Research in Computer Science, Engineering and

Information Technology, pages 619–631.

Landers, B. (2017). Rars - risc-v assembler and runtime

simulator. https://github.com/TheThirdOne/rars.

Larus, J. R. (1990). Spim s20: A mips r2000 simulator.

Technical report, University of Wisconsin-Madison

Department of Computer Sciences.

Nova, B., Ferreira, J. C., and Ara

ujo, A. (2013). Tool to sup-

port computer architecture teaching and learning. In

2013 1st International Conference of the Portuguese

Society for Engineering Education (CISPEE), pages

1–8. IEEE.

Patterson, D. A. and Hennessy, J. L. (2016). Computer

organization and design ARM edition: the hardware

software interface. Morgan kaufmann.

Vollmar, K. and Sanderson, P. (2006). Mars: an education-

oriented mips assembly language simulator. In Pro-

ceedings of the 37th SIGCSE technical symposium on

Computer science education, pages 239–243.

CSEDU 2023 - 15th International Conference on Computer Supported Education

348
