A Decision Support System for Multi-Trip Vehicle Routing Problems

Mirko Cavecchia

1 a

, Thiago Alves de Queiroz

2 b

, Manuel Iori

1 c

, Riccardo Lancellotti

3 d

and Giorgio Zucchi

4,5 e

Department of Sciences and Methods for Engineering, University of Modena and Reggio Emilia,

42122, Reggio Emilia, Italy

Institute of Mathematics and Technology, Federal University of Catal ˜ao, 75704-020, Catal ˜ao-GO, Brazil

Department of Engineering “Enzo Ferrari”, University of Modena and Reggio Emilia, 41125, Modena, Italy

School of Doctorate E4E, University of Modena and Reggio Emilia, 41121, Modena, Italy

R&D Department, Coopservice S.coop.p.a, 42122, Reggio Emilia, Italy

Keywords:

Decision Support System, Micro-Services, Multi-Trip Vehicle Routing Problem.

Abstract:

Emerging trends, driven by industry 4.0 and Big Data, are pushing to combine optimization techniques with

Decision Support Systems (DSS). The use of DSS can reduce the risk of uncertainty of the decision-maker

regarding the economic feasibility of a project and the technical design. Designing a DSS can be very hard,

due to the inherent complexity of these types of systems. Therefore, monolithic software architectures are not

a viable solution. This paper describes the DSS developed for an Italian company based on a micro-services

architecture. In particular, the services handle geo-referenced information to solve a multi-trip vehicle routing

problem with time windows. To face the problem, we follow a two-step approach. First, we generate a set

of routes solving a vehicle routing problem with time windows using a metaheuristic algorithm. Second,

we calculate the interval in which each route can start and end, and then combine the routes together, with

an integer linear programming model, to minimize the number of used vehicles. Computational tests are

conducted on real and random instances and prove the efﬁciency of the approach.

1 INTRODUCTION

The vehicle routing problem (VRP) is a milestone

problem in combinatorial optimization whose pri-

mary purpose is to ﬁnd an optimal set of routes for

a ﬂeet of vehicles in order to visit a set of customers.

The VRP can be used to optimize several real-world

applications, including the distribution of goods to

customers, internal and external logistics, and the

transportation of people (Golden et al., 2008) (Toth

and Vigo, 2014).

Countless works have been produced in the VRP

literature, and a variety of generalizations have been

proposed over the years to deal with the different con-

straints that can be encountered in real-world applica-

https://orcid.org/0000-0002-4129-9876

https://orcid.org/0000-0003-2674-3366

https://orcid.org/0000-0003-2097-6572

https://orcid.org/0000-0002-9470-8784

https://orcid.org/0000-0002-5459-7290

tions (Vidal et al., 2020).

One of the main problem variants is the VRP with

time windows (VRPTW), which imposes the service

of each customer to be executed within a given time

interval, called a time window. To the best of our

knowledge, the ﬁrst exact method for the VRPTW

was proposed by (Desrochers et al., 1992), who used

a column generation approach. Since then, many dif-

ferent VRPTW applications have been addressed in

the literature, for example, in the delivery of food

(Amorim et al., 2014), in the recharging of electric

vehicles (Keskin and C¸ atay, 2018), and in the deliv-

ery of pharmaceutical products (Kramer et al., 2019).

Another well-established variant is the multi-trip

VRPTW (MTVRPTW), a problem in which each ve-

hicle can perform multiple routes, each starting and

ending at the depot, to better ﬁt the customers’ time

windows. Very recently, (Mor and Speranza, 2022)

surveyed the VRP, the VRPTW, the MTVRPTW, and

many other variants, including periodic routing prob-

lems and inventory routing problems.

Cavecchia, M., Alves de Queiroz, T., Iori, M., Lancellotti, R. and Zucchi, G.

A Decision Support System for Multi-Trip Vehicle Routing Problems.

DOI: 10.5220/0011806600003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 1, pages 335-343

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

335

The problem solved in this work originates from

a real application at Coopservice Soc.coop.p.A., an

Italian service company operating in the delivery of

products to customers in several ﬁelds. Optimization

algorithms have already been created for this appli-

cation. In detail, (Kramer et al., 2019) proposed a

metaheuristic to solve a VRPTW with additional con-

straints, whereas (Mendes. and Iori., 2020) combined

a VRPTW with the need of scheduling trucks and

drivers and solved the resulting problem by means of

a mathematical model. Both works proposed a tai-

lored solution method for a problem but did not con-

sider the issues derived from its application in prac-

tice.

In this article, we propose a decision support sys-

tem (DSS) to help companies in solving routing prob-

lems by easily invoking optimization algorithms. The

DSS contains an optimization module to solve the

MTVRPTW. In addition, it also includes a module

based on the open source routing machine (OSRM),

to calculate distance and travel time matrices using

OpenStreetMap data (Luxen and Vetter, 2011). It also

embeds preprocessing modules, to be invoked before

optimization starts, that consist of accurate data anal-

ysis to, e.g., ﬁnd the latitude and longitude coordi-

nates starting from addresses and map customers in

the road network. The DSS is based on the use of

micro-services to obtain high scalability, maintain-

ability, and fault tolerance. It has already been used

by Coopservice in a real-world VRP application, and

it has helped the company ﬁnd an effective low-cost

weekly delivery strategy.

The remainder of the paper is organized as fol-

lows. In Section 2, the developed DSS is drawn in de-

tail. Section 3 provides a formal description of the op-

timization problem addressed. In Section 4, our two-

step approach for solving the problem is discussed.

Section 5 reports the outcome of computational tests

executed on real and randomly generated instances.

Finally, Section 6 presents the concluding remarks.

2 DECISION SUPPORT SYSTEM

Decision support systems are computer-based infor-

mation systems that facilitate decision-making and

can be used in a variety of contexts, such as busi-

ness, ﬁnance, healthcare, and education. DSSs can

be categorized based on various criteria, including

their scope and functionality. According to (Power

and Sharda, 2009), some common categories of DSSs

are communications-driven, data-driven, document-

driven, knowledge-driven, and model-driven.

2.1 Business Process Overview

The proposed software framework is a model-driven

DSS and is tailored to the speciﬁc business process

we aim to support. For this reason, we now shortly

describe the main tasks required to provide a practical

solution to an MTVRPTW.

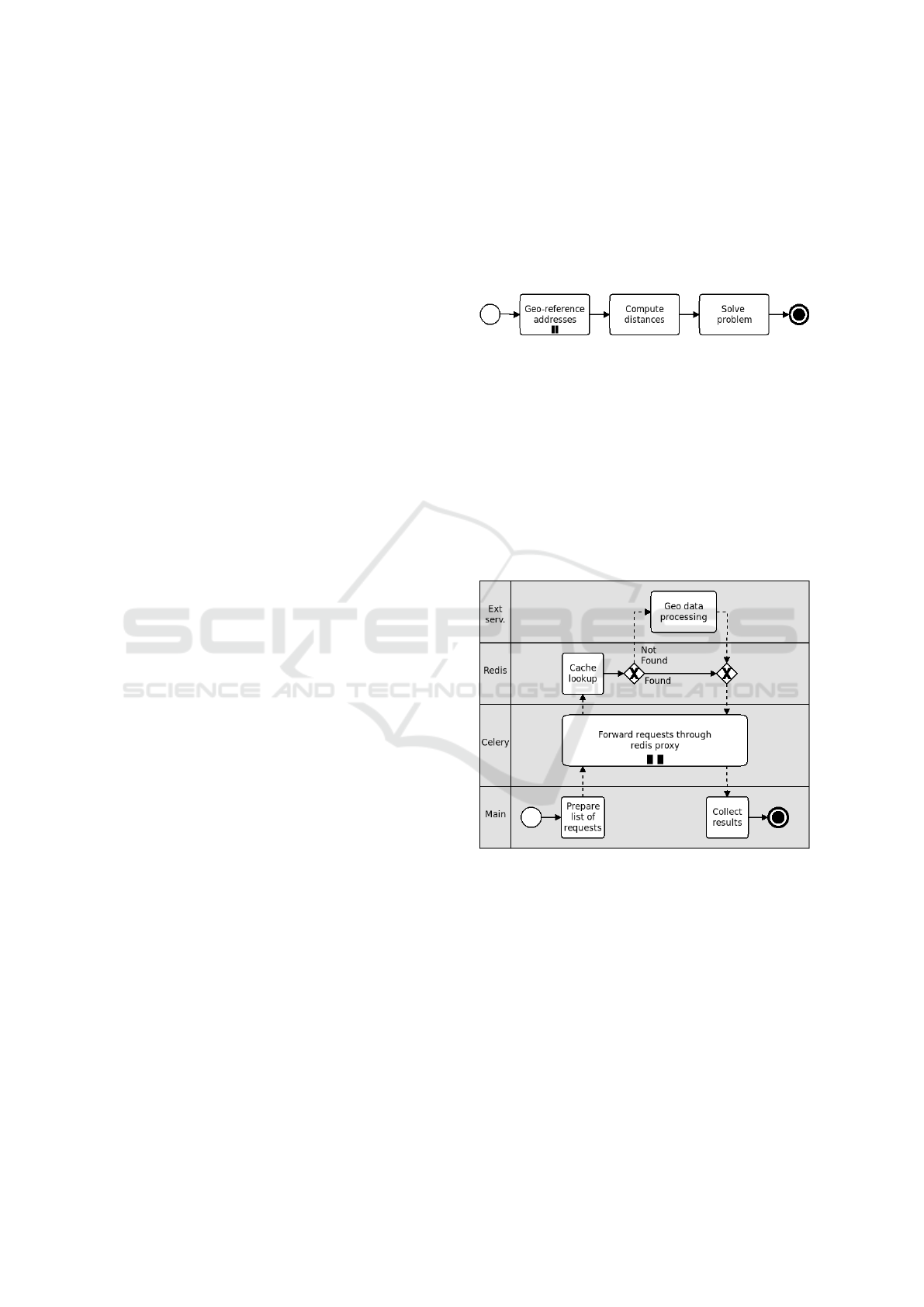

Figure 1: BPM description of the business process.

The basic structure of the business process is out-

lined in Figure 1 using a BPM notation. To take de-

cisions, we start with a list of addresses that are the

way-points of the trips. This list of addresses is geo-

referenced (ﬁrst box of the graph). The resulting list

of coordinates is then used to create a distance ma-

trix (travel times are used as the metric to express the

distance between points). Finally, the distance matrix

is used to deﬁne the MTVRPTW input that is solved

using the proposed two-step approach.

Figure 2: Address geo-referencing and distance computa-

tion.

Both geo-referencing and distance calculation

are complex tasks that should be carried out re-

lying on external services. However, such APIs

are limited in the invocation rate. An interested

reader can refer to https://developers.arcgis.com/

python/api-reference/arcgis.gis.toc.html for more de-

tails. To this aim, in Figure 2 we outline how these

tasks are carried out. First, the list of requests is

prepared and submitted to a task queue implemented

through Celery (https://docs.celeryq.dev/). A Celery

task ID is used to identify a list of requests. This

task ID is used to track the advancement of the ad-

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

336

dress resolution/distance calculation processes. The

requests from Celery are not sent directly to the exter-

nal APIs but are passed through a Redis object cache

(https://redis.io/). Redis can store resolutions and dis-

tances in order to reduce the load on the external APIs

and speed up the Celery tasks.

2.2 Services Deﬁnition

We now deﬁne the services that are combined to cre-

ate the vehicle routing application. The services have

been deﬁned using an OpenAPI speciﬁcation. How-

ever, for space reasons, only a short summary of the

services is provided. Services are divided into three

sets, according to the main components of the busi-

ness process. The geo-referencing process includes

the following tasks:

• Submission of the list of addresses to geo-

reference. The supported input format includes

also .xls ﬁles for compatibility with other tasks

of the company. The submission of the address

list returns an ID of the geo-referencing task;

• Task status. Given the task ID, the system returns

the number of resolved addresses, in order to sup-

port user feedback on this task;

• Coordinates download. Once the task is com-

pleted, the list of coordinates can be retrieved.

Both JSON and .xls output are supported. The

former is to show points on a map (interacting

with Open Street Maps APIs), the latter as an in-

put for the next step to compute the distance ma-

trix.

The structure of the APIs for the second task is

similar, with the main difference that the main input

is the .xls ﬁle with the coordinates and the output is

an .xls ﬁle with the distance matrix. The task-based

to monitor the progress is basically the same as the

previously-described process.

The last step of the business process includes

the two-step approach for the MTVRPTW. The main

APIs can be summarized as:

• Problem resolution. The API invokes the solver

algorithm that is implemented as a separate task

that receives input from the Web APIs. The out-

put of the algorithm is provided as the output of

the API call. An additional handle is provided to

guarantee access to the solver invocation at subse-

quent times;

• Access to solution data. This API uses the handle

provided by the previous API to download the de-

tailed solution. The solution can be exported both

as a JSON structure, for visualization, and as an

.xls ﬁle.

2.3 Technologies

To support companies in solving routing problems

and to increase the knowledge and usability of opti-

mization algorithms by non-expert users, we have de-

veloped an intuitive user-friendly web interface as a

modular application based on micro-services.

A micro-services architecture is made up of small

independent and loosely-coupled building blocks,

each representing a service. This type of architecture

has completely changed the way software is devel-

oped, making it extremely agile and leading to end-

less advantages over the monolithic architectures of

the past, such as scalability, maintainability, and fault

tolerance (Taibi et al., 2017).

The DSS is implemented through Docker, a

widely used software platform to develop, test and de-

ploy applications in a short time. Docker power is to

package heterogeneous functionalities inside isolated

images, called containers. These containers can be

easily managed with high-level application program-

ming interfaces (APIs) (https://docs.docker.com/).

The DSS is divided into two parts, the front-end,

and the back-end. The ﬁrst one deals with user in-

teractions and is coded in React.JS, an open-source

JavaScript framework used for web user interfaces.

The second one is responsible for handling requests,

computations, and data storage and is coded in Python

using the Django web framework and model-view-

controller paradigm (Hunt, 2003). The back-end part

consists of four containers:

• App contains the optimization algorithms;

• OSRM is a C++ routing service designed to be run

on OpenStreetMap data;

• Celery is an asynchronous task queue manager to

share the task on different threads;

• Cache Redis is a service that manages the sending,

receiving, and queuing of messages with Celery.

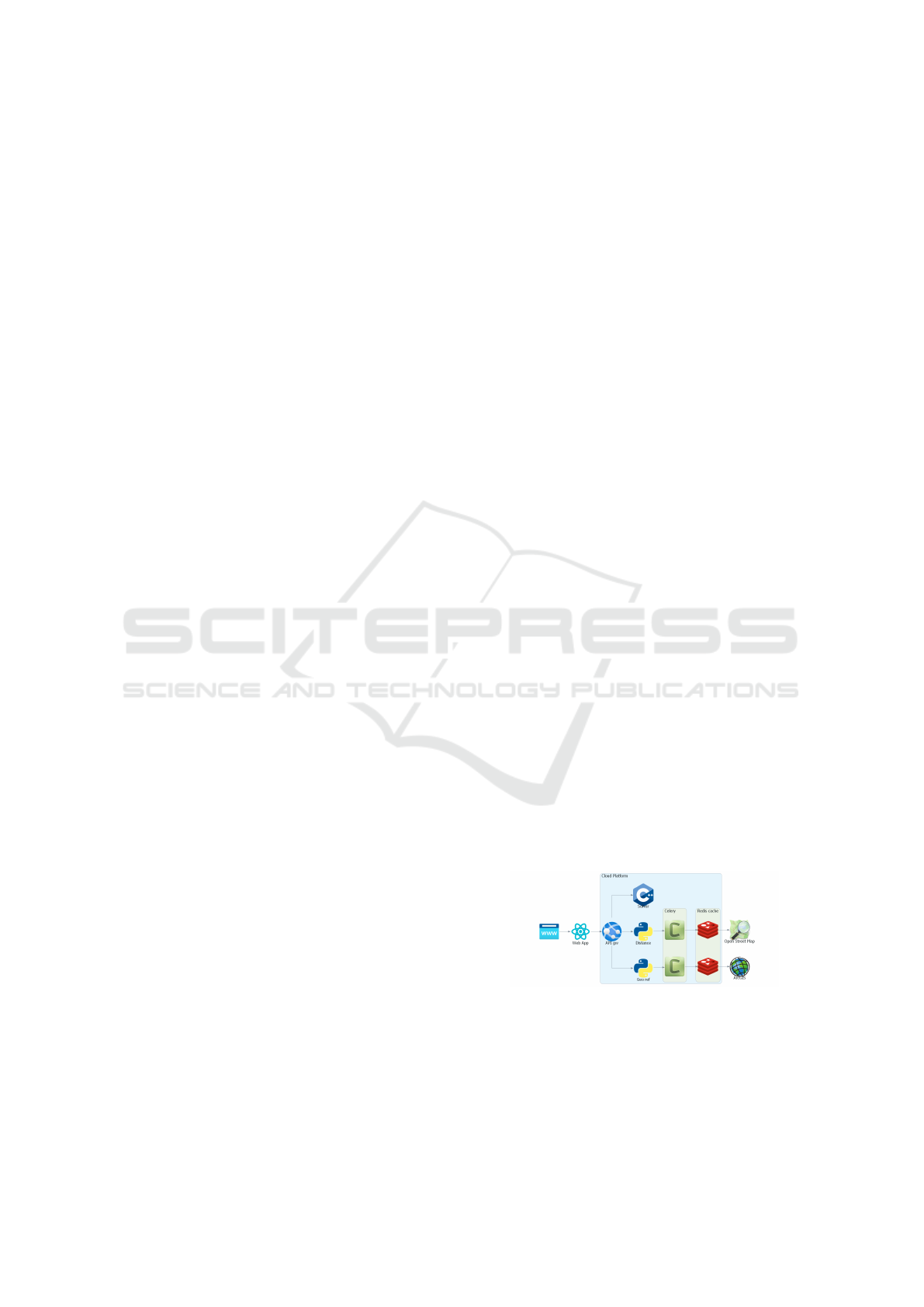

Figure 3: Web Interface Architecture.

The DSS has several operational features. Figure

3 shows a scheme of the DSS software architecture.

The essential ones for our purposes are the following:

• Geo-reference: to geographically localize a list of

addresses provided in input through an Excel ﬁle.

A Decision Support System for Multi-Trip Vehicle Routing Problems

337

The respective output is an Excel ﬁle with the co-

ordinates added to each address;

• Travel matrix generation: to create travel distance

and time matrices starting from the coordinates of

the previous module;

• MTVRPTW: to solve the MTVRP starting from

customers’ time slots, depots information, and

vehicle types characteristics. Figure 4 shows a

screenshot of the MTVRPTW module.

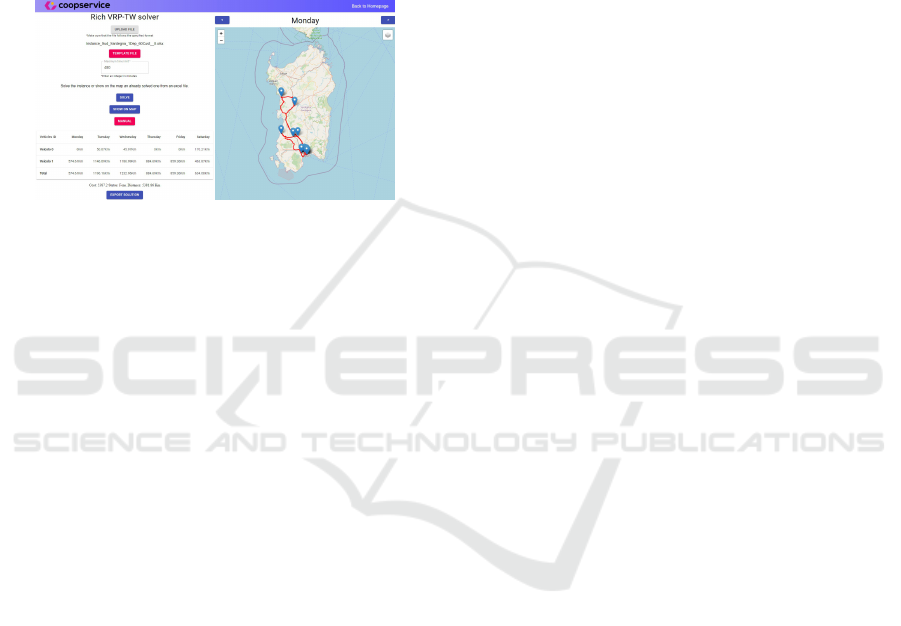

Figure 4: A screenshot of the MTVRPTW module.

3 PROBLEM DESCRIPTION

The MTVRPTW is formalized as follows. We are

given a direct graph G = (N, A) with a set of nodes

N and a set of arcs (i.e., directed edges) A = {(i, j) :

i, j ∈ N, i 6= j}. The set of nodes is divided into depots

(D) and customers (C), so that N = D ∪C. A travel-

ing time t

i j

is associated with each arc (i, j) ∈ A. A

hard time window [e

, l

] is associated with each node

i ∈ N, where e

is the earliest arrival time and l

is the

latest one. The vehicle visiting i cannot arrive after l

and it has to wait in case it arrives before e

Each customer in C may require deliveries on mul-

tiple days. Let P denote the set of days in which we

need to create the planning. Each customer i ∈ C has a

demand q

in day p ∈ P and is associated with a ser-

vice time s

. The vehicle ﬂeet is heterogeneous and

divided into a set V of vehicle types. Each subset of

vehicles of the same type is deﬁned by K

, and all ve-

hicles k ∈ K

are identical to one another, that is, they

have the same loading capacity and may travel along

the same roads (e.g., mountainous arcs can be traveled

only by the smallest vehicles).

A feasible solution for the problem must respect

the following constraints: each route is associated

with a unique depot and must respect the capacity

of the vehicle; each vehicle can perform more than

one route in a single day, but each route starts and

ends at the depot; each customer is associated with

exactly one route and their demand must be accom-

plished within a single visit; each customer must be

visited inside their time window. In addition, the sum

of the durations of the routes assigned to each vehicle

should not exceed T = 480 minutes per day. Further-

more, we assume that, before starting any route, the

vehicle has a ﬁxed loading time of ∆ = 30 minutes

(which must be included in the overall T limit).

The objective of the problem is to obtain a set of

routes that satisfy the above constraints and minimize

the number of used vehicles. All vehicles can operate

on all days of set P. The problem is solved for all days

p ∈ P, and the solution for a day is independent of the

solutions for the other days.

4 SOLUTION APPROACH

To solve the MTVRPTW, we propose a two-phase

method. In the ﬁrst phase, we solve the VRPTW to

obtain a set R of routes that satisfy the customers’

demands, as explained in Section 4.1. In the second

phase, we obtain a solution to the MTVRPTW, with a

methodology that accepts variations in the start times

of the routes, as described in Section 4.2. To this aim,

we compute the earliest and latest possible start time

of each route and then invoke a mathematical model

to obtain the MTVRPTW solution.

4.1 Solving the VRPTW

(Kramer et al., 2019) solved a VRPTW based on a

real-world distribution case study for Coopservice.

The problem included a number of additional con-

straints, not described here in detail for the sake of

conciseness (this type of problem is usually called

rich VRP in the literature). The problem was related

to the distribution of pharmaceutical products to hos-

pitals and healthcare facilities, aiming to minimize the

routing and warehouse costs. The authors proposed a

metaheuristic algorithm and tested it on realistic and

artiﬁcial instances. The realistic instances contain up

to 232 nodes, and the artiﬁcial ones contain up to 300

nodes.

The algorithm by (Kramer et al., 2019) is a multi-

start iterated local search, that starts from a solution

obtained with a constructive heuristic, and improves

it by means of local search and perturbation proce-

dures. In the constructive heuristic, routes are cre-

ated by adding customers to the closest depot with a

greedy approach that inserts customers one at a time

in the route that generates the lowest cost. Time win-

dows can be violated but this induces a penalization

in the objective function value.

The local search consists of a randomized variable

neighborhood descent that has seven neighborhoods.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

338

The neighborhoods are based on inter- and intra-route

movements, like swap and relocation. The perturba-

tion procedure is used to escape from local optima so-

lutions by modifying the routes through random swap

movements and customer relocations.

We use this heuristic to obtain a set R of routes to

the MTVRPTW, but these routes do not yet take into

consideration the fact that a vehicle can perform mul-

tiple trips in a single day. In other words, depending

on the customers’ time windows, a vehicle can return

to the depot and perform another route, reducing the

number of vehicles needed.

4.2 Solving the MTVRPTW

The proposed approach receives in input a set R of

routes, each with its own starting time computed by

the (Kramer et al., 2019) algorithm. Instead of as-

suming that the starting time of each route is ﬁxed, we

accept to modify it by still ensuring that all customers

in the route are visited within their time windows, but

obtaining more freedom in the possible assignment of

multiple routes to the same vehicle. In this case, we

face an optimization problem related to deﬁning the

starting time of each route so as to minimize the num-

ber of used vehicles.

This problem has to be solved for each vehicle

type v ∈ V, each depot d ∈ D, and each day p ∈ P.

This is due to the fact that only routes that depart on

the same day from the same depot and use the same

vehicle type can be merged one with the other.

This optimization problem was solved by (Savels-

bergh, 1992) through a forward-time slack procedure.

The procedure is a key component of our approach,

and we describe it in full detail next.

Let r ∈ R be a route, and N

be the sequence of

nodes visited by r. For each node i ∈ N

, we deﬁne

as the earliest feasible start time, W T

as the cumu-

lative idle time, and FT

as the partial forward slack

time. To ﬁnd the start time of route r, we initially set

= e

, W T

= 0, and FT

= l

− e

. For the next

nodes i ∈ N

, we calculate:

= max(ST

i−1

i−1,i

+ s

; e

+ s

), (1)

W T

= W T

i−1

+ (ST

− ST

i−1

−t

i−1,i

− s

i−1

), (2)

= min(FT

i−1

; l

− ST

+W T

). (3)

We also need to compute the latest start time LT

of each node i ∈ N

. In this case, we start calculating

it from the last node n ∈ N

, setting LT

= l

, and then

proceed backward until the ﬁrst node of the route as:

i−1

= min(LT

−t

i−1,i

− s

; l

i−1

i = n, n − 1, . . . , 1. (4)

Then, the earliest and latest start times of the route

r are calculated by:

est

= e

+ min(FT

; W T

), (5)

lst

= LT

. (6)

The parameters above are used in the next math-

ematical model. The aim of the model is to combine

the routes r ∈ R to minimize the number of used ve-

hicles per day. The model adopts three sets of binary

decision variables and one set of continuous decision

variables, which are deﬁned in Table 1. Parameter

represents the total duration of route r ∈ R. This

parameter takes into consideration the traveling time

between the nodes in r, the ﬁxed loading time, and

the service time at each node in r. Parameter M rep-

resents a big number.

Table 1: Model decision variables.

rkv

Binary variable taking the value 1 if route

r ∈ R is assigned to a vehicle k ∈ K

of type

v ∈ V , 0 otherwise.

Binary variable taking the value 1 if a ve-

hicle k ∈ K

of type v ∈ V is used, 0 other-

wise.

rskv

Binary variable taking the value 1 if route

r ∈ R precedes route s ∈ R, and they are

both assigned to the same vehicle k ∈ K

type v ∈ V , 0 otherwise.

rkv

Continuous variable indicating the starting

time of route r ∈ R assigned to vehicle k ∈

of type v ∈ V .

The resulting mathematical model is given in (7)-

(18) below. It is executed for each day p ∈ P, and so

it only considers the routes R

⊆ R that are performed

on the day p.

= min

∑

v∈V

∑

k∈K

(7)

s.t. x

rkv

≤ y

∀r ∈ R

, ∀v ∈ V, ∀k ∈ K

(8)

∑

v∈V

∑

k∈K

rkv

= 1, ∀r ∈ R

(9)

∑

r∈R

rkv

≤ T, ∀v ∈ V, ∀k ∈ K

(10)

rskv

+ z

srkv

≥ x

rkv

+ x

skv

− 1,

∀v ∈ V, ∀k ∈ K

, ∀r, s ∈ R

: r 6= s (11)

rskv

+ z

srkv

≤ 1,

∀v ∈ V, ∀k ∈ K

, ∀r, s ∈ R

: r 6= s (12)

A Decision Support System for Multi-Trip Vehicle Routing Problems

339

rkv

+ T

≤ t

skv

+ M(1 − z

rskv

∀v ∈ V, ∀k ∈ K

, ∀r, s ∈ R

: r 6= s (13)

est

≤ t

rkv

≤ lst

∀r ∈ R

, ∀v ∈ V, ∀k ∈ K

(14)

rkv

∈ {0, 1},

∀r ∈ R

, ∀v ∈ V, ∀k ∈ K

(15)

∈ {0, 1}, ∀v ∈ V, ∀k ∈ K

(16)

rskv

∈ {0, 1},

∀r, s ∈ R

: r 6= s, ∀v ∈ V, ∀k ∈ K

(17)

rkv

≥ 0,

∀r ∈ R

, ∀v ∈ V, ∀k ∈ K

(18)

The objective function (7) aims to minimize the

number of used vehicles. Constraints (8) ensure that

each route r is assigned to a given vehicle k only if k

performs that route. Constraints (9) guarantee that all

routes are served by a vehicle. Constraints (10) ensure

that multiple routes performed by a vehicle must be

executed within the maximum vehicle working time

T . Constraints (11) and (12) guarantee the precedence

between routes that are performed by the same vehi-

cle. In (11), if two routes are performed by the same

vehicle, then one must precede the other. Instead, in

(12), the ﬁrst route precedes the second, or the sec-

ond route precedes the ﬁrst one. In constraints (13),

if one route precedes another, then the second route

must start only when the vehicle ﬁnishes servicing the

ﬁrst route, including the ﬁxed loading time needed to

satisfy the second route. Constraints (14) ensure that

the starting time of each route is between the earli-

est and latest start time, computed using (5) and (6),

respectively. Finally, constraints (15)-(18) deﬁne the

variables domain.

5 COMPUTATIONAL RESULTS

We computationally evaluated the DSS on a real-

world application encountered by Coopservice. The

algorithms in Section 4.1 were coded in C++ and

those in Section 4.2 in Python 3.8. Model (7)-

(18) was solved by means of Coin-OR (https://www.

coin-or.org/documentation.html). The computational

experiments were executed on an Intel(R) Core(TM)

i7-8750H CPU 2.20GHz, with 16 GB of RAM, run-

ning Microsoft Windows 11 Home 64-bits. A time

limit of 10 seconds was imposed on each run.

The data of the real-world application have been

obtained from the operations planned in the Sardinia

region, Italy. The area is composed of 309 customers

that are divided into two groups: North Sardinia, with

151 customers, and South Sardinia, with 158 cus-

tomers. The North area is equipped with three de-

pots, and the South with a single one. Each depot is

equipped with two types of vehicles. The application

has not started yet and is still in its initial planning

phase. Minimizing the number of vehicles is thus im-

portant to establish the correct size and composition

of the ﬂeet.

For the creation of the scenario, geo-referencing

and distance computation services have been used.

With this data, the solver was then invoked to com-

pute the optimized set of routes and the correspond-

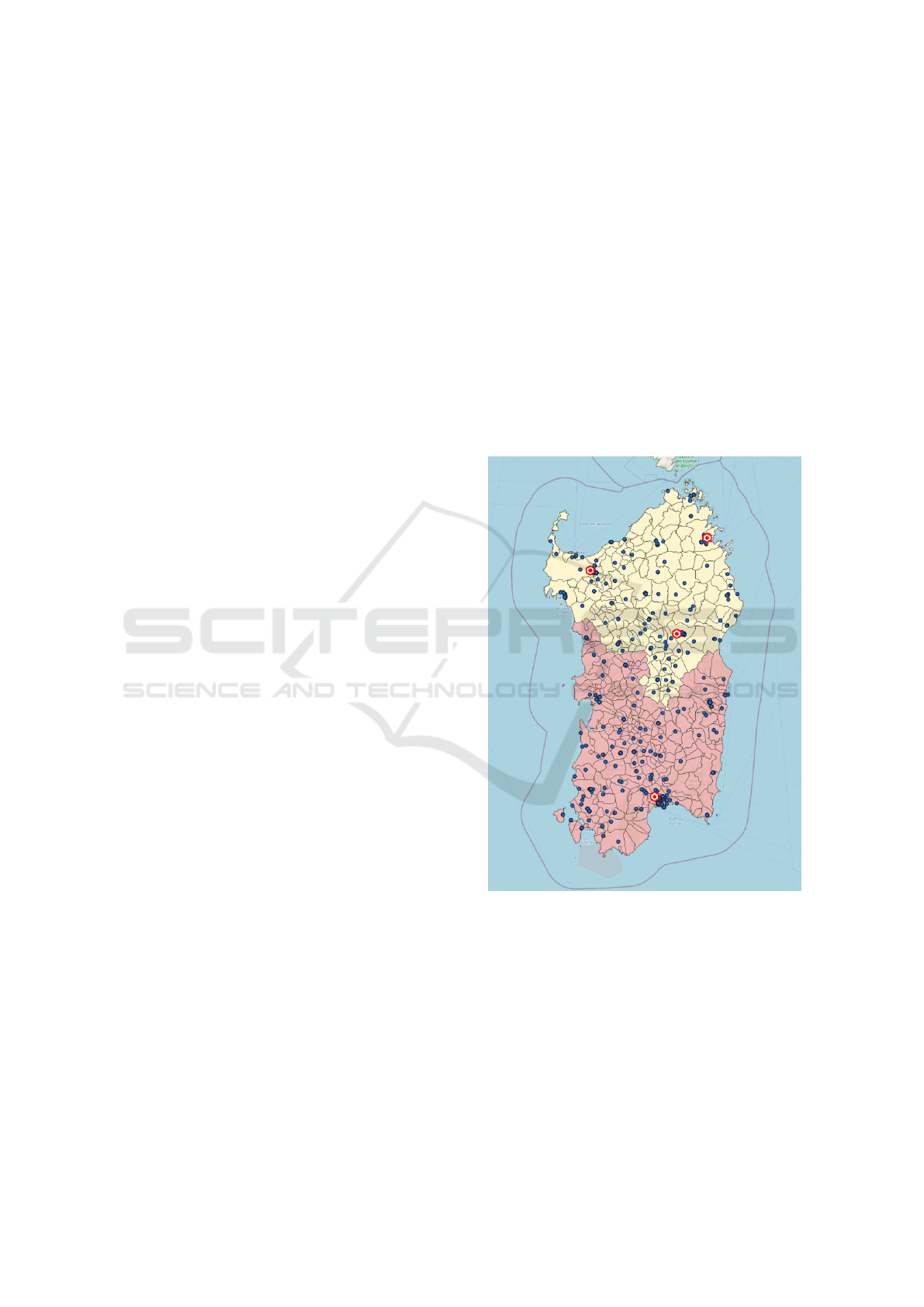

ing vehicles to be used. Figure 5 gives a graphical

representation of the area, where blue circles rep-

resent the customers and red hexagons the depots.

The ﬁgure has been obtained using QGIS software

(https://docs.qgis.org/3.22/en/docs/index.html).

Figure 5: Coopservice data of the Sardinia region.

The aim is to generate a weekly schedule of the

routes and minimize the number of used vehicles

through the model proposed in this paper.

We consider 6 working days for the North and for

the South, thus obtaining a total of 12 real instances.

Table 2 reports the results that we obtained, for each

day p and each area. Column |R

| indicates the num-

ber of routes generated by solving the VRPTW. Col-

umn Z

reports the number of used vehicles per day p

obtained after solving the MTVRPTW. Column t(s)

reports the computing times in seconds. In the ﬁrst

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

340

group of instances (North Sardinia), the algorithm re-

duces the number of vehicles from 49 to 46, and in

the second one (South Sardinia) from 55 to 50. The

computing time is always below one second per in-

stance. It is important to take into consideration that,

in Italy, the cost of a large vehicle (more than 120

tons) can easily exceed 50.000 euros. Therefore, even

if the routes reduction (3 in the North and 5 in the

South) may appear small at a ﬁrst glance, they indeed

represent a signiﬁcant cost saving for the company.

Table 2: Computational results on the real instances.

Instance p |R

| Z

t(s)

North Sardinia 1 8 8 0.322

North Sardinia 2 9 9 0.437

North Sardinia 3 9 9 0.425

North Sardinia 4 10 9 0.605

North Sardinia 5 10 8 0.612

North Sardinia 6 3 3 0.038

Total 49 46 2.440

Instance p |R

| Z

t(s)

South Sardinia 1 10 9 0.358

South Sardinia 2 11 10 0.430

South Sardinia 3 11 9 0.933

South Sardinia 4 9 8 0.295

South Sardinia 5 9 9 0.270

South Sardinia 6 5 5 0.049

Total 55 50 2.334

To obtain a more extensive validation of the algo-

rithm, we have created additional random instances

based on the real ones. To this aim, we generated 20

weekly instances in the following way:

• Group 1: it consists again of North Sardinia, but

this time the number of depots is randomly se-

lected in the set {1, 2, 3} and the number of cus-

tomers is a multiple of 30, going from 30 to 150.

All customers are randomly selected from the

original 151 customers in the real instance. We

assume that there are two types of vehicles avail-

able in each depot, as in the original instance. The

customers are randomly divided into six working

days and their demand is coincident with the one

they had in the original instance;

• Group 2: it is equivalent to Group 1 but refers to

South Sardinia. In this case, all instances have one

depot, two types of vehicles, six working days,

and 30, 60, 90, 120, or 150 customers divided in

the working days.

Table 3 presents the aggregate computational re-

sults obtained on the 20 random weekly instances.

Each line gives total values over the six runs that have

been executed (one per working day). The ﬁrst three

columns report the name of the instances, the number

|D| of depots, and the overall number |C| of customers

in the week. The total number of VRPTW routes is

indicated by |R| and is computed as |R| =

∑

Similarly, the total number of MTVRPTW vehicles

is indicated by Z and is computed as Z =

∑

. The

difference between the two values is reported in col-

umn ∆, with ∆ = R − Z. The rightmost column, t(s),

gives the total computing time in seconds over the six

runs.

By looking at the results, we observe that no

improvement has been obtained in three instances

(namely, Inst-02, Inst-05, and Inst-06), all of which

refer to North Sardinia. For all other instances, in-

stead, the optimization algorithm managed to de-

crease the number of used vehicles. The improvement

is equal to 2.15 on average and raises to 5 for the last

instance. Notably, the computing time is always be-

low three seconds.

Table 3: Computational results on the random instances.

Instance |D| |C| |R| Z ∆ t(s)

Inst-01 1 30 18 16 2 0.226

Inst-02 1 60 23 23 0 0.263

Inst-03 1 90 38 35 3 0.641

Inst-04 1 120 45 42 3 1.083

Inst-05 1 150 49 49 0 1.190

Inst-06 2 30 13 13 0 0.158

Inst-07 2 60 28 27 1 0.460

Inst-08 2 90 31 29 2 0.550

Inst-09 2 120 42 38 4 1.181

Inst-10 2 150 49 46 3 1.739

Inst-11 3 30 15 14 1 0.235

Inst-12 3 60 29 27 2 0.742

Inst-13 3 90 32 30 2 0.813

Inst-14 3 120 39 36 3 1.334

Inst-15 3 150 49 46 3 2.440

Inst-16 1 30 18 16 2 0.197

Inst-17 1 60 29 25 4 0.382

Inst-18 1 90 39 38 1 0.688

Inst-19 1 120 43 41 2 0.840

Inst-20 1 150 55 50 5 2.334

Average 34.20 32.05 2.15 0.875

The DSS proposed in this paper integrates a visu-

alization tool to plot the elaborated routes on a map.

The visualization part is just a front-end for the under-

lying micro-services. The simpliﬁed user interface al-

lows a non-expert user to easily visualize the solution

and check the feasibility of the routes. As an exam-

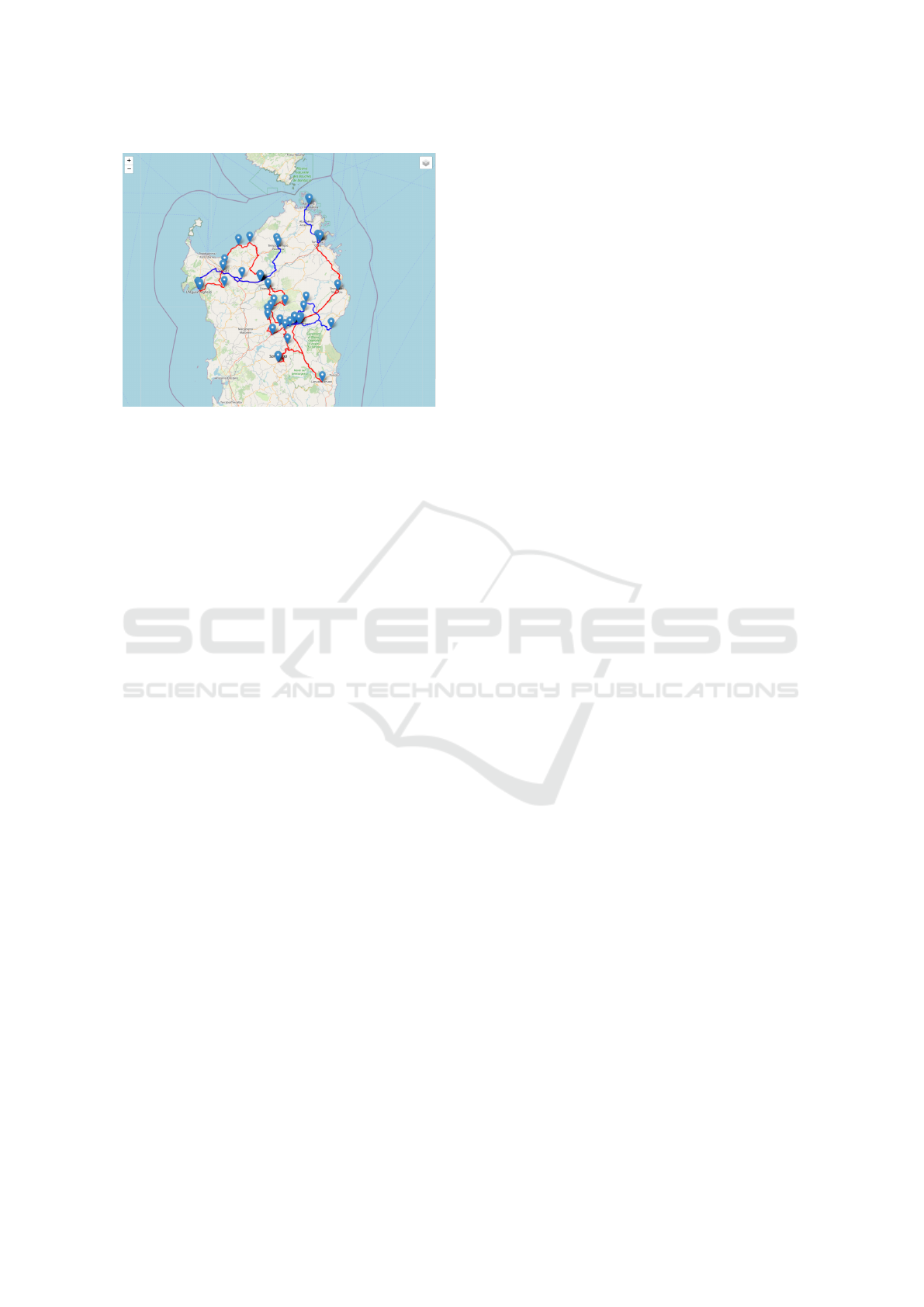

ple, Figure 6 reports the solution obtained for the real

instance of North Sardinia, in which different colors

indicate a different type of used vehicle.

A Decision Support System for Multi-Trip Vehicle Routing Problems

341

Figure 6: Detail of a solution generated by the MTVRPTW

model.

6 CONCLUDING REMARKS

Decision support systems (DSS) are becoming more

popular in companies. This paper described the de-

velopment of a model-driven DSS aimed at helping

decision-makers in dealing with complex transporta-

tion problems. The proposed DSS contains mod-

ules to solve vehicle routing problems, particularly

the multi-trip vehicle routing problem with time win-

dows (MTVRPTW). Due to the complexity of the

tasks involved, the operations are split into several

micro-services that can geo-reference data and com-

pute distances (interacting efﬁciently with external

services that have a strict bound on the invocation

rate). The obtained information is then used to solve

the MTVRPTW, which is decomposed into two steps.

In the ﬁrst step, we use a metaheuristic algorithm to

solve the VRPTW, and in the second step, we pro-

pose a mathematical model that redeﬁnes the route

start times and solves the MTVRPTW. It is worth not-

ing that the overall DSS architecture allows a modu-

lar evolution of its functions because data sources and

even the solution heuristics can be easily changed.

The proposed approach has been tested on real

and random instances with different numbers of de-

pots and customers. Computational results highlight

a reduction in the number of used vehicles with re-

spect to the initial value obtained at the ﬁst-step. This

reduction brings signiﬁcant beneﬁts for the company

in terms of logistics costs.

We observe that there is room for further improve-

ments. First of all, the implemented model is able to

ﬁnd good solutions for up to 3 depots and 158 cus-

tomers. The model could be replaced by a meta-

heuristic algorithm to solve larger instances. This

represents the ﬁrst interesting direction for future re-

search. Further future research avenues in which we

are interested are: adding new modules in the DSS,

e.g., to handle new VRP variants, as for the car pa-

trolling; improving the existing modules, e.g., propos-

ing an integrated approach to solve the MTVRPTW,

instead of a two-phase approach. The development

of an integrated approach might also help us com-

pare our application with the most sophisticated so-

lution methods proposed in the literature (see, e.g.,

(Vidal et al., 2020)). Again we point out that the

micro-service architectural approach is a key feature

to enable this evolution. Finally, we point out that

we would like to apply this architecture to improve

model-driven DSSs in other contexts, for example, the

logistic activities related to the management of energy

networks (see, e.g. (Bruck et al., 2020)).

ACKNOWLEDGEMENTS

The authors would like to thank the support given by

the National Council for Scientiﬁc and Technological

Development (CNPq grants numbers 405369/2021-

2 and 311185/2020-7), and the State of Goi

as Re-

search Foundation (FAPEG). We also thank Coopser-

vice Soc.coop.p.A. for ﬁnancial support and for shar-

ing relevant information and knowledge for this re-

search.

REFERENCES

Amorim, P., Parragh, S. N., Sperandio, F., and Almada-

Lobo, B. (2014). A rich vehicle routing problem deal-

ing with perishable food: A case study. TOP, 22:489–

508.

Bruck, B. P., Castegini, F., Cordeau, J.-F., Iori, M., Pon-

cemi, T., and Vezzali, D. (2020). A decision support

system for attended home services. INFORMS Jour-

nal on Applied Analytics, 50(2):137–152.

Desrochers, M., Desrosiers, J., and Solomon, M. (1992).

A new optimization algorithm for the vehicle rout-

ing problem with time windows. Operations research,

40(2):342–354.

Golden, B., Raghavan, S., and Wasil, E. (2008). The Vehi-

cle Routing Problem: Latest Advances and New Chal-

lenges. Operations Research/Computer Science Inter-

faces Series. Springer.

Hunt, J. (2003). Applying the model-view-controller pat-

tern. Guide to the Uniﬁed Process featuring UML,

Java and Design Patterns, pages 235–252.

Keskin, M. and C¸ atay, B. (2018). A matheuristic method

for the electric vehicle routing problem with time win-

dows and fast chargers. Computers & Operational Re-

search, 100:172–188.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

342

Kramer, R., Cordeau, J.-F., and Iori, M. (2019). Rich vehi-

cle routing with auxiliary depots and anticipated deliv-

eries: An application to pharmaceutical distribution.

Transportation Research Part E: Logistics and Trans-

portation Review, 129:162–174.

Luxen, D. and Vetter, C. (2011). Real-time routing with

openstreetmap data. In Proceedings of the 19th ACM

SIGSPATIAL International Conference on Advances

in Geographic Information Systems, GIS ’11, page

513–516, New York, NY, USA. Association for Com-

puting Machinery.

Mendes., N. and Iori., M. (2020). A decision support

system for a multi-trip vehicle routing problem with

trucks and drivers scheduling. In Proceedings of the

22nd International Conference on Enterprise Infor-

mation Systems - Volume 1: ICEIS, pages 339–349.

SciTePress.

Mor, A. and Speranza, M. G. (2022). Vehicle routing prob-

lems over time: a survey. Annals of Operations Re-

search, 314(1):255–275.

Power, D. J. and Sharda, R. (2009). Decision support sys-

tems. In Shimon Y. Nof, eds., Springer Handbook of

Automation, pages 1539–1548. Springer Berlin Hei-

delberg.

Savelsbergh, M. W. (1992). The vehicle routing prob-

lem with time windows: Minimizing route duration.

ORSA journal on computing, 4(2):146–154.

Taibi, D., Lenarduzzi, V., and Pahl, C. (2017). Processes,

motivations, and issues for migrating to microservices

architectures: An empirical investigation. IEEE Cloud

Computing, 4(5):22–32.

Toth, P. and Vigo, D. (2014). Vehicle routing: Problems,

methods, and applications. Society for Industrial and

Applied Mathematics (SIAM), Philadelphia, PA.

Vidal, T., Laporte, G., and Matl, P. (2020). A concise

guide to existing and emerging vehicle routing prob-

lem variants. European Journal of Operational Re-

search, 286(2):401–416.

A Decision Support System for Multi-Trip Vehicle Routing Problems

343
