Bringing Distributed Collaborative Design and Team Collaboration to

the Table: A Conceptual Framework

Mahum Adil

, Ilenia Fronza

and Claus Pahl

Free University of Bozen-Bolzano, Italy

Keywords:

Architecture Design Decision (ADD), Distributed Software Development, Global Software Engineering

(GSE), Distributed Collaborative Design (DCD), Scrum.

Abstract:

Background. The recent rise of software organizations shifting towards distributed environments increased

the feed for distributed collaborative design (DCD), which requires dedicated design thinking and decision

strategies to provide a clear architecture plan for distributed teams. Aim. This study aims to provide effec-

tive support for distributed development teams to enhance the transparency of architecture design decisions

and contribute towards clear documentation of the decision rationales. Method. Using an action research

model, we propose a conceptual framework for distributed Scrum software development teams to manage

distributed collaborative design. Results. The proposed framework consists of two phases in which the team

performs activities to decrease collaboration barriers in design thinking and decision-making. Conclusions.

The illustrating example concretely shows the proposed conceptual framework’s potential and effectiveness

in supporting DCD for team collaboration. Further empirical evaluation and validation of the framework are

needed in real-time environments.

1 INTRODUCTION

Software design aims at discovering architectural el-

ements and artifacts while making design decisions

and deﬁning relationships among system components

(Qin et al., 2008). The success of a software system

directly depends on this activity, which supports ef-

ﬁcient maintenance, long-term use, and continuous

evolution in a changing environment (Kruchten et al.,

2006). Over the years, the representation of software

design evolved from an artifact to a set of Architecture

Design Decisions (ADD) (Venters et al., 2018).

Software architecture design represents one of the

biggest challenges for distributed teams (Sievi-Korte

et al., 2019). There is limited research on Distributed

Collaborative Design (DCD), which is impacted by

distance across several aspects, such as cognition and

communication (Sawyer and DeZutter, 2009), un-

derstanding, evaluation, and negotiation of concepts

(Rice et al., 2007), and the number of discussions

about the design problems (Eris et al., 2014). These

issues need to be addressed to build a shared under-

standing of the requirements, record ADDs, and col-

https://orcid.org/0000-0001-6452-6085

https://orcid.org/0000-0003-0224-2452

https://orcid.org/0000-0002-9049-212X

lectively decide the ﬁnal set of ADDs for the software

system (Yang et al., 2021). With the rise of soft-

ware organisations shifting towards distributed devel-

opment (Smite et al., 2021), research focused on sup-

porting the ADD process (Parizi et al., 2022; Raza-

vian et al., 2019). However, the factors inﬂuencing

decision-making need to be addressed.

This work proposes a framework to support Ag-

ile (Scrum) software development teams during DCD

to produce the ADDs of a software system. The fo-

cus on Agile is motivated by its widespread adoption,

with substantial growth in 2021 (Digital AI, 2021)

to address most of the complications related to the

distributed environment (Fronza et al., 2022; Vallon

et al., 2018; Adil et al., 2022). Therefore, software

education and organizations increasingly need guide-

lines to implement team collaboration in agile dis-

tributed teams (Cico et al., 2021). Thus, the proposed

solution will be beneﬁcial both in software engineer-

ing education and in supporting professional teams.

The paper is structured as follows. Section 2 de-

scribes the exiting literature, Section 3 presents the

research objective, and Section 4 introduces the pro-

posed conceptual framework. Section 5 details a sam-

ple application, and Section 6 concludes the paper and

discusses the future work for the study.

126

Adil, M., Fronza, I. and Pahl, C.

Bringing Distributed Collaborative Design and Team Collaboration to the Table: A Conceptual Framework.

DOI: 10.5220/0011820500003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 2, pages 126-133

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2 RELATED WORK

Software architecture forms the basis for software

architects to distinguish signiﬁcant architectural de-

sign decisions (Jansen and Bosch, 2005), which cap-

ture architectural elements and constraints to deter-

mine the development and evolution of the software

system (Babar et al., 2009). Bosch highlighted the

importance of describing software architecture as a

set of ADDs (Bosch, 2004), where each ADD is the

outcome of the software design process, which com-

prises software elements that evolved during the soft-

ware development process (Alexeeva et al., 2016).

Several approaches have been proposed to visu-

alize software architecture as explicit design deci-

sions (Kruchten et al., 2009), capture and visualize

architectural elements (e.g., (Jansen and Bosch, 2005;

Capilla et al., 2006), evaluate quality attributes (e.g.,

(Babar and Capilla, 2008; Lytra et al., 2013)), au-

tomatically extract ADD and support collaboration

to evaluate alternatives (e.g., (Nowak and Pautasso,

2013; Hesse et al., 2016)). Existing research on

ADD, however, did not explore the factors inﬂuencing

decision-making (Parizi et al., 2022; Razavian et al.,

2019). Collaborative design requires intensive de-

sign thinking and decision strategies to provide a clear

architecture plan for distributed teams (Tofan et al.,

2014): 86% of ADDs in software organisations are

based on group decisions to improve software design

quality (Tofan et al., 2013). The team members rely

on software design knowledge, productive communi-

cation, and problem-solving skills to enhance the de-

sign decision process.

Distributed collaborative design (DCD) faces sev-

eral challenges: collaboration is impacted by distance

across several aspects, such as cognition and commu-

nication (Sawyer and DeZutter, 2009), understanding,

evaluation, and negotiation of concepts (Rice et al.,

2007), and several discussions about the design prob-

lems (Eris et al., 2014). Several computer-aided sys-

tems exist to support (synchronous or asynchronous)

communication and interaction between collabora-

tors in distributed environments (Saﬁn et al., 2012).

Instead, few studies explored how the design ac-

tivities involving information–problem–solution (i.e.,

IPS design activities) differ between co-located and

distributed environments. Existing research shows

that distance has a minor effect on the problem ex-

ploration to design and structure decision activities

(Yang et al., 2021), and various approaches exist

to manage architectural knowledge for software de-

velopment (Borrego et al., 2017; Portillo-Rodríguez

et al., 2012). However, collaboration practices in

a distributed environment are not explored. More-

over, limited research on collaborative design deci-

sions (Muccini and Rekha, 2018) highlights a current

gap in architecture knowledge formation practices to

manage ADDs in distributed teams.

3 RESEARCH OBJECTIVE AND

METHODOLOGY

This study aims at supporting Agile (Scrum) software

development teams during DCD to produce the ADDs

of the software system. Based on this goal, we derived

the following research question:

RQ: How can we effectively support distributed col-

laborative design to review the architecture design de-

cisions of the system?

The research methodology of this study is based

on the action research model, which focuses on im-

proving and keeping a balance of current software en-

gineering practices with regard to the software indus-

try (Kemmis and McTaggart, 2007). The model con-

sists of four steps in the iteration:

1. Plan: planning in order to initiate change. This

step has been completed by analyzing existing lit-

erature and practices to deﬁne the requirements of

the change (Section 4.1).

2. Act: implementing the change. This step has been

completed by designing a conceptual framework

(Section 4.2).

3. Observe: observe the consequences of the change.

The focus of this work is on the ﬁrst two steps of

the action research model; the ﬁrst part of the ob-

serve step (i.e., a demonstrating example) is de-

scribed in Section 5.

4. Reﬂect: reﬂect on the results and re-plan.

4 PROPOSED SOLUTION

This section illustrates our proposed solution: a con-

ceptual framework for distributed Scrum software de-

velopment teams to manage DCD.

4.1 Requirements and Main

Characteristics

Requirements have been collected in the plan phase

of the action research model (Section 3) by analyzing

the existing literature and by informal interviews with

experts in the ﬁeld and practitioners. The rest of this

section describes the characteristics of the proposed

framework mapped to each requirement (Table 1).

Bringing Distributed Collaborative Design and Team Collaboration to the Table: A Conceptual Framework

127

Table 1: Mapping between requirements and characteristics

of the framework.

Requirement Characteristics

Support Scrum teams Scrum elements such as

team roles, iterations and

activities

Increase the lifespan

of ADDs

Design forces

(Van Heesch et al.,

2012) to elicit functional

or non-functional factors

that can impact ADR

Increase sustainabil-

ity of decisions and

reduce efforts for

documentation

Y-statement model (Zdun

et al., 2013) for Archi-

tectural Decision Records

(ADR) documentation

Improve traceability

of design decisions

and emphasize the

importance of team

consensus

Evidence Criteria -

Architectural Decision

Records (EC-ADR)

checklist (Zimmermann,

2021) to evaluate design

forces with ADR

Support distributed

software develop-

ment

The Y-statement model

and the EC-ADR check-

list are integrated in a

framework to support

DCD

Support Scrum Teams. The paradigm shift in

the workplace environment fueled by COVID-19 has

resulted in the rise of studies investigating the tran-

sition from working in a co-located environment to

distributed environment (Ralph et al., 2020). Scrum

methodology is becoming mainstream in software

organizations to increase collaboration between dis-

tributed teams (Lous et al., 2017). To tailor the pro-

posed framework to Scrum teams, we characterized

team roles, iterations, and activities as part of the tran-

sition into an agile environment.

Increase the Lifespan of the ADDs. Eliciting

and documenting design rationales for architecture

decisions is crucial for software development sys-

tems. Decision forces make design decisions trans-

parent and document functional or non-functional

factors that can potentially impact the quality of a

software system (Van Heesch et al., 2012). Based on

the existing research (Weinreich et al., 2015; Rueckert

et al., 2019), we described the design forces into six

categories. These forces will help establish traceabil-

ity between design decisions and the factors (func-

tional or non-functional) that inﬂuence the decision.

Increase Sustainability of Decisions and Re-

duce Documentation Effort. The framework in-

cludes the Y-statement model (Zdun et al., 2013),

a lightweight decision record template to document

task-speciﬁc decisions to formulate ADDs. This

model has been selected based on a comparative anal-

ysis presented that found this model helpful in captur-

ing the structure and elements of design attributes to

build a design decision storyline (Zimmermann et al.,

2015).

Improve Traceability of Design Decisions and

Emphasize Team Consensus. In order to bring the

quality of conformance in design, there are various

software quality assessment practices that focus on

the evaluation of non-functional requirements (Lytra

et al., 2020). However, non-functional requirements

have been neglected so far. With the goal of evaluat-

ing functional and non-functional requirements from

the architecture record, the proposed framework in-

cludes the Evidence Criteria - Architectural Deci-

sion Records (EC-ADR), i.e., a checklist to analyze

whether a design decision provides enough rationale

for the decision outcome (Zimmermann, 2021). The

EC-ADR checklist (Figure 1) is based on ﬁve el-

ements named evidence, criteria, agreement, docu-

ment, and review to promote group decision-making

practice.

Figure 1: EC-ADR checklist to evaluate architecture deci-

sion (Zimmermann, 2021).

Support Distributed Software Development. In

literature, the Y-statement model and the EC-ADR

checklist are used to help co-located software archi-

tects construct the design rationale for the ADD pro-

cess. To support DCD, i.e., to enhance the ADD pro-

cess through collaborative design practices (Muccini

and Rekha, 2018), we integrated these methods in

the proposed framework, which can be executed by

distributed software development teams using Scrum

methodology to foster group decisions and collabora-

tion.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

128

4.2 Structure of the Conceptual

Framework

The proposed framework supports synchronous DCD

activities, i.e., distributed teams will follow a reverse

engineering approach (Chikofsky and Cross, 1990) to

build and evaluate ADD records and to decrease the

collaboration barriers for participating in the design

thinking and decision-making process.

As shown in Figure 2, the framework is divided

into two phases. In the pre-sprint event, the product

owner coordinates with the scrum master to identify

architecture design attributes to build the design ra-

tionale of the software system. In the sprint event,

the development team (i.e., scrum master, design an-

alyst, and lead developer) performs the following col-

laborative activities: (i) thorough elaboration on the

signiﬁcance of design attributes and their impact on

the software system, (ii) production of lean documen-

tation stating design decisions, by listing all related

design attributes with the possible set of solution, and

(iii) analysis and group discussion to evaluate the fea-

sibility of the ADDs.

4.2.1 First Phase: Pre-Sprint Event

Step 1: Identify Architecture Design Attributes.

The scrum master and the product owner use a set

of requirements to identify stakeholders, design ob-

jectives, and architecture design attributes that result

in new architecture design metrics or existing ADDs.

Both new and existing requirements are considered

input data: existing ADDs consist of design decisions

extracted from an existing system to inﬂuence the de-

sign, while architecture design metrics are extracted

from new requirements to identify all the relevant in-

formation (e.g., domain assumption, use case deﬁni-

tion with respect to actors, and architecture drivers).

The output of this phase is a description of all archi-

tecture design elements, which will be used by the

scrum master to build the design rationale with the

development team.

4.2.2 Second Phase: Sprint Event

Step 2: Architecture Design Signiﬁcance. In or-

der to avoid any architecture knowledge vaporization

(Bosch, 2004), the proposed framework requires the

development team to do group discussions to deter-

mine the architecture design signiﬁcance by looking

at existing ADDs or architecture design metrics de-

scribing new ADDs. If the architecture signiﬁcance is

determined, the related design elements become part

of the DCD decision. Otherwise, they will be imple-

mented directly by the core development team.

Step 3: Classify Design Forces. To elicit and

document the list of ADDs during the design process,

the distributed development team will do group dis-

cussions to build a preliminary list of design forces

and classify them into the following six categories

(Rueckert et al., 2019):

1. Functional: main functionalities of the software

system (e.g., concurrency handling, network com-

munication, and data storage).

2. Non-functional: quality attributes that deﬁne the

behavior of the system.

3. Third-party technology: speciﬁc to knowledge,

expected license cost, and support of commer-

cially available open-source libraries or middle-

ware.

4. Design principles and guidelines: fundamental

principles, such as guidelines for the naming con-

vention and design framework usage.

5. Technology selection/implementation: related to

the selection of technology that concerns the com-

petitiveness of the software system and team

knowledge and experience in the programming

language.

6. Deployment: time to conduct testing and to share

a prototype.

Step 4: Create Architecture Design Records

(ADRs). In this step, the design analyst and the soft-

ware lead developer use the Y-statement model (Zdun

et al., 2013) to form lean documentation of ADRs by

presenting ADDs with related design forces based on

the following template:

In the context of <use case/user story u>, facing

<concern c>, we decided for <option o>, and ne-

glected <other options>, to achieve <system qual-

ities, desired consequence q>, accepting <down-

side/undesired consequence d>, because <addi-

tional rationale r>

Step 5: Evaluate ADR. To verify the feasibil-

ity of the ADR in each sprint, the EC-ADR checklist

(Zimmermann, 2021) will be used in group discus-

sions to improve the traceability of design decisions

and emphasize the importance of team consensus in

DCD. In this step, the development team goes through

the ﬁve elements of the checklist to decide whether

the particular ADR is aligned with the stated require-

ments or not. In the latter case, the team will highlight

possible concerns against the solution.

Step 6: Evaluate ADR with Design Forces. Af-

ter analyzing an ADR against the EC-ADR checklist,

the development team will verify it with the prelimi-

nary list of design forces from step 3 to complete the

Bringing Distributed Collaborative Design and Team Collaboration to the Table: A Conceptual Framework

129

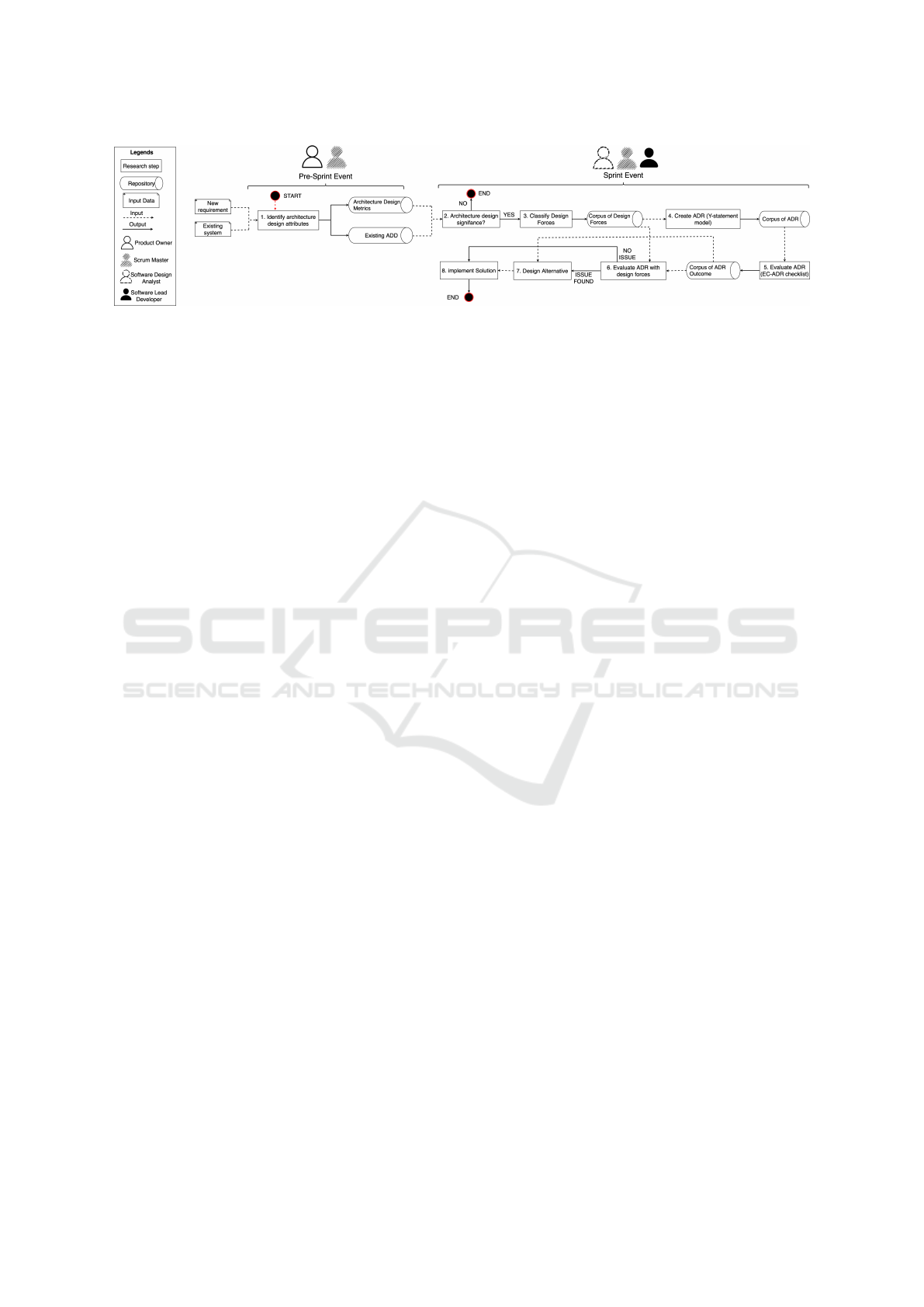

Figure 2: Conceptual framework: main activities for distributed collaborative design decisions.

collaborative software architecture review of the sys-

tem. This step helps trace the effects of an ADR on

the design forces. In case of any constraints, the de-

velopment team will discuss the potential alternatives

previously stated in the ADR and decide accordingly.

Step 7: Design Alternative. This step is executed

in case of any issue found in step 6. Based on the

available alternatives mentioned in the ADR, the de-

velopment team will update the suitable solution for

the software system.

Step 8: Design Solution. At the end of each

sprint, the ﬁnalized ADR is shared with the core de-

velopment team to follow up with the implementation

of the corresponding use case.

5 ILLUSTRATING EXAMPLE

To concretely show the potential of our concep-

tual framework, we used the Fitness Paradise App

(FPA) case study (Jolak et al., 2020). FPA is a

mobile app where registered users can book facil-

ities/activities in a ﬁtness center, visualize book-

ings, and share performance with other registered

members. The mobile app is designed using the

Model-View-Controller (MVC) framework (Krasner

and Pope, 1988). We worked in a distributed environ-

ment to produce ADDs for the FPA case study using

the proposed conceptual framework, as shown in Fig-

ure 3.

5.1 First Phase: Pre-Sprint Event

Step 1: Problem Analysis. The product

owner and the scrum master elicit three controller

components for FPA, i.e., BookingController,

ActivityController, and PerformanceTracker.

Here, we will focus on BookingController.

Action on Framework. To identify the architecture

design attributes for BookingController, the prod-

uct owner and the scrum master elicit six use cases

(changeBooking, cancelBooking, getActivity,

getFacility, managePayment, sendInvoice), the

relation of these use cases with other components, and

the architecture drivers of the system. In this example,

we will focus on changeBooking.

Artifact. This phase provides the sprint back-

log and the software design speciﬁcation document,

which include a detailed description of all the elicited

architecture design metrics extracted from three con-

troller components of the application.

5.2 Second Phase: Sprint Event

Step 2: Check Architecture Relevance. The devel-

opment team collaboratively analyzes the architecture

design metrics of changeBooking to identify the de-

sign elements for the DCD decisions.

Action on Framework. The following architecture

design metrics are identiﬁed for changeBooking: the

registered user uses data from three entities named

Booking, Facility, and Activity to manage data, logic,

and rules of the applications. The dependency be-

tween entities and the BookingController class mo-

tivates the creation of ADDs for changeBooking.

Artifact. A structural design description diagram

as an architecture artifact to visualize dependency be-

tween the controller classes.

Step 3: Elicit architecture presentation. The

software design analyst and the lead developer collab-

oratively elicit the design forces for changeBooking

to build the ADR record. The design forces will help

evaluate the completeness of the ADR record during

the team discussion.

Action on Framework. The design forces

for changeBooking are classiﬁed using six cat-

egories ( i.e., functional, non-functional, third-

party technology, design principles/guidelines, tech-

nology selection/implementation, and deployment).

BookingController is tightly coupled with the

Booking, Facility, and Activity classes of the

Model component; thus, priority is given to three de-

sign forces. The output is a list of potential forces for

changeBooking to create the design record.

Artifact. The list of design forces is elicited

for the changeBooking to create ADR. For exam-

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

130

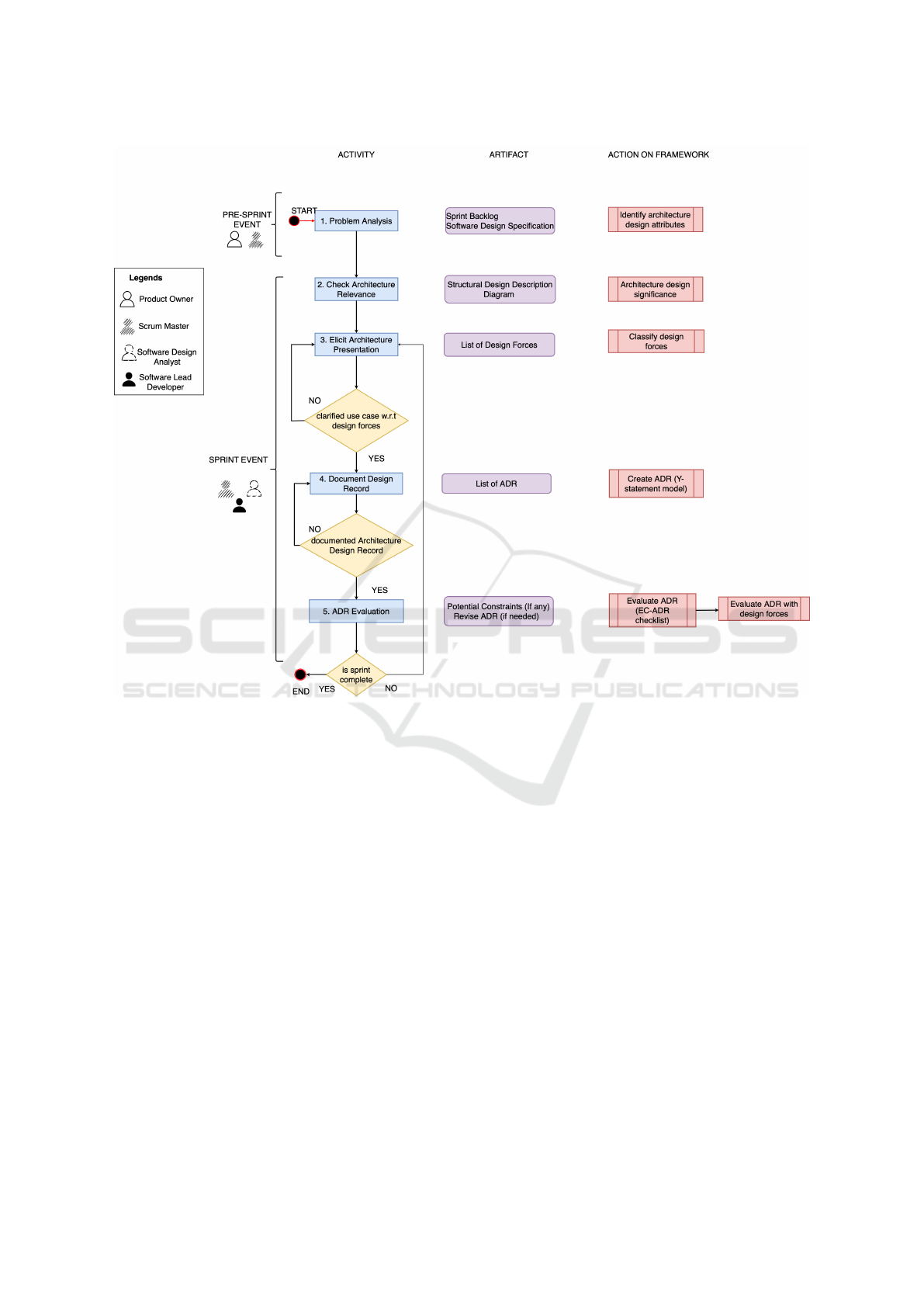

Figure 3: Activities of the proposed framework in the illustrating example.

ple, in the functional design force to implement

changeBooking, concurrency handling is needed so

that multiple users can access data at the same time.

Step 4: Document Design Record. Based on the

design forces, the software design analyst uses the Y-

statement model to form the ADR.

Action on framework. The resulting ADR

is In the context of changeBooking, facing

the need to keep bookings against members,

we decided that BookingController up-

dates the Booking components, and neglected

BookingController updates Activity

component or BookingController updates

Performance component, to achieve func-

tional, non-functional, third-party technology,

design principles and guideline, technology selec-

tion/implementation and deployment design forces,

accepting tight-coupling with Model components.

Artifact. The documentation for changeBooking

ADR is stored and shared with the development team.

Step 5: ADR Evaluation. The development team

scrutinizes changeBooking ADR to review the de-

sign forces. The group discussion aims to: 1) under-

stand the decision context and the assessment circum-

stances and 2) discuss whether the design forces sup-

port ADR or outweigh the forces against it.

Action on Framework. The team uses the fol-

lowing EC-ADR checklist to verify the feasibility of

changeBooking ADR: 1) Are we conﬁdent enough

that the design will work? (Evidence), 2) Did we

decide between at least two options and compare

them systematically? (Criteria), 3) Did we discuss

this enough with the team and ﬁnd a common view?

(Agreement), 4) Did we capture the decision outcome

and share the design record? (Document), 5) Did

we decide when to review and revise the decision if

needed? (Revisit/Review).

Artifact. In case of disagreements, potential alter-

natives will be used as a candidate solution. As we did

not ﬁnd any issue with changeBooking ADR record,

the design alternative activity of the framework is not

performed.

Bringing Distributed Collaborative Design and Team Collaboration to the Table: A Conceptual Framework

131

5.3 Discussion

The illustrating example presented in this section

shows the effectiveness of the proposed conceptual

framework and clariﬁes how the framework works

and its potential beneﬁts for using DCD activities

to emphasize the design discussion within the dis-

tributed team. Future studies are necessary for em-

pirical evaluation and validation of the framework in

real-time environments to identify the advantages of

the proposed approach compared to other existing ap-

proaches. The framework can be applied in differ-

ent types of projects and contexts (e.g., academia and

software organizations). Therefore, we plan to con-

duct empirical studies in different contexts, specif-

ically in software organizations willing to improve

their DCD practices and in academic courses to pre-

pare students for DCD.

6 CONCLUSION AND FUTURE

WORK

In this paper, we introduced a conceptual framework

to support Distributed Collaborative Design. The

framework leverages state-of-the-art models and new

concepts of design decision-making process that are

suitable for a distributed environment. The frame-

work helps the distributed teams to perform the ac-

tivities to build and evaluate ADD records and to de-

crease the collaboration barriers for participating in

the design thinking and decision-making process.

In future, we will implement the framework in a

tool that guides the team for completing the frame-

work steps. To do so, we are planning to re-design and

integrate the proposed framework in an existing ADD

tool to improve the DCD. Then, we will conduct em-

pirical analysis to evaluate the efﬁciency of the tool

in different context (i.e., academia and software soft-

ware organisations). The results from the empirical

analysis will be used to make adjustments accordingly

and to proceed with the release of the proposed tool.

REFERENCES

Adil, M., Fronza, I., and Pahl, C. (2022). Software design

and modeling practices in an online software engi-

neering course: The learners’ perspective. In CSEDU

(2), pages 667–674.

Alexeeva, Z., Perez-Palacin, D., and Mirandola, R.

(2016). Design decision documentation: A literature

overview. In European Conference on Software Archi-

tecture, pages 84–101. Springer.

Babar, M. A. and Capilla, R. (2008). Capturing and using

quality attributes knowledge in software architecture

evaluation process. In 2008 First Intl. Workshop on

Managing Requirements Knowledge, pages 53–62.

Babar, M. A., Dingsøyr, T., Lago, P., and Van Vliet, H.

(2009). Software architecture knowledge manage-

ment. Springer.

Borrego, G., Morán, A. L., Palacio Cinco, R. R., Rodríguez-

Elias, O. M., and García-Canseco, E. (2017). Re-

view of approaches to manage architectural knowl-

edge in agile global software development. IET Soft-

ware, 11(3):77–88.

Bosch, J. (2004). Software architecture: The next step.

In Europ. Conf. on Soft. Architecture, pages 194–199.

Springer.

Capilla, R., Nava, F., Pérez, S., and Dueñas, J. C. (2006).

A web-based tool for managing architectural design

decisions. ACM SIGSOFT soft, eng. notes, 31(5).

Chikofsky, E. and Cross, J. (1990). Reverse engineering

and design recovery: a taxonomy. IEEE Software,

7(1):13–17.

Cico, O., Jaccheri, L., Nguyen-Duc, A., and Zhang, H.

(2021). Exploring the intersection between software

industry and software engineering education - a sys-

tematic mapping of software engineering trends. J. of

Systems and Software, 172:110736.

Digital AI (2021). 15th annual state of agile report

| digital.ai. https://digital.ai/resource-center/analyst-

reports/state-of-agile-report. Accessed: Feb. 2023.

Eris, O., Martelaro, N., and Badke-Schaub, P. (2014). A

comparative analysis of multimodal communication

during design sketching in co-located and distributed

environments. Design Studies, 35(6):559–592.

Fronza, I., Corral, L., Wang, X., and Pahl, C. (2022). Keep-

ing fun alive: An experience report on running on-

line coding camps. In Proceedings of the ACM/IEEE

44th International Conference on Software Engineer-

ing: Software Engineering Education and Training,

ICSE-SEET ’22, page 165–175, New York, NY, USA.

Association for Computing Machinery.

Hesse, T.-M., Kuehlwein, A., and Roehm, T. (2016). Dec-

doc: A tool for documenting design decisions collab-

oratively and incrementally. In Intl. Workshop on De-

cision Making in Software ARCH, pages 30–37. IEEE.

Jansen, A. and Bosch, J. (2005). Software architecture as a

set of architectural design decisions. In 5th Working

IEEE/IFIP Conf. on Software Architecture.

Jolak, R., Savary-Leblanc, M., Dalibor, M., Wortmann,

A., Hebig, R., Vincur, J., Polasek, I., Le Pallec, X.,

Gérard, S., and Chaudron, M. R. (2020). Software en-

gineering whispers: The effect of textual vs. graphical

software design descriptions on software design com-

munication. Empirical Software Engineering, 25.

Kemmis, S. and McTaggart, R. (2007). Communicative ac-

tion and the public sphere. The Sage handbook of

qualitative research, 3:559–603.

Krasner, G. E. and Pope, S. T. (1988). A description of the

model-view-controller user interface paradigm in the

smalltalk-80 system. Object oriented programming.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

132

Kruchten, P., Capilla, R., and Duenas, J. C. (2009). The

decision view’s role in software architecture practice.

IEEE software, 26(2):36–42.

Kruchten, P., Obbink, H., and Stafford, J. (2006). The past,

present, and future for software architecture. IEEE

software, 23(2):22–30.

Lous, P., Kuhrmann, M., and Tell, P. (2017). Is scrum ﬁt

for global software engineering? In 2017 IEEE 12th

Intl. Conf. on Global Software Engineering (ICGSE),

pages 1–10. IEEE.

Lytra, I., Carrillo, C., Capilla, R., and Zdun, U. (2020).

Quality attributes use in architecture design deci-

sion methods: research and practice. Computing,

102(2):551–572.

Lytra, I., Tran, H., and Zdun, U. (2013). Supporting consis-

tency between architectural design decisions and com-

ponent models through reusable architectural knowl-

edge transformations. In Europ. Conf. on Soft. Archi-

tecture, pages 224–239. Springer.

Muccini, H. and Rekha, S. (2018). Group decision-making

in software architecture: A study on industrial prac-

tices. Information and software tech., 101:51–63.

Nowak, M. and Pautasso, C. (2013). Team situational

awareness and architectural decision making with the

software architecture warehouse. In Europ. Conf. on

Software Architecture, pages 146–161. Springer.

Parizi, R., Prestes, M., Marczak, S., and Conte, T. (2022).

How has design thinking being used and integrated

into software development activities? a systematic

mapping. J. of Systems and Software.

Portillo-Rodríguez, J., Vizcaíno, A., Piattini, M., and

Beecham, S. (2012). Tools used in global software

engineering: A systematic mapping review. Informa-

tion and Software Technology, 54(7):663–685.

Qin, Z., Zheng, X., and Xing, J. (2008). Introduction to

software architecture. Springer.

Ralph, P., Baltes, S., Adisaputri, G., Torkar, R., Kovalenko,

V., Kalinowski, M., Novielli, N., Yoo, S., Devroey,

X., Tan, X., Zhou, M., Turhan, B., Hoda, R., Hata, H.,

Robles, G., Fard, A. M., and Alkadhi, R. (2020). Pan-

demic programming. Empirical Software Engineer-

ing, 25(6).

Razavian, M., Paech, B., and Tang, A. (2019). Empirical re-

search for software architecture decision making: An

analysis. J. of Systems and Software, 149:360–381.

Rice, D. J., Davidson, B. D., Dannenhoffer, J. F., and Gay,

G. K. (2007). Improving the effectiveness of virtual

teams by adapting team processes. Computer Sup-

ported Cooperative Work (CSCW), 16(6):567–594.

Rueckert, J., Burger, A., Koziolek, H., Sivanthi, T., Moga,

A., and Franke, C. (2019). Architectural decision

forces at work: experiences in an industrial consul-

tancy setting. In Proc. of the 27th ACM Joint Meeting

on Europ. Soft. Eng. Conf. and Symp. on the Founda-

tions of Soft. Eng., pages 996–1005.

Saﬁn, S., Juchmes, R., and Leclercq, P. (2012). Use of

graphical modality in a collaborative design distant

setting. Work, 41(1):3484–3493.

Sawyer, R. K. and DeZutter, S. (2009). Distributed creativ-

ity: How collective creations emerge from collabora-

tion. Psychology of aesthetics, creativity, and the arts,

3(2):81.

Sievi-Korte, O., Richardson, I., and Beecham, S. (2019).

Software architecture design in global software devel-

opment: An empirical study. J. of Systems and Soft-

ware, 158.

Smite, D., Moe, N. B., Klotins, E., and Gonzalez-Huerta, J.

(2021). From forced working-from-home to working-

from-anywhere: Two revolutions in telework. arX-

ivpreprint.

Tofan, D., Galster, M., and Avgeriou, P. (2013). Difﬁculty

of architectural decisions–a survey with professional

architects. In Europ. Conf. on Soft. Architecture, pages

192–199. Springer.

Tofan, D., Galster, M., Avgeriou, P., and Schuitema, W.

(2014). Past and future of software architectural

decisions–a systematic mapping study. Information

and Software Technology, 56(8):850–872.

Vallon, R., da Silva Estácio, B. J., Prikladnicki, R., and

Grechenig, T. (2018). Systematic literature review on

agile practices in global software development. Infor-

mation and Software Technology, 96:161–180.

Van Heesch, U., Avgeriou, P., and Hilliard, R. (2012).

Forces on architecture decisions - a viewpoint. In

Joint Working IEEE/IFIP Conf. on Software Architec-

ture and Europ. Conf. on Software Architecture, pages

101–110.

Venters, C. C., Capilla, R., Betz, S., and etal (2018). Soft-

ware sustainability: Research and practice from a soft-

ware arch. viewpoint. J. of Systems and Software, 138.

Weinreich, R., Groher, I., and Miesbauer, C. (2015). An ex-

pert survey on kinds, inﬂuence factors and documen-

tation of design decisions in practice. Future Genera-

tion Computer Systems, 47:145–160.

Yang, Z., Xiang, W., You, W., and Sun, L. (2021). The inﬂu-

ence of distributed collaboration in design processes:

an analysis of design activity on information, prob-

lem, and solution. Intl. J. of Technology and Design

Education, 31(3):587–609.

Zdun, U., Capilla, R., Tran, H., and Zimmermann, O.

(2013). Sustainable architectural design decisions.

IEEE Software, 30(6):46–53.

Zimmermann, O. (2021). ADR = Any Decision

Record? Architecture, Design and Beyond.

https://ozimmer.ch/practices/2021/04/23/AnyDecision

Records.html. Accessed: Nov. 2022.

Zimmermann, O., Wegmann, L., Koziolek, H., and Gold-

schmidt, T. (2015). Architectural decision guidance

across projects - problem space modeling, decision

backlog management and cloud computing knowl-

edge. In IEEE/IFIP Conf.on Software Architecture,

pages 85–94.

Bringing Distributed Collaborative Design and Team Collaboration to the Table: A Conceptual Framework

133
