Microservices Architecture Language for Describing Service View

Luka Lelovic

, Michael Mathews

, Amr S. Abdelfattah

and Tomas Cerny

Baylor University, Computer Science, 1311 S 5th St, Waco, TX 76706, U.S.A.

Keywords:

Architecture Reconstruction, Architecture Language, Service View, Intermediate Representation.

Abstract:

Microservices Architecture is a growing trend in recent years that has been promoted due to a number of re-

searched advantages. However, as microservice systems grow and evolve, they can become complex and hard

to understand. In order to face this problem, techniques to reconstruct, describe and visualize these systems

are proposed. Despite this, there are currently no architectural languages actively maintained, adopted, and

promoted as the intermediate between the system reconstruction and its corresponding viewpoints. This paper

proposes a YAML-based architectural language acting as the intermediate representation for microservice ar-

chitecture, speciﬁcally in the service view architectural perspective. This paper outlines the new language, its

basis, example descriptions, and possible architectural visualizations of the descriptions. It also details how it

compares to other existing architectural languages in the microservice domain.

1 INTRODUCTION

Microservices Architecture (MSA) is a popular archi-

tectural pattern that emphasizes small, independent

sets of services. Each of these services has its own

codebase and storage system. MSA has been widely

promoted and adopted in recent years for its extensive

beneﬁts in fault tolerance, loose coupling, and high

scalability (Waseem et al., 2021).

A considerable issue arises, however, when trying

to maintain a holistic perspective as new independent

services are introduced. As complexity grows, it be-

comes increasingly difﬁcult to understand the entire

system. Software Architecture Reconstruction (SAR)

attempts to mitigate this issue through either manual,

static, or dynamic analysis. After analysis, the system

information can be extracted into a proprietary inter-

mediate representation (Walker et al., 2021). In this

perspective, system extraction is often tightly con-

nected with a particular purpose, such as the visual-

ization of different system views (service, topologi-

cal, etc.). There then exists an opportunity to uncou-

ple the system information extraction from the task

we target through the form of an architectural lan-

guage.

While a number of architectural languages exist

for various system concerns and architectures, there

are none that exist and have seen widespread adop-

https://orcid.org/0000-0003-0785-7499

https://orcid.org/0000-0002-8457-9894

https://orcid.org/0000-0001-7702-0059

https://orcid.org/0000-0002-5882-5502

tion as the intermediate between system reconstruc-

tion and system visualizations. If we introduced an

architectural language to describe service views, we

could divide focus into reliable information extraction

using static or dynamic system analysis from reason-

ing about the system or its visualization or other rea-

soning. This situation is sketched in Fig 1.

Static

analysis

Manual

analysis

Dynamic

analysis

Intermediate

representation

Architectural

language

Architecture

Visualization

Reasoning

System architecture reconstruction

Figure 1: Positioning architectural languages to interface

between system analysis and its interpretation.

In this paper, we propose a Microservice Interme-

diate Representation Language (MIRL) for the Ser-

vice View perspective. It is a YAML-based descrip-

tion language for intermediate system representation

between system reconstruction approaches and con-

sequent visualizations serving human experts. Such

language can be used to track service changes across

system evolution using version control. It can also

be used when planning existing system evolution. In

particular, the system service view description can be

speculatively extended to let human experts reason

about the evolution implication using the planned sys-

tem visual representation.

The rest of the paper is organized as follows: Sec-

220

Lelovic, L., Mathews, M., Abdelfattah, A. and Cerny, T.

Microservices Architecture Language for Describing Service View.

DOI: 10.5220/0011850200003488

In Proceedings of the 13th International Conference on Cloud Computing and Services Science (CLOSER 2023), pages 220-227

ISBN: 978-989-758-650-7; ISSN: 2184-5042

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

tion 2 describes background information. Section 3

describes related work. Section 4 introduces our lan-

guage. Section 4.2 provides a case study of exam-

ple systems that were described with the language.

Section 5 provides discussion of how our language

can act as the intermediate from a static analysis ap-

proach, and then utilized in a visualization tool. Sec-

tion 6 concludes the paper and provides a discussion

of future work.

2 BACKGROUND

To understand complex systems built with microser-

vices, we typically perform Software Architecture

Reconstruction (SAR). SAR is a reverse engineering

process that obtains a representation of software ar-

chitecture from system artifacts. The aim is to reduce

detail and provide a more abstract view for better un-

derstanding of certain system aspects. SAR can be

performed through many means. It can involve man-

ual, static, or dynamic analysis of the system (see Fig

1) according to the nature of the data, skills of the

team, or available tools. Static data exists in many

forms, such as source code, conﬁguration ﬁles, docu-

mentation, code reviews, and the source control com-

mits changes and their messages. The dynamic data

is produced during the runtime, which include logs,

traces, telemetry data, etc. Moreover, some artifacts

share both static and dynamic behaviors, such as sys-

tem tickets which can be static as requirements or dy-

namic as production issues.

In order to successfully reconstruct a system,

effective system views must be chosen to provide

good coverage of system concerns. Work from

(Rademacher et al., 2020) classiﬁes system views into

the following four:

• Domain View: This view covers domain concepts

and domain concerns of the system.

• Technology View: This view describes the tech-

nologies used to implement the microservices.

• Service View: This view describes the service

models that specify microservices, interfaces, and

endpoints.

• Operation View: This view focuses on service de-

ployment and infrastructure for service discovery

and monitoring.

In relation to architectural languages, these views

mentioned above are of primary concern. Since each

microservice is self-contained and should have an in-

dependent codebase, system polyglots can exist using

different languages and conventions (Wiggins, 2017).

The disadvantage of this is it results in a more chal-

lenging reconstruction process.

Rademacher et al. (Rademacher et al., 2020) sug-

gested performing SAR manually by analyzing var-

ious codebase artifacts and existing documentation.

Such a process must analyze individual microservices

and combine the analyzed results before some bene-

ﬁts like conformance checking, system-centric view

perspectives, and others can be provided.

The major challenge in microservices is the de-

centralized codebase and a missing system-centric

overview which could help with system evolvabil-

ity (Bogner et al., 2021) (i.e., avoid ripple effects,

better plan evolution). Constructing a service de-

pendency graph is one the most beneﬁcial perspec-

tives for microservices, as it gives a system-centric

perspective (Bogner et al., 2021). While each SAR

perspective adds value to human experts, the ser-

vice view ﬁts within the service dependency graphs

that describe dependencies between microservices. It

shows where microservices call each other (Mayer

and Weinreich, 2018). Moreover, (Mayer and Wein-

reich, 2017) and (Rademacher et al., 2020) identiﬁed

that this view plays an essential role in understand-

ing how microservice-based systems operate. There-

fore, supporting it should be one of the most impor-

tant goals of SAR.

The service view has been recently used by many

dynamic analysis tools like Jaeger, or Kiali (Gort-

ney et al., 2022). These tools use distributed tracing,

log analysis, and monitoring, from which they extract

dependency call graphs that can be aligned with the

boundaries of particular microservices. However, the

use of dynamic analysis requires system interaction to

collect data, and thus the results can only be as com-

plete as good the collected data are. Dynamic analysis

often gives a black-box view of the system.

Static analysis techniques can also be employed

to generate intermediate representations for the sys-

tem (i.e., for the service view). These representa-

tions serve as an intermediary to technical reasoning

or facilitate documentation extraction and can be used

to track systems’ performance, architecture improve-

ments, and degradation during the evolution process

(Rademacher et al., 2020).

As opposed to dynamic analysis, static analysis

can be performed on a system before it is deployed.

Its techniques are employed which inspect source

code to extract the service description and its API

speciﬁcations. Extracting this representation requires

the detection of the endpoints of each service. Some

software frameworks help in deﬁning the endpoints,

such as Swagger

. Once the list of endpoints and

calls is collected for each service, the analysis process

uses the relative endpoint URL, the HTTP method,

Swagger: https://swagger.io

Microservices Architecture Language for Describing Service View

221

and parameters to match the calls to endpoints. The

result is a service dependency graph representing the

system, showing how the services communicate with

each other.

3 RELATED WORK

There are numerous description languages ranging

in type and purpose. A number of related studies,

SAR tools, and languages have been published as pro-

moted solutions for MSA composition, for brevity in

this paper length we refer to a related mapping study

(Lelovic et al., 2022) on architectural languages in re-

lation to microservice systems.

4 PROPOSED LANGUAGE: MIRL

To describe the service view MIRL uses various

building blocks. At a basic level, it enforces a sys-

tem name, version, and an array of node objects.

Within the node objects consist of the following four

attributes:

1. nodeName: This is the name of the current system

node/object being described.

2. nodeType: This is the type of the current node

(service, kafka, etc). The types of systems can

have any range of values depending on what the

stakeholder of a particular system deﬁnes.

3. dependencies: This is an array of objects depict-

ing incoming connections into the current node.

4. targets: This is an array of YAML objects depict-

ing outgoing connections into other nodes.

The dependency and target arrays depict endpoints for

each microservice in a particular system. The only

Listing 1: Basic MIRL Example.

---

systemName: MIRL-Basic-Example

systemVersion: 0.0.1

nodes:

- nodeName: basic-service-1

nodeType: service

dependencies: []

targets:

- nodeName: basic-service-2

nodeType: service

dependencies:

- nodeName: basic-service-1

targets: []

...

requirement for dependency and target objects is that

a node name is provided.

A basic MIRL example can be seen in Listing 1.

This shows a general example/template of the mini-

mum requirements in our language. In the basic ex-

ample template, the basic-service-1 has no incom-

ing dependency endpoints, but makes an outgoing

connection to basic-service-2. The basic-service-2

node then describes this dependency to basic-service-

1. This would ideally be visualized in a workﬂow per-

spective as an arrow between basic-service-1 to basic-

service-2.

The core language constructs are extensible. It is

possible to capture other attributes such as the end-

point types and execution steps of a particular node.

MIRL allows endpoints to be described either at a

high-level or ﬁne granularity depending on the archi-

tect’s needs. This can be seen with Listing 2 where

each dependency and target node is only given a name

and associated request array describing the type of re-

quest the node is making on the current, and the step

of execution in the ﬂow of the system. By contrast,

Listing 3 describes more in the endpoints and their

requests (e.g. arguments, return types, etc). Overall,

this structure provides the capability for orchestrating

microservices and their choreography, as well as de-

scribing the workﬂows between them.

MIRL as well requires a systemName and sys-

temVersion. This provides the capability for version

control to tracks changes as the system evolves. Com-

paring across multiple MIRL system versions can al-

low service changes to be tracked by human experts

utilizing the language alongside various correspond-

ing visual tools.

Despite being a language for microservices, the

language also supports other types of node objects

within the system. A list of node types is speci-

ﬁed in a separate JSON ﬁle as a list. These types

can be extended as well to ﬁt the architect’s needs

of node types. These types are used to gener-

ate the node images from the Python Diagrams li-

brary. The node types provided are: [customer, src-

Sink, archive, kafka, service, bucket, pipeline, proxy,

writer, database, conﬁg, and API]. These types were

derived based on assessment of industry project ar-

chitectures and feedback from practitioners involved

in microservice system development.

MIRL is provided with a JSON schema for val-

idation. This schema can validate both YAML and

JSON descriptions. The main requirements/concepts

of MIRL nodes and their relationships can be seen in

Figure 2.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

222

Table 1: Comparison of Features with MIRL and Other Languages.

Language Notation Language Agnostic Intermediate Solution Visual Component

Jolie OL

Medley JavaScript

Thrift Thrift

Silvera Python

BPMN XML X

TOSCA YAML X

MicroART Java X X

MIRL YAML X X X

4.1 Feature Comparison with Other

Languages

When looking at a broader context, we based MIRL’s

structure on common service composition approaches

found in existing description languages, and the per-

spectives within the example systems that we describe

in Section 4.2. We compare to similar languages

for microservice description from related work by

(Lelovic et al., 2022), and breakdown language ca-

pabilities and features in Table 1 in acting as interme-

diate solutions based on the 4 criteria:

• Notation: The notation of the language is impor-

tant to note as it outlines what format visualizers

would have to parse.

• Language Agnostic: This feature ties into the no-

tation, where architectural languages that utilize

language’s with compilers (Java, Jolie, etc) are

platform-dependent and cannot be easily parsed.

• Intermediate Solution: This feature outlines

whether a language is initially proposed as an

intermediate between reconstruction and corre-

sponding visualizations. Currently MicroART

and MIRL are the only two found for this.

• Visual Component: This feature describes

whether a language is coupled with its own vi-

sualization tool or generator for building a visu-

alization from the language.

From Table 1, it can be seen that MIRL is the only lan-

Nodes

nodeName

nodeType

Node

nodeName

nodeType

Node

nodeName

nodeType

Node

targetsdependencies

Figure 2: Relationship Structure in MIRL.

guage that was found to be language agnostic, com-

posing an intermediate solution, and being coupled

with a visualization component.

4.2 Sample Demonstrations

For a demonstration we describe two existing MSA-

based systems in MIRL. The ﬁrst system is the

architecture pipeline model for Red Hat Insights

The second is an existing microservice benchmark

TrainTicket (Zhou et al., 2018) while using the ser-

vice view architecture reconstructed by static analy-

sis provided in (Walker et al., 2021)

. From both of

these descriptions, a visual model was then generated

by parsing our language and utilizing the Python Di-

agrams library and is shown to demonstrate the ﬁnal

outcome.

4.2.1 Red Hat Pipeline

The Red Hat pipeline, seen in Figure 3, is a manually

modeled diagram by the system architect. It sketches

the ﬂow of microservices within Red Hat’s system ar-

chitecture. The description in MIRL was performed

manually based on the model and its captured ser-

vices.

The service view of the Red Hat pipeline is repre-

sented through the nodes within the dependency and

target arrays. These nodes describe the microservices,

interfaces, and endpoints which model the interaction

between the nodes. Listing 2 shows a particular node

in the Red Hat description. In the SHA-extractor, the

targets array shows one outgoing connection. The

SHA-extractor node has an array of requests extended

with it. This requests array is not enforced by the lan-

guage. The request in the array describes an outgoing

POST request to this node that is being made as the

ﬁrst step in the system execution.

The topology of the Red Hat pipeline is shown as a

singular network through the array of nodes that binds

https://github.com/RedHatInsights/insights-results-

smart-proxy/blob/master/docs/Overall architecture.png

http://demo1986600.mockable.io/train

Microservices Architecture Language for Describing Service View

223

the entire system together. Any node in the system

must be described in this array as a YAML object.

The topology is coupled with the service view of de-

pendencies.

Figure 4 shows the Red Hat pipeline visualized

based on the service view that is described in the lan-

guage. While the provided visualization is a differ-

ent perspective from the initial model in Figure 3, the

information provided within the model remains one-

to-one. It is important to note as well that the Python

Diagrams library limited our visualization to certain

node images. In Figure 4, there are nodes with given

images that are not the same as the ones from the ini-

tial pipeline model. One thing that could be extended

in the future for the Red Hat description and its vi-

sualization is describing the clustering of nodes and

layers, such as the 3Scale layer.

4.2.2 Feedback from the Architect

After describing the Red Hat pipeline in MIRL and

generating a corresponding visualization, the results

were given to a Red Hat architect for feedback. The

architect provided a positive reception of the lan-

guage and found its structure to be potentially re-

usable for several purposes. One area the architect

noted for improvement and optional extension was

providing additional information on the messaging

formats between nodes and additional information on

the nodes themselves. Visualization tools could then

provide this additional information when nodes are

clicked on. This would be similar to the function-

ality provided here.

MIRL fully supports optional

Listing 2: Red Hat Pipeline (snippet) in MIRL.

...

- nodeName: SHA-extractor

nodeType: pipeline

dependencies:

- nodeName:

Kafka-topic-platform.upload.buckit

requests:

- requestType: POST

executionStep: "#1"

- nodeName: S3-bucket

requests:

- executionStep: "#2"

targets:

- nodeName: Kafka-topic-archive-results

requests:

- requestType: POST

executionStep: "#17"

...

https://redhatinsights.github.io/insights-results-smart-

proxy/overall-architecture.html

attributes such as this, but does not standardize any

in its schema. The schema could be improved in the

future to provide this.

4.2.3 Train Ticket System

The second system analyzed and described was the

benchmark train ticket system. While the description

of the Red Hat pipeline was minimally extended out-

side of the requirements that the language enforces,

the train ticket system demonstrates MIRL’s extensi-

bility in a greater amount. Given the example train

ticket YAML ﬁle that was reconstructed, we wrote a

Python script to parse the language into MIRL. This

increased the accuracy of our description and reduced

the manual effort required in contrast to the Red Hat

pipeline.

The service view of the Train Ticket System is rep-

resented largely the same as the Red Hat pipeline.

In Listing 3, the order other service is shown, with

one node of the many nodes in its dependencies ar-

ray given, and the only node in its targets array de-

scribed as well. The incoming and outgoing connec-

tions differ from the Red Hat pipeline by the differ-

ent attributes displayed in the requests array. While

the type of request is still given, other attributes such

as the arguments, return types, function names, and

request paths are also given. These attributes are en-

tirely given by the train ticket system and not enforced

by MIRL’s schema. Other attributes as well such as

the length and width of the connections are given,

which could be translated into visualization software.

The topology is similar to the Red Hat pipeline.

The same array of nodes is required. One notable ex-

tension of the train ticket system is that the shape of

the node is provided. The order other service is given

a node shape of a box. Like the length and width at-

tributes within the dependencies and targets array, the

node shape could also be used within visualization

software to display how the individual node looks.

This further shows how the MIRL language can act

as the intermediate between the software reconstruc-

tion and the visualization of the system. This also

demonstrates how the topology is necessarily repre-

sented alongside the service view to maintain a com-

plete view of the system.

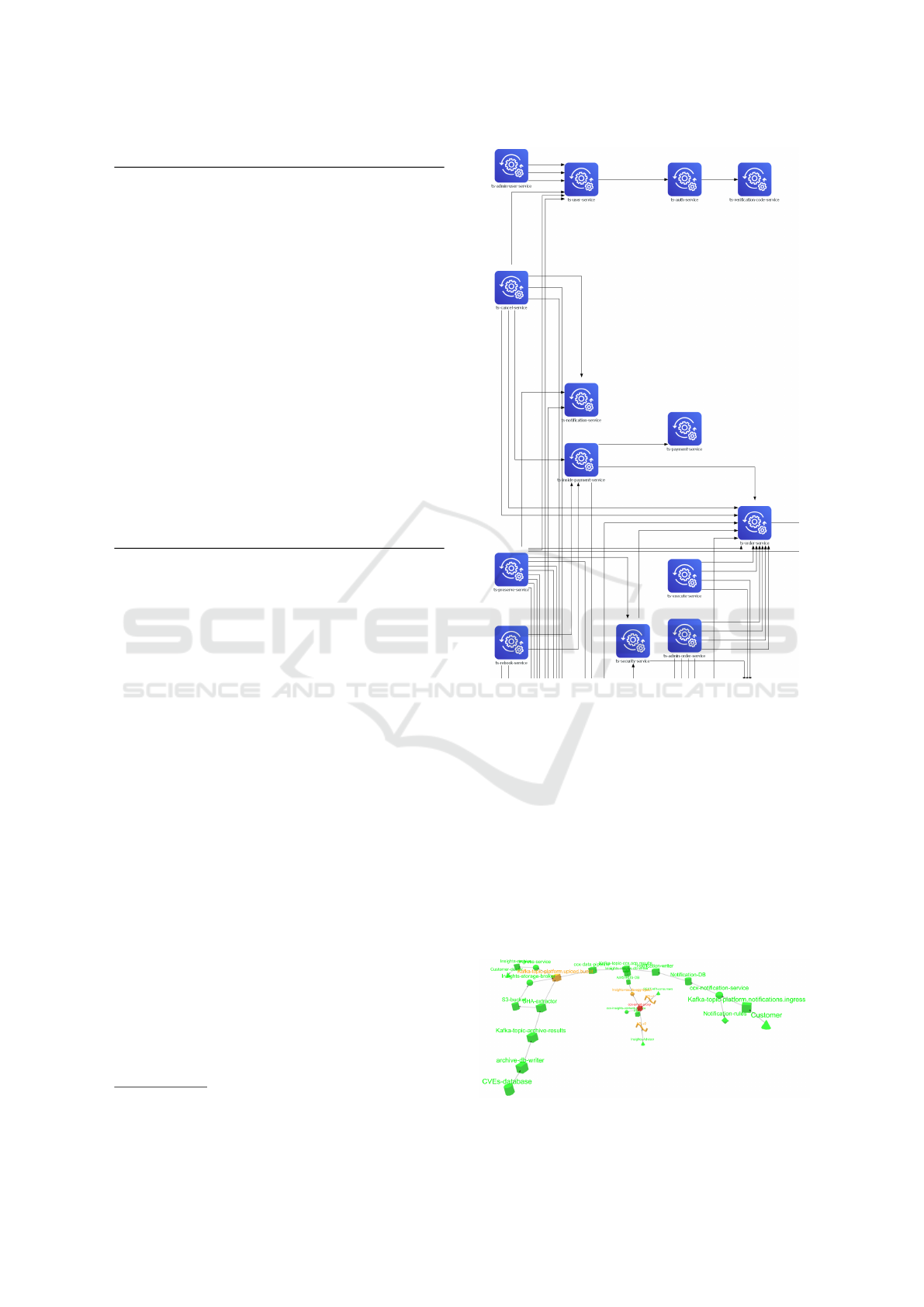

Figure 5 shows the train ticket system fragment vi-

sualized based on the service views described in the

language. Since everything in the benchmark sys-

tem is a service, the nodes all contain the same node

image. The visualization shows a notable difference

from the Red Hat pipeline in terms of the dependen-

cies and connections between nodes. Due to multi-

ple requests, a particular service in the system makes

to outgoing services, there are often multiple connec-

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

224

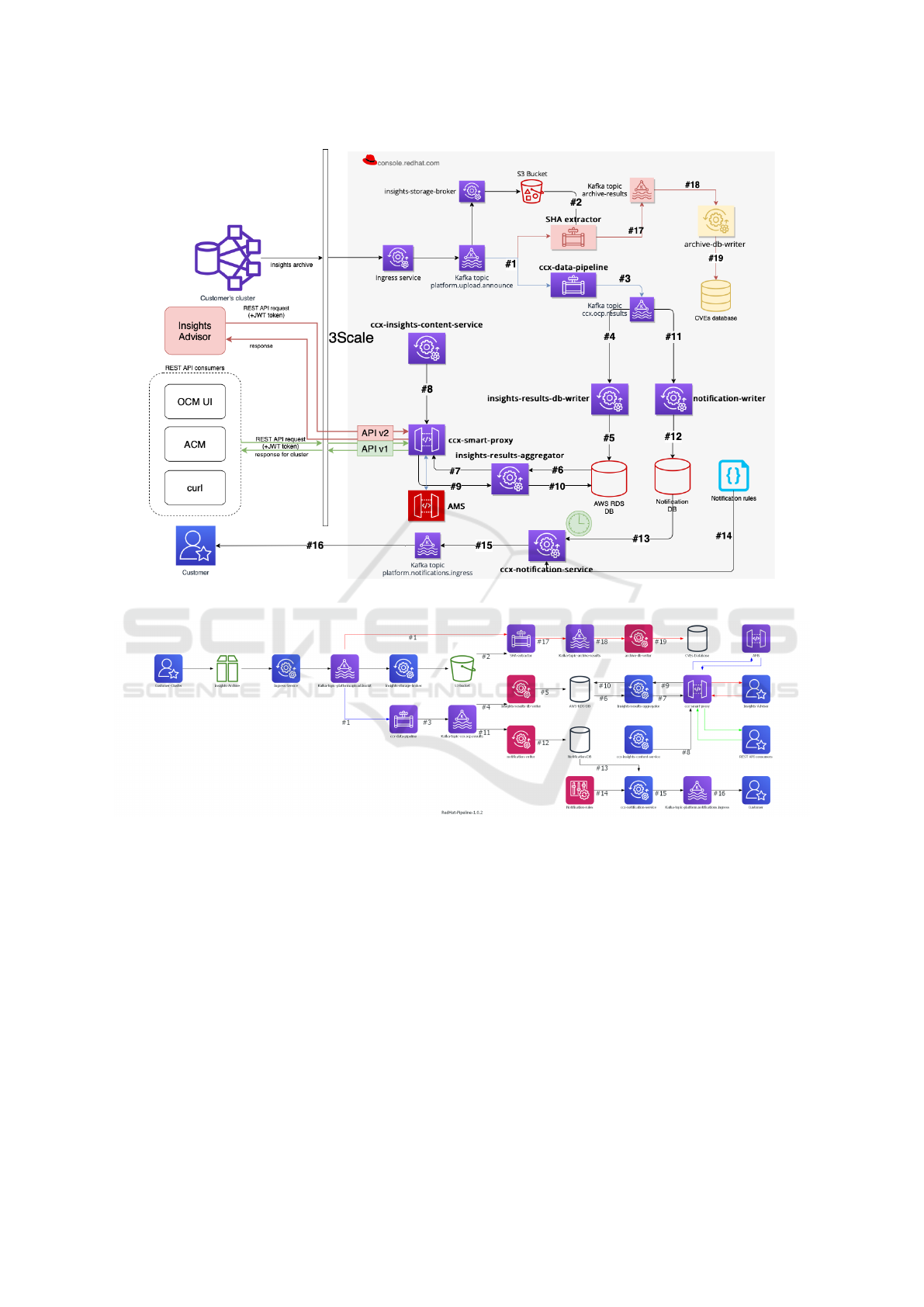

Figure 3: Red Hat Pipeline

Figure 4: Red Hat Description Visualized.

tions between nodes. While one advantage of this

may be that it shows the detailed coupling between

nodes, a downside is the readability of the visualiza-

tion.

5 DISCUSSION

This section discusses the language’s ability to act as

an intermediary. In particular, we demonstrate how

MIRL acts as the intermediate between static analysis

and a 3rd-party visualization tool. This was the aim

we presented in Figure 1.

5.1 Static Analysis Approach

The initial retrieval of the Train Ticket system was

taken from an existing reconstruction output of the

benchmark system performed through static analy-

sis by (Walker et al., 2021). The output of this was

then parsed and translated into a MIRL description

following the MIRL schema through a Python script.

It should be noted that the reconstruction method,

however, could be modiﬁed to create output in MIRL

rather than its custom metadata. However, this opens

MIRL usage to any other approach, whether using

static or dynamic analysis or manual intervention. For

instance, we could perform event trace analysis from

Microservices Architecture Language for Describing Service View

225

Listing 3: Train Ticket System in MIRL.

...

- nodeName: ts-user-service

nodeType: service

nodeShape: box

dependencies:

- nodeName: ts-admin-user-service

requests:

- type: DELETE

argument: "[@PathVariable ...]"

msReturn: ResponseEntity<Response>

endpointFunction: ...

path: "/UserController/deleteUserById"

...

targets:

- nodeName: ts-auth-service

requests:

- type: POST

argument: "[@RequestBody ...]"

msReturn: HttpEntity<Response>

endpointFunction: ...

path: "/AuthController/createDefaultUser"

length: 200

width: 1

...

a microservice system and extract service dependen-

cies as commonly done by other researchers or tools

like Jaeger or Kiali. The great beneﬁt of an intermedi-

ary language is that we can extract the current system

version service view and speculate on system evolu-

tion to assess possibilities before we perform the ac-

tual implementation.

5.2 3 Rd-Party Visualization

To demonstrate the other end of the intermediary, we

show the use of a third-party tool that we can feed

with MIRL. A 3-dimensional visualization tool has

been identiﬁed aiming at constructing visualizations

of microservice systems

. This tool imports a JSON

format of the system data. The system described in

MIRL can be converted to such a JSON and adopted

to visualize the system described by the intermedi-

ate language. Figure 6 shows the Red hat pipeline

visualized within this tool. The tool can provide vi-

sualization in both a 3-dimensional perspective and

a 2-dimensional perspective. This demonstrates the

potential applicability of our language to outside vi-

sualization tools as an imported format.

5.3 System Evolution

There exists another promising exploration in observ-

ing the evolution of a system through system version-

https://github.com/patrickeharris/ArchitectureVisualiz

ationPOC

Figure 5: Train Ticket System Visualized (fraction of the

whole system).

ing provided in MIRL. This evolution of the system

includes adding a new service, a new version, and

moving endpoints between services. Therefore, rep-

resenting the service view intermediary helps to high-

light these dependencies in an early stage.

Through this avenue, the analysis and the tracking

of changes support detecting the impact on the archi-

tecture degradation over time. Therefore, MIRL sup-

ports the system to be automatically updated, tracked,

and shown in a visualization or provenance tracking

tool. Thus it would become easier to keep going with

the rapid evolution pace of the system development.

Figure 6: Red Hat Pipeline Visualized with 3rd Party.

CLOSER 2023 - 13th International Conference on Cloud Computing and Services Science

226

6 CONCLUSION

In this paper, we presented a new Architectural Lan-

guage for the Service View perspective (MIRL) which

can act as an intermediary step to interface between

various system analysis approaches and consequent

reasoning or visualization to aid human experts. In

addition, it can serve to better understand the evolu-

tionary changes of a system as it can be easily tracked

in version controls.

When compared to other languages that could act

as potential intermediates, such as BPMN, TOSCA,

and the MicroART-DSL, these languages were found

to either have a number of complex requirements re-

sulting in parsing hurdles or be proposed for a differ-

ent domain or understanding of a system. Compared

to other languages, MIRL is lightweight and allows

considerable extensibility for the architect to examine

and the visualization tool to easily parse.

There are several planned areas of future work.

The ﬁrst is to conform a currently maintained visual-

ization tool(s) to accept MIRL as an import. The sec-

ond is to develop or extend an existing reconstruction

technique to generate system descriptions conforming

to the language schema. Ultimately this would allow

architects to automatically retrieve a description and

corresponding visualization of their microservice sys-

tems. A ﬁnal area of future work would be adding

more optional descriptive attributes for nodes in the

MIRL schema, such as clusters, layers, and node or

request descriptions.

ACKNOWLEDGEMENTS

This material is based upon work supported by

the National Science Foundation under Grant No.

1854049 and a grant from Red Hat Research

https://research.redhat.com.

REFERENCES

Bogner, J., Fritzsch, J., Wagner, S., and Zimmermann,

A. (2021). Industry practices and challenges for the

evolvability assurance of microservices. Empirical

Software Engineering, 26(5):1–39.

Gortney, M. E., Harris, P. E., Cerny, T., Maruf, A. A., Bures,

M., Taibi, D., and Tisnovsky, P. (2022). Visualizing

microservice architecture in the dynamic perspective:

A systematic mapping study. IEEE Access, pages 1–1.

Lelovic, L., Mathews, M., Elsayed, A., Cerny, T., Frajtak,

K., Tisnovsky, P., and Taibi, D. (2022). Architectural

languages in the microservice era: A systematic map-

ping study. In Proceedings of the Conference on Re-

search in Adaptive and Convergent Systems, RACS

’22, page 39–46, New York, NY, USA. Association

for Computing Machinery.

Mayer, B. and Weinreich, R. (2017). A dashboard for

microservice monitoring and management. In 2017

IEEE International Conference on Software Architec-

ture Workshops (ICSAW), pages 66–69.

Mayer, B. and Weinreich, R. (2018). An approach to extract

the architecture of microservice-based software sys-

tems. In 2018 IEEE symposium on service-oriented

system engineering (SOSE), pages 21–30. IEEE.

Rademacher, F., Sachweh, S., and Z

undorf, A. (2020).

A modeling method for systematic architecture re-

construction of microservice-based software systems.

In Nurcan, S., Reinhartz-Berger, I., Soffer, P., and

Zdravkovic, J., editors, Enterprise, Business-Process

and Information Systems Modeling, pages 311–326,

Cham. Springer International Publishing.

Walker, A., Laird, I., and Cerny, T. (2021). On automatic

software architecture reconstruction of microservice

applications. In Kim, H., Kim, K. J., and Park, S.,

editors, Information Science and Applications, pages

223–234, Singapore. Springer Singapore.

Waseem, M., Liang, P., Shahin, M., Di Salle, A., and

arquez, G. (2021). Design, monitoring, and testing

of microservices systems: The practitioners’ perspec-

tive. Journal of Systems and Software, 182:111061.

Wiggins, A. (2017). The twelve-factor app. (Accessed on

10/02/2021).

Zhou, X., Peng, X., Xie, T., Sun, J., Xu, C., Ji, C., and

Zhao, W. (2018). Benchmarking microservice sys-

tems for software engineering research. In Chaudron,

M., Crnkovic, I., Chechik, M., and Harman, M., edi-

tors, Proceedings of the 40th International Conference

on Software Engineering: Companion Proceeedings,

ICSE 2018, Gothenburg, 2018, pages 323–324. ACM.

Microservices Architecture Language for Describing Service View

227
