Towards Multi-Level Structuring of Goal-Oriented Models for Improved

Model-Based Systems Engineering

Christophe Ponsard

and Robert Darimont

CETIC Research Centre, Charleroi, Belgium

Respect-IT SA, Louvain-la-Neuve, Belgium

Keywords:

Systems Engineering, MBSE, Goal-Oriented Modelling, Requirements, Reﬁnements.

Abstract:

Model-driven methods are gaining momentum in the industry to support the development of software inten-

sive systems. While most methods rely on progressive levels of functional decomposition, the modelling of

requirements tends to stay quite monolithic in nature. This position paper analyses how to better structure

requirements across multiple levels in the scope of goal-oriented requirements engineering to reconcile it with

layered system models and to provide better support for decomposition and analysis of inner sub-components

or the outer system of systems. The proposed ideas are discussed based on a classical case study of the meeting

scheduler with some early prototyping using a meta-case requirements engineering platform.

1 INTRODUCTION

Model-based systems engineering (MBSE) is deﬁned

as “the formalized application of modeling to sup-

port system requirements, design, analysis, veriﬁca-

tion and validation activities beginning in the concep-

tual design phase and continuing throughout devel-

opment and later life cycle phases” (INCOSE, 2007).

Moving to MBSE is an important paradigm shift for

the industry because the system model replaces doc-

uments for exchanging between engineers (Michot

et al., 2018)(Madni and Purohit, 2019).

Many MBSE methodologies have developed over

the past decade (OMG, 2018)(Weilkiens and Mao,

2022). Most rely on long-established proven Systems

Engineering Methodologies (SEM). In order to cope

with complexity, they support progressive system de-

composition in different layers of abstraction. This

decomposition is applied iteratively until single pur-

pose components (or design entities) can be identi-

ﬁed. Such design entities are structurally and func-

tionally distinct from other elements (DOE, 2002).

MBSE methodologies deﬁne standard layers with

speciﬁc purposes. For example Arcadia, proposed by

Thales and depicted in Figure 1, deﬁnes levels which

ﬁrst cover the problem domain with operational anal-

ysis (user perspective) and system needs (both func-

tional and non-functional) and then the solution do-

main with the logical architecture, physical architec-

ture and end-product breakdown structure.

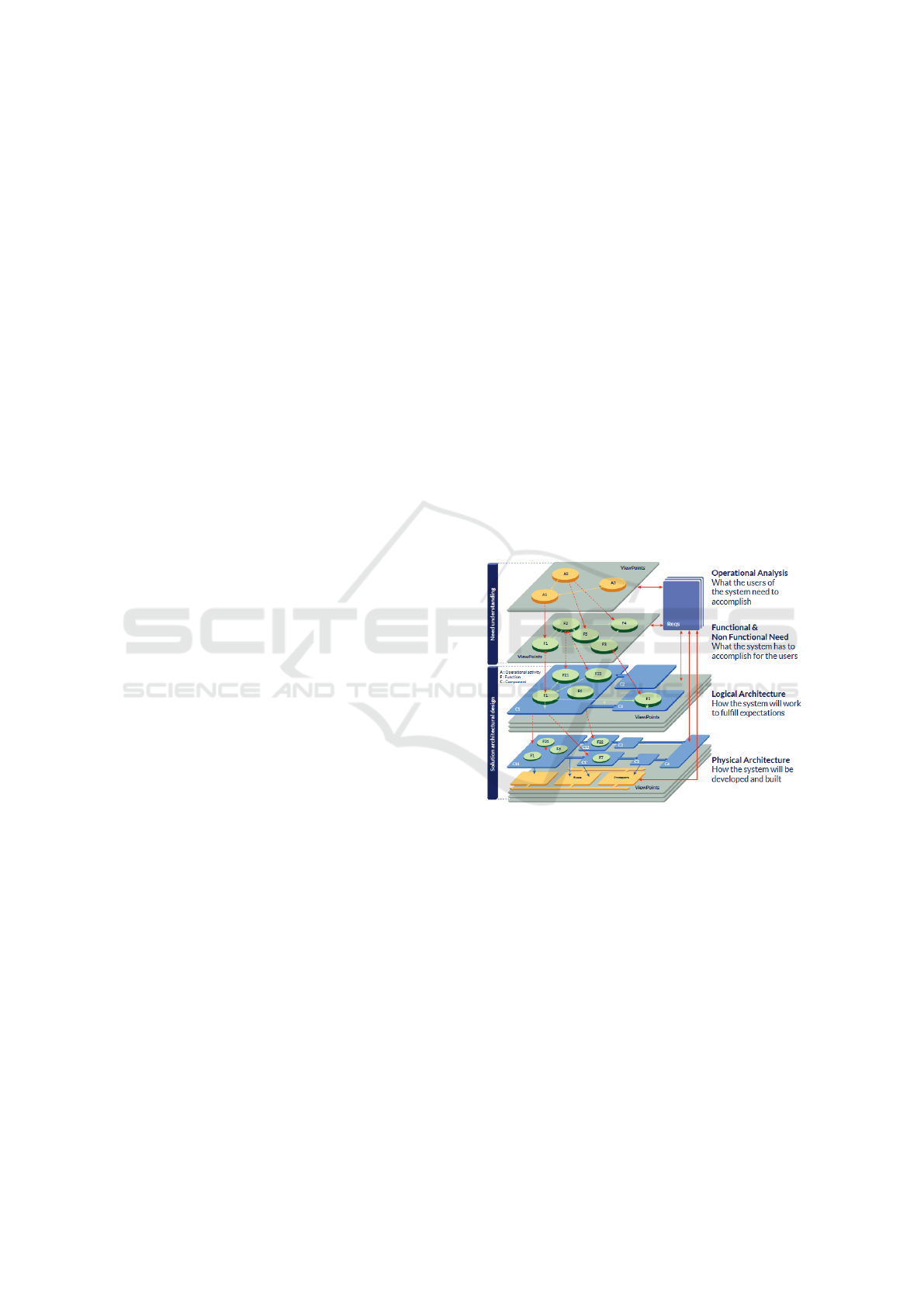

Figure 1: Arcadia MBSE Methodology.

In the same spirit, ASAP (Advanced System Ar-

chitecture Program by Alstom) is organised in 3 lay-

ers: (1) the operational level focuses on users to iden-

tify their needs and the external interfaces (WHY), (2)

the functional level deﬁnes WHAT the system does to

fulﬁll its mission and identiﬁes functional ﬂows, and

(3) the constructional level structures into intercon-

nected subsystems and their behaviour (HOW).

The elicitation of requirements is a key activity

of any system development. It is well known that

many projects are still failing mainly due to poor Re-

quirement Engineering (RE) practices (Hughes et al.,

2015). Different methods can ensure key properties

of completeness, accuracy, non-ambiguity and testa-

bility. They have also evolved from lightweight text-

Ponsard, C. and Darimont, R.

Towards Multi-Level Structuring of Goal-Oriented Models for Improved Model-Based Systems Engineering.

DOI: 10.5220/0011866200003402

In Proceedings of the 11th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2023), pages 269-274

ISBN: 978-989-758-633-0; ISSN: 2184-4348

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

269

based to model-based techniques. In the scope of this

paper, we will consider Goal-Oriented Requirements

Engineering (GORE) which aims at capturing, at dif-

ferent levels of abstraction, the various properties the

system under consideration should achieve. More

speciﬁcally we will use KAOS (van Lamsweerde,

2009) which was applied on large systems (Ponsard

and Darimont, 2017). However other variants can

also be considered, e.g. i* (Yu and Mylopoulos,

1997), GRL (ITU, 2012) or GSN (ACWG, 2018).

Although supporting abstraction and reﬁnement,

such methods do not deﬁne speciﬁc layers, leaving

this task to the analyst which may rely on a SEM

for this. A common ﬂaw is the limited ability to re-

ﬂect layers inside a GORE model. It usually relies on

rather syntactic containers such as package and dia-

grams and lacks semantic structure providing the abil-

ity to deﬁne a clean interface between layers. Figure

2 shows the inner structure of a KAOS model com-

posed of 225 goals described through 45 diagrams.

The structure shows more than 10 reﬁnement levels

but such a view does not really make explicit connec-

tions with design entities as those are captured by an-

other concept: the agent. Agent allocation in KAOS

can only be speciﬁed at the leaves and lacks the ability

to capture system-level agent. Other languages like i*

allow this but without decomposition.

In the scope of this position paper, we are in-

terested to investigate how to better structure GORE

models by adopting a decomposition structure which

is closer to the a typical SEM structure. This problem

has not received much attention in the literature but is

useful both in designing new system and for upgrad-

ing existing systems. For the former, the process can

help identify a good structure and lay the foundation

of a good architecture. For the latter, it helps in cap-

turing the requirements at the right layer and identi-

fying traceability impacts both to higher system level

or down to speciﬁc components. We contribute here

an extension to the KAOS meta-model with a more

semantic decomposition of a model in interconnected

sub-models. Our approach is experimented and dis-

cussed on the classical meeting scheduler case study

(van Lamsweerde et al., 1995) which is considered

both in a wider scope (enterprise business) and more

focused scope (speciﬁc components).

This paper is structured as follows. First, Section

2 reminds about the existing KAOS meta-model and

introduces our meeting scheduler case study. Section

3 explains our extension. Section 4 applies it to revisit

our case study. Our current results are then discussed

in Section 5. Finally, Section 6 draws some conclu-

sions and identiﬁes our future work.

2 KAOS META-MODEL AND

CASE STUDY

Goal is the core concept of a GORE model. Goals

prescribe, at different levels of abstraction, key prop-

erties the considered system should achieve. KAOS

uses several abstraction levels to express goals start-

ing from high-level strategic goals. In the meet-

ing scheduler case study (van Lamsweerde et al.,

1995) used as running example, it can be a goal like

Achieve[EfﬁcientSchedulingOfMeetings] as depicted

in Figure 3 as light blue parallelograms. In KAOS,

high-level goals are progressively reﬁned into more

concrete and operational ones through reﬁnement re-

lationships depicted as yellow circles. A reﬁnement

relationship links a parent goal to several subgoals

with different fulﬁlment conditions using either AND-

reﬁnement (all subgoals need to be satisﬁed, e.g. the

EfﬁcientSchedulingOfMeetings requires to achieve

four sub-goals:TimeTableCollected, PotentialRoom-

sIdentiﬁed, MeetinSchedulingBasedOnAvailableData

and MeetingInformationCommunicated), or OR-

reﬁnement / alternatives (a single subgoal is enough,

e.g. Achieve[TimetablesCollected] can be either

ManualCollection or AutomatedCollection). The

“WHY” and “HOW” questions can be used to conve-

niently navigate from subgoals to parent goals (why)

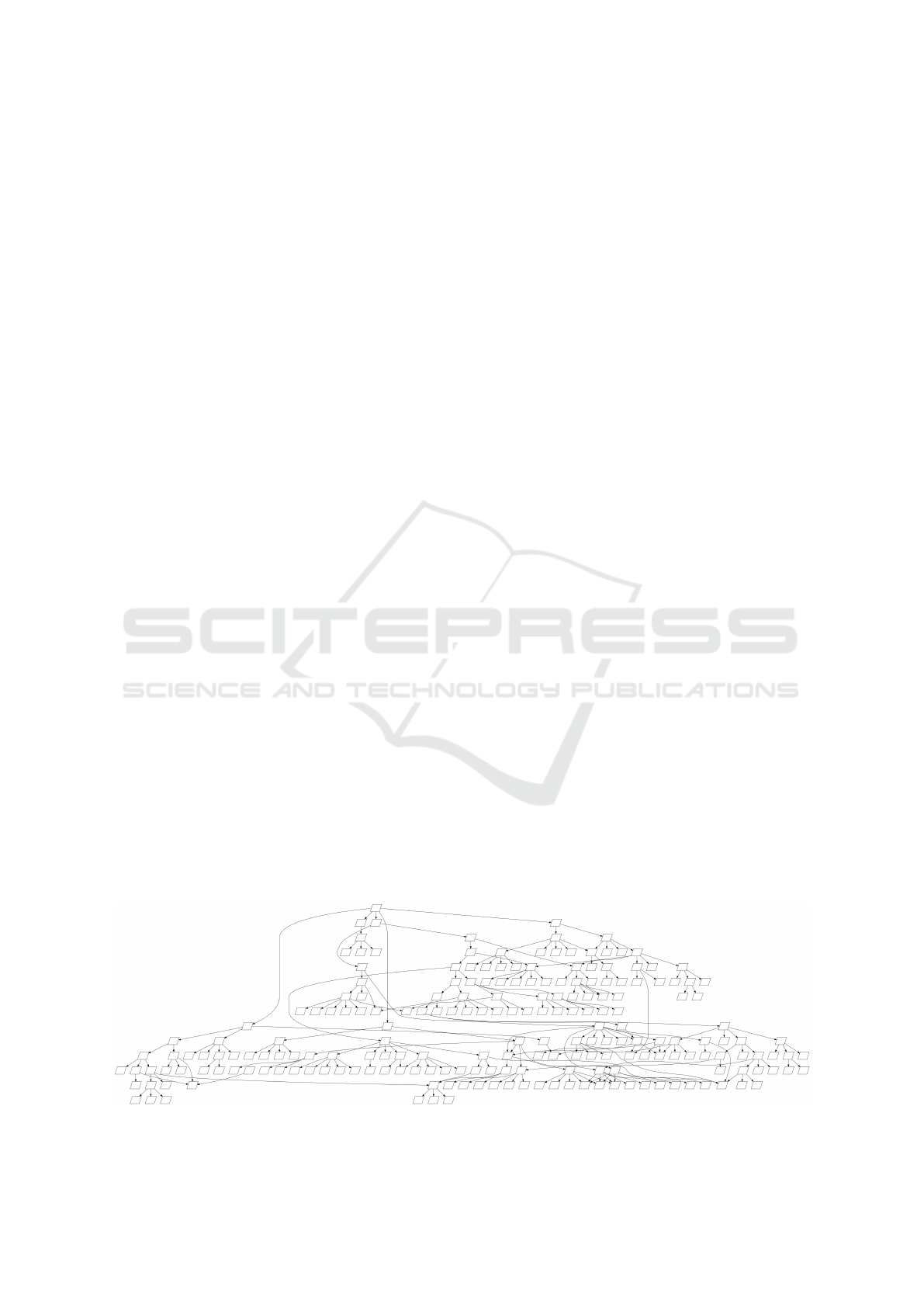

Figure 2: Typical inner structure of a KAOS model.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

270

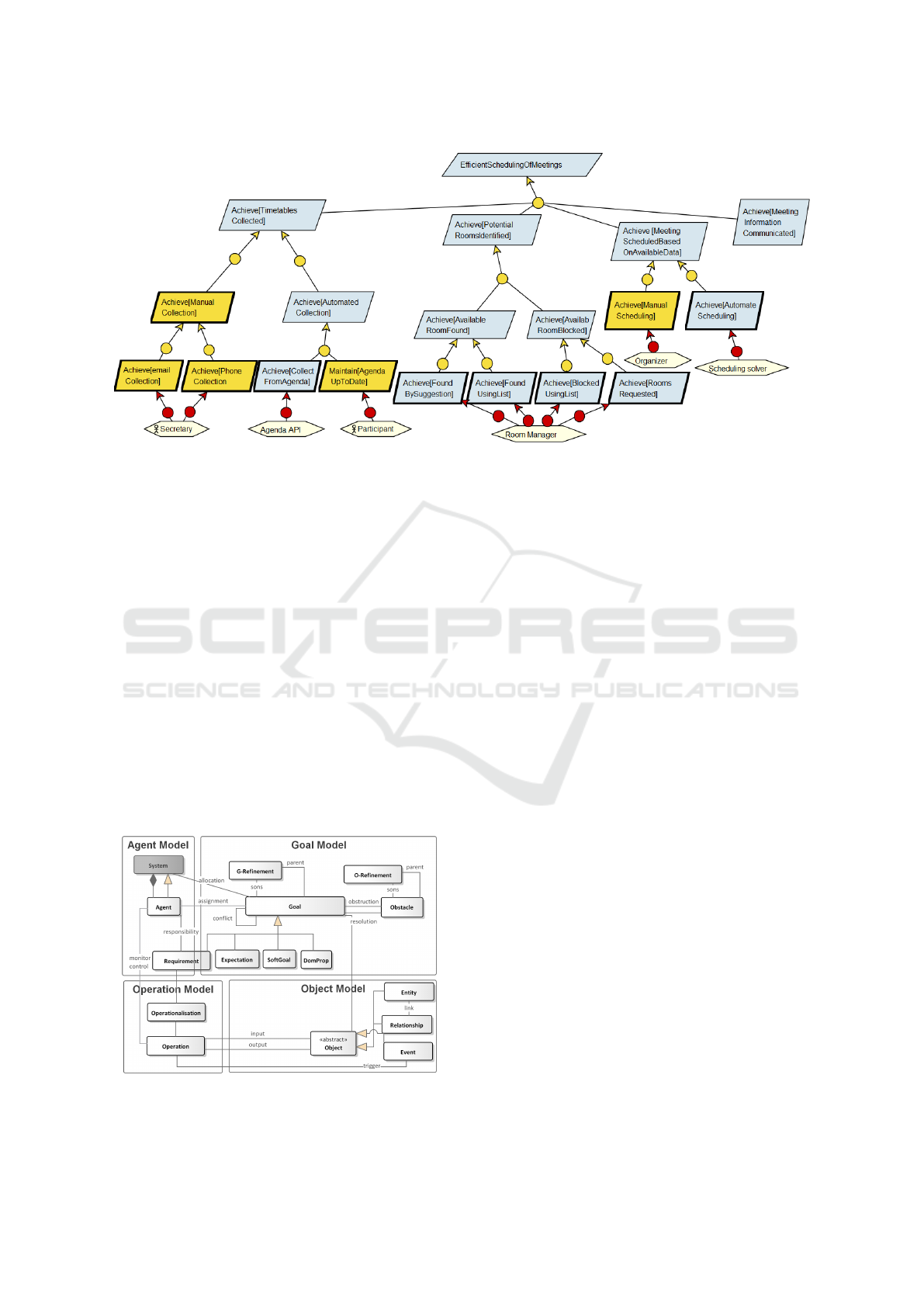

Figure 3: Monolithic goal graph for the meeting scheduler.

and from parent goals to subgoals (how). Goal reﬁne-

ment ends when every subgoal is realizable by some

individual agent (depicted as hexagon) which will be

assigned responsibility (through relationship with a

red circle). Such a leaf goal is called a requirement

if the agent is in the system under design. It is graphi-

cally differentiated from goals through a thick border.

It is an expectation if it is under responsibility of an

agent in the environment and then depicted in yellow.

Those concepts are summarised in the top part of

Figure 4 depicting goal and agent parts of the KAOS

meta-model. In addition, the meta-model also sup-

ports the description of the domain through an ob-

ject model and the functionalities through an oper-

ation model. Those will be less central in this pa-

per and will be discusses in Section 5. Note the goal

model also supports the reasoning about obstacles to

goal satisfaction, like safety or security risks.

Figure 4: KAOS meta-model with proposed extension.

3 PROPOSED EXTENSION

The goal model presented in Figure 3 shows a com-

plete reﬁnement of the top-level goal into different

requirements and expectations under the responsibil-

ity of 3 agents to be designed and 3 agents of the

environment. Even small, this case study highlights

limitations of the approach. A ﬁrst observation is

that part of the goal tree is under the control of a

single agent (e.g. Achieve[PotentialRoomIdentiﬁed])

and one might wish to assign the responsibility higher

in the tree which is not allowed. Another obser-

vation is that other parts require collaboration be-

tween agents but often with a single agent under

design, while the others are environment agents,

e.g. Achieve[AutomatedCollection]. Again here one

might consider this agent as central while the oth-

ers can be identiﬁed as interacting with it from the

outer context. In both cases, the result is that a higher

level goals might be considered as a requirement in

a higher-level description of the system which still

needs to be reﬁned to be fully realizable. In the pro-

cess, ﬁner grained agents purely internal to an agent

might also be identiﬁed, e.g. for the RoomManager.

In order to enable such system decomposition,

we make explicit the notion of System in the meta-

model. It is depicted in darker in Figure 4. It is intro-

duced as a generalisation of Agent which will allow

all agents to be considered as system, thus having a

system dimension while being less constrained, e.g.

only an agent can carry a responsibility. For a sys-

tem, a more abstract relationship named allocation is

introduced. A system is also an aggregation of ﬁner-

grained agents which is captured by the aggregation

Towards Multi-Level Structuring of Goal-Oriented Models for Improved Model-Based Systems Engineering

271

relationship. This enables to capture hierarchical sys-

tem breakdown structure and to ensure the alignment

with the breakdown of a system model. Note also that

the goal reﬁnement must be consistent with this struc-

ture through some meta-constraint.

Our extension is supported by the KAOS Objec-

tiver toolset (Respect-IT, 2005), a meta-case tool with

multiple levels from a generic meta-meta level (M0)

down to the instance level (M3). The meta-model

(M1) is updated through a plugin inserting the extra

meta-concepts and meta-relationships.

4 EXPERIMENT ON THE CASE

STUDY

Applying our extension on the meeting scheduler

yields the model depicted in Figure 5. It is much sim-

pler to understand than the complete model of Figure

3. Of course such structuring becomes fully meaning-

ful for large system as depicted in Figure 2.

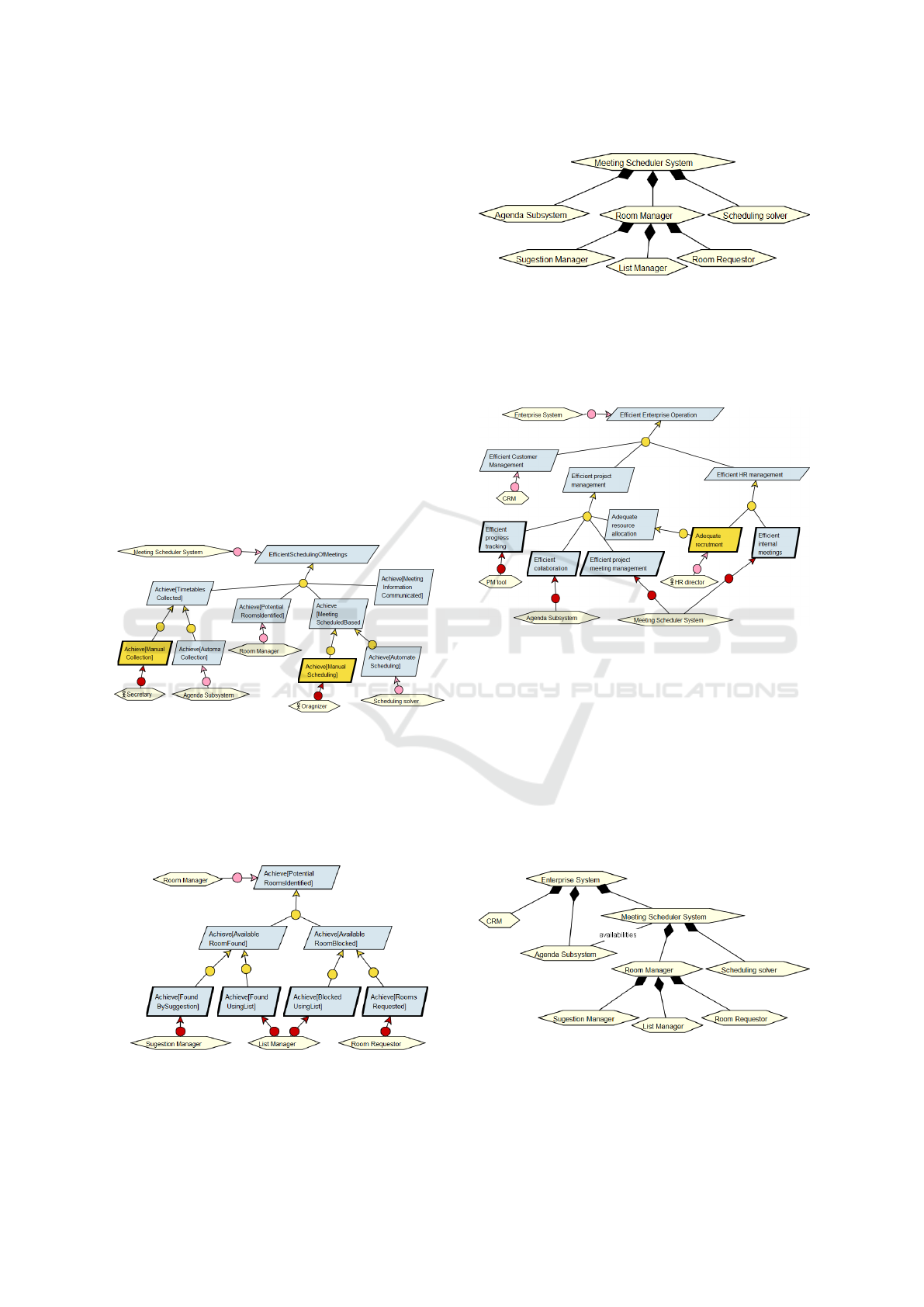

Figure 5: Meeting Scheduler with system reﬁnement.

Of course, it does not include all the information

as some agents now have to be reﬁned through sub-

systems. For example, the subsystem to manage the

available rooms is depicted in Figure 6. Note also the

top-level goal has been tagged with an explicit agent

representing the corresponding system level.

Figure 6: Room management subsystem.

Based on this, it is now easy to extract the agent

breakdown structure of Figure 7.

Figure 7: System breakdown structure.

Considering our meeting scheduler system, the

enforced goal contributes to the fulﬁlment of goals of

a larger enterprise system, e.g. for project manage-

ment or internal collaboration, as depicted in Figure

Figure 8: Organisation level system.

Analysing this system reveals an interesting point:

the agenda agent which was identiﬁed as subsystem

of the meeting scheduler seems more general and

also used to support collaboration and not only for

scheduling meetings which looks more a secondary

usage. Analysing this reveals the agenda is not a sub-

component but rather an external component which

is collaborating with the meeting scheduler through a

speciﬁc interface in order to collect availabilities. Ex-

tracting the breakdown structure again gives a more

global picture of the system as shown in Figure 9.

Figure 9: Enterprise level breakdown structure.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

272

5 DISCUSSION ABOUT RELATED

WORK

As stated earlier, many GORE frameworks have lim-

ited support for system decomposition. However, re-

searchers have investigated this problem. First Jack-

son problem frames (Jackson, 2001) is based on a pro-

cess of parallel - not hierarchical - decomposition of

user requirements and result in the analysis of many

subproblems that are then combined to form a solu-

tion design. To better support this essentially semi-

formal approach, a meta-model was proposed to cap-

ture the notion of sub-problems but also sub-domains

and to represent problems in intermediate situations

during the (de)composition phases (Lavazza et al.,

2010). Although it eases the analysis, the process

does not result in a breakdown structure that can be

applied to MBSE as in our proposal.

Another approach is DeSyRe which systemati-

cally decomposes system requirements into subsys-

tem requirements according to a given system archi-

tecture and with focus on informal or semi-formal re-

quirements (Penzenstadler, 2011). It provides guid-

ance to derive subsystem requirements from system

requirements by use of assumption/guarantee rea-

soning and decomposition patterns. This can com-

plement standard goal-decomposition patterns (Dari-

mont and van Lamsweerde, 1996) in order to deﬁne

subcomponent requirements.

More recent work has focused on more formal ap-

proaches for industrial system (Teuﬂ et al., 2014). It

has shown the beneﬁts of using a two-step process for

reﬁning system requirements to subsystem require-

ments: interface reﬁnement on the system boundaries,

and a decomposition of system requirements to sub-

system requirements. This can be complemented with

formal analysis and veriﬁcation techniques on the re-

ﬁnement of requirements. So far, our work has con-

sidered more the decomposition step but the need to

reason about interfaces was identiﬁed in our struc-

turing approach. For this purpose, the KAOS agent

model can capture monitor and control ﬂows across

agents and can enable this kind of reasoning.

Globally our approach is still semi-formal and re-

lies on a rich meta-model with a focus on properties

through goals and agents which can capture compo-

nents under design but also existing parts or human

agents interacting with the system. The object and op-

eration model are less relevant as they are better man-

aged by MBSE using notations like SysML (OMG,

2005). For example, a class diagrams can describe

domain models while an internal block diagrams can

capture system functions. Such models can then be

synchronised with the GORE model for enriching it if

necessary. In order to be consistent, the meta-model

also need to enforce a few meta-constraints related to

our extension. So far, we could identify the following

ones:

• Root goals in an agent subsystem decomposition

must match all requirements allocated to corre-

sponding agent in parent system.

• An agent part of a subsystem must be responsible

of requirements in that subystem.

• A system is only composed of agents allocated to

requirements resulting from alternatives speciﬁc

to that system and not reﬁning external functional

goals.

Our meeting scheduler case study contains OR-

reﬁnement but we did not provided any speciﬁc treat-

ment for them. They can result in alternative agents

and produce a richer system breakdown structure that

can evolve towards conﬁguration diagrams. The cou-

pling between goal reﬁnements and agent structure

can provide a good bridge between those two different

ways of capturing variability. However this requires

more work. Along the same line, we have also limited

to functional requirements and not considered possi-

ble conﬂicts among them.

6 CONCLUSION AND

PERSPECTIVES

This paper explored how to provide better support for

decomposing GORE models across multiple levels of

abstraction as an MBSE context with a focus on goals

and agents structuring. We proposed a meta-model

extension which enables to really capture systems and

subsystems as part of a model and beyond the mere

use of purely syntactic container such as packages and

diagrams. We also identiﬁed some meta-constraints

that ensure model consistency. We illustrated on a

meeting scheduler case study ranging on 3 levels of

system reﬁnement. Finally, we discussed our current

result in the light of some related work to highlight

the challenges ahead.

Our future work is to progress with the validation

on more complex case studies with industrial partners,

in the context of the modernisation of a complex rail-

way system. At the tool level, we plan to improve

the management of layers through the ability to navi-

gate across layer and also focus on a level by tempo-

rary hiding the other ones until the analyst wishes to

switch again to a more global view. We also plan to

enrich the analysis capabilities for dealing with reﬁne-

ment and to deploy a model synchronisation bridge.

Towards Multi-Level Structuring of Goal-Oriented Models for Improved Model-Based Systems Engineering

273

This will enable the reﬁnement of subsystem require-

ments both from the GORE and MBSE environments

and, from there, to assess what are the best scenarios

and practices.

ACKNOWLEDGEMENTS

This work was partly supported by the MORSE

project (nr 8389) under FEDER funding for Wallo-

nia. Thanks to our industrial partners for their inputs

in GORE and MBSE for exploring system decompo-

sition in both ﬁelds.

REFERENCES

ACWG (2018). Goal Structuring Notation Community

Standard, Version 2. The Assurance Case Working

Group https://scsc.uk/r141B:1?t=1.

Darimont, R. and van Lamsweerde, A. (1996). Formal re-

ﬁnement patterns for goal-driven requirements elabo-

ration. In Proc. of the Fourth ACM SIGSOFT Sympo-

sium on Foundations of Software Engineering, SIG-

SOFT1996, San Francisco, California, USA, October

16-18. ACM.

DOE (2002). Systems Engineering Methodology, Version

3. US Department of Energy DOE G 200.1-1A.

Hughes, D. et al. (2015). Success and Failure of IS/IT

Projects: A State of the Art Analysis and Future

Directions. SpringerBriefs in Information Systems.

Springer International Publishing.

INCOSE (2007). SYSTEMS ENGINEERING VI-

SION 2020. http://www.ccose.org/media/upload/

SEVision2020\ 20071003\ v2\ 03.pdf.

ITU (2012). Recommendation Z.151 (10/12), User Re-

quirements Notation - Language Def. https://www.

itu.int/rec/T-REC-Z.151.

Jackson, M. (2001). Problem Frames: Analyzing and Struc-

turing Software Development Problems. Addison-

Wesley Longman Publishing Co., Inc.

Lavazza, L., Coen-Porisini, A., Colombo, P., and del

Bianco, V. (2010). A meta-model supporting the de-

composition of problem descriptions. pages 50–57.

Madni, A. M. and Purohit, S. (2019). Economic analysis of

model-based systems engineering. Systems, 7(1).

Michot, A., Ponsard, C., and Boucher, Q. (2018). Towards

better document to model synchronisation: Experi-

mentations with a proposed architecture. In Proc. of

the 6th Int. Conf. on Model-Driven Engineering and

Software Development, MODELSWARD 2018, Fun-

chal, Madeira - Portugal, January 22-24.

OMG (2005). System modeling language. http://www.omg.

org/spec/SysML.

OMG (2018). MBSE Methodologies and Metrics.

Penzenstadler, B. (2011). Exactly the information your sub-

contractor needs: Desyre - decomposing system re-

quirements.

Ponsard, C. and Darimont, R. (2017). Improving require-

ments engineering through goal-oriented models and

tools: Feedback from a large industrial deployment. In

Proc. of the 12th Int. Conf. on Software Technologies,

ICSOFT 2017, Madrid, Spain, July 24-26.

Respect-IT (2005). The Objectiver Requirements Engineer-

ing Tool.

http://www.respect-it.com.

Teuﬂ, S., B

ohm, W., and Pinger, R. (2014). Understand-

ing and closing the gap between requirements on sys-

tem and subsystem level. In IEEE 4th International

Model-Driven Requirements Engineering Workshop

(MoDRE).

van Lamsweerde, A. (2009). Requirements Engineering -

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

van Lamsweerde, A., Darimont, R., and Massonet, P.

(1995). Goal-directed elaboration of requirements for

a meeting scheduler: problems and lessons learnt. In

Proc. of IEEE Int. Symposium on Req. Eng. (RE’95).

Weilkiens, T. and Mao, M. D. (2022). MBSE Methodolo-

gies. https://mbse-methodologies.org.

Yu, E. and Mylopoulos, J. (1997). Enterprise modelling for

business redesign: The i* framework. SIGGROUP

Bull., 18(1):59–63.

MODELSWARD 2023 - 11th International Conference on Model-Based Software and Systems Engineering

274
