When Is an Automated Driving System Safe Enough for

Deployment on the Public Road? Quantifying Safety

Risk Using Real-World Scenarios

Olaf Op den Camp

, Erwin de Gelder

and Jeroen Broos

Department of Integrated Vehicle Safety, TNO, Automotive Campus 30, Helmond, The Netherlands

Keywords: Safety Assessment, Risk Quantification, Scenarios, Virtual Simulation.

Abstract: To ensure the safe and responsible deployment of vehicles equipped with Automated Driving Systems (ADSs)

onto the public road, a safety assessment of such vehicles should be passed successfully. The assessment

results should be unambiguous, easily understood by experts in the field, and explainable to authorities and

the general public. An important metric in such a framework is the residual safety risk. The concept of risk is

widely understood, and basing the safety assessment on that concept helps to come to a fair and acceptable

assessment process. In this paper, we propose a method how to determine estimates for the residual safety

risk, and how this safety risk estimate relates to the requirements posed by the UNECE that an activated ADS

shall not cause any collisions that are reasonably foreseeable and preventable.

1 INTRODUCTION

The development of automated driving technology

that supports the human driver or even completely

takes over the driving task for parts of a trip, is a large

challenge. However, the development of the safety

assessment methods that are required to ensure that

the risk associated with the deployment of such inno-

vative and complex technologies onto the public

roads is acceptable to consumers, authorities and sys-

tem developers (vehicle manufacturers and suppli-

ers), appears to be an even bigger challenge.

In this challenge, the following aspects need to

be considered:

 The (residual) safety risk associated with the de-

ployment of automated driving technologies is

the result of many different factors, in- and out-

side of the Automated Vehicle (AV). These fac-

tors range from the technical state of the vehicle

(the performance of the vehicle except for the au-

tomation), functional safety aspects, the vehi-

cle’s vulnerability to cybersecurity threats, the

perception capabilities of the vehicle’s sensor

system, the driving skills of the Automated Driv-

https://orcid.org/0000-0002-6355-134X

https://orcid.org/0000-0003-4260-4294

ing System (ADS) in response to the sensor in-

puts, the interaction with the operator, and the ca-

pabilities of the human driver of the vehicle (de-

pending on the level of automation).

 AV functions and systems become increasingly

smart and complex, are more and more integrated

and become increasingly dependent on machine

learning technology. There is no complete over-

view of failure modes and the appropriate safety

assessment and risk estimation methods are dif-

ficult to define appropriately.

 There is no complete overview of situations and

circumstances in which the systems will be used

during its lifetime, which makes it even more dif-

ficult to identify the potential failure modes and

safety risks.

To put a legal framework to the deployment of au-

tomated vehicle systems onto the public road, regula-

tions are being implemented by the UNECE, e.g., for

Automated Lane Keeping Systems or ALKS (UNECE,

2021) (UNECE, 2022) and the EC, i.e., for ADS in four

use cases (European Commission, 2022). UN Regula-

tion No. 157 (UNECE, 2022) uses the following for-

mulation for the safety requirements to ALKS:

Op den Camp, O., de Gelder, E. and Broos, J.

When Is an Automated Driving System Safe Enough for Deployment on the Public Road? Quantifying Safety Risk Using Real-World Scenarios.

DOI: 10.5220/0011958000003479

In Proceedings of the 9th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2023), pages 297-304

ISBN: 978-989-758-652-1; ISSN: 2184-495X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

297

 The activated system shall perform the Dynamic

Driving Task (DDT), shall manage all situations

including failures, and shall be free of unreason-

able risks for the vehicle occupants or any other

road users.

 The activated system shall not cause any colli-

sions that are reasonably foreseeable and pre-

ventable. If a collision can be safely avoided

without causing another one, it shall be avoided.

Following the formulation of the ALKS regula-

tion, an AV should be free of reasonably foreseeable

and preventable safety risks. The challenge is how to

quantify what is considered to be “reasonably fore-

seeable” and “reasonably preventable”, and to con-

sider all the realistically possible situations. For au-

thorities and the industry, this leads to similar but

slightly different challenges:

 For authorities, the challenge is how to assess

whether the AV meets the legal requirement that

it is free of reasonably foreseeable and preventa-

ble safety risks.

 For AV developers, the challenge is to provide

evidence that a newly developed AV is safe to be

deployed on the road.

Though ADS are complex and the assessment

procedure might be complicated, the assessment re-

sults should be unambiguous, easily understood by

experts in the field, and explainable to authorities and

the general public. An important metric in such a

framework is the residual safety risk when a vehicle

is allowed onto the road (SAKURA, SIP-adus and

HEADSTART projects, 2021). The residual safety

risk is for example expressed as the probability of a

fatality or serious injury per hour of driving. The con-

cept of risk is widely understood, and basing the

safety assessment on that concept helps to come to a

fair and acceptable assessment process.

The United Nations Economic Commission for

Europe (UNECE) WP.29 Working Party on Auto-

mated/Autonomous and Connected Vehicles

(GRVA) has developed the New Assessment/Test

Methods (NATM) Master Document (UNECE,

2021), where a multi-pillar approach is envisaged, as

shown in Figure 1. The Master Document shows the

process to be followed for safety assessment; it does

not state how to quantify the results of safety assess-

ment. In this paper, we propose how to determine es-

timates for the residual safety risk, how this safety

risk estimate relates to the terms “reasonably foresee-

able” and “reasonably preventable”, and how this is

in agreement with and a further fulfilment of the

UNECE multi-pillar approach.

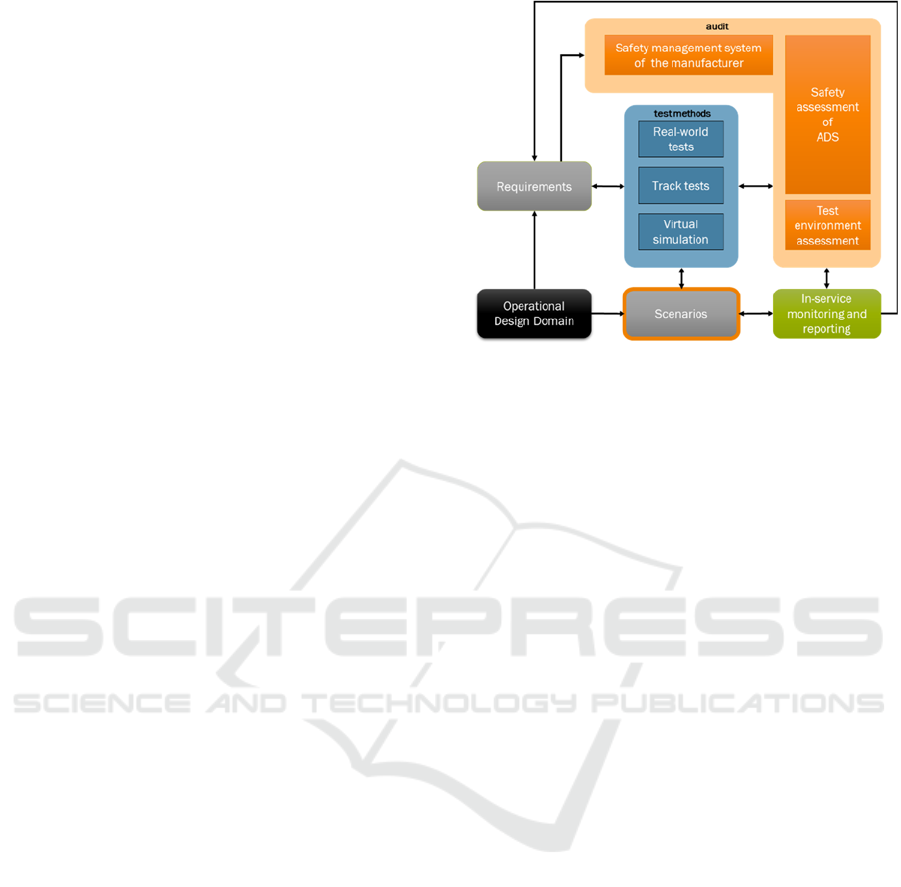

Figure 1: The multi-pillar approach. Figure is adapted from

(Donà, et al., 2022).

2 AUTOMATION AND

SCENARIO-BASED SAFETY

ASSESSMENT

In this section, we will reference the different levels

of automation that are related to the role of the driver

in the vehicle. The reason is that safety assessment

considers the safety of the complete vehicle which

obviously includes the driver, whether this is a human

driver, a robot driver, or a combination of both.

The SAE J3016 (SAE On-Road Automated Driv-

ing (ORAD) committee, 2018) is a commonly used

scheme to present the change of the role and respon-

sibility of the human driver for different levels of au-

tomation. Driver support functions (Level 0, 1, or 2)

support the human driver when certain conditions are

met during a drive. In these cases, the human driver

must be continuously in the loop to monitor the vehi-

cle systems and the environment, and that human

driver is responsible for correct intervention when

needed. For a Level 3 system, the human driver must

be ready to take over control from the automation sys-

tem if the Level 3 system requests to do so. For Level

4 (and Level 5) systems, the human driver will not be

required to take over control, and consequently, the

robot driver needs to respond appropriately in all sit-

uation the vehicle encounters, without the fallback

option of a human driver.

To assess whether a Level 3 or 4 ADS can safely

handle and appropriately respond to all situations and

all conditions that it potentially encounters on the

road during its lifetime, requires a structured ap-

proach in testing the ADS for all these situations.

VEHITS 2023 - 9th International Conference on Vehicle Technology and Intelligent Transport Systems

298

Stakeholders (AV developers, type approval authori-

ties, regulatory bodies, and automotive research insti-

tutes and academia) in Europe, Japan and Singapore,

share the vision, that this approach can only be suc-

cessful by using a (data-driven) scenario-based ap-

proach (SAKURA, SIP-adus and HEADSTART

projects, 2021) (de Gelder, Op den Camp, & de Boer,

Scenario categories for the assessment of automated

vehicles, 2020). Object level sensor data from hun-

dreds of thousands of (naturalistic) driving kilometres

on public roads are used to build a scenario database

that shows what scenarios occur on the road and

which variations are seen in the scenarios and the con-

ditions (e.g., weather and light). The scenarios are pa-

rameterized, and data collection campaigns are orga-

nized in such a way, that the probability density func-

tions (PDFs) for the scenario parameters can be deter-

mined, e.g., for statistical analyses of the scenarios.

In a second step, the ODD of the ADS is de-

scribed, and tests are generated from the scenario da-

tabase by sampling from those scenarios that fall

within the ODD of the ADS under test.

3 RISK OF DEPLOYING AN AV

ONTO THE PUBLIC ROAD

Safety assessment is about determining whether the

safety risk of deploying an AV onto the public road is

acceptable or not. Safety assessment procedures aim

at quantifying the safety risk by determining the prob-

ability that the AV ends up in a collision and address-

ing the severity of the consequences of such a colli-

sion. The safety risk needs to consider each situation

that the AV may encounter on the road during its life-

time.

This formulation shows that safety risk depends

on a multitude of factors, such as (the list may be in-

complete):

1. AV system design: is the design of the system

such that it is capable to respond appropriately to

all scenarios?

2. The scenarios that the AV actually encounters on

the road, including the (potentially irresponsible)

behaviour of other traffic participants, the layout

of the infrastructure, and the (weather and light-

ing) conditions. The variation in each of these

factors is large, and the number of variations

grows further with all the possible combinations

that might occur.

3. The impact on the behaviour of the AV due to a

possible failure of one of its components or sub-

systems. This can be an internal failure, such as

an overheated control unit or a malfunction of a

sensor. This is a Functional Safety topic (ISO

26262, 2018). It is also possible that a component

fails to work correctly (or show the intended

functionality) due to causes outside of the AV.

An example thereof is the failure of a camera due

to, e.g., fog, glare, or a frosted lens in wintertime.

This is the topic of Safety of the Intended Func-

tionality (ISO 21448, 2021).

4. The capabilities of a possible fallback system

that takes over control of the system in case the

ADS feature is no longer capable to deal with the

situation itself. For lower levels of automation,

this is usually the human driver. For higher levels

of automation, other approaches are required as-

suming that the human driver can no longer act

as fallback option.

5. Measures taken in and on the AV to mitigate the

consequences of a collision such as passive and

active safety measures, such as seat belts, air-

bags, and AEB systems – which might be re-

quired in addition to the AV’s decision and con-

trol logic.

There are two comments that need to be addressed

at this stage:

 It is a common misconception that safety of an

AV can be fully covered when following the

main safety standards: ISO 26262 on Functional

Safety and ISO 21448 on Safety of the Intended

Functionality. These standards certainly need to

be followed to cover the third bullet out of the list

above, but conforming to the norms provided by

these standards will not guarantee a safe response

of the AV for all situations and under all condi-

tions. Additional activities are needed to address

the full operational safety of AVs.

 Another common misconception is that for a

proper safety assessment of an AV, only those

situations that are considered critical on the road

have to be evaluated. This assumption is rather

popular as it would drastically reduce the number

of tests that are required for a proper safety as-

sessment. Unfortunately, it is not possible to fo-

cus on critical situations only, as such situations

can easily result from poor performance of the

AV in any particular situation, whether such sit-

uation is initially considered a ‘nominal case’ or

a ‘non-critical case’. What appears to be a nomi-

nal case for one system, might turn out to become

a critical case for another system due to differ-

ences in system design and performance.

Many criticality metrics exist, such as for instance

Time To Collision (TTC). The general idea is that the

smaller the TTC, the higher the risk. Westhofen et al.

When Is an Automated Driving System Safe Enough for Deployment on the Public Road? Quantifying Safety Risk Using Real-World

Scenarios

299

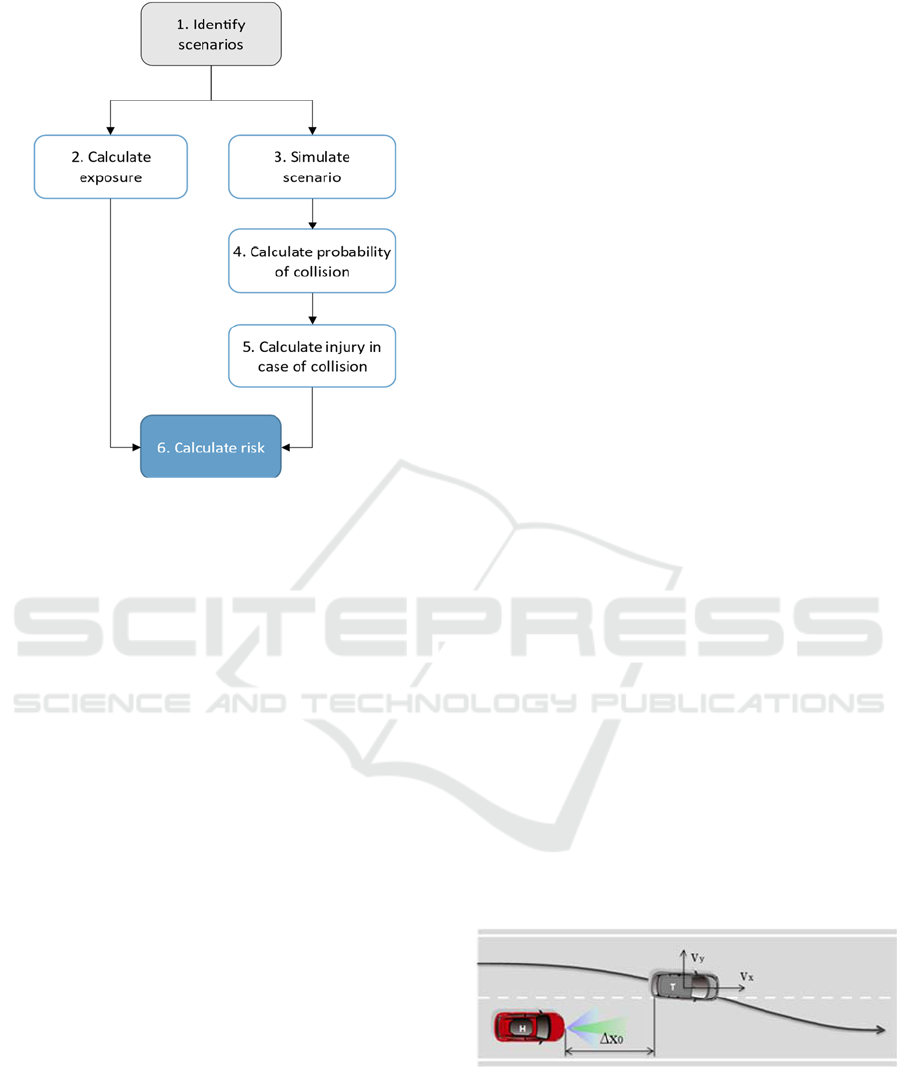

Figure 2: Overview of the risk quantification method as pre-

sented by (de Gelder, et al., 2021).

(Westhofen, et al., 2023) review a wide variety of

criticality metrics. These are considered surrogate

metrics for criticality and are particularly useful in

AV development and implementation. However, no

statistical analysis is possible that provides a quanti-

fication of the residual safety risk of the deployment

of an AV based on surrogate criticality metrics.

4 QUANTIFYING RISK

Figure 2 (de Gelder, et al., 2021) provides a method

to estimate the risk of an ADS in a quantitative man-

ner. A data-driven approach considering real-world

driving scenarios is used to rely less on subjective

judgements of safety experts. The output of the

method is for instance the expected number of fatal

and/or severe injuries in a potential crash. The method

is quantitative, the result is easily interpretable, and

the result can be compared with road (crash) statistics.

Hence, risk quantification is a valuable input to the

safety assessment audit as part of the multi-pillar ap-

proach (Figure 1).

4.1 Scenarios

The first step of the proposed method is to identify the

scenarios that the ADS encounters or may encounter

in real life. The term scenario is used to provide a

quantitative description of the relevant characteristics

and activities and/or goals of the ego vehicle, the

static environment, the dynamic environment, and all

events that are relevant to the ego vehicle (de Gelder,

et al., 2022). More informally, a scenario describes

any situation on the road including the intent of the

subject vehicle, the behaviour of road users, the road

layout, and conditions. A drive on the road is consid-

ered a continuous sequence of scenarios – which

might overlap.

In addition to the identification of scenarios and

their variations that occur in the real world, this step

also considers the selection of those scenarios that are

part of the Operational Design Domain (ODD) of the

ADS and the ego vehicle. Once deployed, the ADS

needs to deal with many scenarios and the ODD in

which the ADS is operating determines the variety of

these scenarios. Currently, in the StreetWise scenario

database governed by TNO (Op den Camp, de

Gelder, Kalisvaart, & Goossens, 2023), scenario cat-

egories are used to describe most situations that occur

on highways.

To describe an exemplary cut-in scenario in which

a vehicle (marked T in Figure 3) changes lane into the

lane and in front of an ego vehicle (marked H), sev-

eral parameters can be used to describe this typical

highway scenario:

initial longitudinal velocity of the ego vehi-

cle [m/s]

∆v

initial relative longitudinal velocity of the

target vehicle with respect to the ego [m/s]



average lateral velocity over the duration of

the lane change of the target vehicle in front

of the ego vehicle [m/s]

THW

time headway at the start of the lane change

by the target vehicle [s]  ∆x

∆x

distance between the target vehicle (rear

side) and the ego vehicle (front side) when

the target starts crossing the lane marking.

Figure 3: Schematic view of a target vehicle (T) cutting in

on an ego vehicle (H).

These parameters, identified for 6.316 realiza-

tions of a cut-in in a dataset covering more than

110.000 km of highway driving in Europe, provide

valuable statistical information (Paardekooper, et al.,

2019) on variations of cut-in scenarios in Europe.

VEHITS 2023 - 9th International Conference on Vehicle Technology and Intelligent Transport Systems

300

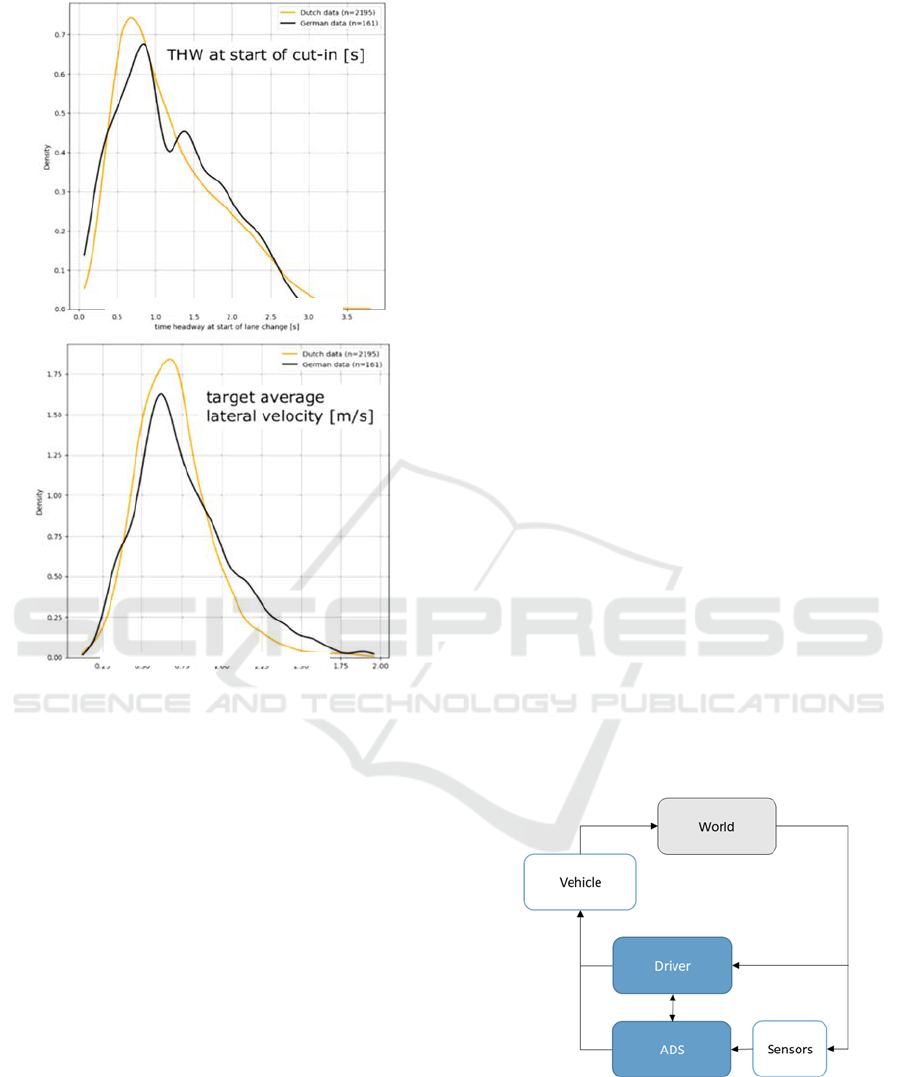

Figure 4: Probability density functions for two of the pa-

rameters describing concrete cut-in scenarios collected in

approximately 35.000 km in the Netherlands (orange curves

based on 2.195 identified cut-ins) and 2.500 km in Germany

(black curves, 161 cut-ins).

This is illustrated in graphs of the parameter dis-

tributions, or more precisely of the probability density

functions (PDF). A PDF indicates the probability that

a parameter falls within a particular range, given by

the area under the density function and between the

upper and lower value of that range. The PDFs, com-

bined with information about how often each specific

scenario category is encountered on the road, enables

us to calculate the exposure on the road for all the

possible scenario variations of the scenarios. This is

important for the second step in risk quantification:

determining the exposure (Figure 2).

The graphs in Figure 4 indicate [top] the distance

of the target vehicle with respect to the ego vehicle at

the start of the lane change by the target vehicle ex-

pressed as a THW and [lower] the average lateral

speed of the target vehicle while changing lane. Since

the curves for Germany are based on 2.500 km of

driving in which 161 cut-ins were detected, the con-

fidence in the shape of the PDFs is limited, which

makes it difficult to draw conclusions on the differ-

ences found between Germany and the Netherlands.

The peak in the curves for the THW is in the Nether-

lands at 0.65 s and in Germany at 0.85 s. Further anal-

ysis shows that lower THW is associated with a lower

average lateral speed of the cutting-in vehicle. More-

over, for a THW lower than 1.0 s, the distribution of

the relative longitudinal speed of the target vehicle

with respect to the ego vehicle is shifted into a more

positive direction. This observation is in agreement

with the expectation that for a smaller THW, the lane

change is performed somewhat more carefully

(slower), and the gap closing speed between both ve-

hicles is smaller.

The example shows that a scenario database is an

important tool to get insight into:

 How scenarios typically evolve on the road, what

ranges of the parameters can be expected, and

what the relation between parameters is;

 How frequently certain parameter values occur

on the road (nominal values versus more rare oc-

currences) or what the probability is of the occur-

rence of a certain combination of parameter val-

ues (cross-correlation);

 Differences in parameter distributions for scenar-

ios that are collected in different regions.

4.2 Virtual Simulation of a Scenario

Step 3 of risk quantification is in the virtual simula-

tion how an ADS or even an AV behaves in each of

the scenarios that is relevant for its ODD. To enable

the simulation, a simulation framework is required,

which is represented by five blocks (Figure 5):

Figure 5: Scheme of the simulation framework.

 World: represents the relevant information about

the environment in which the ADS operates. This

includes the vehicles (and their manoeuvres) in

the direct vicinity of the ego vehicle.

When Is an Automated Driving System Safe Enough for Deployment on the Public Road? Quantifying Safety Risk Using Real-World

Scenarios

301

 Sensors: map the information that is perceived by

the ego vehicle regarding the environment (both

static and dynamic) to the information that can be

used by the ADS.

 ADS: the control and decision logic in the vehi-

cle that is used to perform an automated function.

The ADS uses the data provided by the sensors

to provide control signals to the actuators and to

interact with the human driver, e.g., through an

HMI.

 Driver: the actual human driver that is behind the

steering wheel or that operates the vehicle re-

motely.

 Vehicle: the system with ADS, actuators, and

driver interaction that translates the inputs into

vehicle motion, manoeuvring through the world.

The outcome of a simulation is used to determine

whether a scenario ends up in a crash or not. In case

of a crash, the simulation can also be used to deter-

mine the extent of harm that is caused by the crash.

This is strongly related to steps 4 and 5 in Figure 5.

4.3 Calculate Risk

With the identification and selection of relevant sce-

narios in the ODD, the calculation of the exposure to

each of these scenarios and the calculation of the pos-

sible harm caused by the scenarios, all information is

available to calculate the total risk posed by the sys-

tem onto the road (Figure 5). As explained in (de

Gelder, et al., 2021), the risk associated with a sce-

nario category 𝐶



is the combination of the probabil-

ity of occurrence of that scenario and the expected ex-

tent of harm given the scenario. De Gelder (de Gelder,

et al., 2021) also shows how to determine an upper

bound of the total risk, based on the combination of

the risks for the individual scenario categories that

potentially are encountered:

Risk 𝐶



 Risk



𝐶







(1)

where the equality applies if none of the scenario cat-

egories 𝐶



show an overlap. Note that the collection

of scenario categories 𝐶



should cover the complete

ODD of the ADS. Those situations in which the ADS

unintentionally leaves its ODD need also to be con-

sidered in risk quantification.

In (de Gelder & Op den Camp, How certain are

we that our automated driving system is safe?, 2023),

it is shown how to additionally quantify the uncertain-

ties that are associated with safety risk estimation.

These uncertainties result from the fact that the data-

base is not complete leading to uncertainty of the ex-

posure and uncertainty in the scenario parameter dis-

tributions, and from the fact that only a limited num-

ber of simulations can be performed. Using a proba-

bilistic framework, all results are combined to esti-

mate the residual risk as well as the uncertainty of this

estimation.

5 DISCUSSION

A structured approach in testing an AV for all possi-

ble situations that the AV may encounter on the road

during its lifetime, is provided by scenario-based

safety assessment. Application of the scenario-based

approach is a pre-requisite to calculate the safety risk

associated with the deployment of a particular AV

onto the public road. The concept of safety risk (the

probability that the AV ends up in a collision, consid-

ering the severity of the injury resulting from the col-

lision) is widely understood, and basing the safety as-

sessment on that concept helps to come to a fair and

acceptable assessment process that is fully in agree-

ment with the multi-pillar approach as proposed by

the UNECE (Donà, et al., 2022).

Scenarios and scenario statistics are essential in

safety assessment of AVs. Scenarios are typically

stored in a database. The use of scenarios for devel-

opment and testing puts requirements to scenario da-

tabases that need to be established. A scenario data-

base should provide a (complete) view on scenarios

(and their variations, also depending on region, traffic

rules, and driving culture) that a vehicle can encoun-

ter on the road during its lifetime. This includes how

scenarios evolve over time with the changes in the

mobility system. Scenarios should cover nominal

everyday driving and more rare and extreme (chal-

lenging) cases. Most important is the possibility to de-

termine scenario statistics, with metrics such as:

 Exposure: what is the probability of encountering

a scenario within certain parameter ranges or

given characteristics, e.g., expressed in the num-

ber per 100.000 km of driving;

 Completeness: a quantitative metric that deter-

mines how well the scenarios (and their varia-

tions) included in the scenario database cover the

occurrence of scenarios in the real world. De

Gelder (de Gelder, Paardekooper, Op den Camp,

& De Schutter, 2019) shows how to determine

completeness using the PDFs of the scenario pa-

rameters.

Currently available scenario databases, similar to

TNO’s StreetWise, are far from complete. In other

VEHITS 2023 - 9th International Conference on Vehicle Technology and Intelligent Transport Systems

302

words, the known scenarios do not cover all possible

scenarios in the real world. Not only is it difficult to

provide a reliable description of the ODD of a func-

tion when the scenario database is not sufficiently

complete, also the relevance of the selection of test

cases is limited in that case. In other words, the func-

tion might encounter a scenario on the road for which

the function has not been tested, if tests are based on

an incomplete scenario database only.

It is for this reason that industrial stakeholders,

such as OEMs, TIER1 suppliers and AV developers

are building collaborations in scenario mining on

public roads (SUNRISE, 2023). It needs to be collab-

orative efforts, as it is (almost) infeasible for a single

party to collect information from all public roads at

which a vehicle is potentially deployed.

Also, authorities have an interest to strive for

completeness of a scenario database. Although au-

thorities in general do not have the resources or the

means for scenario collection at a large scale, testing

AVs based on real-world scenarios that cover the

complete operational domain of such vehicles is im-

portant. For authorities to allow an automated vehicle

onto the road (European Commission, 2022), there

needs to be sufficient evidence and confidence re-

garding the safety of the vehicle under all reasonably

foreseeable conditions. What is reasonably foreseea-

ble can be linked to the exposure value for a scenario,

given that the scenario database is sufficiently com-

plete.

The term ‘reasonably preventable’ (UNECE,

2022) is often related to the performance of a well-

trained, capable and attentive human driver that is put

in the same situation. If such a driver is able to pre-

vent a collision, then the ‘collision’ is called ‘reason-

ably preventable’, and an AV should perform at least

as good as such a human driver in each of the scenar-

ios.

In addition to being able to prevent reasonably

foreseeable and preventable collisions, AVs also need

to show driving behaviour fitting for the situation and

in agreement what other traffic participants might ex-

pect and find acceptable. In (Tejada, Manders,

Snijders, Paardekooper, & de Hair-Buijssen, 2020) it

is explained how to quantify and characterize of what

is called ‘safe and social driving’. To be issued a driv-

ing license, a human driver needs to behave correctly

in traffic according to the locally applicable traffic

rules and regulations, and to show safe and acceptable

behaviour in the interaction with other road users. It

is difficult to quantify what is acceptable or not. One

aspect that at least needs to be considered is the ability

of a driver to anticipate on behaviour of others and to

deploy behaviour that is within the range of expecta-

tion of the other traffic participants.

Similar to human drivers, automated systems

should not only show safe, but also predictable social

behaviour, which is considered good roadmanship. It

is for this reason that current research not only focus-

ses on making a scenario database complete, but also

on the development of methods to characterize and

quantify ‘roadmanship’ for human drivers, in order to

determine criteria for good ‘roadmanship’ of auto-

mated vehicles and appropriate references in the sce-

narios provided by the databases.

6 RECOMMENDATIONS AND

FUTURE RESEARCH

For the safety assessment of AVs, it is recommended

to apply the following combination of approaches:

1. A multi-pillar approach: combining different as-

sessment approaches ranging from testing on a

test track and in public road trials, the evaluation

of virtual simulation results, and the auditing of

processes followed by the AV developer;

2. A milestone-based approach: breaking up the

large challenge of performing one single safety

assessment process to provide a type approval for

an AV to be deployed on the public road into

smaller more feasible challenges with increasing

complexity. The use of milestones leads to the

reduction of safety risks in performing the re-

quired tests per milestone and reduces the time

pressure for the authorities, as the development

and implementation of the safety assessment

framework can be executed in parallel with the

developments of AV solutions by the industry;

3. A scenario-based approach: scenarios are used to

describe the situations and conditions that an AV

may encounter during operation in the real world,

in a structured way. To come to realistic and rel-

evant tests for the safety assessment of the AV,

the parameters describing these scenarios are

sampled from distributions that are based on real-

world data.

Continuous research aims at harmonizing the dif-

ferent scenario-based approaches in Europe, in order

to come to a sufficient level of completeness by shar-

ing information from different scenario databases

covering different regions. Harmonization includes

for instance terminology, scenario definition and par-

ametrization, meta information to be stored along a

scenario to enable statistical analysis, and the meth-

When Is an Automated Driving System Safe Enough for Deployment on the Public Road? Quantifying Safety Risk Using Real-World

Scenarios

303

ods for test case generation out of the relevant scenar-

ios. All these topics are covered in the Horizon Eu-

rope project SUNRISE (SUNRISE, 2023).

Research in TNO also addresses methods for es-

timating a confidence interval for the results of risk

quantification (de Gelder & Op den Camp, How cer-

tain are we that our automated driving system is safe?,

2023). The level of confidence of a safety risk esti-

mate is important information for road authorities to

determine whether or not an ADS can be allowed

safely onto the road.

REFERENCES

de Gelder, E., & Op den Camp, O. (2023). How certain are

we that our automated driving system is safe? accepted

for Traffic Injury Prevention, Special issue for the ESV

2023 conference, Yokohama.

de Gelder, E., Elrofai, H., Saberi, A. K., Op den Camp, O.,

Paardekooper, J.-P., & de Schutter, B. (2021). Risk

Quantification for Automated Driving Systems in Real-

World Driving Scenarios. IEEE Access, 9, 168953 -

168970. doi:10.1109/ACCESS.2021.3136585

de Gelder, E., Op den Camp, O., & de Boer, N. (2020).

Scenario categories for the assessment of automated

vehicles. Retrieved from http://www.cetran.sg/

publications

de Gelder, E., Paardekooper, J.-P., Khabbaz, A., Elrofai, H.,

Op den Camp, O., Kraines, S., . . . de Schutter, B.

(2022). Towards an Ontology for Scenario Definition

for the Assessment of Automated Vehicles: An Object-

Oriented Framework. IEEE Transactions on Intelligent

Vehicles, 1-1. doi:10.1109/TIV.2022.3144803

de Gelder, E., Paardekooper, J.-P., Op den Camp, O., & De

Schutter, B. (2019). Safety assessment of automated

vehicles: how to determine whether we have collected

enough field data? Traffic Injury Prevention, 20, S162-

S170.

Donà, R., Ciuffo, B., Tsakalidis, A., Di Cesare, L., Sollima,

C., Sangiogi, M., & Galassi, M. C. (2022). Recent

Advancements in Automated Vehicle Certification:

How the Experience from the Nuclear Sector

Contributed to Making Them a Reality. Energies, 15.

doi:https://doi.org/10.3390/en15207704

European Commission. (2022, August 5). Implementing

regulation - C(2022)5402. Retrieved from Automated

cars – technical specifications: https://ec.europa.eu/

info/law/better-regulation/have-your-say/initiatives/12

152-Automated-cars-technical-specifications_en

ISO 21448. (2021). Road Vehicles - Safety of the Intended

Functionality Standard. International Organization for

Standardization.

ISO 26262. (2018). Road Vehicles - Functional Safety

Standard. International Organization for

Standardization.

Op den Camp, O., de Gelder, E., Kalisvaart, S., &

Goossens, H. (2023). StreetWise: Accelerating

Automated Driving with advanced scenario-based

safety validation. Retrieved from TNO Innovation for

life: https://www.tno.nl/en/digital/smart-traffic-transp

ort/smart-vehicles/streetwise/

Paardekooper, J.-P., van Montfort, S., Manders, J., Goos, J.,

de Gelder, E., Op den Camp, O., . . . Thiolon, G. (2019).

Automatic Identification of Critical Scenarios in a

Public Dataset of 6000 km of Public-Road Driving.

Conference on the Enhanced Safety of Vehicles.

Eindhoven.

SAE On-Road Automated Driving (ORAD) committee.

(2018). SAE J3016, Taxonomy and Definitions for

Terms Related too On-Road Motor Vehicle Automated

Driving Systems. SAE International.

SAKURA, SIP-adus and HEADSTART projects. (2021).

White Paper: Towards the Harmonization of Safety

Assessment Methods. Retrieved from https://www.

headstart-project.eu/wp-content/uploads/2021/12/2112

09_HEADSTARTSAKURA_WP_Final-draft.pdf

SUNRISE. (2023). Safety assurance framework for

connected and automated mobility systems. Retrieved

from https://ccam-sunrise-project.eu/

Tejada, A., Manders, J., Snijders, R., Paardekooper, J.-P.,

& de Hair-Buijssen, S. (2020). Towards a

Characterization of Safe Driving Behavior for

Automated Vehicles Based on Models of "Typical"

Human Driving Behaviour. 23rd IEEE International

Conference on Intelligent Transportation Systems,

ITSC 2020. Rhodes, Greece.

UNECE. (2021). New Assessment/Test Method for

Automated Driving (NATM)-Master Document.

Geneva, Switzerland: UNECE.

UNECE. (2021). UN Regulation No. 157 on uniform

provisions concerning the approval of vehicles with

regards to Automated Lane Keeping System. Geneva:

UN Economic Commission for Europe, Inland

Transport Committee, World Forum for Harmonization

of Vehicle Regulations, ECE/TRANS/WP.29/2020/81.

UNECE. (2022). Proposal for the 01 series of amendments

to UN Regulation No. 157 (ALKS). Geneva: UN

Economic Commission for Europe, Inland Transport

Committee, World Forum for Harmonization of

Vehicle Regulations, ECE/TRANS/WP.29/2022/

59/Rev.1.

Westhofen, L., Neurohr, C., Koopmann, T., Butz, M.,

Schütt, B., Utesch, F., . . . Böde, E. (2023). Criticality

Metrics for Automated Driving: A Review and

Suitability Analysis of the State of the Art. Archives of

Computational Methods in Engineering, 30, 1-35.

VEHITS 2023 - 9th International Conference on Vehicle Technology and Intelligent Transport Systems

304
