From Descriptive to Predictive: Forecasting Emerging Research Areas in

Software Traceability Using NLP from Systematic Studies

Zaki Pauzi

and Andrea Capiluppi

Bernoulli Institute, University of Groningen, The Netherlands

Keywords:

Natural Language Processing, Software Traceability, Time Series, Systematic Review.

Abstract:

Systematic literature reviews (SLRs) and systematic mapping studies (SMSs) are common studies in any disci-

pline to describe and classify past works, and to inform a research ﬁeld of potential new areas of investigation.

This last task is typically achieved by observing gaps in past works, and hinting at the possibility of future re-

search in those gaps. Using an NLP-driven methodology, this paper proposes a meta-analysis to extend current

systematic methodologies of literature reviews and mapping studies. Our work leverages a Word2Vec model,

pre-trained in the software engineering domain, and is combined with a time series analysis. Our aim is to

forecast future trajectories of research outlined in systematic studies, rather than just describing them. Using

the same dataset from our own previous mapping study, we were able to go beyond descriptively analysing the

data that we gathered, or to barely ‘guess’ future directions. In this paper, we show how recent advancements

in the ﬁeld of our SMS, and the use of time series, enabled us to forecast future trends in the same ﬁeld.

Our proposed methodology sets a precedent for exploring the potential of language models coupled with time

series in the context of systematically reviewing the literature.

1 INTRODUCTION

In the ﬁeld of software engineering, systematic re-

views have gained considerable popularity since the

introduction of Evidence-Based Software Engineer-

ing (EBSE) guidelines in 2004 (Kitchenham et al.,

2004); a framework to assess the quality of pri-

mary studies through aggregating all empirical stud-

ies on a particular topic. A simple search in Google

Scholar for “systematic reviews in software engineer-

ing” showed a growth trend over the past years, with

2021 results returning 300% more than in 2012

Despite the increasing popularity behind system-

atic reviews in software engineering, a key challenge

in conducting these still remains: balancing between

methodological rigour and required effort (Zhang and

Ali Babar, 2013). This paper addresses this challenge

by leveraging recent language models and time series

https://orcid.org/0000-0003-4032-4766

https://orcid.org/0000-0001-9469-6050

This search was done on incognito mode ﬁl-

tering ranges of each year and only the review

articles. An example URL for the year 2021:

https://scholar.google.com/scholar?q=systematic+reviews+

in+software+engineering&hl=en&as sdt=0%2C5&as rr=

1&as vis=1&as ylo=2021&as yhi=2021

analysis to conduct a predictive analysis of trends in

research focus. The approach that we show has the

potential of reducing the manual effort required by re-

searchers, yet enhancing the methodological rigour in

reviewing literature. Based on the lessons outlined

from applying the systematic reviewing process (Br-

ereton et al., 2007), our proposed methodology is a

result of the following:

• L15: Software engineering systematic reviews are

likely to be qualitative in nature. Using NLP tools

and techniques supplements this reviewing pro-

cess in providing a predictive analysis to answer

the research questions at hand. Descriptive quali-

tative analysis may not be enough to fully answer

the research questions, and recommendations typ-

ically are based on manual analysis and interpre-

tation.

• L18: Review teams need to keep a detailed record

of decisions made throughout the review process.

Transparency in the decision-making process im-

proves explainability and supports effective re-

viewing process. Our proposed methodology in-

volves NLP models such as word embeddings

that are agnostic to individual perceptions (under-

standing) of semantics but rather representative of

538

Pauzi, Z. and Capiluppi, A.

From Descriptive to Predictive: Forecasting Emerging Research Areas in Software Traceability Using NLP from Systematic Studies.

DOI: 10.5220/0011964100003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2023), pages 538-545

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

(by training) large amounts of corpus text from

multiple sources.

The work that we present in this paper is based on

the data gathered from our own systematic mapping

study (Pauzi and Capiluppi, 2023). In that review, we

studied which trends have emerged in NLP techniques

to support or automate the tasks of software traceabil-

ity. The analysis was conducted within the software

development life cycle (SDLC) framework, and var-

ious research trends emerged from the evaluation of

past works.

Joining predictive analytics and our own system-

atic study (but potentially, any other systematic re-

view), we observe how the importance of certain

terms evolved over the past years; speciﬁcally for

requirement and design. Both of these terms were

chosen as they represent two core phases of the SDLC

that constitute a major chunk of traceability efforts us-

ing NLP (Pauzi and Capiluppi, 2023). We also anal-

yse the semantically relevant terms to these and fore-

cast the importance of these two terms for the next

two years.

2 RATIONALE AND RESEARCH

QUESTIONS

2.1 Real-World Applications of

Predictive Analytics

Identifying and forecasting emerging trends is a part

of predictive analytics, enabling stakeholders (such

as policymakers, executives, etc.) to make better-

informed decisions. We borrow from some recent

real-world applications and case studies to propose an

innovative approach to use the results of a(ny) system-

atic literature review.

In the energy industry, predictive analytics is a

particularly crucial component, due to global efforts

to reduce greenhouse gas emissions by shifting en-

ergy sources to sustainable ones. Predictive analysis

is done by mining text from patents, scientiﬁc pub-

lications, and Twitter data. Given the disruptive im-

pact it has on the energy industry, forecasting emerg-

ing trend is undoubtedly critical for government R&D

strategic planning, social investment, and enterprise

practices. In the photovoltaic industry, social media

(tweets) were mined to construct an evolution map of

Twitter users’ sense of and response to perovskite so-

lar cell technology (Li et al., 2019).

For analysing patents, pyGrams

is an open-

https://github.com/datasciencecampus/pygrams

source tool to discover emerging terminology in large

text datasets. The quantitative review of emerging ter-

minology from patent applications is an important ob-

jective for the Intellectual Property Ofﬁce (IPO). A

similar concept is demonstrated in this paper.

2.2 Research Questions

Given the applicability of predictive analytics in di-

verse industries, we aim to replicate these applica-

tions, but in the context of systematically reviewing

the literature. We formulate the following research

questions:

RQ1: How have speciﬁc terms emerging from a

systematic review evolved in the past?

RQ2: What are the closest terms (in terms of se-

mantic similarity) to these?

RQ3: What is the forecast trajectory for the im-

portance of these speciﬁed terms?

3 BACKGROUND RESEARCH

Text mining on publications has been explored for

a variety of reasons; mainly to automate the man-

ual process of reviewing relevant literature (Thomas

et al., 2011). Examples include an automated screen-

ing of studies for selection (O’Mara-Eves et al.,

2015), improving search strategy (Ananiadou et al.,

2009; Stansﬁeld et al., 2017), automatically extract-

ing an ontology of relevant topics (Osborne et al.,

2019), and automating the selection strategy such

as facilitating the identiﬁcation, description or cate-

gorisation, and the summarisation of relevant litera-

ture (Thomas et al., 2011). Besides text mining as

a part of the systematic process, analysis of the use

of text mining in systematic reviews has also been

done previously, such as for the citation screening

stage (Olorisade et al., 2016).

Many challenges faced by systematic reviewers

are similar across different disciplines, with software

engineering being no different (Marshall et al., 2015).

To support reviewers in this arduous quest, readily

available tools were developed, providing text mining

as part of its core capabilities, such as the Systematic

Review Toolbox (Marshall and Brereton, 2015). By

combining NLP and time series, we aim to achieve

a more prescriptive-focused standpoint to expand the

current systematic review process in software engi-

neering. A similar work was based on ACL anthol-

ogy (Asooja et al., 2016): although the premise was

similar, the approach was speciﬁcally using only one

conference proceedings without a speciﬁc topic in

question.

From Descriptive to Predictive: Forecasting Emerging Research Areas in Software Traceability Using NLP from Systematic Studies

539

4 METHODOLOGY

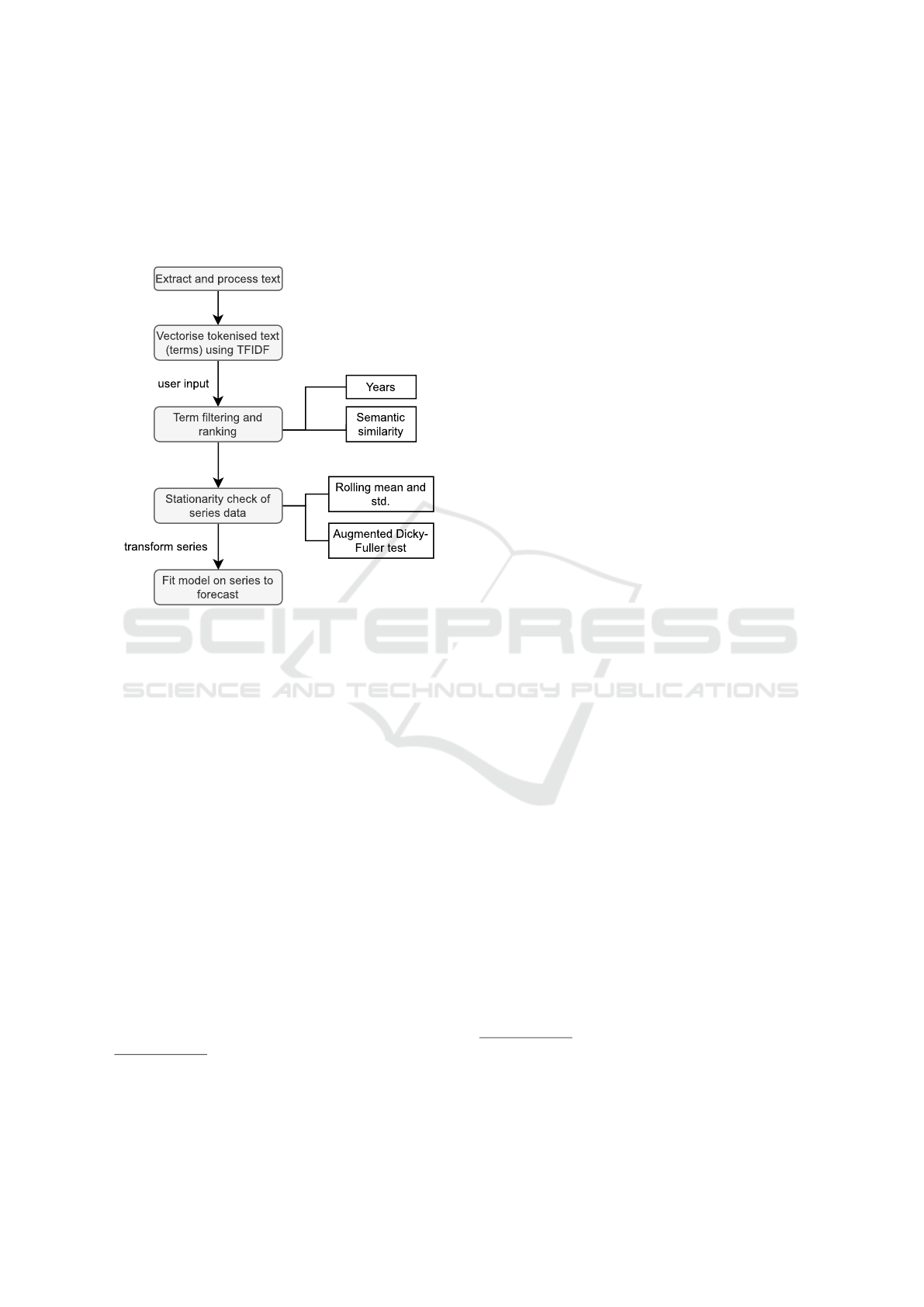

Figure 1 shows a simpliﬁed workﬂow diagram to rep-

resent the sequence of steps in our proposed method-

ology. The full notebook can be found online and

used freely for further queries and results

Figure 1: Sequence of steps taken in our methodology.

4.1 Dataset

Our dataset of publications is based on the selec-

tion criteria of a previous mapping study (Pauzi and

Capiluppi, 2023): a total of 96 papers were obtained,

all dealing with NLP techniques to support (or auto-

mate) software traceability. The complete list of pa-

pers selected can be found online

, covering a period

of years 2013 to 2021.

4.2 Text Processing

Text content from every paper in scope was processed

through the pipeline shown in Figure 1. The cleaned

text from every paper (document) is then tokenised as

unigrams, bi-grams, and tri-grams. The steps taken

were the following:

1. Convert words into tokens (tokenisation)

2. Remove noise: keep only alphanumeric charac-

ters

3. Convert all to lowercase

https://github.com/zakipauzi/enase2023/blob/main/

enase2023.ipynb

https://github.com/zakipauzi/enase2023/blob/main/

papers.csv

4. Remove stopwords (using a standard NLTK pack-

age with additional words identiﬁed)

5. Convert tokens to their lemma form (SpaCy lem-

matizer

)

6. Remove letterhead or front page matter

4.3 Terms Frequency - Inverse

Document Frequency (TFIDF)

These N-grams

are vectorised using Terms Fre-

quency - Inverse Document Frequency (TFIDF).

TFIDF Vectorizer is a feature extraction technique for

large text corpus offered by scikit-learn (Pedregosa

et al., 2011). The number of times a term

oc-

curs (term frequency, t f ) in a given document is

multiplied with the inverse document frequency id f :

t f (t, d) ∗ id f (t). This technique enables a more ef-

fective term weighting scheme compared to the sole

count of terms as those very frequent terms would

shadow the frequencies of rarer yet more important

terms. The popularity of this term-weighting tech-

nique is vast: a survey conducted in 2015 showed that

83% of text-based recommender systems in digital li-

braries use TFIDF (Beel et al., 2016). In this paper,

the TFIDF score calculated of a term t (N-gram) ex-

tracted from the dataset is denoted as “tﬁdf

”.

4.4 Filtering and Visualising

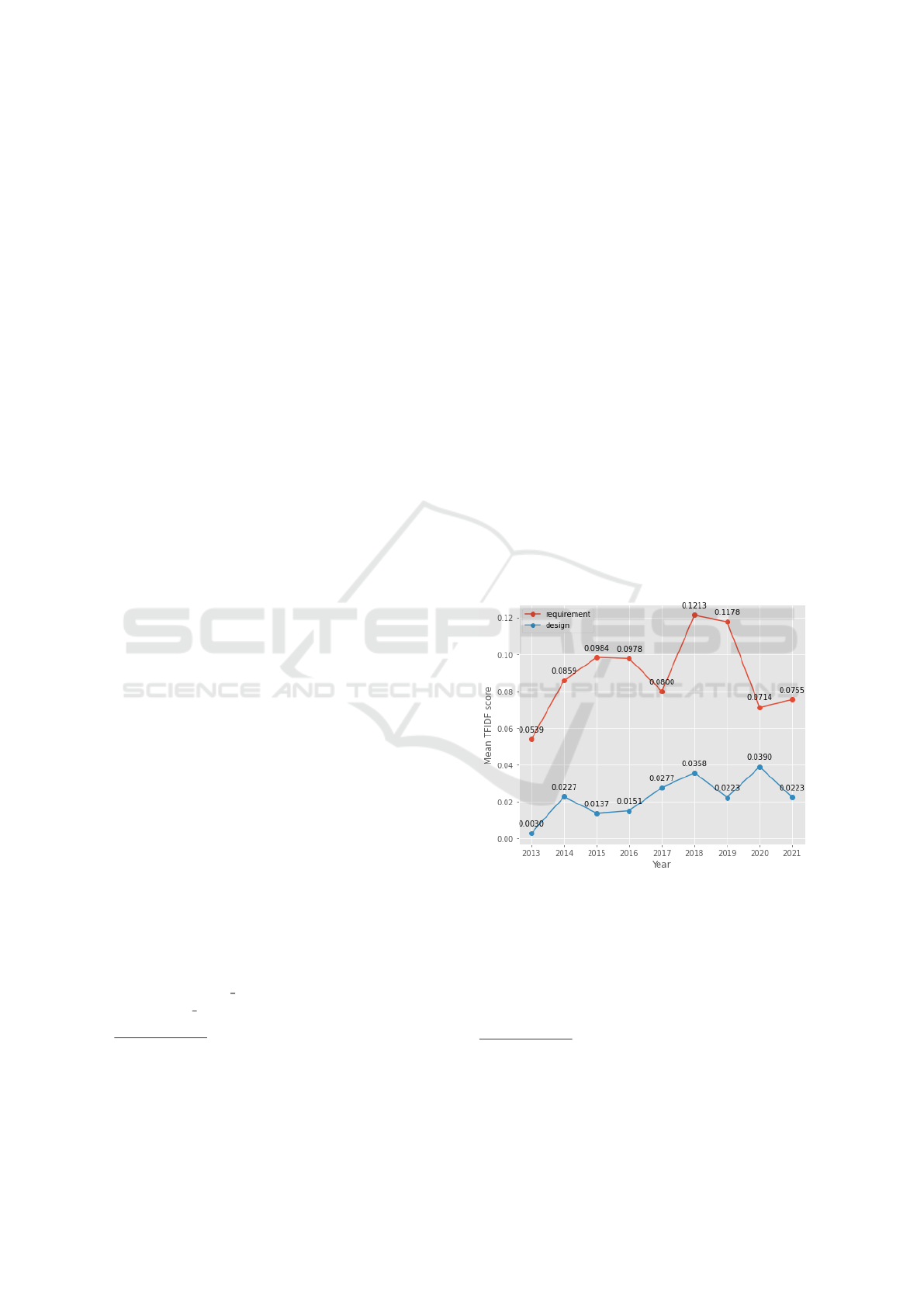

We provide a historical descriptive trend of tﬁdf

for

top-ranked terms (by N-gram tokenisation) based on

two viewpoints: years trend (RQ1) and semantic simi-

larity (RQ2). Every paper has a published date, which

is used to group the tﬁdf

of each term corresponding

to the years it is extracted from. This is then plotted

on a line graph to show how these top-ranked terms

change in tﬁdf

across the years.

In the viewpoint of semantic similarity, we use

a pre-trained language model in the software en-

gineering domain (Efstathiou et al., 2018). We

vectorise the corpus tokens (N-grams) using the

Word2Vec (Mikolov et al., 2013) model trained on

Stack Overﬂow vocabulary dataset. This technique

allows us to represent words in a vector space, based

on the model that has been trained with a vocabu-

lary in the context of software engineering. This is

necessary to disambiguate polysemous words and de-

tect synonyms by interpreting them in the context of

https://spacy.io/api/lemmatizer

A collection of N adjacent tokens. This can be a uni-

gram (N=1), bi-gram (N=2), and so on.

These are the N-grams extracted. For example,

machine learning is a bi-gram term.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

540

software engineering. The terms are then ranked ac-

cording to the similarity scores calculated using co-

sine similarity to the user input’s term: a “distance”

metric, irrespective of orientation and magnitude –

the lower the angle between the vectors, the higher

the similarity.

4.5 Time Series Analysis for Emerging

Terminologies

The core feature of our methodology is the transition

from descriptive analysis (typically, what systematic

reviews focus on) to predictive analysis (i.e., what

importance will a term have in the future). Due to

the timestamps of publications, we are able to derive

time series data that reﬂects a variate time to the equa-

tion. In answering RQ3, we present the following key

steps:

4.5.1 Grouping Datapoints

Firstly, we sort the papers according to the published

date in ascending order. The timestamp of every paper

becomes the index in our table. The tﬁdf

of the user

input’s term is grouped according to the timestamp.

Where there are multiple values of tﬁdf

within the

same period (month), we calculate the average.

4.5.2 Check for Stationarity

Prior to ﬁtting our model, we need to check for sta-

tionarity — property that the mean, variance and au-

tocorrelation structure do not change over time. In

other words, a ﬂat-looking series, without trend, with

constant variance over time. To check this, we run

the rolling statistics test and the Augmented Dicky-

Fuller (ADF) test (Bilgili, 1998). If stationarity is not

conﬁrmed, we have to transform the series to remove

patterns of trend and seasonality

. In our paper, we

use the statsmodels package offered in Python

4.5.3 Fitting the Model

We use the auto-regressive integrated moving aver-

age (ARIMA) model to ﬁt the datapoints reﬂecting

tﬁdf

of user input across the series. Due to the lim-

itation of space, we will be only exploring ARIMA

model using auto arima from the pmdarima pack-

age

. auto arima operates like a grid search, in that

Some examples: log transforming, square root, pro-

portional change, etc.

https://www.statsmodels.org/dev/generated/

statsmodels.tsa.stattools.adfuller.html

https://pypi.org/project/pmdarima

it tries various sets of p and q parameters

, selecting

the model that minimises the Akaike Information Cri-

teria (AIC)

5 RESULTS

Our pipeline is ﬁt to any user input that is within

the vocabulary of the Word2Vec model; however, for

space limitations, we will focus here on the two core

phases of the SDLC, i.e., requirement and design.

User inputs “requirement” and “design” represent

a user interested to know how these topic terms have

played a part in using NLP for software traceability

over the past years.

5.1 RQ1

We calculate the TFIDF mean scores (mean tﬁdf

)

of requirement and design throughout the years in

scope. requirement and design are highly ranked

unigrams (in terms of tﬁdf

) from our dataset, with

the following timeline changes of mean tﬁdf

over the

years, shown in Figure 2:

Figure 2: Mean tﬁdf

of requirement and design over the

past years.

5.2 RQ2

Based on the user inputs, we also show the terms

ranked in semantic similarity (dictionary ﬁltering)

with their respective sum and mean tﬁdf

. Tables 1

p is the number of autoregressive terms and q is the

number of lagged forecast errors in the prediction equation.

An estimator of prediction error which measures a sta-

tistical model in order to quantify the goodness of ﬁt of the

model.

From Descriptive to Predictive: Forecasting Emerging Research Areas in Software Traceability Using NLP from Systematic Studies

541

and 2 show the top 10 terms for requirement and

design respectively.

Table 1: Top 10 ranked by semantic similarity to

requirement.

Term sum mean score

1 hipaa 0.4448 0.0046 0.4147

2 regulation 0.1010 0.0011 0.4070

3 constraint 0.1511 0.0016 0.3814

4 recomme-

ndation 0.1113 0.0012 0.3766

5 design 0.2311 0.0024 0.3412

6 feature 0.3203 0.0033 0.3404

7 concept 1.0397 0.0110 0.3363

8 architecture 0.4086 0.0043 0.3340

9 case 0.2604 0.0027 0.3218

10 knowledge 0.1159 0.0012 0.3102

Table 2: Top 10 ranked by semantic similarity to design.

Term sum mean score

1 architectural 0.3855 0.0040 0.6994

2 architecture 0.4086 0.0043 0.5899

3 modulari-

zation 0.1881 0.0020 0.5181

4 approach 0.7675 0.0080 0.4818

5 composit-

ional 0.1013 0.0011 0.4669

6 concept 1.0397 0.0108 0.4568

7 uml 0.1896 0.0020 0.4494

8 functional 0.1430 0.0015 0.4489

9 consistency 0.3496 0.0036 0.4479

10 sdlc 0.1016 0.0011 0.4335

5.3 RQ3 (User Input: Requirement)

To calculate the forecast trajectory of importance (us-

ing tﬁdf

of user input term), we check for stationarity

ﬁrst. By grouping the tﬁdf

by month instead of years,

we are able to collect more datapoints, and this series

of tﬁdf

is used to check for stationarity and to ﬁt the

ARIMA model for forecasting.

Figure 3 shows the rolling mean and rolling stan-

dard deviation (by 12 periods/months) across the se-

ries for user input requirement. We can see that sta-

tionarity is conﬁrmed as there is no indication of an

upward or downward trend.

Results from the ADF test also conﬁrm this:

• ADF statistic (-5.514) is lower than the critical

values at 99% (-3.544), 95% (-2.911) and 90% (-

2.593).

• The p-value is also lower than 0.05, so we can

reject our null hypothesis and conclude that our

data series is stationary.

Figure 3: Forecast of tﬁdf

values of requirement for the

next 24 periods (months).

Fitting the ARIMA model into our series, we can

see the trajectory of requirement for the next 24 pe-

riods (months). Results in the same Figure 3 show

that we would expect a uniformed horizontal tﬁdf

range −0.054 < tﬁdf

< 0.207. As tﬁdf

cannot be

below zero, we disregard the negative values in the

range.

5.4 RQ3 (User Input: Design)

We present Figure 4 for design. This ﬁgure shows

the rolling mean and rolling standard deviation (by

12 periods/months) across the series. We can see that

stationarity is conﬁrmed as there is no indication of

an upward or downward trend.

Figure 4: Forecast of tﬁdf

values of design for the next 24

periods (months).

Results from the ADF test also conﬁrm this:

• ADF statistic (-6.851) is lower than the critical

values at 99% (-3.537), 95% (-2.908) and 90% (-

2.591).

• The p-value is also lower than 0.05, so we can

reject our null hypothesis and conclude that our

data series is stationary.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

542

Results in the same Figure 4 show that we would

expect a uniformed horizontal tﬁdf

for design within

range −0.018 < tﬁdf

< 0.0614. As tﬁdf

cannot be

below zero, we disregard the negative values in the

range.

6 DISCUSSION

At the text processing stage, the content of every pa-

per had to be cleaned to remove noise. The cleaned

text was then lemmatised: a process of transforming

the morphology of each word to its root form (e.g.

best -> good). This allows a more accurate tﬁdf

representation of our terms because multiple forms

of the same root word should only be considered as

one term. Stemming, on the other hand, is a process

of truncating sufﬁxes (e.g. computer -> comput).

This step was not included in the pipeline for this pa-

per as truncated versions of the terms were not valid

in our pre-trained language model vocabulary for se-

mantic ﬁltering. One key limitation of lemmatisers,

however, is that not all sufﬁxes are removed. Table 2

shows architectural and architecture showing

the highest similarity to design, although they both

refer to the same root form architecture. In this

scenario, stemming would help as it would truncate

both terms to architectur.

From the tﬁdf

of both requirement and design,

we can see the trend of importance throughout recent

years, as shown in Figure 2. For requirement, we

can see a spike in 2018 and 2019. design, on the

other hand, has a steadily increasing line of impor-

tance, in terms of tﬁdf

. Both of these terms are iden-

tiﬁed as top-ranked unigrams from our dataset, and

more importantly, it shows that both of these SDLC

phases play a critical role in traceability using NLP.

Table 1 shows the top 10 semantically similar

terms to requirement traceability and Table 2 for de-

sign traceability. These semantically related terms al-

low us to analyse what terms play a part in these main

topics (terms) and their importance through its sum

tﬁdf

and mean tﬁdf

The ranked top 3 for requirement: hipaa,

regulation and constraint. It appears that dur-

ing recent years, traceability efforts in requirements

relating to HIPAA regulations (Atchinson and Fox,

1997)

play a major role in requirements traceabil-

ity. Critical software and systems in the healthcare in-

dustry necessitate the need for mandatory traceability,

and the use of NLP in these traceability efforts is iden-

tiﬁed as important. The top-ranked terms related to

Health Insurance Portability and Accountability Act of

1996

design in Table 2 are about architecture and some re-

lated to object-oriented programming concepts, such

as modularization and compositional.

Looking beyond the top 5 terms in Tables 1 and 2,

we can observe some terms that are ambiguous and

may be a part of a compound term (bi-gram or tri-

gram) instead of being a part of the user input it be-

longs to. For example, case in requirement traceabil-

ity may refer to “use case” as a requirement or a “test

case” in the SDLC testing phase. There are also over-

lapping terms between these two SDLC phases, and

this conﬁrms that efforts in traceability using NLP

typically involve multiple SDLC phases.

In answering RQ3, we present Figures 3

and 4: showing the forecast trajectory of tﬁdf

for

requirement and design respectively. Both ﬁgures

show a horizontal trajectory, which is no surprise,

given the seeming stationarity feature in its original

form. Despite the spikes we see in some historical

datapoints, the tﬁdf

for requirement is expected to

have a maximum boundary of 0.2 for the next 2 years.

For design, the maximum expected tﬁdf

is 0.06 for

the next 2 years.

6.1 Implications and Outlook

Our proposed solution has practical and direct im-

plications for the research community, particularly in

mining publications to harness value through predic-

tive analytics. We can also target publication venues

(conferences etc.). For example, mining published

papers from previous conference proceedings (includ-

ing the past editions of ENASE) to forecast what re-

search areas are expected to emerge next in the ﬁeld

of novel approaches to software engineering. This

would particularly be useful to the organising com-

mittee and reviewers to better understand the research

trajectory in the speciﬁed areas of interest, and how

these efforts are distributed. This also gives an insight

into how a program committee could be formed based

on trends and expertise. Since systematic reviews al-

ready cover a wide coverage in summarising past pa-

pers (albeit with a time lag), this would be particularly

useful in ensuring comprehensiveness in content cov-

erage.

For practitioners in the software engineering com-

munity, datasets that are rich with free text would

equally beneﬁt greatly from our proposed approach.

Examples include mining forum posts and Q&A web-

sites (Stack Overﬂow etc.) to analyse and predict

the importance of interest topics. In the context of

systematic reviews (i.e., what was presented in this

paper), the connection between systematic reviews

and software engineering practice is arguably lacking

From Descriptive to Predictive: Forecasting Emerging Research Areas in Software Traceability Using NLP from Systematic Studies

543

and insufﬁcient (Cartaxo et al., 2016; da Silva et al.,

2011). This was also investigated in a recent paper by

analysing how well systematic reviews help to answer

questions posted online through data from Q&A web-

sites (Cartaxo et al., 2017). With the vast amount of

free text being made available to the masses (coupled

with timestamps), our position paper proposes a com-

bination of NLP and time series that can beneﬁt prac-

titioners by improving the connection (through anal-

ysis of historical and future predictions) between sys-

tematic reviews and real-world problems in the soft-

ware engineering community.

6.2 Threats to Validity

• External validity: We acknowledge the limited

number and narrow topic scope of datapoints.

However, we present this work to showcase the

applicability of industry practices (as the case

studies presented in Section 1) in forecasting

emerging trends albeit within the scope of system-

atically reviewing the literature.

• Internal validity: Forecasting any prediction re-

quires extensive analysis of multiple factors that

may inﬂuence expected results. A key limitation

of ARIMA is that it relies on the assumption that

past values of the series can alone predict future

values. Regardless, being aware of this does not

negate the importance of ARIMA in forecasting

predictions.

• Conclusion validity: Extracted raw data (PDF

text) consisting of non-uniform structure, result-

ing in less accurate observations and conclusions.

There is also some degree of non-uniformity in the

way the published text represents meaning. For

example, the use of synonym terms that relate to

one concept will dilute the tﬁdf

of that concept

we are interested in (by user input).

7 CONCLUSION AND FUTURE

WORK

In this position paper, we introduced a meta-analysis

of publications in the form of predictive analysis,

through forecasting emerging research areas from

systematic studies. We combined NLP techniques

with time series analysis to detect and identify the

trend of a subset research area, denoted by its term.

Our approach leverages recent advancements in

language models and time series. It expands the anal-

ysis of systematic reviews in a particular research fo-

cus, and its applicability can be used for other re-

search areas as well. Based on the papers from our

own SMS, we showed that our proposed approach

can (i) detect trends of importance within the terms

emerging from the literature, and (ii) forecast trends

in research based on the results of a speciﬁc system-

atic study. This paper is a glimpse into the prospects

of leveraging data science for software engineering

academic purposes.

An extension of our methodology would be to go

further in analysing semantically related terms. We

can observe that not all terms derived are of similar hi-

erarchy (in terms of the topic scope), and constructing

a taxonomy based on existing deﬁned ontology (such

as the ACM Computing Classiﬁcation System (Cassel

et al., 2013)) will allow us to match and understand

directions and categories of research efforts more ef-

fectively.

With regards to the time series analysis, future

works involve testing out model results to validate

predictions: using a data series from the previous

decade to validate the results against the current one.

This helps to see how the solution was able to iden-

tify and detect the trend of importance for terms that

may have been gaining traction in the training set. For

example, in deep learning NLP, BERT was only in-

troduced and published in 2018 (Devlin et al., 2018).

If we were to look into previous papers on the topic

of deep learning and transformers, we should expect

relevant important terms to emerge such as neural

network and transfer learning.

In the software engineering community, emerging

solutions from the ﬁeld of data science have taken the

limelight in recent times for researchers and practi-

tioners. Our paper explores this by analysing lead-

ing indicators rather than lagging ones – those which

systematic reviews typically focus on. The sheer ad-

vancement of language models and data analytics in

recent years have made giant leaps of progress and

capitalising on these would be the holy grail.

REFERENCES

Ananiadou, S., Rea, B., Okazaki, N., Procter, R., and

Thomas, J. (2009). Supporting systematic reviews

using text mining. Social Science Computer Review,

27(4):509–523.

Asooja, K., Bordea, G., Vulcu, G., and Buitelaar, P. (2016).

Forecasting emerging trends from scientiﬁc literature.

In Proceedings of the Tenth International Conference

on Language Resources and Evaluation (LREC’16),

pages 417–420, Portoro

z, Slovenia. European Lan-

guage Resources Association (ELRA).

Atchinson, B. K. and Fox, D. M. (1997). From the ﬁeld:

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

544

The politics of the health insurance portability and ac-

countability act. Health Affairs, 16(3):146–150.

Beel, J., Gipp, B., Langer, S., and Breitinger, C. (2016).

Research-paper recommender systems : a literature

survey. International Journal on Digital Libraries,

17(4):305–338.

Bilgili, F. (1998). Stationarity and cointegration tests: Com-

parison of engle-granger and johansen methodolo-

gies. Erciyes

Universitesi

Iktisadi ve

Idari Bilimler

Fak

ultesi Dergisi, (13):131–141.

Brereton, P., Kitchenham, B. A., Budgen, D., Turner, M.,

and Khalil, M. (2007). Lessons from applying the sys-

tematic literature review process within the software

engineering domain. Journal of Systems and Software,

80(4):571–583.

Cartaxo, B., Pinto, G., Ribeiro, D., Kamei, F., Santos, R. E.,

da Silva, F. Q., and Soares, S. (2017). Using q&a

websites as a method for assessing systematic reviews.

In 2017 IEEE/ACM 14th International Conference on

Mining Software Repositories (MSR), pages 238–242.

Cartaxo, B., Pinto, G., Vieira, E., and Soares, S. (2016).

Evidence brieﬁngs: Towards a medium to transfer

knowledge from systematic reviews to practitioners.

In Proceedings of the 10th ACM/IEEE International

Symposium on Empirical Software Engineering and

Measurement, ESEM ’16, New York, NY, USA. As-

sociation for Computing Machinery.

Cassel, L. N., Palivela, S., Marepalli, S., Padyala, A., Deep,

R., and Terala, S. (2013). The new acm ccs and

a computing ontology. In Proceedings of the 13th

ACM/IEEE-CS Joint Conference on Digital Libraries,

JCDL ’13, page 427–428, New York, NY, USA. As-

sociation for Computing Machinery.

da Silva, F. Q., Santos, A. L., Soares, S., Franc¸a, A. C. C.,

Monteiro, C. V., and Maciel, F. F. (2011). Six years of

systematic literature reviews in software engineering:

An updated tertiary study. Information and Software

Technology, 53(9):899–913. Studying work practices

in Global Software Engineering.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding.

Efstathiou, V., Chatzilenas, C., and Spinellis, D. (2018).

Word embeddings for the software engineering do-

main. In 2018 IEEE/ACM 15th International Confer-

ence on Mining Software Repositories (MSR), pages

38–41.

Kitchenham, B., Dyba, T., and Jorgensen, M. (2004).

Evidence-based software engineering. In Proceed-

ings. 26th International Conference on Software En-

gineering, pages 273–281.

Li, X., Xie, Q., Jiang, J., Zhou, Y., and Huang, L. (2019).

Identifying and monitoring the development trends of

emerging technologies using patent analysis and twit-

ter data mining: The case of perovskite solar cell

technology. Technological Forecasting and Social

Change, 146:687–705.

Marshall, C. and Brereton, P. (2015). Systematic review

toolbox: A catalogue of tools to support systematic re-

views. In Proceedings of the 19th International Con-

ference on Evaluation and Assessment in Software En-

gineering, EASE ’15, New York, NY, USA. Associa-

tion for Computing Machinery.

Marshall, C., Brereton, P., and Kitchenham, B. (2015).

Tools to support systematic reviews in software engi-

neering: A cross-domain survey using semi-structured

interviews. In Proceedings of the 19th International

Conference on Evaluation and Assessment in Software

Engineering, EASE ’15, New York, NY, USA. Asso-

ciation for Computing Machinery.

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013).

Efﬁcient estimation of word representations in vector

space. In Bengio, Y. and LeCun, Y., editors, 1st In-

ternational Conference on Learning Representations,

ICLR 2013, Scottsdale, Arizona, USA, May 2-4, 2013,

Workshop Track Proceedings.

Olorisade, B. K., de Quincey, E., Brereton, P., and Andras,

P. (2016). A critical analysis of studies that address

the use of text mining for citation screening in system-

atic reviews. In Proceedings of the 20th International

Conference on Evaluation and Assessment in Software

Engineering, EASE ’16, New York, NY, USA. Asso-

ciation for Computing Machinery.

O’Mara-Eves, A., Thomas, J., McNaught, J., Miwa, M., and

Ananiadou, S. (2015). Using text mining for study

identiﬁcation in systematic reviews: a systematic re-

view of current approaches. Syst. Rev., 4(1):5.

Osborne, F., Muccini, H., Lago, P., and Motta, E. (2019).

Reducing the effort for systematic reviews in software

engineering. Data Science, 2(1-2):311–340.

Pauzi, Z. and Capiluppi, A. (2023). Applications of nat-

ural language processing in software traceability: A

systematic mapping study. Journal of Systems and

thor(s).

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Stansﬁeld, C., O'Mara-Eves, A., and Thomas, J. (2017).

Text mining for search term development in system-

atic reviewing: A discussion of some methods and

challenges. Research Synthesis Methods, 8(3):355–

365.

Thomas, J., McNaught, J., and Ananiadou, S. (2011). Ap-

plications of text mining within systematic reviews.

Research Synthesis Methods, 2(1):1–14.

Zhang, H. and Ali Babar, M. (2013). Systematic reviews

in software engineering: An empirical investigation.

Information and Software Technology, 55(7):1341–

1354.

From Descriptive to Predictive: Forecasting Emerging Research Areas in Software Traceability Using NLP from Systematic Studies

545
