Managing Domain Analysis in Software Product Lines with Decision

Tables: An Approach for Decision Representation, Anomaly Detection

and Resolution

Nicola Boffoli

, Pasquale Ardimento

and Alessandro Nicola Rana

Department of Informatics, University of Bari, Via Orabona 4, Bari, Italy

Keywords:

Software Product Lines, Product Derivation, Domain Analysis, Decision Tables, Veriﬁcation and Validation.

Abstract:

This paper proposes an approach to managing domain analysis in Software Product Lines (SPLs) using Deci-

sion Tables (DTs) that are adapted to the unique characteristics of SPLs. The adapted DTs enable clear and

explicit representation of the intricate decisions involved in deriving each software product. Additionally, a

method is presented for detecting and resolving anomalies that may disrupt proper product derivation. The

effectiveness of the approach is evaluated through a case study, which suggests that it has the potential to

signiﬁcantly reduce development time and costs for SPLs. Future research directions include investigating the

integration of SAT solvers or other methods to improve speciﬁc cases of scalability and conducting empirical

validation to further assess the effectiveness of the proposed approach.

1 INTRODUCTION

Nowadays companies interested in the development

of software applications have to be competitive and

highly responsive in a way that they can follow the

market trends and the customers’ needs to realize

ﬂexible products, then they are not specialized on

the realization of only one product but they are fo-

cused in the development of a large set of prod-

ucts. In this sense Software Product Line Engineering

(SPLE) (Clements and Northrop, 2001), (Pohl et al.,

2005), (Krueger, 2006) is a powerful instrument, this

is a paradigm based on the combination of platforms

and mass customization. It is useful to decrease the

complexity in developing software-intensive systems

and software products by starting from existing ones.

Good use of Software Product Line (SPL) implies a

thorough understanding of customers needs, organi-

zational context and human behaviors. This knowl-

edge must be elicited and documented to be suc-

cessfully handled in the product derivation process.

Therefore, companies have to manage on one hand

all the possible organizational and functional features

that the target product must satisfy, on the other hand

all the actions needed to implement speciﬁc function-

alities in a ﬂexible manner. This implies the manage-

https://orcid.org/0000-0001-9899-6747

https://orcid.org/0000-0001-6134-2993

ment of different decisions and even a single wrong

decision can easily affect the correct tuning of the

product. Sometimes the knowledge necessary to de-

rive new products from a SPL is not clearly explained

as it could be described in terms of operations to be

executed, functions to be performed and data struc-

tures to be used but there is not so much emphasis

on rules and constraints. This will give too much

freedom of choice to developers and it will lead to

the realization of products non-compliants with the

functional and non-functional requirements. In this

sense, modeling explicitly and correctly the neces-

sary knowledge when developing new applications

through a SPL is an important challenge.

In this area, numerous advances have been

achieved through practices such as the Feature Ori-

ented Domain Analysis (FODA). The main contribu-

tion of FODA (Kang et al., 1990) already in the 90s

shed light on the most critical tasks in the context of

the analysis of feature models (FM), and their possi-

ble automation, through which it is possible to model

the variability of the products of an SPL and subse-

quently investigate the presence of any anomalies and

errors in their representation.

In the following years, the FMs have been the sub-

ject of studies aimed mainly at guaranteeing:

• the validity of FM (aka satisﬁability) was immedi-

ately identiﬁed as a basic need (Mannion, 2002),

182

Boffoli, N., Ardimento, P. and Rana, A.

Managing Domain Analysis in Software Product Lines with Decision Tables: An Approach for Decision Representation, Anomaly Detection and Resolution.

DOI: 10.5220/0011975700003464

In Proceedings of the 18th International Conference on Evaluation of Novel Approaches to Software Engineer ing (ENASE 2023), pages 182-192

ISBN: 978-989-758-647-7; ISSN: 2184-4895

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

(Maßen and Lichter, 2003), (Wang et al., 2005),

(Czarnecki and Kim, 2005),(Batory et al., 2006),

(Benavides et al., 2013), (Drave et al., 2019),

(Galindo and Benavides, 2020), (Horcas et al.,

2021), (Le et al., 2021);

• the internal consistency of FM, often caused by

the presence of ”dead features” (Trinidad et al.,

2006);

• the simpliﬁcation of the FM, which provides

for the possibility of normalizing this model

(Van Deursen and Klint, 2002), (Zhang et al.,

2004), (von der Maßen and Lichter, 2004);.

In the pure domain of Domain Analysis, the research

is mature and solutions and practices can be consid-

ered reliable and consolidated. However, there is still

a decision-making area that requires in-depth analysis

and support, sometimes analyzing exclusively the fea-

tures and their models can be reductive and/or insuf-

ﬁcient. Very often it is necessary to have a combined

vision between:

• all the features of the model that combine to iden-

tify the individual products of an SPLs

• all the mechanisms of variability (VM) that must

be operationally adopted to generate very single

product of an SPLs.

This view can lead to the detection of anomalies due

to a much wider range of illegal situations: detection

not only of ”dead features”, but also of incompatible

variation mechanisms and specially the detection of

anomalies due to the combination of some features

of the model with particular cases of variation mech-

anisms. Broadly speaking, this type of investigation

can guide to:

• the correction of the starting feature model

• the reﬁnement of the applicable variation mecha-

nisms

• to the rearrangement of the relationships that link

the choice of a set of features to a set of variation

mechanisms to be performed in order to generate

a speciﬁc product of an SPLs

For this purpose, the authors propose an approach

based on the use of a framework based on the use of

decision tables (DTs) (Maes and Van Dijk, 1988) and

(Vanthienen et al., 1998).

Decision Tables (DTs) have been proven to be an

effective tool in modeling complex decision-making

situations. They provide strategic support for knowl-

edge elicitation by addressing the complexity of the

domain and assisting decision-makers in considering

the values of business conditions that involve multi-

ple sets of rules. Previous research, such as the stud-

ies presented in (Boffoli et al., 2013), (Boffoli et al.,

2014), and (Ardimento et al., 2016), have shown the

potential of using DTs as a knowledge modeling for-

malism. The authors of these documents have high-

lighted the usefulness of DTs in supporting the model-

ing of complex decision situations, despite their orig-

inal purpose of supporting programming activities.

Therefore, DTs can be used as an approach for un-

derstanding and modeling business logic.

The main objective of this paper is to show the

potential of using the Decision Table (DT) approach

in modeling the decisions that support software engi-

neers during the domain analysis and product deriva-

tion stages of a Software Product Line (SPL). The au-

thors propose using DTs as a tool to bridge the gap

between the Domain Analysis and Product Derivation

processes and support each step towards the creation

of ﬁnal products.

By understanding that software engineers have to

follow certain rules to develop an application, which

dictate how variation mechanisms are activated to im-

plement functionalities of the ﬁnal product, based on

certain conditions (such as product requirements and

production constraints), it is possible to model this

process through DTs. This allows for a clear connec-

tion between the combination of conditions and the

activation of variation mechanisms for the creation of

a speciﬁc software application.

Additionally, by taking advantage of the valida-

tion and veriﬁcation capabilities of DTs, the authors

aim to show that it is possible to prevent, detect, and

ﬁx anomalies in the modeled knowledge, even within

the context of SPLs. This is achieved by exploiting

the unique characteristics of DTs and their ability to

model knowledge in SPLs context. Anomalies can oc-

cur in the combination of feature values, the methods

used to activate variation mechanisms, or the connec-

tion between them. By detecting and correcting these

anomalies, DTs provide software engineers with ac-

curate, consistent, complete, non-redundant, and eas-

ily understandable information, which is crucial in the

product derivation process.

The structure of the paper is as follows: In Section

2, we will present the background of DTs and intro-

duce the running example. Section 3 will focus on

adapting the DT approach to the context of SPLs and

providing a guide for modeling the knowledge nec-

essary for the product development process. In Sec-

tion 4, we will show how the knowledge validation

and veriﬁcation provided by DTs can be applied in

the context of SPLs. Section 5 will discuss poten-

tial limitations and challenges. Finally, in Section 6,

we will draw conclusions and offer recommendations

for future work. Throughout the paper, we will use a

running example to illustrate the effectiveness of the

proposed approach in an ad-hoc SPL scenario.

Managing Domain Analysis in Software Product Lines with Decision Tables: An Approach for Decision Representation, Anomaly

Detection and Resolution

183

2 BACKGROUND

he purpose of this section is two-fold. First, we will

provide a thorough overview of the foundations of de-

cision tables, including their structure, elements, and

principles. This will serve as a foundation for under-

standing the rest of the paper. In the second part of

this section, we will introduce a running example that

will be used throughout the remainder of the paper.

This example will provide a concrete illustration of

how decision tables can be applied in a speciﬁc SPL

scenario and help to support the concepts discussed in

the rest of the paper.

2.1 Foundations of Decision Tables

Decision tables (DTs) are a powerful tool for repre-

senting decision-making processes in a clear and or-

ganized manner. Using tabular notation, they match

the state of a set of conditions with a corresponding

set of actions, as outlined in (Maes and Van Dijk,

1988) and (Vanthienen et al., 1998)). Main advan-

tages of DTs approach, including:

• The formalization of knowledge and provision of

a compact and customizable view.

• The ease of maintenance for business rules as they

evolve.

A decision table (DT) is composed of four different

quadrants:

• Quadrant 1: the condition subjects. It lists all the

possible factors that may inﬂuence the set of ac-

tions to be performed.

• Quadrant 2: the conditional states. It lists all the

variations of the deﬁned condition subjects that

have meaning.

• Quadrant 3: the action subjects. It lists all the

possible actions that could be performed.

• Quadrant 4: the action values. It deﬁnes the re-

lationship between a speciﬁc combination of con-

ditional states and the corresponding actions to be

taken.

About the fourth quadrant it is worth noting that rela-

tionships can be expressed either through the quadrant

or through an equivalent set of business rules. Indeed,

it is often used as a way to graphically represent the

required set of business rules.

As depicted in Fig.1, a generic DT is illustrated,

featuring the four quadrants and a clear representa-

tion of how information should be structured using

this schema.

Anyway, ensuring the accuracy of DTs is vital

to making sound business decisions. Any anomalies

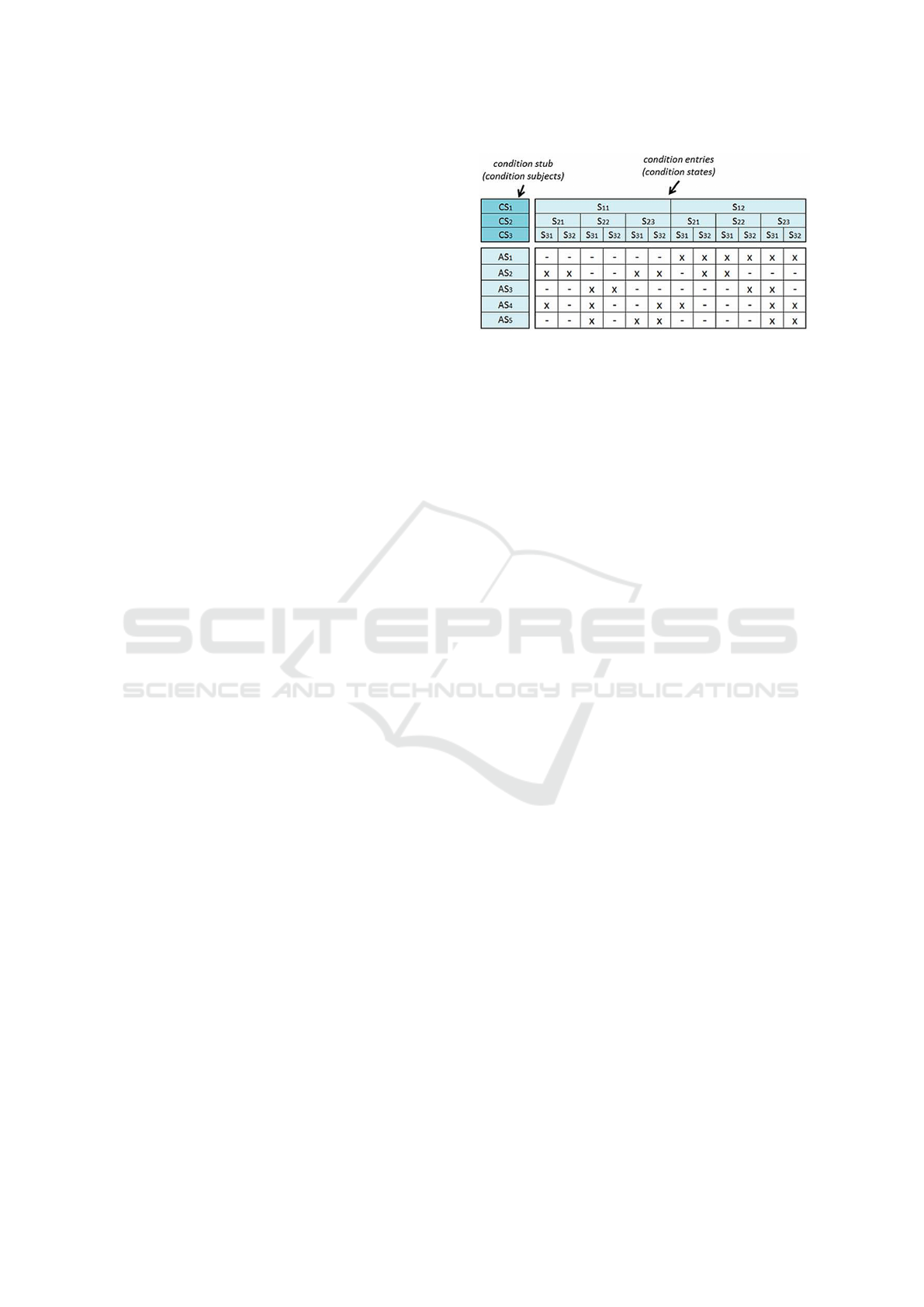

Figure 1: The schema of a decision table.

present in the decision-making process can lead to the

construction of DTs that result in poor or ineffective

choices. Furthermore, managing a large number of

DTs can be a time-consuming and error-prone task,

particularly if the information is not well-organized

and clear. For the sake of completeness we refer to

(Preece and Shinghal, 1994) classiﬁcation of anoma-

lies that may affect decision tables and corresponding

business rules. Below, we provide a summary of this

classiﬁcation.

• Redundancy anomalies, while not causing er-

rors, can impede efﬁciency and complicate main-

tenance and consistency when revising decision

rules. These anomalies can manifest in forms

such as subsumption, duplication, unﬁrable ac-

tions, and unnecessary conditions.

• Inconsistency anomalies can arise when knowl-

edge is distributed among a plethora of indepen-

dently designed rules, resulting in issues like con-

ﬂicting or ambivalent rules.

• Deﬁciency anomalies are a prevalent issue within

speciﬁc domains, where oversights like unused

condition values, unusable actions, and missing

rules may occur.

Thankfully DTs have a strenght aptitude to

anomalies prevention, detection and ﬁxing. Through

the use of the same DTs, the authors in (Boffoli et al.,

2014), (Ardimento et al., 2016) show how it is pos-

sible to detect and to ﬁx the anomalies by checking

rows and columns according to particular roadmap.

This activity can be executed automatically or manu-

ally. In the ﬁrst case, it is possible to use a software

application that receive as input the DTs to analyze: it

will process all the modeled information to check for

the existence of anomalies and then, if any issues are

found, it will try to ﬁx them by applying the proper

criteria for each speciﬁc anomaly. The execution of

detection and ﬁxing activities on the business knowl-

edge modeled through the DTs could also be carried

out manually by experts, who know all the informa-

tion about the employed actions and the modeled con-

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

184

ditions as well as the way to identify the anomalies

and how to apply the proper criteria for their ﬁxing.

Anyway, as these activities require the cyclical repe-

tition of sequential steps for each rule derived from

the DT, the effort may arise when the modeled infor-

mation starts to grow. For this reason, the manual ex-

ecution of these tasks is feasible only if the treated

case is manageable without the necessity of automa-

tion. Therefore, in conclusion, we will show in the

rest of the paper that it could be possible to adapt the

DTs concept to the SPLs context. In particular, we

will employ DTs in SPLs to guarantee that the set of

decisions that transforms the software assets in ﬁnal

products is consistent, complete and non-redundant.

2.2 Running Example: Journalling

Flash File System version 2

Journalling Flash File System version 2 (JFFS2) is a

log-structured ﬁle system optimized for ﬂash mem-

ory devices. It has been incorporated into the Linux

kernel as of release version 2.4.10, allowing for the

selection of JFFS2 as the ﬁle system of choice during

Linux kernel conﬁguration. In this study, we examine

the context of JFFS2 conﬁguration during the deriva-

tion of a Linux kernel image and consider it as a hypo-

thetical software product line (SPL) from which vari-

ous JFFS2 conﬁgurations can be generated. Through

the use of decision table (DT) framework, we demon-

strate how to model the necessary knowledge for de-

riving JFFS2 conﬁgurations and how the representa-

tion of the connection between possible feature value

combinations and variation activation methods can

provide valuable aid for conﬁguration derivation. Fur-

thermore, we illustrate how this knowledge can be

veriﬁed and validated through the application of pre-

vention, detection and ﬁxing criteria on DTs and the

knowledge modeled through them. Figure 2 illus-

trates the feature tree of JFFS2, serving as the starting

point for our running example.

3 DESIGN OF DECISION TABLES

FOR SPL

In this section, we will delve into the process of de-

signing decision tables (DTs) to support the decisions

related to the derivation of ﬁnal products in a soft-

ware product line (SPL). As previously stated in Sec-

tion 2.1, the structure of a DT is composed of four

quadrants: condition subjects, conditional states, ac-

tion subjects, and action values. To effectively use

DTs in the context of SPLs, we must take into account

certain assumptions that align DT concepts with those

of SPLs. For example, we can design one DT for each

software asset that can potentially be speciﬁed in mul-

tiple ﬁnal products. Then, for each DT we design, we

can map each element of the DT to the relevant details

of the SPL. This includes:

• Mapping each condition subject to a feature (vari-

ation point)

• Mapping each conditional state to a variant of a

speciﬁc feature

• Mapping each action to an implementation of a

variation mechanism

• Mapping each action value to a relationship be-

tween the combinations of feature variants and the

employed variation mechanisms.

A generic schema of a DT created to model the

decisions about a speciﬁc asset is provided in Fig.3.

In the ﬁrst quadrant (top-left) there are two condi-

tion subjects, which refer to two different features of

the software asset. In the second quadrant (top-right),

there is information about the possible values for each

speciﬁc feature. In the third quadrant (bottom-left),

there is a listing of actions that represent the means

to activate one or more variation mechanisms. In the

fourth quadrant (bottom-right), there is a link between

combinations of feature values and the actions listed

in the third quadrant.

Therefore, in accordance with the principles of

DTs and in line with the SPL context, the choice of

a set of feature variants determines the execution of

a set of variation mechanisms which can appropri-

ately derive a ﬁnal software product. In particular,

let’s consider these phases of a SPL:

• domain analysis, aimed at identifying and manag-

ing the features that the target product will have to

meet;

• variability injection, aimed at incorporating the

necessary variation mechanisms into the product

design to transform it into the target product.

Each of these phases contributes to the design of spe-

ciﬁc quadrants of a DT as follows:

• domain analysis →First and second quadrants

• variability injection →Third and fourth quadrants

Each of these will be described in more detail in the

following sub-sections

3.1 Domain Analysis →First and

Second Quadrants

Software assets, primarily source code, form the

building blocks for developers to implement speciﬁc

Managing Domain Analysis in Software Product Lines with Decision Tables: An Approach for Decision Representation, Anomaly

Detection and Resolution

185

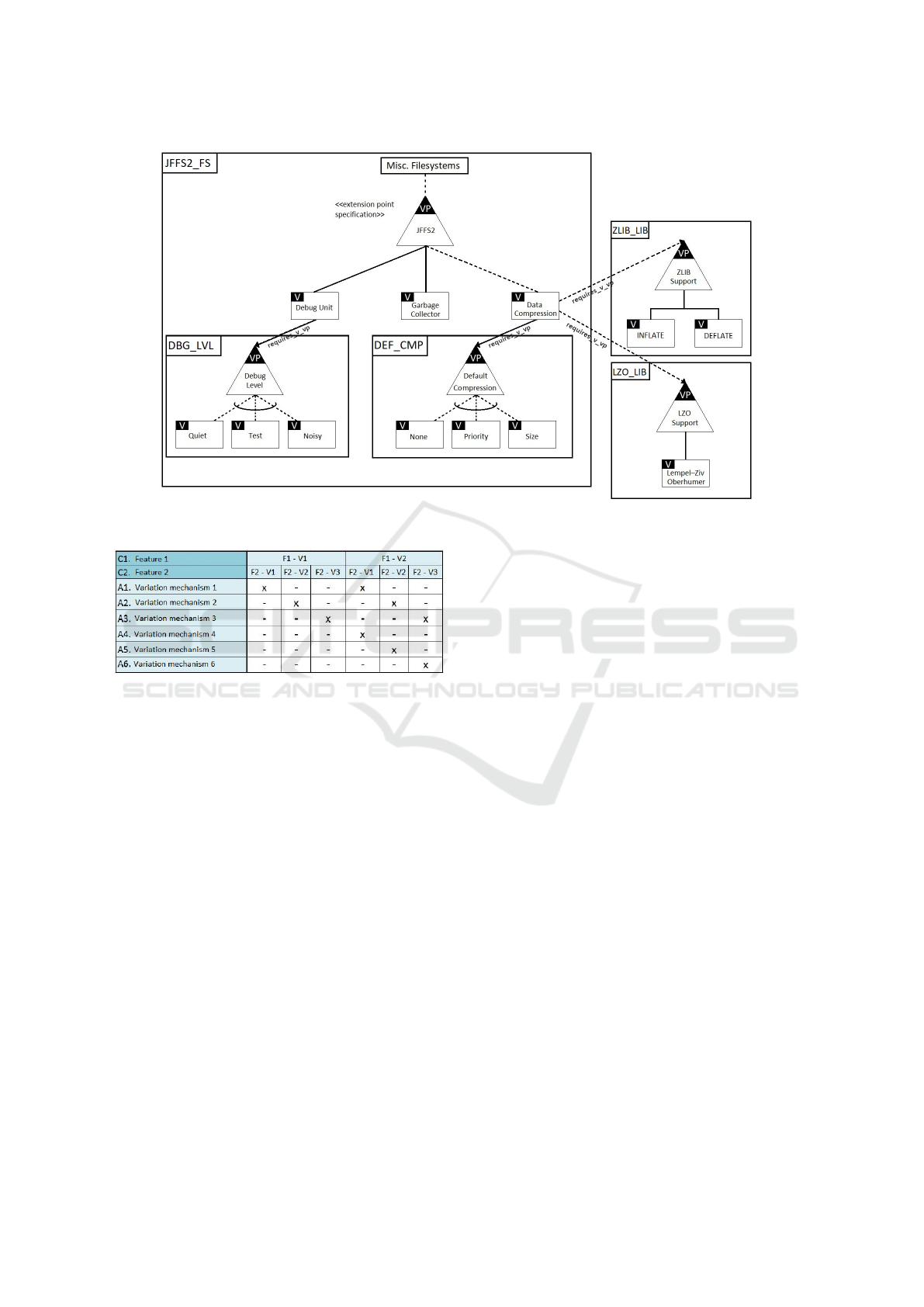

Figure 2: Feature Tree of JFFS2 SPL.

Figure 3: A generic schema of decision table for an asset.

functionality within a software product. These assets

must adhere to the domain requirements and guide-

lines established by the SPL architecture. Therefore,

it is crucial to ﬁrst derive a requirements document

from the SPL domain, outlining the expected vari-

ability and commonalities in products derived through

the SPL. This document serves as a blueprint for un-

derstanding the rules that each individual asset must

comply with.

Once the requirements document is derived, it is

necessary to clearly deﬁne the conditions that must be

met by each software asset. The requirements docu-

ment focuses on variability, thus, to manage variabil-

ity within a single component, it is possible to repre-

sent variation points and variants through the use of

a graphical notation, called the feature model, and to

focus on the speciﬁc asset. One of the most widely

used feature models is the feature tree, which repre-

sents variability and relations between different vari-

ants using a tree with nodes representing variants and

edges representing relations. In this way, it is possible

to have a simple and concise representation of condi-

tions.

The main objective of this section is to explain

how to deﬁne conditions and feature values starting

from a feature tree. Speciﬁcally, we will demonstrate

how to extract modeled features and insert them as

conditions in the ﬁrst quadrant of the DT. We will also

show how to extract values for each feature and in-

sert them in the second quadrant of the DT, according

to the graphical notation used to model each speciﬁc

feature value, as this notation deﬁnes the relationship

between features and between a feature and its possi-

ble values.

• The set of condition subjects FC={FC

} (i=1...n)

represent the collection of features (variation

points) that can be covered by the asset under

consideration when it is employed in the devel-

opment of a product. To gain a comprehensive

understanding of feature knowledge, we can also

consider the set of feature domains FD={FD

} (i=

1...n) where FD

represents the domain of FC

, or

the set of all possible values for feature FC

• The set of conditional states FV={FV

} (i=1...n)

represents the set of values considered for a spe-

ciﬁc feature, as determined by selecting the ap-

propriate values from the feature domain. Thus,

={F

k} (k=1...m

) is an ordered set of n

fea-

ture values F

Running Example: JFFS2. To support our guide

Fig. 4 shows the ﬁrst and the second quadrants for the

example of JFFS2, they are built from feature models

in Fig. 2 and according to the pattern just presented.

To further illustrate our guide, Figure 4 presents the

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

186

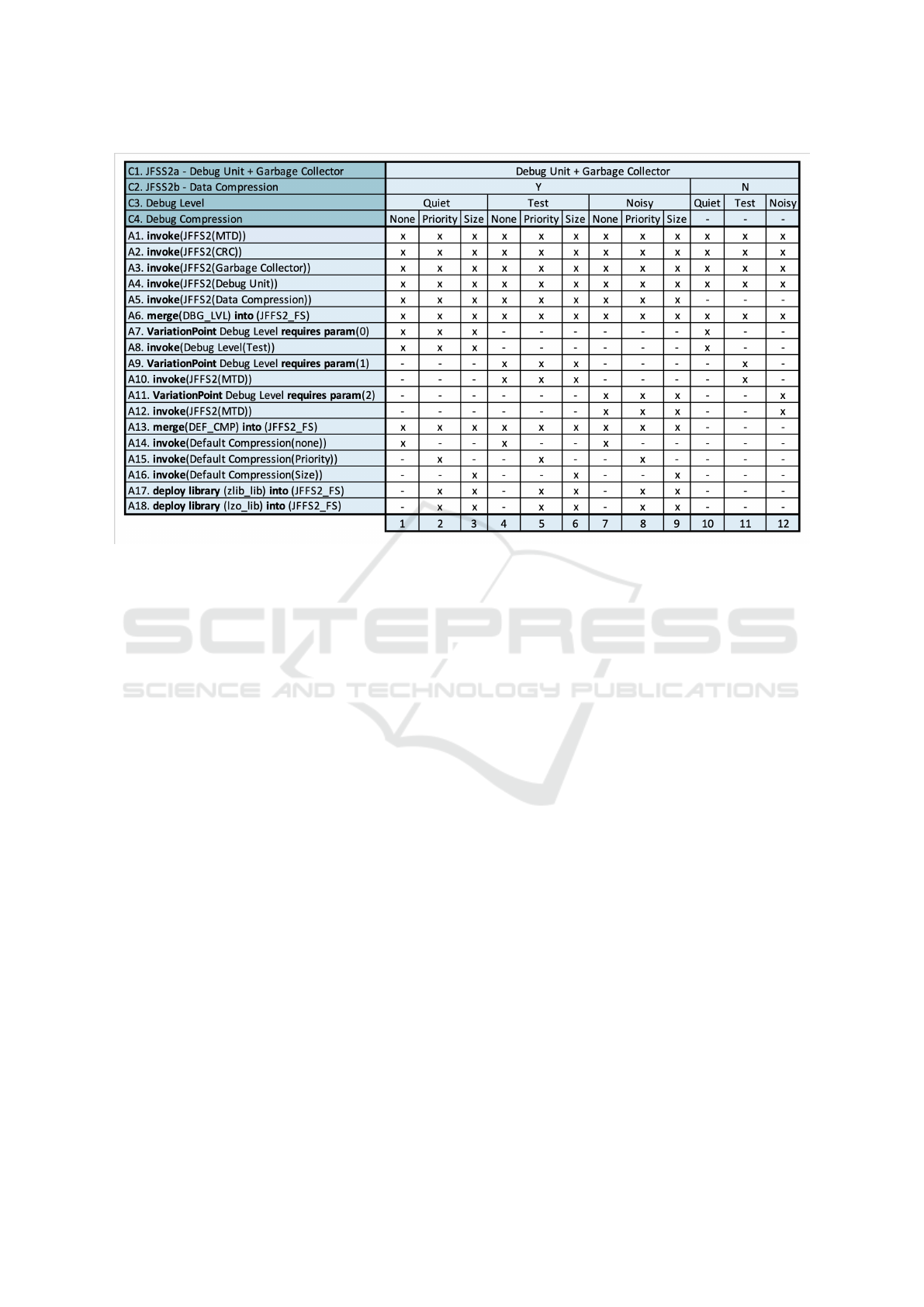

Figure 4: Decision tables supporting a SPL for JFFS2.

ﬁrst and second quadrants of a decision table example

for JFFS2. These quadrants are constructed from the

feature models in Figure 2 and in accordance with the

guidelines presented in this section.

3.2 Variability Injection →Third and

Fourth Quadrants

To effectively implement variability into the ﬁnal

product, it is crucial to incorporate it into the prod-

uct design process through the use of variation mech-

anisms. These mechanisms are essential in determin-

ing the actions that will be performed by the com-

ponents responsible for implementing the product’s

functionality. To achieve this, variation mechanisms

must be utilized to derive variants by leveraging do-

main knowledge, as the actions are closely tied to

product requirements. In this section, we will detail

how to populate the third and fourth quadrants of a

decision table (DT), using the guidelines established

in the previous subsection to populate the ﬁrst two

quadrants, based on information derived from each

domain. As previously mentioned at the beginning

of Section 3, the third quadrant of a DT must con-

tain all necessary actions, which can be considered in

the context of SPLs as the appropriate combinations

of variation mechanisms. Speciﬁcally, this quadrant

should provide a complete list of activation methods

for each speciﬁc variation mechanism. The main ob-

jectives for this quadrant are to display the various

methods that can be used to activate a particular vari-

ation mechanism and to indicate how a row in this

part of the DT should be set. The fourth quadrant

of the DT represents the outcome of connecting the

interpretation of the feature model, represented as a

combination of feature values, to the actions deﬁned

in the third quadrant.

• The set of action subjects VM={V M

} (j=1...t)

represents all the potential actions that can be

taken to implement a speciﬁc functionality.

• The action values V={V

} (j =1...t) are used to

connect each feature set to the corresponding ac-

tion subjects. Each value, V

={true (x), false (-),

null (.)} represents the set of all possible values of

action subject V M

(with the default value set to

null).

Once the DT is created, a function can be deﬁned

that maps every combination of features to a unique

variation mechanism conﬁguration using the Carte-

sian product of the conditional states {FV

} and the

Cartesian product of the action values {V

}. This

function ensures that the completeness criterion of

conditions and the exclusivity criterion of actions are

met. Therefore, each action entry in the DT corre-

sponds to a decision rule. Formally, the function is

deﬁned as follows:

DT: FC

x FC

x ... x FC

→V

x V

x ... x V

Running Example: JFFS2. Fig.4 provides the third

and the fourth quadrants of the JFFS2 example.

4 ANOMALIES HANDLING IN

DECISION TABLES FOR SPL

According to classiﬁcation in (Preece and Shinghal,

1994) we reformulate it from the perspective of SPLs.

Fig.5 shows the description of each speciﬁc anomaly

grouped into categories Redundancy, Inconsistency

Managing Domain Analysis in Software Product Lines with Decision Tables: An Approach for Decision Representation, Anomaly

Detection and Resolution

187

and Deﬁciency. Each description of an anomaly has

been adapted to the SPLs context, by considering a

rule as the connection between the combination of

feature values and the methods used to activate one

or more variation mechanisms.

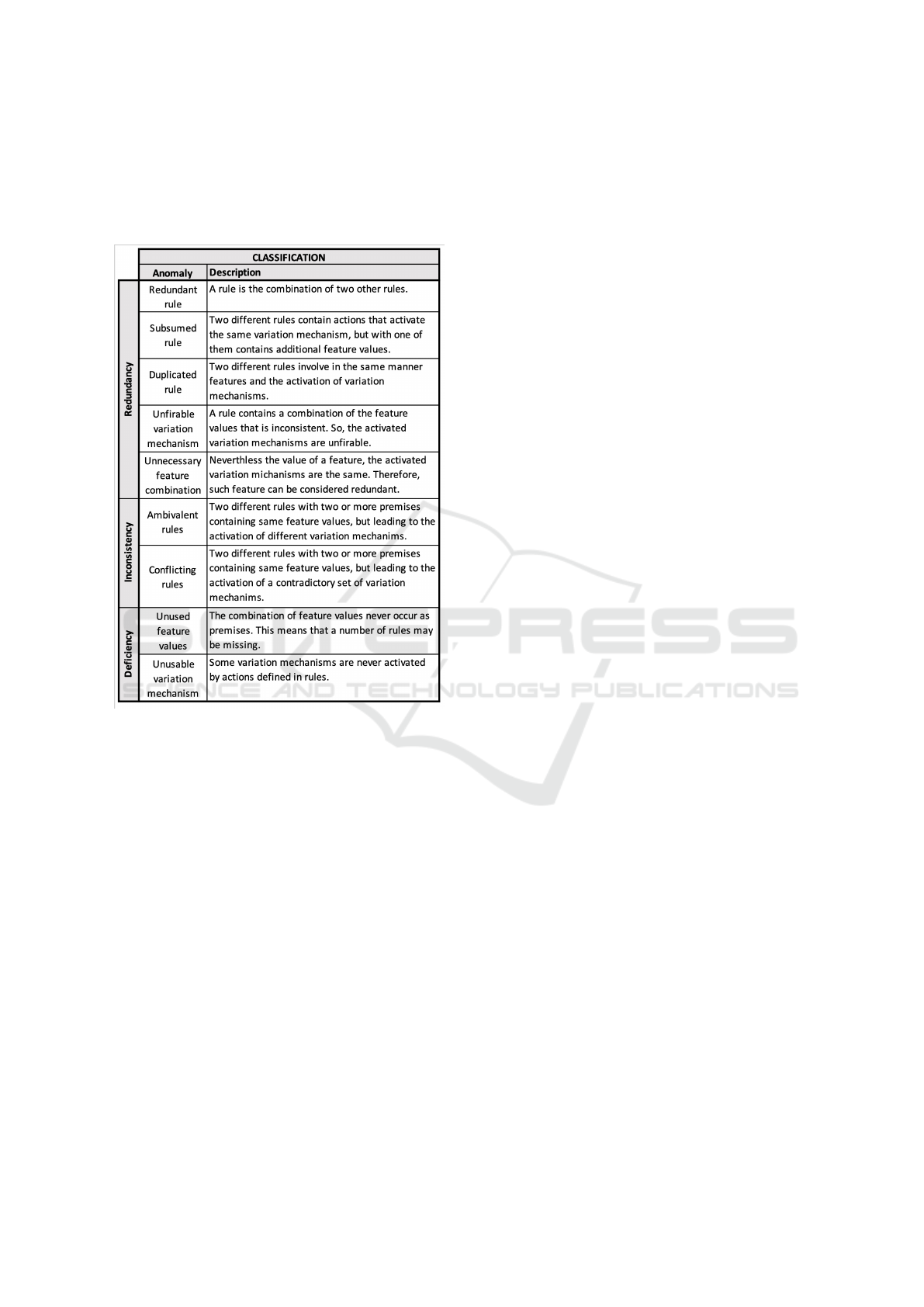

Figure 5: Deﬁnitions of the types of anomaly.

In section 2.1 we mentioned that it is crucial for

DTs to be consistent, complete, and non-redundant

to avoid inconsistencies or problems in the product

derivation process. By utilizing the structured na-

ture of DTs, it is possible to easily verify and validate

the set of rules derived from them. If any anomalies

are found, speciﬁc mechanisms can be employed to

ﬁx them. This ensures that the knowledge modeled

through the DT framework is correct and efﬁcient.

The validation provided by DTs can also be applied

to the context of product derivation in SPLs by con-

sidering each condition subject as a feature, each con-

ditional state as a variant, and each action as the set of

methods used to activate a variation mechanism. This

allows for easy modeling of SPL context knowledge

through DTs and manual or automatic validation.

4.1 Anomalies Detection in SPLs

Context

Now that we have a complete knowledge about the

anomalies that may occur in modeling information

through DTs applied to the SPLs context, we can de-

scribe the two steps necessary to guarantee that the

information could be consistent, complete and non-

redundant. The ﬁrst step is the detection of anomalies

in the modeled decisions. As we described in the sec-

tion 2.1, the detection of anomalies can be carried out

automatically or manually. This activity requires as

input the set of rules derived by a DT and the criteria

useful to detect the anomalies. The execution of the

detection process consists in checking the anomalies

existing in the provided rules, even if some anomalies

may be prevented when the DT is built and populated.

The goals of this process are to establish the existence

of anomalies and to identify the type of problems and

their source, which may be the combination of fea-

ture values, the methods used to activate the variation

mechanisms or the connection between feature values

and the triggered variation mechanisms. The ”detec-

tion” part of Fig.6 provides for each anomaly:

• The Automated Checker. a description of the op-

erational steps used to detect the existence of a

speciﬁc type of anomaly.

• The Alert. Information about the level of critical-

ity of each anomaly. High critical anomalies im-

ply that DT cannot be consulted or that they may

led to incorrect results; on the contrary, low crit-

ical anomalies may led to tolerable inefﬁciency

or they may suggest potential problems. For this

reason, a classiﬁcation of criticality levels is here

proposed by authors. In particular we can have:

– Error: anomalies that may imply inefﬁciencies

and a wrong outcome.

– Warning: anomalies that may imply inefﬁcien-

cies but no wrong outcome.

– Notiﬁcation: potential anomalies that need to

be checked by the decision makers.

Running Example: JFFS2. Fig.7 highlights the

anomalies detected by the DT on the JFFS2 exam-

ple. In particular, the table discovers 11 anomalies:

3 unﬁrable variation mechanisms (deﬁciency anoma-

lies), 6 conﬂicting rules (inconsistency anomalies)

and 2 unnecessary feature combinations (redundancy

anomalies). Such anomalies will be ﬁxed using the

appropriate intervention described in Fig.6.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

188

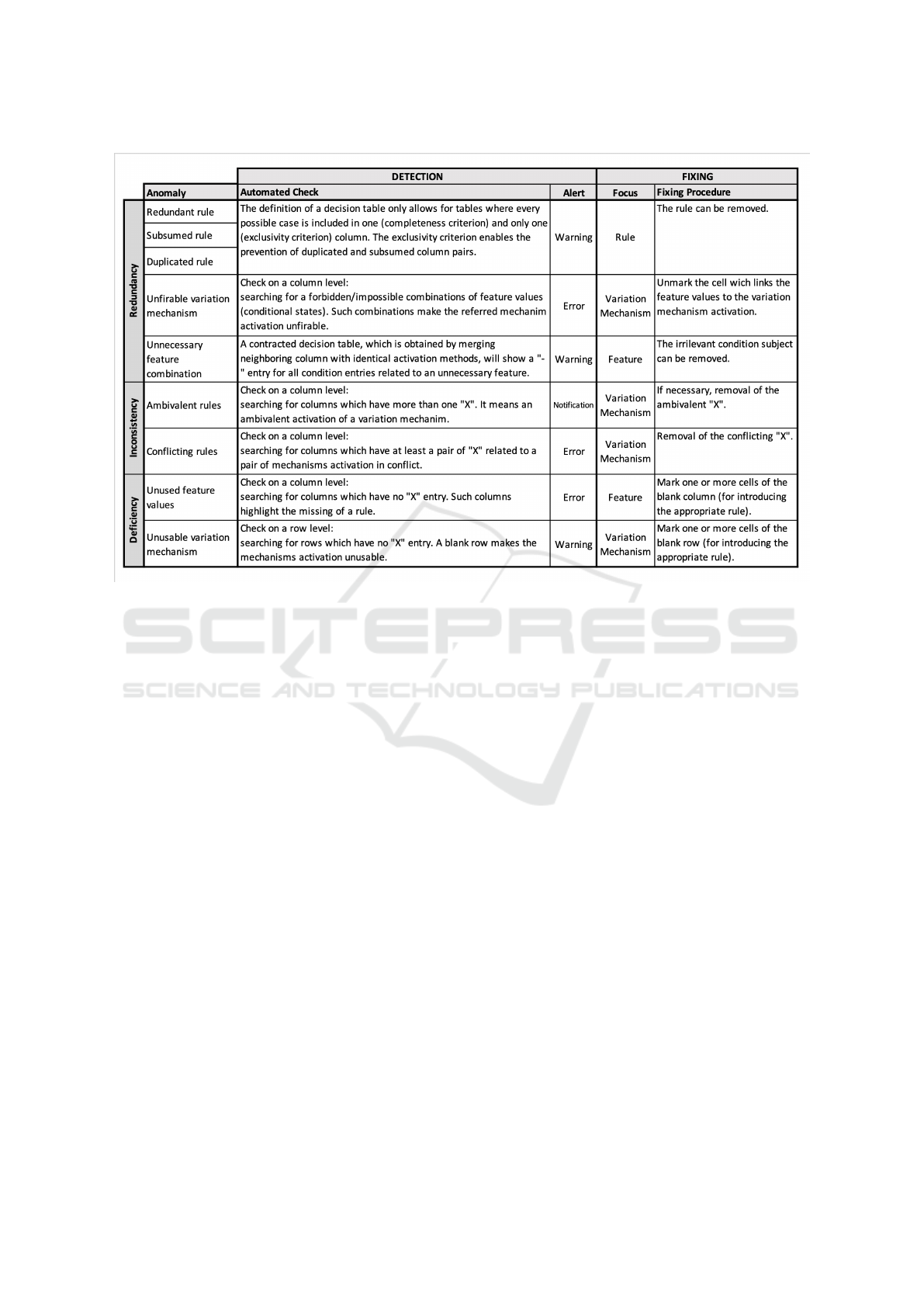

Figure 6: Detection and ﬁxing procedures of anomalies in decision tables.

4.2 Anomalies Fixing in SPLs Context

Once the anomalies have been detected by the check-

ers, it is necessary to apply the appropriate ﬁxing in-

tervention according to the type of anomaly. The ﬁx-

ing interventions may vary according to the source

and the criticality of the issue. The ﬁxing of anoma-

lies could also be carried out manually or automati-

cally. Even in this case, to execute this process some

ﬁxing criteria must be deﬁned. Then, all the detected

anomalies will be treated differently according to the

type of the issue and what the related ﬁxing approach

provides for. The ”ﬁxing” part of Fig.6 describes each

ﬁxing approach adapted by considering the SPLs con-

text. For each ﬁxing intervention, the following infor-

mation is speciﬁed:

• The elements involved in the anomaly, such as

rules, feature value combinations and methods for

variation mechanisms activation.

• The most appropriate solution to ﬁx the anomaly.

This could be for example removing/refactoring

rules, feature model, feature combinations and mech-

anisms activation. The goals of the ﬁxing activity are

to provide the set of decision without any anomaly

and to deﬁne the appropriate methods to avoid the re-

curring of the same or similar issues.

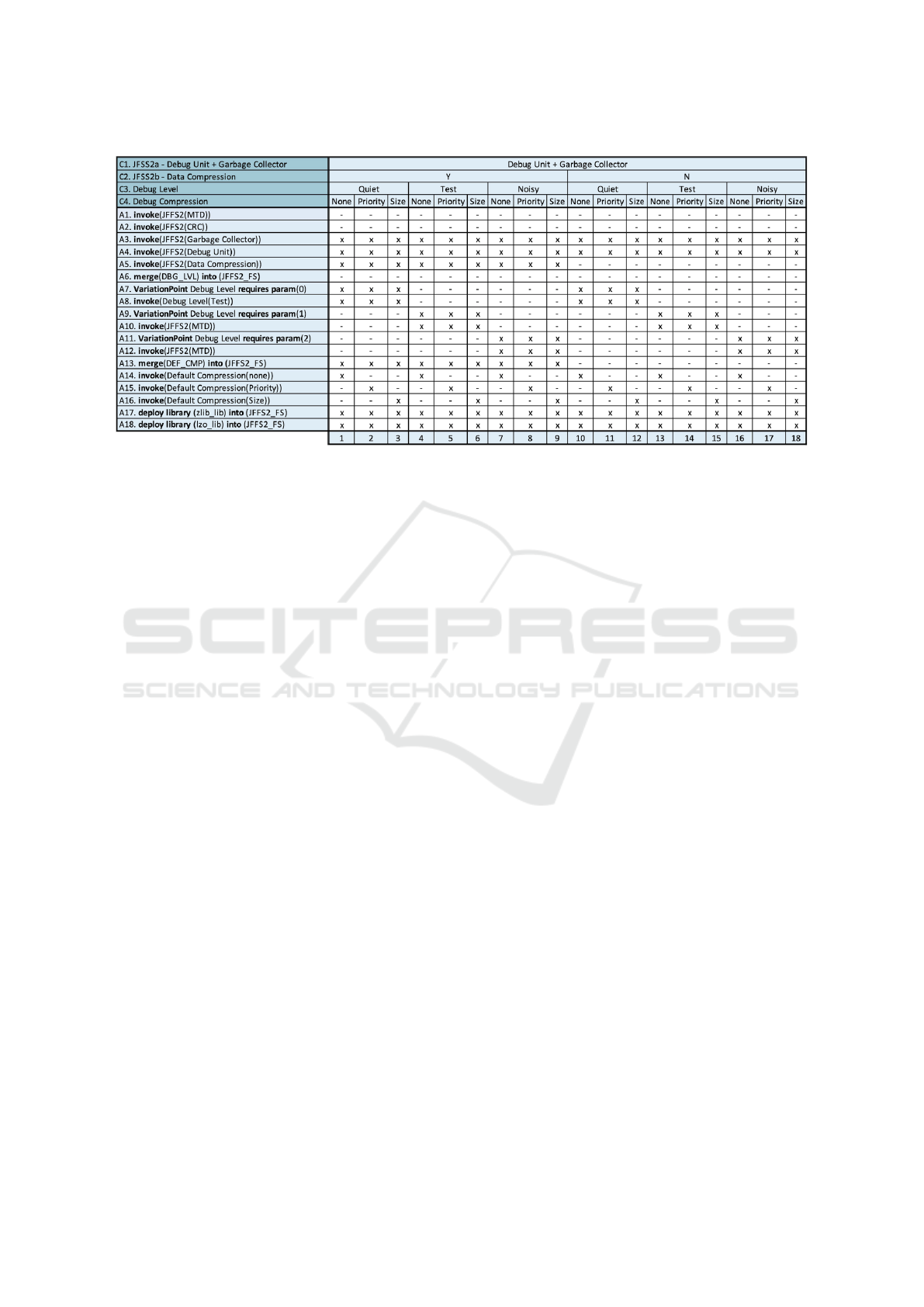

Running Example: JFFS2. Fig.8 shows the ﬁxed

DT of the JFFS2 example. Such a table has been ﬁxed

using the procedures described in Fig.6, it does not

exhibit anomalies and it appears more compact (due

to the redundancy ﬁxing intervention). Furthermore,

starting from this table engineers can easily extract

and use a set of business rules with no redundancy,

inconsistency and deﬁciency.

5 THREATS TO VALIDITY

The effective and efﬁcient use of DTs as a tool for

managing software SPLs can be hindered by several

threats. These include:

1. Incorrect construction of DTs from an existing

SPL: mapping the concepts of an SPL to the el-

ements of a DT is a complex task and an incon-

sistent construction of the tables can compromise

the effectiveness of the tool from the start.

2. Inadequate maintenance of DTs: the DTs reﬂect

the SPL, they require maintenance that aligns with

the evolution of the SPL. In cases of large and

complex DTs, maintenance can be challenging

and prone to errors.

3. Scalability issues: the more variation points in an

SPL, the larger and more complex the DTs will be.

n this case, we can divide the threats into 2 sub-

categories: intra-tabular threats and inter-tabular

ones.

Managing Domain Analysis in Software Product Lines with Decision Tables: An Approach for Decision Representation, Anomaly

Detection and Resolution

189

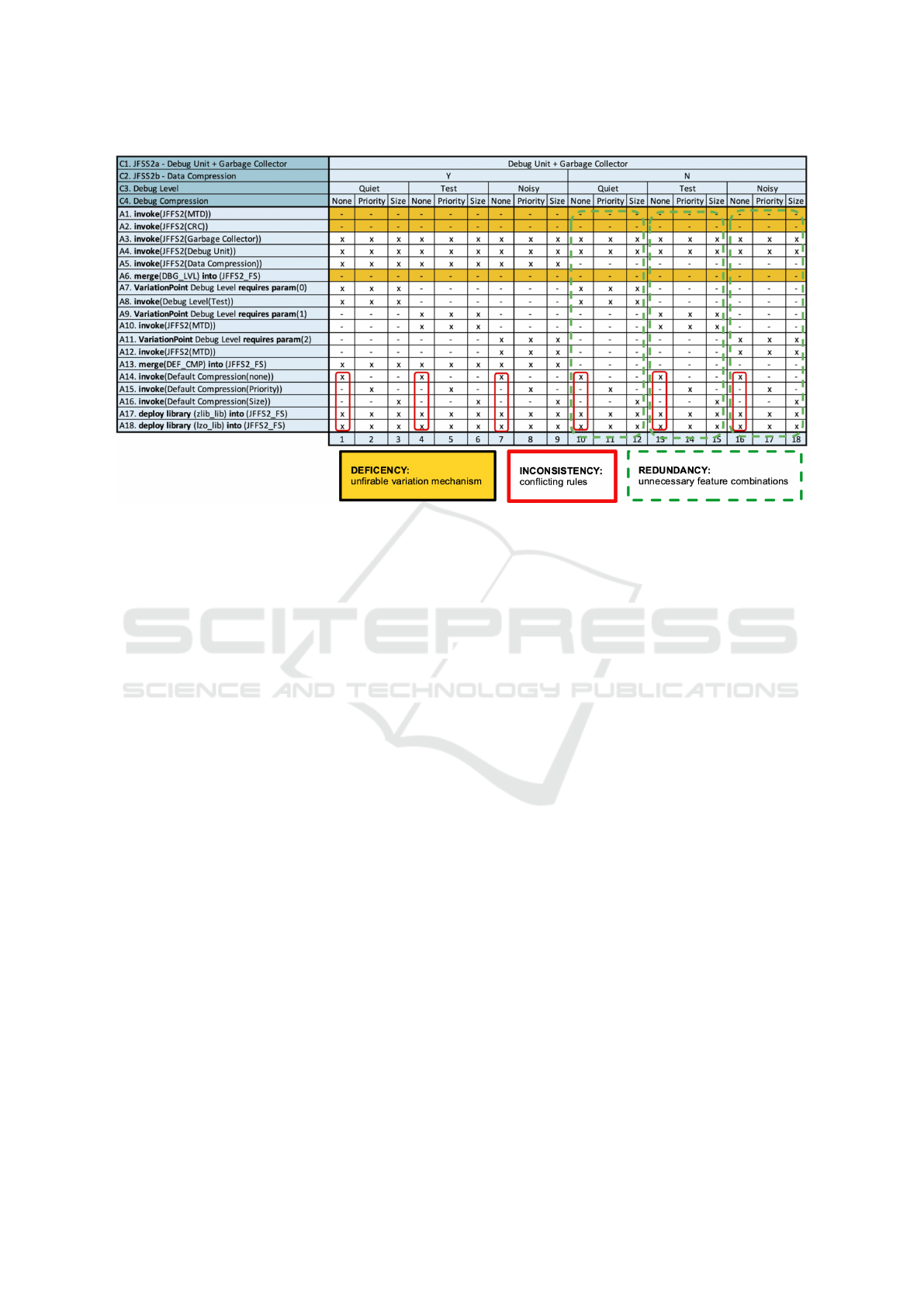

Figure 7: Anomaly detection for JFFS2.

3.1. Intra-tabular threats: they arise when dealing

with decision tables (DTs) in software prod-

uct lines (SPLs) that have high variability. The

more variation points in an SPL, the larger and

more complex the DTs become. In such cases,

tables can have tens of thousands of columns,

making them impractical for decision-makers

to edit, maintain, consult, validate, and correct.

3.2. Inter-tabular threats: they arise when design-

ing DTs for industrial products with hundreds

or thousands of assets and hundreds of features.

If one DT needs to be created for each single

asset, then we will end up with as many DTs

as assets and as many columns as features ex-

hibited. In such cases, there might be a lack

of anomaly investigation because the potential

anomalies attributable to inter-tabular relation-

ships are not easily identiﬁed.

To address these challenges, the authors are devel-

oping a software tool that according to the procedure

described in the previous sections:

• Support and guide the user towards the construc-

tion of the tables so that the correct mapping be-

tween the SPL concepts and the constituent ele-

ments of the DT is guaranteed, in this way you

can avoid the pitfalls of bad translations and as-

sociations of concepts that could undermine the

correctness of the target table. (Threat 1)

• Support and guide the user during the mainte-

nance of the DTs. The tool starting from the new

aspects introduced in the SPL:

– It suggests the elements of the table to intro-

duce (Threat 2)

– Supports the introduction of new rules (Threat

– Recalculate and redraw the DT with the new

row and column conﬁguration (Threat 2)

• Support the automatic (or guided) removal of

anomalies so that the user does not have to deal

with the direct modiﬁcation of rows and columns

which in some complex cases can even be sev-

eral thousand. (Threat 2 and Threat 3.1 and Threat

3.2)

• Suggest to the user the best permutation of rows

and columns for the DTs in order to obtain the

most compact version of the DT possible. (Threat

3.1)

• Through the execution of the ”compact” function-

ality, consistent with the decision space described

by the table, it merges the ”conditional states” and

the related rules in such a way as to produce the

DT conﬁguration as compact as possible. (Threat

3.1)

• Support in a totally automatic way the veriﬁcation

and validation operations in order to search for all

the anomalies present even in cases of very large

DTs. (Threat 3.1)

• Automatically search for any presences of low

cohesion between groups of decisions in the tar-

get table and then automatically (or in a guided

way) break down this table into a set of sub-tables

loosely connected to each other. Usually, a DT

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

190

Figure 8: Fixed decision table for JFFS2.

of considerable size can be represented through a

”network” of DTs, each of much smaller dimen-

sions (Threat 3.1).

• In the case of a network of DTs, the software

searches for potential anomalies related to inter-

tabular relationships. Currently, the authors are

studying the most appropriate checkers to support

this task (Threat 3.2). In this sense, the authors

6 CONCLUSION AND FUTURE

WORKS

This paper has highlighted the potential of decision

trees (DTs) in aiding domain analysis and product

derivation for software product lines (SPLs). We have

shown that by using DTs to model complex decision

scenarios and appropriate assumptions, software en-

gineers can understand how to implement variability

in the ﬁnal product while adhering to requirements

and constraints expressed through combinations of

feature values and variation mechanisms.

DTs have also been used to model all necessary

information and clearly illustrate the connections be-

tween feature values and variation mechanisms acti-

vation. This approach is particularly useful for soft-

ware engineers and experts who may require knowl-

edge that is not explicitly deﬁned. Additionally, we

have demonstrated that the assumptions made for

knowledge modeling through DTs can ensure correct-

ness, completeness, consistency, and non-redundancy

of all required information, even in the context of

SPLs. This is due to the adaptability of anomaly

prevention, detection, and ﬁxing criteria to the con-

text at hand, allowing software engineers to conduct

veriﬁcation and validation processes on the modeled

knowledge using DTs.

Looking ahead, several areas could be further ex-

plored to enhance the proposed approach. One such

area is the use of SAT solvers or other similar meth-

ods to improve the effectiveness and efﬁciency of

anomaly investigation conducted by DTs, particularly

with respect to inter-tabular anomalies. Integrating

these approaches could help overcome scalability is-

sues that may arise when dealing with large and com-

plex SPLs.

Another important direction for future research is

empirical validation of the proposed approach. While

the results of this study are promising, further investi-

gation is needed to assess the effectiveness and gener-

alizability of the proposed approach in different con-

texts and scenarios.

Furthermore, the completion of the software tool

being developed by the authors could further enhance

the proposed approach by automating and streamlin-

ing some of the more trivial and repetitive tasks in-

volved in the process. This would allow software en-

gineers to focus on more critical analysis and design

activities related to SPL features and ﬁnal products.

Finally, investigating the roles and interactions of

Managing Domain Analysis in Software Product Lines with Decision Tables: An Approach for Decision Representation, Anomaly

Detection and Resolution

191

other actors, such as project managers and stakehold-

ers, in the context of SPLs would be valuable in fur-

ther improving the proposed approach.

In conclusion, we believe that this paper can serve

as a valuable reference for future research on SPLs

and the use of DTs to help software engineers manage

and validate the necessary knowledge for the product

derivation process.

REFERENCES

Ardimento, P., Boffoli, N., Castelluccia, D., and Scalera, M.

(2016). How to face anomalies in your ﬂexible busi-

ness process? the decision table rules! In Agrifoglio,

R., Caporarello, L., Magni, M., and Za, S., editors,

Re-shaping Organizations through Digital and Social

Innovation, pages 193–204. LUISS University Press -

Pola Srl.

Batory, D., Benavides, D., and Ruiz-Cortes, A. (2006). Au-

tomated analysis of feature models: challenges ahead.

Communications of the ACM, 49(12):45–47.

Benavides, D., Felfernig, A., Galindo, J. A., and Reinfrank,

F. (2013). Automated analysis in feature modelling

and product conﬁguration. In International confer-

ence on software reuse, pages 160–175. Springer.

Boffoli, N., Castelluccia, D., and Visaggio, G. (2013). Tab-

ularizing the business knowledge: modeling, mainte-

nance and validation. In Organizational Change and

Information Systems, pages 471–479. Springer.

Boffoli, N., Castelluccia, D., and Visaggio, G. (2014). Tab-

ularizing the business knowledge: automated detec-

tion and ﬁxing of anomalies. In Information Systems,

Management, Organization and Control, pages 243–

251. Springer.

Clements, P. and Northrop, L. (2001). Software Product

Lines: Practices and Patterns. Addison-Wesley Pro-

fessional.

Czarnecki, K. and Kim, C. H. P. (2005). Cardinality-

based feature modeling and constraints: A progress

report. In International Workshop on Software Facto-

ries, pages 16–20. ACM San Diego, California, USA.

Drave, I., Kautz, O., Michael, J., and Rumpe, B. (2019). Se-

mantic evolution analysis of feature models. In Pro-

ceedings of the 23rd International Systems and Soft-

ware Product Line Conference-Volume A, pages 245–

255.

Galindo, J. A. and Benavides, D. (2020). A python frame-

work for the automated analysis of feature models: A

ﬁrst step to integrate community efforts. In Proceed-

ings of the 24th ACM International Systems and Soft-

ware Product Line Conference-Volume B, pages 52–

55.

Horcas, J.-M., Galindo, J. A., Heradio, R., Fernandez-

Amoros, D., and Benavides, D. (2021). Monte carlo

tree search for feature model analyses: a general

framework for decision-making. In Proceedings of the

25th ACM International Systems and Software Prod-

uct Line Conference-Volume A, pages 190–201.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented domain

analysis (foda) feasibility study. Technical report,

Carnegie-Mellon Univ Pittsburgh Pa Software Engi-

neering Inst.

Krueger, C. W. (2006). New methods in software product

line development. In SPLC, volume 6, pages 95–102.

Le, V.-M., Felfernig, A., Uta, M., Benavides, D., Galindo,

J., and Tran, T. N. T. (2021). Directdebug: Auto-

mated testing and debugging of feature models. In

2021 IEEE/ACM 43rd International Conference on

Software Engineering: New Ideas and Emerging Re-

sults (ICSE-NIER), pages 81–85.

Maes, R. and Van Dijk, J. (1988). On the role of ambigu-

ity and incompleteness in the design of decision ta-

bles and rule-based systems. The Computer Journal,

31(6):481–489.

Mannion, M. (2002). Using ﬁrst-order logic for product

line model validation. In International Conference on

Software Product Lines, pages 176–187. Springer.

Maßen, T. v. d. and Lichter, H. (2003). Requiline: A

requirements engineering tool for software product

lines. In International Workshop on Software Product-

Family Engineering, pages 168–180. Springer.

Pohl, K., B

ockle, G., and Van Der Linden, F. (2005). Soft-

ware product line engineering: foundations, princi-

ples, and techniques, volume 1. Springer.

Preece, A. D. and Shinghal, R. (1994). Foundation and

application of knowledge base veriﬁcation. Interna-

tional journal of intelligent Systems, 9(8):683–701.

Trinidad, P., Benavides, D., and Cort

es, A. R. (2006). Iso-

lated features detection in feature models. In CAiSE

Forum, page 26.

Van Deursen, A. and Klint, P. (2002). Domain-speciﬁc lan-

guage design requires feature descriptions. Journal of

computing and information technology, 10(1):1–17.

Vanthienen, J., Mues, C., Wets, G., and Delaere, K. (1998).

A tool-supported approach to inter-tabular veriﬁca-

tion. Expert systems with applications, 15(3-4):277–

285.

von der Maßen, T. and Lichter, H. (2004). Deﬁciencies in

feature models. In workshop on software variability

management for product derivation-towards tool sup-

port, volume 44, page 21.

Wang, H., Li, Y. F., Sun, J., Zhang, H., and Pan, J. (2005). A

semantic web approach to feature modeling and veri-

ﬁcation. In Workshop on Semantic Web Enabled Soft-

ware Engineering (SWESE’05), page 46.

Zhang, W., Zhao, H., and Mei, H. (2004). A propositional

logic-based method for veriﬁcation of feature models.

In International Conference on Formal Engineering

Methods, pages 115–130. Springer.

ENASE 2023 - 18th International Conference on Evaluation of Novel Approaches to Software Engineering

192
