Facial Expression Recognition with Quarantine Face Masks Using a

Synthetic Dataset Generator

ucel C¸ elik and Sezer G

oren

Department of Computer Engineering, Yeditepe University, Istanbul, Turkey

Keywords:

Facial Expression Detection, Face Masks, Covid-19, AI, Machine Learning, Convolutional Neural Network.

Abstract:

The usage of face masks has increased dramatically in recent years due to the pandemic. This made many

systems that depended on a full facial analysis not as accurate on faces that are covered with a face mask,

which may lead to errors in the system. In this paper, we propose a Convolutional Neural Network (CNN)

model that was trained solely on face masks to be more accurate and on point, that could more easily determine

facial expressions. Our CNN model was trained with a seven different expression category dataset that only

had people with face masks. Although we could not ﬁnd a suitable dataset with face masks, we opted to

generate a synthetic one. The dataset generation was done using Python and the help of the OpenCV library.

The process is, after ﬁnding the dimensions of the face, we Perspective Transform the face mask object to be

able to overlay it on the face. After that, the CNN model was also generated using Python with a CNN model.

Using this method we gathered favorable results on the test subjects with 70.1% accuracy on the validation

batch where previous facial expression recognition systems mostly failed to even recognize the face since they

were not trained to recognize faces with face masks.

1 INTRODUCTION

FER (Facial Expression Recognition) Figure 1 is the

act of recognizing a person’s mood from the various

elements and mimics on their face such as the curva-

ture of the mouth, position of their eyebrows, crow’s

feet at the edge of their eyes, and so forth. Being able

to detect the changes stemming from many of these

human mimics could open various opportunities for

use in many ﬁelds. For example, in psychology it is

critical that a patient’s psychological status could be

determined throughout any time of the day. To give

another example, with FER it is possible to get auto-

matic customer feedback for various services and to

determine the disposition of the workers as well.

Figure 1: Facial expression examples (Singhal, 2021).

Admittedly, if the process of FER could be auto-

mated by a machine, this would enable incredible po-

tential. Since, the machine could be able to pick up on

many minute details a human would potentially miss,

less prone to human errors, and take a fraction of the

time to determine the result.

Fortunately, there have been many papers and

work published on this topic and great advancement

is made already. Remarkably, one of the ﬁrst to pub-

lish a research paper goes back to 1992 (Kobayashi

and Hara, 1992). In the aforementioned paper, the

authors were trying to classify six distinct emotions

with the help of a neural network, which is a type

of machine that is modeled after the human brain to

be able to think alike and made using many intercon-

nected nodes and artiﬁcial neurons that process infor-

mation, that eventually produce a result. Thereafter,

much more work has come to light. Amongst those

that have a focus on FER, most are trained on a per-

son’s face without obstruction and regrettably, those

models that have been trained to work with an un-

masked face might not be viable enough to be used in

the modern world with so many face masks worn by

people. In today’s standards, since those models lose

a remarkable amount of patterns and features when a

person wears a face mask such as the mouth where

Çelik, Y. and Gören, S.

Facial Expression Recognition with Quarantine Face Masks Using a Synthetic Dataset Generator.

DOI: 10.5220/0011992500003497

In Proceedings of the 3rd International Conference on Image Processing and Vision Engineering (IMPROVE 2023), pages 199-205

ISBN: 978-989-758-642-2; ISSN: 2795-4943

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

199

the model is speciﬁcally trained to take data from,

they might not be working as intended. For instance,

the AI model this paper (Sharifara et al., 2014) had

developed, uses Haar Cascade to detect human faces

but since it was developed without subjects with face

masks in the dataset, it has trouble detecting subjects

with face masks.

This is why the focus on this paper is how a

CNN model could be used to detect facial expres-

sions even with a face mask on the person’s face. Our

CNN model was speciﬁcally trained with a expression

dataset that has been synthetically overlaid with face

masks. The reason behind that is the lack of a usable

and viable face masks FER dataset open to the pub-

lic. There are few face mask dataset generators (Yang

et al., 2020). In addition, with this dataset generator

in mind, many models are going to have a much easier

time ﬁnding a dataset in the future.

While generating our dataset to make a better at-

tention map for our CNN model to focus, we have

synthetically overlaid masks using OpenCV’s homog-

raphy methods to have good symmetry. The afore-

mentioned methods are “getPerspectiveTransform” to

make a transformation matrix and “warpPerspective”

(DeTone et al., 2016) to apply the transformation ma-

trix to the mask image. Randomly picked samples

could be seen in Figure 2.

Figure 2: Facial expressions (Singhal, 2021) with syntheti-

cally added face masks.

After that, when all seven expressions containing

the facial expressions are completed being overlaid

with perspective transformed masks, the CNN model

was trained over this dataset to generate a model.

Since this process is automated by the Convolutional

Neural Network (CNN) model, the system could po-

tentially pick up many easy to miss subtleties from the

subject’s face from the view of a naked human eye.

Consequently, in this work after the training of

our CNN model was done it could be plugged into

any webcam to get real time detection of facial ex-

pressions with face masks. Since this process does

not take too much resources it could be installed on

most modern computer architectures to be used con-

veniently.

2 RELATED WORK

We have been able to ﬁnd a similar work that has a

FER system where it also focuses on facial expression

detection with face masks (Yang et al., 2021). There

are papers that only focus on real-time face detection

(Yang et al., 2021), and papers that focus on detec-

tion of faces in real-time with face masks (Das et al.,

2020).

If we were to compare this paper to similar work

the closest one is by B. Yang, W. Jianming, et al.

(Yang et al., 2021). In the aforementioned paper, the

authors had used a binary classiﬁer deep learning AI

model to classify a FER and in this paper we worked

with a CNN machine learning model. On the other

hand, the paper one and our paper have dissimilarities.

Our paper has seven expression categories that are

’Angry’, ’Disgust’, ’Fear’, ’Happy’, ’Neutral’, ’Sad’,

’Surprise’ but the paper (Yang et al., 2021) has the

three categories of ’Positive’, ’Negative’, ’Neutral’.

Also, our paper was trained over a synthetically made

dataset over a CNN model, while the mentioned paper

(Yang et al., 2021) has been trained by deep learning

binary classiﬁer network.

One other similar work that has been published is

(Castellano et al., 2022). It is a work that focuses on

facial emotion recognition with face masks likewise

but uses another dataset generation method and uses

a deep learning model instead. Another similar paper

on this topic is (Henke et al., 2022), which looks at the

link between recognition of people with face masks of

various ages. Henke, Lea, et al. achieve this goal by

analyzing images with AI and drawing conclusions.

Lastly, one key difference between all referenced

work is that our work’s dataset has been entirely gen-

erated synthetically by our self-made masked image

generator. More information regarding our dataset

generator is in the following section 3.1.

3 PROPOSED METHOD

The steps we followed were starting with the conver-

sion of the dataset, we fed the converted dataset into

the model. After the CNN model’s training is done,

we send images in real-time from our webcam to be

processed by our model to get a result. The dataset

generator, CNN model, and real-time usage are run

on a cloud environment using Google Colab.

3.1 Dataset Creation

The custom synthetic dataset has been crafted by

overlaying the face mask image over the selected face.

IMPROVE 2023 - 3rd International Conference on Image Processing and Vision Engineering

200

Firstly, with the method of Facial Landmark Detec-

tion System (Wu et al., 2021) the coordinates of the

facial elements. Example in Figure 3 and their posi-

tions were recorded in a numpy (Van Der Walt et al.,

2011) array to be used.

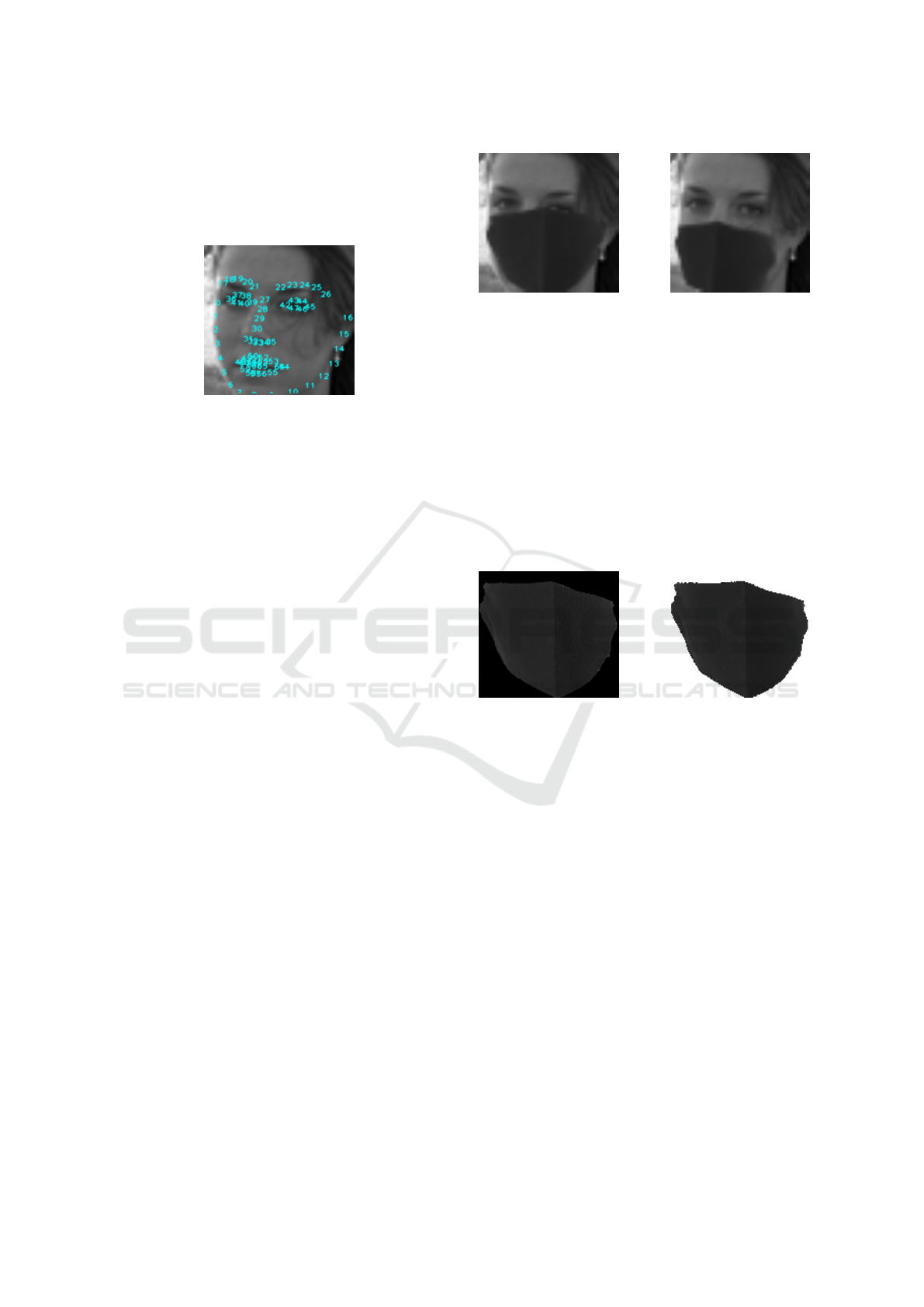

Figure 3: Facial landmarks.

With the coordinates taken, the ratio of these

points was recorded so that the mask could be appro-

priately placed over the face. If no measures were

taken and the mask is directly placed over the face

some unwanted results were occurring. For example,

if the face did not have any tilt vertically or horizon-

tally the placement would not have any problems but

if the face had a noticeable tilt at all the face masks

that are overlaid would look out of place with the in-

correct perspective as in Figure 4a. To ﬁx this issue,

the ratios of the face were calculated and some adjust-

ments were made to the pivot points of the homogra-

phy transformation according to the algorithm. Ho-

mography transformation is mostly used for straight-

ening an image to each of its corners to 90° for most

use cases. However, in this paper, the reverse of this

process is applied to the image in question. The ﬁrst

input matrix is generated by giving the method to each

of the corners of the original image. After that, four

new pivot points are calculated using the aforemen-

tioned algorithm that takes the face’s landmarks and

calculates ratios using these points. After the cal-

culated new points are given to the method a new

transformation matrix is created which is applied on

the face mask image to create a custom per-face face

mask image ideal to the speciﬁc face that is being pro-

cessed such as Figure 4b.

Afterwards, a set of other alterations are applied

on the mask to make it possible to be overlaid. The

ﬁrst is cropping the image to the last calculated pivot

points. This makes generation more efﬁcient since

this process lowers pixel amount, it takes less time

per image transformation. This is also important since

AI models require large amounts of reference images,

we need to be able to convert them swiftly. The new

cropped image only consists of the transformed mask,

as seen in Figure 5a.

Following that, ﬁrst a layer that consists of the

face mask image’s supposed alpha layer is created.

(a) Face with incorrect

perspective mask ap-

plied.

(b) Face with the altered

correct perspective mask

applied.

Figure 4: Mask and face alignments.

This is done by creating a matrix sum of the 3 RGB

(Red Green Blue) layers of the image using Numpy’s

“Sum” method. After that, each pixel in the alpha

layer is multiplied by 255 since the original layer vari-

ables were doubles between 0 and 1, but the RGB val-

ues are 8-bit which is between 0 and 255. Afterwards,

this layer is stacked on top of the original image with

Numpy’s ’Stack’ method as the fourth alpha layer in

the format RGBA (Red Green Blue Alpha), example

in Figure 5b.

(a) Cropped mask. (b) Alpha (transparency)

layer added.

Figure 5: Image operations.

After those processes, we ﬁnally convert the im-

age to the Pillow format from the OpenCV image for-

mat to be compatible with the newly opened face that

is also on the Pillow image format and overlay the

face mask image on top of the ﬁrst pivot’s x axis and

y axis positions. The original face that has been used

to ﬁnd facial landmarks could have been used for this

but we have decided to go with Pillow since it has

better support for image overlay save features.

Ultimately, the face has been overlaid with a

face mask that has been altered to ﬁt over the face

smoothly, such as Figure 6. We have tried to make it

as realistic as possible, so that the AI model can pick

features that are the most essential to get the best out-

put without errors. Each generated emotion category

has approximately between 2000 and 5000 images for

the training of the CNN model and approximately be-

tween 500 and 1000 additional images for the trained

CNN model to be tested for accuracy.

Facial Expression Recognition with Quarantine Face Masks Using a Synthetic Dataset Generator

201

Figure 6: Different facial expressions (Singhal, 2021).

One of the reasons why we had gone this route

was to have a dataset that had a good amount of

images that is why we choose this facial expression

dataset that has close to twenty thousand images and

seven expression categories that are Angry, Disgust,

Fear, Happy, Neutral, Sad, Surprise.

Therefore, to convert this entire dataset that had

faces without face masks, we have converted the pre-

viously explained algorithm into a function that can

be called repeatedly, deﬁned pathways into both input

and output folders and created a basic loop that can

handle sub-categories to convert the dataset to people

with face masks which marks the end of the dataset

creation.

3.2 CNN Model Creation and Training

Required libraries are mentioned in the section 3.4.

The dataset is fed to the program in the form of a

zip ﬁle. After unzipping it we get seven different

categories of emotions. After this for the training

of the model, these seven categories of emotion are

separated into their respective batches with the seven

classes. After that the CNN of the model is created,

it consists of 4 convolutional layers and after the ﬂat-

tening layer it has two dense layers and one ﬁnal acti-

vation layer.

After the CNN model with the properties Table 1

is created. We ﬁnally began training it. Where the

dataset that is created passes by the model completely

and where then the gradients of the images are back-

propagated and the weights are updated.

Table 1: Layers used in the CNN model (Conv: Convolu-

tional Layers, Flatten Layers, Connected Layers, Act: Acti-

vation Layers).

Layer Type Conv. Flatten Connected Act.

Num. of Layers 4 1 2 1

The dataset is ﬁrst passed through the four con-

volutional layers. But ﬁrst, the layers are initialized

by the ’sequential’ function. Only after that, the four

convolution layers are passed through. Each convo-

lution layer consists of ﬁve parts that are added to

the model by the ’add’ function. The ﬁrst part is

’Conv2D’ which speciﬁes the layer that is going to

be added to the model is a convolutional layer that

also takes parameters for the size of the input and

pooling. Pooling helps to cut the cost of processing

cost of the image by precisely ”pooling” the image

into batches that are shrunken down. These batches

are made of the maximum of the pixels or the aver-

age of the pixels. Secondly ’Batch Normalization’

is added which applies a transformation that keeps

the mean output close to zero and the standard devia-

tion of the model close to one. Thirdly, the activation

method is added to the layer. Which in this case is the

“ReLU” (Linear Rectiﬁer Unit) function. The Recti-

ﬁed Linear Unit activation function works by keeping

the activation cost linear in the given value and always

greater than zero. This helps with ever-increasing ex-

ponential growth of activation costs of neurons. The

fourth part of the convolutional layer is the ’Max-

Polling2D’. As the name suggests it works on 2D in-

put and takes the best sample out of the group. Fi-

nally, ’Dropout’ is added to the layer to prevent over-

ﬁtting of the model. It works by negating the con-

tributions of some neurons of the model and leaving

others untouched. Through all four convolutional lay-

ers in the model, every part is kept the same except the

’Conv2D’ method. The dimensions of the input and

layers change throughout the four convolution layers

in the model.

After the convolutional layers are done process-

ing information, we ﬂatten the input from the con-

volutional layers into a one-dimensional array for

dense layers to be able to absorb it. The dense

layers are where the classiﬁcation of the images is

made based on the previously calculated neurons and

their weights. Following that, ’Batch Normalization

layer’, ’activation’ and ﬁnally ’dropout layer’ parts

are added. Next to all this, we add a dense layer

with its activation cost set to ’softmax’ which is a

method that converts the incoming numbers into prob-

abilities so that we can get a reading of the classi-

ﬁcation. The classiﬁcation is between the numbers

’0’ representing impossible and ’1’ representing total

conﬁdence in classiﬁcation. The optimizer here used

is the Adam Optimization Algorithm. It takes a pa-

rameter for learning rate. After that, the loss metric

is added in the form of ’categorical crossentropy’ to

determine the success of the model. After the CNN

model is complete, with each epoch’s pass the cur-

IMPROVE 2023 - 3rd International Conference on Image Processing and Vision Engineering

202

rently trained model with the weights and multipliers

are saved. After that there is ’ReduceLROnPlateau’

which adjusts the learning rate when a plateau or slow

down in learning performance is detected. For exam-

ple no accuracy increase for some number of epochs.

The ’ModelCheckPoint’ that allows to deﬁne check-

points for model weights. Following that, ’Callbacks’

with ’PlotLossesCallback’ function to give reports in

real-time about the training done. Finally, ’model.ﬁt’

method starts the training and validation of our model

and we get Figure 7 in each epoch.

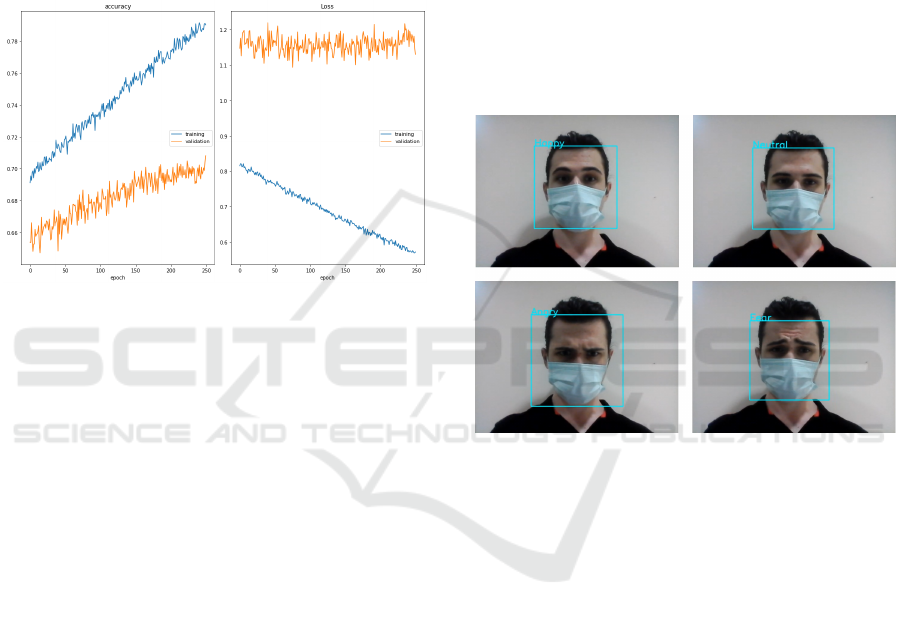

Figure 7: Accuracy and loss graph of test and validation

batches up to 250 epochs.

From this ﬁgure, we can see a considerable im-

provement in the early epoch stages up to 150, where

it starts to slow down and begin hitting a plateau on

epoch 250. Also considering the trend of validation

batch’s loss line has started to take an upwards turn,

we found it plausible to stop the training of the model

to prevent any unintentional overﬁtting.

3.3 Real-Time Usage of the Trained

Model

In this part, we are going to be focusing on how the

newly trained model could be used to identify expres-

sions on a person’s face in real-time with a face mask.

With all the necessary libraries imported that are

mentioned before we can continue. First of all, for the

trained CNN model to be used the trained weights and

multipliers are imported as ’FacialExpressionClass’

to the system. In this class, the seven categories of

emotions that we are working on are listed. After that,

the imported weights are loaded into the model so that

we can create a predictor model.

To interpret live-camera ,feed into it we take each

image as JavaScript objects, decode and then encode

them again as OpenCV image objects. It is important

that the images are in the OpenCV image format so

that we can run the model through them and overlay

graphical elements over them such as the face box and

most importantly, the detected expression.

We take the converted OpenCV format images and

feed it through the Haar Cascade Classiﬁer (Viola and

Jones, 2004) ﬁrst to ﬁlter the face part of the image or

else the model would not work since it was trained

to ﬁnd expressions on a face with a mask not to ﬁnd

the face. After the Cascade ﬁlter takes out the face

and we run the predictor through it we ﬁnally get the

data that is going to be overlaid on the image. We

do this by OpenCV’s ’putText’ function to insert the

expression and ’rectangle’ function to outline the face

in the webcam live feed as can be seen in Figure 8.

So, the ﬁnal product is a smooth continuous video-

feed that shows what the current expression currently

detected person is showing.

Figure 8: Real-Time usage.

3.4 Used Methodologies

For the IDE (Integrated Development Environment)

and backend support, Google Colab has been used.

The paper’s coding has been coded entirely in Python

version 3. For the unaltered dataset this (Sing-

hal, 2021) has been used and later been trans-

formed to the appropriate dataset using the algo-

rithm that we had developed. For the mask per-

spective transformation algorithm the following li-

braries have been used: Numpy, OpenCV (Howse,

2013), google.colab.patches, dlib (King, 2009), Pil-

low (Clark et al., 2015), os Python modules.

As for the CNN usage and learning section,

these libraries have been used: python-utils, liveloss-

plot v0.5.2, Numpy, seaborn (Bisong, 2019), mat-

plotlib.pyplot (Ari and Ustazhanov, 2014), os, tensor-

ﬂow (with also keras API (Application Programming

Interface) wrap (Brownlee, 2016)).

Lastly, for the real time FER detection

these libraries have been used: IPython.display,

google.colab.output, base64 (both encoding and

Facial Expression Recognition with Quarantine Face Masks Using a Synthetic Dataset Generator

203

decoding), OpenCV (Howse, 2013), Numpy (Van

Der Walt et al., 2011), Pillow (Clark et al., 2015), io,

html, time (Christ et al., 2018)

4 TEST AND RESULTS

For the results, there have been some losses in accu-

racy due to parts of the facial features missing with

the face masks. Not to mention, many mimics of the

mouth are used to determine between many expres-

sions but since it is covered some of the images have

become quite difﬁcult to tell even from a human eye’s

perspective. Despite that, the validation batch when

training the model shows a value of 70.8% current ac-

curacy at epoch 250. If we use the mode category for

our baseline score, it would be 14.29%. On the other

hand, our overall accuracy was 45.6%. When com-

pared to the most similar paper (Yang et al., 2021).

This paper has lower precision but when the cate-

gories are compared this paper has a 2.3 times larger

classiﬁcation range. To be exact, this paper features:

’Angry’, ’Disgust’, ’Fear, ’Happy’, ’Neutral’, ’Sad’,

’Surprise’. The aforementioned paper (Yang et al.,

2021) features: ’Positive’, ’Neutral’, ’Negative’. The

statistics can be seen in Table 2.

Table 2: Accuracy and Loss for Both Training and Valida-

tion Sets.

Training Validation

Max Accuracy 79.1 70.8

Current Accuracy 79 70.8

Min Accuracy 69.1 64.7

Max Loss 0.821 1.131

Current Loss 0.572 1.220

Min Loss 0.596 1.094

As mentioned before in section 2, each expres-

sion category in the training set approximately has

between 2000 and 5000 images and between 500 and

1000 in the training set. Making the training set to

validation set ratio near 5:1.

Table 4 represents subjects with synthetically

generated face masks made using our dataset gener-

ator and Table 5 represents subjects that do not have

a face mask. Both tables show results from subjects

that are randomly picked and these values were found

by running the CNN model and looking at the results

in real-life not by simulation. We have included the

two tables Table 4 and Table 5 to be able to have

a grasp on our work does on both masked and un-

masked faces.

The performance evaluation results are shown in

Table 3 and its data are based on Table 4. Formu-

las of the calculated values shown below. (TP: True

Positive, FP: False Positive, TN: True Negative, FN:

False Negative, P: Total Positive, N: Total Negative).

The values calculated on Table 3 are based on Eqn 1,

2 and 3.

Accuracy = (T P + T N)/(P + N) (1)

Precision = (T P + T N)/(P + N) (2)

Recall = T P/(T P + FN) (3)

Table 3: Performance evaluation table (values shown are

percentages. Ang: Anger, Dis: Disgust, Hap: Happy, Neu:

Neutral, Surp: Surprise).

Ang Disg Fear Happ Neut Sad Surp

accuracy 89.4 89.4 83.0 85.7 76.6 84.0 91.5

precision 50.0 100.0 40.0 58.3 45.5 33.3 25.0

recall 60.0 16.7 66.7 77.8 50.0 33.3 50.0

Table 4: Confusion matrix of subjects with face masks.

Ang Disg Fear Happ Neut Sad Surp

Anger 50.0 0.0 16.7 11.1 0.0 0.0 0.0

Disgust 0.0 16.7 0.0 0.0 0.0 0.0 0.0

Fear 16.7 33.3 66.7 0.0 20.0 16.7 0.0

Happy 16.7 16.7 0.0 77.8 20.0 0.0 25.0

Neutral 0.0 0.0 0.0 11.1 50.0 50.0 50.0

Sad 16.7 33.3 0.0 0.0 10.0 33.3 0.0

Surprise 0.0 0.0 16.7 0.0 0.0 0.0 25.0

Table 5: Confusion matrix of subjects without face masks.

Ang Disg Fear Happ Neut Sad Surp

Anger 50.0 0.0 16.7 11.1 0.0 0.0 0.0

Disgust 0.0 0.0 0.0 0.0 0.0 0.0 0.0

Fear 16.7 40.0 66.7 0.0 20.0 16.7 0.0

Happy 16.7 20.0 0.0 77.8 20.0 16.7 0.0

Neutral 0.0 0.0 0.0 11.1 50.0 50.0 50.0

Sad 16.7 40.0 0.0 0.0 10.0 33.3 0.0

Surprise 0.0 0.0 16.7 0.0 0.0 0.0 25.0

From these confusion matrices, it could be seen

that some of the expression categories are much eas-

ier to classify compared to others. On a closer look,

we could make out that expressions such as ’Dis-

gust’ are much harder to determine. We have ascer-

tained that there are several factors as to why that

is the case. One of which is, some expressions are

especially distinguished from the mouth. For exam-

ple, ’Disgust’, ’Sad’ or ’Surprise’ emotions particu-

larly lean on mouth mimics to convey oneself. An-

other reason is that, with the mouth region blocked,

the boundary between the two emotions ’Anger’ and

’Disgust’ are nearly identical and proved to be incred-

ibly hard to recognize from one another. Even from

the standpoint of a human’s perspective.

IMPROVE 2023 - 3rd International Conference on Image Processing and Vision Engineering

204

Also to improve the accuracy even higher, We

have a few proposed ideas such as mask saturation

randomization to eliminate bias for different illumi-

nated environments or to expand the dataset. Not

to mention, one of the state-of-the-art CNN mod-

els might yield completely different results and tests

should be done to be determined.

5 CONCLUSION

Ultimately, in this paper, we had proposed a CNN

artiﬁcial intelligence solution for automatic analysis

of a person’s facial expression and determination.

Which had seven different expression categories that

are ’Angry’, ’Disgust’, ’Fear’, ’Happy’, ’Neutral’,

’Sad’ and lastly ’Surprise’.

One reason so many expression categories have

been used is to have a paper that is not too similar to

others. Even though some expressions are incredibly

hard to make out with a face mask even from a hu-

man’s perspective. Although, reducing the number of

emotions would have a dramatic increase in test accu-

racy, we would not want to downgrade our goal. To

accomplish the objectives in this paper we have used

Python in tandem with Google Colab and these two

combined to offer an incredible workspace for devel-

opers.

The paper consisted of three main parts, the syn-

thetic dataset generation since there is a lack of

masked face datasets as of writing this. The CNN

model was built and trained with our synthetically

made dataset that we generated by using a pre-

existing expression dataset with no masks. Subse-

quently, generating and saving the trained model’s

weights and multipliers. Ultimately, to be used in a

video feed to offer real-time FER with face masks.

6 FUTURE WORK

We do believe that this work still has more space to

grow. More features could be added to improve al-

ready existing systems. One other system that would

be beneﬁcial to add for example would be saturation

randomization for the face masks in the dataset gener-

ator. Since the dataset consists of only black or white

masks, the model might have a slight bias towards

those two colors. However with a saturation random-

ization system it would be equivalent to color ran-

domization since the images are processed in a single

gray-scale layer, a saturation change would be com-

parable to a hue change in a full-color image.

REFERENCES

Ari, N. and Ustazhanov, M. (2014). Matplotlib in python.

In 2014 11th International Conference on Electronics,

Computer and Computation (ICECCO). IEEE.

Bisong, E. (2019). Building machine learning and deep

learning models on Google cloud platform. Springer.

Brownlee, J. (2016). Deep learning with Python: develop

deep learning models on Theano and TensorFlow us-

ing Keras. Machine Learning Mastery.

Castellano, G., De Carolis, B., and Macchiarulo, N. (2022).

Automatic facial emotion recognition at the covid-19

pandemic time.

Christ, M., Braun, N., Neuffer, J., and Kempa-Liehr, A. W.

(2018). Time series feature extraction on basis of scal-

able hypothesis tests (tsfresh–a python package). Neu-

rocomputing.

Clark, A. et al. (2015). Pillow (pil fork) documentation.

readthedocs.

Das, A., Wasif Ansari, M., and Basak, R. (2020). Covid-

19 face mask detection using tensorﬂow, keras and

opencv. In 2020 IEEE 17th India Council Interna-

tional Conference (INDICON).

DeTone, D., Malisiewicz, T., and Rabinovich, A.

(2016). Deep image homography estimation. CoRR,

abs/1606.03798.

Henke, L., Guseva, M., Wagemans, K., Pischedda, D.,

Haynes, J.-D., Jahn, G., and Anders, S. (2022). Sur-

gical face masks do not impair the decoding of facial

expressions of negative affect more severely in older

than in younger adults.

Howse, J. (2013). OpenCV computer vision with python.

Packt Publishing Birmingham.

King, D. E. (2009). Dlib-ml: A machine learning toolkit.

The Journal of Machine Learning Research.

Kobayashi, H. and Hara, F. (1992). Recognition of six basic

facial expression and their strength by neural network.

In [1992] Proceedings IEEE International Workshop

on Robot and Human Communication. IEEE.

Sharifara, A., Mohd Rahim, M. S., and Anisi, Y. (2014).

A general review of human face detection including a

study of neural networks and haar feature-based cas-

cade classiﬁer in face detection. In 2014 International

Symposium on Biometrics and Security Technologies

(ISBAST).

Singhal, A. (2021). Facial Expression Dataset. Kaggle.

Van Der Walt, S., Colbert, S. C., and Varoquaux, G. (2011).

The numpy array: a structure for efﬁcient numerical

computation. Computing in science & engineering.

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. International Journal of Computer Vision.

Wu, B.-F., Chen, B.-R., and Hsu, C.-F. (2021). Design of

a facial landmark detection system using a dynamic

optical ﬂow approach. IEEE Access.

Yang, B., Jianming, W., and Hattori, G. (2021). Face mask

aware robust facial expression recognition during the

covid-19 pandemic. In 2021 IEEE International Con-

ference on Image Processing (ICIP).

Yang, B., Wu, J., and Hattori, G. (2020). Facial expression

recognition with the advent of face masks. MUM ’20.

Facial Expression Recognition with Quarantine Face Masks Using a Synthetic Dataset Generator

205
