Evaluation of Deep Learning Techniques for Entity Matching

Paulo Henrique Santos Lima, Douglas Rolins Santana, Wellington Santos Martins

and Leonardo Andrade Ribeiro

Instituto de Inform

atica (INF), Universidade Federal de Goi

as (UFG), Goi

ania, GO, Brazil

Keywords:

Data Cleaning and Integration, Deep Learning, Entity Matching, Experiments and Analysis.

Abstract:

Application data inevitably has inconsistencies that may cause malfunctioning in daily operations and com-

promise analytical results. A particular type of inconsistency is the presence of duplicates, e.g., multiple and

non-identical representations of the same information. Entity matching (EM) refers to the problem of de-

termining whether two data instances are duplicates. Two deep learning solutions, DeepMatcher and Ditto,

have recently achieved state-of-the-art results in EM. However, neither solution considered duplicates with

character-level variations, which are pervasive in real-world databases. This paper presents a comparative

evaluation between DeepMatcher and Ditto on datasets from a diverse array of domains with such variations

and textual patterns that were previously ignored. The results showed that the two solutions experienced a

considerable drop in accuracy, while Ditto was more robust than DeepMatcher.

1 INTRODUCTION

A well-known adage in the Database area is ”real-

world data is dirty” (Hern

andez and Stolfo, 1998).

In other words, data generated and used application

programs invariably exhibit inconsistencies, such as

outliers, violations of syntactic and semantic patterns,

violations of integrity constraints, and fuzzy dupli-

cates, i.e., multiple representations of the same en-

tity (Abedjan et al., 2016). Besides causing malfunc-

tioning of daily operations, e.g., billing and inven-

tory management, such inconsistencies may jeopar-

dize data analysis processes. Thus, identifying and

correcting data errors are fundamental tasks in data-

driven information systems.

In this paper, we focus on identifying fuzzy du-

plicates (duplicates, for short). This problem is of-

ten referred to as entity matching (Barlaug and Gulla,

2021). Entity matching (EM) is challenging because

duplicates are not exact copies of one another. Fig-

ure 1 illustrates different types of duplicates in a re-

lational database. Duplicates arise in a database for

various reasons. Examples of such are data entry er-

rors, different naming conventions, and integration of

data sources containing overlapping information.

Deep learning (DL) has promoted over the past

decade tremendous progress in machine learning

(Krizhevsky et al., 2012). DL achieves state-of-the-

art results on perceptual tasks (e.g., object detection,

image understanding, and speech recognition) and

natural language processing tasks. The underlying

data of such tasks is characterized by some hidden

structure, which DL excels at uncovering. Given a set

of labeled examples, DL completely automates fea-

ture engineering, thereby precluding manual interven-

tion. Thus, techniques based on DL have been making

a great impact on a wide range of ﬁelds, including im-

age, speech, and text processing, among many others.

Recently, DL has also been investigated to solve

the EM problem (Barlaug and Gulla, 2021). The work

in (Mudgal et al., 2018) presented DeepMatcher, a so-

lution based on recurrent neural network (RNN) and

attention mechanism. DeepMatcher obtained signif-

icant accuracy gains on unstructured and dirty data

as compared to Magellan (Konda et al., 2016), which

was the best learning-based solution for EM. Another

approach to EM employs pre-trained language mod-

els for transfer learning (Brunner and Stockinger,

2020; Li et al., 2020). The work in (Li et al.,

2020) presented Ditto, a solution that adopts pre-

trained models based on the Transformer architec-

ture (Vaswani et al., 2017), with an additional layer

ﬁne-tuned for the downstream EM task. Ditto outper-

formed DeepMatcher in all scenarios analyzed, par-

ticularly those with less training data available.

DeepMatcher e Ditto considered three types of in-

put data: structured, textual, and “dirty”. Structured

data has a rigid schema, with simple and atomic val-

Lima, P., Santana, D., Martins, W. and Ribeiro, L.

Evaluation of Deep Learning Techniques for Entity Matching.

DOI: 10.5220/0011996200003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 1, pages 247-254

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

247

Figure 1: Examples of the three types of duplicates considered in this paper.

ues, such as short strings and numbers (Figure 1(a)).

Textual data are characterized by long texts such as

product descriptions, texts obtained from web pages,

and content from social networks (Figure 1(b)). Fi-

nally, dirty data also has a rigid schema like structured

data but has attributes with missing values or referring

to other attributes. This situation is common when

structured data is obtained from information extrac-

tion processes. For example, a company name may

be incorrectly entered into the Product attribute (Fig-

ure 1(c)).

However, DeepMatcher and Ditto did not consider

data with character-level textual variations. Such vari-

ations are pervasive in real databases, being caused

by errors during manual data ingestion, such as typos,

or automated ingestion, such as failures in digitiza-

tion processes. These errors can introduce tokens not

covered in the training data (i.e., out-of-vocabulary

tokens) and degrade, for example, the effectiveness

of approaches based on pre-trained models. Note

that the previously mentioned dirty data contains only

the transposition of values between attributes, but not

variations in attribute values. In Figure 1, tuples t1

and t2 in the three data types exemplify the instances

considered by DeepMatcher and Ditto, whereas tuples

t3 illustrate instances with the presence of typos.

This paper presents an evaluation of DeepMatcher

and Ditto on data with character-level textual varia-

tions. To this end, we use the datasets considered in

these previous works, but with the injection of random

textual modiﬁcations in different proportions. The

objective of this evaluation is to answer the follow-

ing questions: 1) how robust are DeepMatcher and

Ditto in data with the previously mentioned varia-

tions?; 2) how do these variations affect the perfor-

mance of these solutions on each data type? and

3) how these variations comparatively affect Deep-

Matcher and Ditto?

The rest of this paper is organized as follows.

Section 2 presents background material. Section 3

presents and analyzes the experimental results. Re-

lated work is discussed in Section 4. Finally, Section

5 presents the conclusions and outlines future work.

2 BACKGROUND

In this section, we ﬁrst present the formal deﬁnition of

the EM problem before covering the details of Deep-

Matcher and Ditto.

2.1 Problem Deﬁnition

We adopt the formalization of the EM problem in

(Mudgal et al., 2018). Let D and D

′

be two

data sources with the same schema with attributes

,...,A

. In both sources, each tuple represents a

real-world entity, which may be a physical, abstract,

or conceptual object. The objective of the EM pro-

cess is to ﬁnd the largest binary relation M ∈ D × D

′

where each pair (e

) ∈ M,e

∈ D,e

∈ D

′

, repre-

sents the same entity; we have D = D

′

, if the goal is to

ﬁnd duplicates in a single data source. Further, we as-

sume the availability of a training dataset T of tuples

{(e

,r)}

|T |

i=1

, where {(e

)}

|T |

i=1

⊆ D × D

′

and r is

a label with values in {”match”, ”no-match”}. Given

T , a DL-based solution aims to build a classiﬁer that

can correctly distinguish pairs of tuples in D × D

′

be-

tween ”match” and ”no-match”.

2.2 DeepMatcher

DeepMatcher is based on the architectural template

illustrated in Figure 2, which enables a rich design

space. The input data consists of pairs of tuples repre-

senting possible duplicates. In the tokenization step,

textual values of each attribute of the two tuples are

segmented into sequences of words (the terms token

and word are used interchangeably in this paper). In

the following steps, DL can be used in various ways

to build different EM solutions.

In the embedding step, sequences of words are

represented as sequences of numerical vectors. Possi-

ble approaches for this step can be deﬁned along two

axes: embedding granularity and training strategy.

The granularity of the embedding can be word-based

or character-based. In the ﬁrst case, a lookup table is

learned mapping each word to a numerical value. In

the second case, a model is trained to produce embed-

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

248

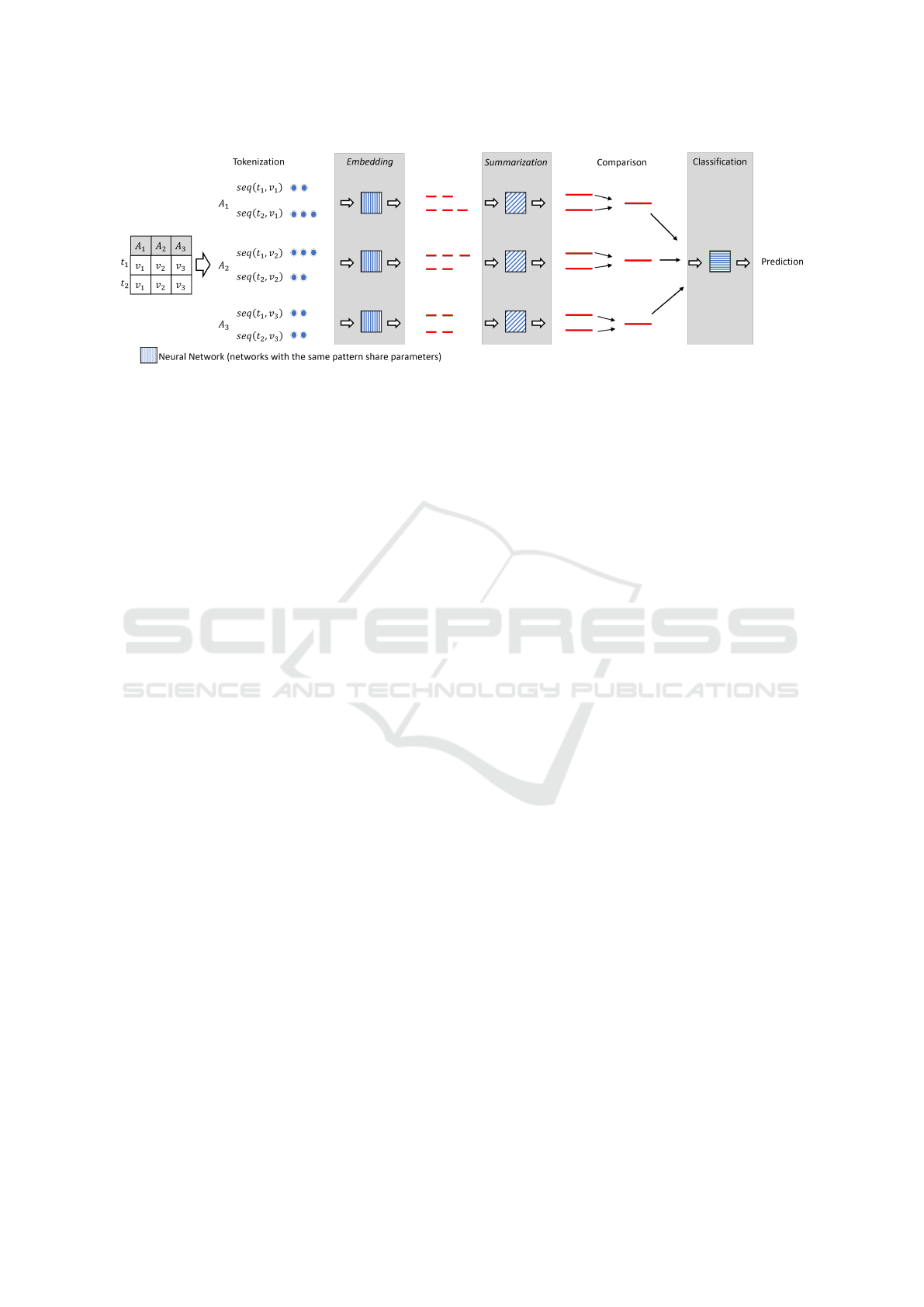

Figure 2: DeepMatcher architectural template.

dings for words that contain characters in its vocab-

ulary. Character-level embeddings are more robust

in dealing with out-of-vocabulary words, which can

be caused by typing errors, as mentioned earlier. Re-

garding the training strategy, one can use pre-trained

embeddings or train them from scratch. The last op-

tion may be preferable in domains that contain tokens

with speciﬁc semantics, such as product codes.

In the summarization step, the sequences of vec-

tors representing the attributes of each tuple are ag-

gregated into a single vector. To this end, RNNss

can be used to capture the order and semantics of to-

ken sequences. This approach has limitations, how-

ever. First, in general, RNNs have difﬁculty learning

meaningful representations of long sequences of to-

kens. Second, the two sequences are not considered

together in the summarization process; as a result, the

underlying similarity between sequences of different

sizes may not be captured. A different approach is to

use an attention mechanism so that the sequence of

vectors from one tuple is used as context in summa-

rizing the sequence of vectors from the other tuple.

However, information about the position of input to-

kens will be lost in the summarization process. This

information may be important in some cases, for ex-

ample, when the most relevant token is the ﬁrst. Fi-

nally, it is possible to adopt a hybrid strategy, com-

bining RNNs and attention mechanisms to obtain the

advantages and avoid the problems of each approach

at the cost of increasing the complexity of the learning

model and, in turn, requiring longer training times.

In the comparison step, the similarity (or distance)

of the summarized vectors is assessed using a met-

ric such as the cosine similarity or the Euclidean dis-

tance. The result of comparing each attribute is a

scalar similarity value; these values will compose the

set of characteristics of the neural network used in the

classiﬁcation step. Another possibility is to use op-

erations such as concatenation and the element-wise

absolute difference between elements as a compari-

son function and relegate the task of learning a simi-

larity function to the classiﬁer. Finally, the classiﬁer’s

output will determine whether the input pair of tuples

represent the same entity.

In the empirical evaluation of (Mudgal et al.,

2018), DeepMatcher obtained results on structured

data similar to simpler learning models, such as ran-

dom forests and logistic regression, which require

much less training time. On the other hand, ex-

pressive gains in accuracy were obtained on textual

and dirty data. In addition, several instances of the

architectural template of Figure 2 were evaluated.

The model that obtained the best results used Fast-

Text (Bojanowski et al., 2017), a character-level pre-

trained embedding model, a hybrid summarization

approach combining bidirectional RNN with atten-

tion mechanism, learnable similarity function, and a

multi-layer perceptron as the classiﬁer. We evaluated

this model in our experiments.

2.3 Ditto

The advent of language models based on the Trans-

former architecture promoted further progress in so-

lutions for EM (Brunner and Stockinger, 2020; Li

et al., 2020). These models are pre-trained on

large text corpora, such as Wikipedia, in an unsu-

pervised manner. The Transformer architecture com-

pletely replaces RNNs with a self-attention mecha-

nism (Vaswani et al., 2017) to generate token em-

beddings considering all the other tokens of the in-

put sequence. Thus, these embeddings capture se-

mantic and contextual information, including intricate

linguistic aspects such as polysemy and synonymy.

BERT (Devlin et al., 2019) is the most popular pre-

trained language model based on Transformers.

Ditto ﬁne-tunes such pre-trained models for the

EM task. To this end, a fully connected layer and

an output layer using the softmax function are added.

The modiﬁed network is initialized with the pre-

Evaluation of Deep Learning Techniques for Entity Matching

249

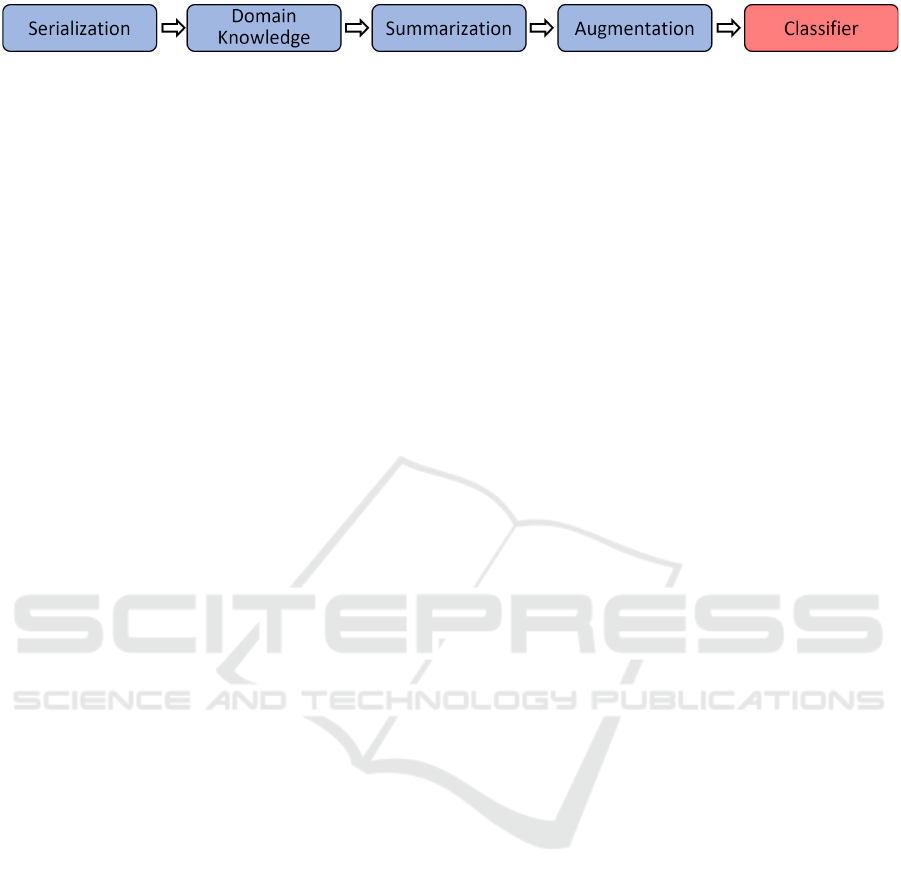

Figure 3: Ditto preprocessing pipeline.

trained model parameters and then trained with the

data in T until it converges. In addition to this ﬁne-

tuning, Ditto uses a method to serialize the input pairs

into a sequence of tokens and performs three opti-

mizations in a preprocessing step: insertion of do-

main knowledge, summarization of long sequences,

and augmentation of training data with difﬁcult ex-

amples. Figure 3 illustrates these preprocessing steps.

Ditto serializes a tuple t as follows:

serialize(t) = [COL]A

[VAL]v

...[COL]A

[VAL]v

where [COL] and [VAL] are special tokens indi-

cating the beginning of attribute names and values,

respectively. For example, the result of serializing

the tuple t

in Figure 1(c) is given by: [COL] Prod-

uct [VAL] Xbox Series X Microsoft [COL] Company

[VAL] NULL [COL] Price [VAL] 663.82.

Pairs of tuples are serialized as follows:

serialize(t

) =

[CLS]serialize(t

)[SEP]serialize(t

)[SEP],

where [SEP] is the special token delimiting the

representations of t

and t

and [CLS] is the token

whose associated embedding will represent the en-

coding of the tuple pair.

Domain knowledge can be inserted into serialized

inputs in two ways: including special tokens identi-

fying snippets with speciﬁc semantics, such as prod-

uct codes and street numbers, and rewriting text spans

that refer to the entity (i.e., synonyms) into a single

string. Summarization reduces long strings in serial-

ized input to the maximum length allowed by BERT,

which is 512 tokens. Training data augmentation is

performed via operators that generate new serialized

input pairs from existing pairs. These operators ap-

ply random modiﬁcations to the original pairs, such

as token deletion and transposition.

In contrast to DeepMatcher, Ditto does not require

the input data to have the same schema. The seri-

alization method even allows applying Ditto to hier-

archical data such as XML and JSON using special

tokens to represent nested attribute-value pairs. An-

other difference with DeepMatcher is that in Ditto

the cross-attention mechanism between the pair of

tuples is not limited to words of the same attribute.

These differences can be mitigated by applying the

serialization method also to DeepMatcher and asso-

ciating the result to a single attribute — the evalu-

ation of this strategy is left for future work. Nev-

ertheless, Ditto still has a simpler architecture than

DeepMatcher, where the components of embedding,

summarization, and comparison (see Figure 2) are re-

placed by a pre-trained language model.

Finally, Ditto has support for language models

other than BERT. The model that showed the best re-

sults was RoBERTa (Liu et al., 2019), a variant of

BERT with a set of improvements and trained on a

larger volume of data. We evaluated the version of

Ditto based on RoBERTa in our experiments.

3 EXPERIMENTS

This section presents the results of our experimen-

tal study, whose objective was to evaluate and com-

pare the performance of DeepMatcher and Ditto on

data with character-level textual variations. We ﬁrst

describe the experimental environment, i.e., datasets,

the conﬁguration of the analyzed techniques, hard-

ware and software conﬁguration, and metrics. Then,

we present and discuss the results.

3.1 Experimental Setup

We experimented with publicly available datasets,

which were also used for evaluating DeepMatcher and

Ditto. The datasets are from a variety of domains

and have different characteristics, ﬁve of which are

structured, one textual, and four dirty; the latter were

generated from structured datasets by transposing val-

ues between attributes, as mentioned in Section 1. In

all datasets, each data item is composed of a pair of

tuples and a label that classiﬁes this pair as ”match”

or ”no-match”. Details about these datasets are pre-

sented in Table 1. The size of datasets, the number

of pairs classiﬁed as duplicates, and the number of at-

tributes are informed in columns 4 to 6, respectively.

For each dataset, we generated eight copies with

different percentages of changed tuple pairs; we call

these copies erroneous datasets. We injected modiﬁ-

cations on each changed pair by applying character-

level transformations, i.e., character insertion, dele-

tion, and substitution. Table 2 describes the erro-

neous datasets. For example, in dataset E1, 10% of

tuple pairs had 1–2 character transformations. Each

modiﬁed pair was randomly selected from the origi-

nal dataset, as well as the character and type of each

modiﬁcation. As such, modiﬁcations can affect both

tuples of each pair or just one of them. For each

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

250

Table 1: Description of the original datasets.

Type Dataset Domain Size # Positives # Attributes

Structured

Amazon-Google softwares 11.460 1.167 3

BeerAdvo-RateBeer drinks 450 68 4

DBLP-ACM citation 12.363 2.220 4

DBLP-Google citations 28.707 5.347 4

Walmart-Amazon electronics 10.242 962 5

Textual Abt-Buy products 9.575 1.028 3

Dirty

DBLP-ACM citations 12.363 2.220 4

DBLP-Google citations 28.707 5.347 4

iTunes-Amazon music 539 132 8

Walmart-Amazon electronics 10.242 962 5

dataset, two attributes with values considered more

informative were chosen to be modiﬁed. For exam-

ple, in DBLP-ACM, the attributes title and author

were modiﬁed. Each modiﬁed pair of tuples replaces

the original pair while maintaining the associated la-

bel. Therefore, the E1-8 erroneous datasets maintain

statistics of the original datasets shown in Table 1. Fi-

nally, we split each dataset into training, validation,

and test sets according to the ratio 3:1:1, the same ra-

tio used in the DeepMatcher and Ditto papers.

As already mentioned, we evaluated the models of

DeepMatcher and Ditto that obtained the best results

in the original papers: for DeepMatcher, we consid-

ered the Hybrid model, which employs the more com-

plex summarization strategy; for Ditto, we considered

the version that employs all the optimizations and the

pre-trained RoBERTa language model. The exper-

iments used implementations of DeepMatcher

and

Ditto

made publicly available by the authors. Deep-

Matcher was implemented using Torch

, a framework

with support for using GPUs to speed up training.

Ditto was implemented using PyTorch

and Hugging

Face Transformers

. Further for Ditto, the maximum

size of the input sequence was ﬁxed at 256, the learn-

ing rate at 3e-5 in a linearly decreasing manner, and

the batch size was set to 32. All experiments were per-

formed through Google Collaboratory

, which allows

the user to run Python through the browser and use

GPUs for free. Due to the limited computational re-

sources, training was carried out in 15 epochs. Other

parameters were deﬁned according to the settings de-

scribed in the respective paper.

Accuracy results are reported by the F1 metric,

which is the harmonic mean between precision and

recall. Given the result of testing a model, let V P be

the number of pairs correctly classiﬁed as a match, FP

https://github.com/anhaidgroup/deepmatcher.

https://github.com/megagonlabs/ditto.

http://torch.ch/.

https://pytorch.org.

https://huggingface.co.

https://colab.research.google.com.

the number of pairs incorrectly classiﬁed as a match,

and FN the number of pairs incorrectly classiﬁed as a

no-match. Precision P is given by P = T P/(T P+FP)

and recall R is given by R = T P/(T P + FN). There-

fore, F1 is given by 2 × ((P ×R)/(P + R)).

3.2 Results and Discussion

Accuracy results of DeepMatcher and Ditto on struc-

tured, textual, and dirty data are shown in Tables 3,

4, and 5, respectively. For each dataset, we report

results obtained in its original version, without mod-

iﬁcations, and in its erroneous versions, E1–8, with

character-level textual variations. Note that we ran ex-

periments on the original version of the datasets from

scratch instead of simply reproducing the numbers in

the papers of DeepMatcher and Ditto. The results of

each erroneous version are accompanied by their dif-

ference from the result obtained in the original ver-

sion. The best result obtained in each dataset is high-

lighted in red.

We ﬁrst discuss the results obtained in the original

datasets. They followed the same trends observed in

(Li et al., 2020), with Ditto showing a clear advan-

tage over DeepMatcher owing to its language under-

standing capability. In structured data, Ditto is supe-

rior in 4 out of 5 datasets; the largest accuracy advan-

tage is 22.27% on the Walmart-Amazon dataset. Ditto

also outperforms DeepMatcher on the textual dataset

by 19.12%. On the dirty datasets, Ditto’s results are

close to those of DeepMatcher on the DBLP-ACM

and DBLP-Google datasets but still better, while on

the iTunes-Amazon dataset, there is an advantage of

25.38%. DeepMatcher and Ditto both perform poorly

on the Walmart-Amazon dataset. In particular, we

consider F1 score of Ditto for this dataset an outlier

because it excessively deviated from the number re-

ported in (Li et al., 2020): 17.21% and 85.69%, re-

spectively. This was the only case we observed such

a great divergence between our results and those in

the original papers. After rerunning the tests for this

dataset with 40 epochs, we obtained a much better

Evaluation of Deep Learning Techniques for Entity Matching

251

Table 2: Description of the erroneous datasets.

erroneous datasets E1 E2 E3 E4 E5 E6 E7 E8

% changed pairs 10% 30% 10% 30% 50% 90% 50% 90%

# transformations 1-2 1-2 3-5 3-5 1-2 1-2 3-5 3-5

Table 3: F1 scores on structured datasets.

dataset/technique Original E1 E2 E3 E4 E5 E6 E7 E8

Amazon-Google

DeepMatcher

∆F

68.94

62.78

-6.16

53.50

-15.44

54.74

-14.20

47.20

-21.74

56.07

-12.87

40.60

-28.34

48.16

-20.78

42.83

-26.11

Ditto

∆F

71.58

74.10

2.52

68.80

-2.78

18.51

-53.07

63.72

-7.86

68.79

-2.79

57.14

-14.44

56.01

-15.57

50.39

-21.19

Beer

DeepMatcher

∆F

70.97

72.22

1.25

66.67

-4.30

68.75

-2.22

62.86

-8.11

70.97

0.00

64.52

-6.45

64.52

-6.45

45.71

-25.26

Ditto

∆F

85.71

90.32

4.61

73.33

-12.38

66.66

-19.05

68.96

-16.75

66.66

-19.05

55.17

-30.54

28.57

-57.14

51.61

-34.10

DBLP-ACM

DeepMatcher

∆F

98.76

98.65

-0.11

98.33

-0.43

98.77

0.01

98.00

-0.76

98.31

-0.45

98.43

-0.33

97.99

-0.77

97.33

-1.43

Ditto

∆F

98.00

98.75

0.75

98.10

0.10

98.52

0.52

97.83

-0.17

98.53

0.53

98.42

0.42

98.29

0.29

98.29

0.29

DBLP-Google

DeepMatcher

∆F

94.90

94.85

-0.05

94.05

-0.85

93.29

-1.61

92.56

-2.34

93.51

-1.39

91.80

-3.10

91.28

-3.62

89.88

-5.02

Ditto

∆F

95.05

95.14

0.09

94.89

-0.16

94.17

-0.88

94.38

-0.67

94.56

-0.49

94.00

-1.05

94.37

-0.68

92.25

-2.80

Walmart-Amazon

DeepMatcher

∆F

63.66

62.18

-1.48

64.15

0.49

62.05

-1.61

61.28

-2.38

62.32

-1.34

60.57

-3.09

59.57

-4.09

63.16

-0.50

Ditto

∆F

85.93

85.05

-0.88

17.09

-68.84

84.55

-1.38

29.08

-56.85

80.40

-5.53

81.52

-4.41

17.21

-68.72

21.23

-64.70

Table 4: F1 scores on textual datasets.

dataset/technique Original E1 E2 E3 E4 E5 E6 E7 E8

Abt-Buy

DeepMatcher

∆F

70.03

71.26

1.23

65.99

-4.04

65.96

-4.07

64.66

-5.37

61.63

-8.40

56.31

-13.72

53.20

-16.83

51.19

-18.84

Ditto

∆F

89.15

90.51

1.36

82.72

-6.43

84.93

-4.22

78.46

-10.69

88.05

-1.10

24.74

-64.41

86.93

-2.22

74.87

-14.28

Table 5: F1 scores on dirty datasets.

dataset/technique Original E1 E2 E3 E4 E5 E6 E7 E8

DBLP-ACM

DeepMatcher

∆F

97.20

95.26

-1.94

95.53

-1.67

92.63

-4.57

94.53

-2.67

95.51

-1.69

93.41

-3.79

89.29

-7.91

86.57

-10.63

Ditto

∆F

97.62

97.63

0.01

97.29

-0.33

98.30

0.68

97.96

0.34

97.87

0.25

98.08

0.46

97.62

0.00

96.37

-1.25

DBLP-Google

DeepMatcher

∆F

92.22

91.89

-0.33

91.56

-0.66

91.49

-0.73

90.39

-1.83

91.26

-0.96

90.32

-1.90

90.38

-1.84

86.63

-5.59

Ditto

∆F

95.07

94.69

-0.38

94.66

-0.41

95.04

-0.03

94.44

-0.63

94.69

-0.38

94.06

-1.01

93.25

-1.82

93.22

-1.85

iTunes-Amazon

DeepMatcher

∆F

70.77

64.52

-6.25

69.84

-0.93

63.49

-7.28

67.74

-3.03

66.67

-4.1

67.80

-2.97

67.65

-3.12

70.97

0.2

Ditto

∆F

96.15

94.11

-2.04

83.87

-12.28

88.13

-8.02

72.22

-23.93

86.20

-9.95

90.56

-5.59

81.35

-14.8

90.90

-5.25

Walmart-Amazon

DeepMatcher

∆F

38.73

53.23

14.5

41.29

2.56

47.77

9.04

33.49

-5.24

42.39

3.66

42.61

3.88

33.43

-5.3

36.16

-2.57

Ditto

∆F

17.21

82.63

65.42

83.33

66.12

81.86

64.65

78.19

60.98

81.01

63.8

82.19

64.98

40.16

22.95

85.26

11.95

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

252

convergence, and the F1 score increased to 84.53%.

We now discuss the results obtained on the er-

roneous datasets. On the structured datasets, Ditto

outperforms DeepMatcher on Amazon-Google and

DBLP-Google; results are similar on the other three

datasets. On the textual dataset, Ditto outperforms

DeepMatcher by a signiﬁcant margin, except for the

outlier result on E6. On the dirty datasets, Ditto is

superior to DeepMatcher on all erroneous datasets.

In general, both solutions experienced a decrease

in accuracy in almost all cases. The largest drop in F1

scores occurred on Amazon-Google. This dataset is

more challenging for the EM task because the distinc-

tion between matches and no-matches is more subtle;

note that the two solutions also achieved their worst

results on the original version of this dataset. On

the other hand, the few cases in which accuracy in-

creased or only slightly decreased occurred on DBLP-

ACM and DBLP-Google. These datasets can be con-

sidered easier for EM because they exhibit a better

separation between matches and no-matches. More-

over, DBLP-ACM and DBLP-Google are the largest

datasets, thereby providing more training data; note

that DeepMatcher and Ditto also obtained their best

results on the original version of these datasets. Such

results indicate that the effect of the textual modiﬁca-

tions at the character level follows the characteristics

of the original datasets in terms of the separation be-

tween matches and no matches: the impact of these

modiﬁcations is negligible on easy datasets and sig-

niﬁcant on difﬁcult ones.

Table 6 shows the training time of each model

in the original datasets —note the hh:mm:ss format.

DeepMatcher required a shorter training time on

the three datasets types: the total training time of

DeepMatcher corresponds to 36.69% of Ditto on the

structured datasets (Table 6(a)), 24.09% on the tex-

tual datasets (Table 6(b)), and 41.57% on the dirty

datasets. Note that these values only indicate the

training time needed in a shared processing environ-

ment such as Google Colab. Of course, an accurate

comparison would require dedicated hardware.

4 RELATED WORK

The EM problem has been studied since the late

1950s, starting with the pioneering work in (New-

combe et al., 1959). Since then, various scientiﬁc

communities, including Databases, Information Re-

trieval, Natural Language Processing (NLP), Machine

Learning, Semantic Web, and Statistics, have ad-

dressed many aspects of the problem. EM is often

referenced in these communities by a variety of differ-

ent terms, such as entity resolution, record matching,

deduplication, and reference reconciliation, among

others. A review of the literature prior to the emer-

gence of DL is presented in (Elmagarmid et al., 2007).

Another review, more recent and focusing on DL-

based techniques, is presented in (Barlaug and Gulla,

2021). DeepMatcher and Ditto are representative ex-

amples among the current set of DL-based solutions.

For example, DeepER (Ebraheem et al., 2018) corre-

sponds to a simpler instance of the architectural tem-

plate of DeepMatcher, whereas the solution in (Brun-

ner and Stockinger, 2020) corresponds to the basic

version of Ditto without optimizations.

EM is closely related to other problems in NLP

and data integration, often with interchangeable so-

lutions. Some examples include entity linking (Shen

et al., 2015), which aims to link mentions of entities

in a document to an entity represented in a knowledge

base. Entity alignment (Leone et al., 2022) refers to

the problem of ﬁnding equivalences between entities

from two different knowledge bases. Coreference res-

olution (Clark and Manning, 2016) identiﬁes text seg-

ments in documents that refer to the same entity.

EM has an intrinsic quadratic complexity as it re-

quires comparing each entity representation with one

another. For this reason, EM is typically preceded

by a blocking step, which divides the input data into

(possibly overlapping) blocks and considers only en-

tities within the same block for matching. In an ap-

proach similar to (Mudgal et al., 2018), the work in

(Thirumuruganathan et al., 2021) deﬁnes a space of

DL solutions for blocking from which a representa-

tive set was evaluated.

5 CONCLUSION

This paper presented a comparative evaluation of

DeepMatcher and Ditto on data with textual patterns

not considered in previous experiments. The results

showed that the two solutions experienced a drop

in accuracy in most of the analyzed scenarios, and

Ditto presented, in general, greater effectiveness and

robustness compared to DeepMatcher at the cost of

requiring more training time. Furthermore, we ob-

served that the effect of textual modiﬁcations on the

classiﬁcation accuracy is dictated by the characteris-

tics of the original datasets in terms of the separation

between matches and no-matches: the impact of these

modiﬁcations is negligible on easy datasets and sig-

niﬁcant on difﬁcult ones. Future works include study-

ing improvements in the training process to capture

the textual modiﬁcations considered in this paper and

experiments with different data representations.

Evaluation of Deep Learning Techniques for Entity Matching

253

Table 6: Training time comparison between DeepMatcher and Ditto (hh:mm:ss format).

technique/dataset Amazon-Google Beer DBLP-ACM DBLP-Google Walmart-Amazon Total

DeepMatcher 0:07:08 00:00:28 00:12:12 00:27:08 00:10:30 0:57:26

Ditto 0:19:17 0:02:14 0:41:02 1:08:02 0:25:57 2:36:32

(a) Structured data.

technique/dataset Abt-Buy

DeepMatcher 00:09:11

Ditto 00:38:07

(b) Textual data.

DBLP-ACM DBLP-Google iTunes-Amazon Walmart-Amazon Total

0:14:28 0:30:41 0:01:22 0:11:04 0:57:35

0:41:36 1:08:34 0:03:53 0:24:29 2:18:32

ACKNOWLEDGEMENTS

This work was partially supported by CNPq/Brazil.

REFERENCES

Abedjan, Z., Chu, X., Deng, D., Fernandez, R. C., Ilyas,

I. F., Ouzzani, M., Papotti, P., Stonebraker, M., and

Tang, N. (2016). Detecting Data Errors: Where Are

We and What Needs to Be Done? Proceedings of the

VLDB Endowment, 9(12):993–1004.

Barlaug, N. and Gulla, J. A. (2021). Neural Networks for

Entity Matching: A Survey. ACM Transactions on

Knowledge Discovery from Data, 15(3):52:1–52:37.

Bojanowski, P., Grave, E., Joulin, A., and Mikolov, T.

(2017). Enriching Word Vectors with Subword Infor-

mation. Transactions of the Association for Computa-

tional Linguistics, 5:135–146.

Brunner, U. and Stockinger, K. (2020). Entity Match-

ing with Transformer Architectures – A Step Forward

in Data Integration. In Proceedings of the Interna-

tional Conference on Extending Database Technol-

ogy, pages 463–473.

Clark, K. and Manning, C. D. (2016). Improving Corefer-

ence Resolution by Learning Entity-Level Distributed

Representations. In Proceedings of the Annual Meet-

ing of the Association for Computational Linguistics,

pages 643–653.

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2019).

BERT: Pre-training of Deep Bidirectional Transform-

ers for Language Understanding. In Proceedings of

the Conference of the North American Chapter of the

Association for Computational Linguistics: Human

Language Technologies, pages 4171–4186.

Ebraheem, M., Thirumuruganathan, S., Joty, S. R., Ouz-

zani, M., and Tang, N. (2018). Distributed Represen-

tations of Tuples for Entity Resolution. Proceedings

of the VLDB Endowment, 11(11):1454–1467.

Elmagarmid, A. K., Ipeirotis, P. G., and Verykios, V. S.

(2007). Duplicate Record Detection: A Survey. IEEE

Transactions on Knowledge and Data Engineering,

19(1):1–16.

Hern

andez, M. A. and Stolfo, S. J. (1998). Real-world Data

is Dirty: Data Cleansing and The Merge/Purge Prob-

lem. Data Mining and Knowledge Discovery, 2(1):9–

37.

Konda, P., Das, S., C., P. S. G., Doan, A., Ardalan,

A., Ballard, J. R., Li, H., Panahi, F., Zhang, H.,

Naughton, J. F., Prasad, S., Krishnan, G., Deep, R.,

and Raghavendra, V. (2016). Magellan: Toward

Building Entity Matching Management Systems. Pro-

ceedings of the VLDB Endowment, 9(12):1197–1208.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

ageNet Classiﬁcation with Deep Convolutional Neu-

ral Networks. In Proceedings of the Conference on

Neural Information Processing Systems, pages 1106–

1114.

Leone, M., Huber, S., Arora, A., Garc

ıa-Dur

an, A., and

West, R. (2022). A Critical Re-evaluation of Neural

Methods for Entity Alignment. Proceedings of the

VLDB Endowment, 15(8):1712–1725.

Li, Y., Li, J., Suhara, Y., Doan, A., and Tan, W. (2020).

Deep Entity Matching with Pre-Trained Language

Models. Proceedings of the VLDB Endowment,

14(1):50–60.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen, D.,

Levy, O., Lewis, M., Zettlemoyer, L., and Stoyanov,

V. (2019). RoBERTa: A Robustly Optimized BERT

Pretraining Approach. CoRR, abs/1907.11692.

Mudgal, S., Li, H., Rekatsinas, T., Doan, A., Park, Y., Kr-

ishnan, G., Deep, R., Arcaute, E., and Raghavendra,

V. (2018). Deep Learning for Entity Matching: A De-

sign Space Exploration. In Proceedings of the SIG-

MOD Conference, pages 19–34. ACM.

Newcombe, H., Kennedy, J., Axford, S., and James, A.

(1959). Automatic Linkage of Vital Records. Science,

130(3381):954–959.

Shen, W., Wang, J., and Han, J. (2015). Entity Linking

with a Knowledge Base: Issues, Techniques, and So-

lutions. IEEE Transactions on Knowledge and Data

Engineering, 27(2):443–460.

Thirumuruganathan, S., Li, H., Tang, N., Ouzzani, M.,

Govind, Y., Paulsen, D., Fung, G., and Doan, A.

(2021). Deep Learning for Blocking in Entity Match-

ing: A Design Space Exploration. Proceedings of the

VLDB Endowment, 14(11):2459–2472.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is All you Need. In Proceedings

of the Conference on Neural Information Processing

Systems, pages 5998–6008.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

254
