Towards an Ontology to Enforce Enterprise Architecture Mining

Carlos Roberto Pinheiro

1,3 a

, Sérgio Guerreiro

2,3 b

and Henrique São Mamede

3,4 c

Universidade de Trás-os-Montes e Alto Douro, Vila Real, Portugal

Instituto Superior Técnico, University of Lisbon, Lisbon, Portugal

INESC-ID, Rua Alves Redol 9, 1000-029 Lisbon, Portugal

INESC TEC, Department of Science and Technology, Universidade Aberta, Lisbon, Portugal

Keywords: Enterprise Architecture Management, Enterprise Architecture Mining, Automatic Architecture Modelling,

Ontology, API.

Abstract: Enterprise Architecture (EA) is a coherent set of principles, methods, and models that express the structure of

an enterprise and its IT landscape. EA mining uses data mining techniques to automate EA modelling tasks.

Ontologies help to define concepts and the relationships among these concepts to describe a domain of interest.

This work presents an extensible ontology for EA mining focused on extracting architectural models that use

logs from an API gateway as the data source. The proposed ontology was developed using the OntoUML

language to ensure its quality and avoid anti-patterns through ontology rule checks. Then, a hypothesized

scenario using data structures close to the real is used to simulate the ontology application and validate its

theoretical feasibility as well as its contribution to the Enterprise Architecture Management field.

1 INTRODUCTION

Enterprise Architecture (EA) models represent

viewpoints of different concerns of the company and

its IT landscape, such as processes, services, and

information systems (The Open Group, 2018). It is

essential to automate the EA modelling due to the

harmful effects on organizations of decision-making

based on outdated architecture models, as manual

modelling is prone to errors and misunderstanding,

besides being time-consuming (Pérez‐Castillo et al.,

2021). Nevertheless, the literature indicates low

automation of EA model creation and maintenance, it

is one of the most critical challenges for EA

management (Perez-Castillo et al., 2019).

An API Gateway is an architectural component

that works as a proxy, mediating calls between API

and services. It allows the collaboration of different

organizational actors across industrial boundaries

(Bonina et al., 2021; Herterich et al., 2022). As it

monitors the traffic on the company's boundary and

its information systems, it is an essential data source

for mining cross-organizational interactions.

https://orcid.org/0000-0002-8687-7027

https://orcid.org/0000-0002-8627-3338

https://orcid.org/0000-0002-5383-9884

An ontology typically describes concepts,

relationships between these concepts, and constraints

that indicate how to interpret these relationships.

Thus, it provides a taxonomy that describes a domain

of interest and specifies the meaning of terms

(Shvaiko & Euzenat, 2008; Trojahn et al., 2022).

Ontologies are used in complex problems to separate

essentials from implementation details.

This work is part of ongoing research to

automatically apply Data Mining (DM) techniques to

obtain EA view models. Specifically, this paper

presents an ontology to support the EA mining from

an API Gateways log.

In the sequence, section 2 describes the problem,

section 3 presents the related works, section 4

describes the methodology, section 5 presents the

proposed ontology, section 6 demonstrates its

application, section 7 discusses the results, and

section 8 presents a conclusion and future works.

660

Pinheiro, C., Guerreiro, S. and Mamede, H.

Towards an Ontology to Enforce Enterprise Architecture Mining.

DOI: 10.5220/0012032300003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 2, pages 660-668

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2 THE PROBLEM

The API Management tool's usage as a data source for

EA Mining has yet to be found in the literature. Even

for other data mining uses, correlating different API

calls is a significant challenge because each call is

entirely different from the others and may lack a

direct correlation. To ensure the feasibility of the

research, clarify its scope and objectives, and explain

how to build the solution, its conceptualization is

necessary. Therefore, the specific problem intended

to investigate in this work is conceptualizing a

consistent and extendable process for EA mining,

considering using data from an API Log. This

conceptualization requires an ontology to drive a

straightforward solution design.

3 RELATED WORKS

As Enterprise Architecture models expand, it

becomes harder to keep them up-to-date. As

companies continuously redefine their business goals,

it requires a continuous process of reviewing and

adapting their architecture (Farwick et al., 2016).

EA Mining is the usage of Data Mining

techniques to get updated views of EA models (Perez-

Castillo et al., 2019). Pérez‐Castillo et al. (2021)

developed a reverse engineering approach for

AchiMate model generation based on static source

code analysis, database schema and textual analysis.

Simović et al. (2018) presented an approach to extract

business information from enterprise application logs

based on a domain-specific language definition.

Antonello et al. (2021) prosed a data-driven method

for identifying functional dependencies in Complex

Technical Infrastructures (CTI) based on Association

Rule Mining (ARM) to identify component

dependencies using alarm messages collected

through sensors and monitoring technologies, which

allows detecting a local malfunction propagating

through groups of dependent components. Alfonso-

Robaina et al. (2020) analyzed the main variables in

terms of causes and effects to assess the impact of

multifactorial elements impregnated with uncertainty

that affects the EA using fuzzy relation logic.

However, their method is based on knowledge

obtained by grouping and translating information

given by experts into dependence rules.

Ontologies typically describe concepts and the

relationships among them, providing constraints on

how to interpret them (Shvaiko & Euzenat, 2008).

One of the main advantages of using ontologies is

excluding irrelevant information from the beginning

of the analysis (Branquinho et al., 2015). OntoUML

is a well-founded ontology language based on UML

class diagram fragment that provides an ontology-

driven conceptual modelling language for complex

domains whose stereotypes reflect the top ontology

UFO (Guizzardi et al., 2015, 2022). In their study on

using ontological-based representations of enterprise

models, Sunkle et al. (2013) suggest ontology

representation facilitates EA analysis mixing

representation and inference functionalities that are

also extensible for more detailed EA analyses.

Some studies focus on representing reference

models for EA through semantic web technologies

such as RDF and OWL. Jabloun et al. (2013)

developed an ontology for change management in

enterprise information systems that helps identify

system components and their relationships by

reducing semantic mismatch among them. Allemang

et al. (2005) proposed using RDF and OWL to

distribute structured information to allow the

reference model to be extended while keeping the

consistency of those extensions. They implemented a

web-based system for managing EA Reference

Models based on ontology and their reference model.

Some other studies focused on using ontology for

a more high-level conceptualization of EA. Based on

ArchiMate (The Open Group, 2019) which is a well-

known language for EA modelling, Guédria et al.

(2013) proposed a set of concepts to identify critical

aspects of interoperability and EA and their

associations, which results in a conceptual reference

model for integrated enterprise architecture

interoperability.

Kang et al. (2010) built a model to ontologically

define business terms based on WordNet, an ontology

database to define terms in English. Hinkelmann et al.

(2010) developed an approach to operationalize the

dependencies identification among architectural

models integrated through information from different

sources, such as enterprise resource planning (ERP),

customer relationship management (CRM),

document management system (DMS), and content

management systems (CMS). Hinkelmann et al.

(2013) used ArchiMEO, an ontology representation

of EA in ArchiMate, to link an enterprise ontology

with operational databases distributed over several

information systems that ensure continuous

alignment of the information architecture to the

business requirements. Silva et al. (2017) proposed

using ontology and computational inferences features

of ontologies to analyze the EA model evolution

specified in OWL-DL. The ontology reasoners are

used for relation checking, consistency checking,

Towards an Ontology to Enforce Enterprise Architecture Mining

661

dependency inferring, and completeness checking,

which helps to analyze EA model changes under a

specific IT project and its impact on enterprise

transformation.

In this section, we presented works that support

the conceptual ontology to mining data from API

gateway logs, such as UFO and OntoUML. Other

works demonstrate the applications of ontology to

solve different aspects of Enterprise Architecture

modelling. Despite some promising approaches, none

of these works provided a specific and extendable

ontology for extracting enterprise architecture models

directly from information systems logs.

4 METHODOLOGY

The ontology's construction followed a simplified

systematic Approach to Building Ontologies

(SABiO) (Falbo, 2014). It prescribes seven steps to

build a fully operational web ontology. However,

some steps and roles were not applied due to the

objective of developing a reference ontology on a

more conceptual level.

OntoUML provided the ontology modelling

language and OLED (OntoUML Lightweight Editor)

the modelling tool. It supports the theoretical

reference for the Unified Foundational Ontology

(UFO), the foundation ontology for OntoUML. It

provides a wide variety of validators to ensure the

ontology rules and helps to detect pitfalls and some

frequent ontology anti-patterns (Guerson et al., 2015).

Furthermore, as the proposed ontology targets

building EA view models, the concepts are mapped to

ArchiMate.

5 THE ONTOLOGY FOR EA

MINING

The Application Usage viewpoint aims to describe

the usage of the application by business processes and

other applications (The Open Group, 2019). Figure 1

presents the proposed ontology.

The ontology is composed of four parts. The first

one is related to the core concepts of ontology, which

Figure 1 highlight in green. It comprises concepts that

should

be extracted directly from the API

Gateway

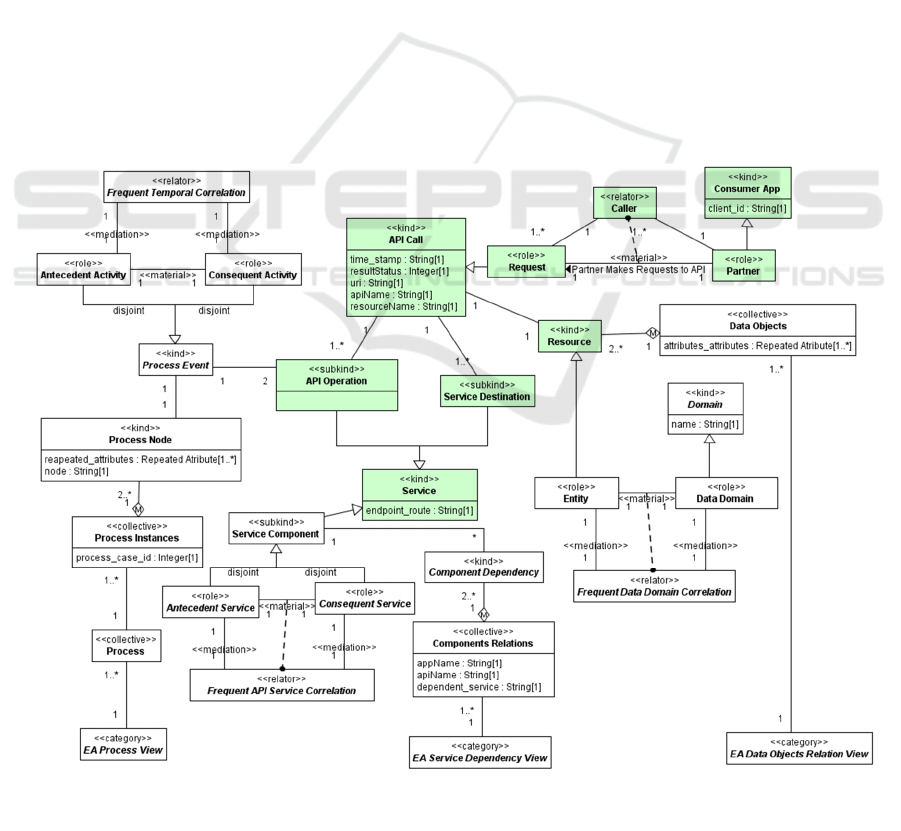

Figure 1: Ontology for EA Mining.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

662

Log and provide data that supports the rest of the

ontology. The other three parts are extensions that

allow modelling a specific data mining process from

the core concepts to build a specific architecture view :

(i) the EA Process view, (ii) the EA service

Dependency View, and (iii) the EA Data Object

Relation View.

The relator Frequent Temporal Correlation targets

to build the EA Process View. To do that, it associates

the Process Events and classifies each Process Event

as an Antecedent Activity or Consequent Activity.

Thus, creating a chain of activities by applying

temporal data mining techniques to extract activity

correlations from API Calls as a sequence of process

events and then identifying processes and grouping

them in the collective Process, from where the EA

Process View is then constructed. The dependency

between two Service Components is associated with

Component Dependency. Then the set of this

dependency is mapped in the collective Component

Relations that provide de data to build the view.

Similarly, to build the EA Service Dependency View,

the Frequent API Service Correlation targets to

identify each Services Dependency. Finally, the

relator Frequent Data Domain Correlation is used to

build the EA Data Objects Relation View by applying

ARM techniques to discover frequent relations on the

API data payloads. These data payloads are related to

the API Resources and the names and values of their

attributes whenever they carry on an entity data

structure. These entities are grouped in the collective

Data Objects that provide the data to build the EA

Data Objects Relation View.

The kind API Call, on ontology core, characterizes

each API call as its objects. The APIs are called by an

authorized Consumer APP representing a Partner

identified through the attribute client_id. The relator

Caller represents Partners that make HTTP requests

(role Request) to APIs.

An API Call has one or more API Operations,

characterized by the method (GET, POST, PUT,

DELETE) and the endpoint_route. It also has one or

more Service Destination, the service called in the

backend or other external or internal service provider,

usually through REST APIs or SOAP Webservices.

API Operation and Service Destination also extend the

kind of Service identified by its endpoint_route. Thus,

a Service should be an API Operation which is the API

Calls from the Caller, or an API Service Destination,

which are the backend services called by one API

Operation on the API Gateway.

The kind Resource represents the class of objects

handled through the API. It can be seen as entity data

structures within the API domain. For instance, an API

Call may request the creation of an object of the class

client.

To build the EA Process View, the relator

Frequent Temporal Correlation represents the data

mining process that correlates Process Events in a

temporal sequence considering each API request as

an atomic event and identifying in the sequence what

event represents the Antecedent Activity and what is

the Consequent Activity. The candidate activities are

identified and grouped considering the same

Consumer App, the resource id present in URI, and

other shared and repeated attributes values in the API

Calls payload. This lasts a collection of attributes

represented by the collective Activities Attributes.

Thus, through temporal ARM, it is possible to

identify the sequence candidate and assign to each

sequence a case id, identifying and building

individual instances for each Process, which is

composed of an activities chain with antecedents and

consequents under the same case_id. The Process

Instances may be grouped based on the first and last

activities. Thus, the inner different path sequences

may be seen as variations of the same process group

in the collective Process. Each Process may be

categorized as a component in an EA Process View.

The Frequent Temporal Correlation associates a

sequence of process events that are API Operations in

the core of the ontology. These correlations are

mapped as process nodes that persist the link from

Antecedent Activity to Consequent Activity. Based

on these Process's Nodes is built a graph of relations

mapping their data values similarities and grouping in

process instances. It is given a process_case_id for

each process instance. The process instances with the

same starting and ending events are grouped in the

collective Process. Then, a view based on the

Application Usage viewpoint is created in an

ArchiMate with the processes mapped to Business

Process into this view. It identifies the most frequent

chain of events. It maps the events in this path to

Business Event elements, which are linked by

creating an ArchiMate Assignment Relationship

between the Process and the Events.

The EA Service Dependency View maps the

relations among API Services exposed in an API

Gateway and the services called by these APIs, which

may be a REST API, a SOAP web service, etc. To

build this map, the "Frequent API Service

Correlation" identify dependencies between Services.

A Service may be an API Operation that represents

the route that allows calling an API or a Service

Destination, which is the route to a Service. These

Services may also make requests to an API exposed

on API Gateway. Thus, this service is called a Service

Component acting as Antecedent Service and

Towards an Ontology to Enforce Enterprise Architecture Mining

663

Consequent Service that allows identifying the

Service that makes calls and the Service called.

The Frequent API Service Correlation represents

the ARM technique applied to identify frequent

associations between APIs exposed in the API

Gateway and Services API exposed by applications,

which are backend services called by APIs. It

correlates two Service Component identifying the

Antecedent Service that frequently calls a

Consequent Service. Thus, the relations between

these services are individuals of the Kind Component

Dependency. The collective Component Relations

represent the collection that groups these

dependencies in a context based on the appName and

apiName, which identify the Caller and the API.

Thus, an EA Service Dependency View is created for

this context as an ArchiMate Application Usage

viewpoint. From the attribute dependent_service in

Components Relations is extracted an ArchiMate

element Application Service that is grouped into the

Backend Service Layer. The APIs linked to these

backend services are mapped to Application

Interfaces grouped into API Layer. The relation

between the Application Services and Application

Interfaces creates an assignment relation in the

ArchiMate model. Then the same logic is applied to

the attribute appName mapped to a Business Actor.

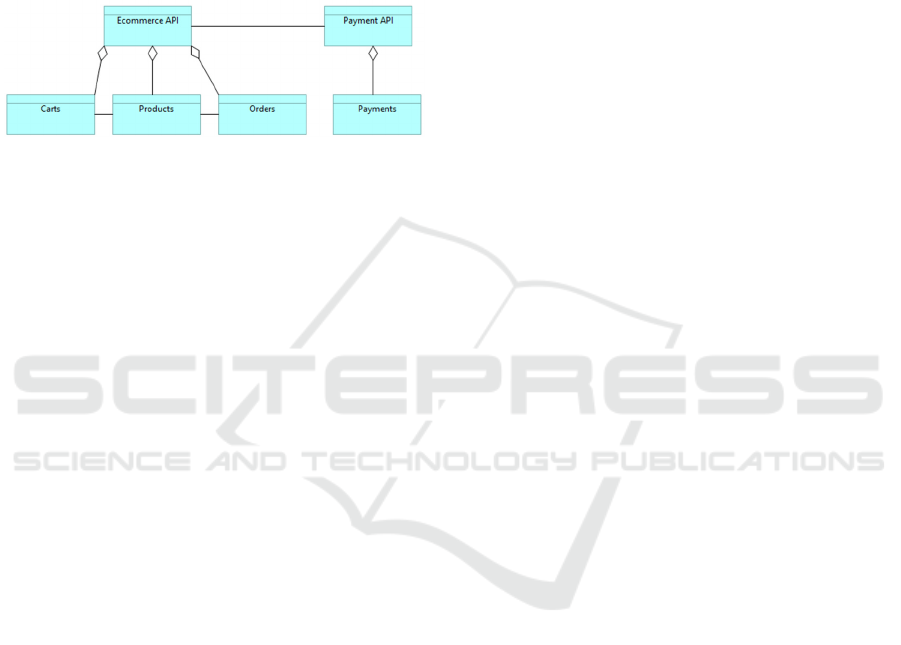

The EA Data Object Relation View aims to show

a map of data object relations grouped by Domains.

To identify these relations, the Frequent Data

Correlation applies data mining techniques to identify

Data Elements within the data structures of API

payloads. The Data Element may play two roles,

Entity that is identified by the API REST resource, or

Data Domain that represents a logic group identified

through the base path name of the API present in its

route as well as in its URI. In this case, it may be

essential to clarify the concept of Data Domain used

in this ontology and differentiate it from the Web

Domain, which is also part of the URI of API and

Service routes. The last one is the web domain that

allows a web resource to be recognized and reached

from any computer on the Internet. The concept for

this ontology is a logic groping that creates a context

of data usage. Thus, this context encompasses

different entities based on the API route and its linked

documentation, excluding the web domain until the

part of URI that identifies the different resources that

an operation over API creates, modifies, deletes, and

so on. Once identified the entities and groped to a

context (Domain), the data object is correlated based

on their dependency based on the frequency of its

repeated values in its attributes.

In this part of the ontology, the Frequent Data

Domain Correlation represents the ARM technique

that extracts frequent data correlations based on the

repeated value of its attributes. The Data Objects are

directly related to the data structures of the API calls

identified by the kind Resource. Thus, the Frequent

Data Domain Correlation identifies the peace of data

that plays the role of Entity and the peace that

identifies the Data Domain. The repeated_attributes

of Data Objects are used to identify the strength of the

relation. Then, the Data Object classified as Entities

are mapped to an application Data Object in

ArchiMate. The related Domain is mapped to another

ArchiMate Data Object, but this one aggregates the

other one.

6 EXAMPLE OF APPLICATION

This section exemplifies the applicability of the

ontology proposed in this work to prove its logical

feasibility and better understand how it will support

the architecture view building covering the whole

Process.

The example considers a simplified and

hypothetical user-buying journey on an e-commerce

site. Firstly, users search for products. Once they

identify the product, they put it in a shopping cart

created when the first product is added. Then, users

add and remove products from the cart. Once

satisfied, users check out the cart when they are asked

to create an account or log in. Once logged, they pay,

and after the payment is approved, the e-commerce

system creates an order that is sent to the logistics

sector for delivery. In the end, the logistics and the

user confirm the product delivery and its reception by

the user.

The first API call occurs when the user adds the

first product to the cart, creating the shopping cart.

The key attributes this API call based on Sensedia

API Gateway, which is used for through this example:

• clientId: identifies the Consumer App

individuals.

• apiName: friendly name description of API

• receivedOnDate: time that the call hits the API

Gateway.

• resultStatus: the HTTP result of API

processing with success or error.

• uri: the internet address of the API.

• trace: a string with the record of some aspects

of the API call. It carries its header and body

payload.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

664

An API Call should be one kind of Service that is

identified by its URL route: an API Operation, which

is the API Calls from the Caller, or an API Service

Destination which are the backend services called by

one API Operation on the API Gateway.

From “trace” string, it is possible to extract the

API Operation Route and the Service Destination

Route.

The operation name in API Operation identifies

the operation over an API to create or change a

resource. It results from string concatenation of the

value of method, apiName and Resource.

Because the called URLs carry the concrete

identifiers of resource instances, it was necessary to

check the description of the routes in the swagger.

The swagger describes some relevant attributes of the

API. In the case of Sensedia’s API Platform, its

documentation is linked to the API Gateway.

6.1 Frequent Temporal Correlation

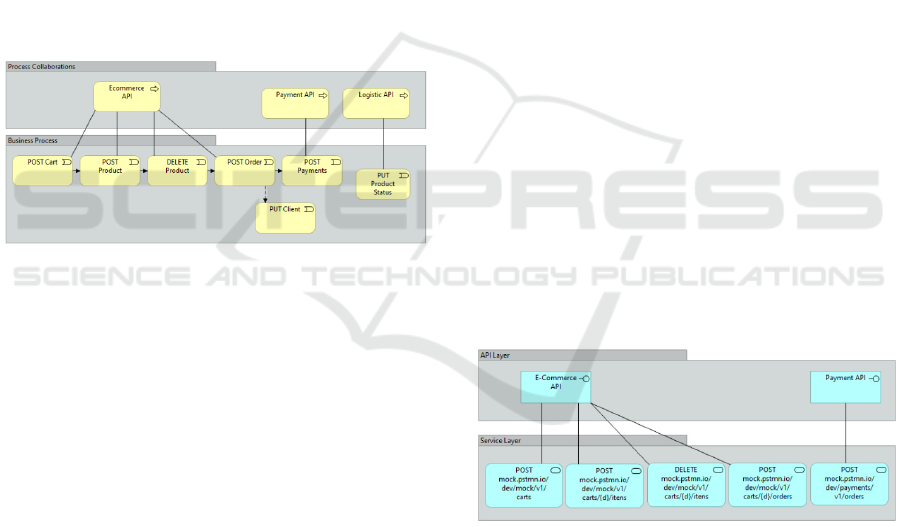

Figure 2: ArchiMate Process View.

Frequent Temporal Correlation is the sequential

correlation mining extraction process that sequences

timely API Calls that share some attribute values and

groups those with the same Caller. The attribute

names and its value are stored in the

repeated_attributes of Process Node for each Process

Event, combining two API Calls, the older as the

Antecedent Activity and the younger as the

Consequent Activity. Then the weight of the Process

Event is calculated based on the percentual measure

of the attributes repetition. The Process Events that do

not have at least one attribute with 100% of the weight

are eliminated, presuming that to make part of the

same Process, at least one attribute must be present in

100% of correlations among its instances.

Then, a graph is created, extracting the sequence

of process events considering that a Consequent

Activity of a Process Event is an Antecedent Activity

in the following Process Event. In the end, each graph

is a process instance assigned a "process_case_id".

As the interest of this work lies in an enterprise

architecture view of the Process, and not in process

details, it simply groups the Process Instances into

collective Processes that consider the similarity of

graphs regards its first and last node. It considers the

variations path between these two nodes as internal

variations of the same Process due to the high level of

EA.

The resulting model is used to build an ArchiMate

Business Process Cooperation viewpoint. Despite

some differences in the sequences and do not

correspond precisely to the same graph, all paths will

start with the creation of the cart and finish with the

final update of order status with the sequence

depicted in Figure 2.

6.2 Frequent API Service Correlation

Frequent API Service Correlation is the data mining

processing that correlates two Services. The first is an

API Operation playing the Antecedent Service role

that calls the Consequent Service, which is the

Service Destinations of an API Call. Its relation is an

instance of Service Dependency where the “api”

attribute comes from the API Call “apiName”, and the

dependent service comes from service route. The

collective stores a collection of the related mining

grouped by API. Thus, it makes it possible to depict

what an API and its resources call a dependent

service. This view may help to get an impact analysis

for an API Change.

Thus, the EA Service Dependency View may be

built to show these dependencies at a high level, such

as the ArchiMate Application Cooperation viewpoint

depicted in Figure 3.

Figure 3: ArchiMate Service Dependency.

6.3 Frequent Data Domain Correlation

It is the application of the Data Mining Technique to

identify frequent associations among data structures

composed of Data Elements. These Data elements

may be Data domains or Entities. From this

perspective, we consider the Data Domain as the API

Name. Thus, it is filled by the API Name attribute

from the API Call. The entities grouped into a Data

Domain are the resources. Then the Entities are filled

Towards an Ontology to Enforce Enterprise Architecture Mining

665

with the resource_name of the API. The Entity

Attributes, in this case, are the repeated value

attributes between the data structures. Then it uses

entity attributes to assess the strength of the

association. Only associations with very high

confidence, close to 100%, should stay present in the

collective “Data Objects Domain” from what it is

possible to build a visualization of Entities relations

for each data Domain, such as the ArchiMate

viewpoint illustrated in Figure 4.

Figure 4: Data Objects API Dependency.

7 DISCUSSION

This proposal focuses on conceptualizing an EA

mining extraction from a particular technology, API

Gateway, which is a widely used integration tool.

Even though many companies may also have been not

using it, limiting the industrial application of the

study, API gateway logs are vital to complement the

EA mining field once it provides a kind of service

facade for the information systems of an organization

and its partners, capturing and recording some

behaviours and data structures that may not be present

in operational databases. This approach and focus

have yet to be found in the literature.

Tracing a unique API request through the network

and following the components triggered by it is not a

big deal. However, the proposed ontology focuses on

correlating different requests that initially have no

physical correlations but that share logical contexts

relevant to understanding a part of the EA.

The extracted business process view allows an

overlook of an API relations with the execution of the

main tasks of a business process. Another view allows

identifying and tracking API dependencies with

various operations and the backend services that

support these operations. It helps impact analysis of

changes in APIs or services that can impact the global

EA level. Likewise, a view of data objects related to

APIs and processes helps to identify the relationship

between data entities and their usage through

enterprise APIs. All these extracted views aim to

contribute to the overall architecture. Despite having

some limitations regarding building a complete EA,

such as the business architecture, it will contribute

with complementary views to accelerate the

architecture analysis and modelling.

For this ontology, attributes with repeated values

between the data structures of API calls are used to

give weight to the relationship between process

activities and to associate data objects. Based on this

data, it is possible to apply other process mining

techniques to help discover different aspects and

patterns related to business processes. Another way to

extend this ontology is through further analysis of this

data to verify the cohesion of the data domains related

to the name of the attributes between the data objects.

The proposed ontology had its consistency and

quality checked by tools. It condenses three different

applications following an ontological pattern for three

distinct views, demonstrating that the model can be

extended to build other architectural views not

developed in this work and to apply other APIs

integrations tools beyond API Gateway. Furthermore,

it can allows instantiation and refinement into a more

operational ontology, such as RDF or OWL.

The proposal's threat so far is that despite

presenting a specific domain ontology, this ontology

is still a relatively high conceptual reference model.

Although OLED allows exporting OntoUML models

to other more operational languages for ontology

instantiation, the high level of detail, given the

objectives of this work, may reduce the

expressiveness of the ontology when applied to these

more operational languages, such as OWL and RDF,

requiring adaptation of the derived models.

8 CONCLUSION AND FUTURE

WORK

This research aims to build a DM model to automate

the modelling of the current views of EA. For that, the

ontology presented in this paper focused on

conceptualizing the process of building EA mining.

The application of the proposed ontology was

hypothesized and exemplified as a possible approach

for capturing EA model changes. It allows tracking

the current EA and provides complementary views to

support EAM.

It was only partially implemented in an

automatized form to extract and correlate data to

build the EA Process View. Much of the data

provided in the example was simulated, which

implies a challenge to solve in future work. Even

though the simulation matches the semantics and

attributes in an actual API gateway log file, it still

needs to be programmed and proven in a real case.

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

666

Also, the best data mining techniques for each

architectural view must be analysed to build the

complete model.

ACKNOWLEDGMENT

This work was supported by national funds through

Fundação para a Ciência e a Tecnologia (FCT) with

reference UIDB/50021/2020 (INESC-ID).

REFERENCES

Alfonso-Robaina, D., Díaz-Moreno, J. C., Malleuve-

Martınez, A., Medina-Moreno, J., & Rubio-Manzano,

C. (2020). Modeling Enterprise Architecture and

Strategic Management from Fuzzy Decision Rules. In

L. T. Kóczy, J. Medina-Moreno, E. Ramírez-Poussa, &

A. Šostak (Eds.), Computational Intelligence and

Mathematics for Tackling Complex Problems (pp. 139–

147). Springer International Publishing.

https://doi.org/10.1007/978-3-030-16024-1_18

Allemang, D., Polikoff, I., & Hodgson, R. (2005).

Enterprise Architecture Reference Modeling in

OWL/RDF. In Y. Gil, E. Motta, V. R. Benjamins, & M.

A. Musen (Eds.), The Semantic Web – ISWC 2005 (pp.

844–857). Springer. https://doi.org/10.1007/

11574620_60

Antonello, F., Baraldi, P., Shokry, A., Zio, E., Gentile, U.,

& Serio, L. (2021). Association rules extraction for the

identification of functional dependencies in complex

technical infrastructures. Reliability Engineering &

System Safety, 209, 107305. https://doi.org/10.1016/

j.ress.2020.107305

Bonina, C., Koskinen, K., Eaton, B., & Gawer, A. (2021).

Digital platforms for development: Foundations and

research agenda. Information Systems Journal, 31(6),

869–902. https://doi.org/10.1111/isj.12326

Branquinho, L. P., Almeida, M. B., & Baracho, R. M. A.

(2015). Ontologies in support of data mining based on

associated rules: A case study in a diagnostic medicine

company. CEUR Workshop Proc, 1442, 6.

Falbo, R. de A. (2014). SABiO: Systematic Approach for

Building Ontologies. Onto. Com/Odise@ Fois.

Farwick, M., Schweda, C. M., Breu, R., & Hanschke, I.

(2016). A situational method for semi-automated

Enterprise Architecture Documentation. Software &

Systems Modeling, 15(2), 397–426. https://doi.org/

10.1007/s10270-014-0407-3

Guédria, W., Gaaloul, K., Proper, H. A., & Naudet, Y.

(2013). Research Methodology for Enterprise

Interoperability Architecture Approach. In X. Franch &

P. Soffer (Eds.), Advanced Information Systems

Engineering Workshops (pp. 16–29). Springer.

https://doi.org/10.1007/978-3-642-38490-5_2

Guerson, J., Sales, T. P., Guizzardi, G., & Almeida, J. P. A.

(2015). OntoUML Lightweight Editor: A Model-Based

Environment to Build, Evaluate and Implement

Reference Ontologies. 2015 IEEE 19th International

Enterprise Distributed Object Computing Workshop,

144–147. https://doi.org/10.1109/EDOCW.2015.17

Guizzardi, G., Botti Benevides, A., Fonseca, C. M., Porello,

D., Almeida, J. P. A., & Prince Sales, T. (2022). UFO:

Unified Foundational Ontology. Applied Ontology,

17(1), 167–210. https://doi.org/10.3233/AO-210256

Guizzardi, G., Wagner, G., Almeida, J. P. A., & Guizzardi,

R. S. S. (2015). Towards ontological foundations for

conceptual modeling: The unified foundational

ontology (UFO) story. Applied Ontology, 10(3–4),

259–271. https://doi.org/10.3233/AO-150157

Herterich, M. M., Dremel, C., Wulf, J., & vom Brocke, J.

(2022). The emergence of smart service ecosystems—

The role of socio-technical antecedents and

affordances. Information Systems Journal, n/a(n/a).

https://doi.org/10.1111/isj.12412

Hinkelmann, K., Maise, M., & Thönssen, B. (2013).

Connecting enterprise architecture and information

objects using an enterprise ontology. Proceedings of the

First International Conference on Enterprise Systems:

ES 2013, 1–11. https://doi.org/10.1109/

ES.2013.6690088

Hinkelmann, K., Merelli, E., & Thönssen, B. (2010). The

role of content and context in enterprise repositories.

Framework, 18, 10.

Jabloun, M., Sayeb, Y., & Ben Ghezala, H. (2013).

Enterprise ontology oriented competence: A support for

enterprise architecture. 2013 3rd International

Symposium ISKO-Maghreb, 1–8.

https://doi.org/10.1109/ISKO-Maghreb.2013.6728115

Kang, D., Lee, J., Choi, S., & Kim, K. (2010). An ontology-

based Enterprise Architecture. Expert Systems with

Applications, 37(2), 1456–1464. https://doi.org/

10.1016/j.eswa.2009.06.073

Pérez‐Castillo, R., Caivano, D., Ruiz, F., & Piattini, M.

(2021). ArchiRev—Reverse engineering of information

systems toward ArchiMate models. An industrial case

study. Journal of Software: Evolution and Process,

33(2), e2314. https://doi.org/10.1002/smr.2314

Perez-Castillo, R., Ruiz-Gonzalez, F., Genero, M., &

Piattini, M. (2019). A systematic mapping study on

enterprise architecture mining. Enterprise Information

Systems, 13(5), 675–718. https://doi.org/10.1080/

17517575.2019.1590859

Shvaiko, P., & Euzenat, J. (2008). Ten Challenges for

Ontology Matching. In R. Meersman & Z. Tari (Eds.),

On the Move to Meaningful Internet Systems: OTM

2008 (pp. 1164–1182). Springer. https://doi.org/

10.1007/978-3-540-88873-4_18

Silva, N., Mira da Silva, M., & Sousa, P. M. M. V. A. de.

(2017). Modelling the Evolution of Enterprise

Architectures Using Ontologies. 2017 IEEE 19th

Conference on Business Informatics (CBI), 01, 79–88.

https://doi.org/10.1109/CBI.2017.17

Simović, A. P., Babarogić, S., & Pantelić, O. (2018). A

domain-specific language for supporting event log

extraction from ERP systems. 2018 7th International

Conference on Computers Communications and

Towards an Ontology to Enforce Enterprise Architecture Mining

667

Control (ICCCC), 12–16. https://doi.org/10.1109/

ICCCC.2018.8390430

Sunkle, S., Kulkarni, V., & Roychoudhury, S. (2013).

Analyzing Enterprise Models Using Enterprise

Architecture-Based Ontology. In A. Moreira, B. Schätz,

J. Gray, A. Vallecillo, & P. Clarke (Eds.), Model-

Driven Engineering Languages and Systems (pp. 622–

638). Springer. https://doi.org/10.1007/978-3-642-

41533-3_38

The Open Group. (2018). The TOGAF® Standard, Version

9.2.

https://publications.opengroup.org/standards/togaf/c18

2. https://pubs.opengroup.org/architecture/togaf9-doc/

arch/index.html

The Open Group. (2019, November). ArchiMate® 3.1

Specification.

https://pubs.opengroup.org/architecture/archimate3-

doc/

Trojahn, C., Vieira, R., Schmidt, D., Pease, A., &

Guizzardi, G. (2022). Foundational ontologies meet

ontology matching: A survey. Semantic Web, 13(4),

685–704. https://doi.org/10.3233/SW-210447

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

668
