Evaluating Label Flipping Attack in Deep Learning-Based NIDS

Hesamodin Mohammadian

1 a

, Arash Habibi Lashkari

2 b

and Ali A. Ghorbani

Canadian Institute for Cybersecurity, University of New Brunswick, Fredericton, New Brunswick, Canada

School of Information Technology, York University, Toronto, Ontario, Canada

Keywords:

Network Intrusion Detection, Deep Learning, Poisoning Attack, Label Flipping.

Abstract:

Network intrusion detection systems are one of the key elements of any cybersecurity defensive system. Since

these systems require processing a high volume of data, using deep learning models is a suitable approach for

solving these problems. But, deep learning models are vulnerable to several attacks, including evasion attacks

and poisoning attacks. The network security domain lacks the evaluation of poisoning attacks against NIDS. In

this paper, we evaluate the label-ﬂipping attack using two well-known datasets. We perform our experiments

with different amounts of ﬂipped labels from 10% to 70% of the samples in the datasets. Also, different ratios

of malicious to benign samples are used in the experiments to explore the effect of datasets’ characteristics.

The results show that the label-ﬂipping attack decreases the model’s performance signiﬁcantly. The accuracy

for both datasets drops from 97% to 29% when 70% of the labels are ﬂipped. Also, results show that using

datasets with different ratios does not signiﬁcantly affect the attack’s performance.

1 INTRODUCTION

Machine Learning has been extensively used in au-

tomated tasks and decision-making problems. There

has been tremendous growth and dependence on us-

ing ML applications in national critical infrastruc-

tures and critical areas such as medicine and health-

care, computer security, spam, malware detection, au-

tonomous driving vehicles, unmanned autonomous

systems, and homeland security (Duddu, 2018). Deep

learning has shown promising results in machine

learning tasks in recent years. But, Recent studies

show that machine learning, speciﬁcally deep learn-

ing models, are highly vulnerable to adversarial ex-

amples either at training or at test time (Biggio and

Roli, 2018).

There are different kinds of attacks against

deep learning models both in the training and test

time, such as membership inference attack (Shokri

et al., 2017; Hu et al., 2022), model inversion at-

tack (Fredrikson et al., 2015), evasion attack (Szegedy

et al., 2013), and poisoning attack (Tian et al., 2022).

In a membership inference attack, the attacker aims

to break the model’s privacy and determine if a spe-

ciﬁc record is part of the model’s training set. These

attacks are signiﬁcant when working with private data

https://orcid.org/0000-0002-0742-2324

https://orcid.org/0000-0002-1240-6433

such as health or ﬁnancial-related information of the

people (Truex et al., 2018; Choquette-Choo et al.,

2021). The model inversion attack is close to the

membership inference attack and aims to extract sen-

sitive features of the training samples (Zhang et al.,

2020). An evasion attack happens during the test

phase. It aims to fool the trained deep learning model

and bypass the detection by crafting adversarial ex-

amples by making small changes to the original sam-

ples of the dataset (Goodfellow et al., 2014). One of

the ﬁrst attempts to make this attack was in (Dalvi

et al., 2004), where they studied this problem in spam

ﬁltering. Attackers can also affect the model’s perfor-

mance during the training phase, such as poisoning

attacks where they try to inject poisoned data into the

training set (Wang et al., 2022).

In recent years deep learning has shown its poten-

tial in the security area, such as malware detection and

intrusion detection systems (NIDS). A NIDS aims to

distinguish between benign and malicious behaviors

inside a network(Buczak and Guven, 2015). With

the rapid growth of network trafﬁc, interest in using

deep learning-based anomaly detection methods has

increased. These techniques can provide more efﬁ-

cient and ﬂexible approaches in the presence of a high

volume of data (Tsai et al., 2009; Gao et al., 2014;

Ashfaq et al., 2017).

As mentioned earlier, deep learning models are

vulnerable to attacks. Two major categories of these

Mohammadian, H., Lashkari, A. and Ghorbani, A.

Evaluating Label Flipping Attack in Deep Learning-Based NIDS.

DOI: 10.5220/0012038100003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 597-603

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

597

attacks in the network domain are poisoning and eva-

sion attacks (Peng et al., 2019). In the poisoning at-

tack, the goal is to manipulate the training data and

degrade the model performance. In contrast, the eva-

sion attack happens during the test phase, and the at-

tacker aims to fool the DNN model by making small

changes to the samples (Pitropakis et al., 2019).

The main contributions of this paper can be sum-

marized as follows:

• This paper evaluates the poisoning attack through

label ﬂipping in the network attack classiﬁcation

problem.

• Two well-known, and comprehensive datasets,

namely CSE-CIC-IDS2018 and CIC-IDS2017

(Sharafaldin et al., 2018) were used for our de-

tailed experiments.

• To understand the relation between the amount

of ﬂipped labels and datasets’ characteristics with

the attack’s effect on the trained model, several

experiments in different settings were performed.

The rest of this paper is organized as follows: Sec-

tion three reviews the related works, and Section four

describes the proposed method. Section four presents

the experimental settings, and Section six contains a

detailed analysis discussion of the results. Section

seven concludes the paper.

2 RELATED WORKS

There are different adversarial attacks for machine

learning phases. Poisoning attacks are applied during

the training phase and include manipulating training

data (Schwarzschild et al., 2021). One of the poi-

soning attack methods is data injection. In data in-

jection, the attacker injects malicious inputs into the

training set to affect the model’s decision boundaries.

In a label-ﬂipping attack, the labels of the samples in

the training set are changed while the features are re-

mained unchanged (Tabassi et al., 2019).

The attacks during the test phase are called eva-

sion attacks. Evasion attacks aim to craft malicious

inputs that can fool trained machine-learning models.

These crafted inputs are called adversarial examples.

These examples can fool deep learning models into

making wrong decisions, while a human observer can

correctly classify these examples (Goodfellow et al.,

2014; Papernot et al., 2017). Goodfellow et al. pro-

posed a fast and simple method for generating adver-

sarial examples. They called their method Fast Gra-

dient Sign Method(FGSM) (Goodfellow et al., 2014).

Some other well-known evasion attack methods are

JSMA (Papernot et al., 2016), C&W attack (Carlini

and Wagner, 2017), and Deepfool (Moosavi-Dezfooli

et al., 2016).

Most research on adversarial attacks in the net-

work domain focuses on evasion attacks. One of

the ﬁrst attempts to perform an evasion attack on

network datasets was in (Warzy

nski and Kołaczek,

2018). They used the FGSM technique to generate

adversarial examples on the NSL-KDD dataset dur-

ing test time. In (Wang, 2018), Wang did compre-

hensive experiments on the NSL-KDD dataset using

FGSM, JSMA, Deepfool, and C&W techniques and

also measured the effect of the different selected fea-

tures on evasion attack success.

To the best of our knowledge, few works focus on

adversarial attacks during the training phase for ma-

chine learning-based network intrusion systems. In

(Apruzzese et al., 2019), Apruzzese et al. made a

label-ﬂipping attack against a botnet dataset. In their

attack, they selected existing malicious samples and

slightly changed the value of three features, including

duration, exchanged bytes, and total packets. Then

ﬂipped the label to benign. They performed the at-

tack against Random Forest, Multi-layer Perceptron,

and KNN. Their experiments show that the model per-

formance drops signiﬁcantly after the poisoning at-

tack. Papadopoulos et al. made a label-ﬂipping attack

against SVM based model for the Bot-IoT dataset (Pa-

padopoulos et al., 2021). They sorted the samples

based on their distance from the SVM hyperplane and

ﬂipped the one with a smaller margin to the hyper-

plane. Their experiments showed that random and tar-

geted attacks severely affect the classiﬁcation metrics.

One of the main areas for improvement of the

previous works is focusing on traditional machine-

learning techniques for performing adversarial deep-

learning attacks. Also, in most cases, researchers used

simple and outdated datasets for experimental analy-

sis and evaluation of their proposed models.

3 PROPOSED MODEL

This section explains our model for performing the

label-ﬂipping attack against the NIDS. To execute the

attack scenario, ﬁrst, we need to train the target model

on the selected datasets and conduct the proposed

label-ﬂipping attack.

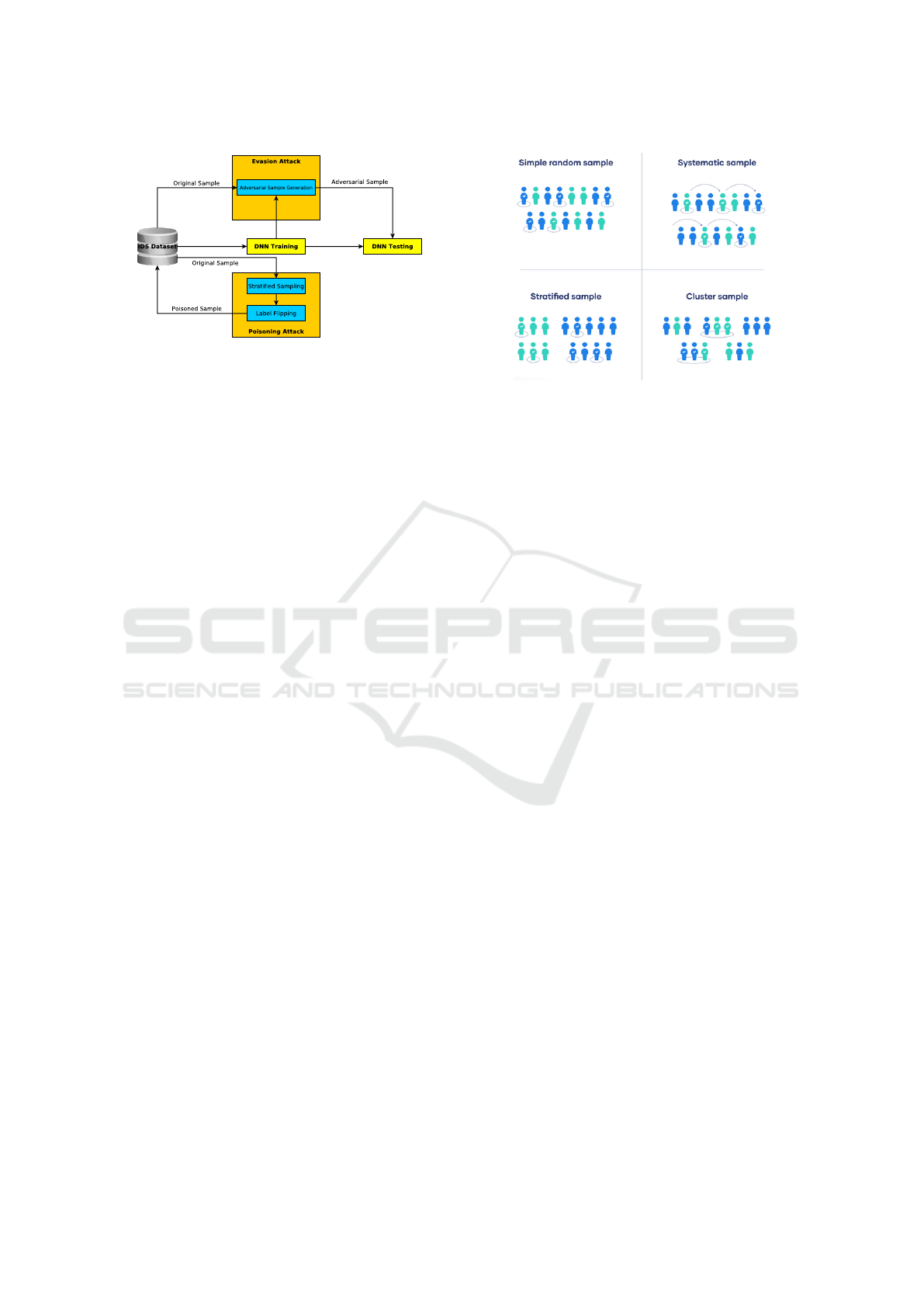

Figure 1 shows the relation of the evasion and

poisoning attack concerning the machine learning

pipeline. Evasion attack uses the trained model and

original samples from the dataset to generate adver-

sarial examples for fooling the deep learning model.

But, the poisoning attack happens before the training

phase by changing the training set.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

598

Figure 1: Adversarial Attack in Machine Learning.

3.1 Training the DNN Target Model

First, we train our DNN model for classifying differ-

ent network attacks. We train a multi-layer perceptron

with two hidden layers, each of them containing 256

neutrons. During the training, the inputs are 76 fea-

tures of each network ﬂow, and the outputs are differ-

ent probability values for each attack type and benign

ﬂow. We used RelU as our activation function and

a Dropout layer with 0.2 probability in both hidden

layers.

3.2 Label Flipping Attack

In the label-ﬂipping attack, the attacker’s goal is to

change the labels of the samples in the training set to

decrease the performance of the deep learning model.

There are two steps in this attack. First, select the

subset of training samples and then ﬂip the labels of

selected samples.

In probability sampling, each record in the dataset

has the same possibility of being selected. The are

four main types of probability sampling (McCombes,

2022).

• Simple Random Sampling. In this method, each

record has an equal chance of being selected. The

whole population is the sampling frame, and each

sample is selected with the same probability.

• Systemic Sampling. In systemic sampling, sam-

ples are selected at regular intervals starting from

a random start point. Since we speciﬁed the sam-

ple from a list with the same intervals, we should

be careful that there is no hidden pattern in the

provided list which may cause the sample to be

skewed.

• Stratiﬁed Sampling. This method divides the

population into subgroups (strata) based on their

relevant characteristics. The number of samples

that should be selected from each subgroup is cal-

culated based on the population proportion they

Figure 2: Different Probability Sampling Methods (Mc-

Combes, 2022).

include. Then, the samples are chosen using one

simple or systemic sampling method.

• Cluster Sampling. In cluster sampling, the pop-

ulation is divided into subgroups, but each subset

should have the same characteristics as the whole

sample. Then, either an entire cluster is selected

as the sample, or one of the other sampling meth-

ods is used to choose samples from the selected

cluster.

Since we want to have samples from all the classes

in the label-ﬂipping attack using stratiﬁed sampling

seems appropriate. We divide the training set sam-

ples into subgroups based on their class label and use

simple random sampling to select samples from each

subgroup. Then, we change the selected sample label

to any label other than its actual label.

4 EXPERIMENTS

First, we train our DNN model for classifying net-

work attacks in the selected datasets and demonstrate

the classiﬁer’s performance. Then, the label-ﬂipping

attack is performed using the above procedure. To

better understand the attack, we start with ﬂipping 10

percent of the labels and go up to 70 percent. In each

step, we keep the previously ﬂipped labels and select

another 10 percent of actual labels to do the label ﬂip-

ping. We do the attack for different percentages of

the ﬂipped labels ten times and report our results’ av-

erage and standard deviation. Also, from those ten

various experiments, the one with the less effect on

the model’s performance is selected and used in the

next step.

In the selected datasets, the ratio of malicious to

benign trafﬁc is 20 percent to 80 percent. To evalu-

ate the effect of different ratios on the deep learning

model performance in the presence of label ﬂipping

Evaluating Label Flipping Attack in Deep Learning-Based NIDS

599

Table 1: Records in CIC-IDS2017 dataset.

Attack Name Number of Records

Benign 2271320

DDoS 128025

PortScan 158804

Botnet 1956

Inﬁltration 36

Web Attack-Brute Force 1507

Web Attack-Sql Injection 21

Web Attack-XSS 652

FTP-Patator 7935

SSH-Patator 5897

DoS GoldenEye 10293

DoS Hulk 230124

DoS Slowhttp 5499

Dos Slowloris 5796

Heartbleed 11

attack, we adjust the balance between the malicious

and benign trafﬁc from 20-80 to 30-70, 40-60, 50-

50, 60-40, 70-30, and 80-20 in the preformed experi-

ences.

4.1 Dataset

CIC-IDS2017 (Sharafaldin et al., 2018) and CSE-

CIC-IDS2018 are used to train the DNN model and

perform the label-ﬂipping attack. Each dataset con-

tains several network attacks. CSE-CIC-IDS2018 is

an extension to CIC-IDS2017 and contains the same

kind of attacks. They extracted more than 80 net-

work trafﬁc features from their datasets using CI-

CFlowMeter (Lashkari et al., 2017) and labeled each

Flow as benign or attack name. The details of these

two datasets can be found in Table 1 and Table 2.

4.2 Target Model Training

We train a DNN model on both datasets and compare

its performance with other machine learning tech-

niques. The DNN model is a simple multi-layer per-

ceptron. Table 3 shows the results, which present that

our model has comparable performance with other

machine learning models.

5 ANALYSIS AND DISCUSSION

In this Section, we will analyze the experimental

results and compare the ﬁndings for the selected

datasets with different percentages of the ﬂipped la-

bel and malicious to benign ratio.

Table 4 presents the results for the CIC-IDS2017

dataset. The ﬁrst main row is the classiﬁer’s perfor-

mance without label ﬂipping, and each sub-row is for

the different ratio of the malicious to benign trafﬁc in

Table 2: Records in CSE-CIC-IDS2018 dataset.

Attack Name Number of Records

Benign 13390249

Bot 286191

Inﬁltration 160639

Brute Force-Web 611

Brute Force-XSS 230

SQL Injection 87

FTP-BruteForce 193354

SSH-BruteForce 187589

DoS GoldenEye 41508

DoS Hulk 461912

DoS Slowhttp 139890

Dos Slowloris 10990

DDoS LOIC-HTTP 576191

DDoS LOIC-UDP 1730

DDoS HOIC 686012

Table 3: Results of the Classiﬁers.

Machine Learning IDS2017 IDS2018

Techniques F1-score PC RC F1-score PC RC

DT 99.84 99.76 99.92 97.70 99.73 96.14

Naive Bayes 28.47 32.43 73.75 48.29 49.48 72.79

LR 36.71 39.76 34.96 57.97 64.13 56.84

RF 96.58 99.79 94.24 94.23 99.81 90.97

DNN (Our) 97.99 92.98 88.09 97.97 97.51 97.46

the dataset. The other main rows are label-ﬂipping at-

tack results with varying percentages of ﬂipped labels

from 10 to 70.

As shown in Table 4, increasing the percentage

of ﬂipped labels decreases the performance of the

deep learning model. The average accuracy is 98.06%

without ﬂipped labels, dropping to 29.25% when 70

percent of the labels are ﬂipped. Figure 3 shows the

model’s performance for the dataset with the 20-80

ratio and different percentages of the ﬁlliped label.

All four metrics drop signiﬁcantly when the percent-

age increases from 10 to 70.

With the same percentage of the ﬂipped labels,

when we change the ratio of malicious to benign sam-

ples, the accuracy stays almost the same, but the re-

call and F1-score increase. In the beginning, when

the distribution is 20-80, most of the selected labels

for ﬂipping attacks are from the benign class, and the

number of actual benign samples is high enough for

the model to learn and detect them. But, with chang-

ing the training dataset toward increasing the ratio of

malicious samples, the model’s ability to detect the

benign samples in the presence of label ﬂipping at-

tack drops while its performance for other classes in-

creases, and since in the multi-class classiﬁcation, the

average is used to calculate the recall, this metric will

increase. Figure 4 shows the results for the attack with

40% ﬂipped labels with different malicious to benign

ratios. As it is clear, with changing the distribution,

accuracy stays almost without change, but recall and

F1-score increase.

The same experiments have been done for the

SECRYPT 2023 - 20th International Conference on Security and Cryptography

600

Table 4: CIC-IDS2017 Results.

Selected Labels Ratio Accuracy Precision Recall F1-score

20-80 97.66 95.47 87.82 89.84

30-70 98.05 95.83 87.52 89.99

40-60 97.94 93.97 91.06 91.72

50-50 98.14 95.22 94.59 94.82

60-40 97.93 96.38 91.99 93.68

70-30 98.17 97.03 90.28 92.82

80-20 98.55 95.62 94.64 94.84

20-80 88.08±0.21 77.62±1.57 38.44±0.37 43.28±0.38

30-70 87.94±0.20 79.28±2.53 43.46±0.12 48.60±0.15

40-60 87.84±0.16 78.90±2.58 46.80±0.16 52.25±0.26

50-50 87.87±0.08 79.37±0.52 49.29±0.12 54.91±0.19

60-40 87.99±0.02 78.76±0.48 51.69±0.12 57.50±0.19

70-30 88.26±0.03 81.68±4.19 53.52±0.06 59.41±0.07

80-20 88.55±0.06 79.50±2.27 55.72±0.81 61.53±0.72

20-80 78.03±0.06 66.42±3.32 30.86±0.27 33.62±0.17

30-70 77.96±0.17 69.91±0.71 35.49±0.20 38.07±0.20

40-60 77.86±0.06 70.35±2.06 38.48±0.08 41.23±0.12

50-50 77.98±0.06 70.02±0.80 40.68±0.12 43.62±0.21

60-40 78.15±0.02 70.20±0.64 42.55±0.12 45.73±0.20

70-30 78.43±0.03 70.43±0.52 44.17±0.06 47.63±0.10

80-20 78.64±0.04 70.65±0.20 45.38±0.04 49.07±0.04

20-80 68.23±0.7 58.05±2.74 26.33±0.14 27.75±0.13

30-70 68.09±0.04 60.57±2.93 30.64±0.08 31.34±0.09

40-60 68.07±0.06 61.39±1.51 33.41±0.04 33.99±0.12

50-50 68.22±0.02 61.59±0.66 35.53±0.9 36.15±0.17

60-40 68.36±0.02 61.08±0.44 37.25±0.04 38.06±0.07

70-30 68.59±0.02 61.80±0.44 38.54±0.06 39.50±0.11

80-20 68.80±0.02 61.68±0.16 39.51±0.02 40.76±0.03

20-80 58.48±0.07 47.42±1.67 22.77±0.08 23.05±0.03

30-70 58.29±0.08 52.06±2.63 26.67±0.14 26.10±0.07

40-60 58.34±0.05 50.18±2.47 29.43±0.05 28.38±0.09

50-50 58.40±0.03 52.86±1.49 31.37±0.04 30.07±0.07

60-40 58.57±0.04 51.92±1.44 32.97±0.08 31.63±0.15

70-30 58.77±0.02 53.22±0.48 34.17±0.04 32.98±0.06

80-20 58.94±0.04 52.78±0.30 34.89±0.05 33.98±0.08

20-80 48.69±0.03 39.01±0.1 19.69±0.11 18.84±0.06

30-70 48.54±0.07 41.13±2.71 23.18±0.14 21.51±0.05

40-60 48.58±0.04 40.08±1.58 25.84±0.03 23.43±0.05

50-50 48.65±0.02 43.70±2.17 27.66±0.02 24.83±0.03

60-40 48.76±0.02 42.24±1.62 29.12±0.05 26.09±0.11

70-30 48.96±0.02 53.22±0.48 34.17±0.04 32.98±0.06

80-20 49.07±0.04 43.98±0.18 30.68±0.04 27.96±0.05

20-80 38.96±0.02 31.19±0.23 17.00±0.05 14.96±0.05

30-70 38.84±0.04 32.04±1.45 19.93±0.13 17.19±0.07

40-60 38.90±0.04 31.64±0.12 22.30±0.02 18.82±0.05

50-50 38.95±0.02 33.49±2.02 23.98±0.01 20.00±0.03

60-40 39.03±0.01 32.83±1.51 25.27±0.01 20.96±0.02

70-30 39.13±0.03 33.54±1.54 26.13±0.05 21.79±0.10

80-20 39.20±0.03 34.97±0.16 26.48±0.02 22.37±0.04

20-80 29.22±0.06 22.91±1.22 14.41±0.1 11.13±0.09

30-70 29.15±0.03 24.40±2.94 16.65±0.05 12.94±0.11

40-60 29.17±0.02 23.80±0.11 18.84±0.06 14.19±0.07

50-50 29.25±0.01 25.03±1.84 20.00±0.01 15.21±0.02

60-40 29.27±0.02 25.55±2.86 21.03±0.01 15.93±0.03

70-30 29.35±0.01 25.19±1.37 21.69±0.01 16.52±0.02

80-20 29.40±0.02 27.02±2.93 21.92±0.02 16.95±0.06

Attack Percentage

100

0 10 20 30 40 50 60 70

Accuracy Presicion Recall F1-Score

Figure 3: CIC-IDS2017 Results for Dataset with 20-80 Ma-

licious to Benign Ratio.

CSE-CIC-IDS2018 dataset, and the results are re-

ported in Table 5. The percentage of ﬂipped labels

are increased from 10 to 70, and for each value, the

experiments are done with different ratio of the ma-

licious to benign samples. Similar to the results of

the CIC-IDS2017 dataset, the model’s performance

drops when the percentage of the ﬂipped labels is in-

Dataset Ratio

20-80 30-70 40-60 50-50 60-40 70-30 80-20

Acuracy Precision Recall F1-Score

Figure 4: CIC-IDS2017 Results with 40% Flipped Labels.

creased. The average accuracy drops from 97.36%

with no ﬂipped labels to 29.2% when 70% of the la-

bels are ﬂipped. In Figure 5, decreasing performance

metrics are clearly shown for the dataset with the 20-

80 ratio.

The results for each percentage of the ﬂipped label

are the same as CIC-IDS2017. The accuracy stays al-

most unchanged, and the F1-score and recall increase

signiﬁcantly. In Figure 6, you see how accuracy, pre-

cision, recall, and F1-score change when the ratio of

the dataset changes from 20-80 to 80-20.

Analysis and comparison of the results for both

datasets show that, as expected, the label-ﬂipping at-

tack severely affects the deep learning model. In-

creasing the number of ﬂipped labels decreases the

model’s performance signiﬁcantly. Also, the accuracy

stays the same with changing the ratio of the samples

in the dataset. But, some improvements happen in re-

call and F1-score.

6 CONCLUSION

With the increase of using deep learning models in

network security problems, these models’ vulnerabil-

ities have gained more attraction among researchers.

Deep learning models are susceptible to several at-

tacks, including evasion attacks and poisoning at-

tacks. Many works tried to evaluate evasion attacks

in the network security domain, but there needs to be

studied regarding poisoning attacks.

This paper investigates the effect of label-ﬂipping

attacks in the network domain. CSE-CIC-IDS2018

and CIC-IDS2017 (Sharafaldin et al., 2018), two

well-known network intrusion detection datasets, are

selected for performing the label-ﬂipping attack. Af-

ter the preprocessing step, we trained a DNN model

as the target model for the attack. We select a subset

of samples in each step using stratiﬁed sampling to

ﬂip the labels. The attack was made by changing the

percentage of the ﬂipped labels from 10 to 70 for the

Evaluating Label Flipping Attack in Deep Learning-Based NIDS

601

Table 5: CSE-CIC-IDS2018 Results.

Selected Labels Ratio Accuracy Precision Recall F1-score

20-80 95.87 91.53 81.64 83.58

30-70 98.27 91.80 88.69 89.48

40-60 97.96 91.13 92.03 90.97

50-50 97.66 91.71 92.17 91.51

60-40 97.71 92.46 94.02 92.82

70-30 97.05 92.19 92.41 91.81

80-20 97.01 92.54 94.07 92.94

20-80 88.71±0.27 82.66±0.74 46.49±0.62 53.16±0.44

30-70 88.32±0.15 82.75±0.52 55.61±0.34 60.11±0.31

40-60 87.90±0.16 82.62±0.51 59.22±0.33 62.81±0.38

50-50 87.48±0.21 82.79±0.58 61.96±0.16 64.95±0.29

60-40 87.91±0.04 83.17±0.25 65.58±0.09 68.60±0.12

70-30 87.26±0.08 83.09±0.41 65.94±0.27 68.57±0.38

80-20 87.29±0.05 83.65±0.36 68.27±0.10 70.69±0.13

20-80 78.87±0.19 73.21±0.42 35.69±0.49 41.71±0.36

30-70 78.40±0.11 73.41±0.39 44.97±0.12 49.20±0.15

40-60 78.15±0.03 73.31±0.31 49.42±0.08 52.50±0.11

50-50 77.86±0.08 73.56±0.37 52.51±0.18 54.90±0.18

60-40 78.05±0.4 73.91±0.17 55.87±0.08 57.90±0.13

70-30 77.47±0.07 73.66±0.37 57.09±0.10 58.46±0.15

80-20 77.56±0.05 74.34±0.38 59.30±0.10 60.55±0.14

20-80 68.99±0.16 63.49±0.90 28.79±0.27 33.39±0.34

30-70 68.63±0.06 64.59±0.32 37.44±0.02 40.83±0.06

40-60 68.36±0.11 64.40±0.39 41.83±0.13 44.15±0.18

50-50 68.03±0.14 64.38±0.19 45.00±0.16 46.49±0.18

60-40 68.27±0.02 64.58±0.21 48.41±0.04 49.38±0.07

70-30 67.76±0.09 64.48±0.15 49.93±0.12 50.14±0.13

80-20 67.79±0.08 64.77±0.16 51.96±0.10 51.99±0.16

20-80 58.98±0.44 54.21±1.12 23.40±0.71 26.45±0.88

30-70 58.81±0.02 55.24±0.26 31.35±0.04 33.64±0.06

40-60 58.53±0.09 55.21±0.29 35.38±0.11 36.75±0.11

50-50 58.31±0.03 55.18±0.18 38.59±0.05 39.10±0.09

60-40 58.49±0.07 55.64±0.33 41.79±0.08 41.70±0.07

70-30 58.04±0.10 55.28±0.05 43.44±0.15 42.61±0.16

80-20 58.11±0.03 55.47±0.03 45.30±0.04 44.27±0.08

20-80 48.88±0.35 44.62±0.89 19.27±0.49 20.51±0.69

30-70 48.99±0.6 45.95±0.22 26.20±0.06 27.20±0.10

40-60 48.72±0.11 45.86±0.33 29.73±0.12 29.99±0.12

50-50 48.58±0.05 46.09±0.18 32.71±0.05 32.16±0.08

60-40 48.70±0.06 46.49±0.28 35.56±0.07 34.48±0.05

70-30 48.33±0.09 46.23±0.11 37.14±0.11 35.35±0.11

80-20 48.45±0.01 46.36±0.04 38.83±0.01 36.87±0.01

20-80 39.23±0.35 36.02±0.85 16.40±0.47 16.05±0.61

30-70 39.05±0.33 36.67±0.49 21.52±0.36 21.09±0.48

40-60 39.00±0.07 36.85±0.20 24.65±0.07 23.74±0.08

50-50 38.87±0.07 36.85±0.18 27.16±0.07 25.61±0.06

60-40 38.99±0.01 37.22±0.12 29.55±0.01 27.55±0.02

70-30 38.72±0.06 37.21±0.23 30.98±0.07 28.41±0.05

80-20 38.81±0.02 36.95±0.85 32.30±0.02 29.64±0.05

20-80 29.40±0.12 26.46±1.08 13.82±0.15 11.63±0.25

30-70 29.18±0.28 27.13±0.66 17.37±0.29 15.47±0.36

40-60 29.15±0.29 27.70±0.35 19.68±0.28 17.60±0.29

50-50 29.15±0.08 28.00±0.17 21.66±0.07 19.16±0.12

60-40 29.30±0.01 27.95±0.72 23.49±0.01 20.75±0.02

70-30 29.04±0.04 28.00±0.19 24.49±0.04 21.47±0.05

80-20 29.18±0.00 28.11±0.02 25.48±0.00 22.48±0.01

Attack Percentage

100

0 10 20 30 40 50 60 70

Accuracy Presicion Recall F1-Score

Figure 5: CSE-CIC-IDS2018 Results for Dataset with 20-

80 Malicious to Benign Ratio.

different ratios of the malicious to benign samples in

the datasets.

The reported results show that, as expected, the

label ﬂipping attack can severely affect the deep

learning-based IDS performance, and some measures

should be in place to defend against these attacks.

Also, the malicious to the benign ratio of the samples

Dataset Ratio

20-80 30-70 40-60 50-50 60-40 70-30 80-20

Acuracy Precision Recall F1-Score

Figure 6: CSE-CIC-IDS2018 Results with 40% Flipped La-

bels.

in the datasets may have minor effects on the attack’s

success. Still, in general, the model’s performance

always drops in the presence of the label-ﬂipping at-

tack.

While the researchers are showing more interest

in using deep learning models in network intrusion

detection systems, they should pay more attention to

the security of these models and their vulnerabilities

against evasion and poisoning attacks. In (Moham-

madian et al., 2022; Mohammadian et al., 2023), we

evaluated the deep learning-based network intrusion

detection systems in the presence of evasion attacks,

and here we did the same for the label-ﬂipping attack.

For future work, we will combine these attacks into a

more complex, sophisticated framework for attacking

deep learning-based NIDS. Also, researchers should

work on ﬁnding techniques to defend against these at-

tacks and help maintain the model’s performance.

REFERENCES

Apruzzese, G., Colajanni, M., Ferretti, L., and Marchetti,

M. (2019). Addressing adversarial attacks against se-

curity systems based on machine learning. In 2019

11th international conference on cyber conﬂict (Cy-

Con), volume 900, pages 1–18. IEEE.

Ashfaq, R. A. R., Wang, X.-Z., Huang, J. Z., Abbas, H., and

He, Y.-L. (2017). Fuzziness based semi-supervised

learning approach for intrusion detection system. In-

formation Sciences, 378:484–497.

Biggio, B. and Roli, F. (2018). Wild patterns: Ten years

after the rise of adversarial machine learning. Pattern

Recognition, 84:317–331.

Buczak, A. L. and Guven, E. (2015). A survey of data min-

ing and machine learning methods for cyber security

intrusion detection. IEEE Communications surveys &

tutorials, 18(2):1153–1176.

Carlini, N. and Wagner, D. (2017). Towards evaluating the

robustness of neural networks. In 2017 ieee sympo-

sium on security and privacy (sp), pages 39–57. IEEE.

Choquette-Choo, C. A., Tramer, F., Carlini, N., and Paper-

not, N. (2021). Label-only membership inference at-

SECRYPT 2023 - 20th International Conference on Security and Cryptography

602

tacks. In International conference on machine learn-

ing, pages 1964–1974. PMLR.

Dalvi, N., Domingos, P., Sanghai, S., and Verma, D. (2004).

Adversarial classiﬁcation. In Proceedings of the tenth

ACM SIGKDD international conference on Knowl-

edge discovery and data mining, pages 99–108.

Duddu, V. (2018). A survey of adversarial machine learning

in cyber warfare. Defence Science Journal, 68(4).

Fredrikson, M., Jha, S., and Ristenpart, T. (2015). Model

inversion attacks that exploit conﬁdence information

and basic countermeasures. In Proceedings of the

22nd ACM SIGSAC conference on computer and com-

munications security, pages 1322–1333.

Gao, N., Gao, L., Gao, Q., and Wang, H. (2014). An

intrusion detection model based on deep belief net-

works. In 2014 Second International Conference on

Advanced Cloud and Big Data, pages 247–252. IEEE.

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2014). Ex-

plaining and harnessing adversarial examples. arXiv

preprint arXiv:1412.6572.

Hu, H., Salcic, Z., Sun, L., Dobbie, G., Yu, P. S., and Zhang,

X. (2022). Membership inference attacks on machine

learning: A survey. ACM Computing Surveys (CSUR),

54(11s):1–37.

Lashkari, A. H., Draper-Gil, G., Mamun, M. S. I., and Ghor-

bani, A. A. (2017). Characterization of tor trafﬁc using

time based features. In ICISSp, pages 253–262.

McCombes, S. (2022). Sampling methods — types,

techniques & examples. https://www.scribbr.com/

methodology/sampling-methods/.

Mohammadian, H., Ghorbani, A. A., and Lashkari, A. H.

(2023). A gradient-based approach for adversarial at-

tack on deep learning-based network intrusion detec-

tion systems. Applied Soft Computing, 137:110173.

Mohammadian, H., Lashkari, A. H., and Ghorbani, A. A.

(2022). Evaluating deep learning-based nids in adver-

sarial settings. In ICISSP, pages 435–444.

Moosavi-Dezfooli, S.-M., Fawzi, A., and Frossard, P.

(2016). Deepfool: a simple and accurate method to

fool deep neural networks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 2574–2582.

Papadopoulos, P., Thornewill von Essen, O., Pitropakis, N.,

Chrysoulas, C., Mylonas, A., and Buchanan, W. J.

(2021). Launching adversarial attacks against network

intrusion detection systems for iot. Journal of Cyber-

security and Privacy, 1(2):252–273.

Papernot, N., McDaniel, P., Goodfellow, I., Jha, S., Celik,

Z. B., and Swami, A. (2017). Practical black-box at-

tacks against machine learning. In Proceedings of the

2017 ACM on Asia conference on computer and com-

munications security, pages 506–519.

Papernot, N., McDaniel, P., Jha, S., Fredrikson, M., Celik,

Z. B., and Swami, A. (2016). The limitations of deep

learning in adversarial settings. In 2016 IEEE Euro-

pean symposium on security and privacy (EuroS&P),

pages 372–387. IEEE.

Peng, Y., Su, J., Shi, X., and Zhao, B. (2019). Evaluat-

ing deep learning based network intrusion detection

system in adversarial environment. In 2019 IEEE 9th

International Conference on Electronics Information

and Emergency Communication (ICEIEC), pages 61–

66. IEEE.

Pitropakis, N., Panaousis, E., Giannetsos, T., Anastasiadis,

E., and Loukas, G. (2019). A taxonomy and survey of

attacks against machine learning. Computer Science

Review, 34:100199.

Schwarzschild, A., Goldblum, M., Gupta, A., Dickerson,

J. P., and Goldstein, T. (2021). Just how toxic is data

poisoning? a uniﬁed benchmark for backdoor and

data poisoning attacks. In International Conference

on Machine Learning, pages 9389–9398. PMLR.

Sharafaldin, I., Lashkari, A. H., and Ghorbani, A. A.

(2018). Toward generating a new intrusion detec-

tion dataset and intrusion trafﬁc characterization. In

ICISSP, pages 108–116.

Shokri, R., Stronati, M., Song, C., and Shmatikov, V.

(2017). Membership inference attacks against ma-

chine learning models. In 2017 IEEE symposium on

security and privacy (SP), pages 3–18. IEEE.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Er-

han, D., Goodfellow, I., and Fergus, R. (2013). In-

triguing properties of neural networks. arXiv preprint

arXiv:1312.6199.

Tabassi, E., Burns, K. J., Hadjimichael, M., Molina-

Markham, A. D., and Sexton, J. T. (2019). A taxon-

omy and terminology of adversarial machine learning.

NIST IR, pages 1–29.

Tian, Z., Cui, L., Liang, J., and Yu, S. (2022). A compre-

hensive survey on poisoning attacks and countermea-

sures in machine learning. ACM Computing Surveys,

55(8):1–35.

Truex, S., Liu, L., Gursoy, M. E., Yu, L., and Wei, W.

(2018). Towards demystifying membership inference

attacks. arXiv preprint arXiv:1807.09173.

Tsai, C.-F., Hsu, Y.-F., Lin, C.-Y., and Lin, W.-Y. (2009).

Intrusion detection by machine learning: A review. ex-

pert systems with applications, 36(10):11994–12000.

Wang, Z. (2018). Deep learning-based intrusion detection

with adversaries. IEEE Access, 6:38367–38384.

Wang, Z., Ma, J., Wang, X., Hu, J., Qin, Z., and Ren, K.

(2022). Threats to training: A survey of poisoning at-

tacks and defenses on machine learning systems. ACM

Computing Surveys, 55(7):1–36.

Warzy

nski, A. and Kołaczek, G. (2018). Intrusion detec-

tion systems vulnerability on adversarial examples. In

2018 Innovations in Intelligent Systems and Applica-

tions (INISTA), pages 1–4. IEEE.

Zhang, Y., Jia, R., Pei, H., Wang, W., Li, B., and Song,

D. (2020). The secret revealer: Generative model-

inversion attacks against deep neural networks. In

Proceedings of the IEEE/CVF conference on com-

puter vision and pattern recognition, pages 253–261.

Evaluating Label Flipping Attack in Deep Learning-Based NIDS

603
