Fundus Unimodal and Late Fusion Multimodal Diabetic Retinopathy

Grading

Sara El-Ateif

and Ali Idri

1,2 b

Software Project Management Research Team, ENSIAS, Mohammed V University in Rabat, Morocco

AlKhwarizmi College of Computing, Mohammed VI Polytechnic University, Marrakech-Rhamna, Benguerir, Morocco

Keywords: Diabetic Retinopathy, Fundus, Multiclass, Late Fusion, Efficientnet, Swin Transformer,

Hybrid-EfficientNetB0-SwinTF.

Abstract: Diabetic Retinopathy (DR) is an eye disease with complications, if left untreated grow, split into four grades:

mild, moderate, severe, and proliferative. We propose to (1) compare and evaluate three different recently

used deep learning models: EfficientNet-B5, Swin Transformer, and Hybrid-EfficientNetB0-SwinTF (HES)

on the APTOS 2019 dataset’s fundus and early fused (EF) weighted gaussian blur fundus. (2) Evaluate three

fine-tuning and pre-processing schemes on the best model. And (3) choose the best model-scheme per

modality and perform late fusion on them to get the final DR grade. Results show that our best method, late

fusion HES model, results in F1-socre of 81.21%, accuracy of 81.83%, and AUC of 96.30%. We propose

using late fusion HES model in population-wide diagnosis to assist doctors in Morocco to reduce DR burden.

1 INTRODUCTION

Diabetic Retinopathy (DR) an eye disease caused by

diabetes, as of 2015, has affected 1 over 3 people

according to the Moroccan League for the Fight

against Diabetes. In 2018, the Moroccan Ministry of

Health and Social Protection announced that more

than 2 million citizens aged 18 and over are diabetic,

with 50% unaware of the disease, and an estimation

of 15,000 children affected. To detect such a disease,

doctors perform routine eye screening using Slit-lamp

– a tool that is rarely found in middle-income

countries. Recent advances in technology brought a

respectably accurate and affordable tool called digital

fundus photography (Begum et al., 2021). DR affects

a high number of citizens and it keeps growing as the

number of diabetic patients grows, diagnosing it early

helps avoid blindness and further complications (Teo

et al., 2021). The solution resides in a wide spread

diagnosis which is difficult to perform using

restricted resources. This fact pushed researchers to

investigate the use of artificial intelligence to help

increase and speed up the diagnostic process

(Sebastian et al., 2023). Most frequently used deep

learning (DL) models for DR grading (i.e.,

https://orcid.org/0000-0003-1475-8851

https://orcid.org/0000-1111-2222-3333

classification into no DR, mild, moderate, severe, or

proliferative DR) listed in (Sebastian et al., 2023),

between 2017 and 2022, are: ResNet, VGG,

InceptionV3, DenseNet, and EfficientNet based

models; with EfficientNet being more present in

2022. Using the APTOS 2019 dataset (APTOS)

(APTOS 2019 Blindness Detection | Kaggle, n.d.) of

fundus images for DR grading, (Shahriar Maswood et

al., 2020) train EfficientNet-B5 by optimizing the

Quadratic Weighted Kappa (QWK) score and Mean

Squared Error, and achieve an accuracy of 94.02%.

(Karki & Kulkarni, 2021) train EfficientNet (B1 to

B6) using different image resolutions, select the best

of these variants (i.e., B1, B2, B3, B5), and use a

weighted ensemble of these variants for the final

prediction to achieve a QWK of 0.924377. (Canayaz,

2022) train EfficientNet and DenseNet models for

feature extraction (results in 512 features). Then feed

these extracted features to the wrapper methods to

reduce the number of these features. Finally, the

newly chosen features are fed to the SVM and

Random Forest algorithms for classification. Using

the Kaggle DR dataset, (Lazuardi et al., 2020)

preprocess the fundus images using the Contrast

Limited Adaptive Histogram Equalization (CLAHE)

El-Ateif, S. and Idri, A.

Fundus Unimodal and Late Fusion Multimodal Diabetic Retinopathy Grading.

DOI: 10.5220/0012048700003541

In Proceedings of the 12th International Conference on Data Science, Technology and Applications (DATA 2023), pages 219-226

ISBN: 978-989-758-664-4; ISSN: 2184-285X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

219

and center-cropping steps and combine them with

progressive resizing training process using the

EfficientNet B4 and B5 architectures; and obtain an

accuracy of 83.88%. Recent work leverages the

robustness of vision transformer (ViT) models for DR

grading using different schemes (Gu et al., 2023; Sun

et al., 2021; Yao et al., 2022): (Sun et al., 2021)

propose a novel lesion-aware transformer (LAT)

using an encoder-decoder structure to jointly grade

and discover lesions. The novelty resides in using

weakly supervised lesion localization via the

transformer decoder, and lesion region importance

and diversity to learn specific lesion filters using only

image-level labels. On the Messidror-1 dataset, LAT

scored 96.3% on area under the curve (AUC). (Yao et

al., 2022) develop FunSwin, a Swin Transformer (Liu

et al., 2021) based model, and reduce data imbalance

by introducing data enhancements through rotation,

mirroring, CutMix (Yun et al., 2019) and MixUp

(Zhang et al., 2018). FunSwin scores an accuracy of

84.12% on the Messidor dataset. Gu et al. (Gu et al.,

2023) propose a model composed of two blocks:

feature extraction block (FFB) and a grading

prediction block (GPB). FFB uses the classical ViT

model to extract the features from the fundus images

with its fine-grained attention. The GBP module,

generates class-specific features using spatial

attention. The results on the DDR dataset (Li et al.,

2019) are an accuracy of 82.35%. In practice, to gain

further clarity, DR and fundus eye diseases diagnosis

require the use of other medical imaging modalities:

fluorescein angiography (FA), and Multicolor

imaging (MC). Few research works have been

developed to leverage some of these modalities

(Hervella et al., 2022; Song et al., 2021; Tseng et al.,

2020): (Tseng et al., 2020) propose two fusion

architectures similar to ophthalmologist’s diagnostic

process, late fusion and two-stage early fusion. Using

the lesion and severity classification models, the late

fusion approach combines these two models in

parallel using postprocessing; while the two-stage

early fusion combines them sequentially. These two

approaches are trained on three Taiwanese hospitals

datasets for DR severity grading, evaluated on the

Messidor-2 dataset and scored 84.29% in accuracy.

(Song et al., 2021) perform Multicolor DR detection

(DR, no DR) using the multimodal information

bottleneck network (MMIB-Net). The MMIB-Net

uses the information bottleneck theory to compute the

joint representation of different imaging modalities

collected using the Multicolor imaging tool a

confocal scanning laser ophthalmoscope (cSLO) that

generates 16 images (8 for each eye) composed of

Blue, Green, Infrared Reflectance and Combined-

Pseudo color fundus images. The proposed model

uses ResNet-50 as backbone and scored an accuracy

of 94.30% on private collected data. (Hervella et al.,

2022) perform DR grading using the fundus and FA

modalities, by first pre-training on the unlabeled

multimodal Isfahan dataset using their proposed

Multimodal Image Encoding (MIE) approach. Then,

using the fundus modality from a labeled dataset

(IDRiD and Messidor), the pre-trained model is fine-

tuned for DR grading. Finally, after pre-training and

fine-tuning, the neural network uses the fundus

modality to perform DR severity classification. On

IDRiD, MIE scores an accuracy of 65.05%.

From the studies listed previously, a trend of pre-

processing, use of large or private datasets, and

training of different architectures in parallel (model

ensembles or fusion) emerges. Meanwhile, for

multimodal models and datasets they are scarce and

in most cases the data is private; which could be

related to the high cost needed for collecting such

diversified modalities, storing them and ensuring

patients data privacy. Another new emerging trend

resides in the use of ViT models, due to their

robustness and efficient attention mechanisms. But

the classical ViT architectures require large amounts

of data and computing resources to train; enters Swin

Transformer, a ViT architecture optimized for

relatively small data and less demanding computing

resources. In this work we propose to leverage all of

the previously used powerful elements (i.e.,

preprocessing, relatively small dataset, ViT, and

multimodality) to train and compare the most recently

used EfficientNet architecture with Swin

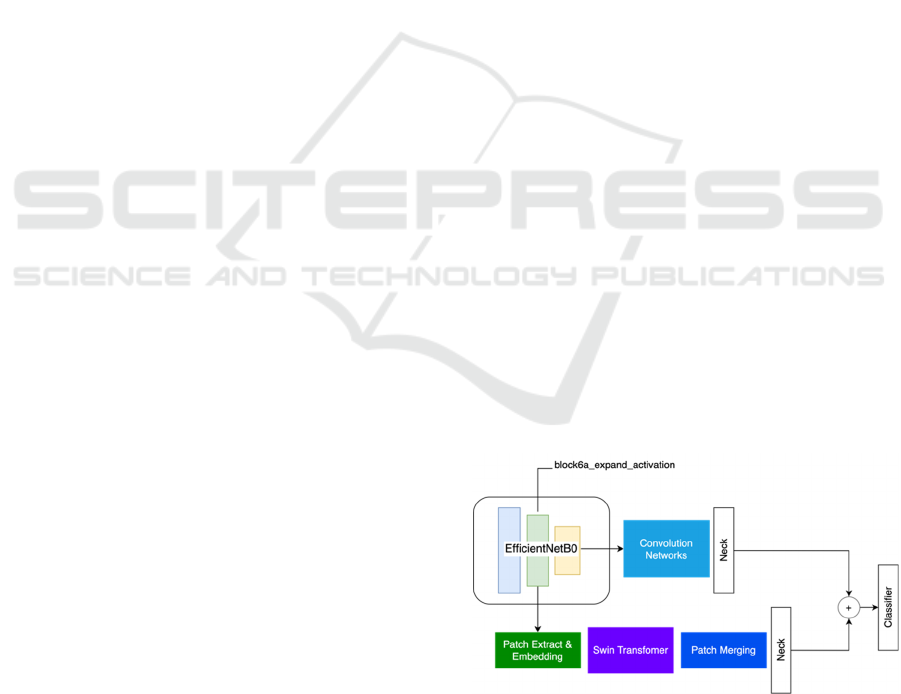

Transformer and their hybrid combination: Hybrid-

EfficentNetB0-SwinTF (Henkel, 2021); using the

fundus, and the fusion of the Weighted Gaussian Blur

Fundus (WGBF) (El-Ateif & Idri, 2022) with the

fundus modality using the Discrete Wavelet

Transformation (Naik & Kunchur, 2020) to obtain the

early fused (EF) Fundus-WGBF modality. We

evaluate the performance of these three models on

this two different modalities using (1) six metrics:

accuracy, sensitivity, specificity, F1-score, and AUC;

along with (2) Scott-Knott Effect Size Difference

(SK-ESD) (Tantithamthavorn et al., 2019) statistical

test to cluster these models and find the best in terms

of F1-score; on (3) the APTOS dataset. Then we

further compare the best performing under different

settings: fine-tuning, and preprocessing. Finally, we

choose the most performant models per modality

(fundus and EF), fine-tune them, and combine them

using the late fusion approach.

In brief, the objective of this study is to evaluate

whether the integration of preprocessing techniques

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

220

with multimodality and image fusion, trained on a

mid-sized dataset, could enhance the overall

performance.

The remainder of this paper is organized as

follows: Section 2 presents the data used and its

preparation process. In section 3, we detail our

approach. Section 4 lists our results and their

discussion. Finally, section 5 concludes the paper and

lays out our future work.

2 DATA PREPARATION

The models are trained and evaluated on the APTOS

2019 Blindness Detection dataset with the publicly

available labels. The dataset contains fundus images

provided by Aravind Eye Hospital in India and is split

into 5 DR grades: (grade 0) No DR counts 1,805,

(grade 1) Mild counts 370, (grade 2) Moderate counts

999, (grade 3) Severe counts 193, and (grade 4)

Proliferative DR counts 295 fundus images. Note that

for the models training we split these reported

numbers into: train (80% of 2930: 2344), validation

(20% of 2930: 586) and test (20%: 732) sets for the

and 2

training phases, as for the 3

phase we use

only the train (80%: 2930) and test (20%: 732) sets;

while replicating the class imbalance by using scikit-

learn stratified k-fold method. Additionally, we resize

the fundus images to 512x512 and remove the black

background to leave the fundus only. Moreover, to

avoid overfitting we perform for the Hybrid-

EfficentNetB0-SwinTF and late fusion models the

following data augmentations: horizontal flip, 0.1

height and width shift range, 20° rotation, 0.1 shear

range, and 0.1 zoom range. Finally, for all the models,

we normalize the data by dividing the pixels by 255

to keep them into the range of 0 to 255.

In the following we detail how we generated the

second modality early fused (EF) Fundus-WGBF

modality and expand on the pre-processing

performed to experiment with performance

enhancement of the best classified models for the

fundus and EF modalities. Figure 1 showcases all of

these processes by DR grade: fundus, its pre-

processing, WGBF, EF and its pre-processing.

2.1 Second Modality

To generate the early fused (EF) Fundus-WGBF

modality we at first generate the Weighted Gaussian

Blur Fundus (WGBF) from the fundus images using

the method followed in (El-Ateif & Idri, 2022): (1)

crop the image to remove the black background, (2)

resize the image to 512x512, and (3) apply the

Graham algorithm (Graham, 2015) that serves to

subtract the local average color and map 50% gray to

this local average so as to enhance the blood vessels

and DR lesions. After that we apply the Discrete

Wavelet Transformation (DWT) algorithm (Naik &

Kunchur, 2020) with the mean method using as input

the fundus and WGBF images of a respective patient

to obtain the early fused (EF) Fundus-WGBF

modality. The DWT helps capture the best aspect

from the fundus (color distribution and fundus

structure) and WGBF modalities (i.e., enhanced

blood vessels and DR lesions), respectively.

2.2 Pre-Processing

In previous work (Canayaz, 2022; Karki & Kulkarni,

2021; Lazuardi et al., 2020; Shahriar Maswood et al.,

2020), pre-processing the fundus images helped

improve significantly the studied models

performance by enhancing the images quality. To test

if the models trained replicate the same results, we

perform the following: For the fundus modality we

apply: (1) median blur (aperture=5), (2) gamma

correction (gamma=1.7), and (3) CLAHE with clip

limit equal to 2.0 and tile gride size of 80 by 80. For

the EF modality, we apply: (1) gamma correction

(gamma=1.5), and (2) CLAHE with clip limit equal

to 2.0 and tile gride size of 60 by 60.

Figure 1: Data samples of fundus, pre-processed fundus,

WGBF, EF, and pre-processed EF by DR grade.

3 EXPERIMENTAL SETUP

We train and evaluate three different models:

EfficientNet-B5 (ENetB5), Swin Transformer (STF),

Fundus Unimodal and Late Fusion Multimodal Diabetic Retinopathy Grading

221

and Hybrid-EfficientNetB0-SwinTF (HES); using the

fundus, and EF modalities. We perform this training

in three phases: Phase 1: We train using 5-fold

stratified cross validation (CV) on the train, and

validation sets EfficientNet-B5, Swin Transformer,

and Hybrid-EfficientNetB0-SwinTF for each of the

fundus and EF, respectively. Then we evaluate and

compare on the 5-fold CV test set; and pick the two

best models, based on the F1-score, figuring in 1

and

cluster of SK-ESD. Phase II: The best models per

modality (i.e., Fundus HES, and EF HES) are then

compared and trained on the 5

fold based on

accuracy following four schemes for each modality:

(1) fine-tuning using weights saved in Phase I (FT0),

(2) fine-tuning using weights from Phase I while

unfreezing the last 20 layers of ENetB0 (FT1), (3)

fine-tuning using weights from Phase I while

unfreezing the last 20 layers of ENetB0 and freezing

STF blocks (FT2), (4) training on pre-processed

fundus and EF data. Phase III: We take the best from

these four schemes (i.e., FT2 Fundus (no pre-

processing train and test) and EF (pre-processed train

and test) HES model) and use the FT2 scheme to train

these two models in parallel and average their

predictions to get the final DR grade, to perform what

is called late or decision level fusion. Hereafter, we

detail the four models’ architectures with their

training and testing processes, the empirical process,

statistical methods and performance metrics used to

evaluate the models.

3.1 Modeling

We use the ImageNet pre-trained EfficientNet-B5

(Tan & Le, 2019) (ENetB5) from the EfficientNet

family. EfficientNet models are convolutional neural

networks with uniform scaling faculties of width,

depth, resolution using compound coefficients. In the

classification layer of this model, we use: Global

Average Pooling 2D, Dropout (0.5), Dense (1024

nodes, and ReLU as activation), and the output layer

composed of a Dense layer with 5 nodes and Softmax

as activation function. We freeze all of its layers apart

from the classification part and train using Adam

optimizer and categorical cross entropy as loss.

ENetB5 uses as input 456x456 images and batch size

of 32.

From the ViT family of models we use Swin

Transformer (Liu et al., 2021) (STF) a hierarchical

ViT using shifted windows scheme to improve self-

attention computation efficiency to non-overlapping

local windows and provide cross-window connection.

The model takes 224x224 in input shape, 4x4 in patch

size, 0.03 in dropout rate, 8 in number of heads, 96 in

embedding dimension, 1024 in number of nodes for

multilayer perceptron (MLP), 7 in window size, 1 in

shift size, 0.1 in label smoothing for the categorical

cross entropy loss, and batch size of 32.

The 3

model we train is Hybrid-EfficientNetB0-

SwinTF (HES) (Henkel, 2021), see Figure 2,

composed of ImageNet pre-trained ENetB0 using the

AdvProp (Xie et al., 2020)–an adversarial training

approach used to prevent overfitting by treating

adversarial examples as additional examples–

weights in its head, STF in its body, and a Dense layer

with 5 nodes and Softmax activation as output. In the

classification head of STF we define: Global Average

Pooling 1D, Alpha Dropout (0.5), and Batch

Normalization. While for ENetB0 we define: Global

Average Pooling 2D, Alpha Dropout (0.5) and use

sparse categorical cross entropy as loss with no label

smoothing. The model takes as input 384x384 sized

images, batch size of 8, patch size of 2x2, dropout of

0.5, 8 in number of heads, embedding dimension of

64, 128 for MLP, 2 in window size, 1 in shift size and

24x24 STF image dimension. We retrieve

‘block6a_expand_activation’ output of the ENetB0

model to reduce the image size of fundus and EF from

384x384 to 24x24 to reduce features size and get a

better representation of DR grades. Both HES and

STF models use AdamW optimizer with 1e-3 in

learning rate, and 0.0001 in weight decay.

For the late fusion model, we use FT2 of HES of

fundus and EF, train them on train and test split (2930

train and 732 test) in parallel and average their

predictions to get the final output. But for EF HES we

use the SGD optimizer (learning rate of 1e-4) instead

of AdamW and train on pre-processed EF with their

respective weights.

All models are trained for 50 epochs, using reduce

learning rate on plateau and early stopping that

monitor the validation loss.

Figure 2: Hybrid-EfficientNetB0-SwinTF (HES) model

architecture.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

222

3.2 Empirical Process

The empirical process followed is split into three

phases:

1) Phase I: Cluster the fundus and EF three

models (ENetB5, STF, HES) using SK-ESD

based on F1-score to select the best model by

modality.

2) Phase II: Train and compare the best models

from (1) following FT0, FT1, FT2, pre-

processing schemes using accuracy as

performance metric.

3) Phase III: Pick the best approach from (2) for

fundus and EF respectively, train them in

parallel, average their predictions and report

sensitivity, specificity, precision, and F1-

score by DR grade and accuracy and weighted

average of one versus rest AUC.

3.3 Statistical Methods and

Performance Metrics

We hope you find the information in this template

useful in the preparation of your submission. In phase

I we trained and evaluated the three models using 5-

fold stratified CV, and clustered the models by

modality using Scott-Knott Effect Size Difference

(SK-ESD) (Tantithamthavorn et al., 2019) statistical

test based on F1-score. In phase II we reported the

accuracy values of the 5

fold. In phase III, we

reported the scores of six metrics for each DR grading

to evaluate the performance of the best models:

accuracy, sensitivity, specificity, precision, F1-score,

and weighted average one versus rest AUC score.

These first five metrics are defined in Eqs.1–5

respectively:

Accuracy =





(1)

Sensitivity = Recall =





(2)

Precision =





(3)

F1 = 2

  

  

(4)

where: TP: true positive. FP: false positive. TN: true

negative, and FN: false negative.

4 RESULTS AND DISCUSSION

In this section we lay out the results of phase I, II, and

III for the three models ENetB5, STF and HES (phase

I), HES fundus and EF trained using different fine-

tuning schemes and pre-processing (phase II), as well

as late fusion HES of best fundus and EF HES (phase

III). Figure 3 lays out the results of SK-ESD

clustering of all three trained models from phase I by

modality based on F1-score (to account for class

imbalance). Table 1 reports accuracy scores and loss

of phase II experiments. Table 2, 3 and 4 record the

results of best results from phase II (Table 2 and 3) of

FT2 HES and phase III (Table 4) late fusion HES

using precision, sensitivity, F1-score, and specificity

by DR grade. Table 5 lays out the comparison

between our best proposed model and state-of-the-art

trained on the APTOS dataset. In the following we

layout these results and discuss what they entail.

4.1 Unimodal Results

Figure 3 shows that the best ranking model according

to SK-ESD is Fund_HES or fundus Hybrid-

EfficentNetB0-SwinTF as it appears in the first

cluster. In second place we find the EF_HES or EF

Hybrid-EfficentNetB0-SwinTF model. Apart from

HES and ENetB5 models where the fundus

outperformed EF, for STF the EF modality

outperformed the fundus one. This result may be

related to the propriety of ViT models that are robust

to changes in images. In conclusion, for phase I, the

best ranking models are fundus HES and EF HES

with an F1-score of 78.62% and 76.53%,

respectively.

For phase II, we train fundus and EF HES models

using different schemes of fine-tuning and pre-

processing of fundus and EF by using saved weights

from phase I HES per modality. From Table 1, the

best approach reported in terms of accuracy and loss

is HES model trained using pre-processed EF with

Stochastic Gradient Descent (SGD) optimizer instead

of AdamW (Loshchilov & Hutter, 2019) and non-pre-

processed fundus with previously set AdamW

optimizer (as we previously trained it after pre-

processing and by changing to SGD optimizer and it

provided worse results) on the train set and evaluated

on the validation and test sets with an accuracy of

92.35% for fundus and 88.39% for EF. The change of

the optimizer helped improve the training process by

improving the research for optimal parameters by

slowly decreasing the learning rate through SGD. As

for EF pre-processing, it improved the DR lesions

detection by smoothing the features and equilibrating

the color distribution. Meanwhile, FT2 approach

helped train the ENetB0 module further for better

feature extraction using convolutions while keeping

the best representation from Swin blocks.

Fundus Unimodal and Late Fusion Multimodal Diabetic Retinopathy Grading

223

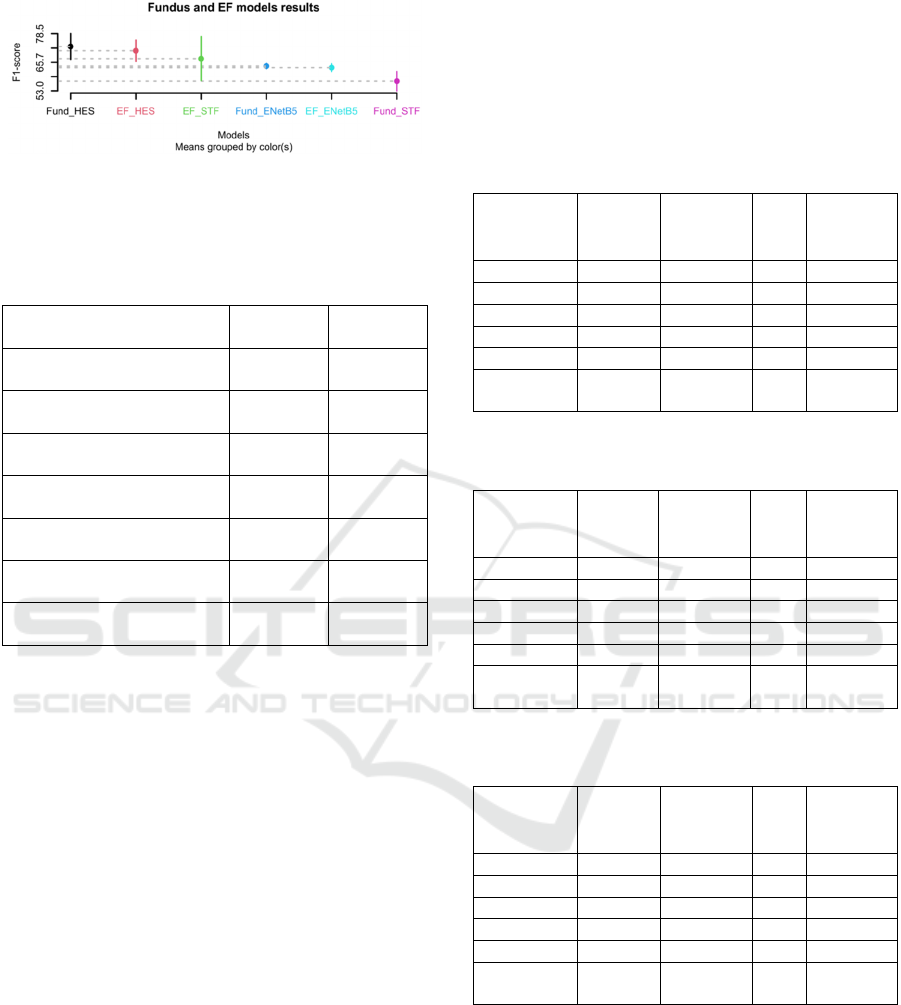

Figure 3: Fundus and EF SK-ESD F1-score results, with

Fund referring to the fundus modality and EF referring to

the early fused Fundus-WGBF DWT modality.

Table 1: Accuracy in % (loss) results for HES model on

fundus and EF modalities, respectively.

*PrepEF stands for pre-processed EF and SGD references to

using SGD optimizer.

4.2 Late Fusion Results

In phase III, we retrained the fundus HES (weighted

F1-score = 76%) and EF HES (weighted F1-score =

77%) on the train and test sets (the validation set was

added to the train set) on the 5

fold so as to get the

respective weights to train the late fusion model. The

late fusion HES model consists of training in parallel

HES fundus (with AdamW) and HES pre-processed

EF (with SGD) using these new weights and

following the FT2 scheme. Finally recuperating the

predictions from FT2-HES-Fundus and FT2-HES-

PrepEF and averaging them to get the final DR

grading. As exposed in Table 2, 3 and 4, the F1-score

of late fusion HES equal to 81.21%

(accuracy=81.83%, AUC=96.30%) is better than the

average F1-score of phase I (on Train: Test) fundus

and EF HES equal to 76.50% (accuracy=76.03%,

AUC=94.55%) and average F1-score of phase II-FT2

fundus and PrepEF equal to 60.96% (accuracy =

80,46%, AUC=89,81%). Table 2 and 3 show that

each model II-FT2 HES of fundus and EF modalities

compensated for the weaknesses of the other model

through the late fusion approach. Although, the scores

for the mild, severe, and proliferative are still below

70%; but based on the number of samples available

for these classes (74/732, 39/732, 59/732,

respectively) the provided results are promising.

Table 2: Metrics results of FT2 fundus HES model per DR

grade.

Table 3: Metrics results of FT2 pre-processed EF HES

model per DR grade.

Table 4: Metrics results of late fusion HES model per DR

grade.

4.3 Comparison with State-of-the-Art

In terms of accuracy compared to state-of-the-art

model (Canayaz, 2022) that used nature-inspired

wrappers with EfficientNet and scored an accuracy of

96.32%, our best model late fusion HES accuracy is

less than ~14.49% on the APTOS dataset. The

difference in performance could be due to the

interesting method presented by (Canayaz, 2022)

along with the different pre-processing approach

Phase Fundus

HES (%)

EF HES

(%)

II-Pre-processing on Train:

Val: Test

72.40

(

2.06

)

73.50

(

2.16

)

II-FT0 on Train: Val: Test

73.50

(

2.55

)

86.75

(

1.14

)

II-FT1 on Train: Val: Test

89.10

(1.05)

87.84

(0.93)

II-FT2 on Train: Val: Test

92.35

(0.46)

86.75

(0.87)

II-FT2 (PrepEF with SGD*)

on Train: Val: Test

92.35

(

0.46

)

88.39

(

0.69

)

I on Train: Test

76.23

(1.88)

75.82

(1.75)

II-FT2 (PrepEF with SGD*)

on Train: Test

81.83

(1.53)

79.09

(0.77)

DR grade

Precision

(%)

Specificity

(%)

F1-

score

(%)

Sensitivity

(%)

No DR 97.52 97.57 97.79 98.06

Mil

43.09 89.36 53.81 71.62

Moderate 77.14 94.00 63.72 54.27

Severe 27.78 92.50 36.04 51.28

Proliferative 67.65 98.37 49.46 38.98

Weighted

average

80.35 95.56 76.90 76.23

DR grade

Precision

(%)

Specificity

(%)

F1-

score

(%)

Sensitivity

(%)

No DR 64.45 46.63 78.21 99.45

Mil

17.21 84.65 21.43 28.39

Moderate 100.00 100.00 04.90 02.51

Severe 25.00 96.97 20.90 17.95

Proliferative 45.00 98.37 22.78 15.25

Weighted

average

65.67 71.83 45.02 54.78

DR grade

Precision

(%)

Specificity

(%)

F1-

score

(%)

Sensitivity

(%)

No DR 96.75 96.77 97.80 98.90

Mil

51.37 91.94 61.20 75.68

Moderate 77.35 92.31 73.68 70.35

Severe 52.94 98.85 32.14 23.10

Proliferative 64.29 97.03 62.61 61.02

Weighted

average

81.94 95.20 81.21 81.70

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

224

undertaken (i.e., masks created according to a

tolerance value). As for the second-best model

(Shahriar Maswood et al., 2020), that train to

optimize the QWK score and Mean Squared Error, it

outperformed our model by 11.50%. From these

results we conclude that leveraging preprocessing,

multimodality, and image fusion does not result into

model performance improvement as would be

expected. But, as transformer models are more robust

in comparison with convolution models, further

development and validation on real world datasets is

still needed for further conclusions.

Table 5: State-of-the art comparison with best resulting

model using the APTOS dataset.

5 CONCLUSION AND FUTURE

WORK

In this work we proposed to train and compare three

different models: EfficientNetB5, Swin Transformer,

and Hybrid-EfficientNetB0-SwinTF according to

three phases and using different schemes (fine-tuning

and pre-processing) for the fundus and early fused

fundus with its preprocessing. The best models from

fundus and early fused modality were trained in

parallel and their predictions were averaged to predict

the final DR grade as a late fusion process. Although

the results were promising with an accuracy of

81.83%, compared to state-of-the-art (Canayaz,

2022) (accuracy=96.32%), our late fusion model still

needs fine-tuning. In future work, we aim to improve:

the data quality by introducing a more diverse and

grades enriched dataset from different hospitals, the

pre-processing process by proposing a dynamic

approach (changes depending on image quality), and

optimization of the late fusion approach by reducing

the numbers of parameters; and perform further

validations on local datasets.

ACKNOWLEDGEMENTS

The authors would like to express their gratitude for

the support provided by Google Ph.D. Fellowship.

REFERENCES

APTOS 2019 Blindness Detection | Kaggle. (n.d.).

Retrieved November 1, 2021, from https://

www.kaggle.com/c/aptos2019-blindness-

detection/overview/description

Begum, T., Rahman, A., Nomani, D., Mamun, A., Adams,

A., Islam, S., Khair, Z., Khair, Z., & Anwar, I. (2021).

Diagnostic accuracy of detecting diabetic retinopathy

by using digital fundus photographs in the peripheral

health facilities of Bangladesh: Validation study. JMIR

Public Health and Surveillance, 7(3). https://

doi.org/10.2196/23538

Canayaz, M. (2022). Classification of diabetic retinopathy

with feature selection over deep features using nature-

inspired wrapper methods. Applied Soft Computing,

128, 109462. https://doi.org/10.1016/j.asoc.2022.

109462

El-Ateif, S., & Idri, A. (2022). Single-modality and joint

fusion deep learning for diabetic retinopathy diagnosis.

Scientific African, 17, e01280. https://doi.org/10.

1016/j.sciaf.2022.e01280

Graham, B. (2015). Kaggle Diabetic Retinopathy Detection

competition report. 1–9.

Gu, Z., Li, Y., Wang, Z., Kan, J., Shu, J., & Wang, Q.

(2023). Classification of Diabetic Retinopathy Severity

in Fundus Images Using the Vision Transformer and

Residual Attention. Computational Intelligence and

Neuroscience, 2023, 1–12. https://doi.org/10.1155/

2023/1305583

Henkel, C. (2021). Efficient large-scale image retrieval

with deep feature orthogonality and Hybrid-Swin-

Transformers. 1–5. http://arxiv.org/abs/2110.03786

Hervella, Á. S., Rouco, J., Novo, J., & Ortega, M. (2022).

Multimodal image encoding pre-training for diabetic

retinopathy grading. Computers in Biology

and Medicine, 143. https://doi.org/10.1016/j.

compbiomed.2022.105302

Karki, S. S., & Kulkarni, P. (2021). Diabetic retinopathy

classification using a combination of EfficientNets.

2021 International Conference on Emerging Smart

Computing and Informatics, ESCI 2021, Figure 2, 68–

72. https://doi.org/10.1109/ESCI50559.2021.9397035

Lazuardi, R. N., Abiwinanda, N., Suryawan, T. H., Hanif,

M., & Handayani, A. (2020). Automatic diabetic

retinopathy classification with efficientnet. IEEE

Region 10 Annual International Conference,

Proceedings/TENCON, 2020-Novem, 756–760.

https://doi.org/10.1109/TENCON50793.2020.9293941

Li, T., Gao, Y., Wang, K., Guo, S., Liu, H., & Kang, H.

(2019). Diagnostic assessment of deep learning

algorithms for diabetic retinopathy screening.

Information Sciences, 501, 511–522. https://doi.org/10.

1016/j.ins.2019.06.011

Liu, Z., Lin, Y., Cao, Y., Hu, H., Wei, Y., Zhang, Z., Lin,

S., & Guo, B. (2021). Swin Transformer: Hierarchical

Vision Transformer using Shifted Windows.

Proceedings of the IEEE International Conference on

Computer Vision

, 9992–10002. https://doi.org/10.

1109/ICCV48922.2021.00986

Model

Modality Accuracy

(%)

(Canayaz, 2022) Fundus 96.32

(Shahriar Maswood et al.,

2020)

Fundus 93.33

Late Fusion HES (proposed) PrepEF 81.83

Fundus Unimodal and Late Fusion Multimodal Diabetic Retinopathy Grading

225

Loshchilov, I., & Hutter, F. (2019). Decoupled weight

decay regularization. 7th International Conference on

Learning Representations, ICLR 2019.

Naik, R. B., & Kunchur, P. N. (2020). Image Fusion Based

on Wavelet Transformation. International Journal of

Engineering and Advanced Technology, 9(5), 473–477.

https://doi.org/10.35940/ijeat.D9161.069520

Sebastian, A., Elharrouss, O., Al-Maadeed, S., &

Almaadeed, N. (2023). A Survey on Deep-Learning-

Based Diabetic Retinopathy Classification.

Diagnostics, 13(3), 345. https://doi.org/10.3390/

diagnostics13030345

Shahriar Maswood, M. M., Hussain, T., Khan, M. B., Islam,

M. T., & Alharbi, A. G. (2020). CNN Based Detection

of the Severity of Diabetic Retinopathy from the

Fundus Photography using EfficientNet-B5. 11th

Annual IEEE Information Technology, Electronics and

Mobile Communication Conference, IEMCON 2020,

147–150. https://doi.org/10.1109/IEMCON51383.202

0.9284944

Song, J., Zheng, Y., Wang, J., Zakir Ullah, M., & Jiao, W.

(2021). Multicolor image classification using the

multimodal information bottleneck network (MMIB-

Net) for detecting diabetic retinopathy. Optics Express,

29(14), 22732. https://doi.org/10.1364/oe.430508

Sun, R., Li, Y., Zhang, T., Mao, Z., Wu, F., & Zhang, Y.

(2021). Lesion-Aware Transformers for Diabetic

Retinopathy Grading. Proceedings of the IEEE

Computer Society Conference on Computer Vision and

Pattern Recognition, 10933–10942. https://doi.org/

10.1109/CVPR46437.2021.01079

Tan, M., & Le, Q. V. (2019). EfficientNet: Rethinking

Model Scaling for Convolutional Neural Networks.

36th International Conference on Machine Learning,

ICML 2019, 2019-June, 10691–10700. http://arxiv.

org/abs/1905.11946

Tantithamthavorn, C., McIntosh, S., Hassan, A. E., &

Matsumoto, K. (2019). The Impact of Automated

Parameter Optimization on Defect Prediction Models.

IEEE Transactions on Software Engineering, 45(7),

683–711. https://doi.org/10.1109/TSE.2018.2794977

Teo, Z. L., Tham, Y.-C., Yu, M., Chee, M. L., Rim, T. H.,

Cheung, N., Bikbov, M. M., Wang, Y. X., Tang, Y., Lu,

Y., Wong, I. Y., Ting, D. S. W., Tan, G. S. W., Jonas,

J. B., Sabanayagam, C., Wong, T. Y., & Cheng, C.-Y.

(2021). Global Prevalence of Diabetic Retinopathy and

Projection of Burden through 2045. Ophthalmology,

128(11), 1580–1591. https://doi.org/10.1016/j.ophtha.

2021.04.027

Tseng, V. S., Chen, C.-L., Liang, C.-M., Tai, M.-C., Liu, J.-

T., Wu, P.-Y., Deng, M.-S., Lee, Y.-W., Huang, T.-Y.,

& Chen, Y.-H. (2020). Leveraging Multimodal Deep

Learning Architecture with Retina Lesion Information

to Detect Diabetic Retinopathy. Translational Vision

Science & Technology, 9(2), 41. https://doi.org/10.

1167/tvst.9.2.41

Xie, C., Tan, M., Gong, B., Wang, J., Yuille, A. L., & Le,

Q. V. (2020). Adversarial examples improve image

recognition.

Proceedings of the IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition, 816–825. https://doi.org/10.1109/CVPR

42600.2020.00090

Yao, Z., Yuan, Y., Shi, Z., Mao, W., Zhu, G., Zhang, G., &

Wang, Z. (2022). FunSwin: A deep learning method to

analysis diabetic retinopathy grade and macular edema

risk based on fundus images. Frontiers in Physiology,

13(July), 1–9. https://doi.org/10.3389/fphys.2022.

961386

Yun, S., Han, D., Chun, S., Oh, S. J., Choe, J., & Yoo, Y.

(2019). CutMix: Regularization strategy to train strong

classifiers with localizable features. Proceedings of the

IEEE International Conference on Computer Vision,

2019-Octob, 6022–6031. https://doi.org/10.1109/ICCV

.2019.00612

Zhang, H., Cisse, M., Dauphin, Y. N., & Lopez-Paz, D.

(2018). MixUp: Beyond empirical risk minimization.

6th International Conference on Learning

Representations, ICLR 2018 - Conference Track

Proceedings, 1–13.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

226
