K-Anonymous Privacy Preserving Manifold Learning

Sonakshi Garg

and Vicenc¸ Torra

Ume

a University, Ume

a, Sweden

Keywords:

K-Anonymity, MDAV, Manifold Learning, Geodesic Distance.

Abstract:

In this modern world of digitalization, abundant amount of data is being generated. This often leads to data of

high dimension, making data points far-away from each other. Such data may contain conﬁdential information

and must be protected from disclosure. Preserving privacy of this high-dimensional data is still a challeng-

ing problem. This paper aims to provide a privacy preserving model to anonymize high-dimensional data

maintaining the manifold structure of the data. Manifold Learning hypothesize that real-world data lie on a

low-dimensional manifold embedded in a higher-dimensional space. This paper proposes a novel approach

that uses geodesic distance in manifold learning methods such as ISOMAP and LLE to preserve the manifold

structure on low-dimensional embedding. Later on, anonymization of such sensitive data is achieved by M-

MDAV, the manifold version of MDAV using geodesic distance. MDAV is a micro-aggregation privacy model.

Finally, to evaluate the efﬁciency of the proposed approach machine learning classiﬁcation is performed on

the anonymized lower-embedding. To emphasize the importance of geodesic-manifold learning, we compared

our approach with a baseline method in which we try to anonymise high-dimensional data directly without re-

ducing it onto a lower-dimensional space. We evaluate the proposed approach over natural and synthetic data

such as tabular, image and textual data sets, and then empirically evaluate the performance of the proposed

approach using different evaluation metrics viz. accuracy, precision, recall and K-Stress. We show that our

proposed approach is providing accuracy up to 99% and thus, provides a novel contribution of analysing the

effects of K-anonymity in manifold learning.

1 INTRODUCTION

The amount of data produced every day is exponen-

tially increasing. Machine learning algorithms are

evolving day-by-day to provide useful information

from this data. With the generation of big data, there

also exist enormous high-dimensional data in which

the number of instances and attributes are relatively

very large, such that data-points become very far from

each other. This introduces signiﬁcant challenges in

descriptive and exploratory data analysis. The high-

dimensional data in today’s world exist in many dif-

ferent forms: ranging from tabular data with higher

number of rows and columns, to image data, textual

data etc. When the data has two or three dimensions,

graphical plots helps in visualizing the local geome-

try of the data. But corresponding high-dimensional

graphs are less intuitive. Thus, to help the visualiza-

tion structure of such data, dimensions of the data

must be minimised. We are cursed by dimensional-

https://orcid.org/0000-0002-7204-8228

https://orcid.org/0000-0002-0368-8037

ity of the data. As the dimensionality increases, a

larger percentage of the training data resides in the

corners of the feature space (Spruyt, 2014). To con-

quer this problem of curse of dimensionality, dimen-

sion reduction can be helpful as it creates a reduced

set of linear or nonlinear transformations of the in-

put feature space. It also speeds up the computation

power by consuming less memory. The data in lower-

embedding space would require less trainable param-

eters, which leads to less chances of over ﬁtting and

thus a more generalised model can be obtained.

Manifold Learning (Tenenbaum et al., 2000)

states that any real-world high-dimensional data set

lie on a low-dimensional manifold embedded in a

higher-dimensional space. Manifold learning meth-

ods are being commonly applied in various applica-

tions including ﬁnancial markets (Huang et al., 2017)

and medical images (Seo et al., 2019) (Kadoury,

2018) to visualize high-dimensional data. However,

the main focus of these techniques is on preserving

the inherent structure of the data.

Consequently, when dimensionality of a feature

space moves towards inﬁnity, distance measures (e.g.

Garg, S. and Torra, V.

K-Anonymous Privacy Preserving Manifold Learning.

DOI: 10.5220/0012053400003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 37-48

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Euclidean distance, Manhattan distance, Mahalanobis

distance etc.) lose their effectiveness to measure simi-

larity in high-dimensional spaces. Euclidean distance

only considers numerical distance between two points

and calculates its shortest linear path. This distance

does not take into account where the actual data lies

because it contains no information about the shape of

the data. Manhattan and Mahalanobis distance have

similar properties. In contrast, Geodesics generalize

of the concept of distance for curved surfaces. The

geodesic distance considers neighbouring points and

ﬁnds actual graph-distance between them. It mea-

sures the shortest path length passing over the entire

data set.

Deﬁnition 1.1 (Geodesic Distance). Let M denote a

d-dimensional manifold. Consider two points m

, m

∈M and a smooth path γ :[0, 1]→M such that γ (0)

= m

and γ (1) = m

. The derivative γ

′

(t)depicts the

velocity of γ since it passes through the point γ(t).

The length of the curve L(γ)is deﬁned as :

L(γ)=



γ

′

(t), γ

′

(t)

1/2

γ(t)

The distance between points m

and m

, i.e.,

ρ(m

, m

) is inﬁmum over all possible paths con-

necting the two points m

and m

. If this dis-

tance is achieved by a particular path γ, we say that

ρ(m

, m

)=γ is the geodesic distance between two

points on a manifold.

In Figure 1(a) Euclidean distance between points

A and B is calculated linearly in which the path rep-

resented by the Euclidean distance moves away from

the data points. But geodesic distance between A and

B is computed by joining all adjacent points in the

data set, preserving the inherent structure of the data,

as depicted in Figure 1(b). This situation may arise

more often in high-dimensional data when the data

points will be far-away from each other and not all re-

gions of the space are uniformly dense. Therefore, to

preserve the local geometry of the data, our approach

uses geodesic distance instead of Euclidean distance.

In recent years, the availability of personal data

has become an important concern with respect to

privacy-preserving data mining. We are intended

in producing valid data mining results without dis-

closing the underlying private information. Data

anonymisation is one of the privacy models, fun-

damentally used for Statistical Disclosure Control

(SDC) (Cox, 1980) that aims to minimise the iden-

tity disclosure. This aids the data controllers to re-

lease and process the public data without violating

the General Data Protection Regulation (GDPR) poli-

cies. A number of techniques have been proposed in

order to achieve data anonymisation with respect to

(a) Euclidean distance.

(b) Geodesic Distance.

Figure 1: Euclidean vs Geodesic Distance.

multidimensional records (Aggarwal, 2005). How-

ever, it is still a challenging task, as obtaining highly

accurate results requires looking at original values.

When dimensionality of data is high, it becomes even

more challenging to preserve privacy of records while

maintaining the local geometry of data. (Wang

et al., 2020) proposed privacy preserving solutions

for high-dimensional data, but it resulted in huge in-

formation loss. Therefore, our work aims to bridge

this gap and provide privacy preserving framework to

anonymize high-dimensional data so that high utility

is preserved.

This paper proposes a privacy preserving model to

anonymize high-dimensional data while maintaining

its manifold structure. Thus, we propose three differ-

ent approaches viz, M-MDAV, M-ISOMDAV and M-

LLEMDAV to transform high-dimensional space to

its low-dimensional embedding while preserving the

privacy. Algorithm 1 anonymises high-dimensional

data directly using M-MDAV. In contrast, Algorithms

2 and 3 use a modiﬁed version of manifold learning

techniques such as: ISOMAP and LLE, and later on

anonymize the obtained lower embedding using M-

MDAV micro aggregation method. This is performed

to study the effects of K-anonymity privacy model on

manifold learning, to provide a comparative analysis

and to emphasize the importance of manifold learn-

ing. As we will see below, the direct anonymization

of high-dimensional data does not lead to good per-

formance of machine learning algorithms. Because

of that, it is relevant to study approaches that are ap-

propriate for manifold learning structures. This is a

problem that is not considered in the literature, that

SECRYPT 2023 - 20th International Conference on Security and Cryptography

we tackle here. Thus, we propose a hypothesis that

data points should really be in high-dimensions and

possess a manifold-like structure in order to analyse

the effects of our proposed approaches.

Every type of data requires different pre-

processing and a unique approach to handle it in or-

der to generate lower-dimensional embedding. There-

fore, to validate the performance of our approach, we

have worked on broad areas of applications and used

few benchmark data sets involving tabular, textual and

medical image data sets with instances ranging from

800 ∼48000 and number of attributes ranging from

14 ∼20000. To evaluate the utility of the proposed

approaches, we used various machine learning classi-

ﬁcation models such as: SVM, Naive Bayes, Decision

Tree, Random Forest, Gradient Boosting, XGB and,

KNN, and we used the best resulting model for test-

ing purposes. Further, we used k-fold cross validation

to validate the performance of the models. To esti-

mate the performance of our approach, we compute

accuracy, precision, recall and K-Stress values.

To examine the privacy analysis of this pa-

per, we found that K-Anonymity is safe from re-

identiﬁcation and avoids identity disclosure risks.

Whereas, differential-privacy requires the selection of

a machine learning model before perturbing, to build

an appropriate protection method. Thus, this paper

provides novel contribution in investigating the ef-

fects of K-Anonymity on a high-dimensional data that

possess manifold structure.

The main contributions of the paper are as follows.

1. A novel K-Anonymity based privacy-preserving

model to anonymize high-dimensional data con-

sidering the manifold structure of data.

2. A novel M-MDAV privacy method that is a gener-

alised version of MDAV. It can be applied in any

real-world data to protect the data records, and at

the same time preserve the data’s inherent struc-

ture.

3. A study on the importance of geodesic dis-

tance in manifold learning approaches such as M-

ISOMAP and M-LLEMDAV using natural and

synthetic datasets including tabular, image and

textual data.

4. An analysis of trade-off between privacy and

utility of the samples is provided, in terms of

anonymising the records while preserving the

neighbourhood of samples during transforma-

tions.

5. An analysis on the importance of preserving the

manifold structures in anonymization process, as

direct anonymization of high-dimensional data

leads to poor machine learning performance.

6. We show that the proposed approach provides

99% accuracy in machine learning classiﬁcation

tasks.

The remaining part of the paper is organized in the

following manner. Section 2 describes about the def-

initions of the concepts which are being used in this

paper. Section 3 presents step-by-step explanations of

the proposed approach. Section 4 discusses about the

data sets involved, empirical results and some discus-

sion about them. Finally conclusion and future works

are presented in Section 5.

2 PRELIMINARIES

This section provides a brief overview of the neces-

sary concepts that are involved in this paper.

2.1 Manifold Learning

In mathematics, a manifold is a topological space

which locally resembles the Euclidean space. Thus,

each record in a n-dimensional manifold has a neigh-

bourhood that is homeomorphic to the Euclidean

space of dimension n. Manifold learning assumes that

sample points lie on a low-dimensional manifold M

embedded in a high-dimensional ambient space. The

aim of manifold learning is to map sample points from

M to a low-dimensional space that preserves its local

geometry.

Deﬁnition 2.1. Manifold learning considers a ﬁ-

nite set of data points x

, ...x

∈R

that exists in

a D-dimensional space, and optimize to ﬁnd low-

dimensional points y

, ...y

∈R

when d ≪D such that

Euclidean relationship between (y

, y

)reﬂects the in-

trinsic non-linear relationships between (x

, x

There are some widely used nonlinear mani-

fold learning approaches including ISOMAP, Lo-

cally Linear Embedding (LLE), Laplacian Eigenmaps

(LE), t-stochastic Neighbour Embedding(t-SNE), Lo-

cal Tangent Space Analysis (LTSA), Diffusion Map,

and Uniform Manifold Approximation and Projection

(UMAP) etc. These techniques help in generating

lower- dimensional embeddings of the data while pre-

serving the manifold structure of the data.

Linear Manifold learning techniques assume that

the high-dimensional data lies on a linear subspace

and as a result linear manifold learning techniques

can be successfully applied to linear data. There ex-

ists state-of the art approaches for determining the

lower-embedding space such as: Principal Compo-

nent Analysis (Hotelling, 1933), Multi-Dimensional

Scaling (Kruskal, 1964), and Linear-Discriminant

K-Anonymous Privacy Preserving Manifold Learning

Analysis (Fisher, 1936). They help in preserving the

linear relationship of the data set. However, when

the high-dimensional data lies on a non-linear space,

these methods can not capture the inherent structure

of the data, thus unable to preserve the pairwise-

distance between data points in lower-embedding of

the high-dimensional space. Therefore, non-linear

manifold learning techniques seek to preserve the

non-linear manifolds in high-dimensional space.

2.2 ISOMAP

Isometric Mapping is a non-linear dimensionality re-

duction approach, that projects the data onto a lower-

dimensional space (Tenenbaum et al., 2000). It uses

the concept of geodesic distance to ﬁnd the distance

between two points, rather than using the Euclidean

distance. The Euclidean distance computes only the

distance between two points, completely ignoring the

shape of the dataset. In contrast, the geodesic distance

generalises the concept of distance for smooth curved

surfaces, and calculates the shortest path distance be-

tween two points considering the adjacent data points.

It can be computed by the construction of an adja-

cency graph, and then approximate geodesic distance

by any shortest path algorithm through the graph. The

main steps of the ISOMAP method are described as

follows.

• Construct a neighbourhood Graph over high-

dimensional space to ﬁnd the N-nearest-

neighbours of each data point. This can be

performed in two ways.

– K-nearest neighbour

– Selecting neighbours that lie within a ﬁxed ra-

dius (epsilon-ball)

• Compute geodesic distance between all data

points in a fully-connected neighbourhood graph

using any shortest-path algorithm. E.g. Dijkstra’s

algorithm and Floyd Warshall algorithm. The re-

sulting matrix will also be D(N×N) matrix.

• Construct centering matrix H =I

−1Ne

where N: size of matrix, I: an identity matrix,

=[1....1]

∈R

• Construct the Kernel matrix K =−12HD

• Perform eigenvalue-decomposition on K to obtain

the embedded top d-dimensional data points.

The intuition behind working with ISOMAP is, un-

like other linear techniques, ISOMAP can compute

the non-linear degrees of freedom that underlie com-

plex actual observations. It is also able to obtain a

global optimal solution, and is guaranteed to converge

asymptotically to the actual structure.

2.3 Locally Linear Embedding (LLE)

LLE is a non-linear dimensionality reduction method

which favors the preservation of local data structures

because it requires that every data point and its neigh-

bours lie on a linear manifold (Roweis and Saul,

2000). It reconstructs each point as a linear combi-

nation of its nearest neighbours, typically using Eu-

clidean distance. Later on, it embeds these points

onto a lower-dimensional space while preserving the

neighbourhood. LLE falls in a general category of

local linear transformation and should be able to per-

form well for open planar manifolds, with a smooth

surface curve. The main steps of the LLE method are

explained as follows.

• Find nearest neighbours of data points using Eu-

clidean distance.

• Calculate the reconstruction error by minimising

the cost function and obtain W such that:

minW =



i=1

X

−



j=1

i j



where X=(n×D) i.e., data points in high-

dimensions. Every point X

i j

is a linear combina-

tion of its neighbours and weights W

i j

are com-

puted such that X

is close to

∑

j=1

i j

• Map the data points on low-dimensional space

while preserving the weights and obtain Y such

that:

minY =



i=1

Y

−



j=1

i j



weights W

i j

between each points gets preserved

and low-dimensional embedding Y of dimension

(n×d) where d ≪D is obtained.

• Finally, low-dimensional embedding of data set is

obtained.

2.4 K-Anonymity

K-Anonymity is a privacy model that limits the risk

of re-identiﬁcation by ensuring the property that

each record is indistinguishable from at least another

k-1 records, that share identical values for quasi-

identiﬁers (QIDs). These are known as equivalence

groups/classes (Samarati and Sweeney, 1998) (Sama-

rati, 2001). It is generally known as power of hiding

in the crowd. K-Anonymization in a given way min-

imises the sum of the squared error (SSE) by solv-

ing an objective function having number of parame-

ters more than two. This makes the problem to be

NP-Hard. Thus, some heuristic methods are used. K-

Anonymity can be implemented using generalization

SECRYPT 2023 - 20th International Conference on Security and Cryptography

(publishing more general values of the samples), sup-

pression (removal of some samples) and micro aggre-

gation.

Micro aggregation creates some micro-clusters

from the entire data set and then replaces the original

data set in each cluster by their cluster representatives.

In this manner privacy is achieved because now the

perturbed data, the cluster representative, is not a sin-

gle record anymore, instead it is representation of the

entire cluster. Each cluster should have a minimum

number of records to assure privacy, which is equal

to k to satisfy k-anonymity. k is a parameter which

determines ”how much” the information is protected,

intuitively, the higher the value of k, the more is the

protection of information. It decreases the probabil-

ity of a successful record linkage by generating large

equivalence classes.

(De Capitani di Vimercati et al., 2023) illustrates

k-anonymity and its main extensions in different ap-

plications. In this paper, we have developed a man-

ifold version of Maximum Distance to Average Vec-

tor(MDAV) algorithm (Domingo-Ferrer and Mateo-

Sanz, 2002) for k-anonymisation based on micro ag-

gregation. It constructs homogeneous clusters from

the data set while minimizing the sum of squared er-

rors (SSE) i.e., the distance between each record and

its centroid.

SSE =



j=1



i=1

i j

−¯x

)

Differential Privacy (Dwork, 2006) is another

mechanism for privacy protection in machine learn-

ing. It aims to obfuscate the presence or absence of

a particular record in a given dataset, by limiting its

effect on the ﬁnal result. However in real-world ap-

plications, data analysis and model construction are

just one of the steps of a complex process. One needs

to perform exploratory data analysis and test the data

on several models before selecting an optimal ma-

chine learning model and apply privacy-preserving

solutions to it (Torra, 2022), (Domingo-Ferrer et al.,

2021).

There are some recent works which includes dif-

ferential privacy on manifold learning (Vepakomma

et al., 2021) and on riemannian manifolds (Reimherr

et al., 2021). But according to our knowledge, there

are no studies that uses K-anonymity privacy model

on the manifolds. Thus this paper provides a novel

contribution.

3 METHODOLOGY

This section provides a description of our three dif-

ferent approaches that are developed in this pa-

per to achieve a privacy preserving model that

anonymize high-dimensional data considering the

manifold structure. Nobody investigated this ﬁeld of

analysing the effects of K-Anonymity privacy model

on manifold learning. So, we studied this by propos-

ing three different approaches. Each approach is de-

scribed in a different algorithm.

Algorithm 1 is the M-MDAV approach, that di-

rectly tries to anonymize high-dimensional data us-

ing geodesic-MDAV. Algorithm 2 is M-ISOMDAV,

which uses ISOMAP for preserving the manifold

structure and then uses M-MDAV for anonymiza-

tion. Algorithm 3 is M-LLEMDAV method. It uses

geodesic-LLE and M-MDAV. We have developed

three different approaches, since the Algorithm 1 is a

manifold version of MDAV that directly anonymises

high dimensional data. While the later algorithms use

different manifold learning techniques to preserve the

inherent structure of data and then anonymize using

M-MDAV. A comparative analysis is also conducted

between these three algorithms which is described in

the later sections of the paper.

The intuition behind developing three different ap-

proaches is to analyse the effect of privacy model

on manifold learning techniques. To do so, ﬁrstly

we need a metric that preserves the information of

the high-dimensional space. The information should

be preserved and not lost while transforming to low-

dimensional space, as manifold learning computes

distance between points in high-dimensional space

and then aims to preserve these distances while trans-

forming to its low-dimensional embedding.

This is achieved by utilising geodesic distance as a

metric in manifold learning approaches. Once, the in-

formation is transformed in a low-dimensional space,

M-MDAV a newly developed manifold version of K-

anonymity model is used to protect the information

from intruders. We have considered two different

manifold learning techniques for the good properties

they have, and provided a comparative analysis be-

tween them.

Algorithm-1 M-MDAV is a manifold version of

state of the art MDAV. Initially, pairwise-geodesic

distance between each data points are computed as

deﬁned in 1. Then, median of all data points is ob-

tained by minimising the geodesic distance between

the data points, as mentioned in the objective func-

tion of the algorithm 3. After that, clusters are formed

around the data points that are furthest from the me-

dian. This process is repeated until all points get clus-

tered. Finally, the clustered data points are replaced

by the median of that cluster. The Algotihm-2 M-

ISOMDAV is a manifold combination of two different

approaches i.e., ISOMAP manifold learning and

K-Anonymous Privacy Preserving Manifold Learning

Algorithm 1: M-MDAV.

Require: Y: original data set and k: integer

Ensure: Y

′

: protected data set

1: while Y ≠0 do

2: if Y ≥3k then

3: Identify median of all the records denoted by

median

such that :

median

=argmin

y∈Y



i=1

d(y, y

)

where d is the geodesic distance.

4: Find the furthest record from centroid

median

called as y

, and furthest record from

, called as y

. This is also computed using

geodesic distance.

5: Create Cluster C

around y

which consists

of y

and k-1 records closest to it. Cluster C

which includes y

and k-1 closets records. k

is micro-aggregation parameters which de-

notes the number of times each combination

of values appears in a dataset.

6: The dataset gets updated Y =Y −(C

, C

)

7: The clusters get updated as well: C =C ∪

, C

)

8: else if Y ≥2k then

9: Find y

median

with all the records in Y.

10: Find most distant record y

from y

median

11: Create Cluster C

with y

and k-1 closest

records. Cluster C

with remaining records.

12: The clusters get updated: C =C ∪(C

, C

)

13: else

14: C =C ∪(Y )

15: end if

16: end while

17: Produce k-anonymized matrix Y

′

from clusters C.

MDAV micro-aggregation model.

Similarly, the Algorithm-3 M-LLEMDAV is a

manifold version of combination of two different al-

gorithms i.e., LLE manifold learning method and

MDAV privacy model. The algorithm starts by the

construction of neighbourhood graph as it is per-

formed in LLE method. After that, geodesic dis-

tance between each point and it’s neighbours are

computed instead of measuring euclidean distance.

Since geodesic distance is a generalisation of dis-

tance for curved surfaces, and it is more suitable in

high-dimensional space. Later on, the data points

are transformed to low-dimensional space while pre-

serving the weights and minimising the objective

function as depicted in algorithm 3 1. Finally, the

low-dimensional data points are protected using M-

MDAV a manifold version of MDAV privacy model.

Algorithm 2: M-ISOMDAV.

Require: D(n, p); p ≥n or p ∼n

Ensure: D

′

(n, d); d <n

1: Construct the weighted neighbourhood graph M

by connecting points N

and N

such that if

they are closer to ε,then edge length becomes

, N

2: Compute pairwise-geodesic distance matrix M

′

∶

N ∗N ∈R with all the data-points of matrix M us-

ing Dijkstra shortest path algorithm.

3: Construct a centering matrix H where H =I

−

1Ne

and e

=[1....1]

∈R.

4: Compute kernel matrix K =−12HM

′2

5: Determine eigenvalue decomposition of matrix K

of size D into d using any built-in function and

decompose it.

6: Record top-d eigenvalues of K in λ and their cor-

responding eigenvectors in ν.

7: Obtain Y =

√

λν the lower d-dimensional vector

of dimension (n×d).

8: Apply M-MDAV approach to Y to perform k-

anonymisation as discussed in Algorithm 1.

4 EXPERIMENTATION AND

RESULTS

In this section we initially present the data sets that are

considered for evaluation of the proposed approach.

Later on, we describe the computational requirements

that are necessary to conduct this experimentation. Fi-

nally, we discuss the obtained results and our analysis

using the proposed approach.

4.1 Data Set Description

In this sub-section, we describe the different data sets

that are involved for this experimentation. A wide-

variety of high-dimensional data sets are available

with us. Thus, we intended to consider real as well as

synthetic data sets. The three-different types of real

data set are tabular, image and textual data sets. The

number of instances ranges from 800 to 48000, and

the number of attributes ranges from 14 to 20000, so

that a broad experimentation can be performed to ana-

lyze that the proposed approach is suitable on various

types of data. The description of data sets used are

depicted as follows.

RNA Data. It is a classiﬁcation data set, that

consists of random extraction of gene expression

of patients having ﬁve-different types of cancerous

tumor: KIRC, PRAD, BRCA, LUAD and COAD

(Fiorini, 2013). The dimensions of this data set is

SECRYPT 2023 - 20th International Conference on Security and Cryptography

Algorithm 3: M-LLEMDAV.

Require: D(n, p); p ≥n or p ∼n

Ensure: D

′

(n, d)where d <n

1: Construct the weighted neighbourhood graph M

by connecting points N

and N

such that if

they are closer to ε,then edge length becomes

, N

2: Calculate geodesic distance between points N

and it’s neighbors that are selected in above step

using Dijkstra shortest path algorithm.

3: Construct each point from its neighbours. Recon-

struction errors are calculated by minimising the

cost function

ε(W )=



N

−



i j



subject to constraint

∑

j=1

i j

=1. Thus, weights

i j

are obtained that reconstructs each data point

from its neighbours.

4: Compute the low-dimensional data Y that best

preserves the manifold structure, represented by

weights W

i j

φ(Y )=



Y

−



i j



subject to constraint

∑

i=1

=0. Thus, lower-

dimensional matrix Y(n*d) is resulted.

5: Apply M-MDAV approach to Y to perform k-

anonymisation as discussed in Algorithm 1.

(801*20531). The number of attributes are signif-

icantly more than the number of instances. High-

dimensional visualization of this data is difﬁcult, but

the proposed approach makes this easier.

GISETTE Data. It is a handwritten digit recogni-

tion problem(Guyon, 2003). The task is to differenti-

ate between highly confusible digits ’4’ and ’9’. This

data set is one of ﬁve data sets of the NIPS 2003 fea-

ture selection challenge. It is also a classiﬁcation data

set having dimensions of (6000*5000).

SPAM Data. It is a textual data set that classi-

ﬁes emails as Spam or Non-Spam (Hopkins, 2002).

It consists of 4457 instances which are pre-processed

using TF-IDF method that quantiﬁes the relevance of

a text using statistical measures. Therefore, when TF-

IDF approach is applied on SPAM data set the resul-

tant data has (4457*5055) dimensions. This data set

is widely used in natural language processing (NLP)

task.

ADULT Data. It is a census income dataset, which

consists of numerical and categorical values and pre-

dicts whether income of a person exceeds 50K/ yr .

It is a classiﬁcation data set which consists of 48000

instances and 14 attributes.

MADELON. It is an artiﬁcally created dataset that

consists of two-class classiﬁcation problem with con-

tinuous input variables. It was a part of NIPS 2003

feature challenge having dimension of (4400*500).

4.2 System Description

The experimentation is performed on mac OS with 8-

core M1 Pro chip, 16 GB RAM, 500 GB Memory,

Python version 3.10 with a steady internet connection

was used.

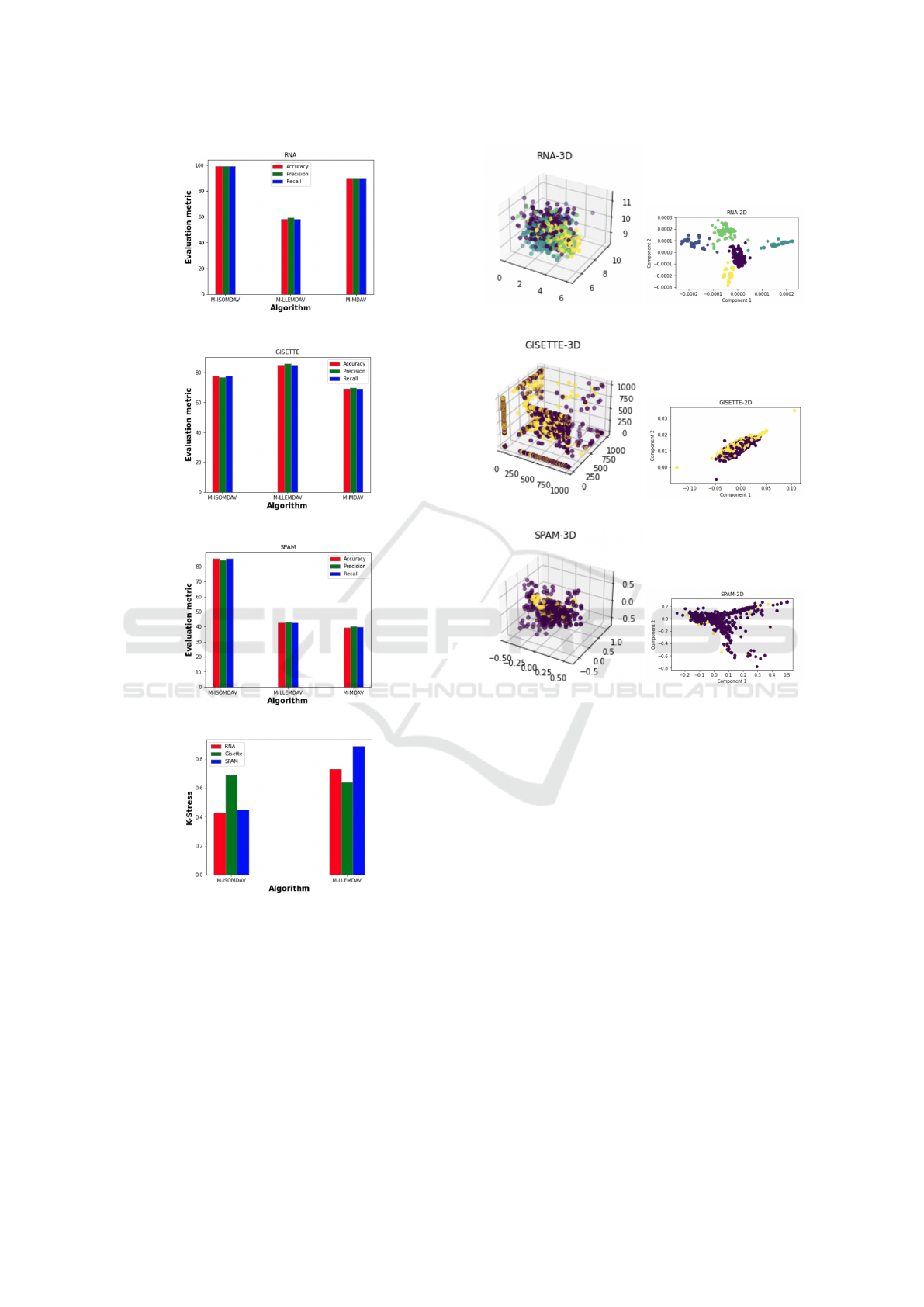

4.3 Results and Analysis

This sub-section describes the visualisation and de-

tailed explanations of the empirical results which

were obtained using the proposed approach. The ex-

periments were conducted using three different ap-

proaches. They mainly correspond to the application

of the three Algorithms described in the previous sec-

tion. The proposed three approaches provides a way

for micro-aggregation to avoid identity disclosure risk

using K-anonymity privacy model,since it is safe from

re-identiﬁcation.

The ﬁrst approach consists of applying M-MDAV

directly on the high-dimensional data set and obtain

k-anonymous data records in the higher embedding

itself. Afterwards, to empirically evaluate the perfor-

mance, state-of-the art ML classiﬁcation algorithms

such as SVM, Naive Bayes, Gradient Boosting, Deci-

sion Tree, Random Forest, Extreme Gradient Boost-

ing and K-nearest neighbours are implemented. The

best resulting model is further used for testing pur-

poses. To obtain a more generalised model with less

bias, k-fold cross validation technique is also utilised.

Finally, to validate the utility of the approach evalua-

tion metrics such as accuracy, precision and recall are

recorded.

Following Algorithm 2 M-ISOMDAV, we begin

with ISOMAP manifold learning technique to pre-

serve the manifold structure of the data and obtain

lower-embedding of the data set. Later on, anonymi-

sation on the low-embedding are performed using M-

MDAV algorithm. Finally, the anonymity data sets

are classiﬁed using all the above mentioned ML mod-

els and validated using k-fold cross validation. To

examine the utility of perturbed lower-dimensional

embedding, we describe another metric known as K-

Stress.

Following Algorithm 3 M-LLEMDAV, we use

geodesic version of LLE manifold learning technique

that tries to preserve the local neighbourhood struc-

ture. Then anonymization using M-MDAV is applied

K-Anonymous Privacy Preserving Manifold Learning

and classiﬁed using different ML models. A com-

parative analysis is performed with all three differ-

ent approaches and the best resulting approach for

each data sets are highlighted. Note that, the K-

Stress metric cannot be used with Algorithm 1 be-

cause K-Stress preserves pairwise distances between

high-dimensional and their low-dimensional embed-

ding, and any kind of transformation from high-

dimensional space to low-dimensional space is not

performed in Algorithm 1.

The performance of the proposed approach is

evaluated using four evaluation measures which are

described as follows.

Accuracy: is a metric for evaluating classiﬁcation

models, that measures the ratio of number of cor-

rect predictions with respect to total number of pre-

dictions. Numerical representation of accuracy is de-

picted as follows.

Accuracy =Correct predictionsTotal predictions.

Precision is a measure of quality that calculates

the fraction of correct positive results out of total pos-

itive outcomes obtained by the model. Mathemati-

cally, it is presented as follows.

Precision =T PT P +FP.

where TP is True positives and FP is False Positives.

Recall: is a measure of quantity that computes the

fraction of correct positive results out of all relevant

samples that should have been classiﬁed as positive

by the model. Its algebraic representation is

Recall =T PTP +FN

where TP is True positives and FN is False Negatives.

K-Stress: is a weighted sum of differences between

distance in original space, and the corresponding

lower-dimensional space (Kargupta et al., 2005). It is

a measure of goodness of ﬁt that requires that distance

between two points in perturbed lower-dimensional

embedding are well preserved with respect to distance

between those points in original higher-dimensional

space. The stress indicates the amount of information

loss before and after transformation, and expressed as

a percentage with 0% stress being equivalent to per-

fect transformation. Mathematically, it is calculated

as follows.





i j

−δ

i j

)



i j

where d

i j

is pairwise distance between points

in higher-dimensional embedding, whereas δ

i j

the pairwise distance between points in lower-

dimensional space.

Table 1: Evaluation of the proposed approach.

Dataset (D) D(n,p) Algorithm Accuracy Precision Recall

K-Stress

RNA 800 ×20531

M-ISOMDAV

M-LLEMDAV

M-MDAV

99.17

58.12

90.10

99.18

59.3

90.12

99.17

58.13

90.11

0.43

0.73

−

Gisette 6000 ×5000

M-ISOMDAV

M-LLEMDAV

M-MDAV

77.79

85.13

69.21

76.82

86.10

69.87

77.78

85.14

69.18

0.69

0.64

−

SPAM 5272 ×5055

M-ISOMDAV

M-LLEMDAV

M-MDAV

85.20

42.61

39.56

84.34

43.13

40.10

85.21

42.59

39.81

0.45

0.89

−

4.4 Discussion

A detailed analysis has been performed for the selec-

tion of hyper-parameters. The hyper parameter k for

k-anonymity is chosen after performing several itera-

tions over different values of k. When we used k in

the range of (5-10), similar outcomes were resulted

in terms of accuracy. When k value was increased

to (15-20), the performance of our approach started

decreasing. Because a value of k larger than 5 is of-

ten considered as acceptable for k-anonymity and mi-

cro aggregation. So, we chose k=10 as a generalised

value for our experiments.

We implemented our approach using seven dif-

ferent machine learning classiﬁcation models as de-

scribed above. Upon analysis we found that, the re-

sulting best classiﬁcation model for RNA data set is

K-nearest neighbour classiﬁer. This model is then fur-

ther used for testing purposes and evaluating the per-

formance using accuracy, precision and recall. The

hyper parameters used for tuning the K-nearest neigh-

bour classiﬁer are: number of neighbours to be 5, and

weight distribution to be uniform. In contrast, for

Gisette and SPAM data set Gradient Boosting classi-

ﬁer turns out to be the best performing model and fur-

ther used for evaluation purposes. The hyper parame-

ters used for Gradient Boosting classiﬁer are: number

of estimators to be 100, learning rate to be 0.1 and

maximum depth of the tree to be 5. Rest of the hyper

parameters are kept by default as provided by scikit

library in python.

Table. 1 presents the tabular representation of re-

sults which are obtained on data sets using the three

different proposed approach which are involved in

this paper, it provides a comparative analysis between

our approaches. The ﬁrst column presents the name

of data set used, the second column describes the size

of dataset in terms of number of instances and number

of attributes, the third column depicts the name of the

algorithm, whereas the remaining columns describe

the evaluation metrics. They are accuracy, precision,

recall, and K-Stress. For each data set, the best per-

forming approach is marked in bold.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

(a)

(b)

(c)

(d)

Figure 2: Performance analysis on (a) RNA (b) Gisette and

M-ISOMDAV and M-LLEMDAV method.

Upon analysis it is found that for RNA and SPAM

data set, M-ISOMDAV approach is providing best ac-

curacy of 99.17% and 85.20 %. K-Stress value is

0.43 which is better than 0.73 that is obtained us-

ing M-LLEMDAV for RNA data set. Contrary, for

GISETTE data set M-LLEMDAV approach is pro-

viding the highest accuracy of 85.13 % and K-Stress

(a) (b)

(e) (f)

Figure 3: Visualization of Data sets in high and low-

dimensions.

of 0.64. However, it can be observed that M-MDAV

didn’t provide the best results on any data set. Per-

formance of M-MDAV is signiﬁcantly less than the

other approaches. Therefore, it can be analysed that

M-MDAV alone is not able to anonymise and preserve

the manifold structure of high-dimensional data and

it emphasize the importance of manifold learning. It

becomes relevant to use approaches that preserves the

inherent structure of the data for any machine learning

algorithms.

M-LLEMDAV’s performance on RNA and SPAM

data sets was relatively poor. We think the reason

behind this is that these data sets consist of multiple

manifolds, and LLE manifold learning algorithm use

a variety of tangent linear patches to model a mani-

fold. It represents one function as several small linear

functions, thus it is designed to work on slightly sim-

pler datasets (like the Gisette data set).

The Figure 2 depicts the visual representation of

three different proposed approaches on the selected

K-Anonymous Privacy Preserving Manifold Learning

data sets and provides a comparative analysis among

them. The Figure 2(a) records performance of three

proposed approaches on RNA data set in terms of ac-

curacy, precision and recall. It can be clearly seen

that, bar plots of M-ISOMDAV are highest in length

since they are resulting in most precise outcomes.

Similar trends are observed in Figure 2(c), where M-

ISOMDAV approach are providing most optimal out-

comes in SPAM data set. The Figure 2(d) depicts the

K-Stress values on three selected data sets using M-

ISOMDAV and M-LLEMDAV approach. It is found

that for two data sets i.e., RNA and SPAM the M-

ISOMDAV are providing minimal K-Stress values as

compared to the other approach.

The visual analysis of original high-dimensional

data sets are not possible. So, the impact of the trans-

formation from high-dimensional ambient space to

lower-dimensional embedding are represented in Fig-

ure 3. We present both 3D graphs and 2D graphs. In

3D graph plots it can be seen that all the data points

are immensely overlapped. These representations can

be seen for RNA, Gisette and SPAM data set in Fig-

ure 3 (a), (c) and (e). The data points in 2D are much

easier to be classiﬁed and visualisation also becomes

better. This is clearly depicted in Figure 3(b) and (d).

This analysis provides the visual importance of the

proposed approach.

To estimate the accuracy of ML classiﬁcation

models, we use 10 fold cross-validation method. We

evaluated the impact of k for k-fold cross validation

on the classiﬁer’s performance. The value of k is

varied from 3 to 10, and misclassiﬁcation errors are

recorded. For all data sets, as the value of k increases,

the misclassiﬁcation error also increased. The mini-

mum error values were obtained for k value 5 majorly.

Thus, k is set to be 5 for validating purposes and we

used 5-fold cross validation. This effect of varying k

with respect to misclassiﬁcation error is displayed in

Figure 4.

We also computed the complexity of the proposed

approaches. We found it to be O(m ×n

)where m is

the dimensions of data points and n is the number of

data points.

We performed our experiments on a wide variety

of datasets including Adult, Madelon and few other

image data sets such as MNIST, CIFAR-10 etc. We

implemented the above three proposed approaches

and recorded accuracy, precision, recall and K-Stress

values. The results are presented in Table 2. We pro-

pose the following hypothesis based on the analysis

of our results.

Hypothesis 1. The data-points should really be in

high-dimensions and must possess manifold struc-

ture, then only the proposed approaches will be

Table 2: Limitation of the proposed approach.

Dataset (D) D(n,p) Algorithm Accuracy Precision Recall

K-Stress

Adult 48842*14

M-ISOMDAV

M-LLEMDAV

M-MDAV

50.12

43.32

41.19

50.13

43.30

42.90

50.11

42.29

40.12

0.35

0.32

Madelon 4400*500

M-ISOMDAV

M-LLEMDAV

M-MDAV

62.18

59.23

60.38

62.25

59.21

60.30

62.19

59.23

61.21

0.28

0.25

able learn the intrinsic structure of the manifold and

anonymize data-points efﬁciently.

We consistently test the performance of our ap-

proach on Adult, Madelon, MNIST etc, datasets by

using ablation studies on different hyper-parameters,

We found that in the case of Adult and Madelon data

set, the data points are not really in high-dimensions,

as it should be for the manifold learning techniques.

Also, the data-distribution for these datasets is not

similar to the manifold structure. Thus, poor per-

formance in terms of accuracy and neighbourhood

preservation (K-Stress) is obtained.

5 CONCLUSION AND FUTURE

WORKS

In this paper, we proposed a privacy preserving frame-

work that uses K-Anonymity to anonymize high-

dimensional data maintaining its manifold structure.

In particular, we proposed three different approaches

out of which two use manifold learning techniques

to preserve the inherent structure of data during

anonymising, while the third one involves only a man-

ifold version of MDAV micro aggregation method to

achieve privacy. Later on, machine learning classiﬁ-

cation models were used to evaluate the performance

of the proposed approach.

We evaluated the results in terms of statistical

measures such as machine learning classiﬁcation ac-

curacy and good neighbourhood preservation such

as K-Stress values. The results show that the non-

linear transformations of data into lower-embedding

can preserve the privacy of the data. This paper pro-

vides a trade-off between utility and privacy of the

records.

We have also shown that anonymising high-

dimensional data directly i.e., using M-MDAV alone

is not able to preserve the underlying structure of the

data and leads to poor machine learning performance.

Thus, the proposed approaches are relevant for preser-

vation of manifold structure of the data. We investi-

gated with different types of real and synthetic data

sets. We proposed a hypothesis about the need of

data-points to be in high-dimensions and possess the

SECRYPT 2023 - 20th International Conference on Security and Cryptography

manifold structure to be efﬁciently anonymized using

the proposed approach.

In future, we will provide a proof for this hypthe-

sis. Also, we will analyse our approach using

geodesic version of different manifold learning ap-

proaches such as: t-SNE, LTSA etc. Additional ex-

periments are considered for future work. Our K-

anonymity privacy model avoids the risk of identity

disclosure. However, it is unable to safeguard against

attibute disclosure risk. Thus, in future we would

like to formulate k-anonymity privacy model taking

into account the attribute disclosure risk in the man-

ifold structure. Also, we would like to analyse the

behaviour of differential privacy on our proposed ap-

proach.

(a)

(b)

(c)

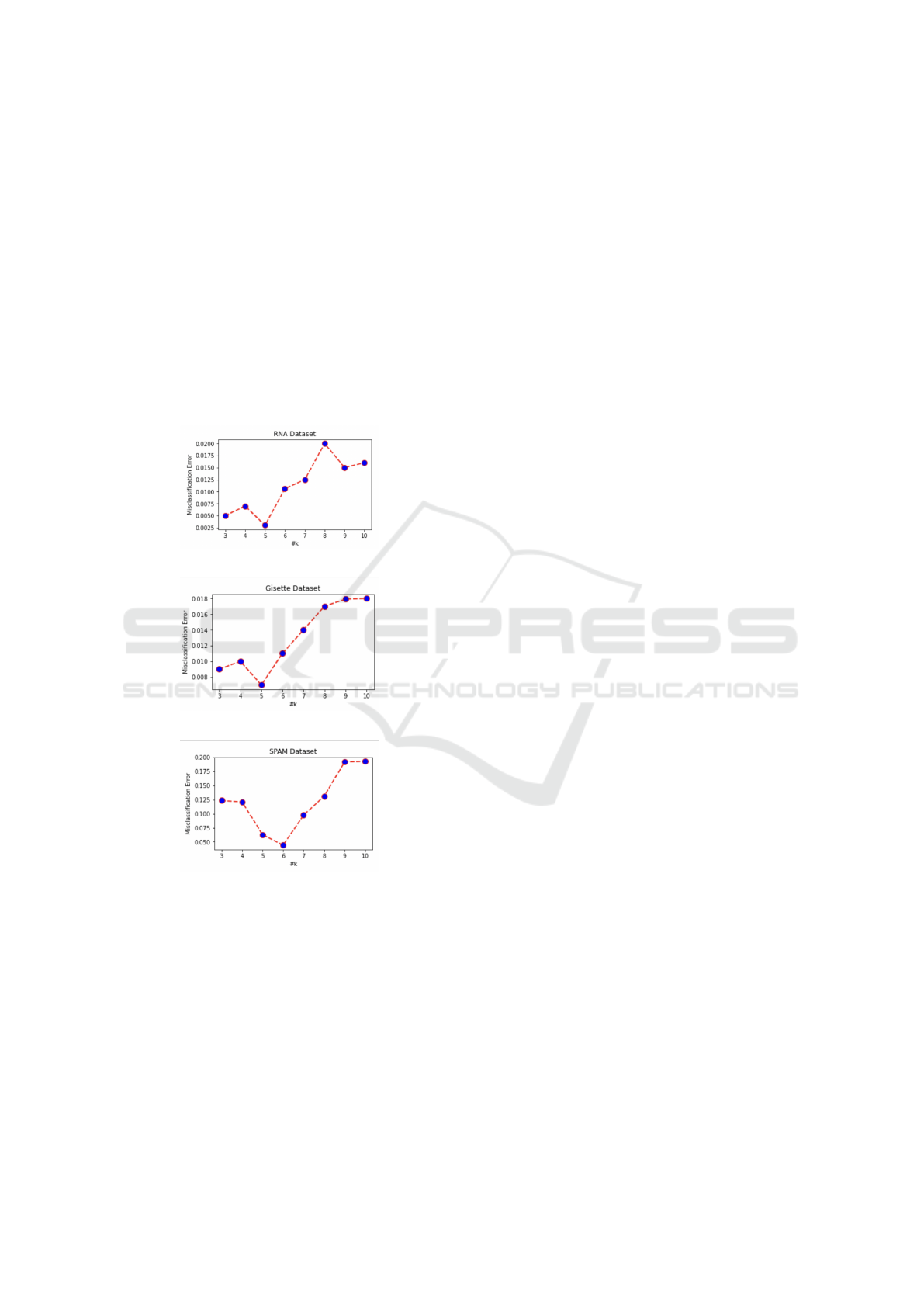

Figure 4: No. of k vs misclassiﬁcation error for (a) RNA

(b) Gisette and (c) SPAM Data sets.

ACKNOWLEDGEMENTS

This work was partially supported by the Wallen-

berg Al, Autonomous Systems and Software Program

(WASP) funded by the Knut and Alice Wallenberg

Foundation.

REFERENCES

Aggarwal, C. C. (2005). On k-anonymity and the curse of

dimensionality. In VLDB, volume 5, pages 901–909.

Cox, L. H. (1980). Suppression methodology and statistical

disclosure control. Journal of the American Statistical

Association, 75(370):377–385.

De Capitani di Vimercati, S., Foresti, S., Livraga, G., Sama-

rati, P., et al. (2023). k-anonymity: From theory to

applications. TRANSACTIONS ON DATA PRIVACY,

16(1):25–49.

Domingo-Ferrer, J. and Mateo-Sanz, J. M. (2002). Practical

data-oriented microaggregation for statistical disclo-

sure control. IEEE Transactions on Knowledge and

data Engineering, 14(1):189–201.

Domingo-Ferrer, J., S

anchez, D., and Blanco-Justicia, A.

(2021). The limits of differential privacy (and its mis-

use in data release and machine learning). Communi-

cations of the ACM, 64(7):33–35.

Dwork, C. (2006). Differential privacy. In Automata, Lan-

guages and Programming: 33rd International Collo-

quium, ICALP 2006, Venice, Italy, July 10-14, 2006,

Proceedings, Part II 33, pages 1–12. Springer.

Fiorini, S. (2013). https://archive.ics.uci.edu/ml/datasets/

gene+expression+cancer+rna-seq. UCI Machine

learning repository.

Fisher, R. A. (1936). The use of multiple measurements in

taxonomic problems. Annals of eugenics, 7(2):179–

188.

Guyon, I. (2003). https://archive.ics.uci.edu/ml/datasets/

gisette. UCI Machine learning repository.

Hopkins, M. (2002). https://archive.ics.uci.edu/ml/datasets/

spambase. UCI Machine learning repository.

Hotelling, H. (1933). Analysis of a complex of statistical

variables into principal components. Journal of edu-

cational psychology, 24(6):417.

Huang, Y., Kou, G., and Peng, Y. (2017). Nonlinear man-

ifold learning for early warnings in ﬁnancial mar-

kets. European Journal of Operational Research,

258(2):692–702.

Kadoury, S. (2018). Manifold learning in medical imaging.

In Manifolds II-Theory and Applications. IntechOpen.

Kargupta, H., Datta, S., Wang, Q., and Sivakumar, K.

(2005). Random-data perturbation techniques and

privacy-preserving data mining. Knowledge and In-

formation Systems, 7(4):387–414.

Kruskal, J. B. (1964). Multidimensional scaling by opti-

mizing goodness of ﬁt to a nonmetric hypothesis. Psy-

chometrika, 29(1):1–27.

Reimherr, M., Bharath, K., and Soto, C. (2021). Differ-

ential privacy over riemannian manifolds. Advances

in Neural Information Processing Systems, 34:12292–

12303.

Roweis, S. T. and Saul, L. K. (2000). Nonlinear dimension-

ality reduction by locally linear embedding. science,

290(5500):2323–2326.

Samarati, P. (2001). Protecting respondents identities in mi-

crodata release. IEEE transactions on Knowledge and

Data Engineering, 13(6):1010–1027.

K-Anonymous Privacy Preserving Manifold Learning

Samarati, P. and Sweeney, L. (1998). Protecting privacy

when disclosing information: k-anonymity and its en-

forcement through generalization and suppression.

Seo, K., Pan, R., Lee, D., Thiyyagura, P., Chen, K., Initia-

tive, A. D. N., et al. (2019). Visualizing alzheimer’s

disease progression in low dimensional manifolds.

Heliyon, 5(8):e02216.

Spruyt, V. (2014). The curse of dimensionality in classiﬁ-

cation. Computer vision for dummies, 21(3):35–40.

Tenenbaum, J. B., Silva, V. d., and Langford, J. C. (2000).

A global geometric framework for nonlinear dimen-

sionality reduction. science, 290(5500):2319–2323.

Torra, V. (2022). Guide to Data Privacy: Models, Tech-

nologies, Solutions. Springer Nature.

Vepakomma, P., Balla, J., and Raskar, R. (2021). Pri-

vatemail: Supervised manifold learning of deep fea-

tures with differential privacy for image retrieval.

arXiv preprint arXiv:2102.10802.

Wang, R., Zhu, Y., Chang, C.-C., and Peng, Q. (2020).

Privacy-preserving high-dimensional data publishing

for classiﬁcation. Computers & Security, 93:101785.

SECRYPT 2023 - 20th International Conference on Security and Cryptography
