Event-Oriented Simulation Module for Dynamic Elastic Optical

Networks with Space Division Multiplexing

Mirko Zitkovich

1 a

, Gabriel Saavedra

2 b

and Danilo B

orquez-Paredes

1 c

Faculty of Engineering and Sciences, Universidad Adolfo Ib

nez, Av. Padre Hurtado 750, Vi

na del Mar 2520001, Chile

Electrical Engineering Department, Universidad de Concepci

on, V

ıctor Lamas 1290, Concepci

on 4070409, Chile

Keywords:

C++ library, EON, Performance Evaluation, SDM, Event-Oriented Simulation, Trafﬁc Engineering.

Abstract:

It is well-known that creating Space Division Multiplexing-Elastic Optical Networks (SDM-EON) allocation

algorithms can be challenging, especially without the right tools. This paper presents the development of a

module of an event-oriented simulator designed to code C++ allocation algorithms in the context of Space Di-

vision Multiplexing-Elastic Optical Networks. The built module was tested and validated using an allocation

algorithm previously published in the literature. The results were consistent with those in the original article,

indicating that the module developed is effective and reliable. The use of specialized tools, such as the mod-

ule being shown, can signiﬁcantly increase the effectiveness and precision of this process and can stimulate

additional developments in the telecommunications industry.

1 INTRODUCTION

The demand for bandwidth worldwide has been grow-

ing over time (Roser et al., 2020), and this trend is

unlikely to change. One of the enabling technolo-

gies supporting this growth is elastic optical networks

(EON) (Gerstel et al., 2012).

EONs have introduced to the ﬁber the ability to

divide the spectrum into small portions called Fre-

quency Slots Units (FSU) (Gerstel et al., 2012), and

therefore, each connection uses the spectrum more ef-

ﬁciently. However, the set of FSUs must be contigu-

ous (one slot next to the other) and continuous (the

same set of slots) on all links along the route. In ad-

dition, each connection can use a speciﬁc modulation

format, allowing the transfer of more information per

FSU at the cost of reduced optical reach (Jinno, 2017).

Space division multiplexing (SDM) is among the

potential candidates to extend even more the capac-

ity of optical networks (Puttnam et al., 2021), cur-

rently limited by the nonlinear nature of silica. SDM

transmits information multiplexed in different spatial

channels over a given transmission medium. The

main candidates for implementing SDM in optical

networks are multi-core (MCF), few-mode, multi-

https://orcid.org/0009-0003-2454-4264

https://orcid.org/0000-0002-5450-3661

https://orcid.org/0000-0001-6590-2329

mode ﬁber, and combinations thereof (Winzer et al.,

2018). Each transmission medium proposed for SDM

presents physical impairments that need to be con-

sidered when allocating resources in an optical net-

work, as they might detrimentally affect other con-

nections (Klinkowski et al., 2018). In particular, for

MCF, inter-core cross-talk (XT) transfers energy be-

tween adjacent cores at the same wavelength as the

propagating signal (Gen

e and Winzer, 2019).

A commonly explored area is dynamic elastic op-

tical networks. Here, connections are allocated and

released from the network following random distri-

butions. Within this context, a typical problem is

Routing, Modulation Format, and Spectrum Assign-

ment (RMSA), which consists of ﬁnding the route and

modulation format and employing some spectrum al-

location policy to assign the connection to the speciﬁc

spectrum of the network. The problem is extended

for the new SDM technology by adding the choice of

the core to be used for the connection. Thus the prob-

lem changes to Routing, Modulation Format, Core se-

lection, and Spectrum Assignment (RMCSA), adding

the C for the core choice. Ad-hoc simulators are typ-

ically used to measure some metric related to these

resource allocation policies, given the complexity of

implementing a hardware testbed.

The current availability of simulators is not sufﬁ-

cient, and there is still a demand for more specialized

tools that cater speciﬁcally to the development and

Zitkovich, M., Saavedra, G. and BÃ¸srquez-Paredes, D.

Event-Oriented Simulation Module for Dynamic Elastic Optical Networks with Space Division Multiplexing.

DOI: 10.5220/0012084500003546

In Proceedings of the 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2023), pages 295-302

ISBN: 978-989-758-668-2; ISSN: 2184-2841

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

295

testing of allocation algorithms for SDM-EONs. Ad-

dressing this need, the article presents an SDM exten-

sion for a ﬂexible optical networks simulator library

called Flex Net Sim (Falc

on et al., 2021). The ex-

tension aims to provide a robust and effective means

for coding and validating C++ allocation algorithms

for SDM-EONs, allowing the researcher to code RM-

CSA algorithms quickly, taking care of the allocation

policies, and leaving the simulation details to the li-

brary.

The new module introduces signiﬁcant changes

to two of the main components of the library, along

with minor modiﬁcations to the remaining compo-

nents. These changes focus on storing link informa-

tion by adding a new dimension for cores, enhancing

how the simulator manages certain network informa-

tion, and allocating connection requests. Addition-

ally, user-friendly auxiliary macros have been incor-

porated to facilitate straightforward programming.

This article is organized as follows: First, the

“State of the Art” section reviews existing simula-

tion tools. Next, the “Architecture” section outlines

our proposed solution and discusses the models and

heuristics in the “Model and Heuristics Used” section.

The “Speciﬁc Problem Implementation” section de-

tails practical aspects, while the “Simulation Results”

section presents the tool’s performance. Finally, the

“Conclusions” section summarizes our contributions

and ﬁndings.

2 STATE OF THE ART

In the ﬁeld of EONs, there is a limited selec-

tion of simulation tools available. Through our

research, we could identify only a few, such as

EONS (Delvalle et al., 2016), ElasticO++ (Tessinari

et al., 2016), FlexGridSim (Moura and Drummond,

2020), CEONS (Aibin and Blazejewski, 2015), and

SimEON (Cavalcante et al., 2017).

Regarding SDM speciﬁcally, even fewer tools

have been found. OMNeT++ is quite versatile and

supports SDM; however, it has a steep learning curve

due to its utilization of advanced programming con-

cepts, which may be unfamiliar to some researchers.

Other tools like VPItransmissionMaker and NS-3 of-

fer SDM support but do not focus on allocation algo-

rithms.

Comparatively to other simulators in the litera-

ture, Flex Net Sim is focused on resource allocation

techniques in dynamic optical networks and offers

tremendous ﬂexibility when coding heuristics, mod-

ifying the topology, and adding or removing network

resources. Incorporating a multicore optical network

handling extension into the simulator is essential to

fully utilize its adaptability to the new technology.

3 ARCHITECTURE

The simulation library Flex Net Sim consists of 4

main components that work together to model the sys-

tem and generate output data: Network, Simulator,

Controller, and Allocator, shown in Fig. 1.

Simulator

Controller Network

Allocator

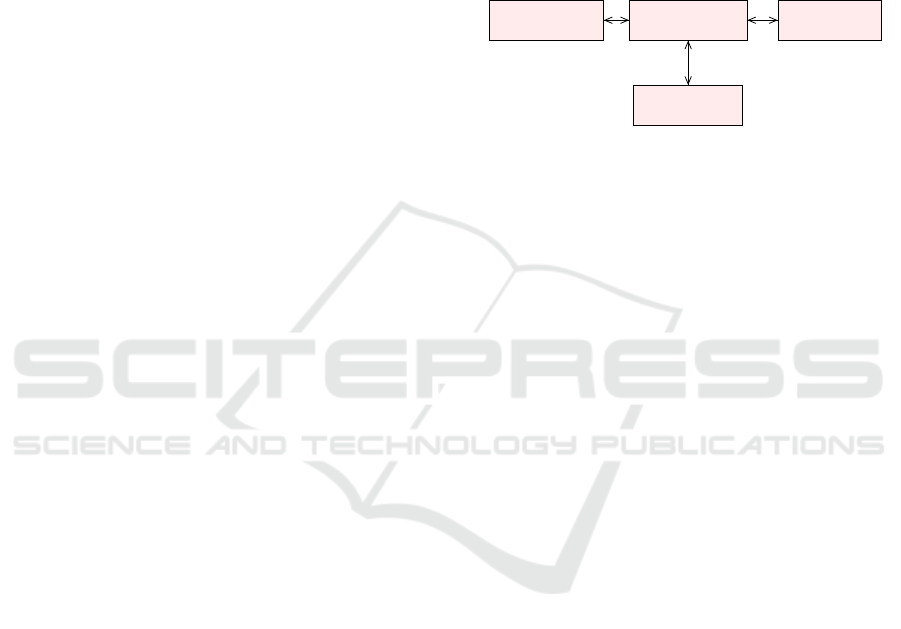

Figure 1: Representation of the architecture.

The library’s Network component stores informa-

tion about the network’s nodes, links, slots, and meth-

ods for modifying the network state. These meth-

ods are atomic and only allow one link or slot mod-

iﬁcation at a time. This component does not work

with lightpaths since it works at the level of links and

nodes.

The controller component handles the network’s

global information, such as established network con-

nections and routes between nodes. It provides meth-

ods for assigning or unassigning connections, modi-

fying slot states, and setting connection lightpaths.

The simulator component creates connection re-

quests, which are parameterized by the user, and

sends them to the controller for allocation using the

allocator component.

Finally, the user can actively contribute to the al-

locator component by creating the algorithm used for

allocation, which is the only part of the simulator

where user input is required.

There are two types of events: arrival and depar-

ture. Arrival occurs when a new connection attempt is

made, while departure takes place when a connection

releases previously allocated resources. During an ar-

rival event, the simulator randomly generates a triad

(source node, destination node, bitrate) and passes it

to the Controller component. This component fea-

tures a virtual function that invokes the researcher’s

resource allocation algorithm and returns a mapping

of the resources to be assigned by the controller. The

Controller then attempts to allocate resources within

the network component. If successful, the simulator

proceeds to the next event. Conversely, during a de-

parture event, the connection ID to be released is iden-

tiﬁed, and the controller is responsible for instructing

the network component to free up these resources.

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

296

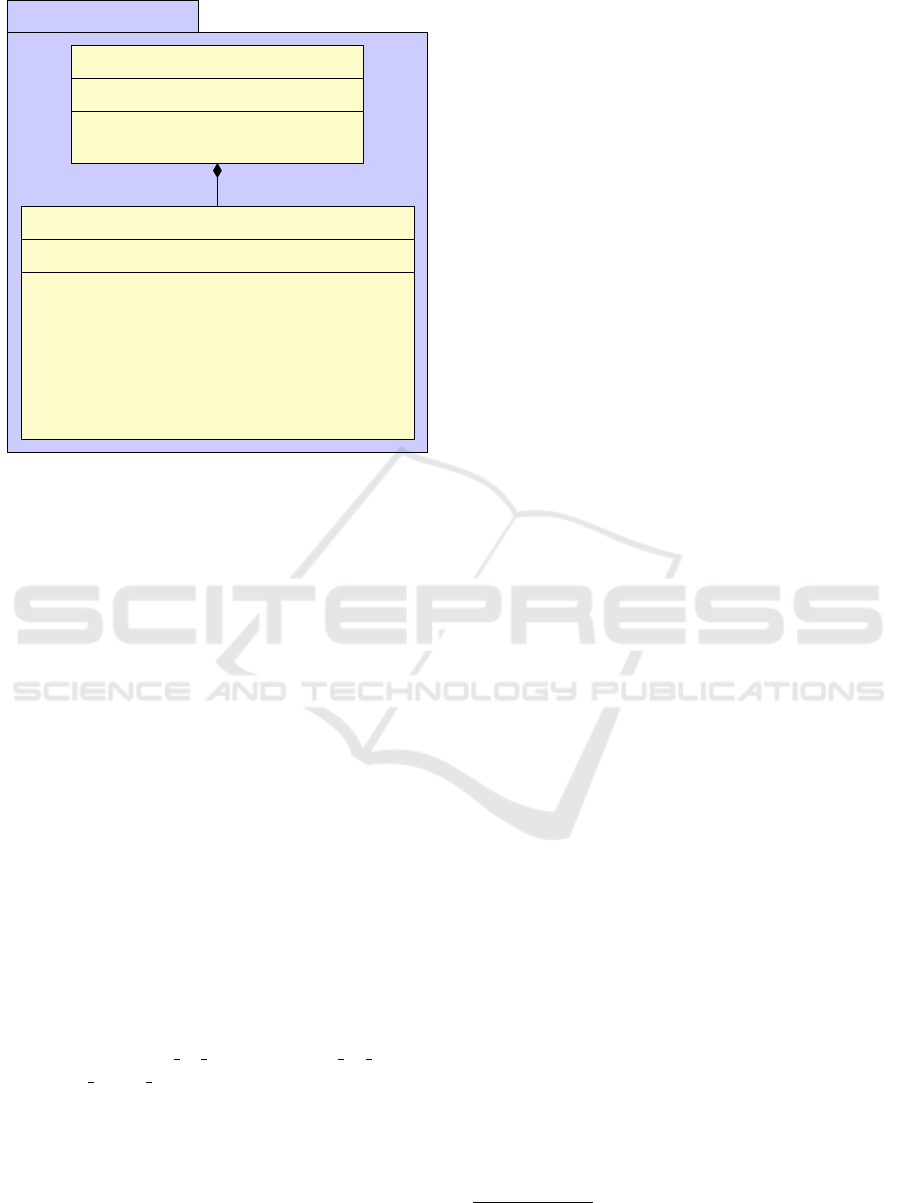

Network Component

≪vector≫

Network

networkType : int

readSDM(std::string ﬁlename) : void

readEON(std::string ﬁlename) : void

Link

id : int

setSlots(int slots, int core, int mode) : void

setSlot(int core, int mode, int pos, bool value): void

setCores(int numberOfcores): void

setModes(int numberOfmodes): void

getSlots(int core, int mode) const: int

getSlot(int core, int mode, int pos) : bool

getCores(void) : int

getModes(void) : int

Figure 2: UML diagram of the network component.

To support SDM multi-core and/or multi-mode

ﬁber, the main changes have been made in the net-

work component, speciﬁcally in the link class. These

changes allowed every link between each pair of

nodes to have a variable number of modes and/or

cores deﬁned by the user through the methods shown

in Fig. 2. Furthermore, adding cores/modes to the

ﬁber introduces an extra layer of complexity to the

problem, as connection establishment now varies de-

pending on the network type. A networkType ﬂag

was incorporated into the network component to dis-

tinguish between different network types. The read-

ing of user-provided ﬁles that indicate the topology

will expect a certain format depending on this vari-

able, using the methods readEON and readSDM shown

in Fig. 2.

While the network component underwent the

most signiﬁcant changes, other components, such

as the controller, were also modiﬁed. Depending

on the declared network type at the beginning

of the simulation, different methods are used in

the controller to assign or unassign connections.

An important addition was the inclusion of new

MACROS, as NUMBER OF CORES, NUMBER OF MODES,

and ALLOC SLOTS SDM. The former receives the route

ID and the link ID as arguments and returns the num-

ber of cores in that link. The second MACRO receives

the same arguments but returns the number of modes

of the identiﬁed link. Finally, the latter receives as

arguments the link ID, the core, the mode, and the

starting and ending slot (assuming contiguity). This

macro is in charge of changing the state of the

slots in the identiﬁed link.

4 SPECIFIC PROBLEM

IMPLEMENTATION

We use the two heuristics presented in (Tan et al.,

2016) to test the module. The ﬁrst is a Distance Adap-

tive RCSA (DA-RCSA), and the second is a First Fit

RCSA (FF-RCSA). The main difference between the

two is that the DA-RCSA uses different modulation

formats, while the FF-RCSA only uses BPSK.

The network is represented by a directed graph

G(N , L), where N is the set of nodes, and L is the

set of optical links. Each link l

is composed of a set C

of cores, where each core c

corresponds to the j −th

core. Each core c

has a vector



S, representing the

set of slots composing the usable spectrum. Each slot

can be in either of two states, used or free. Also, each

connection can be allocated using a modulation for-

mat m ∈ M.

All routes are pre-calculated using the K-shortest

path algorithm for both algorithms. At startup, the

DA-RCSA calculates the route length and, according

to this value, selects the highest modulation format

that meets the required optical range, i.e., the one that

uses fewer slots. Then, the algorithm performs a FF

on the core c to ﬁnd candidate slots. Once found,

calculate the XT of the current core as the candidate

slots were used; if the threshold is met, the slots are

set as used, and the connection is allocated. In the

FF-RCSA algorithm , only BPSK is used. Therefore,

the modulation format loop is not used in this pseu-

docode.

The ﬁber is composed of 7 cores: six around

a center core. Both algorithms are implemented in

three parts: crosstalk calculation, threshold veriﬁca-

tion, and main allocation algorithm. The codes can

be found in the GitLab repository

The library calculates by default the blocking

probability of the allocation algorithms. We also

added the maximum spectrum utilization of the ﬁber

as an additional metric.

4.1 Crosstalk Calculation

We use the statistical mean XT of a homogeneous

trench-assisted multi-core ﬁber that can be formulated

with Equations 1, 2, and 3 (Muhammad et al., 2015):

https://gitlab.com/DaniloBorquez/ﬂex-net-sim/-/tree/

master/examples/SDM

Event-Oriented Simulation Module for Dynamic Elastic Optical Networks with Space Division Multiplexing

297

h =

βw

(1)

XT =

n − n · exp[−(n + 1) · 2 · h · L]

1 + n · exp[−(n + 1) · 2 · h · L]

(2)

= 10 · log

XT (3)

Where h is the mean crosstalk increase by unit

length. k, r, β, and w

are the coupling coefﬁcient,

bend radius, propagation constant, and core pitch, re-

spectively. XT corresponds to the mean crosstalk,

using h previously calculated, and n and L, where n

is the number of adjacent active cores (which are the

cores using slots on the same position), and L is the

path length, measured in meters. Finally, XT

corre-

sponds to the threshold in decibels.

The allocation process must satisfy a crosstalk

threshold to complete the resource assignment. This

means the XT cannot surpass a speciﬁc value to es-

tablish a successful connection.

4.2 Main Allocation Algorithms

Codes 1 and 2 implement DA-RCSA and FF-RCSA.

The code must begin with BEGIN ALLOC FUNCTION

reserved word with the name of the allocation algo-

rithm as a parameter, and it must ﬁnish with the re-

served word END

ALLOC FUNCTION.

Code 1: DA-RCSA.

1 BEGIN

ALLOC FUNCTION(DA) {

2 int currentNumberSlots;

3 int currentSlotIndex;

4 int bitrateInt = bitRates map[REQ BITRATE];

5 int numberOfSlots;

6 std::vector<bool> totalSlots;

7 for (int r = 0; r < NUMBER OF ROUTES; r++){

8 for (int c = 0; c < NUMBER OF CORES(r, 0); c++)

→ {

9 double routeLength = 0;

10 totalSlots = std::vector<bool>(LINK IN ROUTE

→ (r, 0)−>getSlots(), false);

11 for (int l = 0; l < NUMBER OF LINKS(r); l++){

12 routeLength += LINK IN ROUTE(r,l)−>

→ getLength();

13 for (int s = 0; s < LINK IN ROUTE(r, l)−>

→ getSlots(); s++){

14 totalSlots[s] = totalSlots[s] |

→ LINK IN ROUTE(r, l)−>getSlot(c,

→ 0, s);

15 }

16 }

17 for (int m = 0; m <

→ NUMBER OF MODULATIONS; m++)

→ {

18 numberOfSlots = REQ SLOTS(m);

19 if (routeLength > REQ REACH(m)) continue;

20 currentNumberSlots = 0;

21 currentSlotIndex = 0;

22 for (int s = 0; s < totalSlots.size(); s++) {

23 if (totalSlots[s] == false) {

24 currentNumberSlots++;

25 } else {

26 currentNumberSlots = 0;

27 currentSlotIndex = s + 1;

28 }

29 if (currentNumberSlots >= numberOfSlots) {

30 double XT treshold =

→ XT treshold by bitrate[m];

31 if (!isOverTreshold(c, sim.getPaths()−>at(

→ SRC)[DST][r], numberOfSlots,

→ currentSlotIndex, routeLength,

→ XT treshold)){

32 for (int l = 0; l < NUMBER OF LINKS(

→ r); l++) {

33 ALLOC SLOTS SDM(

→ LINK IN ROUTE ID(r, l), c,

→ 0, currentSlotIndex,

→ numberOfSlots)

34 }

35 currentUtilization = currentUtilization + (

→ numberOfSlots

→ NUMBER OF LINKS(r));

36 if (currentUtilization/totalCapacity >

→ maxUtilization) maxUtilization

→ = currentUtilization/

→ totalCapacity;

37 return ALLOCATED;

38 } else {

39 currentSlotIndex++;

40 }

41 }

42 }

43 }

44 }

45 }

46 return NOT ALLOCATED;

47 }

48 END ALLOC FUNCTION

Lines 2-6 in Code 1 initialize auxiliary variables.

Loops in lines 8-9 are used to go through the routes

and cores, respectively. Lines 12-17 create an aux-

iliary vector representing the utilization of all links

in the current route in terms of slots, representing a

transparent connection. Lines 18-29 execute the FF

algorithm, searching for contiguous slots in the aux-

iliary vector previously deﬁned. Line 30-32 check

that the requested number of slots is satisﬁed and

then check the threshold. If the threshold is satisﬁed,

Lines 33-35 allocate the resources to the current core.

Line 37 updated the extra metric that we calculated.

Line 38 returns that the allocation process was suc-

cessful (ALLOCATED). Finally, if the algorithm tries all

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

298

routes/cores and does not ﬁnd enough space to allo-

cate, it returns NOT ALLOCATED in line 47.

Code 2: FF-RCSA.

1 BEGIN_ALLOC_FUNCTION(FF) {

2 int currentNumberSlots;

3 int currentSlotIndex;

4 int bitrateInt = bitRates_map[

→ REQ_BITRATE];

5 int numberOfSlots;

6 std::vector<bool> totalSlots;

7 int BPSK = 2;

8 for (int r = 0; r < NUMBER_OF_ROUTES; r

→ ++){

9 for (int c = 0; c < NUMBER_OF_CORES(r,

→ 0); c++){

10 double routeLength = 0;

11 totalSlots = std::vector<bool>(

→ LINK_IN_ROUTE(r, 0)->getSlots

→ (), false);

12 for (int l = 0; l < NUMBER_OF_LINKS(r

→ ); l++){

13 routeLength += LINK_IN_ROUTE(r,l)->

→ getLength();

14 for (int s = 0; s < LINK_IN_ROUTE(r

→ , l)->getSlots(); s++){

15 totalSlots[s] = totalSlots[s] |

→ LINK_IN_ROUTE(r, l)->

→ getSlot(c, 0, s);

16 }

17 }

18 numberOfSlots = REQ_SLOTS(BPSK);

19 if (routeLength > REQ_REACH(BPSK))

→ continue;

20 currentNumberSlots = 0;

21 currentSlotIndex = 0;

22 for (int s = 0; s < totalSlots.size()

→ ; s++) {

23 if (totalSlots[s] == false) {

24 currentNumberSlots++;

25 } else {

26 currentNumberSlots = 0;

27 currentSlotIndex = s + 1;

28 }

29 if (currentNumberSlots >=

→ numberOfSlots) {

30 double XT_treshold =

→ XT_treshold_by_bitrate[

→ BPSK];

31 if (!isOverTreshold(c, sim.

→ getPaths()->at(SRC)[DST][r

→ ], numberOfSlots,

→ currentSlotIndex,

→ routeLength, XT_treshold))

→ {

32 for (int l = 0; l <

→ NUMBER_OF_LINKS(r); l++)

→ {

33 ALLOC_SLOTS_SDM(

→ LINK_IN_ROUTE_ID(r, l)

→ , c, 0,

→ currentSlotIndex,

→ numberOfSlots)

34 }

35 currentUtilization =

→ currentUtilization + (

→ numberOfSlots *

→ NUMBER_OF_LINKS(r));

36 if (currentUtilization/

→ totalCapacity >

→ maxUtilization)

→ maxUtilization =

→ currentUtilization/

→ totalCapacity;

37 return ALLOCATED;

38 } else {

39 currentSlotIndex++;

40 }

41 }

42 }

43 }

44 }

45 return NOT_ALLOCATED;

46 }

47 END_ALLOC_FUNCTION

The Code 2 is similar to Code 1, and shows the

implementation of FF-RCSA. The main difference is

presented in the modulation part. The code shown for

the DA algorithm tries different modulation formats

to allocate a connection, while FF algorithms only try

Binary Phase-Shift Keying (BPSK). So, lines 18-20

of Code 1, where the modulation format is variable,

are replaced by lines 19-20 in Code 2, where this vari-

able takes a ﬁxed value of BPSK. The rest of the code

is the same as Code 1.

4.3 Main Program Code

The main program is shown in Code 3. Line 1 is the

Flex Net Sim library included. Lines 3-9 are auxil-

iary variables. The function shown in line 11 is trig-

gered after each connection departure. We use this

function to update the auxiliary variables concerning

maximum utilization.

Code 3: Main simulation code.

1 #include "./simulator.hpp"

2 #define DA_RCSA 0

3 #define FF_RCSA 1

4 double lambdas[10] = {100, 200, 300, 400,

→ 500, 600, 700, 800, 900, 1000};

5 int active_algorithm = DA_RCSA;

6 int numberConnections = 1e5;

7 double currentUtilization = 0;

8 double maxUtilization = 0;

9 BEGIN_UNALLOC_CALLBACK_FUNCTION {

10 currentUtilization = currentUtilization

→ - (c.getSlots()[0].size() * c.

→ getLinks().size());

11 if (currentUtilization/totalCapacity >

→ maxUtilization) maxUtilization =

Event-Oriented Simulation Module for Dynamic Elastic Optical Networks with Space Division Multiplexing

299

→ currentUtilization/totalCapacity;

12 }

13 int main(int argc, char* argv[]) {

14 for (int lambda = 0; lambda < sizeof(

→ lambdas)/sizeof(double); lambda

→ ++) {

15 sim = Simulator(std::string("./networks

→ /NSFNet.json"),

16 std::string("./networks/

→ NSFNet_routes.

→ json"),

17 std::string("./networks/

→ bitrates.json"),

18 SDM);

19 if (active_algorithm == DA_RCSA)

→ USE_ALLOC_FUNCTION(DA, sim)

20 else USE_ALLOC_FUNCTION(FF, sim)

22 USE_UNALLOC_FUNCTION_SDM(sim);

23 sim.setGoalConnections(

→ numberConnections);

24 sim.setLambda(lambdas[lambda]);

25 sim.setMu(1);

26 sim.init();

27 sim.run();

29 currentUtilization = 0;

30 maxUtilization = 0;

31 }

32 return 0;

33 }

Line 16 starts the program, composed of a loop, to

get the blocking probability and maximum utilization

of each trafﬁc load. Lines 18-21 create a simulator ob-

ject with a speciﬁc network, routes for that network,

bitrates to be used, and the SDM ﬂag. Lines 23-24

determine which algorithm will be used, which in this

case is DA

RCSA. Line 26 sets the algorithm for each

connection departure for the Simulator object. Lines

27-30 sets the principal parameters of the simulation

and initialize it. Finally, Line 32 executes the simu-

lation, and lines 34-35 reset auxiliary variables to be

recalculated on the next loop.

4.4 Network Files

The simulator receives three ﬁles for the construction

of the network, and it requests. To explain its struc-

ture and for the sake of space, we present a 3-node

network. An example of the ﬁrst ﬁle can be seen in

Code 4, and it corresponds to the structure of the net-

work, speciﬁes the number of nodes and their id, as

well as the links that connect them and their character-

istics: length, id, number of cores, number of modes

and their respective slots. The slots are speciﬁed in

a list of lists where the ﬁrst dimension corresponds

to the core and the second dimension to the mode,

i.e., if you want to specify that the number of slots

of the ﬁrst core with three modes is 30, it would be

slots = [[30,30, 30],...]. The example shows a 3-node

7-core single-mode network.

Code 4: Network JSON ﬁle.

1 {

2 "alias": "NetExample",

3 "name": "Network Example",

4 "nodes": [

5 {"id": 0}, {"id": 1}, {"id": 2}

6 ],

7 "links": [

8 {"id": 0, "src": 1, "dst": 0,

9 "length": 500,

10 "number_of_cores": 7,

11 "number_of_modes": 1,

12 "slots": [[80], [80], [80], [80

→ ], [80], [80], [80]]

13 },{ "id": 1, "src": 0, "dst": 1,

14 "length": 500,

15 "number_of_cores": 7,

16 "number_of_modes": 1,

17 "slots": [[80], [80], [80], [80

→ ], [80], [80], [80]]

18 },{ "id": 2, "src": 2, "dst": 1,

19 "length": 200,

20 "number_of_cores": 7,

21 "number_of_modes": 1,

22 "slots": [[80], [80], [80], [80

→ ], [80], [80], [80]]

23 },{ "id": 3, "src": 1, "dst": 2,

24 "length": 200,

25 "number_of_cores": 7,

26 "number_of_modes": 1,

27 "slots": [[80], [80], [80], [80

→ ], [80], [80], [80]]

28 },{ "id": 4, "src": 0, "dst": 2,

29 "length": 600,

30 "number_of_cores": 7,

31 "number_of_modes": 1,

32 "slots": [[80], [80], [80], [80

→ ], [80], [80], [80]]

33 },{ "id": 5, "src": 2, "dst": 0,

34 "length": 600,

35 "number_of_cores": 7,

36 "number_of_modes": 1,

37 "slots": [[80], [80], [80], [80

→ ], [80], [80], [80]],

38 }

39 ]

40 }

The second ﬁle corresponds to the pre-calculated

paths between each pair of nodes. These routes are

unidirectional, so setting all the routes between nodes

0 and 1 will not establish the routes between nodes 1

and 0. It is essential to mention that the order of the

paths in the ﬁle deﬁnes the order in which they will

be iterated in the allocating algorithm. Code 5 shows

an example of the paths between the 3-node network.

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

300

Code 5: Routes JSON ﬁle.

1 {

2 "name": "Network Example",

3 "alias": "NetExample",

4 "routes": [

5 {"src": 0, "dst": 1,

6 "paths": [[0, 1], [0, 2, 1]]

7 },{ "src": 0, "dst": 2,

8 "paths": [[0, 2], [0, 1, 2]]

9 },{ "src": 1, "dst": 0,

10 "paths": [[1, 0], [1, 2, 0]]

11 },{ "src": 1, "dst": 2,

12 "paths": [[1, 2], [1, 0, 2]]

13 },{ "src": 2, "dst": 0,

14 "paths": [[2, 0], [2, 1, 0]]

15 }

16 ]

17 }

The third ﬁle corresponds to the bitrates and mod-

ulation format requests. Each modulation has its

name, reach, and the required number of slots. Like

the routes, the order in which the modulation formats

are placed in the JSON ﬁle determines the order in

which they will be iterated in the allocating algorithm.

Code 6 shows an example of two bitrates {40,100}

each with two modulation formats {16-QAM, QPSK}

Code 6: Bitrates JSON ﬁle.

1 {

2 "40": [

3 {"16QAM": {"slots":1, "reach":1500},

4 "QPSK": {"slots":2, "reach":4000}

5 }

6 ], "100": [

7 {"16QAM": {"slots":2, "reach":1500},

8 "QPSK": {"slots":4, "reach":4000}

9 }

10 ]

11 }

5 SIMULATION RESULTS

The simulation was conducted in a Windows Subsys-

tem for Linux Version 2 (Windows 10) installed on

an HDD using an Intel Core i5 9400F, 3.90 GHz,

and 16 GB of RAM, obtaining a total CPU execu-

tion time equal to 20 seconds for the FF-RCSA al-

gorithm and 22 seconds for the DA-RCSA algorithm.

We simulate 10

connections in the NSFNet topology

(14 nodes, 44 unidirectional links) shown in Fig. 3.

Each ﬁber has seven cores and 80 spectrum slots.Fiber

parameters used by (Tan et al., 2016) are 0.05m,4 ×

1/m,4 × 10

−4

, and 4 × 10

−5

, for bending radius,

propagation constant, coupling coefﬁcient, and core

pitch, respectively. Cross-talk thresholds used are

−14dB, −18.5dB, and −25dB for BPSK, QPSK, and

16-QAM modulation formats, respectively.

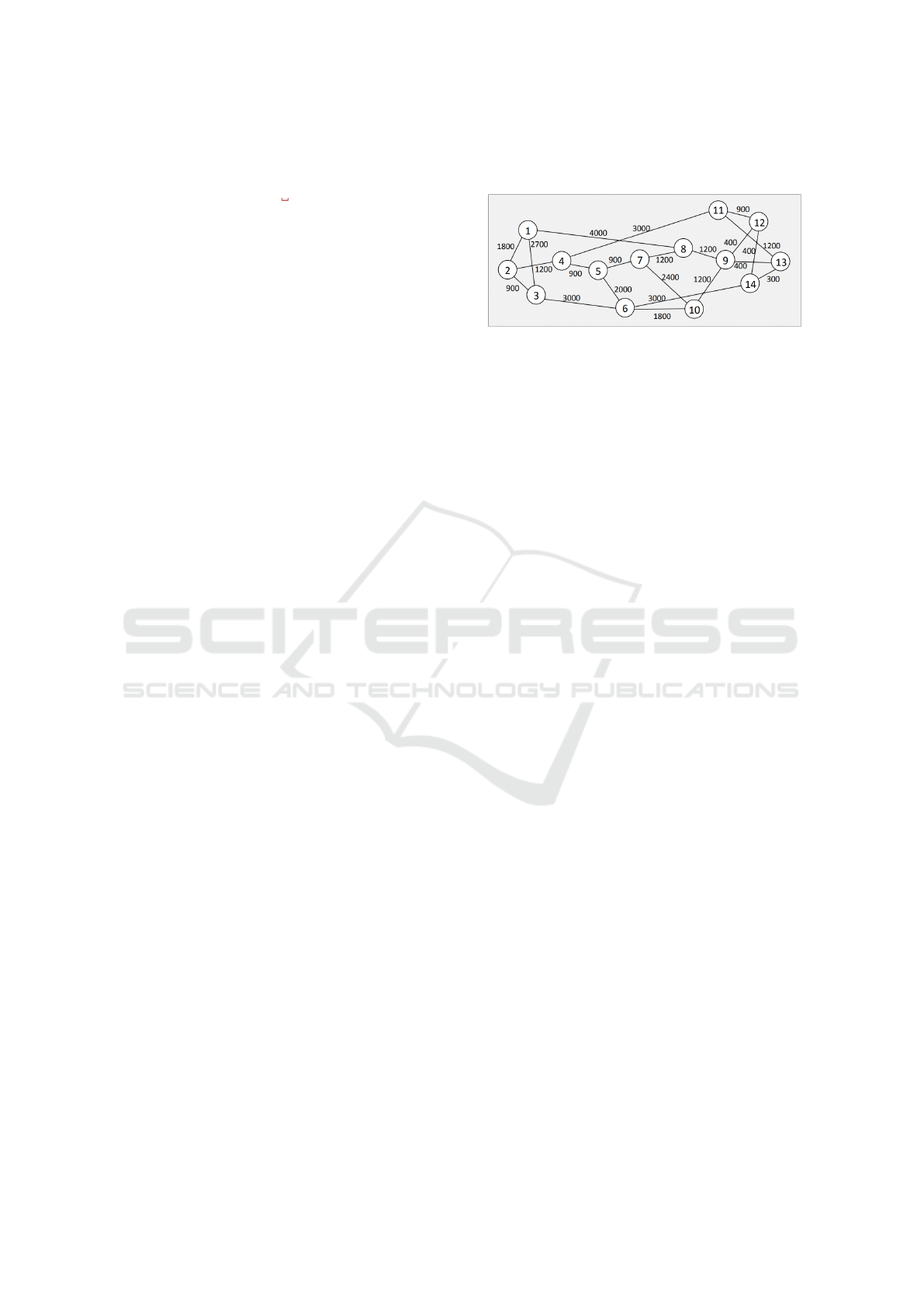

Figure 3: NSFNet topology with distance in km (Tan et al.,

2016).

The bitrates were uniformly distributed between

B = {40,100, 200} Gbps, and a total of three modu-

lation formats were used (BPSK, QPSK, 16-QAM),

with their respective optical reach and frequency slot

capacity (Table 1 at (Tan et al., 2016)).

Fig. 4a shows the blocking probability of both al-

gorithms. The results show that the use of the DA-

RCSA algorithm performs better compared to the FF-

RCSA. Fig. 4b displays the maximum resource uti-

lization of the network. These results also show that

the DA-RCSA algorithm alleviates network usage us-

ing different modulation formats compared to FF-

RCSA. Although all the results obtained are consis-

tent with those at (Tan et al., 2016), they are not ex-

actly the same, and this may be due to several reasons.

Firstly, as there is a generation of random variables

involved (to simulate the arrival of the connections),

it is improbable to replicate the exact same results,

either because it was programmed differently or be-

cause there is no access to the seed used.

On the other hand, the number of connections

used by the researchers was 5,000 compared to the

100,000 used during our simulations. Given that the

higher the number of simulated connections, the bet-

ter the conﬁdence interval of the metrics obtained, we

can state that our values are more reliable. Despite

these differences, it could be said that the proportions

between the two algorithms are quite similar, which

would lead us to conclude the same as the researchers.

6 CONCLUSION

In this paper, we presented a module for the Flex-

Net-Sim C++ library that extends its support for using

SDM. The results obtained are consistent with the ref-

erence example presented. With the addition of this

module, researchers and developers can now inves-

tigate and expand their knowledge of SDM-enabled

elastic optical networks using the FlexNet-Sim C++

library.

Event-Oriented Simulation Module for Dynamic Elastic Optical Networks with Space Division Multiplexing

301

0 200 400

600

800 1,000

0.00

0.05

0.10

0.15

0.20

0.25

Trafﬁc load [Erlang]

Blocking Probability

FF-RCSA

DA-RCSA

(a) Blocking probability

0 200 400

600

800 1,000

0.00

0.20

0.40

0.60

0.80

1.00

Trafﬁc load [Erlang]

Maximum Resource Utilization

FF-RCSA

DA-RCSA

(b) Resource utilization

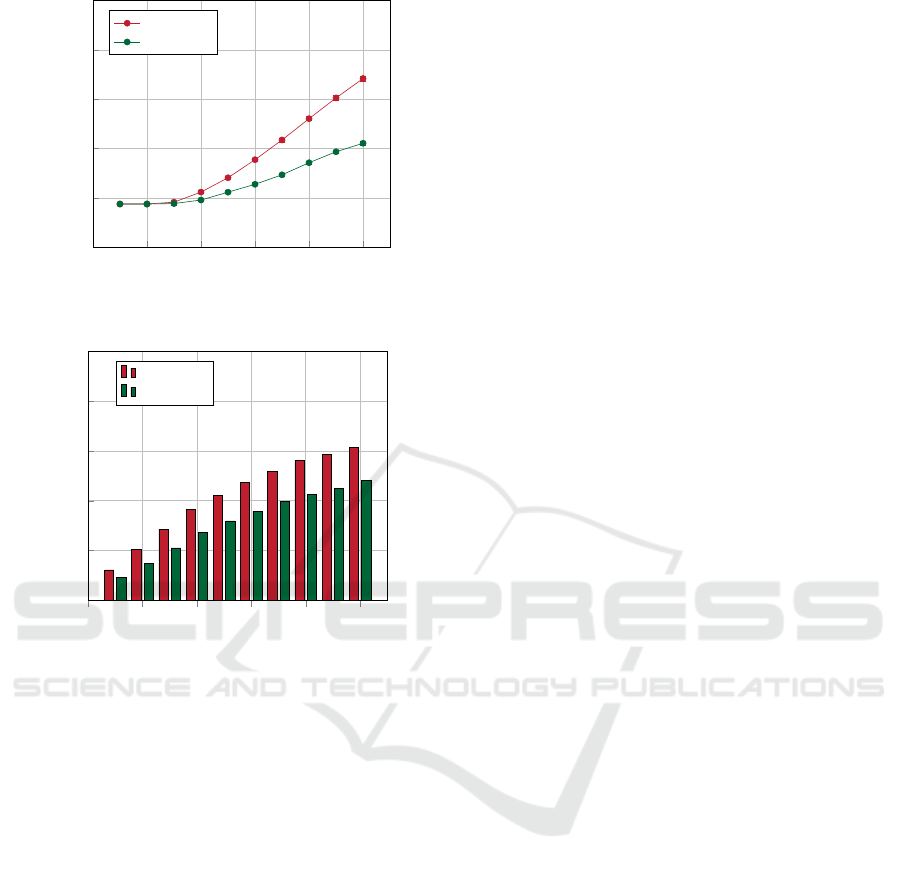

Figure 4: Numerical results.

Future work is expected to implement multiband

in multi-core/mode modules to enhance the simula-

tor’s capabilities further. There is also the possibility

of implementing other types of events used in opti-

cal network research, such as fragmentation and fault

tolerance.

ACKNOWLEDGEMENTS

This work received ﬁnancial support from ANID

FONDECYT Iniciaci

on 11220650 and Fondecyt

1231826.

REFERENCES

Aibin, M. and Blazejewski, M. (2015). Complex elastic

optical network simulator (ceons). In 2015 17th Inter-

national Conference on Transparent Optical Networks

(ICTON), pages 1–4.

Cavalcante, M. A., Pereira, H. A., and Almeida, R. C.

(2017). SimEON: an open-source elastic optical net-

work simulator for academic and industrial purposes.

Photonic Network Communications, 34(2):193–201.

Delvalle, L., Alfonzo, E., and Roa, D. P. P. (2016). Eons:

An online rsa simulator for elastic optical networks.

In 2016 35th International Conference of the Chilean

Computer Science Society (SCCC), pages 1–12.

Falc

on, F., Espa

na, G., and B

orquez-Paredes, D. (2021).

Flex net sim: A lightly manual.

Gen

e, J. M. and Winzer, P. J. (2019). A universal speciﬁ-

cation for multicore ﬁber crosstalk. IEEE Photonics

Technology Letters, 31(9):673–676.

Gerstel, O., Jinno, M., Lord, A., and Yoo, S. B. (2012).

Elastic optical networking: a new dawn for the optical

layer? IEEE Communications Magazine, 50(2):s12–

s20.

Jinno, M. (2017). Elastic optical networking: Roles and

beneﬁts in beyond 100-gb/s era. Journal of Lightwave

Technology, 35(5):1116–1124.

Klinkowski, M., Lechowicz, P., and Walkowiak, K. (2018).

A study on the impact of inter-core crosstalk on sdm

network performance. In 2018 International Confer-

ence on Computing, Networking and Communications

(ICNC), pages 404–408.

Moura, P. M. and Drummond, A. C. (2020). FlexGridSim:

Flexible Grid Optical Network Simulator. http://www.

lrc.ic.unicamp.br/FlexGridSim/.

Muhammad, A., Zervas, G., and Forchheimer, R. (2015).

Resource allocation for space-division multiplexing:

Optical white box versus optical black box network-

ing. Journal of Lightwave Technology, 33(23):4928–

4941.

Puttnam, B. J., Rademacher, G., and Lu

ıs, R. S. (2021).

Space-division multiplexing for optical ﬁber commu-

nications. Optica, 8(9):1186–1203.

Roser, M., Ritchie, H., and Ortiz-Ospina, E.

(2020). Internet. Our World in Data.

https://ourworldindata.org/internet.

Tan, Y., Yang, H., Zhu, R., Zhao, Y., Zhang, J., Liu, Z.,

Ou, Q., and Zhou, Z. (2016). Distance adaptive rout-

ing, core and spectrum allocation in space division

multiplexing optical networks with multi-core ﬁbers.

In 2016 Asia Communications and Photonics Confer-

ence (ACP), pages 1–3.

Tessinari, R. S., Puype, B., Colle, D., and Garcia, A. S.

(2016). Elastico++: An elastic optical network simu-

lation framework for omnet++. Optical Switching and

Networking, 22:95 – 104.

Winzer, P. J., Neilson, D. T., and Chraplyvy, A. R. (2018).

Fiber-optic transmission and networking: the previ-

ous 20 and the next 20 years (invited). Opt. Express,

26(18):24190–24239.

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

302
