Smart Bulbs Can Be Hacked to Hack into Your Household

Davide Bonaventura

1 a

, Sergio Esposito

2 b

and Giampaolo Bella

1 c

Dipartimento di Matematica e Informatica, Universit

a di Catania, Catania, Italy

Information Security Group, Royal Holloway, University of London, Egham, U.K.

Keywords:

IoT, Smart Homes, Smart Devices, Smart Bulb, Penetration Test, Vulnerability Assessment.

Abstract:

The IoT is getting more and more pervasive. Even the simplest devices, such as a light bulb or an electrical

plug, are made “smart” and controllable by our smartphone. This paper describes the ﬁndings obtained by

applying the PETIoT kill chain to conduct a Vulnerability Assessment and Penetration Testing session on a

smart bulb, the Tapo L530E by Tp-Link, currently best seller on Amazon Italy. We found that four vulnera-

bilities affect the bulb, two of High severity and two of Medium severity according to the CVSS v3.1 scoring

system. In short, authentication is not well accounted for and conﬁdentiality is insufﬁciently achieved by the

implemented cryptographic measures. In consequence, an attacker who is nearby the bulb can operate at will

not just the bulb but all devices of the Tapo family that the user may have on her Tapo account. Moreover, the

attacker can learn the victim’s Wi-Fi password, thereby escalating his malicious potential considerably. The

paper terminates with an outline of possible ﬁxes.

1 INTRODUCTION

The Internet of Things (IoT) surrounds people virtu-

ally everywhere due to the increasing number of de-

vices that become computerised and interconnected

— it may even pervade people’s bodies thanks to

the rise of implantable medical devices and wearable

devices. IoT devices exceeded 13.8 billion in 2021

and are expected to double by 2025 (Howarth, 2023).

This world of devices leads to a massive attack sur-

face with a signiﬁcant increase in the number of en-

try points for hackers and, correspondingly, security

and privacy challenges for researchers and engineers

to face.

While the full range and inherent diversity of IoT

devices cannot be overestimated, safety critical de-

vices, such as self-driving cars, Industrial Control

Systems (ICS) and their security and privacy chal-

lenges, risk drawing too much attention to the detri-

ment of inexpensive devices, such as those for home

automation. It must be stressed that any home au-

tomation issue would be highly impactful due to the

enormous use of such devices worldwide, which is

also favoured by a general price decrease.

We observe that similar considerations apply to

https://orcid.org/0009-0004-4463-7991

https://orcid.org/0000-0001-9904-9821

https://orcid.org/0000-0002-7615-8643

smart bulbs, whose hijacking may have security im-

plications, e.g., help a thief abuse the victim’s elec-

tricity consumption, then privacy implications, e.g.,

help the thief proﬁle the victim’s patterns of usage

hence their habits and, ultimately, safety implications,

e.g., ultimately help the thief understand if a house-

hold is currently empty or not. Following these ob-

servations, this paper rests on the following research

question: What vulnerabilities affect best-seller light

bulbs? What consequences do they have on the end

user’s security, privacy and safety?

1.1 Contributions

Our experiments apply the (steps of the) PETIoT kill

chain (Bella et al., 2023) to conduct a Vulnerability

Assessment and Penetration Testing (VAPT) on the

Tp-Link Tapo Smart Wi-Fi Light Bulb, Multicolor

(L530E), currently best-seller on Amazon Italy, Fig-

ure 1. The Tapo L530E is a cloud-enabled multicolor

Smart Bulb that can be controlled through the Tapo

proprietary application. The user needs to install it

on an Android or iOS mobile device and then cre-

ate a Tapo account. The smart bulb uses Wi-Fi tech-

nology for connectivity. So, unlike many other smart

bulbs requiring a dedicated hub, the user can enjoy

the L530E as is by simply connecting it to their home

Wi-Fi network.

218

Bonaventura, D., Esposito, S. and Bella, G.

Smart Bulbs Can Be Hacked to Hack into Your Household.

DOI: 10.5220/0012092900003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 218-229

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

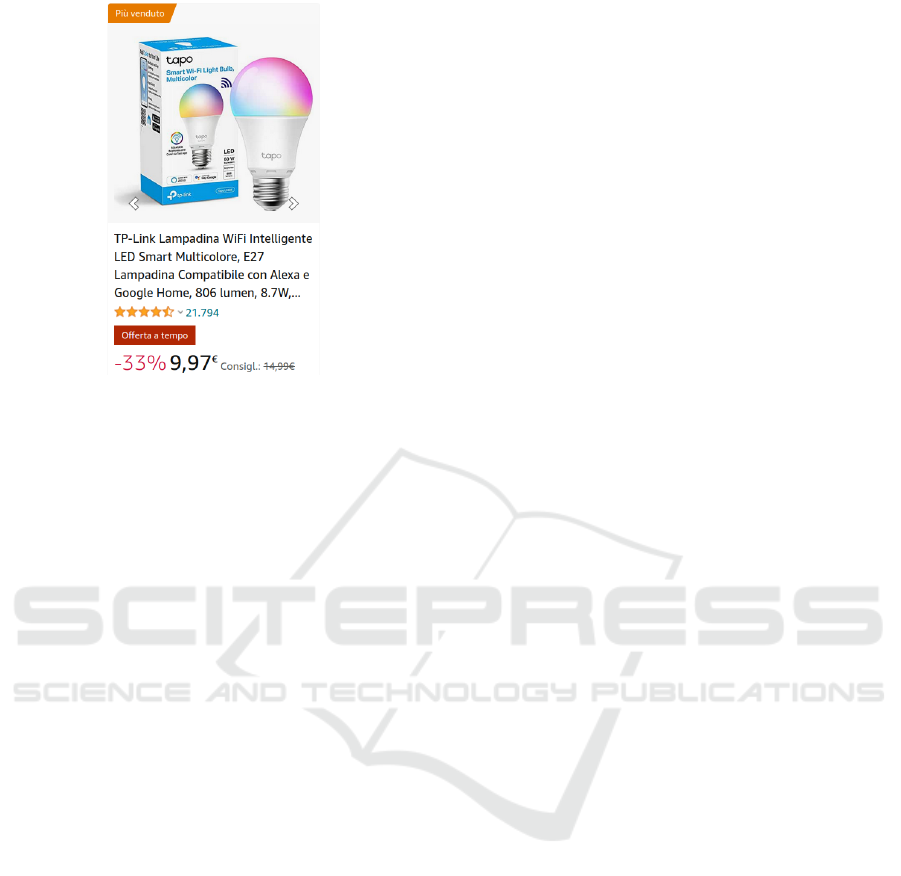

Figure 1: The Tapo L530E on Amazon.it.

Contrarily to a potential belief that smart bulbs are

not worth protecting or hacking, we found out that

this model suffers four vulnerabilities that are not triv-

ial and, most importantly, may have a dramatic im-

pact:

1. Vulnerability 1. Lack of authentication of the

smart bulb with the Tapo app, 8.8 CVSS score,

High severity. The app does not get any guarantee

about the identity of its peer. Therefore, anyone

can authenticate to the app and pretend to be the

smart bulb.

2. Vulnerability 2. Hard-coded, short shared secret,

7.6 CVSS score, High severity. The secret used

by both the Tapo app and the smart bulb is short

and exposed by both the code fragments run by

the app and by the smart bulb.

3. Vulnerability 3. Lack of randomness during

symmetric encryption, 4.6 CVSS score, Medium

severity. The initialisation vectors (IVs) used by

the Tapo app and the smart bulb are static, and

each communication session uses a single, ﬁxed

IV for each message.

4. Vulnerability 4. Insufﬁcient message freshness,

5.7 CVSS score, Medium severity. Neither the

app nor the smart bulb implements appropriate

measures to check the freshness of messages that

they receive.

Our exploitation experiments of such vulnerabilities

demonstrate that a malicious attacker who stands in

proximity of the target smart bulb, hence of the Wi-Fi

access point to which the bulb is meant to be con-

nected, can exploit the bulb in various ways. Vul-

nerability 1 means that the attacker impersonates the

bulb and receives the user’s Tapo credentials as well

as the user’s Wi-Fi credentials from the Tapo app.

To achieve this, the bulb must be in setup mode,

when it exposes its own SSID. Alternatively, if the

bulb is already conﬁgured and working, then the at-

tacker mounts a simple Wi-Fi deauthentication attack

against the bulb and repeats it until the user attempts

to setup the bulb again to restore it.

The attacker may also interleave another session:

by leveraging the credentials just obtained, he imper-

sonates the user through the setup of the bulb and re-

ceives a session key from the device, which he may

then relay back to the user. Therefore, the attacker ef-

fectively mounts a man-in-the-middle attack. More-

over, during device setup, the Tapo app also releases

the Wi-Fi credentials to the attacker, thereby causing

a clear escalation of the malicious potential for other

attacks requiring local access.

Vulnerability 2 means that the attacker can obtain

the key that the Tapo app and the smart bulb share and

use for the authentication and the integrity of the mes-

sages exchanged during the initial discovery phase,

described in Section 5.1. Thanks to the knowledge

of the key, the attacker can violate the integrity and

authentication of the messages of this phase.

Vulnerability 3 means that the attacker under-

stands the consequences of certain encrypted mes-

sages on the target device despite the fact that he does

not understand the precise cleartext inside each mes-

sage. Therefore, the attacker may attempt to re-use

those messages at will to operate the device as each

message determines. In combination with vulnerabil-

ity 4, the attacker is assured that whatever message he

replays will be accepted by the bulb, hence a Denial-

of-Service (DoS) attack becomes possible.

1.2 Ethics and Responsible Disclosure

All experiments performed on Tapo L530E only in-

volve devices, Wi-Fi networks, accounts, emails, and

passwords owned solely by the authors of this work.

During the experiments, no user nor third-party data

were accessed.

We dutifully contacted Tp-Link via their Vulner-

ability Research Program (VRP), reporting all four

vulnerabilities we found. They acknowledged all of

them and informed us that they started working on

ﬁxes both at the app and at the bulb ﬁrmware levels,

planning to release them in due course.

1.3 Paper Summary

This paper continues with a short account of the re-

lated work (§2). It then unfolds the six phases of the

chosen methodology, i.e., the PETIoT kill chain, on

Smart Bulbs Can Be Hacked to Hack into Your Household

219

the chosen target, i.e., the Tapo L530E (§3 through

§8). Finally, it draws the relevant conclusions (§9).

2 RELATED WORK

The security and privacy aspects of IoT devices are

becoming more and more important and, correspond-

ingly, the related work concerning such devices is

very wide. Due to space constraints, this section is

reduced to the literature entries that are most relevant

to the core of this paper.

In 2021, it was shown that printers are common

devices whose networked use may suffer at least three

attacks (Bella and Biondi, 2019). The ﬁrst attack,

zombies for traditional DDoS, shows how some print-

ers may suffer from vulnerabilities that would trans-

form them into exploitable zombies. The second at-

tack, paper DoS, shows how a large number of print-

ers are found to honour unauthenticated printing re-

quests. The third attack, privacy infringement, shows

how these devices bear a remarkable risk of data

breach. Later, the same authors contributed to sim-

ilar experiments against VoIP phones (Biondi et al.,

2020). Our work follows a similar methodology.

In 2022, a literature survey for understanding IoT

security threats and challenges appeared (Nath and

Nath, 2022). It is divided into three parts. The ﬁrst

part contains an analysis of the main threats and at-

tacks, also analysing the IoT ecosystem from four per-

spectives: devices, internal network services, external

network services and users. The second part contains

a study on recent IoT malware attacks. Finally, the

general security requirements and challenges to ad-

dress the devised attack categories are discussed. This

work was inspirational for our experiments.

PETIoT is a recent cyber Kill Chain (KC) speciﬁ-

cally developed to guide VAPT sessions over IoT de-

vices (Bella et al., 2023) with a focus on detecting

their network vulnerabilities. The KC is demonstrated

on the Tapo C200 IP camera by Tp-Link, enabling the

discovery of three severe vulnerabilities: Improper

neutralisation of inbound packets; Insufﬁcient entropy

in encrypted notiﬁcations; Cleartext transmission of

video stream. Each of the vulnerabilities found is ex-

ploited through different attack scenarios, and appro-

priate remediation measures are illustrated as possible

ﬁxes. We followed PETIoT strictly through our work,

as can be seen by the steps discussed below.

In 2018, a penetration testing session on the Trad-

fri smart bulb produced by IKEA was reported (Dalvi

et al., 2018). The article describes four different at-

tacks. Hacking Smart Light Bulb via Bluetooth al-

lows the attacker to control the bulb. IKEA Tradfri

Gateway Exploit allows the attacker to compromise

the ZigBee Tradfri gateway by managing to break the

ﬁrmware update. Denial of Service Attack allows the

attacker to perform a DoS attack against the gateway

by ﬂooding it with UDP packets. Identity Spooﬁng al-

lows the attacker to impersonate the CoAP client and

control the smart bulbs. This work is closely related

to ours but revolves around the ZigBee protocol and

does not achieve escalation to local Wi-Fi access.

3 EXPERIMENT SETUP

We begin deﬁning the experiment setup, accordingly

with the PETIoT kill chain. Our setup is non-invasive,

as the smart bulb is not tampered with. It includes:

• A Wi-Fi switch to provide local connectivity.

• A Smart bulb Tapo series L530 with Hardware

Version 1.0.0 and Firmware Version 1.1.9.

• A Samsung smartphone running Android 11 and

the Tapo app Version 2.8.14.

• An Ubuntu 22.04 machine with 5.15.0-47 kernel

to run all software needed for the experiments.

To be able to use all the bulb features, it is necessary

to create a Tapo account and login into it. Depending

on whether the smart bulb is already associated with

a Tapo account or not, and the network conﬁguration

used, we identify three different setups. In all three

setups, the smartphone has access to the Tapo account

to which the smart bulb is associated, or to which the

user wants to associate it.

3.1 Setup A

The context of the Setup A is as follows.

• The user has previously associated her smart bulb

with the Tapo app on her phone. During the asso-

ciation process, the user connects the smart bulb

to a certain network X.

• The Ubuntu device and the user’s phone are both

connected to the same network Y as shown in Fig-

ure 2 — this is not necessarily the network X to

which the Tapo L530E is connected.

This setup does not require the Ubuntu device to

have access to the network to which the smart bulb

is connected, but only to be connected to the same

network as the Tapo app. Therefore, the user could,

for example, connect to a public network to turn off a

light that may have been mistakenly left on at home.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

220

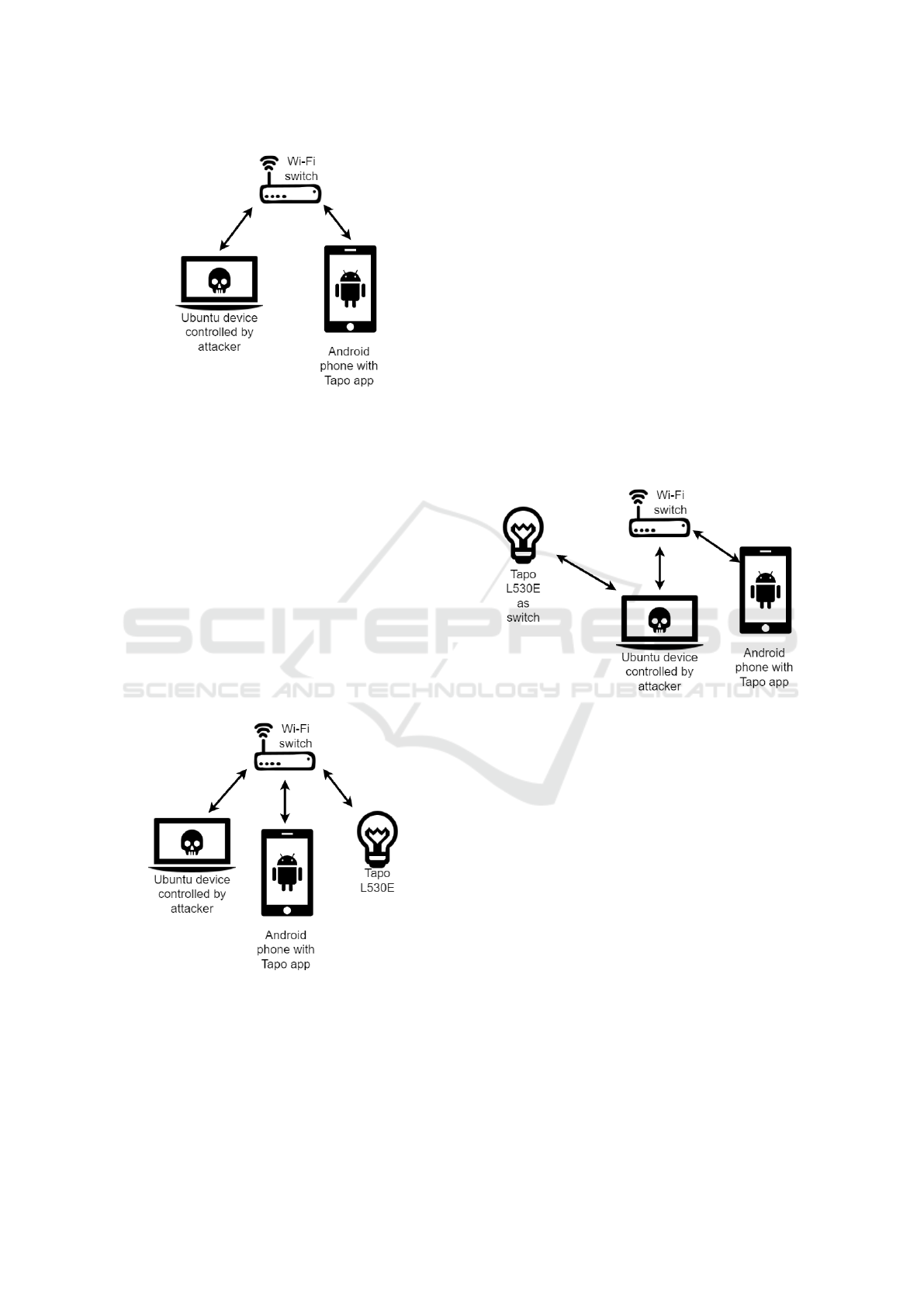

Figure 2: Setup A, network without a local smart bulb.

3.2 Setup B

The context of the Setup B is as follows.

• The user has previously associated her smart bulb

with the Tapo app on her phone. During the asso-

ciation process, the user connects the smart bulb

to a certain network X.

• The Ubuntu device and the user’s phone are both

connected to the same network X to which the

smart bulb is connected, as shown in Figure 3.

• The Ubuntu device has complete control of the

network X. It is able to carry out an ARP spoof-

ing attack, i.e., to intercept data frames, modify

the network trafﬁc or prevent it from reaching its

intended recipient.

Figure 3: Setup B, network with a conﬁgured smart bulb.

This setup requires the active presence of the

smart bulb. In addition, the setup requires the Ubuntu

device to have access to the network to which the

smart bulb is connected, typically the victim’s local

network. Therefore, all devices used are connected

via Wi-Fi to the same access point.

3.3 Setup C

The context of the Setup C is as follows.

• The user wants to associate the newly reset or not

yet conﬁgured smart bulb with her Tapo account.

• The Tapo app (hence, the user) believes to be con-

nected to the network X created by the smart bulb,

but it is actually connected to a network Y con-

trolled by the Ubuntu device.

• The Ubuntu device is connected both to the net-

work created by the smart bulb and to the network

controlled by itself.

This setup occurs when the smart bulb has been re-

set or has not been conﬁgured yet. As detailed in Sec-

tion 5.3.1, the smart bulb starts a public access point

to which the user must connect to complete the setup.

The network conﬁguration is shown in Figure 4.

Figure 4: Setup C, network with a non-conﬁgured bulb.

The Wi-Fi deauthentication attack allows the at-

tacker to easily get Setup C. A Wi-Fi deauthentication

attack is a type of denial-of-service attack that targets

communications between a device and a Wi-Fi wire-

less access point (Kristiyanto and Ernastuti, 2020).

Thanks to this attack, the attacker can deauthenticate

the smart bulb from the network to which it is con-

nected, forcing the user to repeat its setup process.

The Wi-Fi deauthentication attack requires the access

point and connected devices not to use 802.11w or

WPA3. Although in literature there are other theoret-

ically feasible methods to perform the deauthentica-

tion attack anyway (Schepers et al., 2022), we did not

test them. In Setup C, we assume that the network

to which the smart bulb is connected is a network

where the deauthentication attack can be performed.

One way to mount it would be to leverage Aircrack-

ng (d’Otreppe de Bouvette, 2023), as described in a

blog (Alopix, 2023). The attack requires the adver-

sary to know the victim device’s MAC address, how-

ever, it is possible to list all MAC addresses connected

to nearby access points by simply listening to the traf-

Smart Bulbs Can Be Hacked to Hack into Your Household

221

ﬁc, so the adversary has a short and ﬁnite list of ad-

dresses to try.

After the victim resets the smart bulb, it enters

setup mode. In Setup C, the Ubuntu device needs

the Tapo app to connect to the network it controls

and not to the network started by the smart bulb —

hence, the adversary performs another Wi-Fi deau-

thentication attack to deauthenticate the phone run-

ning the Tapo app from the network started by the

smart bulb, arguably inducing the victim to re-attempt

to connect, eventually using the adversary-controlled

network with the same SSID. As the network started

by the smart bulb is an unprotected Wi-Fi 4 (802.11n)

network, in this latter case the deauthentication at-

tack will always work. Intuitively, this setup assumes

that the Ubuntu device is close enough to the network

started by the smart bulb to hear the emitted carrier.

4 INFORMATION GATHERING

After the setup we can proceed to the collection of

information. The following tools are installed on the

Ubuntu device:

• Ettercap (Ettercap, 2023), a suite of tools to per-

form MITM attacks used on the Ubuntu device to

control the network.

• Wireshark (Wireshark, 2023), a network protocol

analyser (or packet sniffer) used to capture and

analyse trafﬁc.

The smart bulb ﬁrmware source code is not publicly

available. Therefore, the offensive activities are per-

formed in black-box mode.

Thanks to the messages captured with Wireshark it

is possible to distinguish between three different types

of communications. They differ according to the

sender and the receiver of the various messages be-

longing to them. The three different types of commu-

nications we identiﬁed are: (a) communications App-

Cloud, including all messages exchanged between the

Tapo App and the Cloud Server; (b) communications

Bulb-App, including all messages exchanged between

the smart bulb and the Tapo App; (c) communica-

tions Cloud-Bulb, including all messages exchanged

between the Cloud Server and the smart bulb. When

the phone running the Tapo app is not connected to

the same network as the light bulb, communications

happen through the cloud, combining App-Cloud and

Cloud-Bulb communications – otherwise, they take

place locally with Bulb-App communications.

All communications through the cloud, i.e., App-

Cloud and Cloud-Bulb, are encrypted. They take

place through the use of a secure TLS channel that

ensures authenticity, integrity, and conﬁdentiality of

the messages, even though they are transmitted over

the Internet. Instead, all Bulb-App communications

are exchanged via HTTP messages. Their payloads

are encrypted using the AES128 block cipher in CBC

mode. The initialisation vector and the cryptographic

key used for this protocol are exchanged using the

Tapo “Symmetric Key Exchange Protocol” (TSKEP),

which is described below in Section 5.2. This pro-

tocol only generates trafﬁc over the local Wi-Fi net-

work, not through the Internet.

Our offensive activities only target Bulb-App com-

munications, and ignore the others.

5 TRAFFIC ANALYSIS

Thanks to the information obtained during the previ-

ous phase, it is now possible to analyse the network

trafﬁc proﬁtably.

The API exposed by the smart bulb is very sim-

ilar to a Remote Procedure Call (RPC). The JSON

sent by the app to the smart bulb contains the name

of the method to be invoked and its parameters. The

responses sent by the smart bulb to the app contain

an error code representing the outcome of the opera-

tion (whether it was successfully executed or the error

occurred) with an optional result. All JSONs are ex-

changed via the payloads of HTTP messages.

Before the Tapo app starts using the API exposed

by the bulb, it must perform two preliminary steps:

locate the smart bulb within the network to which it

is connected, and exchange a symmetric key with the

smart bulb to encrypt messages. Therefore, the com-

munication between smart bulb and Tapo app can be

summarised in three macro-steps:

• Bulb Discovery – it allows the Tapo app to locate

the smart bulb within the local network and to get

the smart bulb’s current conﬁguration.

• Tapo Symmetric Key Exchange Protocol – execut-

ing the TSKEP protocol allows the Tapo app and

smart bulb to exchange a symmetric key.

• Smart bulb usage – it consists in using the actual

smart bulb app protocol.

These macro-steps are described in detail below.

5.1 Bulb Discovery

Smart bulb conﬁgurations may change over time. For

example, the IP address assigned to it by the DHCP

server might have changed, it might start using a dif-

ferent encryption scheme after an update, or it might

have just been reset. Before the Tapo app can start

SECRYPT 2023 - 20th International Conference on Security and Cryptography

222

communicating with the smart bulb, it must locate the

smart bulb within the local network and get its cur-

rent conﬁguration. To do this, the Tapo app connects

to the UDP service listening on the 20002 port of the

smart bulb, as represented in Figure 5.

Figure 5: Tapo (local) Device dicovery.

The payload format of such UDP messages is rep-

resented in Table 1. It can be explained as follows:

• Bytes in positions [0:3] and [6:7] are static. Their

values never change.

• The data length ﬁeld contains the length of the

data ﬁeld, which contains the data exchanged be-

tween Tapo app and smart bulb. When the data

ﬁeld is empty (i.e., when it has length 0) the bits

of this ﬁeld are all set to 0.

• The nonce ﬁeld contains a 4-byte string randomly

generated by the Tapo app. The string is inserted

in the bulb discovery request message from the

Tapo app and quoted by the smart bulb in the

bulb discovery response message from the smart

bulb. This allows the Tapo app to obtain guaran-

tees about the freshness of the response received

from the smart bulb.

• Logically, the checksum ﬁeld must be excluded

from the computation of the checksum itself —

instead, a secret key of the same length is used in

its place for the checksum computation. This se-

cret key is hard-coded in both the Tapo app and

the smart bulb, hence, the checksum acts like a

Message Authentication Code (MAC). This ﬁeld

allows the receiver to understand that the message

arrives intact as it is sent. The algorithm used

for the checksum calculation is the Cyclic Redun-

dancy Check 32 (CRC-32), a checksum algorithm

that hashes byte sequences to 32 bit values.

• The data ﬁeld contains different information de-

pending on whether it is a bulb discovery re-

quest or a bulb discovery response and whether

the smart bulb is conﬁgured or not.

Table 1: Format of the payload of UDP messages.

Octet

0 1 2 3

Offset

0 0x02 0x00 0x00 0x01

4 Data length 0x11 0x00

8 Nonce

12 Checksum

... Data

5.2 Tapo Symmetric Key Exchange

Protocol

This step uses the RPC API exposed by the smart bulb

on port 80. All exchanged messages are HTTP mes-

sages, so at the transport layer, only the TCP proto-

col is used. The TSKEP, represented in Figure 6, al-

lows Tapo app and smart bulb to exchange a 128-bit

AES key and an IV to encrypt the payload of various

HTTP messages. The protocol consists of four differ-

ent messages:

1. RSA public key transmission

2. AES key transmission

3. Login

4. Token transmission

Figure 6: Tapo Symmetric Key Exchange Protocol.

At the end of this phase, Tapo app and smart bulb

get a short-term shared secret to encrypt all subse-

quent trafﬁc. Thanks to the credential stored during

the setup phase, for the smart bulb the secret is also

authenticated.

5.3 Smart Bulb Setup

This section focuses on the two possible conﬁgura-

tions for the smart bulb and speciﬁes them in depth

following our trafﬁc analysis efforts.

Smart Bulbs Can Be Hacked to Hack into Your Household

223

5.3.1 Smart Bulb Turned on and not Conﬁgured

Before a smart bulb Tapo L530E can be used, it must

be associated with a Tapo account. There are two rea-

sons why a smart bulb may not be associated with any

accounts: because it has been reset, or it has not been

conﬁgured yet. In this Section, we discuss the process

of associating the smart bulb with a Tapo account.

An unconﬁgured or newly reset smart bulb starts

a public access point with SSID Tapo Bulb XXXX,

where XX XX are four decimal places. The smart bulb

also acts as a switch within the network it generates.

In order to conﬁgure it and associate it with their Tapo

account, the user must connect to the Wi-Fi network

started by the smart bulb itself.

After that, the Tapo app tries to locate the smart

bulb. To do this, it starts sending bulb discovery re-

quest messages to broadcast. In this case, the data

ﬁeld of these messages is empty. After the identiﬁca-

tion of the smart bulb, the Tapo app starts the TSKEP

protocol with it. The values set in the login message

as username and password are ﬁxed values that the

Tapo app uses every time it conﬁgures a new device.

Once the symmetric key is obtained, Tapo app

sends to the smart bulb the SSID and the password

of the Wi-Fi network to which the smart bulb must

connect. The Tapo app also sends the credentials of

the Tapo account to which it must be associated. The

credentials are then stored by the smart bulb. Through

these credentials, smart bulb is able to authenticate all

subsequent requests of Tapo app. At this point, the

smart bulb turns its access point off and connects to

the speciﬁed Wi-Fi network. The smart bulb starts

communicating with the cloud server to complete its

setup. Hence, the Wi-Fi network to which the smart

bulb connects must have Internet access.

5.3.2 Smart Bulb Already Conﬁgured

Let us now consider the case where the smart bulb is

associated with a Tapo account and it is ready to be

used. As mentioned before, it can be controlled either

locally or remotely via the Tapo cloud. To do so, the

Tapo application initially tries to locate the smart bulb

within the network with a bulb discovery request mes-

sage. If it detects it (i.e., it gets a response) then the

interaction happens locally via Bulb-App communi-

cations, which are the subject of our analysis. Other-

wise, if the Tapo app does not receive any valid bulb

discovery response, then it tries to check the smart

bulb remotely. If the smart bulb is not detectable even

remotely then it is determined ofﬂine.

6 VULNERABILITY

ASSESSMENT

The assessment following the information gathered so

far highlights four vulnerabilities.

Vulnerability 1 – Lack of the Smart Bulb Authen-

tication with the Tapo App. Improper Authentica-

tion (MITRE, 2006a) in Tapo L503E allows an adja-

cent attacker to impersonate the Tapo L530E with the

Tapo app during the TSKEP step.

In the TSKEP step, unlike the Bulb Discovery

step, the protocol used to exchange the session key

does not give the Tapo app any evidence of its peer’s

identity. Hence, an attacker is able to authenticate to

the Tapo app as the Tapo L530E or as another device:

in fact, this vulnerability is present in all Tapo smart

devices that use the TSKEP protocol.

The CVSS v3.1 score that we calculate is 8.8,

meaning High severity. Precisely: Attack Vector:

Adjacent; Attack Complexity: Low; Privileges Re-

quired: None; User Interaction: Required; Scope:

Changed; Conﬁdentiality: High; Integrity: High;

Availability: High. In particular, Attack Complex-

ity is low because the attacker could impersonate the

bulb by implementing the protocol messages to re-

spond to the calling app. Following that, he could

obtain the user password on the Tapo app, then fully

impersonate the user and manipulate at will any target

Tapo device of the same user. Precisely, by imperson-

ating the bulb at setup time as explained above, the

attacker would receive the victim’s Wi-Fi SSID and

password from the Tapo app, so that he could then

impersonate the user by her password at each session

with the target device, which could be any Tapo de-

vice of the user’s. The attacker could also obtain the

device-chosen session key, which he could then relay

to the user’s genuine app and effectively interpose.

Vulnerability 2 – Hard-Coded Short Check-

sum Shared Secret. Protection Mechanism Fail-

ure (MITRE, 2008) in Tapo L503E allows an adjacent

attacker to obtain the secret used for authentication

during the Bulb Discovery phase.

The shared secret used for Bulb Discovery’s mes-

sages authentication is short and hard-coded both in

the Tapo app and in the Tapo L530E. Therefore, it

can be obtained in the following ways:

1. Brueforcing, because of its shortness.

2. Decompiling the Tapo app.

The CVSS v3.1 score that we calculate is 7.6,

meaning High severity. Precisely: Attack Vector:

SECRYPT 2023 - 20th International Conference on Security and Cryptography

224

Adjacent; Attack Complexity: Low; Privileges Re-

quired: None; User Interaction: Required; Scope:

Unchanged; Conﬁdentiality: Low; Integrity: High;

Availability: High. The knowledge of the shared se-

cret provides to the attacker the ability to edit and to

create Bulb Discovery messages. Speciﬁcally, the at-

tacker is able to generate fake bulb discovery requests

to locate all smart bulbs, or generally Tapo devices us-

ing the same protocol, connected within the same net-

work. Meanwhile, the ability to edit valid messages

allows the attacker to edit the bulb discovery response

messages sent from the smart bulb to the Tapo app.

Vulnerability 3 – Lack of Randomness During

Symmetric Encryption. Use of a Cryptographic

Primitive with a Risky Implementation (MITRE,

2020) in Tapo L503E allows an adjacent attacker to

make the cryptographic scheme deterministic.

The IV used in AES128-CBC scheme is generated

together with the key and remains unchanged for the

entire life of the key. Therefore, the encryption of the

same messages produces the same ciphertext.

The CVSS v3.1 score that we calculate is 4.6,

meaning Medium severity. Precisely: Attack Vec-

tor: Adjacent; Attack Complexity: Low; Privileges

Required: None; User Interaction: Required; Scope:

Unchanged; Conﬁdentiality: Low; Integrity: None;

Availability: Low. When the user interacts with

the device thereby generating trafﬁc, the attacker can

distinguish repeated messages without deciphering

them, yet infer what messages lead to what conse-

quences, such as turning the bulb off. He could then

manipulate the bulb by repeating those messages.

Vulnerability 4 – Insufﬁcient Message Freshness.

Predictable from Observable State (MITRE, 2006b)

in Tapo L503E allows an adjacent attacker to replay

messages that are considered valid both from the Tapo

L530E and the Tapo app.

The smart bulb and the Tapo app do not check the

freshness or the duplicity of the received messages.

They only check that the session key with which the

messages are encrypted is still valid, i.e., not older

than 24 hours.

The CVSS v3.1 score that we calculate is 5.7,

meaning Medium severity. Precisely: Attack Vec-

tor: Adjacent; Attack Complexity: Low; Privileges

Required: None; User Interaction: Required; Scope:

Unchanged; Conﬁdentiality: None; Integrity: None;

Availability: High. Similarly to the previous vulnera-

bility, the attacker can leverage user-generated trafﬁc,

this time to replay messages that both the bulb and

the app will certainly accept because of the lack of

appropriate freshness measures.

7 EXPLOITATION

This Section shows how an attacker can exploit the

vulnerabilities we found in a real environment. We

show 5 attack scenarios, in which the attacker exploits

one or more vulnerabilities to achieve their malicious

goals. We validated each attack scenario by manu-

ally executing the steps illustrated in the forthcom-

ing sections, hence all reported attacks are feasible in

practice. As noted above through the CVSS scores,

their likelihood is determined by the Adjacent Attack

Vector, the Low Attack Complexity, the No Privileges

Required and the Required User Interaction.

7.1 Attack Scenario 1 - Fake Bulb

Discovery Messages Generation

In this experiment we exploited:

• Vulnerability 2, with the goal of getting the ability

to create fake Bulb Discovery messages.

This experiment can be conducted in every sce-

nario presented in Section 3. For this attack, it is

ﬁrst necessary to get hold of a UDP message. In our

case, we have chosen to use a real bulb discovery re-

quest message, because they are easy to get. These

messages are broadcast by the Tapo app every time

it is opened, regardless of the network to which it is

connected. To get a valid one, we just capture the

trafﬁc using Wireshark and use a ﬁlter to extract all

UDP messages sent in broadcast e.g., by using the ﬁl-

ter udp && ip.dst == 255.255.255.255. Once a

UDP message is obtained, we can perform an ofﬂine

brute-force attack to get the secret shared between the

Tapo app and the smart bulb. At this point, neither the

smart bulb nor the Tapo app needs to be active any-

more to complete the attack. In our setup, the brute-

force attack always succeeded in 140 minutes on av-

erage.

This grants the adversary the ability to create fake

bulb discovery request and response messages: the

former allows the attacker to identify all Tapo devices

that use the same protocol and the same key, on any

network he connects to, while the latter allows the at-

tacker to respond to the Tapo app’s request messages

with false conﬁgurations.

7.2 Attack Scenario 2 - Password

Exﬁltration from Tapo User

Account

In this experiment we exploited, in order:

• Vulnerability 2, with the goal of getting the ability

to create fake bulb discovery response messages,

Smart Bulbs Can Be Hacked to Hack into Your Household

225

• Vulnerability 1, with the goal of getting the ability

to authenticate as the Tapo L530E to the Tapo app.

The context in which we conduct the experiment

is Setup A described in Section 3.1. To carry out this

attack, the adversary needs to obtain the ownerId of

the victim Tapo account, and the UDP port to which

the victim sends her bulb discovery request messages

(in our case, port 20002). The attack diagram is

shown in Figure 7.

Figure 7: Sequence chart for the attacker’s impersonation

of the bulb.

The exploitation begins the moment the victim

opens her own Tapo app. When the app is open, it

starts broadcasting bulb discovery request messages.

During the attack, the attacker exploits his ability to

create fake bulb discovery response messages to re-

spond to various bulb discovery request from the vic-

tim. The attacker sets the bulb discovery response

messages ﬁelds as shown in Listing 1:

• It sets the owner ﬁeld to the ownerId of the vic-

tim. This is to make the Tapo app think there is a

device of its own on the network to start TSKEP.

• It sets the ip and port ﬁelds to point to an

adversary-controlled server.

{

" result " : {

" d e vice_id " : " bd1e ...9348 " ,

" owner " : " Victim ’ s o w n erI d " ,

" d e v i c e _type " :

" SMA RT . T A P OBULB " ,

" d e v i c e _ m o d e l " :

" L53 0E Seri es " ,

" ip " : " A tt acker ’ s IP " ,

" mac " : " Atta ck er ’ s MAC " ,

" f a c t o r y _ d e f a u l t " : fa lse ,

" i s _ s uppor t _ i o t _ c l o u d " : true ,

" m g t _ e n c r y p t_schm " : {

" i s _ s u p p o r t _https " : f als e ,

" e n c r y p t _ t y p e " : " AES " ,

" h t tp_po r t " : 8 0

}

" e r r or_code " : 0

}

Listing 1: JSON attack scenario 2.

After receiving the response, the Tapo app thinks

that it has successfully completed the Bulb Discov-

ery phase by locating its own device within the net-

work. Therefore, it starts the TSKEP protocol with

the attacking device. Because of vulnerability 1, the

TSKEP protocol does not give the Tapo app any ev-

idence about the identity of the interlocutor. For this

reason, the Tapo app assumes that the newly received

key is shared with an associated device, while it is

shared with the attacker instead. Hence, the adversary

is able to decrypt the Login message of the TSKEP

protocol and get the password and the hash of the

email of the victim’s Tapo account.

The attack can be summarised as follows:

• The attacker gets the Bulb Discovery shared key

and creates fake bulb discovery response mes-

sages. Therefore, the authentication of the bulb

discovery response message fails.

• The Tapo app executes the TSKEP protocol with

the attacker instead of the smart bulb. Therefore,

authentication of the smart bulb with the Tapo app

fails. This results in an integrity loss.

• The Tapo app shares the key with the attacker,

hence the distribution of the session key fails.

This results in an availability loss.

• The attacker can violate the conﬁdentiality of the

messages and get the password and the hash of the

email of the victim’s Tapo account. This results in

a conﬁdentiality loss.

7.3 Attack Scenario 3 - MITM Attack

with a Conﬁgured Tapo L530E

In this experiment we exploited:

• Vulnerability 1, with the goal of getting the ability

to authenticate as the Tapo L530E to the Tapo app.

The context in which we conduct the experiment

is Setup B described in Section 3.2. The attacker

makes independent connections with the victims and

relays messages between them to make them believe

they are talking directly to each other over a private

SECRYPT 2023 - 20th International Conference on Security and Cryptography

226

connection. When the Tapo app starts the TSKEP

with the smart bulb, the attacker intercepts the RSA

key transmission message and blocks its reception

from the smart bulb. In parallel, he starts a new ses-

sion with the smart bulb from which he gets a new

session key. The session key received by the at-

tacker from the smart bulb is then encrypted with the

previously received RSA public key and sent to the

Tapo app. Due to vulnerability 1, the Tapo app ex-

pects to share the received key only with the smart

bulb, but it is sharing it with the adversary instead.

Hence, the attacker now has the key that Tapo app

and smart bulb use to encrypt all subsequent commu-

nication messages. Therefore, he is capable of deci-

phering them and violating their conﬁdentiality and

integrity, for example by decrypting the messages,

modifying their contents, re-encrypting and then for-

warding them. This is summarised in the attack dia-

gram shown in Figure 8.

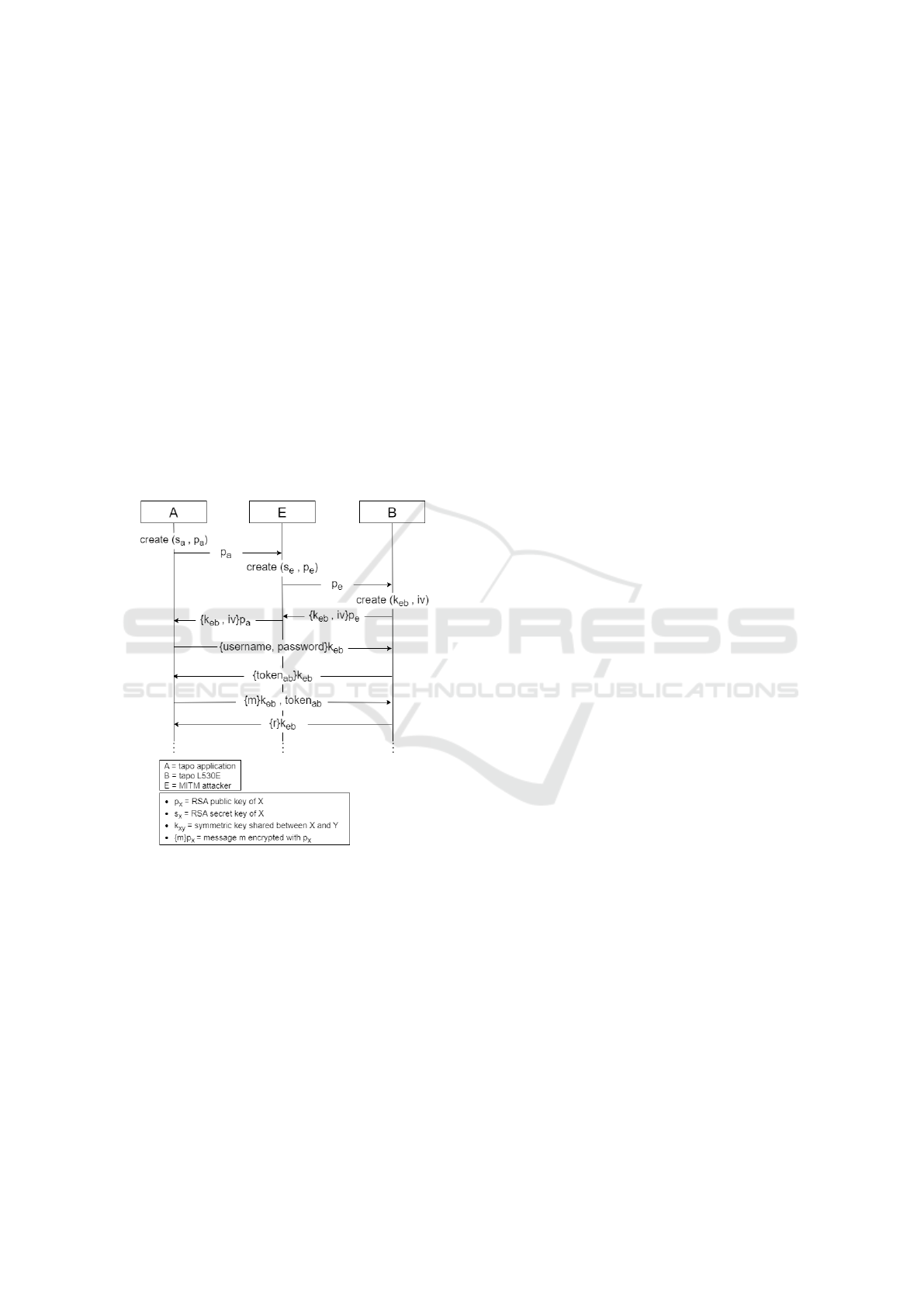

Figure 8: Sequence chart for the attacker’s MITM between

app and bulb.

Hence, the attack consists of the following steps:

• The Tapo app executes the protocol with the at-

tacker instead of the smart bulb, therefore, the au-

thentication process fails.

• The Tapo app shares the key with the attacker and

not with the smart bulb, hence, the distribution of

the session key fails.

• The attacker authenticates the key shared with the

smart bulb thanks to the credentials received from

the Tapo app, therefore, the authentication of the

Tapo app with the smart bulb fails.

• The attacker relays messages between the two ses-

sions to make Tapo app and smart bulb believe

they are talking to each other, hence, the conﬁ-

dentiality and the integrity of messages is lost.

7.4 Attack Scenario 4 - Replay Attack

with the Smart Bulb as Victim

In this experiment we exploited:

• Vulnerability 4, with the goal of getting the ability

to replay both old and replicated messages.

The context in which we conduct the experiment is

Setup B described in Section 3.2. This attack scenario

is divided into three phases. Speciﬁcally, in this case,

it is also necessary that the attacker has a line of sight

on the bulb to complete the attack.

During the ﬁrst phase, Wireshark is used to sniff

the trafﬁc of a Bulb-App communication. During this

communication, the app sends to the smart bulb both

get messages, to request the value of some status pa-

rameters, and set messages, to request the smart bulb

to change the value of some of its internal parameters.

During the experiment, we are not aware of the sym-

metric key used by both the smart bulb and the Tapo

app to encrypt the messages.

During the second phase of the experiment, we

replicate all messages we previously captured. Hence,

for each message we determine whether it was a get

or set message simply by observing how the bulb be-

haves after each message. For every set message, we

take note of the change that it caused on the light bulb.

During the third phase, we arbitrarily replicate the

set messages to the smart bulb, managing to make

changes to its internal state, without having a Tapo

account associated with it. Messages continue to be

accepted by the smart bulb until the session key with

which they are encrypted expires.

7.5 Attack Scenario 5 - MITM Attack

with an Unconﬁgured Tapo L530E

In this experiment we exploited:

• Vulnerability 1, with the goal of getting the ability

to authenticate as the Tapo L530E to the Tapo app.

The context in which we conduct the experiment

is Setup C described in Section 3.3. This attack sce-

nario exploits the fact that not only the Tapo app, but

anyone (including the attacker), can connect to the

Wi-Fi network started by the smart bulb during the

setup phase. It is important that the attacking device

acts as a bridge between the two networks. The at-

tacker must ﬂow all bulb discovery request messages

Smart Bulbs Can Be Hacked to Hack into Your Household

227

from the network it controls to the smart bulb net-

work, and vice versa for bulb discovery response mes-

sages. Otherwise, the Tapo app would not be able to

detect the smart bulb and therefore would never try to

start the TSKEP with it. Subsequently, vulnerability 1

is exploited in the same way shown in Section Attack

Scenario 7.3, so the adversary is able to violate the

conﬁdentiality of the session key between the smart

bulb and the Tapo app.

At some point in the communication, the Tapo app

sends the JSON shown in Listing 2:

{

" met h od " : " s e t _ q s_info " ,

" par a ms " : {

" a cco u n t " {

" p assw o r d ": " Tap o p a s swor d " ,

" u sern a m e ": " Tap o ema il "

" e x t ra_info " : {" s pec s " :" EU " },

" ti me " : {" regi on " : " Euro pe / R om e " , "

ti m e _ d i ff " : 6 0 , " times t a m p ": 1 6 6 0

03 2 4 3 5 },

" w irel e s s ": {

" k ey_t y p e ": " w p a 2 _psk " ,

" p assw o r d ": " Wi - Fi pa s s word " ,

" ss id " : " s si d Wi - Fi " }

" r e q u e s t T i m e M i l s " : 16 6 0 0 32 4 3 8 3 6 5 ,

" t e r m i n a l U U I D " : " ... " }’

Listing 2: JSON attack scenario 5.

Because usernames, Tapo passwords, SSIDs, and

Wi-Fi passwords are sent in base64 encoding, the at-

tacker is able to decode and steal them.

8 FIXING

This Section outlines possible mitigations for the

identiﬁed vulnerabilities, marking the last step of the

PETIoT kill chain. Most measures consist of simple

modiﬁcations to the relevant protocols, in particular

to strengthen the cryptographic measures. These can

be implemented via software updates to be pushed to

the affected devices via Internet, so we believe these

ﬁxes to be easily deployable with the already existing

update procedures

Fix for Vulnerability 1. This vulnerability is the

most complex and dangerous. It is not easy to ﬁnd a

simple ﬁx to it because the protocol should be widely

revised. Our proposed ﬁx requires the smart bulb to

sign the message of AES key transmission with an

asymmetric, private key. The validity of that key as

to belong to the bulb could be veriﬁed by the app via

a digital certiﬁcate to retrieve from the Cloud Server

during the association of the bulb with the app. Of

course, such a certiﬁcate should chain up to a root

certiﬁcate to be securely stored with the app. All this

would allow the app to get evidence about the au-

thenticity of the response, i.e., that the response really

comes from the smart bulb. In consequence, the app

will eventually store all certiﬁcates of the associated

devices.

Fix for Vulnerability 2. One possible solution to

ﬁx this vulnerability is the active presence of the cloud

server. This entity should periodically assign each

Tapo account a fresh key to use when calculating the

checksum within Bulb Discovery messages. The key

assigned to a Tapo account should then be communi-

cated to all devices associated with it. The beneﬁts of

the ﬁx can be summarized as follows:

• The key is not hard-coded, so the attacker would

no longer be able to get it by decompiling the Tapo

app or the ﬁrmware of a Tapo device.

• Each account has its own key, therefore, compro-

mising a Tapo account, or a key, would not result

in compromising the keys of other Tapo accounts.

• The key should be long and random enough

by current standards so that brute-force attacks

would not be proﬁtable anymore.

• The key is always fresh, so even if an attacker

were to get the key of a Tapo account, the latter

would not be compromised forever, but only until

the validity of the stolen key expires and the cloud

server assigns a new key to it.

It would also be useful to use a collision-resistant

cryptographic hash function for the checksum. Ex-

amples of cryptographic hash functions are SHA-224

or SHA3-224.

Fix for Vulnerability 3. This vulnerability can be

ﬁxed by making the IV dynamic, i.e., using differ-

ent IVs to encrypt different messages. This should be

done by both the Tapo app and the Tapo L530E. The

IV used to encrypt the JSON contained in the params

ﬁeld could then be included as a ﬁeld in the plain part

of JSON contained in Bulb-App communications.

Fix for Vulnerability 4. The timestamp contain-

ing the message creation moment included in JSON

should be veriﬁed by smart bulb and the Tapo app.

Checking the creation timestamp would prevent re-

cent messages from being passed off as fresh by an

SECRYPT 2023 - 20th International Conference on Security and Cryptography

228

attacker. In addition, the various messages exchanged

should contain a sequence number, which would pre-

vent duplicate messages.

9 CONCLUSIONS

We identiﬁed four vulnerabilities in the Tapo L530E,

which we were able to practically exploit in ﬁve dif-

ferent attack scenarios with varying impacts on the

users’ security, privacy and safety. Of the four vul-

nerabilities, two are of High severity and two are of

Medium severity, according to their CVSS score.

Overall, we observe that the experiment setup had

to be designed with care due to the three scenarios that

were possible. Following that, the information gather-

ing step was rather large and complicated, much more

than it could be reported in this paper due to space

constraints. The vulnerability assessment was very

surprising. For example, while deauthentication is

routinely possible, we were not prepared to discover

passwords in the clear and weak cryptography. Ex-

ploiting the vulnerabilities was moderately challeng-

ing but devising appropriate ﬁxes was harder.

One way to interpret such ﬁndings could be that

“small” IoT devices may have raised insufﬁcient cy-

bersecurity attention thus far, i.e., insufﬁcient cyber-

security measures due to a preconception that they

may not be worth hacking or exploiting. Our work

pins down this preconception as wrong, at least be-

cause the scope of our attacks expands onto all de-

vices of the Tapo family a victim may use and, most

importantly, potentially onto the entire victim’s Wi-Fi

network, which the attacker is enabled to penetrate.

While more and more experiments will certainly

follow on similar bulbs and other inexpensive devices,

we argue that the evidence we have gathered thus far

is sufﬁcient to call for a fuller application of a zero

trust model to the IoT domain. With dozens of years

of cybersecurity experience accumulated by the inter-

national community thus far, it should be possible to

ﬁnd affordable ways to achieve that in due course.

REFERENCES

Alopix (2023). Wiﬁ deauth attack in 2 min-

utes! https://systemweakness.com/

wiﬁ-deauth-attack-in-2-minutes-d1fb55112305.

Bella, G. and Biondi, P. (2019). You overtrust your

printer. In Proc. of the 2nd International Workshop on

Safety, securiTy, and pRivacy In automotiVe systEms

(STRIVE’19), LNCS 11699, pages 264–274. Springer.

Bella, G., Biondi, P., Bognanni, S., and Esposito, S. (2023.).

PETIoT: PEnetration Testing the Internet of Things.

Elsevier Internet of Things, 22.

Biondi, P., Bognanni, S., and Bella, G. (2020). VoIP Can

Still Be Exploited — Badly. In Proc. of the 5th Inter-

national Conference on Fog and Mobile Edge Com-

puting, (FMEC’20), pages 237–243. IEEE.

Dalvi, A., Maddala, S., and Suvarna, D. (2018). Threat

modelling of smart light bulb. In 2018 Fourth Inter-

national Conference on Computing Communication

Control and Automation (ICCUBEA), pages 1–4.

d’Otreppe de Bouvette, T. (2023). Aircrack-ng. https://

www.aircrack-ng.org/.

Ettercap (2023). Ettercap project. https://www.

ettercap-project.org/.

Howarth, J. (2023). 80+ amazing iot statistics (2023-2030).

https://explodingtopics.com/blog/iot-stats.

Kristiyanto, Y. and Ernastuti, E. (2020). Analysis of

deauthentication attack on ieee 802.11 connectivity

based on iot technology using external penetration

test. CommIT (Communication and Information Tech-

nology) Journal, 14(1):45–51.

MITRE (2006a). Cwe-287: Improper authentication. https:

//cwe.mitre.org/data/deﬁnitions/287.html.

MITRE (2006b). Cwe-341: Predictable from observable

state. https://cwe.mitre.org/data/deﬁnitions/341.html.

MITRE (2008). Cwe-693: Protection mechanism failure.

https://cwe.mitre.org/data/deﬁnitions/693.html.

MITRE (2020). Cwe-1240: Use of a cryptographic prim-

itive with a risky implementation. https://cwe.mitre.

org/data/deﬁnitions/1240.html.

Nath, R. and Nath, H. V. (2022). Critical analysis of the

layered and systematic approaches for understanding

iot security threats and challenges. Computers and

Electrical Engineering.

Schepers, D., Ranganathan, A., and Vanhoef, M. (2022).

On the robustness of wi-ﬁ deauthentication counter-

measures. In Proceedings of the 15th ACM Confer-

ence on Security and Privacy in Wireless and Mobile

Networks, WiSec ’22, page 245–256, New York, NY,

USA. Association for Computing Machinery.

Wireshark (2023). Wireshark project. https://www.

wireshark.org/.

Smart Bulbs Can Be Hacked to Hack into Your Household

229
