Monthes: A Compact Software Traceability Dataset

Adhatus S. Ahmadiyah, Siti Rochimah and Daniel Siahaan

Department of Informatics, Institut Teknologi Sepuluh Nopember, Surabaya, Indonesia

Keywords: Class Diagram, Code, Monthes Dataset, Requirements, Traceability

Abstract: Software artifact tracing from various software development phases has been utilized to maintain software

quality. It leads to the popularity of the development of traceability tools to substitute manual labor tracing,

which is prone to error. Along with the growth of software traceability tool development, traceability dataset

needs are rising. Exclusively a few realistic traceability datasets are available for public access, guiding a

practical degree of traceability tools for real projects. The scarcity is primarily due to the time and effort

required to create the dataset. This paper presents efforts in developing a new traceability dataset from the

education domain, namely Monthes. It involved artifact extraction and tracing activities from an established

thesis monitoring application that professionals developed. Apart from assembling three artifacts, i.e.,

requirements, class diagram, and source codes, it results in three sets of traceability ground truths:

requirement-to-code, requirement-to-design, and design-to-code. The software artifacts and ground truths

would help researchers test the performance of their traceability tools or enhanced methods involving three

phases of software development.

1 INTRODUCTION

Software traceability research covers the

development and maintenance of traceability on

software development artifacts. Since software

artifacts are significant in measuring software quality,

software quality can be determined and monitored by

tracing all development phases. Initially, the tracing

process was performed manually. Later, traceability

tools replace it to tackle manual tracing drawbacks.

Some efforts have been made to develop

traceability tools such as RETRO.NE (Hayes et al.,

2018), ADAMS Re-Trace (de Lucia et al., 2005),

TraceLab (Keenan et al., 2012), Poirot (Lin et al.,

2006), TraCter (Mahmoud & Niu, 2011), and The

SEOSS 33 (Rath, 2019). Despite its benefits, there are

challenges in requirement traceability research. The

challenges can be categorized into the following: time

and effort costs, trouble preserving traceability during

change, varying perspectives on traceability held by

diverse project stakeholders, organizational issues

and politics, and limited tool support (Saiedian,

2009).

For the advancement of automated software

traceability research, datasets are essential. Tool

evaluation requires realistic datasets to ensure these

tools can enhance industrial project tracing results.

The shortage of datasets for this type of research

becomes a crucial restraining element. Such datasets

are expensive to acquire and labor-intensive to gather

and validate manually. In general, one of the most

common challenges for academics in the software

engineering field has been acquiring such software

development datasets (Zogaan et al., 2017).

There are ranging of reasons why datasets are

limited. As observed by (Saiedian, 2009), the first is

that the effort of creating one is laborious, specifically

in determining the ground truth that specifies the

actual trace link between source and target artifacts.

Second, authentic project artifacts are rarely made

available. Third, businesses frequently need to find a

way to share software development artifacts with the

public since artifacts are considered proprietary.

Fourth, academic researchers receive little

acknowledgement for their work in establishing

datasets.

Even though several traceability datasets are

available (Zogaan et al., 2017), those were developed

a few years ago. Moreover, newer ones are limited,

and realistic traceability datasets from industrial

projects are still desired.

This paper introduces a traceability dataset, called

Monthes, from an actual project in the education

domain. The dataset contains a list of requirement

Ahmadiyah, A., Rochimah, S. and Siahaan, D.

Monthes: A Compact Software Traceability Dataset.

DOI: 10.5220/0012105700003680

In Proceedings of the 4th International Conference on Advanced Engineering and Technology (ICATECH 2023), pages 55-61

ISBN: 978-989-758-663-7; ISSN: 2975-948X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

statements, design classes, source codes, and a

collection of trace links. Tracing was performed from

requirements statement to codes, requirements

statement to design classes, and design classes to

source codes. This research is a part of more

extensive research in developing a new traceability

approach using Property Listing Task (Ahmadiyah et

al., 2022).

The rest of the paper is constructed as follows: the

overview of the dataset is provided in Section II, its

creation procedure is explained in Section III,

potential research areas it may be used are presented

in Section IV, and threats to the validity of the dataset

are discussed in Section V. Finally, Section VI

concludes research findings.

2 DATASET OVERVIEW

Monthes is an industrial project developed by a

professional web development team. Specifically, it

is a web-based thesis monitoring system for

university students in Indonesia. The system covers

proposal submission, thesis meetings, evaluation,

grading, and reporting. The system involves multi-

users: students, lecturers, examiners, and staff

(administrator). Monthes was developed using the

MVC architecture style using the Laravel framework.

Monthes dataset comprises requirement

statements, source codes, and a class diagram

extracted directly from the Monthes application.

These artifacts were collected because each is the

most frequently traced software artifact at their

respective development phase: analysis, design, and

implementation (Charalampidou et al., 2021). The

dataset is also equipped with trace link ground truths

between requirements and design; requirements and

code; and design to code. The dataset is accessible to

the public at Figshare website via

https://doi.org/10.6084/m9.figshare.21582714.

2.1 Requirement Artifact

The requirement artifact contains a list of 17

functional requirements created by the Monthes

development team in 2022. Monthes is used by four

actors: administrator, student, advisor, and examiner.

The functional requirements and their associated key

terms are tabulated in Table 1. Key terms represent

part of a sentence: subject, action, and object. A key

term or combination of key terms is essential to help

navigate to corresponding design and implementation

artifacts in the tracing process.

Table 1: Monthes Functional Requirements.

Code Re

uirement Ke

Terms

FR01 Administrator adds

use

administrator, add,

use

FR02 Administrator

manages schedule

administrator,

manage, schedule

FR03 Administrator

manages proposal

uploa

administrator,

manage, proposal,

uploa

FR04 Administrator

manages proposal

meeting

administrator,

manage, proposal,

meeting

FR05 Administrator

manages RMK data

administrator,

manage, rmk, data

FR06 Administrator posts

news

administrator, post,

news

FR07 Student submits

osal

student, submit,

osal

FR08 Student revises

roposal

student, revise,

roposal

FR09 Student submits

orts

student, submit,

ort

FR10 Advisor approves

orts

advisor, approve,

ort

FR11 Lecturer adds

question banks

lecturer, add,

question, ban

FR12 Examiner approves

reports

examiner, approve,

report

FR13 Examiner grades

orts

examiner,grade,

ort

FR14 Advisor grades

reports

advisor, grade, report

FR15 Advisor adds

question banks

advisor, add,

question, ban

FR16 Advisor assigns the

uestion to a student

Advisor, assign,

uestion, student

FR17 Lecturer manages

the lecture sub

ect

Lecturer, manage,

lecture, sub

ect

2.2 Design Artifact

Monthes design artifact representing object

abstraction, its structure, and its relationship to other

objects was collected as a class diagram. The class

diagram consists of 22 classes divided into three

stereotypes, i.e., model, view, and controller classes

following the Model-View-Controller architecture

style. All class relationships are association types. In

total, 63 methods and 125 attributes are distributed

into three concerns. The statistics for each concern are

tabulated in Table 2.

2.3 Implementation Artifact

Implementation artifact comes as source codes.

Based on the class diagram, source codes were

ICATECH 2023 - International Conference on Advanced Engineering and Technology

implemented using the Laravel framework. Each

implementation class was grouped under controller,

model, or view folder. There are 13 controllers under

the app/Http/Controllers folder to accommodate

application logic, nine models under the app/Models

folder to handle data, and 32 views under the

resources/views folder to accommodate the user

interface. The recap of the implemented classes,

methods, and attributes is displayed in Table 3.

Table 2: Class Diagram Statistics.

Concern # Methods # Attributes

Model 8 32

Controlle

34 57

Table 3: Class Code Statistics.

Cate

# Classes # Methods # Attributes

Controlle

13 73 -

Model 9 19 18

View 32 - -

2.4 Ground Truth

Trace link ground truth is provided in three files:

requirement-to-design, requirement-to-code, and

design-to-code. Each contains pairs of source and

target artifacts. Trace link pairs are displayed as

source artifact, target artifact, and link label.

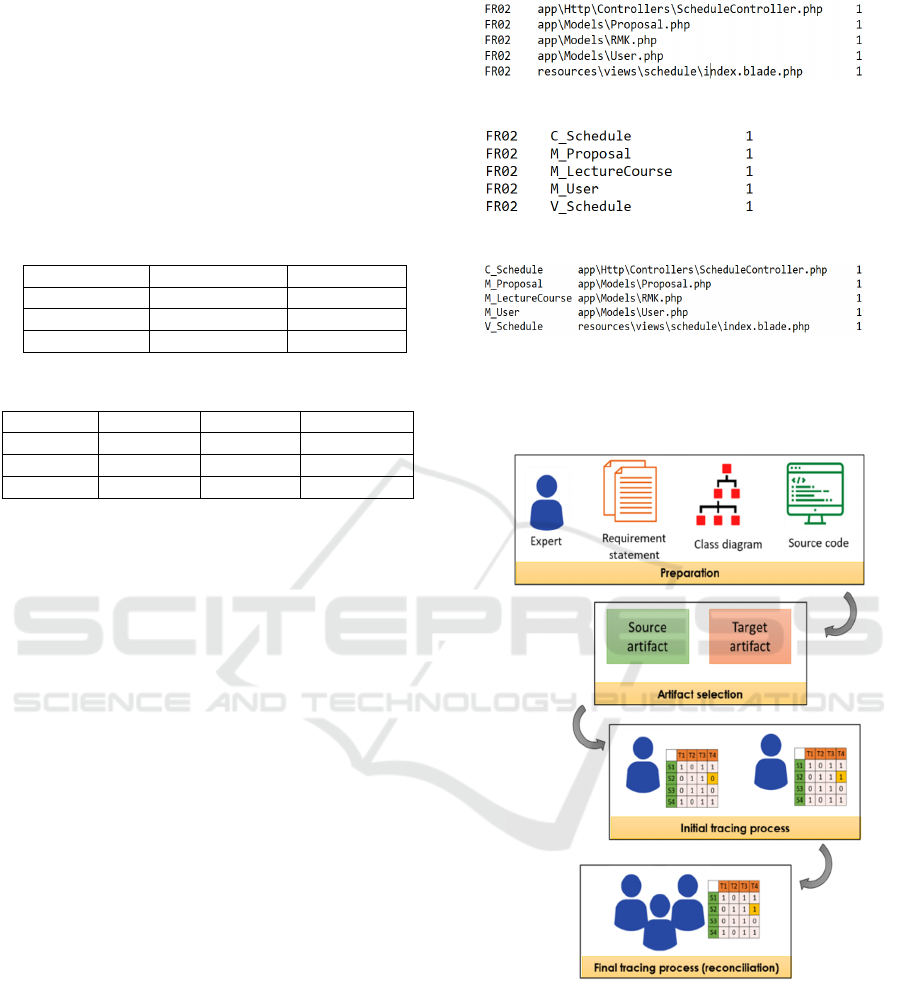

Figure

1 shows trace link ground truth: (a) from the

requirement to code, (b) from the requirement to

design, and (c) from design class to code for

requirement statement FR02: Administrator manages

schedule. The reading for three ground truths is the

same; specifically, the left column represents source

artifact, the middle column represents target artifact,

and the right column represents a link between both

artifacts (1= link found, 0= no link). For example,

from Figure 1a we know that requirement FR02 is

implemented by five source code files. Meanwhile,

we also aware that FR02 is related to five design

classes (Figure 1b) and each design class is

implemented to which source code files (Figure 1c).

3 DATASET CONSTRUCTION

The overall process for generating the Monthes

dataset is illustrated in

Figure

2. It involved four main

steps: preparation, artifact selection, initial tracing

process, and final tracing process. Each process is

discussed in the following subsections.

(a)

(b)

(c)

Figure 1: Monthes trace link ground truth for FR02. (a)

Requirement to code, (b) requirement to design class, and

Figure 2: Monthes dataset creation process.

3.1 Preparation

First, we collected three artifacts (requirement

statement, class diagram, and source code) from the

Monthes development project. Requirement

statement was taken from the original project by

manually extracting functional requirements. Then,

we translated it from Indonesian into English. The

requirement statement was a simple statement

Monthes: A Compact Software Traceability Dataset

containing an actor, action, and object. A class

diagram was constructed using MVC architecture, in

which each identified object was drawn in three

stereotypes: boundary, control, and entity classes.

The boundary class handles interaction between the

system and users. The control class handles the

business logic of the system. The entity class handles

data. Code files were extracted from the development

folder of the Monthes application. Since Monthes was

developed using MVC, we consider source code files

coming from three folders: the 'Controllers' folder is

located under the app/Http folder, the 'Models' folder

falls under the app folder, and the 'views' folder

resides under the resources folder. The source code

under the 'Controllers' folder implements business

logic. Meanwhile, the 'Models' and 'views' folder

contains source code implementing data and user

interface.

Second, we invited experts consist of a system

analyst, a programmer, and documentation personnel.

The system analyst was previously involved in

developing the Monthes application. Experts were

involved in the tracing process (discussed in

subsection 3.3 and 3.4).

Then, we checked experts and artifacts quality by

employing seven traceability input factors from (Ali

et al., 2012): expert domain knowledge, expert

programming knowledge, ambiguous requirements,

vague requirements, conflicting requirements, the

granularity of source codes, and the identifier quality

of source codes. As for the design artifact (class

diagram), we checked different considerations about

Model-View-Controller (MVC) architecture style.

Figure

3 shows input (pink label), category of factors

(yellow label), and factors for respective input types

(blue label).

Ambiguity requirements resulted in different

interpretations from experts. When this problem

appears, a consensus is conducted to remove the

ambiguity. Vague requirements are difficult to be

interpreted correctly. This problem is also solved by

agreement among project teams. Conflicting

requirements resulted in incompatibility in or

between artifacts. Conflicting requirements are

avoided by finding possible requirement

dependencies and then using them to locate potential

conflicts.

Expert opinions contribute to the trustworthiness

of the trace link, especially domain knowledge and

programming language. Domain knowledge refers to

specialist comprehension of the field in which the

examined software system is being developed. In

creating this dataset, the project team background

with sufficient domain knowledge regarding student

monitoring business processes was selected. In the

meantime, programming knowledge characterizes

expert capability to solve programming problems and

code quality software in a specific programming

language. The project team dealing with traceability

has some experience in PHP language and Laravel

framework.

Figure 3: Traceability input factors.

Source code dictates the quality of traceability

results through granularity level and identifier

quality. In contrast, granularity demonstrates a

detailed level of traceability (coarse, middle, or fine-

grained). Coarse-grained traceability (tracing classes)

is relatively less effort. Nevertheless, fine-grained

traceability (tracing method) is more precise. The

traceability team agrees on developing coarse-

grained traceability to reduce the number of links

from the requirement to code and design to code. In

addition to the granularity level, identifier quality

refers to the token's name in the source code, such as

naming class, method, and attributes. Specific jargon

usage in identifier names may affect the traceability

result. We identified jargon usage in the class name,

i.e., 'rmk', which stands for 'rumpun mata kuliah', an

Indonesian term representing a group of university

department majors.

As for the class diagram, we checked whether the

class diagram design follows the MVC architecture

style. Each class has different stereotypes: boundary,

control, and entity. The Boundary class is concerned

about user interaction and can only relate to controller

classes. Meanwhile, a controller class handles the

system's business logic and may relate to any class

stereotypes. Lastly, the entity class handles data. An

entity class can have a relationship to the controller

ICATECH 2023 - International Conference on Advanced Engineering and Technology

class. In addition, we adopted class diagram elements

identification used by (Fauzan et al., 2021), i.e.,

property and relationship.

3.2 Artifact Selection

Trace links are represented as pairs between source

and target artifacts. In this step, we paired two out of

three collected artifacts, resulting in three pairs for

performing traceability. We performed forward

tracing, in which the source artifact was obtained

from the earlier development phase and target artifact

was obtained from the latter.

3.3 Initial Tracing Process

For each traceability, two experts worked

individually to create the initial traceability matrix

from source artifact (S) to target artifact (T). Each

expert listed each element of S and T, then they

manually checked the relation between each pair.

When lexical or semantic similarity is found, the pair

is a match.

3.3.1 Establishing Requirement-to-Code

Ground Truth

Initially, we created a coarse-grained traceability

matrix from the requirement statement and class

code. Two assigned experts worked individually to

produce the traceability matrix by reviewing each

requirement statement. Then experts found its match

with source code files under the 'views', the

'Controllers', and the 'Models' folders. When a match

is found, they put label 1, otherwise 0.

3.3.2 Establishing Requirement-to-Design

Ground Truth

An initial traceability matrix presented as pairs

between the requirement statement and design class

were developed. Two experts worked individually

and searched through each requirement statement in

the class diagram to locate a match. Annotation was

added to the trace link pairs—one to indicate a link,

while zero means no link found.

3.3.3 Establishing Design-to-Code Ground

Truth

At first, a traceability matrix was created to find the

match between the source code and the class diagram.

The granular level is considered coarse-grained since

tracing between design classes was matched at the

class level. We adopted tracing between two artifacts

from (Katayama et al., 2018) with adjustments to fit

MVC architecture styles. The experts explored each

class design and source code folder individually to

discover matches. When a link is discovered: it is

annotated as one, otherwise zero.

3.4 Final Tracing Process

A reconciliation determines the final traceability

results, mainly when different traceability matrix

results between two experts exist. One author and

existing experts collaborated to review the already

gathered traceability matrix and develop a consensus

on the final trace link. Finally, the traceability matrix

was transformed into trace link pairs.

At the initial tracing process, each expert

traceability matrix is displayed in Table 4 and Table

5. Since there is a difference regarding tracing to

'app\Models\Proposal.php', a reconciliation between

experts is needed. One reconciliation example came

from tracing FR11: Lecturer adds question banks to

source codes. The reconciliation result (Table 6)

shows no relation between FR 11: The lecturer adds

question banks to source codes and

'app\Models\Proposal.php'.

In the traceability matrix (Table 5, and Table 6),

S denotes the requirement statement, T denotes

implementation, S1 denotes FR 11: Lecturer add

question bank, while T1, T2, T3, T4, and T5 represent

‘app\Http\Controllers\QuestionController.php’,

‘app\Models\Question.php’,

‘app\Models\Proposal.php’,

‘app\Models\RMK.php’, and

‘resources\views\question\index.blade.php’ codes,

respectively.

Table 4: Initial tracing of FR11 by expert #1.

T1 T2 T3 T4 T5

S1 1 1 1 1 1

Table 5: Initial Tracing of FR11 by Expert #2.

T1 T2 T3 T4 T5

S1 1 1 0 1 1

Table 6: Final Tracing of FR11.

T1 T2 T3 T4 T5

S1 1 1 0 1 1

Monthes: A Compact Software Traceability Dataset

4 POTENTIAL RESEARCH

TOPICS

Monthes dataset is a small dataset that depicts

instances in the software development lifecycle when

requirement artifacts have not kept up with software

updates. It can be applied to traceability research

areas, such as trace link establishment and

enhancement.

Trace link establishment is research in developing

trace links from software development artifacts. It is

mainly used to monitor software quality throughout

the development phases. For trace link establishment,

the Monthes dataset could be utilized to propose an

automated trace link method and derive performance

measurements such as precision and recall. In

addition, one might need to recover a missing artifact

from a specific development phase, Monthes could be

used to that extend.

Trace link enhancement focuses on updating

existing trace links when there are software updates.

In trace link enhancement, the Monthes dataset can be

involved in proposing an enhancement method to

show that the enhanced method outperforms the

existing ones.

Since the Monthes dataset contains requirement-

to-design, design-to-code, and requirement-to-code

ground truth, it can also recover missing artifacts. For

example, when the design artifact is not documented

and we only have requirement and source code, we

can reconstruct the missing class diagram and

confirm it using requirement-to-design and design-to-

code answer sets.

5 THREATS TO VALIDITY

Several threats potentially impact the validity of our

Monthes dataset. We discussed a list of threats to

validity associated with traceability dataset creation

as adopted from (Zogaan et al., 2017) and additional

internal threats to validity.

5.1 Data Acquisition

Selection bias comes from the non-representable

population or does not fit the problem domain. In our

case, this threat is avoided since we selected the

Monthes application from the industrial project to

develop a realistic traceability dataset.

Dataset equivalency threat concerns instances

where researchers employ existing datasets to

compare specific attributes of their datasets to

demonstrate the chosen datasets’ suitability. We

directly used the project artifact to maintain its

originality and ensure the granularity used for

traceability without comparing its characteristics to

other datasets.

Information bias threat reflects the accuracy of

auto-generated datasets, misclassification, and data

annotation. We minimized this threat by involving a

system analyst and Monthes development team

programmer to perform traceability.

Negative set bias is related to the rich and

unbiased selection of outliers in training data, mainly

in the classification problem. In developing the

Monthes dataset, a reconciliation was conducted after

the individual tracing process to escape negative set

bias threats.

5.2 Trustworthiness

Trustworthiness concerns threats about the ground

truth creation, student development, and peer-

reviewed process. Specifically, the Monthes dataset

trustworthiness threat was minimized by involving

original developers to create the ground truths. Next

is that our dataset was obtained from a thesis

monitoring application developed by professionals,

not a case study developed by students. The last one

is that the trustworthiness threat was mitigated by

conducting peer-reviewed reconciliation sessions in

creating the ground truths.

5.3 Internal Validity

Internal validity measures how well a study reduces

systematic bias or mistakes so that a causal

conclusion can be made. In this dataset, it can be the

learning bias threat of creating trace link pairs. To

mitigate this threat, we had individual project teams

create their initial traceability matrix. Then,

reconciliation was held to decide the final link

annotation.

5.4 External Validity

External validity relates to the extent to which the

result of the dataset is generalizable. Currently, the

dataset produced is the first generation. Therefore,

there are limitations regarding generalization. The

dataset could not generalize to all traceability tools

and different project domains. However, since

professionals developed it, dataset compactness could

still represent industrial software projects. The

dataset accommodates three artifacts that may not

represent datasets containing other artifacts.

ICATECH 2023 - International Conference on Advanced Engineering and Technology

Regarding programming language threat, the dataset

could generalize other datasets developed using

object-oriented PHP and MVC.

6 CONCLUSIONS

We introduced a new dataset for traceability and

discussed the method through which expert software

developers built it. Our dataset is intended to aid in

exploring various requirement-to-code, requirement-

to-design, and design-to-code traceability research

issues by the software engineering community.

In the future, the next generation of the Monthes

dataset will extend the traceability granularity of

requirement-to-code and design-to-code to fine-

grained. This extension would allow trace up to the

method level.

ACKNOWLEDGEMENTS

This work was supported by Institut Teknologi

Sepuluh Nopember, Indonesia through the

Department Research scheme (Skema Penelitian

Dana Departemen) under grant no.

1732/PKS/ITS/2022.

REFERENCES

Ahmadiyah, A. S., Rochimah, S., & Siahaan, D. (2022).

Semantic Software Traceability Using Property Listing

Task: Pilot Study. 387–392.

https://doi.org/10.1109/ies55876.2022.9888365

Ali, N., Guéhéneuc, Y. G., & Antoniol, G. (2012). Factors

impacting the inputs of traceability recovery

approaches. In Software and Systems Traceability (Vol.

9781447122395, pp. 99–127). Springer-Verlag London

Ltd. https://doi.org/10.1007/978-1-4471-2239-5_5

Charalampidou, S., Ampatzoglou, A., Karountzos, E., &

Avgeriou, P. (2021). Empirical studies on software

traceability: A mapping study. Journal of Software:

Evolution and Process, 33(2).

https://doi.org/10.1002/smr.2294

de Lucia, A., Fasano, F., Oliveto, R., & Tortora, G. (2005).

ADAMS re-trace: A traceability recovery tool.

Proceedings of the European Conference on Software

Maintenance and Reengineering, CSMR, 32–41.

https://doi.org/10.1109/CSMR.2005.7

Fauzan, R., Siahaan, D., Rochimah, S., & Triandini, E.

(2021). Automated Class Diagram Assessment using

Semantic and Structural Similarities. International

Journal of Intelligent Engineering and Systems, 14(2),

52–66. https://doi.org/10.22266/ijies2021.0430.06

Hayes, J. H., Payne, J., & Dekhtyar, A. (2018). The

REquirements TRacing On Target (RETRO).NET

Dataset; The REquirements TRacing On Target

(RETRO).NET Dataset.

https://doi.org/10.5281/zenodo.1223649

Katayama, T., Mori, K., Kita, Y., Yamaba, H., Aburada, K.,

& Okazaki, N. (2018). RETUSS: Ensuring Traceability

System between Class Diagram in UML and Java

Source Code in Real Time.

Keenan, E., Czauderna, A., Leach, G., Cleland-Huang, J.,

Shin, Y., Moritz, E., Gethers, M., Poshyvanyk, D.,

Maletic, J., Hayes, J. H., Dekhtyar, A., Manukian, D.,

Hossein, S., & Hearn, D. (2012). TraceLab: An

experimental workbench for equipping researchers to

innovate, synthesize, and comparatively evaluate

traceability solutions. Proceedings - International

Conference on Software Engineering, 1375–1378.

https://doi.org/10.1109/ICSE.2012.6227244

Lin, J., Lin, C. C., Cleland-Huang, J., Settimi, R., Amaya,

J., Bedford, G., Berenbach, B., Khadra, O. ben, Duan,

C., & Zou, X. (2006). Poirot: A Distributed Tool

Supporting Enterprise-Wide Automated Traceability.

Mahmoud, A., & Niu, N. (2011). TraCter: A tool for

candidate traceability link clustering. Proceedings of

the 2011 IEEE 19th International Requirements

Engineering Conference, RE 2011, 335–336.

https://doi.org/10.1109/RE.2011.6051663

Rath, M. (2019). The SEOSS 33 dataset - Requirements,

bug reports, code history, and trace links for entire

projects. https://doi.org/10.7910/DVN/PDDZ4Q

Saiedian, H. (2009). Why Software Requirements

Traceability Remains a Challenge.

www.stsc.hill.af.mil

Zogaan, W., Sharma, P., Mirahkorli, M., & Arnaoudova, V.

(2017). Datasets from Fifteen Years of Automated

Requirements Traceability Research: Current State,

Characteristics, and Quality. Proceedings - 2017 IEEE

25th International Requirements Engineering

Conference, RE 2017, 110–121.

https://doi.org/10.1109/RE.2017.80

Monthes: A Compact Software Traceability Dataset
