Architectural Evolution Style Representation Model

Kadidiatou Djibo

2 a

, Mourad Chabane Oussalah

1 b

and Jacqueline Konate

2 c

LS2N - UMR CNRS 6004, Nantes University, 110 Bd Michelet, Nantes, France

Faculty of Sciences and Techniques, USTTB, Bamako, Mali

Keywords:

Software Architecture, Evolution Styles, Evolution, Model, Component.

Abstract:

In this paper, we present a software architecture evolution process representation model following the prin-

ciples of meta-modeling. The architecture evolution process is modeled as a software architecture evolution

style. Then, we introduce an evolution style representation model in square. The model in square allows to

represent the evolution process through four main dimensions of which : the evolution actor, the evolving ar-

chitectural element, The evolution time and the evolution operation signature. Finally, we deﬁne a simpliﬁed

formalism to express these architectural evolution with more convenience.

1 INTRODUCTION

The software architecture’s objective is to provide an

overview and a high level of abstraction in order to

be able to understand a software system ((Shaw and

Garlan, 1994)). The architecture proposes a system

organization abstracted as a collection of software

parts ((Perry and Wolf, 1992)). They have favored

software mastery which is becoming more and more

complex and distributed. These are often large-scale

heterogeneous distributed software components, em-

bedded systems, telecommunications, wireless ad hoc

systems. As markets and technologies continue to

evolve, these systems must also change to meet new

market and technology requirements. The architec-

ture offers a support for the control, the systems com-

prehension. So when a system needs to be changed,

the ideal starting point for the evolution team is to

understand the system (architecture), in order to try

to ﬁnd a set of suitable modiﬁcations. In this con-

text, large-scale evolution planning is a very difﬁcult

activity that requires an understanding of the overall

system structure, consideration of previous design de-

cisions, principled trade-offs between candidate evo-

lutionary scenarios, and optimal scenario selection

(Barnes et al., 2013). Thus, the system architecture

must also evolve to remain consistent with the sys-

tems documented as a guide.

https://orcid.org/0000-0003-1916-7364

https://orcid.org/0000-0001-8049-110X

https://orcid.org/0000-0002-2599-7658

The role of the software architecture in the soft-

ware evolution process can be considered from two

points of view: as an artifact for evolution, which

guides the planning and conduct of the evolution pro-

cess, and as an evolution artifact, because it must it-

self evolve in order to be consistent with the change

in the system(Cuesta et al. (Cuesta et al., 2013)).

Indeed, the software architecture evolution is a

very complex process to plan and, therefore, the per-

son or team that plays this role must have a mix of

architectural knowledge from different domains, in-

cluding: business architecture, enterprise architec-

ture, data architecture, application architecture and in-

frastructure or technical architecture (Hassan, 2018).

Therefore, architects need tools, methods and

techniques that help them avoid the evaporation of

knowledge about architecture’s evolution (Oussalah

et al. 2006 (Seriai et al., 2006)). This is especially true

with respect to the sharing and reuse of this knowl-

edge by architects who do not have this experience

(Hassan, 2018).

This study is part of the exploration of prediction

and planning in the component-oriented software ar-

chitecture structural evolution.

The need for evolution becomes more necessary

in component-oriented systems where the implemen-

tation is motivated by the principle of reuse. In a

component-oriented system, one or more components

or the whole system can evolve in order to be reused.

Thus, the evolution can concern the source codes or

the system architecture as a support.

The evolution of a software architecture is a com-

596

Djibo, K., Oussalah, M. and Konate, J.

Architectural Evolution Style Representation Model.

DOI: 10.5220/0012130100003538

In Proceedings of the 18th International Conference on Software Technologies (ICSOFT 2023), pages 596-603

ISBN: 978-989-758-665-1; ISSN: 2184-2833

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

plex task and requires several expertises. Many re-

search efforts have aimed at modeling and reusing

evolution in software architectures in order to capital-

ize information and foster knowledge sharing in the

architecture community. The evolution styles intro-

duced in (Seriai et al., 2006) are part of this context.

Given the complexity of architectural evolution, it is

not easy to have all the necessary skills within a com-

pany to make a software architecture evolve. It be-

comes necessary to go beyond the reuse offered by

the evolution styles, but to anticipate the future evo-

lutions from the good practices of previous evolution

on similar architectures. This would considerably re-

duce the costs (in terms of skills, time, etc.) related

to the evolution of these architectures and make them

accessible to all.

We are convinced of the importance of integrating

prediction and evolution planning into software archi-

tectures. Few works, to our knowledge, are devoted to

the prediction and planning of evolution in software

architectures.

The objective of this study is to help propose a

solution to this lack. We are speciﬁcally interested

in the problem of structural evolution prediction and

planning in software architectures. For this, we use

the evolution style key concept introduced by Ous-

salah et al. 2006, we apply data learning techniques

in order to propose possible future evolutionary paths

from previous evolution data (Figure 1).

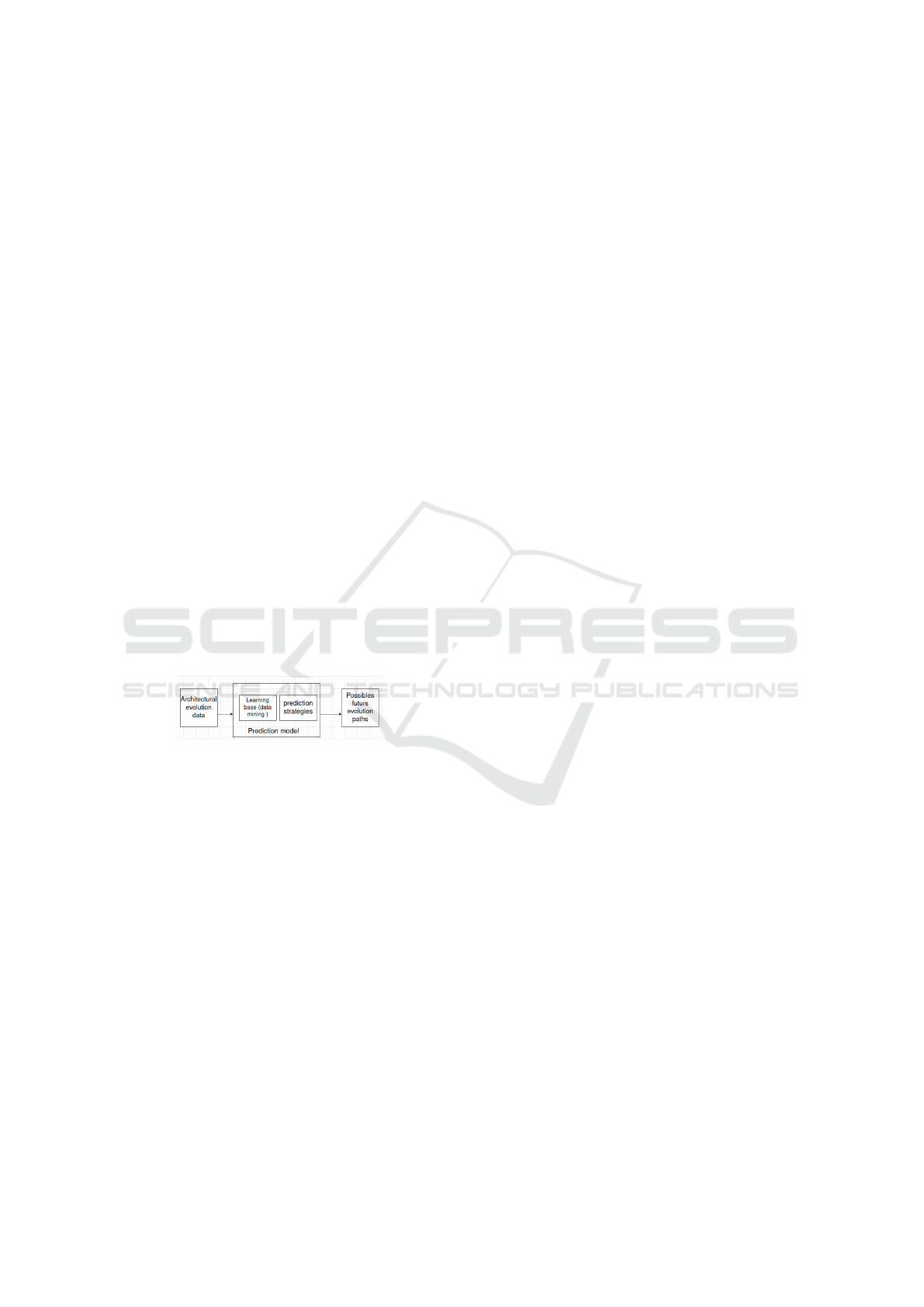

Figure 1: Overall goal.

Thus, this study takes place in three main phases.

The ﬁrst one consists in proposing a meta-model to

represent the evolution of software architectures as

a process, which we named evolution representation

model. It is positioned at the M

modeling level of

the OMG above the architecture layer to represent its

evolution. It has been positioned in relation to the

standards deﬁned for modeling the evolution of soft-

ware architectures. This paper is devoted to the ﬁrst

phase which presents the new meta-model introduced

to represent software architecture evolution as a pro-

cess and the formalism introduced to collect evolution

data. Given the number of pages allowed, the other

two phases will be published further on.

This paper is organized as follows : Section 2

presents related work on software architecture evolu-

tion styles. The new evolution representation model

introduced is presented in section 3. Section 4 de-

scribes the concepts of the model. In section 5 evo-

lution style relationship is deﬁned, then we give the

evolution style representation formalism in section 6.

Finally, we conclude the paper in section 7.

2 RELATED WORKS

In this study, we are mainly interested in the struc-

tural evolution of component-based software archi-

tectures. A software architecture structural evolution

is reﬂected by the various changes in its structure

and/or in that of its constituent elements. A change

in an architecture is always generated by one or more

operations applied to this architecture or to one of

its elements, such as deletion, addition, modiﬁcation.

We refer to these operations as evolution operations

(Sadou et al., 2005). A software architecture’s struc-

tural evolution can be performed at the speciﬁcation

or design stage of the system it describes (static evolu-

tion) or during the execution of this system (dynamic

evolution). In each of these cases, it is necessary to

consider that any element of the software architec-

ture can be brought to evolve. Thus, it is necessary to

identify what can evolve, how to make it evolve, how

to guarantee the coherence of the architecture having

evolved and then how to pass on these changes in the

software architecture to the system it describes. In

general, to prepare a system or an architecture for evo-

lution, it is necessary to : Be able to specify the need

for evolution; Manage the impact of these changes;

Establish the link between the starting model and the

ending model. Thus, in (Sadou-Harireche, 2007) the

authors introduced the three dimensions of the archi-

tectural evolution namely : the evolution object, the

evolution type and the evolution support. The evo-

lution’s object makes it possible to specify the archi-

tectural elements to which the evolution relates. It

can be any element reiﬁed and considered as a ﬁrst

class entity by the ADL of the software architecture

to be evolved. Thus, according to the basic concepts

of description of a software architecture, an evolution

can concern a conﬁguration, a component, a connec-

tor, and/or an interface. An evolution can concern the

types of these elements and/or their instances, in other

words it can concern the Architectural level or the Ap-

plication level. The evolution type speciﬁes the phase

during which the evolution is executed.

According to Garlan et al. (Garlan, 2008), an evo-

lution style expresses the software architecture’s evo-

lution as a set of potential evolution paths from the

initial architecture to the target architecture. Each

path deﬁnes a sequence of evolution transitions, each

of which is speciﬁed by evolution operators. The

(Cuesta et al., 2013) team has deﬁned architectural

Architectural Evolution Style Representation Model

597

knowledge-based evolution styles (AKdES), which

are also based on the design decisions of the architec-

ture whenever an evolution step is made. Each evolu-

tion step is preformed because an evolution decision

is made following the veriﬁcation of an evolution de-

cision. From Oussalah et al’s point of view (Oussalah

et al., 2007), the main idea of an evolution style is

to model the software architecture evolution activity

in order to provide a reusable domain-speciﬁc evo-

lution expertise. They consider an architectural evo-

lution as consisting of architectural elements (com-

ponent, connector, interface, etc.) modiﬁcations (ad-

dition, update, removal). The authors proposed a

meta-evolution style called MES (Meta Evolution-

Style)(Hassan and Oussalah, 2018) to unify the mod-

eling concepts that formulate evolution styles.

3 EVOLUTION

REPRESENTATION MODEL

In order to model, standardize, formalize and remain

consistent in the description of evolution styles and to

promote the reuse of these styles, an evolution meta-

style called MES has been introduced in (Hassan and

Oussalah, 2016). MES is positioned at the M

mod-

eling level of the OMG and deﬁnes a generic meta-

model that represents an architectural evolution as a

process by specifying the role (actor), the element to

be evolved and the evolution operation. Thus, any

evolution style language must conform to MES, more

precisely must be an instance of MES that deﬁnes the

normal framework for representing, describing and

modeling a reusable architectural evolution. In this

paper, the introduced representation model is posi-

tioned at the M

modeling level of the OMG as an

instance of the MES and deﬁnes an architectural evo-

lution as a process.

The evolution style meta-model that we propose

should allow the transmission of good evolution prac-

tices, promote the reuse of software architecture evo-

lution and will provide a normal framework for the

deﬁnition of evolution styles. Thus, it must answer

two main requests : (1) compliance to MES and (2)

The evolution expectations through the following four

questions, What ?(what is evolving ?), Who ?(who

makes it evolve ?), When ?(when to evolve it ?) and

How (how to evolve it ?). These four questions de-

scribe the evolution activity. In answering them, our

meta-model describes an architectural evolution as a

process.

What (what is evolving) ?

It is the basic element (input/output) of any evolution

operation. The evolution concerns all or a targeted

part of the architecture. In the ﬁrst case, the entire

architecture is affected. In the second case, only the

designated parts will be affected. Thus it remains im-

portant to better reify the architecture, better repre-

sent each of its components and their different con-

ﬁgurations. Thus, the meta-model answers the ques-

tion What? through the package EvolvingArchitec-

tureElement.

Who (who makes it evolve ) ?

It is a set of responsibilities, i.e. it describes the skills,

tools and techniques required to perform a speciﬁc ar-

chitecture evolution operation. Thus, this question is

answered through the Actor concept.

When (when to evolve it ) ?

The management of the schedule and the chaining, i.e.

deﬁning which operation before or after (the sched-

ule of operations) remains necessary in the deﬁnition

of the process models. The TimeEvolution concept

solves this issue. It allows to manage the steps and to

plan the evolution operations.

How (how to evolve it ) ?

It is about deﬁning how to produce visible changes

in the state of the architecture. It is solved from the

concepts EvolutionStyle, Header, Competence, Ac-

tion and Impact.

Taking these concerns (questions) into account al-

lows the meta-model to deﬁne an evolution style as a

process. Through the class diagram of the ﬁgure 2, we

highlight the concepts and inter-concept relationships

of the model.

4 DESCRIPTION OF THE

EVOLUTION

REPRESENTATION MODEL

CONCEPTS

An architectural evolution style is described by a pro-

cess specifying the activity, the role and the product

(evolving element) as shown in Figure 2. Thus, the

meta model is deﬁned in three main parts. The con-

cepts associated with each part (Fig.2) are deﬁned.

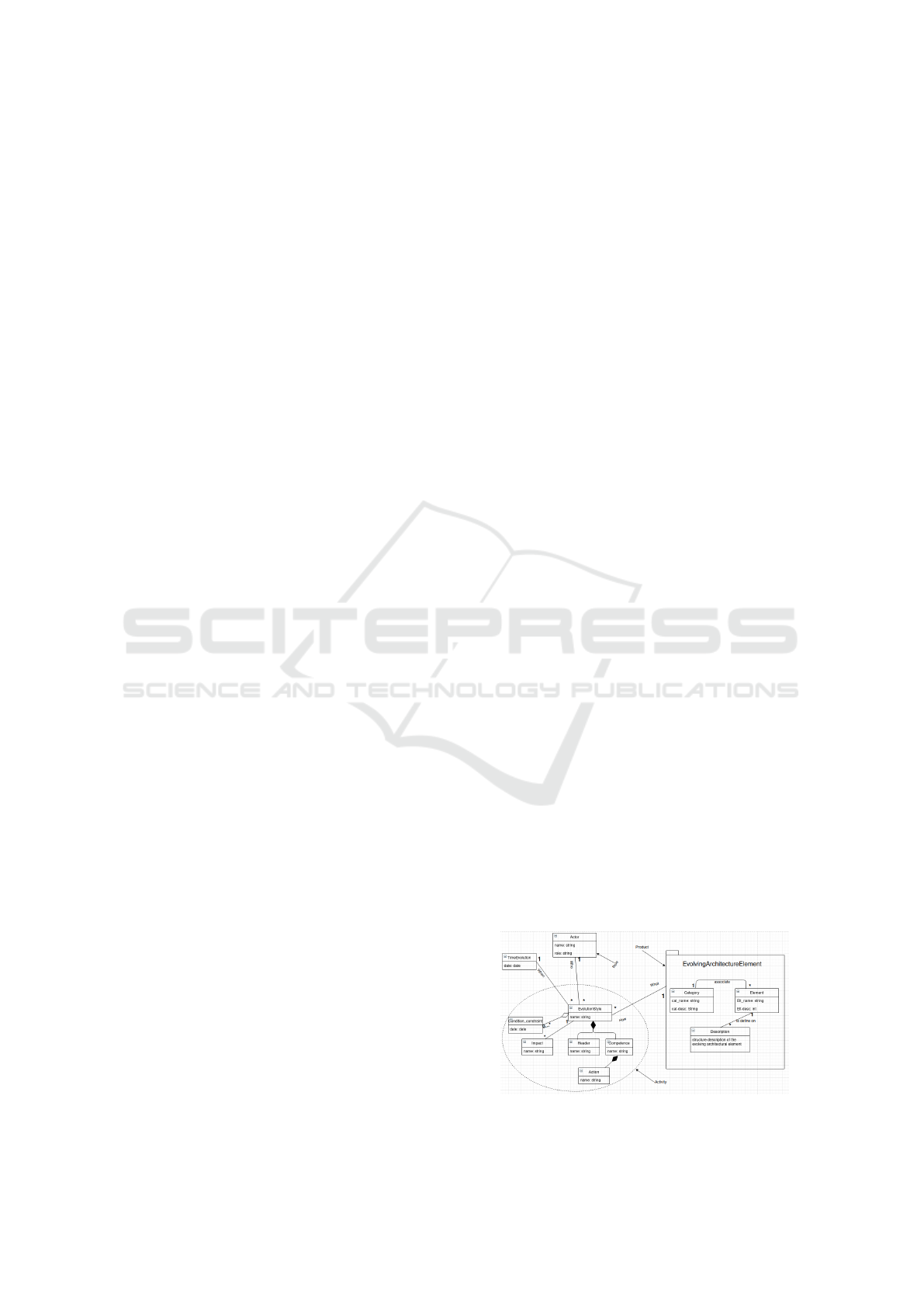

Figure 2: Evolution representation model.

ICSOFT 2023 - 18th International Conference on Software Technologies

598

4.1 Product

The EvolvingArchitectureElement package allows to

represent the architectural element, its category, its

ports and its connections. It tries to give a complete

representation of the architectural element in order to

pass easily to a graphic interpretation of the archi-

tecture. Thus, the Category concept allows to group

and classify architectural elements of the same type

and function. The Element class is used to represent

architectural elements and their properties. Through

the Description concept, the structure of the architec-

tural element is deﬁned. Thus, the EvolvingArchi-

tectureElement package proposes to offer a complete

textual description of the graphical representation of

the architecture in order to promote an automatic tran-

sition from the graphical representation to the textual

or vice versa.

4.2 Role

Deﬁned by the Actor concept, it describes the actor

of the evolution and the skills needed to perform the

evolution operation being deﬁned. An actor can inter-

vene in several evolution operations. It can refer to a

physical person or a computer program.

4.3 Evolution Operation (Activity)

It is one of the units of the process that produces visi-

ble changes in the state of the architecture. It is asso-

ciated with the roles and architectural elements. It is

described through the concepts EvolutionStyle, Evo-

lution_constraint, Impact, Header, Competence, Ac-

tion.

4.3.1 Evolution Style

An evolution style encapsulates that which allows to

describe and apply an evolution to an architectural

element. The EvolutionStyle class is a named en-

tity that is composed of two complementary parts :

a header deﬁned through the Header concept and a

skill deﬁned by the class Competence. The header has

an informal description of the purpose and publishes

a list of parameters and assertions. The evolving el-

ement appears as an implicit parameter named con-

text. The type of the parameters is provided by the set

of evolutive elements, plus the usual primitive types

(String, int, boolean, ﬂoat, etc.). The competence rep-

resented by the Competence concept describes a unit

of implementation corresponding to the header. The

implementation unit speciﬁes the data ﬂow and all

control logic. We have extended the EvolutionStyle

concept by adding the notion of condition constraint

which deﬁnes or establishes the conditions of execu-

tion of an evolution operation on a given architectural

element. Its deﬁnition is not mandatory and there can

be several condition constraints to check for a given

operation. It is described through the concept Condi-

tion_constraint.

An evolution style can cause or invoke another

evolution style, the Impact class allows to specify

the evolution styles invoked by the execution of the

current style.

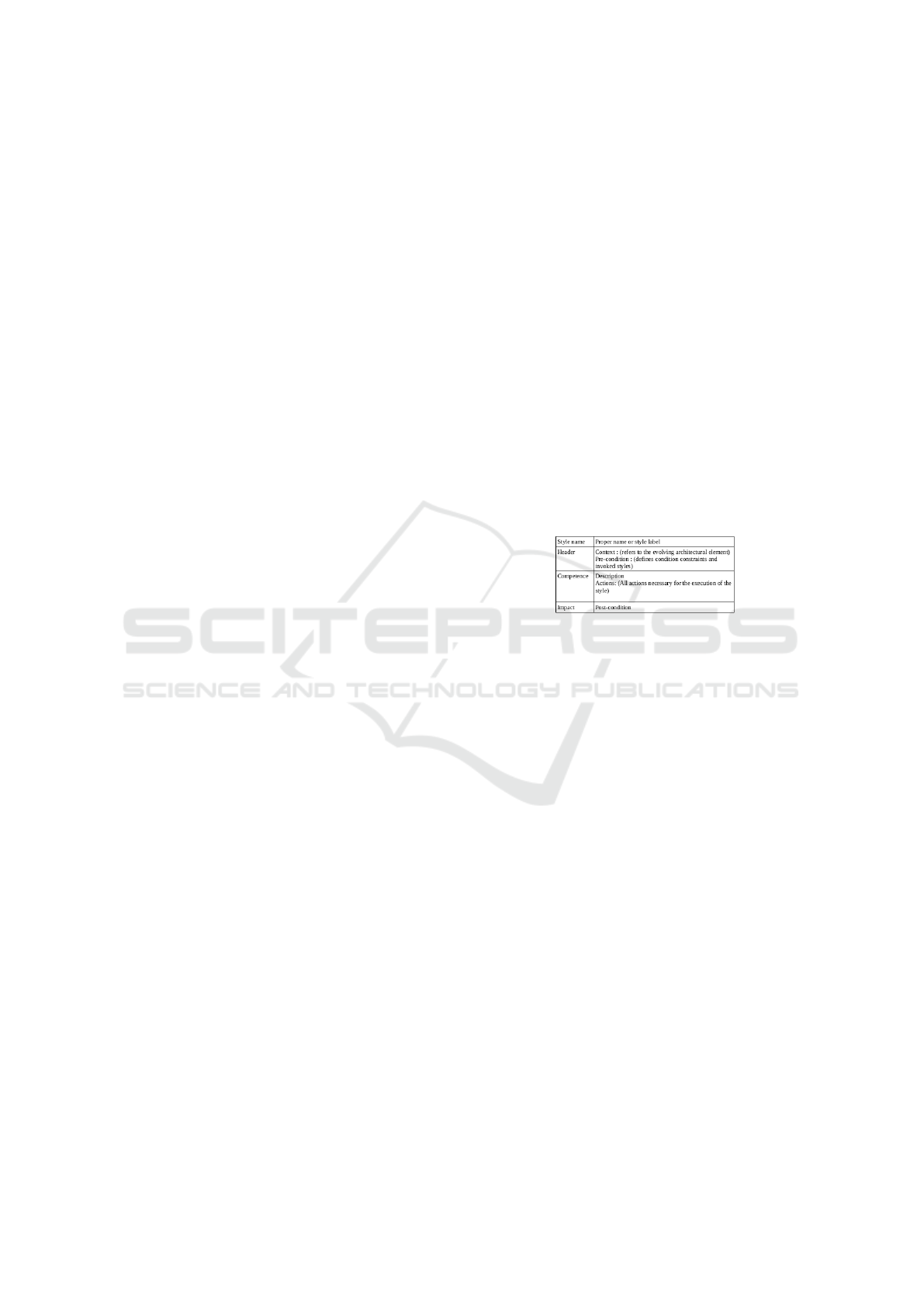

Evolution Style Representation

Figure 3 schematizes the representation of a style ac-

cording to four compartments : the style name, its

header, its competence and impact.

Every evolution operation is described as an evo-

lution style. An evolution style is in relation with

other evolution styles. This relationship is managed

by the Impact concept which speciﬁes the invoked

styles and the relationship type.

Figure 3: Evolution style representation.

4.3.2 TimeEvolution

The TimeEvolution class associates an execution de-

lay to an evolution operation on an evolving architec-

tural element. It allows us to plan and manage the

steps in the management of evolutions.

5 EVOLUTION STYLES

RELATIONSHIP

The operational mechanisms provided by our model

are instantiation, specialization, composition, and ﬁ-

nally usage. As these mechanisms are largely in-

spired by those of the object-oriented approach, we

can therefore use the notations of the UML class di-

agram for the illustrations to follow in this section.

Figure 4 illustrates the operational mechanisms of the

evolution representation model.

In a general way, instantiation is a mechanism that

allows you to move from a given modeling level to a

lower level. Evolution styles can be instantiated sev-

eral times in an architecture. The instance of an evo-

lutionary style is a particular process that is created

within the structure given by its style. All instances

of an evolution style must offer exactly the same skill

Architectural Evolution Style Representation Model

599

as that style. The instantiation mechanism covers the

binding of formal parameters to effective parameters

(i.e., elements of an architecture), the evaluation of

the precondition and postcondition, and the execution

of the skill body. Therefore, an abstract evolution

style cannot have instances since it does not specify

any competence. We can consider that an instance is

attached to its evolution style type by the relation "is-

a".

Evolution styles can be deﬁned by extension of

other styles. The inheritance mechanism associated

with the specialization relationship is inspired by the

class inheritance mechanism in the object paradigm.

With the proposed bipartite structure, on the one hand

a sub-style can add and override elements of the

header of its super-style, and on the other hand a sub-

style can redeﬁne the competence of its super-style.

This mechanism can be used to deﬁne concrete evolu-

tion styles as sub-styles of abstract styles by providing

the missing skill.

Composition is necessary to describe develop-

ments at different levels of detail. Style composi-

tion refers to the "all-part" structuring between two

styles. At each level of composition, each style can

be seen as having as parts those sub-styles which

represent stages entering its competence. This rela-

tionship suggests a strong coupling between evolu-

tion styles and promotes the encapsulation of com-

plex skills. Our model uses the composition mech-

anism to deﬁne composite evolution styles, increas-

ingly complex, delegating their functionality to com-

ponent styles. The composition starts from a set of

primitive evolution styles, whose competence is ele-

mentary. Finally, the communication mode assigned

to the composition is necessarily synchronous, be-

cause the execution of the component styles is sub-

ordinated to that of the composite style.

In the evolution representation model, utilization

is a fundamental technique in the perception of an

"expert" system as a set of interrelated expertises.

Thus, usage is a relationship that allows a style to ref-

erence another style to use its functionality. It should

not be confused with a compositional relationship, as

it has a more momentary character and does not in-

volve strong coupling. Finally, the mode of commu-

nication attributed to the use is asynchronous, because

the executions of the styles do not necessarily have to

be concordant.

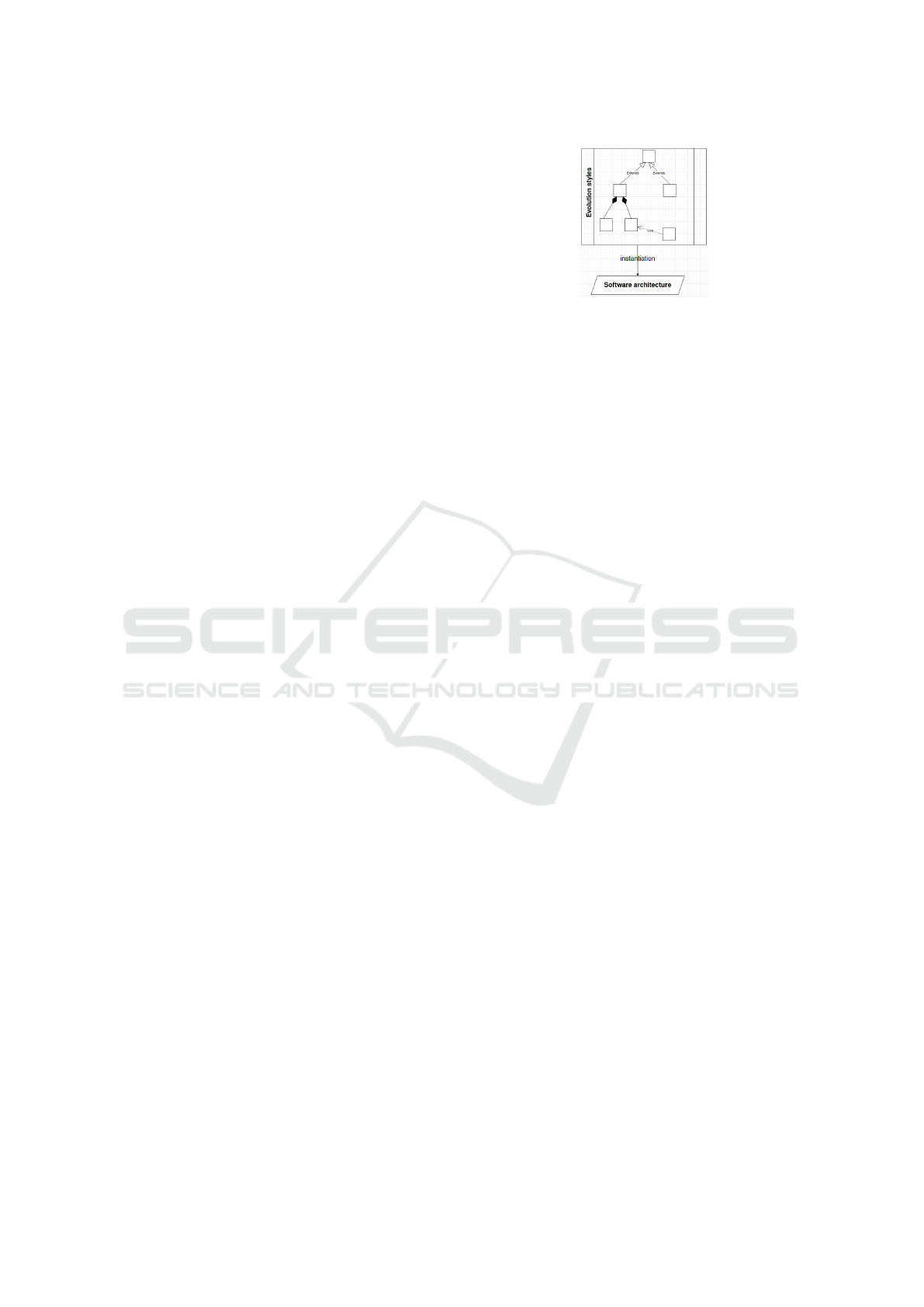

Figure 4: Evolution styles relationship.

6 FORMALISM FOR

REPRESENTING EVOLUTION

STYLES

The speciﬁcation of evolution styles should be as sim-

ple as possible, both in terms of the concepts manip-

ulated and the quantity of elements to be described.

Taking into account the functionalities offered by the

evolution representation model, the chosen formalism

must make it possible to distinguish the competence

header of an evolution style, the evolving architectural

elements, the actor and the associated evolution date.

This keeps the style integrity as a process. In addition,

the architect must be able to prioritize headers, skills,

and evolving elements and have multiple views of his

styles.

The Y-model (MY) is a formalism that naturally

incorporates certain functionalities and has also been

used in (Smeda et al., 2008) to describe component-

based software architectures. It has been used as a

support, to describe an evolution style by three as-

pects (corresponding to the three branches of the Y) :

domain, header and competence. These aspects rep-

resent successively all that is related to the evolv-

ing architectural elements, to the operations of evo-

lutions and to the implementations of these opera-

tions (Le Goaer et al., 2008). Given the features of-

fered by the evolution representation model we intro-

duced in this paper, the Y model previously used in

(Goaer, 2009) does not allow us to properly represent

our model. Thus, we introduce the model in square

to represent an evolution style modeled as a process,

distinguishing the skill header of an evolution style,

the evolving architectural elements, the actor and the

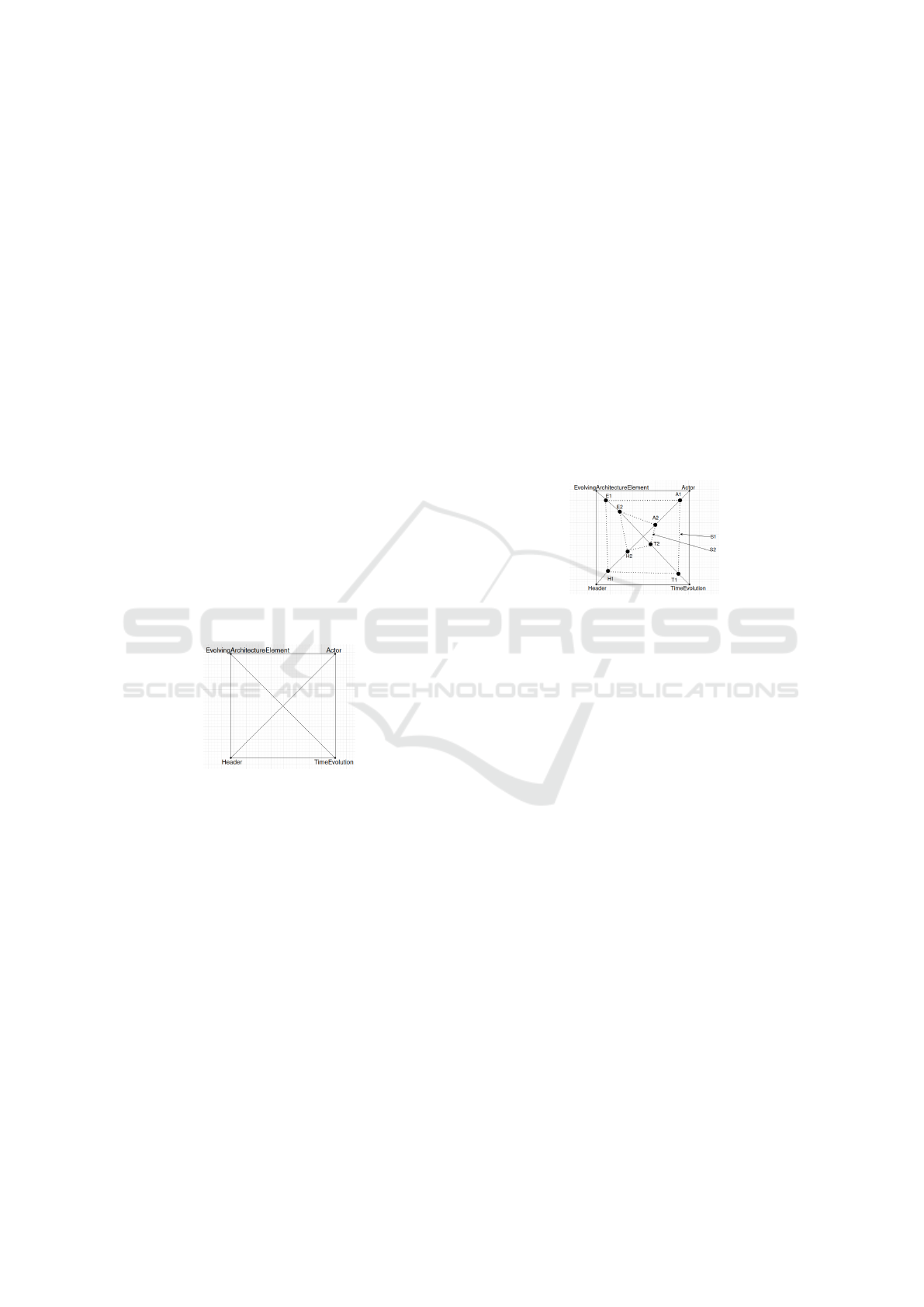

associated evolution time. The four elements men-

tioned correspond to the four vertices of the square

(Figure 5).

ICSOFT 2023 - 18th International Conference on Software Technologies

600

6.1 The Model in Square of Style

Representation

Using the square model (Figure 5, Figure 6), an evo-

lution style can be described by four aspects which

are: the evolving architectural element, the evolution

operation header, the evolution actor and the evolu-

tion date. These four elements are linked together to

establish an evolutionary style. They are deﬁned for

the purpose of reuse to describe different evolution

archetypes.

As said before, the three main concepts of the de-

scription of an evolution style are the evolving archi-

tectural element, the role (actor) and the evolution op-

eration. We add a fourth concept, not explained until

now, which is the date and/or the deadline of the evo-

lution operation. The evolving architectural element

provides a vocabulary of evolving elements and their

relationships, typically in the form of classes and at-

tributes in object representations. The acquisition of

this basic conceptual vocabulary is therefore neces-

sary to express the evolution knowledge on this do-

main. We model these concepts using four aspects

(each represented by a vertex of the square): Evolvin-

gArchitectureElement, Header, Actor and TimeEvo-

lution. Each vertex of the square describes an evolu-

tion style concept, as shown in the Figure 5.

Figure 5: Evolution style concepts representation using the

model in square.

The diagonals of the square allow to represent the

concepts of the evolution style. The center of the

square corresponding to the intersection point of the

two diagonals represents the architecture on which the

styles are deﬁned. The evolution styles expressed by

the four concepts at the vertices are described using

different levels of abstraction. Each level of abstrac-

tion is represented by a quadrilateral in the square

model, from the highest level (perfect square) to the

lowest level (other quadrilateral shape). The level of

representation of a concept is deduced by its position

relative to the center of the square. A concept rep-

resented near the center is said to be weakly repre-

sented. A concept located near the top is said to be

strongly represented. In the middle, it is said to be

moderately represented (Figure 6).

When we observe the representations of styles S1

and S2 (Figure 6), the actor A1 is better represented

than A2, in other terms A1 is strongly represented

than A2 with respect to certain criteria deﬁned on the

two elements (competence, experience, etc.) for ex-

ample A1 is more competent than A2, the style S1 is

deﬁned by an actor more competent than the style S2.

Similarly, if we take E1 and E2, the criteria can be the

age of the element, the previous evolution of the ele-

ment, etc. E1 has evolved several times compared to

E2, the S1 style is deﬁned on an architectural element

which is more sensitive because it is much affected by

the evolution operations than the S2 style. TimeEvo-

lution deﬁnes the earliest and latest evolution time.

Thus, T2 is more urgent than T1, in other words the

S2 style would be more urgent than S1.

According to the criteria, the model in square

makes it possible to draw hypotheses on the behav-

ior of the styles.

Figure 6: Evolution style concepts representation using the

model in square.

Thus, from the square model, we derive the sim-

pliﬁed expression of evolution style.

6.2 Simpliﬁed Expression of

Evolutionary Style

The introduced evolution style meta-model deﬁnes

the style modeling language. In order to provide a

formalism to express evolution styles with more con-

venience and entirely based on the introduced meta-

model, we have introduced a simpliﬁed expression to

express software architecture evolution styles. Thus,

the simpliﬁed expression provides the framework for

expressing an evolution style while remaining con-

sistent with the representation model. It allows to

deﬁne the process parameters. It is presented as a

quadruplet deﬁning the actor, the evolving architec-

tural element, the operation header and the execution

date. The evolving architectural element is presented

as a couple of elements and its category. The header

is the transaction’s signature and allows the transac-

tion to be uniquely identiﬁed. Figure 7 gives us an

overview of the simpliﬁed expression. This expres-

sion allows to name and express one by one all the

evolution styles of an evolving software architecture.

Architectural Evolution Style Representation Model

601

Figure 7: Evolution style simpliﬁed expression.

6.3 Interests and Beneﬁts of Simpliﬁed

Formalism

The simpliﬁed formalism allows to build an evolution

style library that can be submitted to analyses in order

to infer on the evolution process of software architec-

tures. Indeed, the work done in this paper leads us to

develop a model for planning and predicting architec-

tural evolution. For this purpose, the style library ob-

tained through the simpliﬁed formalism is subjected

to analysis.

Sequential pattern extraction techniques can be

applied to the style library in order to discover the se-

quences of recurrent evolution operations, the archi-

tectural elements more or less affected by the evolu-

tion operations, the evolution actors more or less so-

licited and several other types of information. This in-

formation can be used to build a learning base to pre-

dict and plan future architecture evolution by learn-

ing from past facts and data. This would allow to an-

ticipate the evolutions and to reduce considerably the

costs (competence, delay).

7 CONCLUSION

In this paper we have presented the evolution style

meta-model introduced to represent the software ar-

chitecture evolution process. It models the evolution

as a process by specifying the activity, the evolv-

ing product, the role and the execution date of the

operation. The evolution representation model pro-

vides the necessary concepts for specifying and prop-

erly managing software architecture evolution inde-

pendently of the architecture model and any ADL.

Thus, it considers the different modeling levels of a

software architecture and the need to manage the evo-

lution through these different levels. In addition, we

introduced the model in square which, based on the

introduced evolution representation model, provides

an evolution style representation framework with ab-

straction levels and a simpliﬁed software architec-

ture evolution style expression in order to easily col-

lect evolution data while respecting the model policy.

These data collected through the simpliﬁed expres-

sion can be submitted to studies or analyses in order

to infer on evolution styles.

The results obtained lead us to plan and predict

the future evolution paths of an evolving software ar-

chitecture from the previous evolution data collected

according to the presented model. From the previ-

ous evolution data of a software architecture evolv-

ing in time A

towards A

, the aim is to elaborate a

training base in order to predict the possibilities and

the skills required to evolve towards A

n+1

. This work

will be developed in a future study and will facilitate

evolution management in software architectures with

a good management of resources and a better capi-

talization of information in the architect community.

These results can also be applied to other artifacts.

REFERENCES

Ahmad, A., Pahl, C., Altamimi, A. B., and Alreshidi,

A. (2018). Mining patterns from change logs to

support reuse-driven evolution of software architec-

tures. Journal of Computer Science and Technology,

33(6):1278–1306.

Barnes, J. M., Pandey, A., and Garlan, D. (2013). Au-

tomated planning for software architecture evolution.

In 2013 28th IEEE/ACM International Conference on

Automated Software Engineering (ASE), pages 213–

223. IEEE.

Breivold, H. P., Crnkovic, I., and Larsson, M. (2012).

A systematic review of software architecture evolu-

tion research. Information and Software Technology,

54(1):16–40.

Cuesta, C. E., Navarro, E., Perry, D. E., and Roda, C.

(2013). Evolution styles: using architectural knowl-

edge as an evolution driver. Journal of Software: Evo-

lution and Process, 25(9):957–980.

Falcarin, P. and Alonso, G. (2004). Software architecture

evolution through dynamic AOP. In Oquendo, F.,

Warboys, B., and Morrison, R., editors, Software Ar-

chitecture, First European Workshop, EWSA 2004, St

Andrews, UK, May 21-22, 2004, Proceedings, volume

3047, pages 57–73. Springer.

Filho, J. W., de Figueiredo Carneiro, G., and Maciel, R.

S. P. (2019). A systematic mapping on visual so-

lutions to support the comprehension of software ar-

chitecture evolution. In Jr., J. J. P., editor, The 25th

International DMS Conference on Visualization and

Visual Languages, DMSVIVA 2019, Hotel Tivoli, Lis-

bon, Portugal, July 8-9, 2019, pages 63–82. KSI Re-

search Inc. and Knowledge Systems Institute Gradu-

ate School.

Garlan, D. (2008). Evolution styles-formal founda-

tions and tool support for software architecture evo-

lution. Computer Science Department, reports-

archive.adm.cs.cmu.edu, page 650.

Gasmallah, N., Amirat, A., Oussalah, M., and Seridi-

Bouchelaghemi, H. (2019). Developing an evolution

software architecture framework based on six dimen-

ICSOFT 2023 - 18th International Conference on Software Technologies

602

sions. International Journal of Simulation and Pro-

cess Modelling, 14(4):325–337.

Goaer, O. L. (2009). Styles d’évolution dans les architec-

tures logicielles. (Evolution styles within software ar-

chitectures). PhD thesis, University of Nantes, France.

Hassan, A. (2018). Style and Meta-Style: Another way to

reuse Software Architecture Evolution. (Style et Meta-

Style: Une autre façon de réutiliser l’évolution dans

les architectures logicielles). PhD thesis, University

of Nantes, France.

Hassan, A. and Oussalah, M. (2016). Meta-Evolution Style

for Software Architecture Evolution. In SOFSEM

42th International Conference on Current Trends in

Theory and Practice of Computer Science-LNCS, Har-

rachov, Czech Republic.

Hassan, A. and Oussalah, M. C. (2018). Evolution styles:

Multi-view/multi-level model for software architec-

ture evolution. JSW, 13(3):146–154.

Kouroshfar, E., Mirakhorli, M., Bagheri, H., Xiao, L.,

Malek, S., and Cai, Y. (2015). A study on the role

of software architecture in the evolution and quality

of software. In 2015 IEEE/ACM 12th Working Con-

ference on Mining Software Repositories, pages 246–

257. IEEE.

Le Goaer, O., Tamzalit, D., Oussalah, M. C., and Seriai,

A.-D. (2008). Evolution styles to the rescue of archi-

tectural evolution knowledge. In Proceedings of the

3rd International Workshop on Sharing and Reusing

Architectural Knowledge, SHARK ’08, page 31–36,

New York, NY, USA. Association for Computing Ma-

chinery.

Oussalah, M., Goaer, O. L., Tamzalit, D., and Seriai, A.

(2007). Evolution styles in practice - refactoring re-

visited as evolution style. In Filipe, J., Shishkov, B.,

and Helfert, M., editors, ICSOFT 2007, Proceedings

of the Second International Conference on Software

and Data Technologies, Volume SE, Barcelona, Spain,

July 22-25, 2007, pages 138–143. INSTICC Press.

Perry, D. E. and Wolf, A. L. (1992). Foundations for the

study of software architecture. ACM SIGSOFT Soft-

ware engineering notes, 17(4):40–52.

Plakidas, K., Schall, D., and Zdun, U. (2018). Model-based

support for decision-making in architecture evolution

of complex software systems. In Proceedings of the

12th European Conference on Software Architecture:

Companion Proceedings, pages 1–7.

Sadou, N., Tamzalit, D., and Oussalah, M. (2005). How

to manage uniformly software architecture at differ-

ent abstraction levels. In International Conference on

Conceptual Modeling, pages 16–30. Springer.

Sadou-Harireche, N. (2007). Evolution Structurelle dans les

Architecture Logicielles à base de Composants. PhD

thesis, PhD thesis, Université de Nantes.

Seriai, A., Oussalah, M. C., Tamzalit, D., and Goaer,

O. L. (2006). A reuse-driven approach to update

component-based software architectures. In Proceed-

ings of the 2006 IEEE International Conference on In-

formation Reuse and Integration, IRI - 2006: Heuris-

tic Systems Engineering, September 16-18, 2006,

Waikoloa, Hawaii, USA, pages 313–318. IEEE Sys-

tems, Man, and Cybernetics Society.

Shaw, M. and Garlan, D. (1994). An introduction to

software architecture. School of Computer Science

Carnegie Mellon University Pittsburgh, PA.

Smeda, A., Oussalah, M., and Khammaci, T. (2008). My

architecture: a knowledge representation meta-model

for software architecture. International Journal of

Software Engineering and Knowledge Engineering,

18(07):877–894.

Architectural Evolution Style Representation Model

603
