LAxplore: An NLP-Based Tool for Distilling Learning Analytics and

Learning Design Instruments out of Scientiﬁc Publications

Atezaz Ahmad

1 a

, Jan Schneider

1 b

, Daniel Schiffner

1 c

, Esad Islamovic

and Hendrik Drachsler

1 d

DIPF — Leibniz Institute for Research and Information in Education, Frankfurt, Germany

Goethe University, Frankfurt, Germany

Keywords:

Information Retrieval, Natural Language Processing, Learning Analytics, Indicators, Metrics, Learning

Activities, Learning Design.

Abstract:

Each year, the amount of research publications is increasing. Staying on top of the state of the art is a pressing

issue. The ﬁeld of Learning Analytics (LA) is no exception, with the rise of digital education systems that are

used broadly these days from K12 up to Higher Education. Keeping track of the advances in LA is challenging.

This is especially the case for newcomers to the ﬁeld, as well as for the increasing number of LA units that

consult their teachers and scholars on applying evidence-based research outcomes in their lectures. To keep

an overview of the rapidly growing research ﬁndings on LA, we developed LAxplore, a tool that uses NLP

to extract relevant information from the LA literature. In this article, we present the evaluation of LAxplore.

Results from the evaluation show that LAxplore can signiﬁcantly support researchers in extracting information

from relevant LA publications as it reduces the time of searching and retrieving the knowledge by a factor of

six. However, the accurate extraction of relevant information from LA literature is not yet ready to be fully

automatized and some manual work is still required.

1 INTRODUCTION

Over the past decade, the ﬁeld of Learning Analytics

(LA) has been widely cultivated and plays a crucial

role in the development and advancement of educa-

tion. Consequently, it triggered interest among the

sister communities in the learning sciences, for ex-

ample, didactics in STEM education (Kubsch et al.,

2022), psychometrics (Drachsler and Goldhammer,

2020), neuroscience (Calle-Alonso et al., 2017). This

broad interest in LA results in three challenges prac-

titioners and researchers are facing. First, the increas-

ing usage of LA in other ﬁelds also increases the het-

erogeneity of LA and an even more diverse publi-

cation landscape. With such an increase in hetero-

geneity, it is difﬁcult for researchers and practition-

ers to identify evidence-based practices because they

are scattered over many scientiﬁc outlets (Saqr et al.,

2022). Furthermore, the terminologies used for LA

https://orcid.org/0000-0003-4894-8258

https://orcid.org/0000-0001-8578-6409

https://orcid.org/0000-0002-0794-0359

https://orcid.org/0000-0001-8407-5314

are also very heterogeneous, e.g., indicators and met-

rics are widely used interchangeably in the literature

(Ahmad et al., 2022). The second challenge of LA

concerns its pedagogical alignment and a lack of

alignment with pedagogical models (Bakharia et al.,

2016; Macfadyen et al., 2020). For example, LA can

track a lot of data (digital traces) throughout the learn-

ing process. Yet, it remains difﬁcult or even unclear

how to effectively present these results back as mean-

ingful LA indicators, so that third parties can improve

the process of learning (Chatti et al., 2014; Ahmad.

et al., 2022). The third challenge consists of the grow-

ing use of LA within and beyond these communities.

This increases the number of publications in the ﬁeld,

resulting in an information overﬂow (Bakharia et al.,

2016; Martin et al., 2016) state. Therefore, it becomes

increasingly difﬁcult to stay on top of the state-of-the-

art. For example, as per Google Scholar Metrics, and

the time of writing, there are over 49,500 reviewed

articles related to the keywords of Learning Analytics

published between 2020 and 2023.

The work by (Ahmad et al., 2022; Ahmad. et al.,

2022) presented a solution to the pedagogical align-

ment and heterogeneity challenges through a frame-

230

Ahmad, A., Schneider, J., Schiffner, D., Islamovic, E. and Drachsler, H.

LAxplore: An NLP-Based Tool for Distilling Learning Analytics and Learning Design Instruments out of Scientiﬁc Publications.

DOI: 10.5220/0012163600003598

In Proceedings of the 15th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2023) - Volume 1: KDIR, pages 230-239

ISBN: 978-989-758-671-2; ISSN: 2184-3228

work aimed at aligning LA and learning design (LD)

in a sustainable manner. Adhering to this frame-

work, the Open Learning Analytics Indicator Repos-

itory (OpenLAIR) (Ahmad. et al., 2022) provides a

list of empirically tested LA indicators and their met-

rics for common learning activities that are part of a

typical LD of a course. It enables course creators,

educators, practitioners, and researchers to make in-

formed decisions concerning LA and LD for their

course designs and/or dashboards. The information

presented by OpenLAIR consists of an ontology that

connects LD events with LA indicators and metrics

through LD-LA activities. The main elements of this

ontology are LD events (e.g., receiving information

or imitating an expert), LD-LA activities (e.g., read-

ing or writing), LA indicators (e.g., feedback or en-

gagement), and their corresponding LA metrics (e.g.,

time or initiative). In the remainder of the paper,

we refer to these as LD-LA Instruments. Aligned

with the third challenge mentioned above, a limita-

tion of OpenLAIR is to keep up to date with the

quickly evolving state of research. Manually extract-

ing relevant information from the literature is time-

consuming and difﬁcult. To overcome this problem,

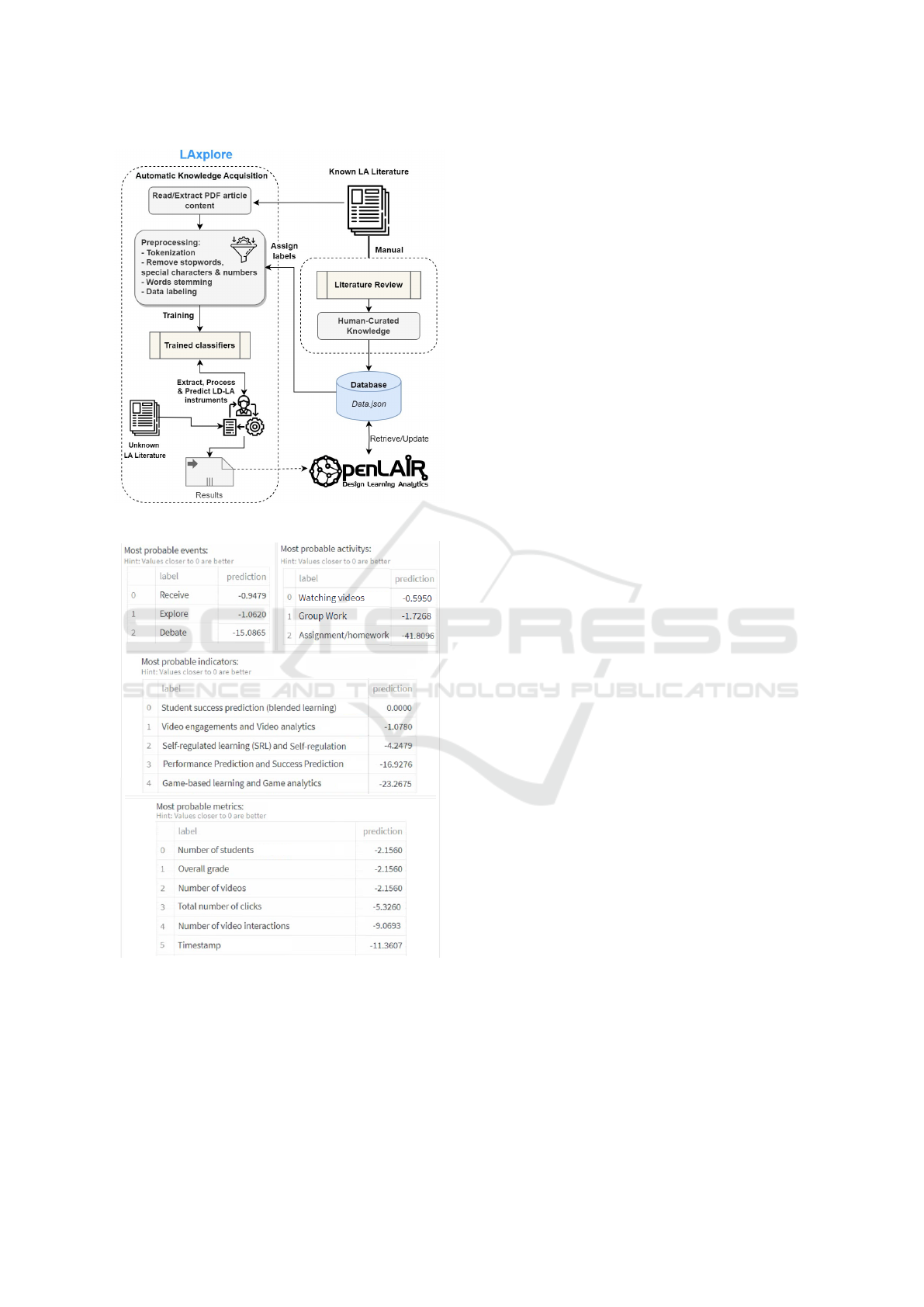

we created LAxplore, a natural language processing

(NLP) extension for OpenLAIR, which aims to sup-

port the extraction of these LD-LA Instruments from

LA articles.

In this paper, we present the evaluation of LAx-

plore. We tested and evaluated it in two different sce-

narios. The ﬁrst one is automatic extraction, where

we compare the results of the NLP extension against

the already human-harvested data. The second one

consists of the semi-automatic extraction, where we

ask experts in LA (N=10) to use LAxplore to extract

LD-LA Instruments. The presented work was guided

by the following research questions:

RQ1: To what extent can we use LAxplore to au-

tomatically and reliably extract LD-LA Instruments

from a LA publication corpus?

In order to answer RQ1, we compare the analyt-

ics results from LAxplore against human-identiﬁed

results to calculate its accuracy by calculating the pre-

cision, recall, and f-score of the trained classiﬁers.

RQ2: To what extent can LAxplore support the auto-

matic or semi-automatic extraction of LD-LA Instru-

ments?

To answer RQ2, we conducted user tests where we

applied the System Usability Scale (SUS) (Brooke,

1986) and the Technology Acceptance Model (TAM)

(Davis, 1985) to explore the perceived usability, ease

of use, and usefulness of LAxplore for practitioners

and researchers.

2 RELATED WORK

The widespread use of LA in sister communities

has made the ﬁeld increasingly heterogeneous which

makes it difﬁcult to get an overview of the ﬁeld and

identify best practices. This challenge was already

identiﬁed in 2016 by the Learning Analytics Commu-

nity Exchange (LACE) project

. The LACE project

developed an LA evidence hub that aimed to provide

an overview of effective and ineffective LA studies

according to four propositions; whether they improve

and support learning outcomes, improve learning sup-

port and teaching, are used widely, and are used eth-

ically (Ferguson and Clow, 2017). However, in 2019

this initiative stopped due to the high human effort to

maintain the evidence hub. In the meantime, the het-

erogeneity of the ﬁeld increased even further. More-

over, there is still a need for a better alignment and

presentation of LD-LA Instruments and pedagogy, to

address the general pedagogical alignment problem

concerning LA. For example, LA can track a lot of

data about the learner and their environment but it is

not clear how to use this data to identify relevant LA

indicators that support the educational aims and com-

petencies of the students (Chatti et al., 2014). With

the increasing rollout of LA at higher education insti-

tutions also the amount of LA support units is grow-

ing. Those LA units consult their teachers and schol-

ars on applying evidence-based research outcomes in

their lectures. In the ﬁeld of assessment, validated

items and assessment instruments reliably measure

the stage of knowledge of a student. Compared to

LA, we are not at the stage to have a virtual shell with

validated instruments that we can pull out and apply

to a new learning context. There is a high demand

for a tool that provides an overview of evidence-based

LD-LA Instruments that the scholars can successfully

apply in their lectures (Bakharia et al., 2016). A study

by (Saqr et al., 2022), examines if and to what extent

frequently used LA indicators of success predictions

are portable across a homogeneous set of courses.

Still, it is a challenge to ﬁnd and present a suitable

LA approach for an activity or a construct. The het-

erogeneous nature of LA and the terminologies used

to represent them are reasons for this. For example,

basic terms such as indicators and metrics are not for-

mally deﬁned and are mostly used interchangeably in

LA publications. Consequently, ﬁnding a consensus

concerning best LA practices and approaches is not

trivial (Ahmad et al., 2022). To address these chal-

lenges, we have been creating OpenLAIR, which is

organized according to the common LD-LA activities

and provides an overview of evidence-based LA in-

https://bildungsserver.de/bisy.html?a=8924&spr=1

LAxplore: An NLP-Based Tool for Distilling Learning Analytics and Learning Design Instruments out of Scientiﬁc Publications

231

dicators that have been applied to these LD activities

in the past. A current limitation of OpenLAIR is the

capability of staying up to date with the quickly de-

veloping state-of-the-art on LA. Therefore, we aim to

overcome this shortage with NLP technology; other-

wise, it will suffer the same fate as the LACE evidence

hub.

Keeping OpenLAIR up to date is not a unique

challenge in the ﬁeld of LA. Similar initiatives are

emerging in other ﬁelds too. In the ﬁeld of Bio-

medicine, new studies are published at an unmanage-

able pace. Every minute two papers are published

on average in the ﬁeld of Medicine (Fiorini et al.,

2018). Due to the abundance and inconsistency of sci-

entiﬁc literature, the ﬁeld is currently facing a scien-

tiﬁc crisis. Hence, it is increasingly strenuous, time-

consuming, and challenging to ﬁnd relevant articles

for a query and extract the relevant metadata from

the content of the paper(s) (Voytovich and Greenberg,

2022).

Automatically keeping track of the new knowl-

edge being published is challenging, as the data pro-

vided in the articles is unstructured. Handling un-

structured data is challenging because it is essential to

pre-process it before the data can be utilized (Baviskar

et al., 2021). We argue that applications of Artiﬁcial

Intelligence (AI) such as Machine Learning (ML),

Deep Learning, and NLP play a crucial role in au-

tomatizing the process of handling and processing

unstructured data. Especially, NLP handles linguis-

tic data or unstructured data efﬁciently by offering

a variety of powerful and reliable methods (Ceylan,

2022). New advancements in AI have been made pos-

sible with AI toolkits. For example, TensorFlow pro-

vides a library of state-of-the-art models that can be

used to create various scalable AI-powered applica-

tions. Azure Machine Learning Studio and IBM Wat-

son Studio are further examples of AI toolkits.

The use of these toolkits leads to the creation of

applications capable of sorting articles based on rele-

vance. One example is ASReview (Hindriks, 2020),

an open-source tool that helps researchers and prac-

titioners to get an overview of the relevant publica-

tions and ﬁlter irrelevant articles during the ﬁrst phase

of a systematic literature search. Likewise, Litstudy

(Heldens et al., 2022) is a Python-based package that

is used to analyze scientiﬁc literature from the com-

fort of a Jupyter notebook. It provides metadata us-

ing visualizations, network analysis, and NLP for the

selected scientiﬁc publications. Another example is

Arxivbox

, which is an AI-based web interface for

browsing major computer vision and machine learn-

ing conference papers. EduBERT (Clavi

e and Gal,

https://github.com/ankanbhunia/arxivbox

2019) is another example of an NLP-based tool used

to improve the classiﬁcation of forum texts.

In the ﬁeld of medicine, some NLP applications

already handle the continuous stream of advances

reported in the scientiﬁc literature. For example,

SNPcurator (Tawﬁk and Spruit, 2018) is used to help

in automatically extracting Single-Nucleotide Poly-

morphisms (SNP) associations of any given disease

and its reported statistical signiﬁcance. SNPcurator

is based on NLP and text mining that further helps

healthcare professionals in locating appropriate infor-

mation from biomedical articles quickly and effec-

tively. Similarly, BioBERT (Lee et al., 2020) is a pre-

trained Bio-medical NLP model trained exclusively

on large-scale Bio-medical corpora. It helps to under-

stand complicated bio-medical texts. ExECT (Extrac-

tion of Epilepsy Clinical Text) (Fonferko-Shadrach

et al., 2019) is yet another example that is able to ex-

tract epilepsy information from free texts in clinic let-

ters. It further helps by storing patient data in a struc-

tured format. These NLP models enable the auto-

mated detection of contradictions in Bio-medical lit-

erature and may lower the inconsistency in the litera-

ture.

3 BACKGROUND

Both, the heterogeneity and alignment challenges are

diminished by OpenLAIR. Nevertheless, both rely on

an up-to-date representation. To address the informa-

tion overﬂow challenge in LA and keep OpenLAIR

up to date, we propose an NLP tool named LAxplore.

3.1 OpenLAIR

OpenLAIR

is a web application that presents users

with a structured approach for selecting evidence-

based LA indicators for educational practice so that

they can get an informed idea of how to implement

LA in their courses based on their LD. The tool

presents LD-LA Instruments in a structured and cat-

egorized manner, which are connected and aligned to

LD-LA activities and LD events. OpenLAIR is aimed

to support different types of users. Teachers can use

this already tested/existing knowledge to select rele-

vant learning activities that may lead students to un-

derstand the topic/course better. Researchers, archi-

tects, or programmers can use this knowledge to de-

sign a LA indicators dashboard using the metrics pro-

vided by OpenLAIR. Currently, the information pre-

sented by OpenLAIR is based on the literature review

https://edutec-tool.github.io/

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

232

Figure 1: Tree view example of our JSON dataset (Ahmad.

et al., 2022).

in (Ahmad et al., 2022), which has been manually ex-

tracted out of 161 LA papers over ten years (2011-

2020). The results of the literature review (Ahmad

et al., 2022) suggested that learning activities in LA

and LD can be aligned and create a common ground

between LA and LD. Therefore, the authors looked

for LD-LA activities in LA literature and harvested

LD-LA Instruments manually.

The information displayed in OpenLAIR is de-

ployed in a MongoDB Atlas

cloud database that con-

tains eight JSON documents based on the eight LD

events (Verpoorten et al., 2007). Each event has LD-

LA activities (e.g., reading), whereas each activity has

LA indicators (e.g., reading analytics) and their met-

rics (e.g., number of views/keystrokes/reading ses-

sions) (see Figure 1) assigned. The data stored in the

database (DB) is hierarchical, where one LA indica-

tor can be a subset of many learning activities (e.g.,

the indicator ‘learning behavior patterns’ lies under

the LD-LA activities reading and watching videos)

and one learning activity can be a subset of other LD

events (e.g., the learning activity ‘group work’ lies un-

der the LD events ‘create’, ‘practice’ and ‘debate’).

Apart from the OpenLAIR evaluation study (Ah-

mad. et al., 2022) and its literature review (Ahmad

et al., 2022), we have used and tested this tool in a

few scenarios. One is brainstorming sessions to iden-

tify and recommend meaningful learning activities in

Moodle courses. Another example is workshops tai-

lored to designing and recommending LA indicators

and their metrics for LA dashboards (Ahmad et al.,

2023; Karademir et al., 2022).

Further, refer to Figure 2 for more details regard-

ing OpenLAIR connection, working, and placement

with the current and proposed LAxplore system.

https://www.mongodb.com/atlas/database

3.2 LAxplore

LAxplore

is an NLP-based ML extension for Open-

LAIR developed in Python (backend) and Streamlit

(frontend) that extracts information from a Portable

Document Format (PDF) LA research article and fur-

ther identiﬁes and categorizes keywords (LD-LA In-

struments) from the extracted content based on in-

struments speciﬁed in its classiﬁer. Figure 2 presents

the system architecture of LAxplore extending Open-

LAIR. LAxplore has four main functionalities: text

extraction, pre-processing, training the classiﬁer, and

displaying the extracted and processed results out of

new (untagged) documents (see Figure 2).

First, LAxplore reads the PDF articles extracting

the content/text from them. Next, it converts them

into pickle

format (a Python object serialization that

converts an object into a byte stream).

The pre-processing phase consists of four sub-

steps: 1. The extracted text is tokenized (to a list of

words). 2. The stop words that do not contain any

meaning (e.g., the, it, etc.) and special characters and

numbers are removed. 3. The words are converted to

their base form by removing afﬁxes called stemming

(e.g., eating, eats, eaten to eat). LAxplore offers two

stemming algorithms PorterStemmer

(which works

best with any type of word and the one we used

for training) and WordNetLemmatizer

(which works

best with verbs and particularly nouns). 4. In the ﬁnal

preprocessing step, words are assigned labels to in-

dicate their semantic role (relationship) with the help

of our JSON dataset (Data.json used in OpenLAIR)

(see Figure 2). All articles are linked to the LD-LA-

Instruments in the database using a reference number.

This reference number is utilized by the NLP classi-

ﬁer while assigning the labels.

The third phase consists of training the classi-

ﬁer. To train this classiﬁer, the tool matches instru-

ments/words from the DB of OpenLAIR to the ex-

tracted content/text from the previous steps and learns

from it. The NLP classiﬁer uses the Naive Bayes

algorithm, which is a supervised ML learning algo-

rithm also used for solving text classiﬁcation prob-

lems (Zhang and Li, 2007; G

ultekin and Bayat, 2022).

Lastly, the user provides an unknown LA article

to display results. The tool processes its content and

with the help of the classiﬁers, the predicted results

are shown to the user. This ‘prediction’ value is a log-

likelihood threshold indicating the accuracy (0 mean-

https://github.com/atezaz/LAxplore

https://streamlit.io/

https://docs.python.org/3/library/pickle.html

https://tartarus.org/martin/PorterStemmer/

https://www.nltk.org/ modules/nltk/stem/wordnet.html

LAxplore: An NLP-Based Tool for Distilling Learning Analytics and Learning Design Instruments out of Scientiﬁc Publications

233

Figure 2: LAxplore system architecture with OpenLAIR.

Figure 3: Example of LAxplore results view.

ing perfect accuracy) (see Figure 3).

4 METHODOLOGY

We evaluated LAxplore with the main aim to identify

how such a tool can support the extraction of LD-LA

Instruments from new LA literature. Furthermore, we

assessed usability, ease of use, usefulness, and model

accuracy.

For training the LAxplore’s classiﬁers, we used

the same list of peer-reviewed LA publications

(N=161) and data set harvested in OpenLAIR presen-

tation and evaluation study (Ahmad. et al., 2022) and

in the literature review (Ahmad et al., 2022) (see Fig-

ure 2), which contains articles related to Technology

Enhanced Learning (TEL) from the Learning Ana-

lytics and Knowledge Conference (LAK) series from

2011 to 2020, publications in the Journal of Learning

Analytics (JLA), Proceedings of the European Con-

ference for Technology Enhanced Learning (ECTEL)

from 2012 to 2020, IEEE Transactions on Learning

Technologies, as well as special issues for LA in the

Journal of Computer Assisted Learning (JCAL).

We conducted two different evaluations: au-

tomatic extraction and semi-automatic extraction.

In automatic extraction, we trained two classiﬁers

with two different year ranges. Classiﬁer 1 was

trained with eight-years (2011-2018) of publications

(N=116). Classiﬁer 2 was trained by adding two more

years (ten-years) (2011-2020) of publications (total

N=161).To test the classiﬁer, we selected ten random,

but still relevant articles from the proceedings of LAK

2021 and harvested the LD-LA Instruments manually

(two persons involved). We tested the accuracy of

both classiﬁers against the manually harvested data.

Lastly, we calculate the recall, precision, and F-score

in order to answer our ﬁrst research question (RQ1).

For the evaluation of the semi-automatic extrac-

tion, we recruited ten researchers (four Postdocs and

six PhD candidates) in LA and Technology Enhanced

Learning. In this second evaluation, we focused on

the usability, usefulness, and ease of use of LAxplore.

Here, participants had to perform two tasks. The ﬁrst

task was to manually extract LD-LA Instruments from

an LA article. In the second round, participants were

presented with LAxplore and asked to extract of the

LD-LA Instruments for a different article with the help

of the tool. After each task participants ﬁlled a small

survey regarding their experience of extracting this in-

formation (difﬁculty, motivation, etc.).

The materials used for this semi-automatic evalua-

tion were two LA articles (Lim et al., 2021; G

unther,

2021) that were randomly selected from a set of ar-

ticles used in validating the classiﬁer. Half of the

participants worked with article (Lim et al., 2021)

for the ﬁrst task and with article (G

unther, 2021) in

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

234

Table 1: LD-LA Instruments extraction results for two different training set of classiﬁers.

LD-LA Instruments Classiﬁer training set Precision Recall F-score Log-likelihood threshold

LD Events 1. 2011-2018 0.80 0.86 0.82 0 to -10

2. 2011-2020 0.87 0.92 0.90 0 to -10

LD-LA activities 1. 2011-2018 0.84 0.75 0.79 0 to -10

2. 2011-2020 0.96 0.82 0.89 0 to -10

LA Indicators 1. 2011-2018 0.67 0.63 0.65 0 to -10

2. 2011-2020 0.77 0.73 0.75 0 to -10

LA Metrics 1. 2011-2018 0.69 0.85 0.76 0 to -20

2. 2011-2020 0.72 0.78 0.75 0 to -20

Table 2: Survey items after tasks one and two.

Items after Task one Mean (SD) Items after Task two Mean (SD) T-test

The task was easy to do. 4.1 (2.38)

After using the tool, the task

was easy to do.

6.1 (1.1) 0.0266

The task was boring to do. 5.2 (1.62)

After using the tool, the task

was boring to do.

2.6 (1.65) 0.0022

I think there is a need for a Tool for

doing such tasks or making them

easy.

6.5 (0.71)

The Tool helped me to do the

task and make the task easy

and exciting.

6.2 (0.75) 0.2961

*7 (strongly agree) and 1 (strongly disagree)

*SD = standard deviation

the second task; the other half performed the task

with the opposite order of articles. The questionnaire

used after the second task included a System Usability

Scale (SUS) (Brooke, 1986) and a Technology Accep-

tance Model (TAM) (Davis, 1985) questionnaires that

helped us to evaluate the usability, usefulness, and

ease of use of LAxplore to support the semi-automatic

extraction of LD-LA Instruments out of LA articles

(RQ2).

5 RESULTS

Table 1 contains the results of the automatic ex-

traction, where human-identiﬁed instruments (super-

class) are compared against the results of both clas-

siﬁers, and the mean (M) values are used for cal-

culating the precision, recall, and F-score. Our re-

sults show that Classiﬁer 1 performs better than Clas-

siﬁer 2. The increase of data (LD-LA Instruments)

by including more years (2011-2020) increases the

quality. Both classiﬁers extracted LA events excep-

tionally well, with Classiﬁer 2 scoring higher (see

F-score in Table 1). The reason for that is there

are only eight learning events to predict from and a

larger number of articles used for training. There-

fore, the probability of predicting the right LD events

is higher. The same applies to LD-LA activities and

LA Indicators, where Classiﬁer 2 outperformed the

ﬁrst one. Although, LA metrics prediction results (F-

score) exhibit no such improvement between the ﬁrst

and second classiﬁers. We reason that the number of

metrics increased dramatically in the last years and

there is a lack of common terminologies for LA met-

rics. The log-likelihood threshold column presents

the range of conﬁdence values used for considering

the results of both classiﬁers (Collins, 2013). The

output grid of LAxplore also presents the prediction

score/value alongside each LD-LA instrument (see

Figure 3), where the prediction value closer to zero

is better. During our evaluation, we considered the

proposed range to be useful for adequate results. The

tool ignores the results whose prediction value (log-

likelihood threshold) is below -45.

Regarding the semi-automatic extraction, table 2

summarizes the comparison of the survey results. It

shows that the task was easier and less tedious with

the help of LAxplore. Results from these surveys also

indicate a need for such a tool. This is also supported

by the results of the SUS and TAM surveys.

The average time for task one (harvesting instru-

ments manually) was recorded as 27 minutes. The av-

erage time for task two was about four and a half min-

utes including the validation of the results. Without

ratifying the results, the authors recorded that one can

extract the LD-LA Instruments in less than a minute.

To measure the LAxplore usability score we use

SUS (Brooke, 1986). Table 3 presents the mean val-

ues for each SUS item. To calculate the SUS score,

the item values (such as items no. 2, 4, 6, 8 & 10)

LAxplore: An NLP-Based Tool for Distilling Learning Analytics and Learning Design Instruments out of Scientiﬁc Publications

235

Table 3: System usability score for LAxplore.

SUS items Mean (SD)

1. I think that I would like to use

LAxplore frequently.

6.2 (1.03)

2. I found LAxplore unnecessar-

ily complex.

1.6* (0.7)

3. I thought LAxplore was easy

to use.

5.6 (1.9)

4. I think that I would need the

support of a technical person to

be able to use the LAxplore.

2.2* (1.62)

5. I found the various func-

tions in LAxplore were well in-

tegrated.

5.8 (1.55)

6. I thought there was too much

inconsistency in LAxplore.

1.8* (0.92)

7. I would imagine that most

people would learn to use LAx-

plore very quickly.

6.4 (0.7)

8. I found LAxplore very cum-

bersome to use.

1.3* (0.48)

9. I felt very conﬁdent using

LAxplore.

5.7 (0.82)

10. I needed to learn a lot of

things before I could get going

with LAxplore.

1.7* (0.67)

SUS mean score (Percentage) 5.61 (80.14%)

*7 (strongly agree) and 1 (strongly disagree)

*These values need to be inverted for SUS mean

score (e.g., 1.6 to 5.4)

*SD = standard deviation

are inverted for the calculation of a mean value (see

Table 3 last row value). LAxplore receives a score of

80.14%. According to Bangor et al., (Bangor et al.,

2008) SUS acceptability scale, 80% is an excellent

adjective rating and falls into an acceptable range.

As a second measure, we used an adapted TAM

(Davis, 1985) to determine the usefulness and ease of

use (c.f. table 4). The overall TAM usefulness mean

score is 6.05 and the TAM ease of use mean score

is 6.27 out of 7, which we consider a good overall

system rating.

6 DISCUSSION AND

CONCLUSION

For our ﬁrst research question (RQ1) concerning the

automatic extraction of LD-LA Instruments, the re-

sults presented show that our tool is capable of ex-

tracting LD-LA Instruments up to an acceptable level

of precision. The LAxplore classiﬁers performed

better in harvesting LD events and LD-LA activi-

ties. As discussed in the result section, one reason

for that is the limited number of LD events (N=8)

and LD-LA activities (N=40). The classiﬁers per-

formed also good with LA indicators (N=135), where

many of these indicators share similar goals/names

and also work in similar ways, e.g., ‘predictive an-

alytics’ repeated 62 times, ‘self-regulated learning’

appeared 24 times, and metrics (N >1000) (Ahmad

et al., 2022; Ahmad. et al., 2022). Increasing data,

i.e. using more publications, when training the clas-

siﬁer improved the quality in almost every category

apart from LA metrics, where the F-score nearly re-

mains the same. We argue that this is due to differ-

ent wording/terminology/synonyms for a similar met-

ric/measurement in the articles. For example, ‘materi-

als used or resources used’, ‘test score or quiz score’,

‘ﬁnal grade or ﬁnal score or GPA’, ‘assignment or

homework’ etc. are just a few examples out of many.

We found only one incident where a LA indicator is

being introduced called ‘lecture videos thermal ana-

lytics’ by using multimodal data, where the authors

investigate the usage of thermal imaging for under-

standing students’ cognitive load (Srivastava et al.,

2020). In contrast, in the majority of LA articles,

the authors used different LA metrics (measurements)

for a similar indicator (Ahmad et al., 2022); for ex-

ample, self-regulated learning has been approached

differently in a study of (Saint et al., 2020) and (Kia

et al., 2020).

To sum up, the precision of LAxplore classiﬁers

is good with scores ranging from 77% to 90%. How-

ever, we do not consider it good enough to be used

unsupervised. We envision that with new advances in

NLP, reducing the noise in the data discussed above,

and more training data, the precision will increase to

allow for a fully automated process.

The aim of RQ2 is to explore to what extent the

semi-automatic extraction support users in the pro-

cess of extracting LD-LA Instruments. In our sce-

nario, results show that LAxplore reduces the time

of extraction of LD-LA Instruments on average by a

factor of six and makes this process easier and less te-

dious. In terms of usability, LAxplore got an excellent

evaluation based on the acceptability scale of (Bangor

et al., 2008). Thus, we assign LAxplore high usabil-

ity. Participants were able to quickly use and learn

to operate the tool. The system usability is proven

to be a valid method and a critical predictor of actual

system use and user experience (Drew et al., 2018;

Peres et al., 2013; Vlachogianni and Tselios, 2022).

Extending this, we use TAM to evaluate new technol-

ogy adoption. The results (see table 4) show remark-

able ratings. LAxplore is considered useful for the

extraction of LD-LA Instruments. Regarding TAM’s

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

236

Table 4: TAM usefulness and ease of use for LAxplore.

TAM usefulness items Mean (SD) TAM ease of use items Mean (SD)

In case I need to do the same task, us-

ing this Tool in my job/work would

enable me to accomplish tasks more

quickly.

6.4 (0.97)

In case I need to do the same task,

learning to operate this Tool would be

easy for me.

6.3 (0.67)

In case I need to do the same task,

using this Tool would improve my

job/work performance.

5.7 (1.34)

In case I need to do the same task, I

would ﬁnd it easy to get this Tool to

do what I want it to do.

6.3 (0.82)

In case I need to do the same task, us-

ing this Tool in my job/work would in-

crease my productivity.

6.3 (0.82)

In case I need to do the same task,

my interaction with this Tool would be

clear and understandable.

6.4 (0.7)

In case I need to do the same task, us-

ing this Tool would enhance my effec-

tiveness on the job/work.

5.8 (1.55)

In case I need to do the same task, I

would ﬁnd this Tool to be ﬂexible to

interact with.

6.1 (0.99)

In case I need to do the same task, us-

ing this Tool would make it easier to

do my job/work.

5.9 (0.99)

In case I need to do the same task, It

would be easy for me to become skill-

ful at using this Tool.

6.1 (0.74)

In case I need to do the same task,

I would ﬁnd this Tool useful in my

job/work.

6.2 (0.92)

In case I need to do the same task, I

would ﬁnd this Tool easy to use.

6.4 (0.7)

TAM usefulness mean score 6.05 TAM ease of use mean score 6.27

*SD = standard deviation

perceived ease of use, the tool is easy and forthright

to be handled independently. Despite some uncertain

reports regarding its theoretical assumptions, TAM is

still a popular, frequently cited, and used model for

evaluating the system’s usefulness and ease of use

(Md Lazim et al., 2021; Al-Emran and Grani

c, 2021;

Chuttur, 2009). It is commonly applied in the context

of information technology (Al-Emran et al., 2018).

Consequently, we state that LAxplore can be used for

the semi-automatic extraction of LD-LA Instruments

out of new LA literature..

We conclude, backed by the result of our study,

that LAxplore supports the semi-automatic extraction

of LD-LA Instruments. This is an indicator of how

AI and especially NLP can help to keep track of the

continuous advances in scientiﬁc ﬁelds such as LA

ﬁeld by highlighting existing research practices in a

repository (i.e., OpenLAIR).

6.1 Limitations

This study has two main limitations. First, there could

be some margin of human lapses or slips in the data

harvesting for the comparison with classiﬁer results.

In a few cases, the results of the classiﬁers were con-

sidered true positives if the results were nearly simi-

lar for example, a metric such as ‘dashboard access’

was considered as ‘view dashboard/page’ or an indi-

cator ‘monitoring’ as ‘self-regulation’ or vice versa.

The classiﬁcation was considered false positive when

a result is very far away from the actual instrument

and does not make any sense. The latter is currently

hard to quantify. Second, if a LA article does not

provide enough background information or measure-

ments (metrics) that are used to create or evaluate the

presented LA indicator, the results of the classiﬁer

may not be reliable. To handle such articles, the tool

should be able to provide appealing results based on

its content. Therefore, different NLP models are re-

quired that also include a semantic representation.

6.2 Future Work

Currently, this NLP solution serves the purpose of ex-

tracting LD-LA Instruments out of LA articles. Nev-

ertheless, the solution is far from ideal and requires

expert validation to verify results. Therefore, we con-

sider it important to provide more accurate results and

reduce or remove expert validation. Lastly, the tool

works best on LA articles that contain an implementa-

tion, method, and description of LD-LA Instruments.

Therefore, using and setting up ASReview (Hindriks,

2020) should help identify such relevant LA articles

that can be used/consumed by LAxplore.

REFERENCES

Ahmad, A., Kiesler, N., Schiffner, D., Schneider, J., and

Wollny, S. (2023). Caught in the lifelong learn-

LAxplore: An NLP-Based Tool for Distilling Learning Analytics and Learning Design Instruments out of Scientiﬁc Publications

237

ing maze. helping people with learning analytics and

chatbots to ﬁnd personal career paths. Interna-

tional journal of information and education technol-

ogy, 13(3):423–429.

Ahmad, A., Schneider, J., Grifﬁths, D., Biedermann, D.,

Schiffner, D., Greller, W., and Drachsler, H. (2022).

Connecting the dots–a literature review on learn-

ing analytics indicators from a learning design per-

spective. Journal of Computer Assisted Learning,

n/a(n/a):1–39.

Ahmad., A., Schneider., J., Weidlich., J., Di Mitri., D.,

Yau., J. Y., Schiffner., D., and Drachsler., H. (2022).

What indicators can i serve you with? an evaluation of

a research-driven learning analytics indicator reposi-

tory. In Proceedings of the 14th International Confer-

ence on Computer Supported Education - Volume 1:

CSEDU, pages 58–68. INSTICC, SciTePress.

Al-Emran, M. and Grani

c, A. (2021). Is it still valid or

outdated? a bibliometric analysis of the technology

acceptance model and its applications from 2010 to

2020. In Al-Emran, M. and Shaalan, K., editors, Re-

cent Advances in Technology Acceptance Models and

Theories, pages 1–12. Springer International Publish-

ing, Cham.

Al-Emran, M., Mezhuyev, V., and Kamaludin, A. (2018).

Technology acceptance model in m-learning con-

text: A systematic review. Computers & Education,

125:389–412.

Bakharia, A., Corrin, L., de Barba, P., Kennedy, G.,

sevi

c, D., Mulder, R., Williams, D., Dawson, S.,

and Lockyer, L. (2016). A conceptual framework

linking learning design with learning analytics. In

Proceedings of the Sixth International Conference on

Learning Analytics and Knowledge, LAK ’16, page

329–338, New York, NY, USA. Association for Com-

puting Machinery.

Bangor, A., Kortum, P. T., and Miller, J. T. (2008). An

empirical evaluation of the system usability scale. Intl.

Journal of Human–Computer Interaction, 24(6):574–

594.

Baviskar, D., Ahirrao, S., Potdar, V., and Kotecha, K.

(2021). Efﬁcient automated processing of the unstruc-

tured documents using artiﬁcial intelligence: A sys-

tematic literature review and future directions. IEEE

Access, 9:72894–72936.

Brooke, J. (1986). System usability scale (sus): a quick-

and-dirty method of system evaluation user informa-

tion. Reading, UK: Digital equipment co ltd, 43:1–7.

Calle-Alonso, F., Cuenca-Guevara, A., de la Mata Lara, D.,

anchez-G

omez, J. M., Vega-Rodr

ıguez, M. A., and

anchez, C. J. P. (2017). Neurok: A collaborative

e-learning platform based on pedagogical principles

from neuroscience. In CSEDU (1), pages 550–555,

Porto, Portugal. scitepress.

Ceylan, C. (2022). Application of Natural Language Pro-

cessing to Unstructured Data: A Case Study of Cli-

mate Change. PhD thesis, Massachusetts Institute of

Technology.

Chatti, M. A., Lukarov, V., Th

us, H., Muslim, A., Yousef,

A. M. F., Wahid, U., Greven, C., Chakrabarti, A., and

Schroeder, U. (2014). Learning analytics: Challenges

and future research directions. eleed, 10(1).

Chuttur, M. (2009). Overview of the technology acceptance

model: Origins, developments and future directions.

elibrary, 6:24.

Clavi

e, B. and Gal, K. (2019). Edubert: Pretrained deep

language models for learning analytics. arXiv, n/a:4.

Collins, M. (2013). The naive bayes model, maximum-

likelihood estimation, and the em algorithm. Lecture

Notes, n/a:21.

Davis, F. D. (1985). A technology acceptance model for

empirically testing new end-user information systems:

Theory and results. PhD thesis, Massachusetts Insti-

tute of Technology.

Drachsler, H. and Goldhammer, F. (2020). Learning ana-

lytics and eassessment—towards computational psy-

chometrics by combining psychometrics with learn-

ing analytics. In Burgos, D., editor, Radical Solutions

and Learning Analytics: Personalised Learning and

Teaching Through Big Data, pages 67–80. Springer

Singapore, Singapore.

Drew, M. R., Falcone, B., and Baccus, W. L. (2018). What

does the system usability scale (sus) measure? In

Marcus, A. and Wang, W., editors, Design, User Ex-

perience, and Usability: Theory and Practice, pages

356–366, Cham. Springer International Publishing.

Ferguson, R. and Clow, D. (2017). Where is the evidence?

a call to action for learning analytics. In Proceedings

of the Seventh International Learning Analytics and

Knowledge Conference, LAK ’17, page 56–65, New

York, NY, USA. Association for Computing Machin-

ery.

Fiorini, N., Canese, K., Starchenko, G., Kireev, E., Kim, W.,

Miller, V., Osipov, M., Kholodov, M., Ismagilov, R.,

Mohan, S., et al. (2018). Best match: new relevance

search for pubmed. PLoS biology, 16(8):e2005343.

Fonferko-Shadrach, B., Lacey, A. S., Roberts, A., Akbari,

A., Thompson, S., Ford, D. V., Lyons, R. A., Rees,

M. I., and Pickrell, W. O. (2019). Using natural lan-

guage processing to extract structured epilepsy data

from unstructured clinic letters: development and val-

idation of the exect (extraction of epilepsy clinical

text) system. BMJ Open, 9(4):7.

ultekin, G. and Bayat, O. (2022). A na

ıve bayes prediction

model on location-based recommendation by integrat-

ing multi-dimensional contextual information. Multi-

media Tools and Applications, 81(5):6957–6978.

unther, S. A. (2021). The impact of social norms on

students’ online learning behavior: Insights from two

randomized controlled trials. In LAK21: 11th Interna-

tional Learning Analytics and Knowledge Conference,

LAK21, page 12–21, New York, NY, USA. Associa-

tion for Computing Machinery.

Heldens, S., Sclocco, A., Dreuning, H., van Werkhoven,

B., Hijma, P., Maassen, J., and van Nieuwpoort, R. V.

(2022). litstudy: A python package for literature re-

views. SoftwareX, 20:101207.

Hindriks, S. (2020). A study on the user experience of the

asreview software tool for experienced and unexperi-

enced users. M.S. thesis, Utrecht University.

KDIR 2023 - 15th International Conference on Knowledge Discovery and Information Retrieval

238

Karademir, O., Ahmad, A., Schneider, J., Di Mitri, D., Jivet,

I., and Drachsler, H. (2022). Designing the learning

analytics cockpit-a dashboard that enables interven-

tions. In Methodologies and Intelligent Systems for

Technology Enhanced Learning, 11th International

Conference 11, pages 95–104. Springer International

Publishing.

Kia, F. S., Teasley, S. D., Hatala, M., Karabenick, S. A.,

and Kay, M. (2020). How patterns of students dash-

board use are related to their achievement and self-

regulatory engagement. In Proceedings of the Tenth

International Conference on Learning Analytics and

Knowledge, LAK ’20, page 340–349, New York, NY,

USA. Association for Computing Machinery.

Kubsch, M., Czinczel, B., Lossjew, J., Wyrwich, T., Bed-

norz, D., Bernholt, S., Fiedler, D., Strauß, S., Cress,

U., Drachsler, H., Neumann, K., and Rummel, N.

(2022). Toward learning progression analytics —

developing learning environments for the automated

analysis of learning using evidence centered design.

Frontiers in Education, 7:605.

Lee, J., Yoon, W., Kim, S., Kim, D., Kim, S., So, C. H.,

and Kang, J. (2020). Biobert: a pre-trained biomedi-

cal language representation model for biomedical text

mining. Bioinformatics, 36(4):1234–1240.

Lim, L.-A., Gasevic, D., Matcha, W., Ahmad Uzir, N.,

and Dawson, S. (2021). Impact of learning analyt-

ics feedback on self-regulated learning: Triangulat-

ing behavioural logs with students’ recall. In LAK21:

11th International Learning Analytics and Knowledge

Conference, LAK21, page 364–374, New York, NY,

USA. Association for Computing Machinery.

Macfadyen, L. P., Lockyer, L., and Rienties, B. (2020).

Learning design and learning analytics: Snapshot

2020. Journal of Learning Analytics, 7(3):6–12.

Martin, F., Ndoye, A., and Wilkins, P. (2016). Using learn-

ing analytics to enhance student learning in online

courses based on quality matters standards. Journal

of Educational Technology Systems, 45(2):165–187.

Md Lazim, C. S. L., Ismail, N. D. B., and Tazilah, M. D.

A. K. (2021). Application of technology acceptance

model (tam) towards online learning during covid-19

pandemic: Accounting students perspective. Int. J.

Bus. Econ. Law, 24(1):13–20.

Peres, S. C., Pham, T., and Phillips, R. (2013). Validation

of the system usability scale (sus) sus in the wild. In

Proceedings of the Human Factors and Ergonomics

Society Annual Meeting, volume 57, pages 192–196,

Los Angeles, USA. SAGE Publications Sage CA: Los

Angeles, CA, SAGE journals.

Saint, J., Ga

sevi

c, D., Matcha, W., Uzir, N. A., and Pardo,

A. (2020). Combining analytic methods to unlock se-

quential and temporal patterns of self-regulated learn-

ing. In Proceedings of the Tenth International Con-

ference on Learning Analytics and Knowledge, LAK

’20, page 402–411, New York, NY, USA. Association

for Computing Machinery.

Saqr, M., Jovanovic, J., Viberg, O., and Ga

sevi

c, D. (2022).

Is there order in the mess? a single paper meta-

analysis approach to identiﬁcation of predictors of

success in learning analytics. Studies in Higher Ed-

ucation, 47(12):2370–2391.

Srivastava, N., Nawaz, S., Lodge, J. M., Velloso, E., Er-

fani, S., and Bailey, J. (2020). Exploring the usage of

thermal imaging for understanding video lecture de-

signs and students’ experiences. In Proceedings of the

Tenth International Conference on Learning Analytics

and Knowledge, LAK ’20, page 250–259, New York,

NY, USA. Association for Computing Machinery.

Tawﬁk, N. S. and Spruit, M. R. (2018). The SNPcurator: lit-

erature mining of enriched SNP-disease associations.

Database, 2018. bay020.

Verpoorten, D., Poumay, M., and Leclercq, D. (2007). The

eight learning events model: A pedagogic conceptual

tool supporting diversiﬁcation of learning methods.

Interactive Learning Environments, 15(2):151–160.

Vlachogianni, P. and Tselios, N. (2022). Perceived usability

evaluation of educational technology using the system

usability scale (sus): A systematic review. Journal

of Research on Technology in Education, 54(3):392–

409.

Voytovich, L. and Greenberg, C. (2022). Natural language

processing: Practical applications in medicine and in-

vestigation of contextual autocomplete. In Staart-

jes, V. E., Regli, L., and Serra, C., editors, Machine

Learning in Clinical Neuroscience, pages 207–214.

Springer International Publishing, Cham.

Zhang, H. and Li, D. (2007). Na

ıve bayes text classiﬁer. In

2007 IEEE international conference on granular com-

puting (GRC 2007), pages 708–708, Fremont, CA,

USA. IEEE.

LAxplore: An NLP-Based Tool for Distilling Learning Analytics and Learning Design Instruments out of Scientiﬁc Publications

239
