Supporting the Automated Generation of Acceptance Tests of

Process-Aware Information Systems

Tales M. Paiva

1 a

, Toacy C. Oliveira

1,3 b

, Raquel M. Pillat

2 c

and Paulo S. C. Alencar

Computer and Systems Engineering Program, Universidade Federal do Rio de Janeiro, Rio de Janeiro, Brazil

Software Engineering Program, Universidade Federal do Pampa, Alegrete, Brazil

Cheriton School of Computer Science, University of Waterloo, Waterloo, Canada

Keywords:

Test Automation, RPA, BPMN, Model-Based Testing.

Abstract:

Software quality assurance is a crucial process that ensures software products meet speciﬁed requirements

and quality standards. Achieving an exhaustive test coverage is essential for quality assurance, particularly in

complex and dynamic Process-Aware Information Systems (PAIS) built upon the Business Process Model and

Notation (BPMN). Manual testing in such systems is challenging due to many execution paths, dependencies,

and external interfaces. This paper proposes a model-based testing strategy that uses BPMN models and build

speciﬁcations as input to generate a Robotic Process Automation (RPA) script that automates a comprehensive

User Acceptance Test procedure. Leveraging on Robotic Process Automation (RPA) to automate user interac-

tions allows for reducing the need for testers to manually input PAIS-related information when handling user

forms. We also present a Case Study to demonstrate the feasibility of our approach.

1 INTRODUCTION

Software quality is a systematic process that ensures

software products meet speciﬁed requirements and

quality standards. In a more aspirational deﬁnition,

it is ”an ideal toward which we strive” (Lawrence-

Pﬂeeger and Atlee, 1998). The number and the type

of failures detected are a proxy to the assessment of

software quality, being an internal direct measure of

the testing process and an external indirect measure

of the attribute of software quality itself. Therefore,

having a proper testing strategy, with a high test cov-

erage, can contribute to the quality assurance of the

software developed.

According to (Dumas et al., 2005), a Process-

Aware Information System (PAIS) is ”a software sys-

tem that manages and executes operational processes

involving people, applications, and/or information

sources on the basis of process models”. PAISs are

based on business process models such as the Busi-

ness Process Model and Notation (BPMN) (OMG,

2014). Test coverage in PAIS is challenging due to the

inherent complexity and dynamism of these systems.

https://orcid.org/0000-0003-2036-3442

https://orcid.org/0000-0001-8184-2442

https://orcid.org/0000-0002-5420-6966

A process typically features multiple execution paths,

options, and dependencies among activities, includ-

ing decision points, parallel execution, and synchro-

nization. The sheer volume of potential combinations

makes it challenging for a human to test exhaustively

all scenarios, as well as functional and non-functional

requirements. Furthermore, these systems often in-

terface with external systems and human interactions,

introducing further variability. Maintaining high test

coverage becomes increasingly difﬁcult as the system

evolves, requiring signiﬁcant time and resources to

keep test suites up-to-date and effective.

This paper proposes a model-based testing strat-

egy that uses BPMN models and build speciﬁcations

as input to generate a Robotic Process Automation

(RPA) script that automates a comprehensive User

Acceptance Test procedure. In other words, this work

presents a solution that generates RPA scripts to sup-

port the execution of the Acceptance Tests, covering

all the possible paths within the BPMN of the PAIS

under test. We also present a Case Study to demon-

strate the feasibility of our approach.

Given a PAIS is fundamentally architected upon

process models (Dumas et al., 2005), in this case

BPMN (OMG, 2014), it is possible to employ a

model-based strategy for test case generation (Utting

et al., 2016; de Moura et al., 2017). This systematic

128

Paiva, T., Oliveira, T., Pillat, R. and Alencar, P.

Supporting the Automated Generation of Acceptance Tests of Process-Aware Information Systems.

DOI: 10.5220/0012211400003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 128-139

ISBN: 978-989-758-672-9; ISSN: 2184-3252

technique can ensure comprehensive test coverage,

meticulously accounting for all conceivable paths and

dependencies among the activities within the model.

By doing so, it could effectively mitigate the afore-

mentioned challenge of ensuring exhaustive test cov-

erage in such complex and dynamic environments.

Considering that the BPMN standard is very ex-

plicit about the human interactions within a process,

it is feasible to compile a comprehensive set of hu-

man interactions in the generated test cases. These

interactions can serve as valuable guidance for testers,

allowing for increased test coverage and subsequently

enhancing the efﬁciency and effectiveness of the ac-

ceptance testing process. Moreover, by strategically

implementing Robotic Process Automation (RPA), it

is feasible to automate the execution of these user in-

teractions (Enr

ıquez et al., 2020). This strategic de-

ployment of RPA further ampliﬁes the efﬁciency and

consistency of the overall testing procedure, provid-

ing added beneﬁts to the testing process as a whole.

A model-based approach can automate the genera-

tion of acceptance tests (Ramler and Klammer, 2019),

increasing the test coverage of a PAIS based on the

business process models. The automated generation

of such tests can improve the quality of tests by re-

ducing the possibility of human errors, improving its

reliability and consistency.

Continuous delivery (CD) is an evolving software

engineering paradigm that refers to the iterative prac-

tice of delivering software to end-users in frequent

and regular cycles (Makki et al., 2016). (Humble and

Farley, 2010) states that adopting acceptance criteria-

driven tests in the CD strategy is seen as a progressive

step to further improve software quality. According to

(Gmeiner et al., 2015), numerous companies are em-

bracing automated testing within their pipelines as an

enabler to CD, for it is seen as a strategic capability

that offers a competitive advantage.

Automating software tests provide three key ben-

eﬁts: repeatability, leverage, and accumulation (Few-

ster and Graham, 1999). Automated test generation

and execution can signiﬁcantly reduce the time and

effort required to create test cases manually, freeing

up the tester’s time, allowing them to focus on more

complex and higher-value tasks, while enabling a re-

gression testing strategy.

The remainder of this paper is organized as fol-

lows: Section 2 presents the background of this re-

search. The proposed solution is presented in Sec-

tion 3, and a case study is demonstrated in Section 4

and discussed in Section 5. Related work is shown

in Section 6, while Section 7 concludes the paper and

presents future work.

2 BACKGROUND

The Software Development and Testing are vast do-

mains of software engineering, with several different

frameworks and approaches. Given the focus of the

present work on automated generation and execution

of acceptance tests of BPMN-based PAIS through the

usage of RPA, it is instrumental that these concepts

are well deﬁned within its scope.

The use of MBT-related techniques in a BPMN-

based PAIS allows for the derivation of the User Ac-

ceptance Test (UAT) suite from the process model,

since it encapsulates the expected interactions be-

tween end-users and the system within process. These

generated test cases in the test suite then facilitate

the UAT, allowing users to validate whether the sys-

tem aligns with their expectations and fulﬁlls the

requirements, while also presenting a good oppor-

tunity for the automated testing of the user inter-

faces through the use of Robotic Process Automation

(RPA) (Enr

ıquez et al., 2020).

2.1 Software Development and Testing

Life Cycles

The Software Development Life Cycle (SDLC) and

Software Testing Life Cycle (STLC) are integral pro-

cesses in software development. The SDLC is a

methodological framework employed within the do-

main of software engineering that encompasses the

systematic stages involved in developing software, in-

cluding requirements gathering, design, coding, test-

ing, deployment, and maintenance.

The SDLC framework aims to maximize the qual-

ity of software products, manage project timelines

and costs effectively, and minimize the potential risks

associated with software development. By employing

SDLC, organizations strive to deliver software prod-

ucts that meet speciﬁed requirements, ensure func-

tional precision, and provide value to end-users.

On the other hand, the STLC focuses speciﬁcally

on testing activities within the SDLC, involving plan-

ning, designing, executing, and evaluating tests to ver-

ify software functionality and quality. Both processes

work hand in hand, with STLC ensuring that software

meets requirements through comprehensive testing.

Together, they facilitate structured and efﬁcient soft-

ware development, resulting in high-quality products

that meet stakeholder expectations.

According to (Leung and Wong, 1997), software

testing consists of:

• Unit Test: testing new functionalities for correct-

ness, usually tested against function and code cov-

erage requirements;

Supporting the Automated Generation of Acceptance Tests of Process-Aware Information Systems

129

• Integration Test: designed to test the unit inter-

faces and the interactions among the units;

• System Test: checks for defects in the function-

alities of the system, typically using a black-box

approach;

• Acceptance Test: test the software against the user

requirements, both functional and non-functional,

to demonstrate the software readiness for opera-

tional use.

In the STLC, although testing consists on an im-

portant aspect (Padmini et al., 2016), most of the ex-

isting testing strategies are focused on the developer

rather than the ﬁnal user (Leung and Wong, 1997).

2.1.1 Acceptance Testing

As deﬁned in (IEEE, 2017), Acceptance Testing is

”testing conducted to determine whether a system sat-

isﬁes its acceptance criteria and to enable the cus-

tomer to determine whether to accept the system”.

In that context, Acceptance Tests, also referred

as User Acceptance Tests (UAT) when conducted

with the presence of or even by the customer, assess

whether a feature is working from the customer’s per-

spective and ensuring the customer’s satisfaction with

the ﬁnal product (Melnik et al., 2004), while enhanc-

ing their conﬁdence to accept the system (Padmini

et al., 2016).

One key difference between the test modalities is

that Unit and Integration Tests are modeled and writ-

ten by developers, System Tests are modeled and writ-

ten by developers or testers, while the Acceptance

Tests, specially UATs, are usually modeled by the

customers, and possibly even written by them, with

the aid of a developer or tester (Melnik et al., 2004).

Conventionally, the end-users enumerate a set of ac-

ceptance test cases, covering the ”major functions,

user interface, and capabilities in handling invalid in-

put and exceptions in operation”, with the main ob-

jective of evaluating the system readiness for opera-

tional use (Leung and Wong, 1997).

2.1.2 Model-Based Testing

Model-based testing (MBT) constitutes a specialized

testing approach predicated on the utilization of ex-

plicit behavior models. These models encapsulate the

projected behaviors of the system under test (SUT)

or potentially, its corresponding environment. Test

cases originate from either one of these behavioral

representations or a synthesis of them, and are sub-

sequently deployed for execution on the designated

SUT (Utting et al., 2011).

MBT embodies a testing paradigm in which test

cases are wholly or partially generated from a model.

For the successful deployment of this approach, it

necessitates that the software’s behavioral or struc-

tural characteristics are explicitly delineated by mod-

els crafted with well-deﬁned rules. These models may

take the form of formal models, ﬁnite state machines,

UML diagrams, among others (Utting and Legeard,

2006).

The beneﬁts of MBT, according to (Dias-Neto and

Travassos, 2010):

1. Lower cost and effort for testing plan-

ning/execution and shorter testing schedule;

2. Improvement of the ﬁnal product quality, because

the models are used as an oracle for testing;

3. Testing process can be automated;

4. Ease of communication between the development

and testing teams;

5. Capacity of automatically generating and run-

ning large sets of useful and non-repetitive (non-

redundant) tests;

6. Ease of updating the test cases set after the soft-

ware artifacts used to build the software model

changes;

7. Capacity of evaluating regression testing scenar-

ios.

2.2 Process-Aware Information Systems

Process-Aware Information Systems (PAIS) are soft-

ware systems that automate and support business pro-

cesses, integrating process modeling, execution, mon-

itoring, and analysis (Dumas et al., 2005; Aalst,

2009). PAIS enable organizations to streamline work-

ﬂows, track progress, handle exceptions, and improve

operations. They provide a framework for aligning

information systems with business processes, enhanc-

ing efﬁciency, and facilitating effective management

of complex workﬂows.

Various providers offer PAIS solutions, includ-

ing commercial vendors and open-source platforms

(Telemaco et al., 2022). Among them, Camunda

stands out as an open-source provider with compre-

hensive PAIS capabilities. Camunda offers a ﬂexible

and scalable platform for modeling, executing, and

monitoring complex processes. It is known for its ex-

tensive feature set and robust integration capabilities,

making it a popular choice for organizations seeking

an open-source PAIS solution.

https://camunda.com/platform-7/

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

130

The AKIP Process Automation Platform

an open source project devoted to facilitate Pro-

cess/Workﬂow Automation initiatives based on code

generation techniques, aiming to promote the con-

struction and dissemination of PAISs utilizing estab-

lished technologies such as BPMN, Java, Javascript

and Camunda, enabling the creation of modern web

applications which are named KIPApps (Telemaco

et al., 2022).

2.3 Business Process Model and

Notation

Business Process Model and Notation

(BPMN) is

a standardized graphical notation used for modeling

business processes, developed by the Object Manage-

ment Group (OMG) and ﬁrst introduced in 2004. It

provides a visual representation that enables organi-

zations to document, analyze, and communicate their

business processes effectively (OMG, 2014).

The notation incorporates symbols and elements

to represent various aspects of a process, intending

to ”standardize a business process model and nota-

tion in the face of many different modeling notations

and viewpoints” (OMG, 2014).It has become widely

adopted in the industry due to its clarity, versatility,

and ability to bridge the gap between all stakeholders

involved, providing ”a simple means of communicat-

ing process information to other business users, pro-

cess implementers, customers, and suppliers” (OMG,

2014).

In BPMN-based PAIS, such as KIPApps

(Telemaco et al., 2022), the human points of in-

teraction within a business process play a crucial

role in assessing software quality. These interactions

occur when tasks require human input or decision-

making. BPMN provides speciﬁc elements to model

these interactions. Start events have a form associated

with it, and user tasks represent activities that involve

human participants.

UATs play a signiﬁcant role in BPMN-based PAIS

to ensure the quality and usability of the implemented

processes. In BPMN-based PAIS, UATs focus on val-

idating the process models and their execution within

the system. By aligning UATs with the BPMN di-

agrams, organizations can assess if the implemented

processes adhere to the intended logic and achieve the

desired outcomes. This validation process helps to

identify and address any discrepancies or issues early

on, improving user satisfaction and system reliability.

Moreover, since BPMN serves as the underlying

https://agilekip.github.io/pap-documentation/about

https://www.omg.org/bpmn/

model for these systems, MBT leverages this model to

automate the testing process. This approach enables

comprehensive coverage of user interactions and early

detection of potential issues. By utilizing MBT, orga-

nizations can improve the effectiveness and efﬁciency

of UATs, ensuring robust testing and higher software

quality within BPMN-based PAIS.

BPMN plays a crucial role in PAIS by providing

a standardized language for modeling and executing

business processes. By utilizing BPMN, PAIS can

represent complex process logic, control ﬂow, and

data dependencies in a visual and standardized man-

ner.

ubke and van Lessen, 2017) states that the adop-

tion of BPMN as a universal modeling language facil-

itates effective communication among all project par-

ticipants and encourages the reuse of existing editors

and repositories. Although their work was focused

on service-based processes, the same argument can

be derived for human-oriented processes and its User-

Acceptance Tests.

2.4 Robotic Process Automation

Robotic Process Automation (RPA) refers to the use

of software robots or ”bots” to automate repetitive,

rule-based tasks within business processes. These

bots mimic human interactions with various software

systems and perform tasks such as data entry, form

ﬁlling, and screen navigation. Its roots can be traced

back to screen scraping tools and macros, which were

later reﬁned into more advanced automation capabili-

ties.

RPA ﬁnds utility in UATs by automating repet-

itive and manual testing activities (Enr

ıquez et al.,

2020). Since UATs involve end-users or stakeholders

validating a system’s functionality, user experience,

and compliance with requirements, RPA can stream-

line and accelerate this testing cycle by automating

the execution of test cases, data input, and result ver-

iﬁcation. Bots can interact with the system’s user in-

terface, simulate user actions, and compare expected

outcomes with actual results. This automation re-

duces manual effort, increases test coverage, and en-

hances the efﬁciency of the UAT process. However,

it’s crucial to emphasize that the current solution is

not designed to replace the end user or eliminate the

acceptance testing phase. Instead, its goal is to en-

hance test coverage and facilitate a smoother accep-

tance testing process.

When it comes to open-source RPA solutions, one

notable option is Robot Framework

(RF). RF is a

generic test automation framework that supports not

https://robotframework.org/

Supporting the Automated Generation of Acceptance Tests of Process-Aware Information Systems

131

only RPA but also other types of software testing. It

provides a simple and readable syntax, making it ac-

cessible for both technical and non-technical users.

RF allows the creation of test cases using keywords,

which can be extended through libraries or custom

implementations. Its open-source nature fosters a

collaborative community and provides ﬂexibility for

customization and integration with various tools and

technologies.

3 SOLUTION OVERVIEW

Given the goal of improving the software quality as-

surance process, and that the system under test (SUT)

is a BPMN-based PAIS, which has clear deﬁnitions

about the human interactions points throughout a pro-

cess (Telemaco et al., 2022; OMG, 2014), it would be

beneﬁcial to use an MBT approach for generating the

UAT test cases.

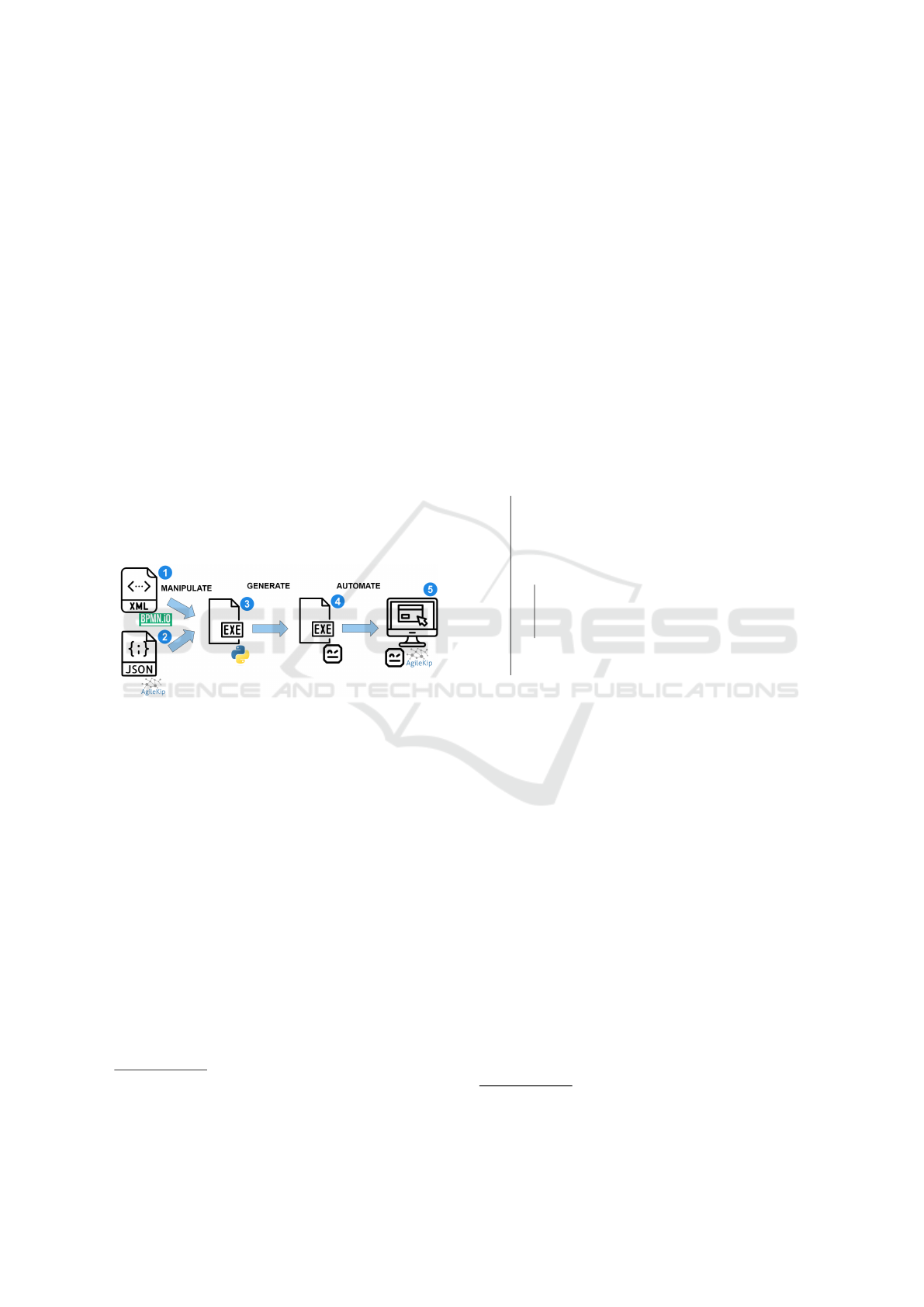

A scheme of the proposed solution can be seen in

Figure 1, and has the following procedure:

Figure 1: Scheme of the solution.

1. From the chosen process’ BPMN, i.e. its XML,

extract all the points within the process in which

there are human interaction according to the

AKIP’s deﬁnitions (Telemaco et al., 2022), which

are:

• the Start Event, which has a form related to it;

• the User Tasks present in the process deﬁnition,

each of which is associated with a correspond-

ing form;

2. From the AKIP entity JSONs

that scaffold the

process forms and complex entities utilizing the

JHipster Domain Language (JDL)

, gather the

speciﬁcation of the ﬁelds and data of each human

interaction point:

• the JSON related to the form present in the Start

Event;

https://agilekip.github.io/pap-

documentation/tutorials/getting-started

https://www.jhipster.tech/jdl/entities-ﬁelds

• the JSONs for the forms of each User Task

present in the BPMN;

3. Manipulate the aforementioned ﬁles using a

Python script;

4. Generate the RPA scripts of the Acceptance Tests

as seen in Algorithm 1;

5. Execute the automated Acceptance Tests of the

said process deﬁned in the BPMN using the RPA

tool and generate a minimalist report of the exe-

cution;

Data: deﬁne the amount n of tests to be run.

Result: a report of all n executed tests with

their process patterns identiﬁed.

Open the browser;

Go to the platform URL;

for i = 0; i < n; i = i + 1 do

Log the start of the execution of one test;

Generate mock data;

Execute the Start Form;

while there is a User Task available

within the current process execution do

Generate mock data;

Execute the User Task;

Log the User Task execution;

end

Log the end of the execution of one test;

end

Generate the tests execution log ﬁle;

Algorithm 1: Automated testing algorithm.

3.1 Implementation

The described solution implements a random execu-

tion of a given amount n of process instances, deﬁned

by the tester, and generates a minimal report of the

process paths taken in the test cases executed, along-

side with RF’s standard thorough report. Each exe-

cution generate its own set of mock data utilizing the

Faker library

. The UI automation is implemented us-

ing the RPA.Browser.Selenium library

A brief overview of the relationship between the

ﬁelds declared in the AKIP entity JSONs from Step

2, and the mock data to be generated in Step 4 can be

seen in Table 1.

The steps of the algorithm generated by the

Python script can be seen in Algorithm 1. Each iden-

tiﬁed point of human interaction (Start Form and User

https://pypi.org/project/robotframework-faker/

https://pypi.org/project/rpaframework/

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

132

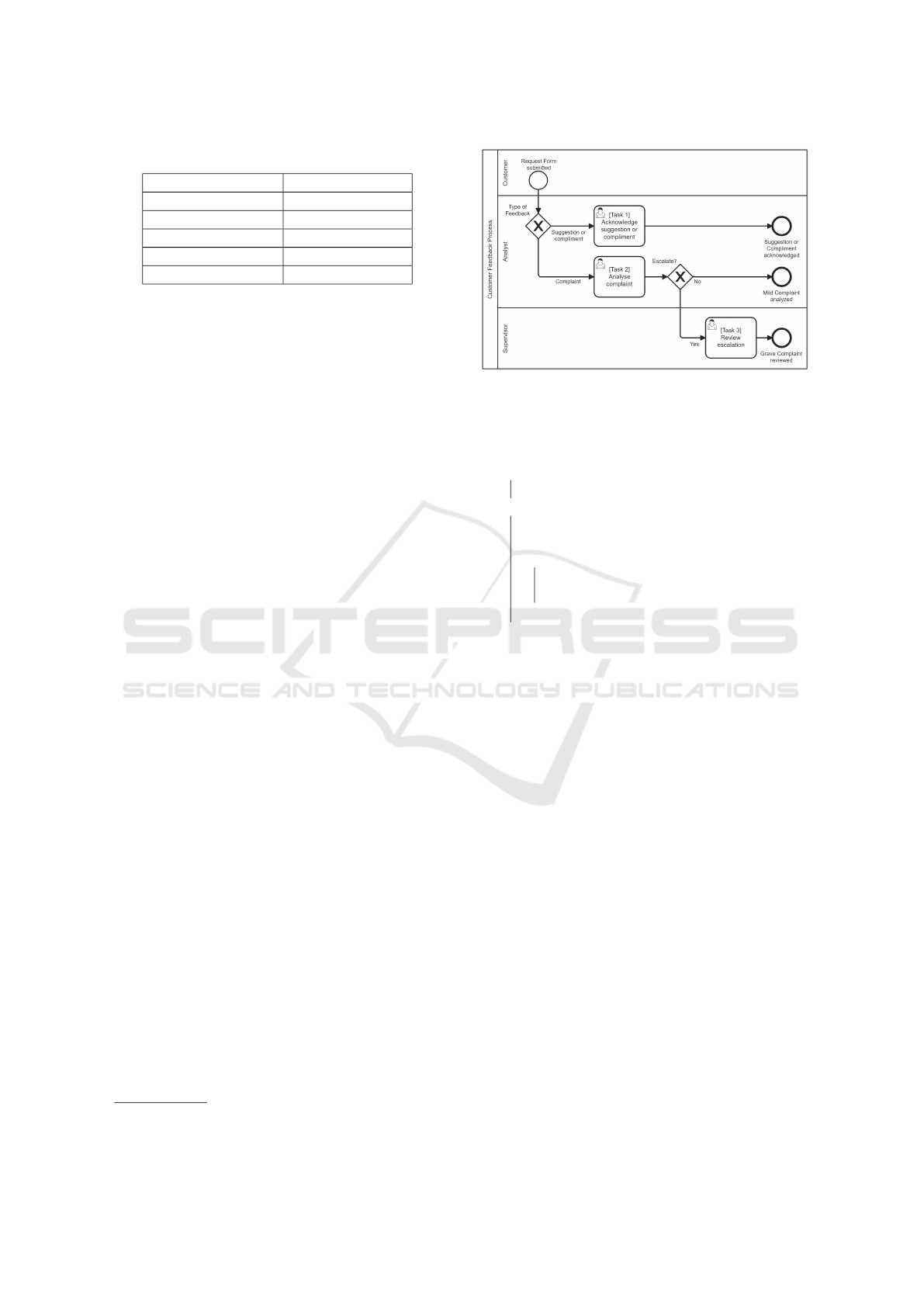

Table 1: Examples of data types relation.

JDL type Faker type

String Word or Sentence

Integer Random Int

LocalDate Date

Boolean Boolean

Many-to-one String Word or Sentence

Tasks) has it’s own interface automation implementa-

tion from the information present in the AKIP entity

JSON. The execution time of the Python script that

generates the RPA scripts is negligible.

Given the random nature of the data generated by

the Faker library, the execution of each process in-

stance is ”blind”, meaning that there’s no previous

knowledge or planning about the path that a speciﬁc

process instance will have, and the User Tasks are ex-

ecuted in a ”ﬁrst come, ﬁrst served” basis.

After executing n process instances, logs are pro-

vided and the tester can evaluate the executions and

make decisions regarding the results.

4 CASE STUDY

An example is given utilizing a simple Customer

Feedback Service process in a generated KIPApp

(Telemaco et al., 2022). This PAIS is a scaled down

version, for didactic purposes, of a realistic model

used in the industry. The procedures can all be ex-

ecuted by the same developer, or they can be split

throughout the team, given the following roles, for ex-

ample:

• Process Analyst: model the BPMN, as in item 1

from Figure 1;

• Developer: create the AKIP’s entity JSONs, as in

item 2 from Figure 1, and scaffold the KIPApp

;

• Tester: gather the aforementioned artifacts, feed

the Python script, generate the RPA scripts, exe-

cute the RPA and evaluate the results of the exe-

cution, as in items 3 to 5 from Figure 1.

The Customer Feedback Service is a business pro-

cess in which a customer can submit a Request Form

with a Complaint, a Suggestion or a Compliment.

The process was modeled using the BPMN standard

as seen in Figure 2, and is explained in Algorithm 2.

The web application (KIPApp) was scaffolded fol-

lowing the instructions present in (Telemaco et al.,

2022), and an example of the content of a AKIP entity

JSON, in this case the form associated with the Start

Event, can be seen in Figure 3. The resulting user

https://agilekip.github.io/pap-documentation/about

Figure 2: A BPMN of a simple business process model rep-

resenting a Customer Feedback process.

Data: Customer feedback

Customer submits the feedback;

if feedback is Compliment or Suggestion then

Analyst reviews positive feedback;

else

Analyst reviews negative feedback and

determines its gravity;

if gravity is high then

Escalates process to supervisor;

Supervisor reviews feedback;

end

End of process;

Algorithm 2: A simple Customer Feedback service.

interface scaffolded by the KIPApp for the Request

Form can be seen in Figure 7.

The entity JSONs and the BPMN are fed into

the Python script as in item 3 of Figure 1, and the

Robot Framework’s .robot ﬁles are generated by

the Python script indicated in item 4. The Python

script, as well as examples of the resulting ﬁles

can be accessed in the following GitHub repository:

https://github.com/talesmp/aat4pais.

The analogous version of the Algorithm 1, gener-

ated by the Python script utilizing the Robot Frame-

work syntax can be seen in Figure 4.

From the AKIP entity JSONs, the fieldName is

used to derive the XPath Locators for the RF imple-

mentation of the UI automation, and the fieldType

is used to generate the proper mocked data through

the Faker library, as described in Table 1.

An example regarding the ”Generate mock

data” step described in Algorithm 1 is given. The

Python script manipulates the BPMN and the AKIP

entity JSONs and generates a test ﬁle with the

.robot extension, following RF’s syntax. A code

snippet related to this speciﬁc operation within the

Supporting the Automated Generation of Acceptance Tests of Process-Aware Information Systems

133

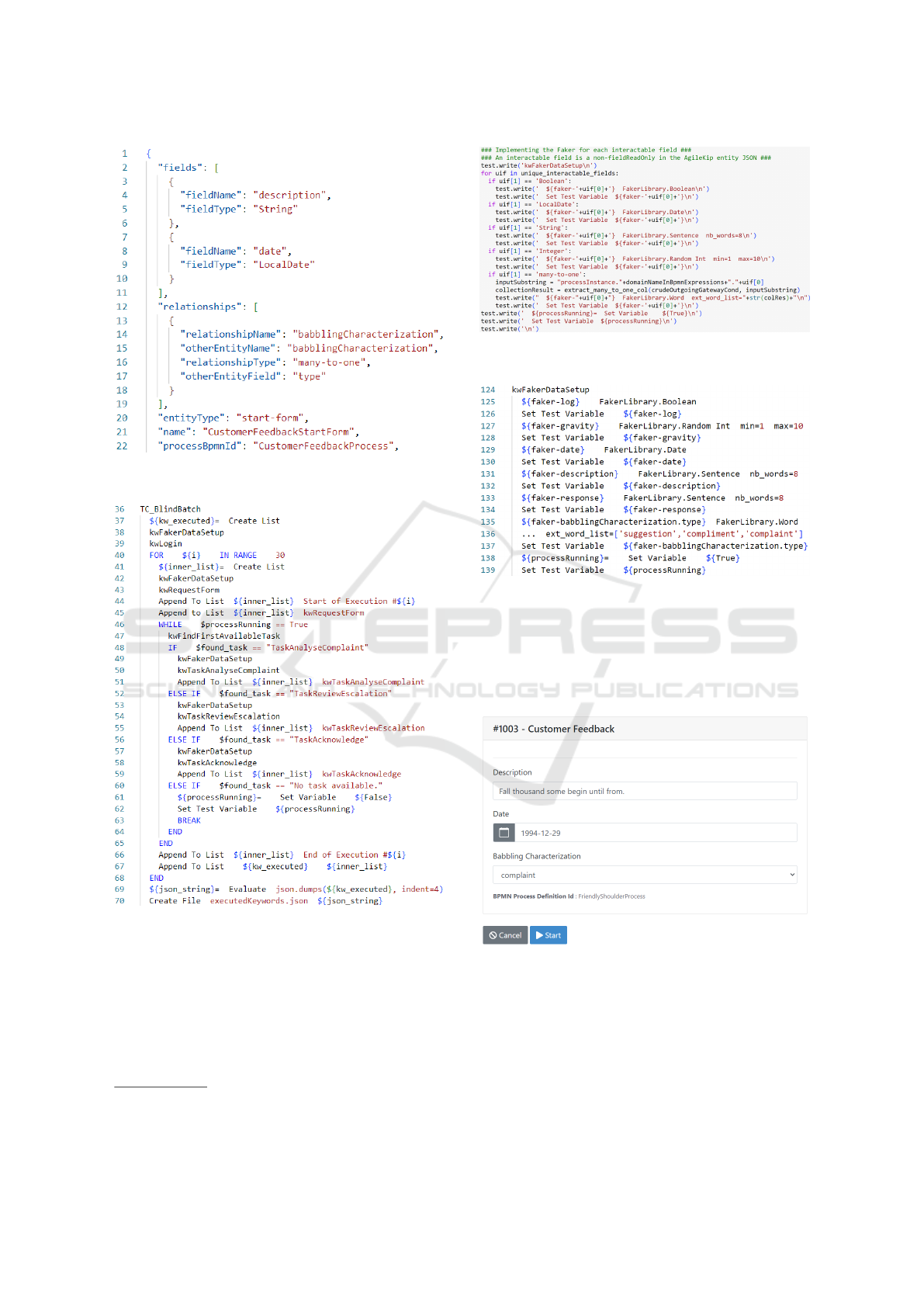

Figure 3: A snippet from the AKIP Start Event form entity

JSON.

Figure 4: The RF syntax version of the Algorithm 1.

Python script can be seen in Figure 5, and the result-

ing generated RPA script can be seen in Figure 6.

For ease of use, the robot can be executed utiliz-

ing the Visual Studio Code extension

provided by

Robocorp. This makes the logging and debugging

clearer, as well as the management of the necessary

libraries easier.

https://robocorp.com/docs/developer-tools/visual-

studio-code

Figure 5: A snippet from the Python script that implements

the mock data keyword in RF syntax.

Figure 6: A snippet from the Robot Framework RPA script

regarding the generation of the mock data.

The robot, mimicking a user and following the

steps described in the Algorithm 1, opens a Request

Form as a customer, ﬁlls a set of ﬁelds and submits

the process, as seen in Figure 7.

Figure 7: The form generated for the Request Form.

Given the data about the Type of Request selected

by the customer, i.e. a Complaint, a Suggestion

or a Compliment, the process is directed to an ana-

lyst to either acknowledge the suggestion or compli-

ment [Task 1], or to analyse the complaint [Task 2],

which can be seen in Figure 8, while the AKIP entity

JSON that generated the said form can be seen in Fig-

ure 9, with its speciﬁcation regarding the read-only

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

134

ﬁelds, as seen in rows 06, 11 and 28, which reﬂect in

non-editable ﬁelds in the user interface of that speciﬁc

user task form.

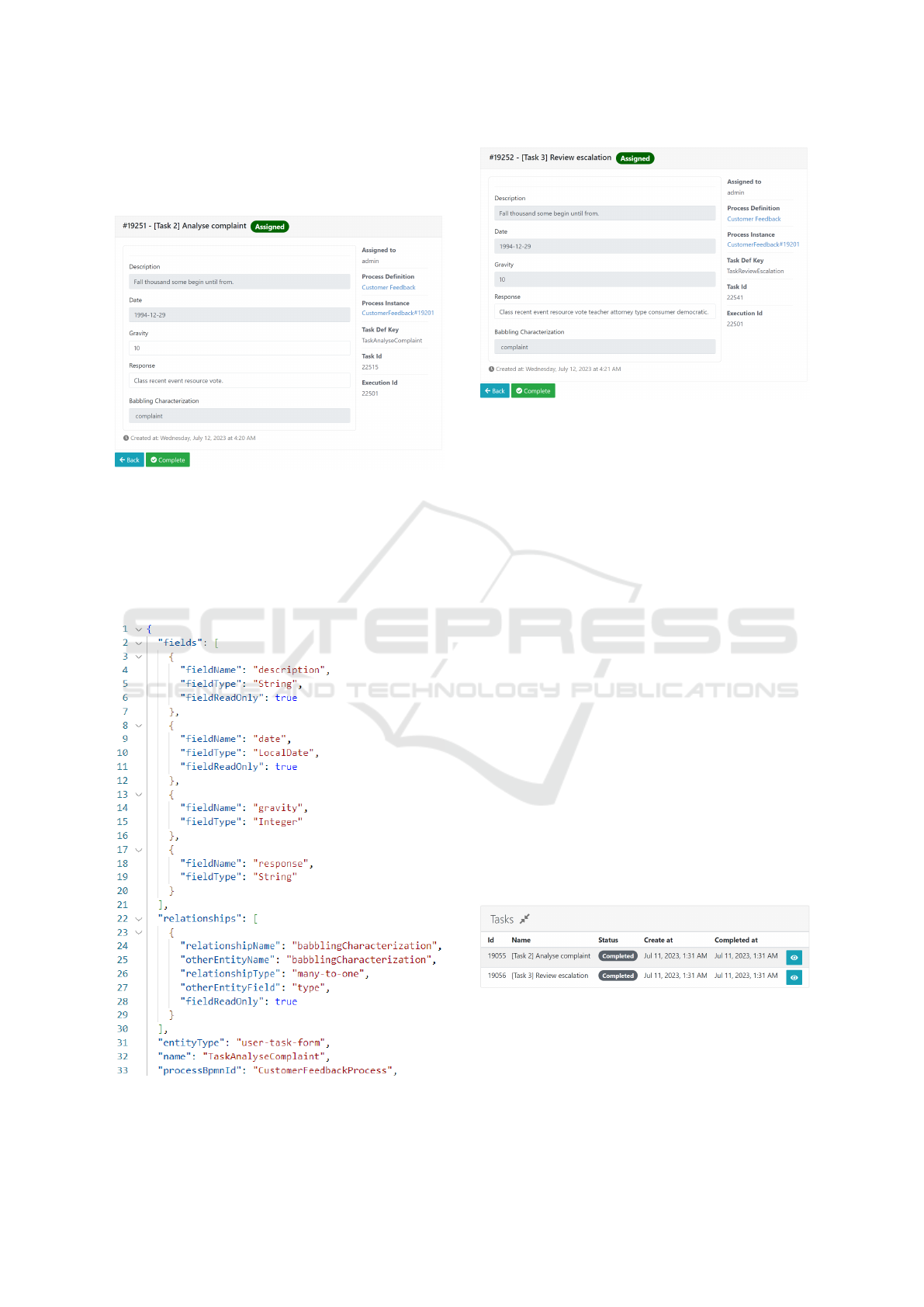

Figure 8: The form generated for the [Task 2] Analyse

complaint.

When it is a Complaint, the analyst determines

its gravity, and it might get escalated to a supervisor

to review it [Task 3], as seen in Figure 10.

An example of the log obtained after the ran-

dom execution of 30 test cases can be seen in Fig-

Figure 9: A snippet from the AKIP User Task entity JSON

of the [Task 2] Analyse complaint.

Figure 10: The form generated for the [Task 3] Review

escalation.

Total process executions: 30

-17 executions: Request Form > Task 1

-10 executions: Request Form > Task 2

-03 executions: Request Form > Task 2 > Task 3

Figure 11: Example of the minimalist execution log identi-

fying the process paths.

ure 11, in which 17 times the process was either a

Compliment or a Suggestion, and executed only the

user task [Task 1] Acknowledge suggestion or

compliment. In other 13 times, the process regarded

a Complaint, and executed the user task [Task 2]

Analyse complaint, being 10 of these considered

mild, while other 3 executions were deemed grave and

required the participation of the supervisor in the user

task [Task 3] Review escalation.

The automation spent a total of 3min35s to exe-

cute all 30 process instances, with an average of less

than 10s per process instance. This is the time it takes

to navigate through the platform to ﬁll the Start Form

and to locate and execute every User Task available

in the said process instance. An example of the time

taken to execute all the tasks and complete a single

process can be seen in Figure 12, while the data input

in the said instance can be seen in Figure 13.

Figure 12: Example of the tasks in an automated execution.

As it can be seen from Figure 13, the standard sen-

tences mocked by the Faker library are random word

tokens, with no speciﬁc meaning.

Supporting the Automated Generation of Acceptance Tests of Process-Aware Information Systems

135

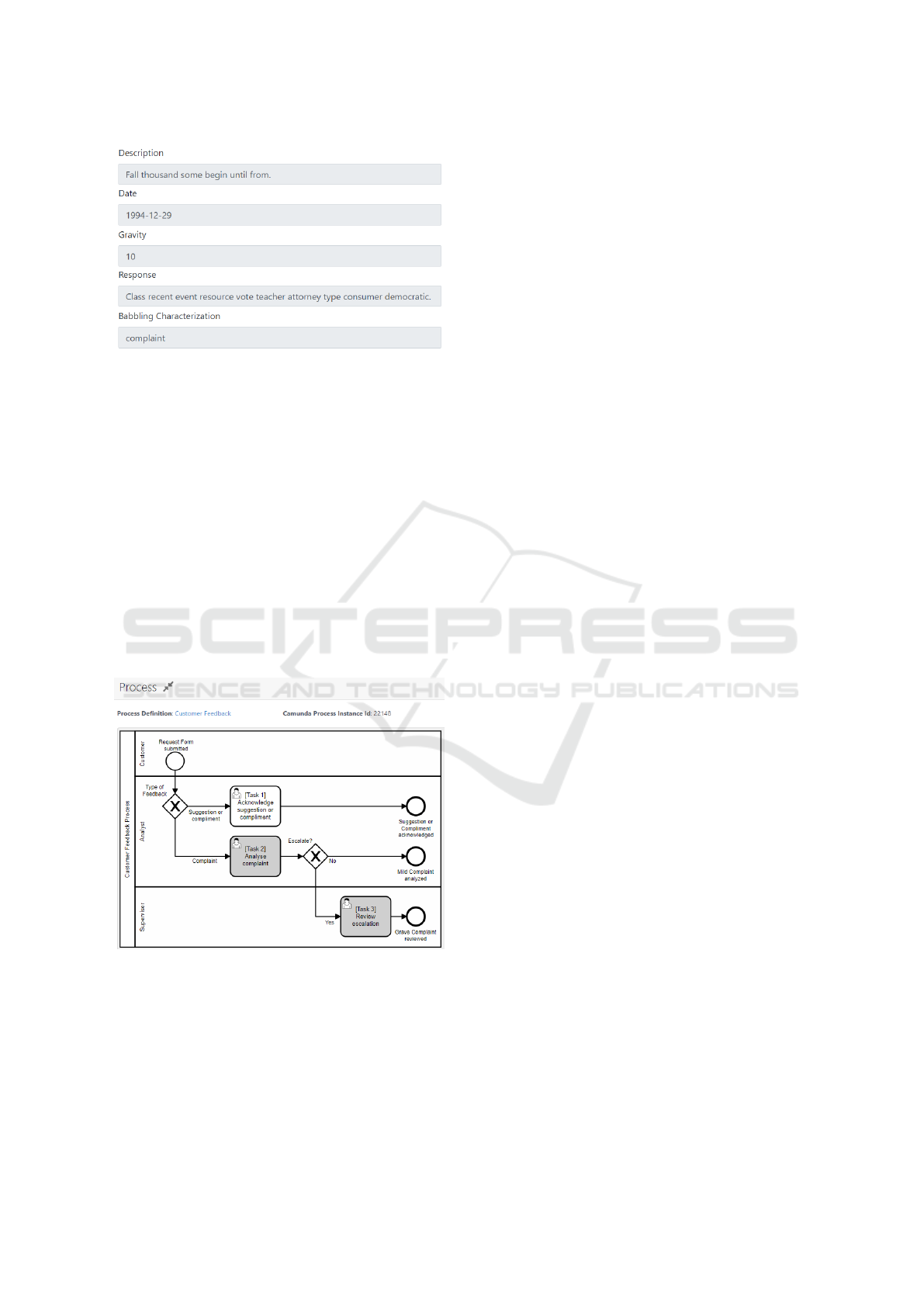

Figure 13: Example of the data in an automated execution.

5 DISCUSSION

Taking the Customer Feedback Process as an exam-

ple, there are 3 different paths that the process can

take after the Request Form is submitted:

1. If it’s a Compliment or a Suggestion, [Task 1] is

executed and the process ends;

2. If it’s a Mild Complaint, only [Task 2] gets exe-

cuted and the process ends;

3. If it’s a Grave Complaint and an escalation to the

supervisor is needed, [Task 2] and [Task 3] get

executed and the process ends, like seen in Figure

14;

Figure 14: Example of the executed path in a process.

If a tester was to execute the test manually

the Customer Feedback Process, a few preparations

would have to be made:

1. Get familiarized with the business process in or-

der to derive the test suite, which the example

above are the 3 test cases;

2. Understand the business rules and where they are

applied in order to guide the executions aiming at

covering all 3 test cases;

3. Execute manually all 3 test cases, which can take

up to a few minutes per process instance, consid-

ering the tester needs to locate the buttons in the

user interface and input the data in each ﬁeld of

each form (Start Form and User Tasks);

4. Annotate each execution, and compare it with the

test suite from Step 1, aiming at guaranteeing test

coverage.

In the proposed solution, Steps 1 and 2 should still

be done by the tester in order to have a better under-

standing of the logs and results from the automated

test suite. Steps 3 and 4 are done by the RPA tool,

and the only work left to the tester is interpreting the

logs and results. As the process deﬁnition increases in

complexity, the time to manually execute Steps 3 and

4 increases, and the automation can save the tester a

few minutes per process instance execution.

It is also relevant to consider that having a test

completing without errors can be deceptive (Haugset

and Hanssen, 2008), for there could have behaviors

implemented afterwards through a customized busi-

ness rule which wasn’t signaled in the original arti-

facts, i.e. the BPMN and the entity JSONs. Therefore,

if a customization is made in a given user interface,

the tester should also implement that expected behav-

ior in the automation of this interface in the Robot

Framework script.

Although identifying defect is not the main focus

of Acceptance Tests (Padmini et al., 2016), one of

the possibles uses of Acceptance Tests is as regres-

sion tests (Melnik et al., 2004), since the passing of a

suite of acceptance tests gives an objective answer re-

garding the fulﬁllment of the associated functional re-

quirements, ensuring that a previously working func-

tionality continues to behave as expected.

In this sense, having an automated suite of Ac-

ceptance Tests can introduce the routine of executing

regression testing at each new version of the system

or of a given process.

It is important to mention that this is a work-in-

progress with a few case studies conducted, but its by

no means a complete assessment, and therefore, it is

not representative of realistic processes executed on a

PAIS in a production environment.

6 RELATED WORK

The automated User-Acceptance Testing of BPMN-

based PAIS encompasses important crucial concepts:

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

136

Model-Based Testing (MBT), Acceptance Testing,

and Test Automation.

MBT plays a pivotal role in this strategy, as it en-

ables the automatic derivation of test cases from an

explicit abstract model of the system under test, in this

case, the BPMN. By interpreting the behavior of the

model as the intended behavior of the system, MBT

ensures comprehensive test coverage and aids in re-

quirements understanding, speciﬁcation documenta-

tion, and test case generation.

Acceptance Testing is a vital component of UAT

for BPMN-based PAIS. It focuses on validating that

the system meets the speciﬁed requirements and sat-

isﬁes the expectations of end-users or stakeholders.

Through acceptance testing, organizations can ensure

that the implemented system aligns with the desired

functionality, user experience, and overall business

objectives. It provides an opportunity for stakehold-

ers to provide feedback, identify issues, and ensure

the system meets their acceptance criteria.

Test Automation is a key enabler for efﬁciency

and reliability in UAT. By automating the execution of

test cases, data input, and result veriﬁcation, organiza-

tions can streamline the testing process. Test automa-

tion reduces manual effort, allows for test repeatabil-

ity, and facilitates faster feedback cycles. Leveraging

test automation in BPMN-based PAIS ensures consis-

tent and repeatable testing outcomes, enhancing efﬁ-

ciency and reliability.

In summary, a comprehensive strategy for the au-

tomated UAT of BPMN-based PAIS involves leverag-

ing Model-Based Testing for test case derivation, con-

ducting Acceptance Testing to ensure system compli-

ance with requirements, and embracing Test Automa-

tion to streamline the testing process. By incorpo-

rating these concepts, organizations can enhance the

quality, efﬁciency, and reliability of UAT in BPMN-

based PAIS.

6.1 Model-Based Testing

Two systematic reviews of the literature regarding

Model-based Testing were conducted independently

around the same period by (Dias-Neto and Travassos,

2010) and (Labiche and Shaﬁque, 2010). (Dias-Neto

and Travassos, 2010)’s work identiﬁed 219 distinct

approaches to MBT. The classiﬁcation of these ap-

proaches was based on 29 different attributes, includ-

ing factors such as the utilization of UML models, the

objective of functional or non-functional testing, the

testing level (system/integration/unit/regression test-

ing), the degree of automation, and various other

attributes related to the model, test generation pro-

cess, and software development environment in which

MBT was applied. Although there was no reference

to BPMN in this review, a set of 12 risk factors that

may inﬂuence on the MBT strategy use in software

projects is presented, and it could be applied to a

BPMN-oriented MBT strategy.

(Labiche and Shaﬁque, 2010) also failed to ac-

knowledge BPMN as a model to be utilized in MBT

approaches. This might be partially explained by the

fact that BPMN gained traction from 2011 onwards,

with the release of the BPMN 2.0 standard (OMG,

2014), and these reviews were conducted before it.

In (Utting et al., 2016)’s overview of the recent

advances in the ﬁeld of MBT, it is noted that BPMN

started to emerge for modeling business applications,

and it could be further used for describing the test

cases.

(Makki et al., 2016) presents an automated re-

gression testing framework tailored to business pro-

cess models conforming to the BPMN 2.0 standard.

The framework captures execution snapshots of these

models in the production environment to achieve two

main objectives. First, it automatically generates re-

gression test cases. Second, it enables controlled

and automated isolation of business process execution

from external dependencies. By leveraging these ca-

pabilities, the framework offers an efﬁcient solution

for conducting regression testing on BPMN-based

PAIS, in their case, jBPM, thereby enhancing the re-

liability and maintainability of the tested systems.

However, it is worth noting that the strategies

proposed by (Makki et al., 2016) and (L

ubke and

van Lessen, 2017) do not speciﬁcally address UAT

in the context of BPMN-based PAIS. (Makki et al.,

2016)’s approach primarily focuses on regression

testing using mocking with jUnit, while (L

ubke and

van Lessen, 2017)’s work centers around service-

based processes. Consequently, there appears to be

a research gap in the domain of UAT speciﬁcally tai-

lored to BPMN-based PAIS. Further investigation and

research are necessary to address this gap and develop

effective UAT methodologies for BPMN-based PAIS.

6.2 Acceptance Testing

Two literature reviews regarding Acceptance Testing

were found. The ﬁrst is from 2008 (Haugset and

Hanssen, 2008), and it was very speciﬁc, focusing

on the automation of Acceptance Testing. Although

focused on test automation, RPA wasn’t mentioned,

most probably given the limited availability of the

technology at the time.

A total of 26 relevant papers were identiﬁed by

(Weiss et al., 2016) in a more recent paper, utilizing

the most relevant indexes. An important ﬁnding of

Supporting the Automated Generation of Acceptance Tests of Process-Aware Information Systems

137

this literature review is the prevalence of inconsistent

and incomplete acceptance tests, which are, nonethe-

less, still regarded as advantageous. Consequently,

there is a need to address and compare the outcomes

of Acceptance Test-Driven Development (ATDD) re-

search with those of traditional manual tests.

As another ﬁnding worthy of mention, according

to (Weiss et al., 2016), the open source standalone

wiki and integrated acceptance testing framework Fit-

Nesse, based on the Framework for Integrated Testing

(Fit), is the most prominent tool in the research pa-

pers. Moreover, no empirical papers were reported to

use Robot Framework for Acceptance Testing.

6.3 Test Automation

The terms ”automated software testing” and ”soft-

ware testing automation” are often used interchange-

ably, but there are subtle differences between them.

”Automated software testing” refers speciﬁcally

to the use of automation tools and scripts to perform

various types of testing, with the goal of reducing the

time and effort required to execute tasks considered

repetitive and predictable present in testing, aiming at

improving the quality of software systems. It is the

act of conducting speciﬁc sets of tests via automation

(e.g. a set of regression tests) as opposed to conduct-

ing them manually. However, in this case, the Test

Planning is still usually manually executed (Fewster

and Graham, 1999).

”Software testing automation” generally refers not

only to the use of tools and scripts to automate the ex-

ecution of test cases, but it also includes the manage-

ment of test data and test environments, with the goal

of improving the efﬁciency and effectiveness of soft-

ware testing, reducing the time and effort required,

while improving the accuracy and consistency of the

results (Fewster and Graham, 1999).

In other words, software testing automation is a

broader concept that encompasses all aspects related

to automating the STLC, including test execution, test

management, and test reporting. It refers to automat-

ing the process of tracking and managing the different

tests. It’s not only about the test execution itself. It’s

also about the QA process, for it comprises of various

test strategies.

In (Garousi et al., 2013), we have that test automa-

tion was a popular research activity, being addressed

by 34.2% of the literature covered in that SLR. In

that same article, 62.0% of the papers were related

to automated testing, providing full automation for

the test approaches (tools or scripts) they were pre-

senting, and other 25.3% were semi-automated, hav-

ing both manual and automated aspects. That is to

say that 87.3% of the web application testing solu-

tions listed in it involved some level of automation.

However, according to (Enr

ıquez et al., 2020), auto-

mated user interface testing using RPA is still a topic

scarcely covered in the literature.

The automation of acceptance tests offers signiﬁ-

cant potential for enhancing development efﬁciency.

However, as observed by (Haugset and Hanssen,

2008), it is crucial to acknowledge that there are costs

associated with writing and maintaining such tests.

Therefore, it is essential to conduct a thorough eval-

uation of the potential beneﬁts in comparison to the

associated costs prior to implementation.

7 CONCLUSION AND FUTURE

WORK

In conclusion, the proposed solution for automated

acceptance testing in BPMN-based PAIS offers a

promising approach to enhance software quality as-

surance. By leveraging MBT and RPA, comprehen-

sive test coverage can be achieved, guided by the hu-

man interactions within the BPMN models. The au-

tomation of test case implementation and execution

streamlines the testing process, reducing manual ef-

fort and improving efﬁciency.

Looking ahead, several future developments have

been identiﬁed to further enhance the solution. First,

automating the implementation of test cases for all

previously known paths in a process would assist the

tester on understanding the extent of the test coverage,

increasing productivity and accuracy. Second, au-

tomating the generation and execution of data-related

test cases for each ﬁeld within each form would im-

prove the thoroughness of testing data-related func-

tionalities. Third, evaluate quantitatively the useful-

ness of the tool through a meaningful metric.

To support the testing process, generating rich

documentation and reports would provide valuable

guidance to testers, facilitating their understanding

of the test coverage and results. Such documenta-

tion would serve as a comprehensive resource for ref-

erence and analysis, enabling efﬁcient and effective

testing.

These future developments aim to further auto-

mate and streamline the acceptance testing process,

reducing human effort, enhancing reliability, and pro-

viding comprehensive test coverage. By embrac-

ing these advancements, the proposed solution can

continue to evolve and support the delivery of high-

quality software in BPMN-based PAIS.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

138

REFERENCES

Aalst, W. M. V. D. (2009). Process-aware information sys-

tems: Lessons to be learned from process mining. vol-

ume 5460 LNCS, pages 1–26.

de Moura, J. L., Charao, A. S., Lima, J. C. D., and

de Oliveira Stein, B. (2017). Test case generation

from bpmn models for automated testing of web-

based bpm applications. In 2017 17th International

Conference on Computational Science and Its Appli-

cations (ICCSA), pages 1–7. IEEE.

Dias-Neto, A. C. and Travassos, G. H. (2010). A pic-

ture from the model-based testing area: Concepts,

techniques, and challenges. Advances in Computers,

80:45–120.

Dumas, M., van der Aalst, W. M. P., and ter Hofstede, A.

H. M., editors (2005). Process-Aware Information

Systems: Bridging People and Software Through Pro-

cess Technology. Wiley.

Enr

ıquez, J. G., Jim

enez-Ram

ırez, A., Dom

ınguez-Mayo,

F. J., and Garc

ıa-Garc

ıa, J. A. (2020). Robotic pro-

cess automation: a scientiﬁc and industrial systematic

mapping study. IEEE Access, 8:39113–39129.

Fewster, M. and Graham, D. (1999). Software Test Automa-

tion: Effective use of test execution tools. ACM Press.

Garousi, V., Mesbah, A., Betin-Can, A., and Mirshokraie,

S. (2013). A systematic mapping study of web appli-

cation testing.

Gmeiner, J., Ramler, R., and Haslinger, J. (2015). Auto-

mated testing in the continuous delivery pipeline: A

case study of an online company. In 2015 IEEE Eighth

International Conference on Software Testing, Veriﬁ-

cation and Validation Workshops (ICSTW), pages 1–6.

IEEE.

Haugset, B. and Hanssen, G. K. (2008). Automated ac-

ceptance testing: A literature review and an industrial

case study. pages 27–38.

Humble, J. and Farley, D. (2010). Continuous delivery: re-

liable software releases through build, test, and de-

ployment automation. Pearson Education.

IEEE (2017). Ieee standard for system, software, and hard-

ware veriﬁcation and validation. IEEE Std 1012-2016

(Revision of IEEE Std 1012-2012/ Incorporates IEEE

Std 1012-2016/Cor1-2017), pages 1–260.

Labiche, Y. and Shaﬁque, M. (2010). A systematic re-

view of model based testing tool support evaluation

of category partition testing view project ﬁnite state

machine testing view project a systematic review of

model based testing tool support.

Lawrence-Pﬂeeger, S. and Atlee, J. M. (1998). Software

engineering: theory and practice. Pearson Education

India.

Leung, H. K. and Wong, P. W. (1997). A study of user

acceptance tests. Software quality journal, 6(2):137–

149.

ubke, D. and van Lessen, T. (2017). Bpmn-based model-

driven testing of service-based processes. volume 287,

pages 119–133. Springer Verlag.

Makki, M., Landuyt, D. V., and Joosen, W. (2016). Au-

tomated regression testing of bpmn 2.0 processes: A

capture and replay framework for continuous delivery.

ACM SIGPLAN Notices, 52:178–189.

Melnik, G., Read, K., and Maurer, F. (2004). Suitability

of ﬁt user acceptance tests for specifying functional

requirements: Developer perspective. In Conference

on Extreme Programming and Agile Methods, pages

60–72. Springer.

OMG (2014). Business process model and notation (bpmn),

version 2.0. Technical report, Object Management

Group.

Padmini, K. J., Perera, I., and Bandara, H. D. (2016). Ap-

plying agile practices to avoid chaos in user accep-

tance testing: A case study. In 2016 Moratuwa Engi-

neering Research Conference (MERCon), pages 96–

101. IEEE.

Ramler, R. and Klammer, C. (2019). Enhancing acceptance

test-driven development with model-based test gener-

ation. In 2019 IEEE 19th International Conference on

Software Quality, Reliability and Security Companion

(QRS-C), pages 503–504. IEEE.

Telemaco, U., Oliveira, T., Pillat, R., Alencar, P., Cowan,

D., and Melo, G. (2022). Akip process automa-

tion platform: A framework for the development of

process-aware web applications. In Proceedings of

the 18th International Conference on Web Informa-

tion Systems and Technologies - WEBIST, pages 64–

74. INSTICC, SciTePress.

Utting, M. and Legeard, B. (2006). Practical Model-Based

Testing: A Tools Approach.

Utting, M., Legeard, B., Bouquet, F., Fourneret, E.,

Peureux, F., and Vernotte, A. (2016). Chapter two -

recent advances in model-based testing. volume 101

of Advances in Computers, pages 53–120. Elsevier.

Utting, M., Pretschner, A., and Legeard, B. (2011). A tax-

onomy of model-based testing approaches. Software

Testing Veriﬁcation and Reliability, 22:297–312.

Weiss, J., Schill, A., Richter, I., and Mandl, P. (2016). Lit-

erature review of empirical research studies within the

domain of acceptance testing. pages 181–188. Insti-

tute of Electrical and Electronics Engineers Inc.

Supporting the Automated Generation of Acceptance Tests of Process-Aware Information Systems

139
