Ontology-Driven Extraction of Contextualized Information from

Research Publications

Vayianos Pertsas

and Panos Constantopoulos

Department of Informatics, Athens University of Economics and Business, Athens, Greece

Keywords: Ontology-Driven Information Extraction, Information Extraction from Text, Transformer-Based Methods,

Relation Extraction, Knowledge Graph Creation.

Abstract: We present transformer-based methods for extracting information about research processes from scholarly

publications. We developed a two-stage pipeline comprising a transformer-based text classifier that predicts

whether a sentence contains the entities sought in tandem with a transformer-based entity recogniser for

finding the boundaries of the entities inside the sentences that contain them. This is applied to extracting two

different types of entities: i) research activities, representing the acts performed by researchers, which are

entities of complex lexico-syntactic structure, and ii) research methods, representing the procedures used in

performing research activities, which are named entities of variable length. We also developed a system that

assigns semantic context to the extracted entities by: i) linking them according to the relation

employs(Activity,Method) using a transformer-based binary classifier for relation extraction; ii) associating

them with information extracted from publication metadata; and iii) encoding the contextualized information

at the output into an RDF Knowledge Graph. The entire workflow is ontology-driven, based on Scholarly

Ontology, specifically designed for documenting scholarly work. Our methods are trained and evaluated on a

dataset comprising 12,626 sentences, manually annotated for the task at hand, and shown to surpass simpler

transformer-based methods and baselines.

1 INTRODUCTION

Access to knowledge contained in research

publications has become an increasingly demanding

task, dramatically exaggerated due to the explosive

growth rates of publications in scholarly domains

(Bornmann et al., 2021). To address this problem,

intelligent systems need to be able to capture the

essence of knowledge represented in textual format,

encode it according to concepts general enough to be

applicable across disciplines and, at the same time,

capable of representing semantic context that

addresses the information needs of researchers,

transforming the ways in which they engage with

literature (Renear & Palmer, 2009). This type of

encoded information can alleviate the task of keeping

up to date in a specific domain, while maintaining a

bird’s-eye-view over a discipline or across

https://orcid.org/0000-0002-1007-4279

https://orcid.org/0000-0001-6149-441X

https://scholar.google.com/

https://www.scopus.com/home.uri

https://www.semanticscholar.org/

disciplines, something particularly useful in

interdisciplinary fields. To this end, generic concepts

for representing knowledge of “who has done what

and how” need to be modelled, appropriately

identified in text and extracted into a knowledge base

capable of answering questions of the form: “find all

papers that address a given problem”; “how was the

problem solved”; “which methods are employed by

whom”; etc. This goes beyond the retrieval features

of search engines widely used by researchers, such as

Google Scholar

, Scopus

or Semantic Scholar

that

mostly leverage bibliographic metadata, while

knowledge expressed in the actual text is exploited

mostly by matching query terms to documents.

Extracting and encoding the knowledge contained

in research articles is a complex task which poses

several challenges. For instance, the procedures

employed by the researchers need to be identified and

108

Pertsas, V. and Constantopoulos, P.

Ontology-Driven Extraction of Contextualized Information from Research Publications.

DOI: 10.5220/0012254100003598

In Proceedings of the 15th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2023) - Volume 2: KEOD, pages 108-118

ISBN: 978-989-758-671-2; ISSN: 2184-3228

extracted (as a kind of entities, here called “research

methods”) but also to be associated properly with

their semantic context, i.e. the actual research

activities in which they were used. To further capture

the context of the research reported in an article (who

is involved, what are their interests, affiliations, etc.),

information must be drawn from the metadata of the

article and associated with information extracted

from the text, through mapping onto an appropriate

schema.

In this paper we present Deep Learning (DL)

methods for entity extraction along with a pipeline

architecture based on a two-stage setup, consisting of

an Entity Recogniser on top of a binary classifier, to

extract two types of entities from the text of research

articles: i) research methods, treated as named entities

of variable length and ii) research activities, which

appear as entities of complex lexico-syntactic

structures. In addition, we present a system, that

contextualizes the extracted entities by (1) extracting

from the text the relation between research methods

and research activities in which these are employed,

using a transformer-based binary classifier we

configured to this end; (2) by associating the

information extracted from text with further

contextual information derived from articles’

metadata; and encodes all the derived knowledge into

an RDF knowledge base adhering to Linked-Data

standards. Finally, we present a manually created

dataset consisting of 12,626 sentences specifically

curated for the training and evaluation of our

Information Extraction (IE) methods.

The rest of this paper proceeds as follows: in

Section 2 we present background and related work; in

Section 3 we describe the methodology and

experimental setup; in Section 4 we report on the

evaluation experiments; in Section 5 we discuss the

evaluation results; and we conclude in Section 6 with

insights for future work.

2 RELATED WORK

Information extraction (i.e. entity and relation

extraction) from text constitutes an active research

field where methodologies from ML and DL are

employed and combined in different architectures and

various domains. Entity extraction is usually treated

as a token classification or sequence labelling task

where a classifier predicts whether each token

belongs to the entity in question or not. Relation

extraction can be treated as text classification where

the textual span representing the concatenation of

specific extracted entities, or the text bounded

somehow by those entities, is classified or not with

the label of a designated relation among the entities.

Through the years, various methods employing

different techniques and designs have been proposed

for dealing with information extraction from text. In

works like (Chalkidis et al., 2017; Do et al., 2013;

Pertsas et al., 2018), in order to extract entities and

relations, the authors use a combination of engineered

features representing textual, syntactic and surface

form attributes along with various types of

embeddings (word, POS, dependency, etc.) for vector

representation, in tandem with ML models like SVM,

Logistic Regression or CRFs that handle the

classification task. In (Chiu & Nichols, 2016; Luan,

Ostendorf, et al., 2018; Ma & Hovy, 2016; Peters et

al., 2017) instead of handcrafted features, neural

architectures like RNNs, LSTMS, BiLSTMS are

employed for vector representation. In (Yu et al.,

2020) the authors use ideas from graph-based

dependency parsing to provide their model a global

view on the input via a biaffine model (Dozat &

Manning, 2017) and they show that it excels,

especially in extracting nested entities, compared to

CRF-based solutions. Similar conclusions are

reached in (Lample et al., 2016), where transition-

based parsers on top of Stack-LSTMs are considered

as alternatives to CRFs for the sequence labeling task,

with equal or higher performance. After the invention

of large language models using transformer

architectures (Vaswani et al., 2017), in more recent

works like (He et al., 2022; Li et al., 2022; Nguyen &

Huynh, 2022; Pandey et al., 2022; Pu et al., 2022)

transformer-based language models like BERT or

RoBERTa, that use self-attention to process input

sequences and generate contextualized

representations of words in a sentence, are employed

either in combination with linear classifiers for text

classification, or with CRFs in various architectures

(like CRFs on top of ensembles of one-hot encoders)

for the entity recognition (token classification) task.

In our methods, we combine transformer models

with sigmoid activation layers on top for text

classification. For entity extraction, inspired by

(Lample et al., 2016), we use a transition-based parser

for the sequence-labeling task, but this time combined

with transformer models for text representation. In

addition, we take one step further and experiment

with a two-stage pipeline consisting of a transformer-

based binary classifier for sentence classification and

a transformer-, transition- based parser for boundary

detection of the entities inside the sentence.

In parallel, systems that transform texts into

Knowledge Graphs can be considered a useful

component of the IE task, especially in the Science IE

Ontology-Driven Extraction of Contextualized Information from Research Publications

109

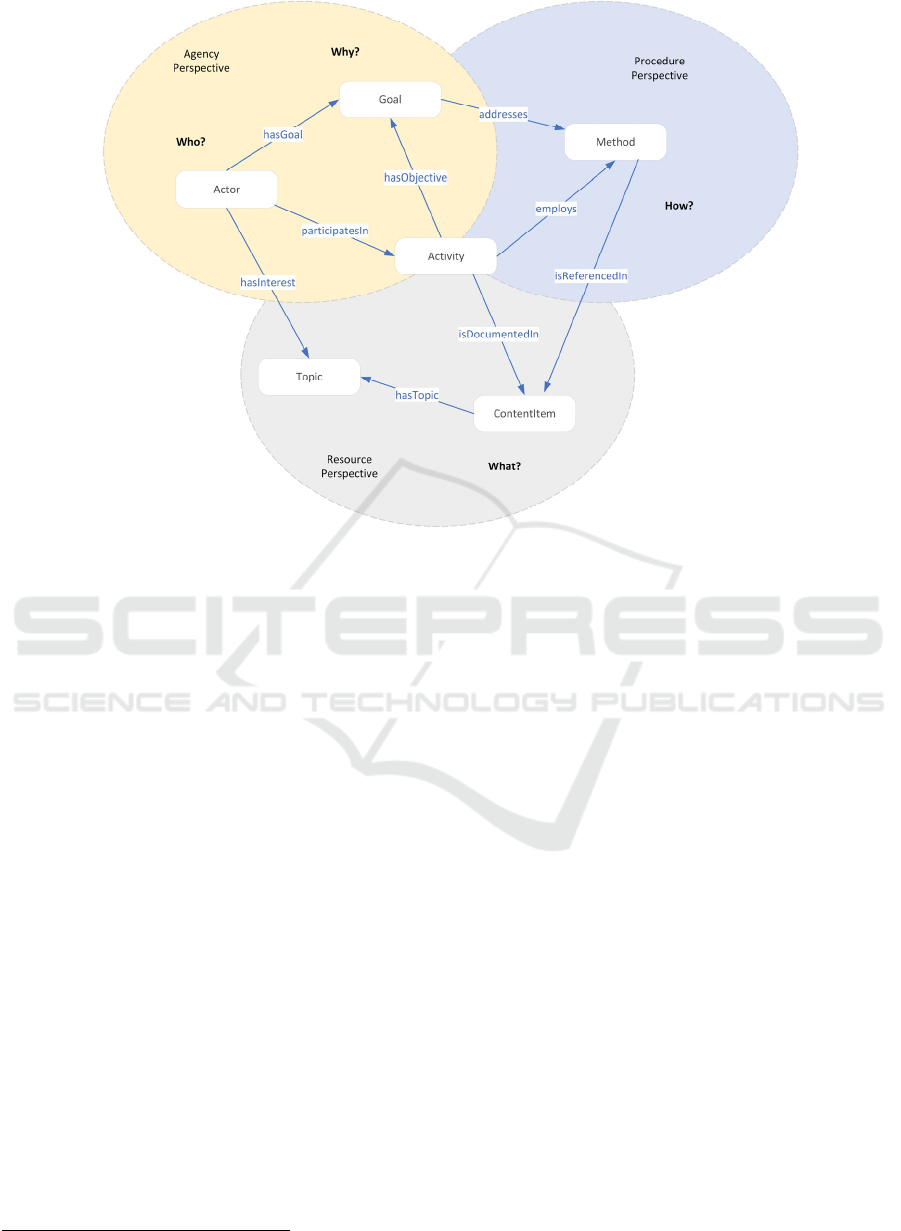

Figure 1: Scholarly Ontology core concepts and relations.

field where they have gained a lot of attention

recently. Many efforts like (Dessì et al., 2020;

D’Souza & Auer, 2022; Michel et al., 2020;

Steenwinckel et al., 2020) use off-the-shelf solutions

(such as DBpedia Spotlight, NCBO BioPortal

Annotator, CrossRef, DyGIE++, etc.) in specialized

domains of scientific literature, like Covid-19,

Named Entity Recognition (NER) or Artificial

Intelligence. Others like (Jaradeh et al., 2019) extract

instances of generic concepts, namely those of

process, method, material and data, using task-

specific neural architectures atop pretrained

SciBERT embeddings with a CRF-based sequence

tag decoder. In (Luan, He, et al., 2018), the authors

create a Knowledge Graph based on a unified

learning model for extracting scientific entities,

relations and coreference resolution. In our work we

adopt a modular architecture allowing for easy future

expansion where each module is independently

trained for the task at hand. In addition, we train all

our ML models on a dataset specifically curated for

the task at hand. Furthermore, we use mechanisms for

capturing semantic context by interrelating our

extracted entities and by associating them with

publication information and other Linked Data

repositories like ORCID

https://orcid.org/

3 SETUP AND METHODOLOGY

3.1 Conceptual Model

The schema for the Knowledge Graph at the output as

well as the definitions for all the concepts and

relations we employ are provided by the Scholarly

Ontology (SO) (Pertsas & Constantopoulos, 2017), a

domain-independent ontology of scholarly/scientific

work. A specialization, in fact precursor, of SO already

applied to the domain of Digital Humanities is the

NeDiMAH Methods Ontology (NeMO)

(Constantopoulos et al., 2016). A brief overview of SO

core concepts is given in the following section. For a

full account see (Pertsas & Constantopoulos, 2017).

The core concepts and relations of SO, which form

the basis for answering the “who”, “what”, and “how”

in the scholarly domain, are displayed in Figure 1. The

ontology is built around the central notion of activity,

viewed from three different perspectives: i) the agency

perspective, concerning actors and intentionality; ii)

the procedure perspective, concerning the intellectual

framework and organization of work; and iii) the

resource perspective, concerning the material and

immaterial objects consumed, used or produced in the

course of activities.

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

110

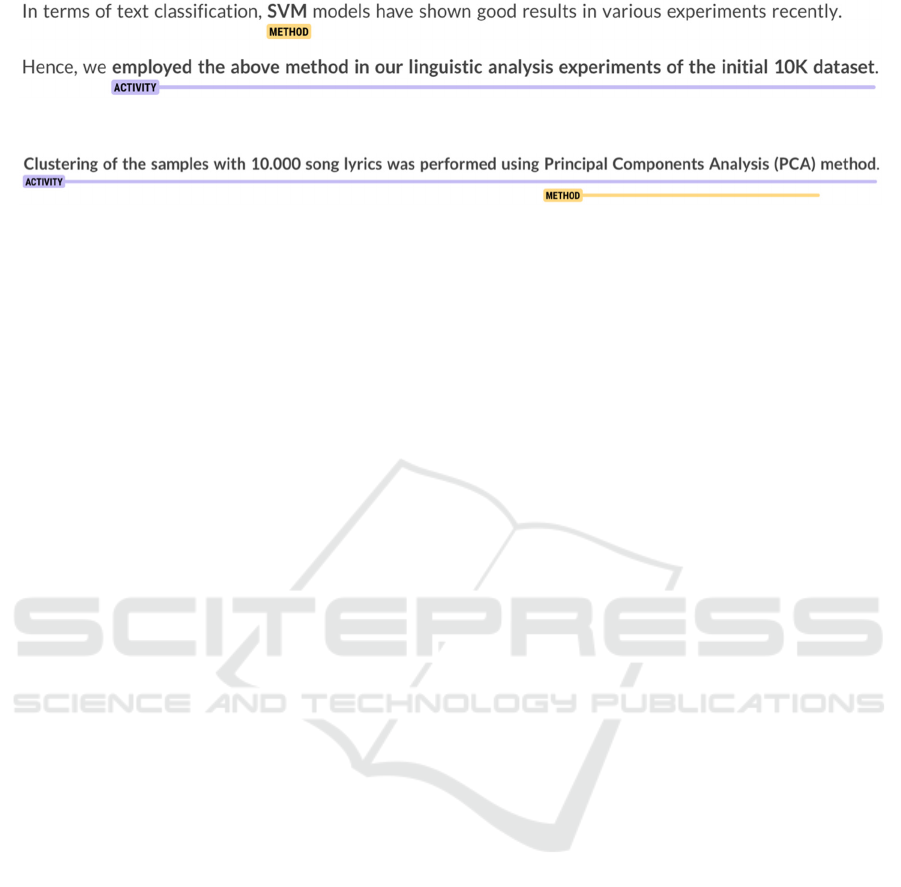

Figure 2: Textual spans of Method employed by Activity in neighbouring sentence and active voice.

Figure 3: Textual spans of a Method, employed by an Activity in passive voice.

In this paper we are dealing with the extraction of

textual representations of the SO concepts Activity

and Method as well as the relation employs(Act,Meth)

among them. Instances of the Activity class represent

research processes or steps thereof such as an

experiment, a medical or social study, an

archaeological excavation, etc. They usually manifest

in text as spans of phrases in passive or active voice

in first person singular or plural, according to the

number of authors who are their actual participants.

In contrast to activities, which are actual events

carried out by actors, instances of the Method class

denote procedures, such as an algorithm, a technique

or a scheme that can be employed during an activity

and describe how this was carried out. They are

usually designated by single or multiple word terms,

e.g. “ANOVA”, “radio-carbon dating”, etc., so their

manifestations in text are mostly identified as named

entities. Examples of textual manifestations of the

classes Activity, Method and of the relation

employs(Act,Meth) are shown in Figures 2 and 3.

SO provides for associating activities with their

respective methods and participants through the

relations employs(Act,Meth), and

hasParticipant(Act,Actor) respectively. Provenance

(e.g. the research article from where they were

extracted) of those entities and relations can be

modeled through the SO relations

isDocumentendIn(Act,ContentItem) or

isReferencedIn(Meth,ContentItem) and the class

ContentItem, a subclass of the SO Information

Resource Class which denotes all information

resources (or parts thereof) utilized for representing

content (e.g. articles, paragraphs, sections, etc.)

independently of their physical carriers.

3.2 The Dataset

To train and evaluate all our ML models we used a

manually annotated dataset consisting of 12,626

sentences. These sentences were derived from over

3,200 research articles (abstracts and main text) from

305 publishers spanning over 160 disciplines and

research subfields so as to cover a broad variety of

writing styles. The sentences were manually

annotated by three human annotators. After

appropriate training in SO, the annotators participated

in 5 consecutive annotation trials covering in total

500 sentences from 300 papers. Each trial was

followed by discussion on the results and evaluation

of the Inter Annotator Agreement (IAA) using the

Cohen’s Kappa metric for IAA on individual couples

and Fleiss’ Kappa for the group IAA. After the trials,

the best IAA scores reached 0.90 for Activity, 0.92 for

Method and 0.91 for employs(Act,Meth) respectively

yielding sufficient agreement levels so that annotators

could subsequently work on separate datasets. The

entire annotator training process lasted approximately

20 hours.

The annotation statistics of the final dataset after

adjudication, are shown in Table 1. At sentence level

the dataset contains 10,178 labels (i.e. each time a

sentence contains an entity, it is assigned a respective

label). At span level (as a span we consider each

individual text-chunk that is annotated as an entity)

there are in total 11,896 entity labels (i.e., labels

assigned to spans to denote them as activities or

methods). Finally at token level (as tokens we

consider individual lexical units like words,

punctuation marks, etc.) the dataset contains 128,914

labels (i.e., annotation labels assigned to tokens to

denote them as part of a textual span representing an

activity and/or a method). In addition, we created

4,754 textual spans bounded by any combination of

the extracted activities and methods, even if they

derive from neighbouring sentences (in order to

capture any possible coreferences), out of which

2,284 were annotated as employs(Act,Meth).

Compared to other published benchmarks in

ScienceIE tasks (Augenstein et al., 2017; Jain et al.,

2020; Luan, He, et al., 2018; QasemiZadeh &

Schumann, 2016) our dataset shows similar or higher

number of annotations, which renders it a good source

for ground truth in such experiments. The dataset was

randomly shuffled and split (hold-out method) into

training, development, and evaluation sets with the

Ontology-Driven Extraction of Contextualized Information from Research Publications

111

Figure 4: KG Creation. System architecture.

latter consisting of 20% of the entire dataset and the

development set consisting of 10% of the rest.

Table 1: Dataset Characteristics.

Annotations Activity Method Total

Sentence-level 5018 5160 10,178

Span-level 5506 6390 11,896

Token-level 110,298 18,616 128,914

employs(A,M) 2,284 spans 4,754 spans

3.3 Entity Extraction

For the entity extraction task, we developed a module

that receives as input a sentence, tokenizes it and

performs token-based classification in order to

identify whether each token belongs to a textual span

representing one of the entities to be extracted.

Because our entities can be overlapping, we treat each

entity recognition task independently. This also

allows for further entity recognizers to be added

easily in the future without having to retrain the

previous ones. In the work reported here, we use two

binary classifiers in order to identify and extract

textual spans for Activities and Methods. Specifically,

for each entity type we use two deep learning entity

recognizers by combining Bert-base-NER and

Roberta-base transformer models from the Hugging-

Face library

for vector representation and a

transition-based parser for the sequence labelling

part. Both transformer models and the transition-

based parser were fine-tuned / trained on the same

https://huggingface.co/models

dataset. These are the models A-BERT-base-NER,

A-RoBERTa-base, for the extraction of Activities

and M-BERT-base-NER and M-RoBERTa-base

for the extraction of Methods.

In addition, we developed a two-stage pipeline

consisting of a text (sentence) classifier with an entity

recognizer on top (models: A-Pipeline and M-

Pipeline for Activities and Methods respectively).

The text classifier -consisting of a Transformer model

(RoBERTa-base) and a sigmoid activation layer-

receives as input a sentence and predicts whether it

contains the requested entity or not. If yes, the

sentence is then passed to the entity recognizer -

consisting of a transformer with a transition-based

parser- that performs token-based classification to

identify the boundaries of the extracted entity. The

entity recogniser (second component) of the pipeline

is trained only in detecting the boundaries of entities

inside sentences that contain them. The intuition

behind the pipeline is that, by splitting the task into

two simpler sub-tasks, each separate classifier will

achieve high enough accuracy for their concatenation

to produce better results despite any error

propagation.

3.4 Relation Extraction

Extracting relations requires examining all plausible

entity pairs. For every pair of extracted

activity/method, the text chunk bounded by these two

entities, [entity1, ..., entity2], is treated as expressing

a candidate relation. In order to restrict the search to

a reasonable set of candidates but also to allow for

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

112

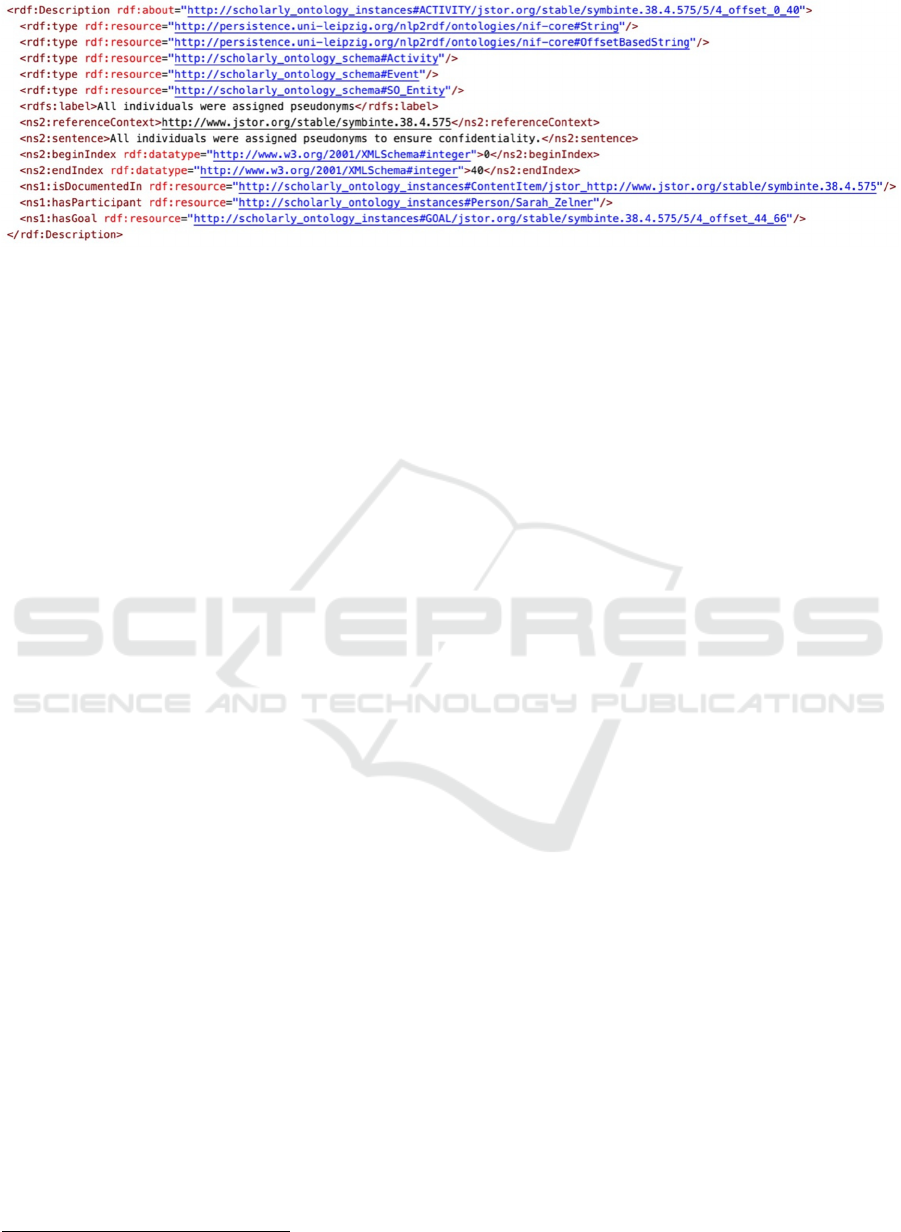

Figure 5: Excerpt from produced RDF Triples.

possible coreferences among sentences to be

resolved, a maximum limit of two (neighbouring)

sentences is set for candidate creation. A classifier

then determines whether the bounding entities of the

chunk satisfy the property employs(Act,Meth).

To this end, we developed a module that takes as

input the candidate textual span and predicts whether

the bounded entities satisfy the employs(Act,Meth)

relation. For the classification, we used a binary

classifier consisting of a transformer (BERT-base-

uncased and RoBERTa-base) model for text

representation, followed by a sigmoid activation layer

(models BERT-based-uncased and RoBERTa-

base

)

. Both the transformer model and the classifier

are fine-tuned/trained on the same dataset.

In addition, all the information extracted from text

(entities and relations) is further related to publication

information extracted from articles’ metadata. The

linking is based on post processing rules that map the

extracted activities and methods to the researchers

(authors of the paper) based on the corresponding SO

properties of hasParticipant and usesMethod

respectively. Provenance (e.g. the research article

from where they were extracted) of those entities and

relations can be modelled through the SO relations

isDocumentendIn or isReferencedIn among the

classes Activity / Method and the class ContentItem

which denotes all information resources (or parts

thereof) independently of their physical carriers. An

overview of the entire system’s modular architecture

is given in Figure 4.

3.5 URI Generation

At the final stage we transform the extracted and

contextualized information into RDF triples adhering

to the Linked Data standards. Specifically, regarding

the entities extracted from publication metadata, we

produce URIs for the authors (further linked, when

https://persistence.uni-leipzig.org/nlp2rdf/

possible, with ORCID using the provided API) and

their affiliations (as instances of the SO Actor class

and corresponding subclasses Person and

Organization), the research article (as instance of the

ContentItem class) associated further with

publication information, such as publisher,

publication date, DOI etc., as well as disciplines

associated with each publication and author keywords

(as instances of the SO Topic class and its subclasses

Discipline and TopicKeyword respectively), using the

namespaces for SO, SKOS, RDFS and RDF when

appropriate.

Regarding the entities extracted from text, we

produce URIs for each extracted entity and relation

using the NIF

and SO namespaces for preserving the

context of the corresponding sentence and

instantiating the appropriate classes and relations

respectively. The output of the module is a set of RDF

triples containing approximately 300 triples per

publication on average. Figure 5 illustrates an

example of the produced triples regarding an

extracted textual span (label: “All individuals were

assigned pseudonyms”) representing an instance of

the Activity class.

4 EVALUATION

The evaluation of Information Extraction methods

involves comparing classifier results against a “gold

standard” produced by human annotators. To this end,

a confusion matrix is calculated based on the true

positives (TP) -correctly classified predictions-, false

positives (FP) -incorrectly classified predictions-,

true negatives (TN) -correctly non-classified

predictions and false negatives (FN) -incorrectly non-

classified predictions. Performance scores are then

Ontology-Driven Extraction of Contextualized Information from Research Publications

113

Table 2: Entity Extraction Evaluation Results.

Model

Token-based Entit

-based-

artial Entit

-based-strict

P R F1 P R F1 P R F1

A-Baseline 0.68 0.71 0.69 0.60 0.61 0.60 0.40 0.51 0.51

A-BERT-

ase-NER 0.86 0.87 0.86 0.79 0.80 0.80 0.72 0.73 0.72

A-RoBERTa-

ase 0.82 0.91 0.85 0.76 0.84 0.79 0.69 0.76 0.73

A-Pipeline 0.86 0.90 0.88 0.80 0.83 0.81 0.73 0.77 0.75

M-Baseline 0.62 0.66 0.65 0.66 0.73 0.70 0.55 0.60 0.57

M- BERT-

ase-NER 0.72 0.89 0.80 0.69 0.85 0.76 0.63 0.78 0.70

M-RoBERTa-

ase 0.75 0.85 0.78 0.73 0.83 0.77 0.67 0.76 0.70

M-Pipeline 0.80 0.83 0.82 0.76 0.79 0.78 0.70 0.72 0.71

Table 3: Pipeline components evaluation.

Pipeline P R F1

A-TexCat 0.91 0.93 0.92

A-NER 0.80 0.82 0.81

A-Pipeline 0.86 0.90 0.88

M-TextCat 0.90 0.91 0.90

M-NER 0.78 0.79 0.79

M-Pipeline 0.80 0.83 0.82

Table 4: Relation Extraction evaluation.

Model P R F1

Baseline 0.83 0.78 0.80

BERT-

ase-uncase

0.73 0.95 0.83

RoBERTa-

ase 0.82 0.95 0.87

measured based on Precision (P), Recall (R) and F1

scores computed as follows:

𝑃=

𝑇𝑃

𝑇𝑃 + 𝐹𝑃

,𝑅 =

𝑇𝑃

𝑇𝑃 + 𝐹𝑁

,𝐹1 =

2∗𝑃∗𝑅

𝑃+𝑅

For the entity extraction task, we conduct three types

of evaluation experiments inspired by the guidelines

in (Segura-Bedmar et al., 2013): 1) token-based,

where a true positive (TP) is a token correctly

classified as part of a chunk representing the entity,

etc.; 2) entity-based -partial matching, where some

overlap between the tagged entity and the “golden”

entity is required but counts as half compared to the

exact matches and 3) entity-based -strict matching,

where only exact boundaries of the entities are

counted for the match.

Table 2 shows evaluation results for each method

and entity type. For comparison reasons we included

a baseline model consisting of a residual CNN with

bloom embeddings that utilize a stochastic

approximation of traditional embeddings in order to

provide unique vectors for a large number of words

without explicitly storing a separate vector for each

of them (Miranda et al., 2022), trained on the same

dataset. Regarding the pipeline classifier which

consists of a sentence- and a token-based classifier in

tandem, detailed per stage and aggregate performance

results are shown in Table 3. The aggregate scores of

the pipeline are also shown in Table 2 for comparison

with the other methods.

The evaluation of employs(Act,Meth) relation

extraction methods involves comparing the predicted

relations among the gold standard entities in each test

set with those produced by the human annotators on

the basis of Precision, Recall and F1 scores calculated

as usual. A true positive (TP) is a chunk

[entity1,...,entity2] for which the classifier correctly

predicted the employs(act, meth) property; a false

positive (FP) is a chunk for which employs(Act,Meth)

was incorrectly predicted; and a false negative (FN)

is a chunk for which employs(Act,Meth) incorrectly

failed to be predicted. Table 4 shows the evaluation

results for the employs(Act,Meth) relation extraction

models using binary classifiers on top of Bert-base-

uncased and RoBERTa language models as well as

bloom embeddings (as baseline). All models are fine-

tuned/trained on the same dataset.

5 DISCUSSION

As a general comment regarding the Information

Extraction from text task, all methods except the

baselines performed well, demonstrating the

capabilities of transformer-based language models in

text representation over the simpler neural-based

methods (i.e. embeddings). Among the transformer

models, the RoBERTa-base outperformed BERT-

base in almost every metric, which can be attributed

to the fact that the RoBERTa model is pre-trained on

a much larger dataset (10 times larger) than BERT

and uses a dynamic masking technique during

training that helps it learn more robust and

generalizable representations of words.

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

114

5.1 Entity Extraction Evaluation

Concerning the entity extraction methods, the

pipeline architecture exhibited the best performance

in all experiments and entity types, yielding up to 4%

performance increase (F1 M-Pipeline) which proves

our initial intuition that -splitting the task into two

simpler ones -those of i) sentence classification and

ii) boundary detection only in sentences with entities-

would yield overall better performance, despite the

possible error propagation.

The latter seems to be of less importance since the

sentence classifier (first component) achieves very

high recall, which yields the majority of the sentences

containing entities to the input of the second

component that focuses only on detecting the

boundaries inside the sentence. However, as can be

observed from the difference in performance among

the various evaluation experiments (e.g. compare the

F1 scores among token-based, entity-based-partial

and entity-based-strict evaluations), the exact

boundaries of the entity -even with the pipeline- are

difficult to capture. This can be attributed to the fact

that our entities are quite complex in terms of length

variance, or/and lexico-syntactic structure which

makes them difficult to isolate from the rest of the text

in a sentence.

Regarding the Method class, lesser performance

compared to the Activity classifiers can be attributed

to the fewer labelled tokens on the dataset since each

Method entity consists of much fewer tokens, on

average. This could also be the reason for the lesser

performance of the M-NER boundary detector model

that “drags down” the entire M-pipeline performance.

Error analysis showed that most errors were attributed

to cases with long names (more than 3 tokens) and /or

names containing multiple punctuation marks that

seemed to confuse the classifier in identifying the

correct boundaries of the entity (e.g. “Tests of

population genetic structure and nested clade

phylogeographic analysis (NCPA) [12,13] were used

to infer connectivity on both sides of the Amazon

basin.”). However, even in such cases, at least 50%

of the tokens of the span representing the entity name

were captured correctly by the classifier.

Regarding the recognition of textual spans

representing instances of the Activity class, error

analysis attributes the majority of errors to cases of

passive voice where the agent (implied or not) was

other than the authors of the paper. These cases

usually refer to statements regarding someone else

(e.g. "In [54] linguistic analysis was performed on

10000 samples from MeCaB database.") and seem to

be classified (erroneously) as research activities of the

authors, although this is clearly not the case.

However, similar cases of agents other than the

authors of the paper, but in active voice, do not seem

to confuse the classifier. This can be attributed to the

lexico-syntactic complexities of passive voice,

especially when the length of the sentence is big, and

could probably be resolved with more training data

(focused on passive voice).

Additional errors were detected in boundaries of

the entities, where the classifier seemed to set the end-

boundary one or two tokens after the proper end (e.g.

“We collected data from more than 200 crania to test

hypotheses about the relationships between cranial

variation and genetic time and space in the Aleutian

Islands.”). In such cases, where only the last one or

two tokens of the entity are erroneously classified, the

boundary can be fixed with post processing rules.

5.2 Relation Extraction Evaluation

In relation extraction, like in entity extraction,

transformer-based models exhibited superior

performance. Error analysis suggests that

misclassifications are mostly due to sentences with

multiple entities, where the classifier failed to

interrelate all the entities properly. For example,

consider the excerpt: “Pre-test data were collected

and analysed using T-test, while post-test were

further analysed using ANOVA and two-way

ANOVA.” Here the classifier erroneously related the

methods ANOVA and two-way ANOVA to the first

activity (“pre-test data were collected and analysed

using T-test”), although this is not the case based on

the actual text.

In addition, in cases with adjacent sentences

where both sentences contained a lot of entities, the

majority of misclassifications involved a method of

the first sentence being erroneously related to the

second sentence even if this was clearly not the case.

For example, consider the excerpt: “We employed

both Logistic Regression and SVM to conduct the

classification experiments and then analysed the

results using T-test. The latter was used in

combination with ART tests to prove the statistical

significance of our results.”. In this case the classifier

erroneously related all the extracted methods

(Logistic Regression, SVM and T-Test) of the first

sentence, with the activity of the second sentence,

although this was the case for only the last one (T-

test).

Concerning the two-sentence limit for textual

chunks construction, by visual observation of more

than 1000 relations, we were able to notice that the

majority of references occurred inside the sentence

Ontology-Driven Extraction of Contextualized Information from Research Publications

115

with very few cases of reference to a method from an

adjacent sentence and none more than two sentences

apart, thus justifying the heuristic for a two-sentence

limit in chunk creation.

5.3 Knowledge Graph Creation

Regarding the KG creation using post-processing

rules that extract metadata and link them to the

extracted entities, the system exhibited very good

performance since it relies solely on pre-constructed

mappings between fixed schemas. Few isolated

incidents (lower than 1%) of improper association

were due to errors in tags (e.g. non-Unicode

characters or few missed entries that produced

inconsistencies) and can be treated with additional

escape rules as part of the general debugging process.

The KG created as described in this paper offers

structured semantic views of the content of

publications, which enhance our capability for

comprehensive exploration of research work. This

can be demonstrated through semantically complex

queries executed over the KB. Indicative such

queries, expressed in SPARQL are presented below:

Query 1: Retrieve all activities that employ any

method regarding reconstruction (e.g. 2D or 3D

reconstruction) in Paleontology.

SELECT DISTINCT ?a_label

WHERE {

?a rdfs:label ?a_label.

?a so:employs ?m.

?m so:comesFromDiscipline so:Paleontology.

?m rdfs:label ?m_label.

filter

contains(lcase(?m_label),"reconstruction").}

Here, using the SO relation

(so:comesFromDiscipline) and the filter contains

SPARQL expression, all the method labels

containing –in lower or upper case- the word

“reconstruction” and coming from the discipline of

Paleontology can be retrieved. They are then

associated with the activities that employ them.

Query 2: For a specific paper (e.g. “Paper1”),

retrieve all the research activities conducted by the

authors along with the methods they employed.

SELECT ?m_label ?a_label

WHERE {

?a so:isDocumentedIn so:Paper1.

?a rdfs:label ?a_label.

?a so:employs / rdfs:label ?m_label.}

Here, through the use of property chains in

SPARQL, the overall activity reported in a paper is

decomposed into a series of activities denoting

“what” the authors have done, associated with the

methods employed during those activities. In this

way, questions of “what” and “how” regarding the

activities described in a research publication can be

answered. Thus, the reader obtains an enhanced

“bird’s-eye” view of what is described in a paper

before actually reading it. Additional information

regarding the authors and their research interests, can

also be retrieved using the appropriate SO classes and

relations.

6 CONCLUSION

We presented a system that extracts contextualized

information from scholarly publications and creates

an RDF Knowledge Graph. The entire process is

ontology-driven, based on the concepts and

definitions provided by Scholarly Ontology,

specifically designed for documenting scholarly

work. We focused on the extraction of two types of

entities, research methods and research activities, and

of the relation employs(Act,Meth) denoting that an

activity employs a particular method. This was

integrated with information drawn from publication

metadata, also on the basis of the ontology.

For the entity extraction task, we used transition-

based parsers on top of BERT and RoBERTa

transformer models for text representation. In

addition, we used a two-stage pipeline architecture,

comprising a transformer-based binary classifier for

detecting the existence of entities in a sentence, in

tandem with a transition-based parser for boundary

detection.

To extract the employs(Act,Meth) relation, we

used two transformer-based binary classifiers

employing BERT and RoBERTa language models

respectively. All our ML models are fine-tuned and

trained on the same -manually curated- dataset

consisting of 12,626 sentences from scholarly

publications, specifically curated for the tasks at

hand.

Evaluation was based on token-based, entity-

partial-based and entity-exact-based calculations of

P, R and F1 scores for each ML method and

entity/relation type. Results showed higher

performance of the pipeline architecture and overall

good performance of the transformer-based models

compared to a baseline approach that uses

embeddings for textual representation.

Future work includes expanding the Knowledge

Graph with recognition and extraction of other

entities of the ontology, such as researchers’

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

116

assertions based on the outcomes of their activities,

the activities’ objectives (i.e., research goals) and

information from citations, as well as linking

extracted entities with other knowledge bases across

the Web, such as Wikidata, for named entity mentions

and Open Citations for bibliographic information.

ACKNOWLEDGEMENTS

The authors would like to thank Marialena Kasapaki

and Panagiotis Leontaridis for their important

contributions to the training of the DL models.

REFERENCES

Augenstein, I., Das, M., Riedel, S., Vikraman, L., &

McCallum, A. (2017). SemEval 2017 Task 10:

ScienceIE - Extracting Keyphrases and Relations from

Scientific Publications. Proceedings of the 11th

International Workshop on Semantic Evaluation

(SemEval-2017), 546–555. https://doi.org/10.18653/

v1/S17-2091

Bornmann, L., Haunschild, R., & Mutz, R. (2021). Growth

rates of modern science: A latent piecewise growth

curve approach to model publication numbers from

established and new literature databases. Humanities

and Social Sciences Communications, 8(1), 224.

https://doi.org/10.1057/s41599-021-00903-w

Chalkidis, I., Androutsopoulos, I., & Michos, A. (2017).

Extracting contract elements. Proceedings of the 16th

Edition of the International Conference on Articial

Intelligence and Law, 19–28. https://doi.org/10.1145/

3086512.3086515

Chiu, J. P. C., & Nichols, E. (2016). Named Entity

Recognition with Bidirectional LSTM-CNNs.

Transactions of the Association for Computational

Linguistics, 4, 357–370. https://doi.org/10.1162/

tacl_a_00104

Constantopoulos, P., Hughes, L. M., Dallas, C., Pertsas, V.,

& Christodoulou, T. (2016). Contextualized Integration

of Digital Humanities Research: Using the NeMO

Ontology of Digital Humanities Methods. Digital

Humanities 2016, 161–163.

Dessì, D., Osborne, F., Reforgiato Recupero, D., Buscaldi,

D., Motta, E., & Sack, H. (2020). AI-KG: An

Automatically Generated Knowledge Graph of

Artificial Intelligence. In J. Z. Pan, V. Tamma, C.

d’Amato, K. Janowicz, B. Fu, A. Polleres, O.

Seneviratne, & L. Kagal (Eds.), The Semantic Web –

ISWC 2020 (Vol. 12507, pp. 127–143). Springer

International Publishing. https://doi.org/10.1007/978-

3-030-62466-8_9

Do, H. H. N., Chandrasekaran, M. K., Cho, P. S., & Kan,

M. Y. (2013). Extracting and matching authors and

affiliations in scholarly documents. Proceedings of the

13th ACM/IEEE-CS Joint Conference on Digital

Libraries - JCDL ’13, 219. https://doi.org/10.1145/

2467696.2467703

Dozat, T., & Manning, C. D. (2017). Deep Biaffine

Attention for Neural Dependency Parsing. Conference

Track Proceedings. 5th International Conference on

Learning Representations, ICLR, Toulon, France.

D’Souza, J., & Auer, S. (2022). Computer Science Named

Entity Recognition in the Open Research Knowledge

Graph. From Born-Physical to Born-Virtual:

Augmenting Intelligence in Digital Libraries, 13636.

https://doi.org/10.1007/978-3-031-21756-2_3

He, J., Uppal, A., N, M., Vignesh, S., Kumar, D., & Kumar

Sarda, A. (2022). Infrrd.ai at SemEval-2022 Task 11: A

system for named entity recognition using data

augmentation, transformer-based sequence labeling

model, and EnsembleCRF. Proceedings of the 16th

International Workshop on Semantic Evaluation

(SemEval-2022), 1501–1510. https://doi.org/10.18653/

v1/2022.semeval-1.206

Jain, S., Van Zuylen, M., Hajishirzi, H., & Beltagy, I.

(2020). SciREX: A Challenge Dataset for Document-

Level Information Extraction. Proceedings of the 58th

Annual Meeting of the Association for Computational

Linguistics, 7506–7516. https://doi.org/10.18653/v1/20

20.acl-main.670

Jaradeh, M. Y., Oelen, A., Farfar, K. E., Prinz, M.,

D’Souza, J., Kismihók, G., Stocker, M., & Auer, S.

(2019). Open Research Knowledge Graph: Next

Generation Infrastructure for Semantic Scholarly

Knowledge. Proceedings of the 10th International

Conference on Knowledge Capture, 243–246.

https://doi.org/10.1145/3360901.3364435

Lample, G., Ballesteros, M., Subramanian, S., Kawakami,

K., & Dyer, C. (2016). Neural Architectures for Named

Entity Recognition. Proceedings of the 2016

Conference of the North American Chapter of the

Association for Computational Linguistics: Human

Language Technologies, 260–270.

Li, Y., Yang, Y., Zhang, Y., & Xu, R. (2022). HITSZ-HLT

at SemEval-2022 Task 10: A Span-Relation Extraction

Framework for Structured Sentiment Analysis.

Proceedings of the 16th International Workshop on

Semantic Evaluation (SemEval-2022), 1406–1411.

https://doi.org/10.18653/v1/2022.semeval-1.195

Luan, Y., He, L., Ostendorf, M., & Hajishirzi, H. (2018).

Multi-Task Identification of Entities, Relations, and

Coreference for Scientific Knowledge Graph

Construction. Proceedings of the 2018 Conference on

Empirical Methods in Natural Language Processing,

3219–3232. https://doi.org/10.18653/v1/D18-1360

Luan, Y., Ostendorf, M., & Hajishirzi, H. (2018). The

UWNLP system at SemEval-2018 Task 7: Neural

Relation Extraction Model with Selectively

Incorporated Concept Embeddings. Proceedings of The

12th International Workshop on Semantic Evaluation,

788–792. https://doi.org/10.18653/v1/S18-1125

Ma, X., & Hovy, E. (2016). End-to-end Sequence Labeling

via Bi-directional LSTM-CNNs-CRF. Proceedings of

Ontology-Driven Extraction of Contextualized Information from Research Publications

117

the 54th Annual Meeting of the Association for

Computational Linguistics, 1, 1064–1074.

Michel, F., Gandon, F., Ah-Kane, V., Bobasheva, A.,

Cabrio, E., Corby, O., Gazzotti, R., Giboin, A., Marro,

S., Mayer, T., Simon, M., Villata, S., & Winckler, M.

(2020). Covid-on-the-Web: Knowledge Graph and

Services to Advance COVID-19 Research. In J. Z. Pan,

V. Tamma, C. d’Amato, K. Janowicz, B. Fu, A.

Polleres, O. Seneviratne, & L. Kagal (Eds.), The

Semantic Web – ISWC 2020 (Vol. 12507, pp. 294–310).

Springer International Publishing. https://doi.org/

10.1007/978-3-030-62466-8_19

Miranda, L. J., Kádár, Á., Boyd, A., Van Landeghem, S.,

Søgaard, A., & Honnibal, M. (2022). Multi hash

embeddings in spaCy (arXiv:2212.09255). arXiv.

http://arxiv.org/abs/2212.09255

Nguyen, D., & Huynh, H. K. N. (2022). DANGNT-SGU at

SemEval-2022 Task 11: Using Pre-trained Language

Model for Complex Named Entity Recognition.

Proceedings of the 16th International Workshop on

Semantic Evaluation (SemEval-2022), 1483–1487.

https://doi.org/10.18653/v1/2022.semeval-1.203

Pandey, A., Daw, S., & Pudi, V. (2022). Multilinguals at

SemEval-2022 Task 11: Transformer Based

Architecture for Complex NER. Proceedings of the

16th International Workshop on Semantic Evaluation

(SemEval-2022), 1623–1629. https://doi.org/10.18653/

v1/2022.semeval-1.224

Pertsas, V., & Constantopoulos, P. (2017). Scholarly

Ontology: Modelling scholarly practices. International

Journal on Digital Libraries, 18(3), 173–190.

https://doi.org/10.1007/s00799-016-0169-3

Pertsas, V., Constantopoulos, P., & Androutsopoulos, I.

(2018). Ontology Driven Extraction of Research

Processes. In D. Vrandečić, K. Bontcheva, M. C.

Suárez-Figueroa, V. Presutti, I. Celino, M. Sabou, L.-

A. Kaffee, & E. Simperl (Eds.), The Semantic Web –

ISWC 2018 (Vol. 11136, pp. 162–178). Springer

International Publishing. https://doi.org/10.1007/978-

3-030-00671-6_10

Peters, M., Ammar, W., Bhagavatula, C., & Power, R.

(2017). Semi-supervised sequence tagging with

bidirectional language models. Proceedings of the 55th

Annual Meeting of the Association for

Computational Linguistics (Volume 1: Long Papers),

1756–1765. https://doi.org/10.18653/v1/P17-1161

Pu, K., Liu, H., Yang, Y., Ji, J., Lv, W., & He, Y. (2022).

CMB AI Lab at SemEval-2022 Task 11: A Two-Stage

Approach for Complex Named Entity Recognition via

Span Boundary Detection and Span Classification.

Proceedings of the 16th International Workshop on

Semantic Evaluation (SemEval-2022), 1603–1607.

https://doi.org/10.18653/v1/2022.semeval-1.221

QasemiZadeh, B., & Schumann, A.-K. (2016). The ACL

RD-TEC 2.0: A Language Resource for Evaluating

Term Extraction and Entity Recognition Methods.

Proceedings of the Tenth International Conference on

Language Resources and Evaluation (LREC’16),

1862–1868.

Renear, A. H., & Palmer, C. L. (2009). Strategic Reading,

Ontologies, and the Future of Scientific Publishing.

Science, 325(5942), 828–832. https://doi.org/10.1126/

science.1157784

Segura-Bedmar, I., Martinez, P., & Zazo, M. H. (2013).

SemEval-2013 Task 9: Extraction of Drug-Drug

Interactions from Biomedical Texts (DDIExtraction

2013). Proceedings of the Seventh International

Workshop on Semantic Evaluation (SemEval 2013), 2,

341–350.

Steenwinckel, B., Vandewiele, G., Rausch, I., Heyvaert, P.,

Taelman, R., Colpaert, P., Simoens, P., Dimou, A., De

Turck, F., & Ongenae, F. (2020). Facilitating the

Analysis of COVID-19 Literature Through a

Knowledge Graph. In J. Z. Pan, V. Tamma, C.

d’Amato, K. Janowicz, B. Fu, A. Polleres, O.

Seneviratne, & L. Kagal (Eds.), The Semantic Web –

ISWC 2020 (Vol. 12507, pp. 344–357). Springer

International Publishing. https://doi.org/10.1007/978-

3-030-62466-8_22

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., & Polosukhin, I. (2017).

Attention Is All You Need. NIPS’17: Proceedings of

the 31st International Conference on Neural

Information Processing Systems, 6000–6010.

Yu, J., Bohnet, B., & Poesio, M. (2020). Named Entity

Recognition as Dependency Parsing. Proceedings of

the 58th Annual Meeting of the Association for

Computational Linguistics, 6470–6476.

https://doi.org/10.18653/v1/2020.acl-main.577

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

118
