Cache Side-Channel Attacks Against Black-Box Image Processing

Software

Ssuhung Yeh

and Yuji Sekiya

Graduate School of Information Science and Technology, The University of Tokyo, Tokyo, Japan

Security Informatics Education and Research Center, Graduate School of Information Science and Technology,

The University of Tokyo, Tokyo, Japan

Keywords: Side-Channel Analysis, Cache Side-Channel Attack, Machine Learning, Deep Learning, Convolutional

Neural Network.

Abstract: Cache side-channel attacks are a persisting threat to modern computers for their ability to steal secret

information in memory and hard-to-detect characteristics. While researchers have studied these attacks for a

long time, there has been relatively little focus on attacks against media software. One reason is the inherent

noisiness of cache side-channels, making it challenging to extract meaningful information from it. However,

recent advancements in machine learning have changed the landscape, making side-channel analysis more

accessible. In this paper, we proposed a new side-channel analysis framework that is capable of extracting

high-level information from complex applications. With this framework, we attacked image processing

programs, reconstructed images that the victim opened with cache side-channel attacks, and achieved

significantly improved results compared to the previous work.

1 INTRODUCTION

Side-channel attacks involve leveraging additional

information about a computer to infiltrate its internal

states. This supplementary data encompasses factors

such as electromagnetic emissions, power usage

patterns, and execution timing. Subsequently, this

information can be meticulously analyzed to extract

sensitive data, such as cryptographic keys. With the

surge in the popularity of public cloud services, the

threat posed by side-channel attacks has intensified.

Numerous studies (Irazoqui et al., 2014; Moghimi,

2023) have demonstrated the practical feasibility of

cross-VM side-channel attacks, heightening concerns.

While side-channel attacks have been under

scrutiny for an extended period, the practice of

conducting side-channel analysis (SCA) on complex

software has traditionally been regarded as a

formidable endeavor, if not outright impossible.

Nonetheless, the substantial advancements in

machine learning and deep neural networks in recent

years have paved the way for the extraction of high-

level information from collected traces. This

https://orcid.org/0009-0005-1442-4159

https://orcid.org/0009-0006-6287-9606

development has amplified the potency of side-

channel attacks, rendering them more formidable than

ever before.

In this context, a pivotal question arises: With the

aid of advanced machine learning techniques, what is

the upper limit of information attainable through side-

channel analysis? We think that investigating this

question at the present juncture is important, given the

aforementioned reasons.

In this paper, our primary focus is on investigating

cache side-channel attacks targeting black-box image

processing applications. Specifically, these

applications including a JPEG decoding program and

a WebP decoding program, both of which are

designed to convert JPEG or WebP images into

bitmap files. Concurrently, an attacker initiates a

cache side-channel attack on these programs and

captures memory access traces. The objective is to

gauge the attacker's ability to effectively reconstruct

the original input images from these traces using

neural networks. Our contributions can be

summarized as follows:

578

Yeh, S. and Sekiya, Y.

Cache Side-Channel Attacks Against Black-Box Image Processing Software.

DOI: 10.5220/0012264400003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 578-584

ISBN: 978-989-758-672-9; ISSN: 2184-3252

• Proposed a new side-channel analysis

framework that supports both Prime+Probe and

write-back channel attacks against image

processing software.

• With the proposed framework, we use it to

attack libjpeg and libwebp programs and

reconstruct images successfully. Compared to

the previous work (Yuan et al., 2022), the

reconstructed images have much higher fidelity

even under stricter conditions.

• To our knowledge, this work is the first one that

attacks libwebp with side-channel analysis,

and also the first one doing side-channel

analysis with a write-back channel attack.

In the rest of this paper, we will first survey

related works about cache side-channel attacks, side-

channel analysis with machine learning, and side-

channel attacks against media programs in Section 2.

Section 3 presents the dataset, the attack setup, and

the neural network model design. The reconstruction

result is presented and discussed in Section 4. Finally,

the conclusion and future work are provided in

Section 5.

Our code is available in our GitHub repository

(WEBIST-2023-Cache_Side_Channel, 2023).

2 BACKGROUND AND RELATED

WORKS

2.1 Cache Side-Channel Attacks

The cache is a hardware set between main memory and

CPUs to accelerate the memory access speed. Due to

its shared characteristic, the execution of one process

will influence the state of the cache, thus, influencing

the memory access time of other processes. In other

words, an attacker process can infer other processes'

internal states by observing whether each memory

access is cache hit or cache miss.

There are many variations of cache side-channel

attack techniques, that differ in the threat model and

amount of information the attacker can get. Here, we

introduce two of them that are related to this work, the

Prime+Probe attack and the write-back channel attack.

2.1.1 Prime+Probe Attack

The Prime+Probe attack (Tromer et al., 2010) exploit

that modern caches mostly apply set-associative

design, that the data is stored in which cache line is

decided by certain bits in the middle of the memory

address, called index bits.

The attack can be separated into two steps. In the

prime stage, the attacker fills the cache with his data

by accessing memory addresses mapping to all cache

lines, creating the eviction set. Then the attacker waits

for a while for the victim to execute. During the

victim’s execution, he will replace some data in the

cache with his data. The attacker enters the probe

stage the next time the attacker process is scheduled

to execute. This time, he accesses the whole eviction

set again and measures the time it takes to retrieve the

data. If it takes longer to access a memory address,

this infers the victim accessed this cache line before

so that the attacker’s data is evicted from the cache.

Overall, as long as a program has access to a

cycle-level high-precision clock, and can create an

eviction set, it can launch a Prime+Probe attack and

infer which cache lines or memory addresses are

accessed by the victim. Previous works have shown

that Prime+Probe attack can be used to exploit

encryption keys (Tromer et al., 2010; Liu et al., 2015)

and perform website fingerprinting (Oren et al., 2015).

2.1.2 Write-Back Channel Attack (WB

Attack)

Besides knowing cache hit or miss, memory

accessing time can also be exploited to infer whether

the cache line is dirty or not (Cui et al., 2022). If the

cache write policy is write-back, when a process

updates a value in memory, the update will only be

done in the cache under the hood. In this scenario, the

dirty bit of that cache line will be set, so that the

hardware knows to write the data back to the main

memory when eviction happens.

The write-back channel attack (WB attack)

exploits the fact that when the dirty bit is set for a

cache line, it takes a longer time to write the data back,

thus gaining further information about whether the

victim process writes data to the cache line. The WB

attack is an upgraded version of the Prime+Probe

attack. Under the same condition, the WB attack can

infer which cache lines are read or written by the

victim. The previous work has described the

possibility of creating side-channel attacks with the

write-back channel.

2.2 Side-Channel Analysis with

Machine Learning

Though side-channel attacks are easy to launch, the

collected data need to be analyzed to get sensitive

data. The whole process is usually called side-channel

analysis. The analyzing task is usually far from easy

for two reasons. First, the collected data is noisy and

Cache Side-Channel Attacks Against Black-Box Image Processing Software

579

huge in size. Second, the relationship between the

secret to extract and collected data remains unclear.

These two reasons make side-channel analysis a very

difficult and labor-intensive task. However, with the

progression in machine learning techniques, this task

has become feasible in practice.

First, researchers have shown that neural

networks can be used to denoise traces (Wu and Picek,

2020; Kwon et al., 2021) collected with side-channel

attacks. After that, more studies have proved that

deep neural networks can even be exploited to

perform end-to-end side-channel analysis attacks,

including website fingerprinting with cache side-

channel (Cook et al., 2022) and keystroke logging

with electromagnetic side-channel (Zhan et al., 2022).

2.3 Side-Channel Analysis of Media

Program

Side-channel analysis of media software hasn’t been

studied a lot relatively. Compared to breaking

encryption implementations, the data to steal in media

software is larger in size, and the diversity in software

implementations is greater. On the other hand,

website fingerprinting and keystroke logging with

side-channel analysis with side-channel analysis can

be degraded to classification problems, while attacks

on media software can’t.

As started by Xu, Cui, and Peinado (2015), they

successfully extracted the outlines of JPEG images

through side-channel analysis. Followed by Balmau,

et al. (2017), they reconstructed JPEG images with

colors. However, these two works launched attacks in

different scenarios. They assumed the OS was

compromised and treated the victim program as a

white-box, which are both strong assumptions.

Image reconstruction with non-privileged, black-

box side-channel analysis (Yuan, Wang et al., 2021;

Yuan, Pang et al., 2022) then succeeded. Yuan et al.

simplified the process of reconstructing images from

memory address traces to a regression problem. They

represented images with latent vectors that contained

high-level information, extracting latent vectors from

traces, and then reconstructed images from them. This

made side-channel analysis of media software

possible.

3 METHOLOGY

3.1 Threat Model

The threat model includes assumptions listed as

follows:

• The attacker can execute native code on the

victim’s machine.

• The attack doesn’t need any knowledge of the

victim program, only treat it as a black box.

• The attacker has the same machine and victim

program, or he can input any data into the victim

program and observe the trace to produce

training data.

• The cache being attacked uses the least recently

used (LRU) for the cache replacement policy

and write back for the cache writing policy.

For evaluation, we assume the target cache to be

the L1 data cache, but the attack framework doesn’t

limit to any level of cache.

The framework is evaluated on two image

processing programs, which are a JPEG decoding

program and a WebP decoding program. The JPEG

decoding program we used is the example JPEG

decoding program tjexample.c in the popular

libjpeg-turbo library (ver. 2.1.92) (libjpeg-

turbo, 2010). This program takes a JPEG image as the

input, decodes it, and outputs the bitmap file. As for

the WebP decoding program, the example program

dwebp.c in the libwebp library (ver. 1.3.1)

(libwebp, 2011) is used.

The complete attack consists of two phases. In the

training phase, the attacker produces traces

corresponding to the reference images and trains the

neural network. Then in the second phase, the

attacker can reconstruct unknown images from traces

collected from the victim.

3.2 Dataset

Experiments are conducted with two image datasets,

which are JPEG and WebP datasets. The images

come from Large-scale CelebFaces Attributes

(CelebA) Dataset (Liu et al., 2015), Align & Cropped

version, and are then resized to 128x128 pixels. The

images are in JPEG format originally, so for the

WebP dataset, manual transformation is required.

Ordered by image ID, the first 80,000 images are used

for training, and the last 19,921 images are used for

testing. Every image in the dataset belongs to one of

10177 identities. This identity is used to optimize the

training of the neural network.

3.3 Attack Setup

In this study, Intel Pin (Luk et al., 2005) is used to

collect memory access traces. The reason for

choosing Intel Pin is that it is a dynamic

instrumentation tool, in other words, there is no need

DMMLACS 2023 - 3rd International Special Session on Data Mining and Machine Learning Applications for Cyber Security

580

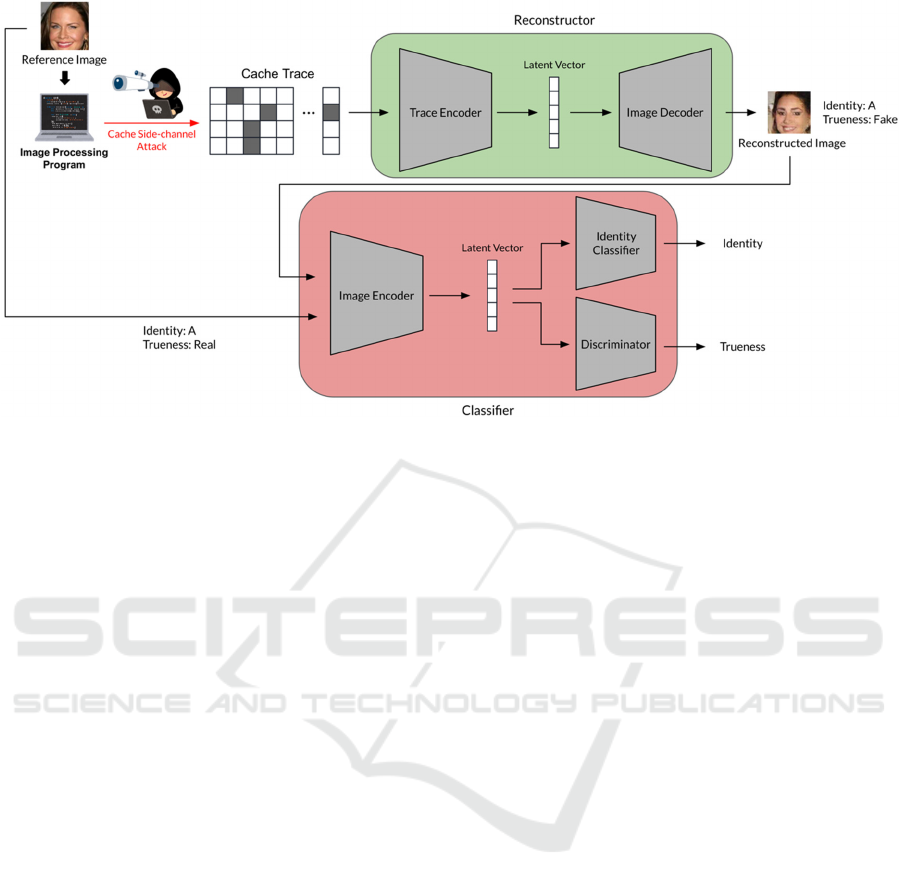

Figure 1: Model Overview.

to recompile the victim program, which corresponds

to the black-box assumption about the victim program.

After traces are collected, post-processing is

performed. The first step is to extract index bits

according to the cache configuration. In our case, the

attack target is the L1 data cache with 64 sets, and 64

bytes per cache line, thus, 7-th to 12-th bits of

memory addresses are extracted. Next, pad traces to

the maximum length of all traces. Finally, encode the

cache line index with the binary encoding method. In

other words, for each memory access, a vector with

64 elements is created. For the Prime+Probe attack,

only the element corresponding to the accessed cache

line index is 1, otherwise 0. As for the WB attack, -1

is used to represent a write, and 1 for a read.

3.4 Model Design

The overview of the neural network is shown in

Figure 1. The primary reconstruction job is done by a

reconstructor network, which is essentially a

variational autoencoder (VAE). It is composed of a

trace encoder and an image decoder. The idea is that

the trace encoder is expected to extract high-level

information (skin color, face direction, …) about the

image, and the image decoder can create the image

according to it. As the previously proposed

framework (Yuan et al., 2022) has done, a neural

network is chained after. It is used to answer if an

image is real or not and classify its identity, called a

classifier. Though this part is not mandatory, they can

provide extra information about how the

reconstruction images look and propagate loss back

to train the reconstructor better.

The training process of the whole neural network

is analogous to a generative adversarial network

(GAN) (Goodfellow et al., 2014). First, fix the

reconstructor, and train the classifier with real and

fake images reconstructed by the reconstructor. Then,

fix the classifier and train the reconstructor with the

assistance of the classifier afterward. Hopefully, the

two neural networks will grow together and provide a

better reconstruction and classification result.

For the detail of models inside each part, the trace

encoder is a 1-dimensional convolutional neural

network (1D CNN), and the image decoder is a 2-

dimensional convolutional neural network (2D CNN).

When training the classifier, the loss function is

defined as follows:











,̂











fake

,̂













real

,̂





(1)

 is defined as the original image, and  is the

reconstructed image. The first term is the cross-

entropy loss between the real identity of the image 



and the predicted identity ̂



based on the original

image  . The second and the third terms are the

binary cross entropy. It calculates the distance

between the trueness of a fake image 

fake

and the

prediction of trueness ̂





based on the reconstructed

image, and the trueness of a real image 

real

and the

prediction ̂



based on the reference image.

When training the reconstructor, the loss function

is defined as follows:



, 









,   

pre

, 

(2)

Cache Side-Channel Attacks Against Black-Box Image Processing Software

581

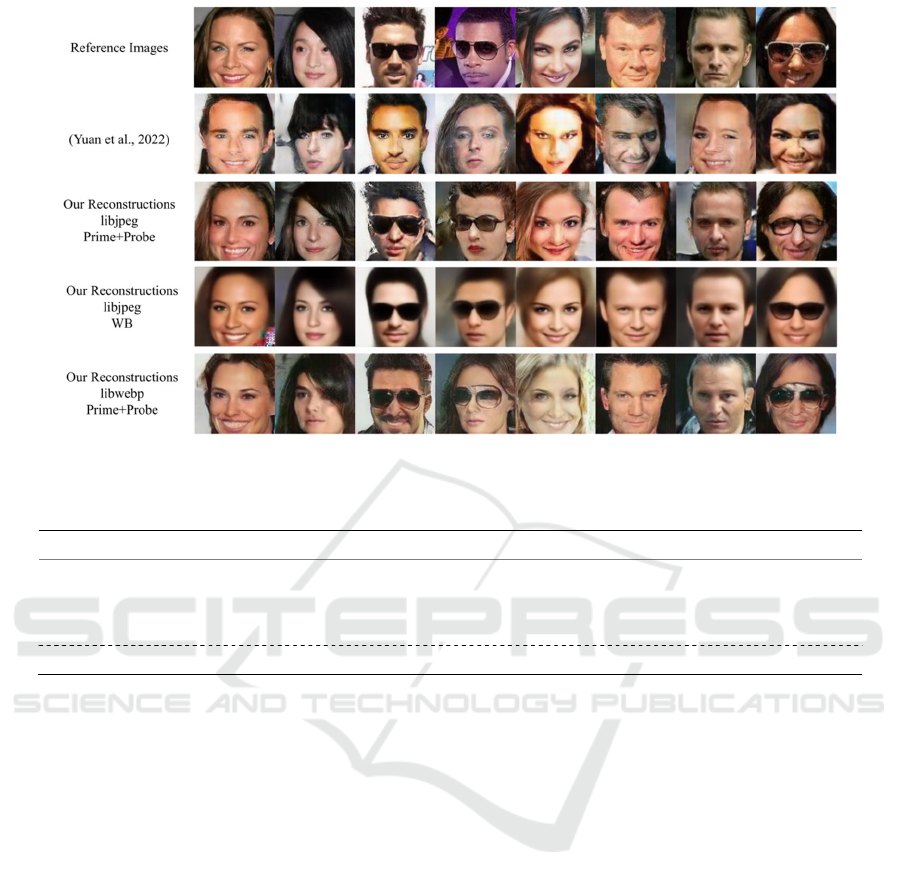

Figure 2: Qualitative Reconstruction Result.

Table 1: Quantitative Results of Experiments.

(Yuan et al., 2022) Ours

Attack Target

libjpeg libwebp

Max Trace Length 290745 897567

Attack Prime+Probe Prime+Probe WB Prime+Probe

Avg. SSIM score 0.09337 0.23059 0.32506 0.20095



rec

and 

pre

are reconstruction loss and

prediction loss, while  is a parameter used to balance

these two terms. 

rec

is defined as follows:



rec

 α  ,   1  α  , 





(3)

The first part is the structural similarity loss

(SSIM) (Wang et al., 2004). The SSIM score is a

common method to quantify the perceptional

similarity between two images by splitting the images

into blocks and comparing the luminance, contrast,

and structure of each block. It is a value between -1

and 1, and a higher score means a higher similarity.

The SSIM loss is defined as the opposite of the SSIM

score, which means a higher score infers a lower

similarity. Since the SSIM loss doesn’t consider the

difference of color, a mean square error (MSE) term

is added, and parameter α is the weight between these

two terms. The definition of 

pre

is as follows:



pre









,̂









fake

,̂



(4)

4 EVALUATIONS

The qualitative reconstruction results are shown in

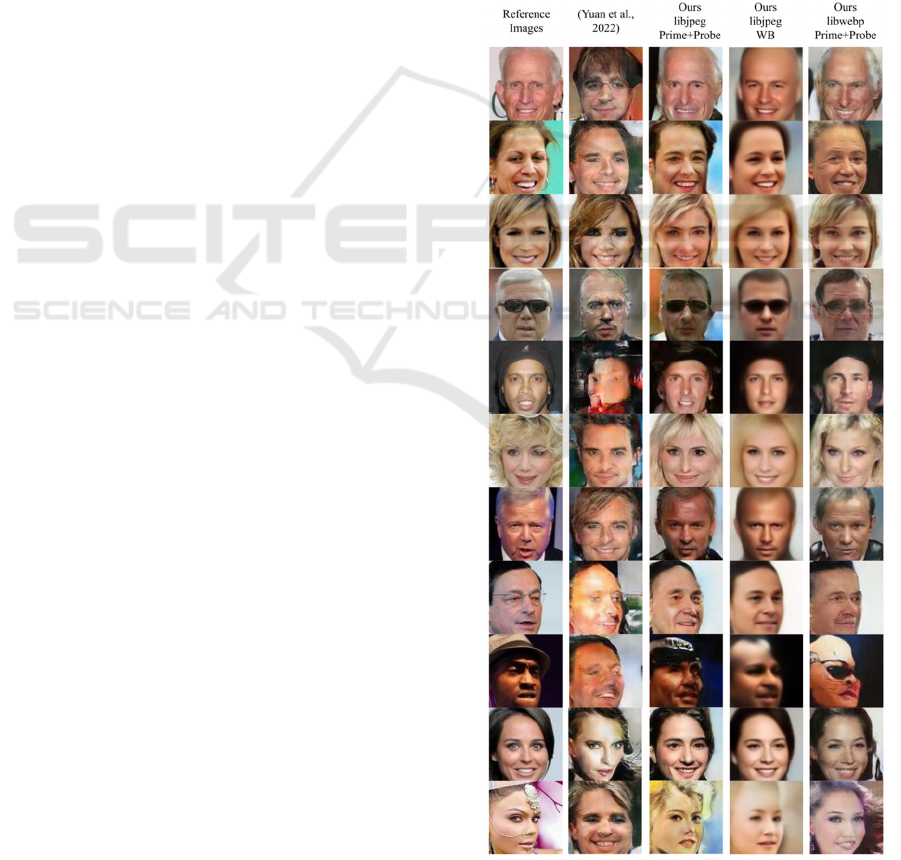

Figure 2. For more reconstructed images, please refer

to the Appendix. For the quantitative results, the

average SSIM score (Wang et al., 2004) is used to

quantify the reconstruction result. The score is

calculated by averaging the SSIM scores between the

reference images in the testing split and reconstructed

images. The settings of different experiments and the

average SSIM scores are presented in Table 1.

For the rest of this section, we will discuss the

results in more detail and compare them between

experiments.

4.1 Comparison with the Previous

Work

We compare our experiment results with the result

reconstructed with the framework proposed in the

previous work (Yuan et al., 2022). For the previous

DMMLACS 2023 - 3rd International Special Session on Data Mining and Machine Learning Applications for Cyber Security

582

work, they used the 7-th to 32-th bits in the memory

address in the traces when the side-channel is set to

cache line index, which contains more information

than a cache side-channel attacker can learn

theoretically. Our framework only uses the 7-th to 12-

th bits as the input, which corresponds to the number

of cache sets. Despite the reduced information in the

traces, a superior reconstruction result is achieved.

We will describe the reconstruction result of the

previous work as that there is some correspondence

between reference images and reconstructed images,

however, they are not visually similar. Images

reconstructed with our framework are much similar to

original images, in aspects of skin colors, hairstyles,

facial expression, and so on.

The reason that our framework performs better

can be explained in two aspects. First, in the previous

work (Yuan et al., 2022), their model interprets the

accessed memory addresses or cache line indexes as

a value. However, the values only represent a location

in the memory of the cache, not a magnitude of

something. We encoded the value using the binary

encoding method, which is believed to be the correct

way to interpret those values. Second, they use 2D

CNN for the model of the trace encoder. This forces

the model to consider elements scattered in traces

together and look for patterns inside them. On the

other hand, 1D CNN is used in our model, thus the

model will only consider the relation between

adjacent elements in traces.

4.2 Comparison Between the

Prime+Probe and the WB Attack

The qualitative and quantitative results show that the

neural network can reconstruct images with higher

fidelity when launching a write-back channel attack.

This result corresponds with our expectation, as there

is additional information about read/write in the

traces. However, according to our observation, the

result is largely dependent on the encoding of read

and write behavior. We haven’t spent much time

comparing different encoding methods.

4.3 Attack on libwebp

Comparing the results of attacking libjpeg and

libwebp with Prime+Probe attack, the fidelity of

images is at about the same level. Though we do

expect a better result considering the length of traces

is about 3 times longer, the outcome is negative. Our

interpretation is that the example program in

libwebp is more complicated and supports

transformation between more formats, thus, lots of

parts in the traces may not be relevant to the input

image, and they may cause. Regardlessly, we

showcased the potential of our framework to attack

more complex software.

5 CONCLUSIONS

This paper underscores the heightened significance of

cache side-channel analysis, revealing its greater

severity than previously acknowledged. We introduce

a novel cache side-channel analysis framework that

enables the precise reconstruction of images with

remarkable fidelity through cache side-channel

attacks, all without requiring any prior knowledge of

the targeted victim program. Importantly, our

illustration of image processing program exploitation

serves as an exemplary case, echoing prior findings

(Yuan et al., 2022) that the same attack framework

can be adapted to target diverse software types, such

as audio processing and text processing programs, by

simply modifying the image decoder model. This

compelling evidence underscores the imperative to

recognize the non-negligible threat posed by cache

side-channel analysis.

As the upper limits of information leakage

achievable through cache side-channel attacks are

explored, the next objective is to empirically assess

their practical viability by implementing real-world

Prime+Probe and write-back channel attacks. This

aspect of our research remains a subject for future

exploration. Additionally, the broader challenge of

reconstructing general images remains open for

further investigation. While our framework does not

assume any specific image type, it is worth noting, as

indicated in other research on image-to-image VAE

(Van Den Oord et al., 2017), that even with advanced

model design, the latent vector's dimension required

for the reconstruction of general images exceeds 128

significantly.

REFERENCES

Cook, J., Drean, J., Behrens, J., and Yan, M. (2022). There's

always a bigger fish: a clarifying analysis of a machine-

learning-assisted side-channel attack. In Proceedings of

the 49th Annual International Symposium on Computer

Architecture (pp. 204-217).

Cui, Y., Yang, C., and Cheng, X. (2022). Abusing cache

line dirty states to leak information in commercial

processors. In 2022 IEEE International Symposium on

High-Performance Computer Architecture (HPCA)

(pp. 82-97). IEEE.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B., Warde-

Cache Side-Channel Attacks Against Black-Box Image Processing Software

583

Farley, D., Ozair, S., ... and Bengio, Y. (2014).

Generative Adversarial Nets. Advances in neural

information processing systems, 27.

Hähnel, M., Cui, W., and Peinado, M. (2017). High-

Resolution Side Channels for Untrusted Operating

Systems. In 2017 USENIX Annual Technical Conference

(USENIX ATC 17) (pp. 299-312).

Irazoqui, G., Inci, M. S., Eisenbarth, T., and Sunar, B. (2014).

Wait a minute! A fast, Cross-VM attack on AES. In

Research in Attacks, Intrusions and Defenses: 17th

International Symposium, RAID 2014, Gothenburg,

Sweden, September 17-19, 2014. Proceedings 17 (pp.

299-319). Springer International Publishing.

WEBIST-2023-Cache_Side_Channel (2023). https://github.

com/ssuhung/WEBIST-2023-Cache_Side_Channel

Kwon, D., Kim, H., and Hong, S. (2021). Non-profiled deep

learning-based side-channel preprocessing with

autoencoders. IEEE Access, 9, 57692-57703.

libjpeg-turbo (2010). https://github.com/libjpeg-turbo/

libjpeg-turbo. [Online; accessed 10-April-2023].

libwebp (2011). https://github.com/webmproject/libwebp.

[Online; accessed 20-August-2023].

Liu, F., Yarom, Y., Ge, Q., Heiser, G., and Lee, R. B. (2015,

May). Last-level cache side-channel attacks are practical.

In 2015 IEEE symposium on security and privacy (pp.

605-622). IEEE.

Liu, Z., Luo, P., Wang, X., and Tang, X. (2015). Deep

learning face attributes in the wild. In Proceedings of the

IEEE international conference on computer vision (pp.

3730-3738).

Luk, C. K., Cohn, R., Muth, R., Patil, H., Klauser, A.,

Lowney, G., Wallace, S., Reddi, V. J., and Hazelwood,

K. (2005). Pin: building customized program analysis

tools with dynamic instrumentation. ACM SIGPLAN

Notices, 40(6), 190-200.

Moghimi, D. (2023). Downfall: Exploiting Speculative Data

Gathering. In 32nd USENIX Security Symposium

(USENIX Security 23) (pp. 7179-7193).

Oren, Y., Kemerlis, V. P., Sethumadhavan, S., and

Keromytis, A. D. (2015). The spy in the sandbox:

Practical cache attacks in JavaScript and their

implications. In Proceedings of the 22nd ACM SIGSAC

Conference on Computer and Communications Security

(pp. 1406-1418).

Tromer, E., Osvik, D. A., and Shamir, A. (2010). Efficient

cache attacks on AES, and countermeasures. Journal of

Cryptology, 23(1), 37–71.

Van Den Oord, A., and Vinyals, O. (2017). Neural discrete

representation learning. Advances in neural information

processing systems, 30.

Wu, L., and Picek, S. (2020). Remove some noise: On pre-

processing of side-channel measurements with

autoencoders. IACR Transactions on Cryptographic

Hardware and Embedded Systems, 389-415.

Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E. P.

(2004). Image quality assessment: from error visibility to

structural similarity. IEEE transactions on image

processing, 13(4), 600-612.

Xu, Y., Cui, W., and Peinado, M. (2015). Controlled-channel

attacks: Deterministic side channels for untrusted

operating systems. In 2015 IEEE Symposium on Security

and Privacy

(pp. 640-656). IEEE.

Yuan, Y., Pang, Q., and Wang, S. (2022). Automated side

channel analysis of media software with manifold

learning. In 31st USENIX Security Symposium (USENIX

Security 22) (pp. 4419-4436).

Yuan, Y., Wang, S., and Zhang, J. (2021). Private image

reconstruction from system side channels using

generative models. In Ninth International Conference on

Learning Representations.

Zhan, Z., Zhang, Z., Liang, S., Yao, F., and Koutsoukos, X.

(2022). Graphics peeping unit: Exploiting EM side-

channel information of GPUs to eavesdrop on your

neighbors. In 2022 IEEE Symposium on Security and

Privacy (SP) (pp. 1440-1457). IEEE.

APPENDIX

More reconstruction results are presented here.

DMMLACS 2023 - 3rd International Special Session on Data Mining and Machine Learning Applications for Cyber Security

584
