Research on Integrating Explicit/Implicit Semantic Representation

and Multimodal Knowledge Graph for Traditional Chinese Medicine

Digital Therapy

Longqing Zhang, Lei Yang, Xinwei Zhang

, Yungui Chen, Yongjian Huang and Jiawei Zhan

Guangdong University of Science and Technology, DongGuan, China

Keywords: Integrating Explicit, Implicit Semantic, Chinese Medicine Digital Therapy.

Abstract: The application of Artificial Intelligence (AI) technology is well-suited for Traditional Chinese Medicine

(TCM) due to its reliance on observation through "looking, smelling, questioning, and cutting", as well as

empirical diagnosis utilizing images, sounds, pulse sensing data, and other factors. This makes TCM an

important area for breakthroughs in AI technology. The primary goal of this project is to extract a large

quantity of TCM diagnostic knowledge that can be read by computers, train the TCM knowledge map

model to become a discriminative model, and allow the model to differentiate between pairs of entities with

different relationships or identify meaningful pairs of entities selected from randomly sampled negative

entities. Constructing the TCM knowledge graph involves three main modules: TCM knowledge extraction,

TCM knowledge fusion, and TCM knowledge computation. TCM knowledge extraction involves

identifying the constituent elements of the knowledge graph, such as entities, relationships, and attributes,

from vast amounts of semi-structured, structured, or unstructured pharmaceutical data, and determining the

most effective method for depositing these elements into the knowledge base. TCM Knowledge Fusion

integrates, disambiguates, and processes the contents of the TCM knowledge base, enhancing the logic and

expressiveness within the knowledge base, and updating outdated knowledge or supplementing new

knowledge for the TCM knowledge graph.

INTRODUCTION

Among the many application industries of AI

technology, Chinese medicine is an important

breakthrough direction in the application of AI

technology because of its empirical diagnosis

through images, sounds, and pulse sensing data in

the way of "looking, smelling, questioning, and

cutting", which is naturally compatible with the

application characteristics of AI technology. On the

basis of data-based diagnostic technology of Chinese

medicine characteristics, widely incorporating

modern medical micro-indicators, using big data and

artificial intelligence methods, exploring new

methods of diagnosis and classification of diseases,

can better establish intelligent diagnosis decision

support system with Chinese characteristics (Sun Z,

2018).Therefore, there is an urgent need to establish

a real-world clinical research paradigm in Chinese

medicine, regardless of the identification and

treatment, or treatment effects, complex paradigm,

using Chinese medicine clinical-based big data for

Chinese medicine research, clinical research

integration, building Chinese medicine structured

electronic medical records, improving Chinese

medicine clinical information collection system,

building Chinese medicine literature and clinical

database, developing Chinese medicine big data and

artificial intelligence technology applications, so as

to promote the great development of TCM.

This project proposes the research topic of

"Research on TCM digital therapy integrating

explicit/implicit semantic representation and

multimodal knowledge mapping", which is to

research and develop an intelligent diagnosis system

for TCM, covering the data of TCM diagnosis,

medicines, and cases by focusing on the big data of

TCM diagnosis and treatment in the field of

Artificial Intelligence + TCM, AI technology, and

Knowledge Mapping technology, and build a

platform for integrating science, industry, and

education into one.

214

Zhang, L., Yang, L., Zhang, X., Chen, Y., Huang, Y. and Zhan, J.

Research on Integrating Explicit/Implicit Semantic Representation and Multimodal Knowledge Graph for Traditional Chinese Medicine Digital Therapy.

DOI: 10.5220/0012277900003807

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Seminar on Artiﬁcial Intelligence, Networking and Information Technology (ANIT 2023), pages 214-219

ISBN: 978-989-758-677-4

RELATED WORK

Currently, the field of medicine stands as one of the

extensively employed vertical domains for

knowledge graph application. It is also a prominent

research area in the realm of artificial intelligence,

both domestically and internationally. The

utilization of knowledge graphs in intelligent

medical sectors, such as intelligent triage(McInerney

J, 2018), disease risk assessment, intelligent assisted

diagnosis and treatment, medical quality control, and

medical knowledge, holds promising prospects for

development. In China, numerous research teams

have been actively utilizing artificial intelligence

and knowledge graphs for training and exploration

in this field.

Mi et al (Lu Y, 2018) utilized polynomial logistic

regression (Logistic Regression), Random Forest

(Random Forest), Support Vector Machine (Support

Vector Machine), k-Nearest Neighbor (k-Nearest

Neighbor), Decision Tree (Decision Tree), Decision

Tree), Artificial Neural Network (ANN) and other

machine learning algorithms to build prediction

models for commonly used prescriptions and

evaluated them. The possibility of prescription

prediction and the amount of data required for robust

prediction are elucidated. It is a comprehensive

baseline model exploration of prescription

recommendation applications.

Audema et al (Xuan P, 2019) utilized NLP

(Natural Language Processing) and information

mining techniques to make a remarkable

contribution to the emergence of the first edition of

our medical atlas, which was constructed to cover

diseases, drugs, and diagnostic and therapeutic

techniques, including more than 1 million instances

of medical conceptual relationships.

Alshahrani (Perozzi B, 2014) and others used a

meta-path-like randomized wandering strategy and

performed the construction of input features and

performed the recommendation task. Some

researchers used heterogeneous network embedding

representations for relationship prediction studies.

Collobert et al (Xiao D, 2023) used CNN

(Convolutional Neural Network) model for named

entity recognition; Chiu &Osama et al. combined

CNN model with CRF model and designed residual

expansion convolutional neural network RDCNN-

CRF (Reduced Deep Convolutional Neural

Network).

Overall, the current key tasks for knowledge

graphs in healthcare are mainly focused on

healthcare knowledge extraction and knowledge

fusion. As for TCM healthcare, there are mostly

domestic studies and fewer foreign ones, while

knowledge graphs fusing explicit/implicit semantic

representations and multimodality for TCM digital

therapies are even more rarely seen.

SYSTEM DESIGN

This project introduces a "Study of Chinese

Medicine Digital Therapy Incorporating

Explicit/Implicit Semantic Representation and

Multimodal Knowledge Mapping." Its system

architecture, as depicted in Figure 1, revolves around

leveraging big data related to Chinese medicine

diagnosis and treatment within the realm of AI

combined with traditional Chinese medicine. AI

technology, and knowledge mapping technology,

and researches and develops an intelligent diagnosis

system for Chinese medicine, which covers the data

of Chinese medicine diagnosis and treatment,

medicines, and cases, and establishes a platform for

the integration of science, industry, and education.

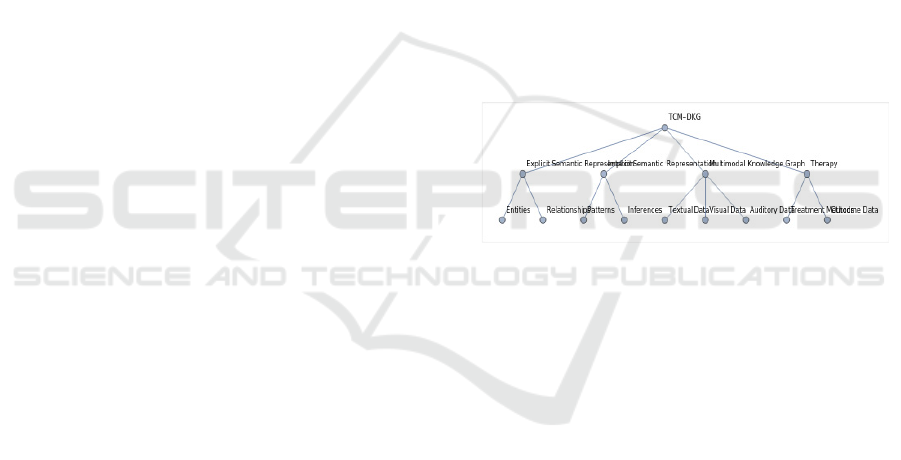

Figure 1: System architecture.

3.1 Knowledge Ontology Construction

The data schema, i.e., the ontology, is first defined

in the construction of the knowledge graph, which is

generally compiled manually by domain experts.

Definition starts from the topmost concepts and then

is gradually refined to form a well-structured

hierarchy of categorized concepts. Under the

guidance of the ontology, factual knowledge mining

is performed on existing data sources to form a

domain knowledge graph through entity discovery,

relationship extraction, knowledge fusion and

quality control.

The knowledge graph is populated with

information derived from various sources, including

structured, semi-structured, and unstructured data.

To analyze and utilize this data, knowledge

extraction techniques are applied to extract

structured information that can be comprehended

and processed by computers from the different

structures and types of data.Knowledge acquisition

is to extract knowledge from data of different

sources and structures(

Mikolov, 2013), to form

Research on Integrating Explicit/Implicit Semantic Representation and Multimodal Knowledge Graph for Traditional Chinese Medicine

Digital Therapy

215

structured knowledge and deposit it into the

knowledge graph. Currently, knowledge acquisition

is mainly carried out for text data, and the extraction

problems that need to be solved include: entity

extraction, relationship extraction, attribute

extraction and event extraction.

3.2 Domain-Specific Ontology

Construction

Chinese medicine is a complex and huge system

with thousands of types of entities, attributes, and

relationships, and it is obvious that to build a

complete knowledge rest system, it is far from

enough to rely only on the power of expert

manpower. For this reason, the automatic discovery

capability of ontology needs to be vigorously

studied. In the iterative process, the project uses the

existing ontology as a guide, and applies weakly-

supervised and unsupervised learning, such as

remote supervision and clustering, to explore the

general generalization and classification laws

between factual knowledge (entities, and their

attributes, and relationships) and conceptual

knowledge (concepts, and their attributes, and

relationships), so as to discover new ontologies, and

concepts.

3.3 Evaluation and Naming of Basic

Ontopsychological Concepts

The formation of basic mental concepts is influenced

by a number of factors, the most important of which

are the types and quantitative constraints on

conceptual connotations. By connotation, we mean

the attributes of the concept and their values.

Connotation constraints, on the other hand, refer to

the constraints on the range of values of attributes,

which have the properties of commonness, ease of

understanding, and so on. Connotation constraints

and their evaluation laws can be learned from the

mapping mechanism of existing ontological

concepts and facts. The maximum entropy

regression formula for concept evaluation can be

expressed as:

(1)

C is the target concept to be evaluated, which

consists of multiple feature cluster constraints p with

"or" relationships. Each feature cluster constraint p

consists of multiple sub-feature constraints with

"with" relationships. The sub-feature constraints are

binary (attribute, attribute value range). If an

attribute is constrained to take only one value, then

the attribute value range is that value. If the metric

perspective of this attribute is important, but the

attribute value is not important (i.e., when the

attribute needs to be considered qualitatively in the

formation of a concept, but a specific measure is not

needed, the range of values is noted as NULL). f(p)

takes the value 1 only if all sub-feature constraints in

p are satisfied, otherwise it is 0. Alternatively, p can

be an overall measure of the feature constraints, e.g.,

the number of constraints, the ease of

comprehension due to the structure, etc. Z is a

normalization factor in order to get the evaluation

value in the interval (0,1), which may not be

computed in the selection of the best concept (

Qu,

2023

REMOTE SUPERVISED

AUTOMATIC LABELING

ALGORITHM

The lower layer of the model is common across all

datasets, while the upper layer (specifically, CRF)

produces outputs that are specific to each dataset.

The character-level layer receives sentences from

the dataset as input and captures contextual

information at the character level using a BiLSTM,

which produces representation vectors for the

characters. These character-level vectors are then

combined with word-level vectors and passed

through a word-level BiLSTM. This generates a

contextual representation that encompasses both

word-level and character-level information. This

shared representation is trained using our multi-task

objective function. Finally, the CRF component of

the model produces annotations for the input

utterances based on the dataset it belongs to. We

train separate multi-task learning models for each

dataset.

4.1 Shared Layer

The input data of our dataset is represented as

s={w1, w2, ⋯, wn}, where wi represents the ith

word. To obtain word embeddings, we utilize a

word-level embedding layer that takes the input

sentence s and produces embeddings X = {x1, x2,

⋯, xn}. For character-level embeddings, we

introduce a space character on both sides of each

word to indicate the character input as c={c0,_, c1,0,

⋯, c1,_, c2,0, ⋯, cn, }, where ci,j denotes the jth

character of the word wi in ci, and _ represents the

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

216

space character immediately following wi. Then, we

map the individual characters in the sentence to

character embeddings, denoted as C={c0,_, c1,0, ⋯,

c1,_, c2,0, ⋯, cn}.

The character-level BiLSTM receives C as input

and generates alternative representations for each

word by concatenating the hidden vectors in the

character space that follow the words in both

forward and backward directions. It's important to

note that initial word embeddings are obtained from

a preprocessed word embedding lookup table based

on a large corpus, while character embeddings are

randomly initialized. During model training, both

types of embeddings are fine-tuned.

The word-level Bi\LSTM takes the concatenated

vectors of word embeddings and character-generated

word vectors as input, generating final word

representation vectors that effectively capture both

word-level and character-level features. This

framework allows the model to learn patterns based

on characters and handle out-of-vocabulary (OOV)

words, which are words not present in the word

embedding lookup table, while still making full use

of word embeddings.

4.2 Dataset-Specific CRF Layers

The chain-structured CRF is an effective framework

for constructing probabilistic models of sequence

labels that take into account the dependencies

between sequence labels. Therefore, we built a

dataset-specific CRF layer for sequence tag

prediction (e.g., Bio NER and POS tagging in our

experiments). We chose the IOBES tagging scheme

for BioNER. The final word representation vector

output from the shared layer is fed into the CRF

component to generate sentence annotations y = {y1,

y2, ⋯, yn}.

4.3 Small Sample Learning for

Knowledge Graphs

Current approaches to knowledge graph

complementation mainly map entities and

relationships to a low-dimensional vector space, but

utilize only the ternary structure <s,r,o> data in the

knowledge graph, ignoring the text, pictures and

numerical information that exist in large quantities

in the knowledge base. This project proposes to

embed the knowledge graph complementation model

based on multimodal Linked Data. Embedding

ternary as well as multimodal data together into the

vector space not only makes link prediction more

accurate, but also generates multimodal data with

missing entities in the knowledge base to realize the

knowledge graph complementation. Among them,

the vector embedding of multimodal data is

represented as follows:

a. Structured data: for entities of the knowledge

base mapping, their unique heat codes are passed

through a dense layer to get their embeddings;

b. Text: for those very short texts, such as names

and titles, the characters are encoded using bi-

directional GRUs; for those relatively long texts, the

final encoding is obtained by CNN convolution and

pooling over word vectors.

c. Images: using the VGG network pre-trained in

the corpus, the embedding of the images is obtained

d. Numerical information: fully connected

network, i.e., through a mapping that obtains

numerical embeddings

The objective function for training is denoted as:

(2)

If the ternary <s, r, o> exists in the knowledge

graph, the value is 1, otherwise it is 0. is the

probability that this triad holds as predicted by the

<s, r, o> model, which has a value between 0 and 1.

To tackle the aforementioned issues within the

meta-learning framework, we propose a meta-

learning algorithm that addresses target preference

and under-emergence problems. Firstly, we

incorporate an interactive attention extraction

module as an additional component to enhance

feature extraction. This module improves the

distinguishability of feature vectors, mitigates the

model's bias towards specific targets, and enhances

its ability to generalize to novel tasks. Secondly, we

employ graph neural networks to fully leverage the

relationships among samples, constructing graph

structures, and performing image classification at the

node level. This approach significantly enhances the

accuracy of classification by better capturing the

inherent connections within the data.

QUESTION AND ANSWER

TEXT MATCHING

TECHNIQUES FUSING

EXPLICIT AND IMPLICIT

SEMANTIC REPRESENTATION

The implicit chapter relationship analysis task is

actually a classification task, so the evaluation

metrics are also commonly used for classification

Research on Integrating Explicit/Implicit Semantic Representation and Multimodal Knowledge Graph for Traditional Chinese Medicine

Digital Therapy

217

tasks. The commonly used evaluation metrics are

accuracy and decay value.

Accuracy is defined as:

(3)

Where X is the total test data, |X｜ is the test

data size,

is the true category of the corresponding

data and y is the predicted category. Accuracy is the

proportion of all correct predictions to the total data.

The calculation of the decay value depends on the

precision rate and recall rate. Precision rate is

defined as:

(4)

Where x is the current category of interest.

Accuracy is how much of all the data predicted for

that category is correctly predicted. Words in natural

language can be viewed as discrete symbols that

cannot be given directly as input to a neural

network, so a representation needs to be found to

convert them into numerical inputs that the neural

network can accept. In addition to vocabulary, there

are many features that are also discrete symbols and

also require a representation to be used as input. One

traditional approach is to use solo heat vectors. This

is done by first collecting all the required words to

obtain a W. The unique heat vector of a word is then

represented as an N-dimensional vector: viyone-

hot[0,,,,,1,,,,0]T The

th digit in this vector is 1, and

all other digits are 0. The dimension of the unique

heat vector is the same as the size of the word list,

and thus for very large word lists, the dimensionality

of the unique heat vector is extremely high, making

it difficult to practically employ. This makes it

difficult to adopt in practice, and also the fact that

the unique heat vector uses different dimensions to

represent different words makes the vector almost

completely incapable of reflecting the semantic

information of the words, and the fact that the

representation of any two words is completely

orthogonal makes it difficult to reflect the semantic

information in this representation.

The primary procedure of our multilevel

semantic fusion model proceeds as follows: Initially,

we employ the SDT-CNN model proposed by us to

acquire the representation of the implicit factual

affective sentence SI found in the document D.

Subsequently, within the factual implicit sentiment

sentence SI, we consider the subject nouns as the

objects of the sentiment target. Then, we adopt the

FREERL model to extract the corresponding

attributes associated with each object. The average

of all object and attribute word embeddings is then

employed as the representation of the sentiment

target. In addition, all explicit sentiment sentences Sj

∈ SE within document D are treated as the

contextual semantic background. We utilize a rule-

based approach to categorize the sentiment polarity

of these sentences. We learn the representation of

each sentence Sj using the proposed SDT-CNN

model, while the CNN-based model is used to learn

the contextual semantic context representation.

Finally, we combine the learned multilevel feature

representations to form a comprehensive feature

representation for classification.

SUMMARY

This topic is oriented to the knowledge extraction

and fusion of Chinese medicine digital medical data,

in the knowledge extraction stage, for unstructured

data, based on its own irregular structural attributes

can be obtained using deep learning techniques to

obtain the relationship between the entities; for the

structured information with certain rules or semi-

structured form of the data, to take the crawler and

parser to the entity relationship between the

extraction and reconstruction. Knowledge fusion of

the knowledge obtained from the two data sources

mainly accomplishes the task of entity alignment,

and then the TCM digital medical knowledge is

stored to form a knowledge map, which provides

data support for the downstream data application

system.

ACKNOWLEDGMENTS

This research was financially supported by Special

Projects in Key Areas for General Universities in

Guangdong ProvinceNO.2021 ZDZX1077,in part of

Natural Science Foundation of Guangdong Province

of China with the Grant No.2020A1515010784,also

supported by Guangdong Institute of Science and

Technology Quality Project Editor

GKZLGC2022255, 2022 Guangdong Institute of

Science and Technology Innovation and

Improvement School Project No. GKY-2022CQTD-

2,2022 Guangdong Province Ordinary Colleges and

Universities Young Innovative Talents Category

Project, No. 2022KQNCX115,Innovation and

Improvement School Project from Guangdong

University of Science and Technology NO. GKY-

2019CQYJ-3 College Students Innovation Training

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

218

Program held by Guangdong University of Science

and Technology NO.1711034, 1711080, and

NO.1711088.

REFERENCES

Sun Z,Yang J,Zhang J.Recurrent knowledge graph

embedding for effective recommendation[C].

Proceedings of the 12th ACM Conference on

Recommender Systems, 2018: 297-305.

https://dl.acm.org/doi/10.1145/3240323.3240361

McInerney J,Lacker B,Hansen S.Explore,exploit,and

explain:personalizing explainable rec-ommendations

with bandits[C]. Proceedings of the 12th ACM

Conference on Recommender Systems, 2018:31-39.

https://dl.acm.org/doi/10.1145/3240323.3240354

Lu Y,Dong R,Smyth B.Why I like it:multi-task learning

for recommendation and explanation[C]. Proceedings

of the 12th ACM Conference on Recommender

Systems, 2018: 4-12.

https://dl.acm.org/doi/10.1145/3240323.3240365

Xuan P,Cao Y,Zhang T.Dual Convolutional Neural

Networks With Attention MechanismsBased Method

for Predicting Disease-Related lncRNA Genes[J].

Frontiers In Genetics, 2019, 10(416): 1-1.

https://doi.org/10.3389/fgene.2019.00416

Perozzi B,Al-Rfou R,Skiena S S.DeepWalk:Online

Learning of Social Representations[C]. In

KDD'14:Proceedings of the 20th ACM SIGKDD

International Conference on Knowledgediscovery and

Data Mining, 2014: 701-710.

https://doi.org/10.48550/arXiv.1403.6652

Xiao D, Wenjun X U, Jiayi L I U, et al. Manufacturing

capability service recommendation based on

knowledge representation learning for industrial cloud

robotics[J]. Computer Integrated Manufacturing

System, 2023, 29(3): 719. http://www.cims

journal.cn/EN/10.13196/j.cims.2023.03.003

Mikolov T,Chen K,Dean J.Distributed Representations of

Words and Phrases and their Com-positionality[C]. In

Proceedings of the 26th International Conference on

Neural Information Processing Systems. New York,

NY, USA, 2013: 3111-3119.

https://doi.org/10.48550/arXiv.1310.4546

Bhat A D, Acharya H R, HR S.A Novel Solution to the

Curse of Dimensionality in Using KNNsfor Image

Classification[C]. In 2019 2nd International

Conference on Intelligent Autonomous

Systems(ICoIAS), 2019: 32-36.

https://www.doi.org/10.1109/icoias.2019.00012

Qu Y, Ma L, Ye W, et al. Towards Privacy-Aware and

Trustworthy Data Sharing Using Blockchain for Edge

Intelligence[J]. Big Data Mining and Analytics, 2023,

6(4): 443-464.

https://www.doi.org/10.26599/bdma.2023.9020012

Research on Integrating Explicit/Implicit Semantic Representation and Multimodal Knowledge Graph for Traditional Chinese Medicine

Digital Therapy

219
