Design and Research of Equipment Asset Life Cycle Management

System Based on ERP

Delv Zhu, Xiao Tian, Huichuan Liu and Xi Cheng

Economic and Technological Research Institute of State Grid Jiangsu Electric Power Co., LTD, Nanjing, China

Keywords: Asset Management ERP, Life Cycle Management System, Design.

Abstract: In recent years, the government has paid more and more attention to energy saving. Energy consumption is

not only embodied in energy saving, but also needs to make full use of existing resources to bring good

economic benefits to enterprises. As an important factor of enterprise production, fixed assets are easy to

influence the future development of asset-intensive enterprises, therefore, the relevant enterprises should

pay attention to the analysis of fixed asset management. Based on this, this paper analyzes the electric

power enterprise ERP system, comprehensively considers the whole process information management of the

equipment assets, and realizes the optimal life cycle cost of the equipment assets on the basis of satisfying

the security, so as to achieve the whole process of system optimization management level.

1 INTRODUCTION

With the rapid development of science and

technology, many large enterprises through the

construction of information systems to improve

internal control management, determine the basic

framework of enterprises, standardize standard

business processes. However, from the current

equipment assets management of enterprises, power

grid investment is increasing year by year in the

form of the traditional completion of the decision-

making method can not meet the actual requirements,

it is necessary to construct the whole life cycle

management system of equipment assets based on

ERP, and realize the decision-making of project

completion and the automation of Project Capital

Transfer. At present, the whole process of project

management mainly includes equipment assets,

materials, contracts, project planning, financial and

other links, management requirements and

information can not be shared between the various

professional, all kinds of new problems and

contradictions among the professional management

can not give full play to the project management

service ability, which severely limits the level of

power grid project management. In view of this

situation, relevant enterprises should break through

the information limitation of engineering specialty,

further analyze the problems existing in the sharing

of engineering management information, and

explore the control points of different specialties in

project construction, overall optimization of

information integration and sharing, improve the

information system functions, to achieve business

integration and collaborative control (Mao Linlin,

2022).

2 THE DESIGN OF EQUIPMENT

ASSET LIFE CYCLE

MANAGEMENT SYSTEM

BASED ON ERP

2.1 System Architecture Design

By determining the system requirements and

development patterns, the system architecture is

designed as a four-tier C/s architecture, namely,

presentation layer, database layer, data access layer,

business logic layer. The presentation layer is used

to receive user access, after receiving user input, the

object of this layer applies business logic layer for

business processing, to read related data through the

connection data access layer, the data storage is all

controlled through the database layer. When all the

business processing is finished, the system

automatically transmits the processing results to the

presentation layer and presents them to the user in

the form of tables, text, and so on (Figure 1 shows).

464

Zhu, D., Tian, X., Liu, H. and Cheng, X.

Design and Research of Equipment Asset Life Cycle Management System Based on ERP.

DOI: 10.5220/0012286000003807

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Seminar on Artiﬁcial Intelligence, Networking and Information Technology (ANIT 2023), pages 464-467

ISBN: 978-989-758-677-4

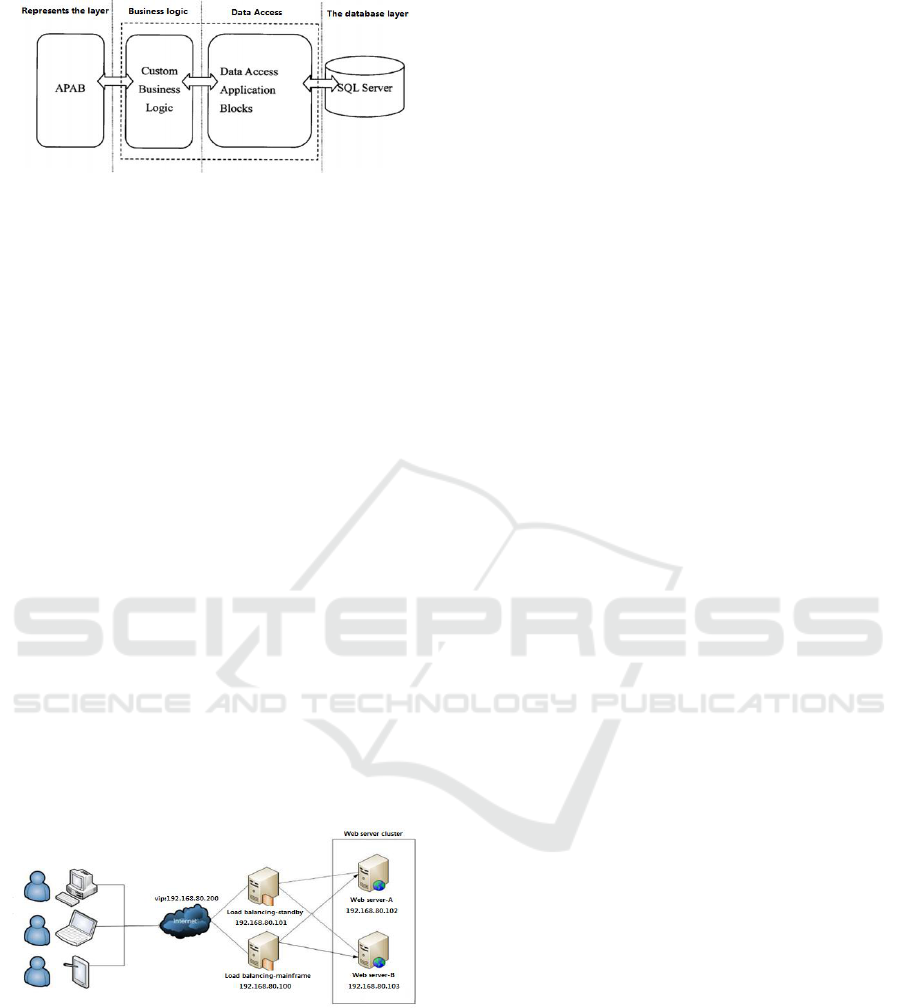

Figure 1: System architecture design.

From a holistic perspective, the system can be

divided into the following components:

Client. The system client based on C/S

architecture uses the relevant business of ERP

system through the form of client login.

Web server. The server is usually used to store

the management program of the whole management

system, realize the user request processing, realize

the interaction with the intranet database, and

transmit the result to the front client in time. It is

worth noting, however, that before the results are

transmitted to the client, the staff reorganizes the

data structures according to the client data

requirements to make them more client-friendly

(shown in Figure 2) . At the same time, the Web

server must be connected with the intranet server

through special processing program, and the more

complex data processing should be given to the

intranet server for unified processing. In addition, as

the Web server and intranet data server to connect,

so pay attention to analyze the security of the entire

network, in the intranet server and Web Server

Building Gateway, and install software firewall on

each server to avoid the phenomenon of malicious

attacks (Shih Ping-wang, 2022).

Figure 2: Web server.

Network gates. In order to ensure the security of

the system data, the staff should separate the internal

network from the external network, and the

intermediate position should be isolated by the

network gate.

Intrusion detection system. The main function of

intrusion detection system is to monitor and control

the running status of the system and the network in

real time, it can predict the attack result in advance

and guarantee the data security. At the same time,

intrusion detection system and firewall can be used

simultaneously to achieve the interaction between

the two.

Hardware firewall. The firewall is usually

installed behind the external network router,

according to the pre-set security measures to solve

special access and services, enhance network

security, reasonable control security risks.

Unified standard interface. In order to realize the

data sharing between the system and the external

system, the system design many unified standard

interfaces, the internal manager can control directly

through the client, the system can access the related

data through the interface form, thus realizes the

system data sharing function, strengthens the system

data consistency. (7) intranet application server. The

server is used to handle client and server transfers to

data and transfer the results of processing to the

system database (Ted Wong, 2022).

2.2 Functional Module Structure Design

(1). Project Material Planning Module

The project material planning module mainly

includes three-code corresponding update

mechanism workflow, three-code automatic

matching function enhancement, three-code

corresponding batch import and report query sub-

modules. Three-code corresponding batch import

and report query can apply asset classification,

material coding and equipment classification to ERP

system by batch import template, and can select field

query report. At present, the concrete fields of the

report form are composed of asset subcategory,

equipment classification, material code, material

description, etc., according to the ERP project

network related material requirements, according to

the three code corresponding standards, the system

automatically enhances the relationship between

equipment classification and matching material code;

The work flow of the three-yard corresponding

renewal mechanism mainly aims at the material

requirements of the first project, and notifies the

Financial Department of the company in time

through this mechanism, including the material sub-

category, the reporter, the Improvement Unit, the

reporting time and other information (Ndeles, 2022).

(2). Project Construction Module Project

Construction Module has four sub-modules, that is,

legal contract verification function, sub-project

contract implementation table, project image

progress and financial progress statements, key

Design and Research of Equipment Asset Life Cycle Management System Based on ERP

465

business node early warning function. 1) early

warning function of key service node. By building

this function, the system can automatically trigger

the work flow to the early warning when the

business node reaches the early warning value set in

advance, send an early warning message to the

recipient of the message. According to the receiver,

business type and item definition elements, the

report can select query to monitor the early warning

situation and issue the corresponding early warning

information. 2) project contract performance

statement. It is mainly divided into other engineering

cost, project service procurement contract

implementation, project material procurement

contract implementation and so on. It is necessary to

centralize the data and information of material

requirements submitted to the final accounts of the

completed project, such as the amount, quantity,

time and other data, a comprehensive presentation of

the project management process; 3) project image

progress and financial progress statements. The

white label can query the total investment of the

project, the amount completed this year, the

cumulative plan and other contents, involving

construction projects, installation equipment, other

costs and other links, analyze the difference between

actual and financial progress; 4) enhance the

function of contract verification by law. The

procedure automatically checks that the purchase

order for a construction project is essentially the

same as a legal system contract and prohibits the

creation of purchase orders that are not subject to a

legal system contract (as shown in Figure 3) . For

such purchase orders, which can not be obtained

through system integration, staff members are

required to manually fill in the legal contract number,

which is manually entered by the user. For

supermarket purchase order and Framework

Agreement release order, we should replace contract

number by Supermarket + Purchase Order Number

and framework agreement contract number +

purchase order number [5].

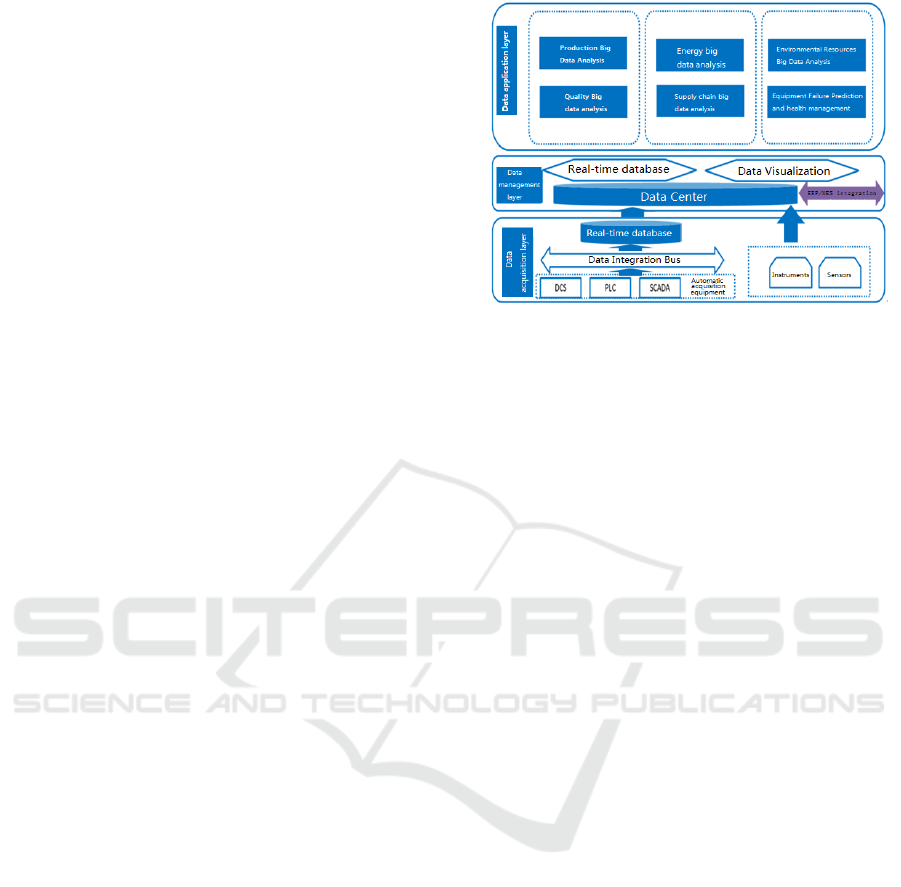

Figure 3: Project construction module.

3 CONCLUSION

To sum up, this paper through the analysis of ERP

equipment asset management system development,

through the analysis of system architecture design,

master the basic structure of system design, improve

the integrity of the system. At the same time, further

detailed system functional structure design, such as

Project Construction Module, engineering materials

module, ERP equipment asset management system

to lay a solid foundation for the application of

related enterprises to achieve sustainable

development.

ACKNOWLEDGMENT

This paper is one of the achievements of “Research

service of Jiangsu Economic Research Institute of

State Grid on the explicit method of power grid

equipment assets life-cycle investment based on

multi-dimensional management hierarchy”. The

project is supported by Jiangsu Electric Power Co.,

LTD. The project number is B110K0224TUI.

REFERENCES

Mao Linlin, Zheng Kun, Shen Yunming, et al. Medical

Equipment Life Cycle Asset Tracking and management

system based on RFID [J]. Chinese medical equipment,

2022, 37(1): 9-11,32.

Shih Ping-wang. Research on the application of the whole

process management of urban rail transit equipment

assets based on BIM [J]. Building Technology, 2022,

6(1) : 70-73.

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

466

Ted Wong, Liu Jieyun, Ho wai-kit, etc. The construction

of equipment asset management system in intelligent

hospital [J]. China new communications, 2022, 24(20):

50-52.

Method for verifying the on-site equipment inventory

entered into the asset management system:

CN202080049655.1 [P], Ndeles and Hauser Process

Solutions, Inc. 2022-02-25

Equipment Management System and method based on

pipeline asset integrity management evaluation:

CN202210282250.3 [P], State oil and Gas Pipeline

Network Group Co. , Ltd. 2022-07-29

Design and Research of Equipment Asset Life Cycle Management System Based on ERP

467
