Numerical Simulation of Harmonic Distortion on DC Power Distribution
System on Trailing Suction Hopper Dredger Vessel
Bagas Raihan Akbar, Adi Kurniawan and Indra Ranu Kusuma
Department of Marine Engineering, Institut Teknologi Sepuluh Nopember, Surabaya, Indonesia
Keywords:
Marine Vessel, Modeling and Simulation, Modern Electricity, Power Electronics, Power Quality.
Abstract:
The distribution system on ships usually uses an AC system, while in this study, the reconfiguration of the
AC distribution system into DC will be carried out, this is a way to increase the efficiency of fuel use in ship
diesel generators. By reconfiguring the distribution system, the influence of impedance on the AC current can
be eliminated. But reconfiguring the distribution system has an additional component, namely the converter,
so that it can increase harmonic distortion and total harmonic distortion (THD) in the ship’s electrical system.
This harmonic improvement can affect the quality of the power flowed in the system because it changes the
waveform to not perfectly sinusoidal, so that the ship’s electrical equipment can experience overheating which
can reduce the performance of the ship’s electrical equipment. In this study, an analysis was carried out
to determine the number of harmonics that occur when the ship uses a DC electricity distribution system.
Harmonic disturbance analysis is simulated using computer software, considering the operational conditions
of the ship. From the results of the DC distribution simulation, total harmonic distortion (THD) was obtained
on the generator bus and got the average of each condition are at 7.30% on the generator bus. Based on IEEE
519-2014 standard, the limit of total harmonic distortion is 8%, so that the result of total harmonic distortion
is less than to the specified limit standard, but the results of Individual Harmonic Distortions (IHDs) are still
exceeding the limit of IEEE 519-2014, which still above 5%. So, it is still necessary to find solution to reduce
harmonic distortion that occurs.
1 INTRODUCTION
Dredger ship is a specially designed ship that has
function to perform dredging such as in seas, rivers,
lakes, and so on. Dredger ships are designed for
dredging of siltation waters. There are various types
of dredger ship, one of which is Trailing Suction Hop-
per Dredger (TSHD). TSHD ships have some spe-
cial equipment used in dredging. Equipment used in-
cludes drag head gantry, trunnion gantry, intermedi-
ate gantry, etc. Most of these components require a
large supply of electricity. The electricity in ship is
supplied by generator which produces AC electricity.
The use of AC electricity on the ship itself has advan-
tages and disadvantages, which one of the disadvan-
tages is to have frequency value where in the DC Cur-
rent distribution it will eliminate the frequency value,
so that losses that occur due to impedance in the cable
can be eliminated (Budianto et al., 2022; Tessarolo
et al., 2013).
The DC power distribution system works by using
rectifier to convert AC voltage from the generators to
DC voltage, distribute it through 0 frequency DC line,
and restore it to AC before the load panels (Kurni-
awan et al., 3 02), (Kusuma et al., 2022). However,
the conversion from AC-DC-AC leads to harmonic
distortion which may causing several consequences
such as overheating to communication interference in
communication lines, which can result in the equip-
ment not being able to operate optimally or causing
damage (Tariq and Iqbal, 2014; Naji and Hussein,
2021; Benaboud and Rufer, 2019). International of
Electrical and Electronics Engineer (IEEE) contained
in IEEE 519-2014 regulates the occurrence of har-
monics with Individual Harmonic Distortion (IHD)
less than 5% and Total Harmonic Distortion (THD)
less than 8% in electrical components.
This research focus on harmonic analysis due to
the application of the DC distribution system in a
TSHD ship with the comparison of the harmonic on
the original AC distribution system. If the results of
THDs are more than the standards set by the IEEE,
the passive filter will be calculated to reduce it
Akbar, B., Kurniawan, A. and Kusuma, I.
Numerical Simulation of Harmonic Distortion on DC Power Distribution System on Trailing Suction Hopper Dredger Vessel.
DOI: 10.5220/0012440000003848
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 3rd International Conference on Advanced Information Scientific Development (ICAISD 2023), pages 15-18
ISBN: 978-989-758-678-1
Proceedings Copyright © 2024 by SCITEPRESS Science and Technology Publications, Lda.
15
2 METHOD
2.1 AC Distribution Single Line
Diagram Modeling
The electrical system used in this research is from the
data of the King Arthur III TSHD ship. The origi-
nal single line diagram of the AC distribution system
from the King Arthur III is modeled in power system
simulation software. Figure 1 shows the modeling of
the AC distribution system in power simulation soft-
ware. The process of preparing a single line distri-
bution diagram is divided into the following stages.
First, setup the main and standby generator. Then,
setup the buses such as MSB, ESB, Panel 220V, Panel
380V Pump Room, AC Panel, and generator Panel.
Arrangement of the load buses, the cables and the
equipment on the load buses are the last step to be
done.

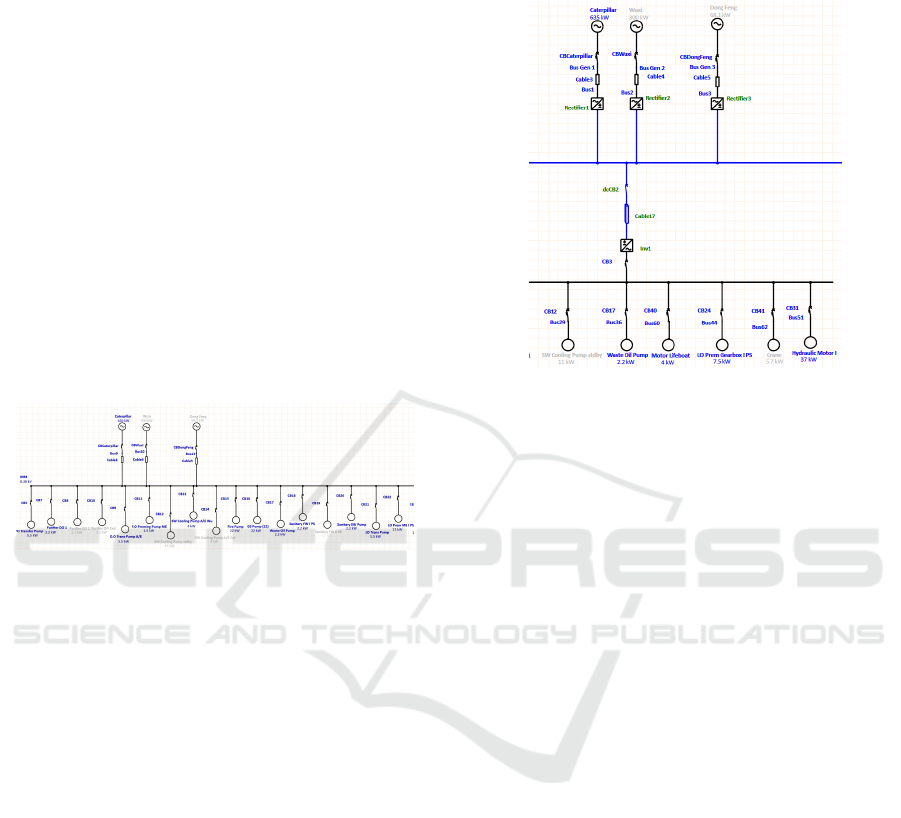

Figure 1: Original AC distribution system of King Arthur
III ship.
When the modeling on single line diagram AC
Distribution system process has been completed, the
next step is to run a simulation with the software. The
data that wants to be obtained from this simulation is
the amount of harmonic in the power system
2.2 DC Distribution Single Line
Diagram Modeling Using Software
After modeling and simulation on the AC distribution,
the next process is reconfiguring the original AC dis-
tribution system to the DC distribution system. The
modified system is shown in Figure 2. The process
of reconfiguration from ac to DC distribution is di-
vided into the following stages. First, calculate the
rectifier to convert the AC power from the generator
into DC before the main bus. Then, make the group
of load buses based on their location on the ship, as
each group will be connected to a 3-phase inverter.
The other necessary equipment such as cables, circuit
breakers and buses also need to be re-selected.
Similar to the original AC distribution system, in
the DC distribution system, the amount of harmonic
in the power system needs to be obtained. The data
is obtained from run the simulation in power system
simulation software.
Figure 2: Modified DC distribution system of King Arthur
III ship.
3 RESULTS AND DISCUSSION
3.1 Harmonic Analysis of AC
Distribution System
Harmonic simulations were carried out on four main
conditions of the ship, namely seagoing, manoeu-
vring, dredging, and at port. Through the carried-out
simulation, the value of the harmonic that occurs in
each equipment and bus are obtained. In this sys-
tem, the 3 available generators are work not in sync,
or works only one depending on the operating condi-
tions. Caterpillar generators are used during seago-
ing, manoeuvring, dredging, and at port conditions,
while Wuxi generators are used during seagoing, ma-
noeuvring, and at port conditions. For seagoing and
manoeuvring conditions, Wuxi generator is turned on
alternately with Caterpillar generator. Meanwhile, the
last generator, the Dongfeng generator is only used
during at port for lighting, and communication navi-
gation.
Based on the harmonic simulations that have been
carried out, some of the largest harmonic value occurs
in dredging conditions is shown in Table 1
3.2 Harmonic Analysis of DC
Distribution System
In this section, harmonic simulations are also car-
ried out on several main conditions of the ship,
ICAISD 2023 - International Conference on Advanced Information Scientific Development
16
Table 1: Voltage THD results of AC distribution system.
Bus Name V (%) THD(%)
FO Transfer Pump (Bus
1)
99.92 1.69
D.O Trans Pump A/E
(Bus 10))
99.92 1.69
LO Trans Pump (Bus 35 99.92 1.69
GS Pump (Bus 57) 99.18 1.67
Bus Generator 1 100 1.68
Bus Panel 220V 97.97 6.12
namely seagoing, maneuvering, dredging, and at port.
Through the simulation, the value of the harmonic
that occurs in each equipment and bus is obtained. As
shown in Table 2, the value of the harmonic in dredg-
ing condition after reconfiguration (DC) has increased
compared to before the reconfiguration (AC).
Table 2: Voltage THD results of DC distribution system.
Bus Name V(%) THD(%)
FO Trans Pump (Bus 10) 100.00% 9.91%
DO Trans A/E (Bus 27) 100.00% 12.92%
LO Transfer Pump (Bus
41)
100.00% 12.05%
Bus 69 (GS Pump) 100.00% 14.51%
Bus Panel 220 V 100.00% 8.77%
Bus Generator 1 100.00% 7.30%
3.3 Harmonic Filter Installation
Based on the result of the simulation carried out on
the DC Distribution system, the harmonics that oc-
curs exceed the limits of the IEEE standard. There-
fore, improvements are needed to reduce the harmon-
ics that occur on each bus. In this study, passive fil-
ters are used as the tool to reduce the harmonics. The
installation of a passive filter in the DC distribution
electrical system aims to limit the harmonic current
flowing on the bus used to supply electrical loads.
Passive filter is a circuit consisting of capacitor
and inductive components, where these components
can reduce harmonics that occur at a certain fre-
quency. There are several kinds of passive filters, and
in this study the passive filter used is a single-tuned
passive filter, which can reduce harmonics at one fre-
quency. The single-tuned filter also produces reactive
power compensation so that this filter can also im-
prove the power factor of the bus to which the filter
is attached. There are several stages of design so that
the installation of the filter can be effective and effi-
cient. First, the harmonics source should be identi-
fied. After that, identify the largest harmonics in four
conditions when the ship operates. Then, the highest
Individual Harmonic Distortion (IHD) on the bus that
would be filtered also need to be identified. Lastly,
setup the harmonic passive filter at the bus which had
the largest harmonic.
After analyzing each of the stages, a single-tuned
passive filter design is obtained to reduce harmonics
in the DC distribution system. Table III is the design
of a single-tuned passive filter resulting from calcu-
lations with software about the size of the capacitor,
inductor, and quality factor (Q factor) for each filter
and the location of the filter installation
Table 3: Design of single-tuned passive filter for DC distri-
bution system.
Bus Filter O C µF L mH (Q)
Bus Gen-
erator
Single
Tuned
47 167.3 0.0086 40
Bus 380V
No.1
Single
Tuned
47 441.3 0.0033 40
Bus 380V
No.2
Single
Tuned
47 166.9 0.0086 40
Bus 380V
No.3
Single
Tuned
47 169.7 0.0085 40
Bus 380V
No.4
Single
Tuned
47 153.8 0.0094 40
Bus 380V
No.5
Single
Tuned
47 131.9 0.0109 40
Bus 380V
Pump
Room
Single
Tuned
47 455.1 0.0032 40
Bus Panel
220V
Single
Tuned
5 664.8 0.1915 40
3.4 Harmonic Filter Installation Effect
The addition of a single-tuned passive filter affects
the harmonic disturbance that occurs in the DC dis-
tribution system. With the harmonic filter there is a
decrease in THD that occurs on each bus. Table IV
shows the result of the simulation on the DC distribu-
tion system after the filter is installed. From the sim-
ulation results, the addition of a single-tuned passive
filter may significantly reduce the harmonics that oc-
cur in the DC distribution system. It is to be noted that
the installation of this filter does not fully eliminate
the harmonics because only one harmonic frequency
is muted so that there are still harmonics injected into
the DC distribution system.
Numerical Simulation of Harmonic Distortion on DC Power Distribution System on Trailing Suction Hopper Dredger Vessel
17
Table 4: Voltage THD results of DC distribution system
with installed filter.
Bus Name V (%) THD(%)
Bus FO Trans (Bus 10) 100.00% 0.00%
Bus DO Trans A/E (Bus
27)
100.00% 0.00%
LO Transfer Pump (Bus
41)
100.00% 0.00%
Bus 69 (GS Pump) 100.00% 0.00%
Bus Panel 220 V 100.00% 2.36%
Bus Generator 1 100.00% 0.00%
4 CONCLUSION
Reconfiguration of the AC distribution system to DC
on Dredger ship raises several technical challenges
that need to be overcome, one of which is harmonic
distortion. The addition of converters in the DC distri-
bution system results in an increase in harmonic dis-
tortion that occurs. This is evidenced from the simu-
lation results with THD on AC conditions on the bus
generator panel of 1.67% THD on dredging condi-
tions and 7.30% THD on DC distribution system and
the Individual Harmonic Distortion at DC distribu-
tion system is 5.4% at 47th ordo. However, this level
of THD and IHD are still solvable with installing a
single-tuned passive filter on the DC distribution sys-
tem. After installing the filter on the DC distribution
system, the THD that occurs has decreased to 0.00%
which is acceptable according to the IEEE 519-2014
standard. With a normal size, simple passive filter, the
problem of THD on the DC distribution system can
be ignored and the promising DC distribution system
may be installed in conventional propelled ship such
as TSHD vessel.
REFERENCES
Benaboud, A. and Rufer, A. (2019). A high voltage direct
current transmission system: natural and selective har-
monic cancellation. International Journal of Power
Electronics and Drive Systems (IJPEDS, 10(3):1410,.
Budianto, F., Kurniawan, A., Kusuma, I., and Kurniawan,
A. (2022). Comparison of voltage harmonics in ac
and dc shipboard electrical power distribution systems
: A case study of 17 , 500 dwt tanker vessel. IOP
Conference Series: Earth and Environmental Science,
972:1–5.
Kurniawan, A., Kurniawan, A., Sarwito, S., Gumilang, A.,
and Budianto, F.(2023-02). Power flow analysis of dc
distribution system in a ship with non-electric propul-
sion. International Journal of Electrical and Com-
puter Engineering (IJECE, 13(1):9.
Kusuma, I., Semin, M., and Koenhardono, E. (2022). Load
flow simulation of radial shipboard network structure
with direct current distribution systems. IOP Confer-
ence Series: Earth and Environmental Science, Feb,
972(1).
Naji, H. and Hussein, H. (2021). Application of computa-
tional methods for harmonic state estimation of power
system networks. Indonesian Journal of Electrical
Engineering and Computer Science, 22(1):1.
Tariq, M. and Iqbal, M. T. (2014). Power quality im-
provement by using multi-pulse ac-dc converters for
dc drives: Modeling, simulation and its digital imple-
mentation. Journal of Electrical Systems and Infor-
mation Technology, 1(3):255–265.
Tessarolo, A., Castellan, S., Menis, R., and Sulligoi, G.
(2013). Electric generation technologies for all-
electric ships with medium-voltage dc power distri-
bution systems. In 2013 IEEE Electric Ship Technolo-
gies Symposium, ESTS 2013, page 275–281.
ICAISD 2023 - International Conference on Advanced Information Scientific Development
18
