DYNAMIC TOOLS TO CONTROL COMPLEX SYSTEMS

Mahfoud MABED

Laboratoire d’Ingenièrie des systèmes automatisés LISA FRE 2656 CNRS

Université d’Angers, 4 boulevard Lavoisier 49100 Angers, France

Keywords: Discrete event systems, Modeling, Petri nets, Scheduling

Abstract: The idea of complex sequencing is strongly related to scheduling and real time systems. It appears when a

resource has to be shared by more than one user or when a job must be handled by some concurrent entities.

The originality of our research is mainly to build a dynamic link between a scheduling solution and a

simulation approach based on Petri Nets (PN). This paper addresses with the modeling of an electroplating

line with max plus algebra theory and Petri Nets. As a schedule representing a sequence that contains a

series of jobs, we can obtain a corresponding polynomial by using Lagrange interpolation. Then, we can use

these polynomials to ensure a real time connection between a schedule procedure and a Petri nets

simulation. The use of this approach will lead us to deal with different disturbances. Indeed, for any

disturbance we should calculate a new schedule and a new polynomial will be found. This polynomial will

be assigned to Petri nets Model without modifying its structure.

1 INTRODUCTION

The scheduling approach is realized by using max

plus algebra theory. It is based on a model that we

have previously developed. We first look for a

mathematical model to find a cyclic schedule for

the hoist Scheduling Problem (HSP) (Bloch, 1999).

Therefore, concurrence appears for resource

utilization and only deterministic discrete event

systems can be described in the max algebra

(Gaubert, 1992). A relaxation is then proposed to

find a first solution. Then some heuristics (rules)

are introduced to respect resource constraints and

an admissible solution (schedule) is proposed.

The second approach is based on Petri nets

(PN) their practical use for discrete event systems

are well known in the literature. Nevertheless,

more powerful tools are necessary to deal with

some complex systems. The functions attached to

arcs in Colored Petri nets (CPN) sometimes seem

to be more difficult to understand. We propose

here to use Z/pZ Petri nets to model some complex

sequencing. A mathematical structure is defined to

represent the relation between the colors (Mabed,

2003).

This algebraic structure is an isomorphism

between a set of colors and a finite field Z/pZ.

2 PETRI NETS AND EVENT

GRAPH

A PN is a bipartite directed graph with two types

of nodes: the places and the transitions. These

nodes are joined by directed arcs. A transition X

i

is

enabled if and only if each of its input places

contains at least one token (assuming that the

weight of each arc is equal to 1).

It is also possible to assign a time to each place

or transition. In that case, the Petri net is called

respectively P-timed or T-timed Petri nets. Such a

time represents the time taken by the related

transition to fire.

In a P-Timed Petri Nets (P-TPN), a firing is

initiated by removing token from each of the input

places after a period of time equals to the time

assigned to the place. Then, one token appears in

each output place at the instant when the firing

terminates. The reader is referred to (Mabed, 2002)

for details.

An event graph is a Petri net such that each

place has exactly one input transition and one

output transition and such that every arc is 1-

weighted. In this way only synchronization

constraints (logical AND) can be represented,

whereas alternative choices (corresponding to

277

MABED M. (2004).

DYNAMIC TOOLS TO CONTROL COMPLEX SYSTEMS.

In Proceedings of the First International Conference on Informatics in Control, Automation and Robotics, pages 277-284

DOI: 10.5220/0001144402770284

Copyright

c

SciTePress

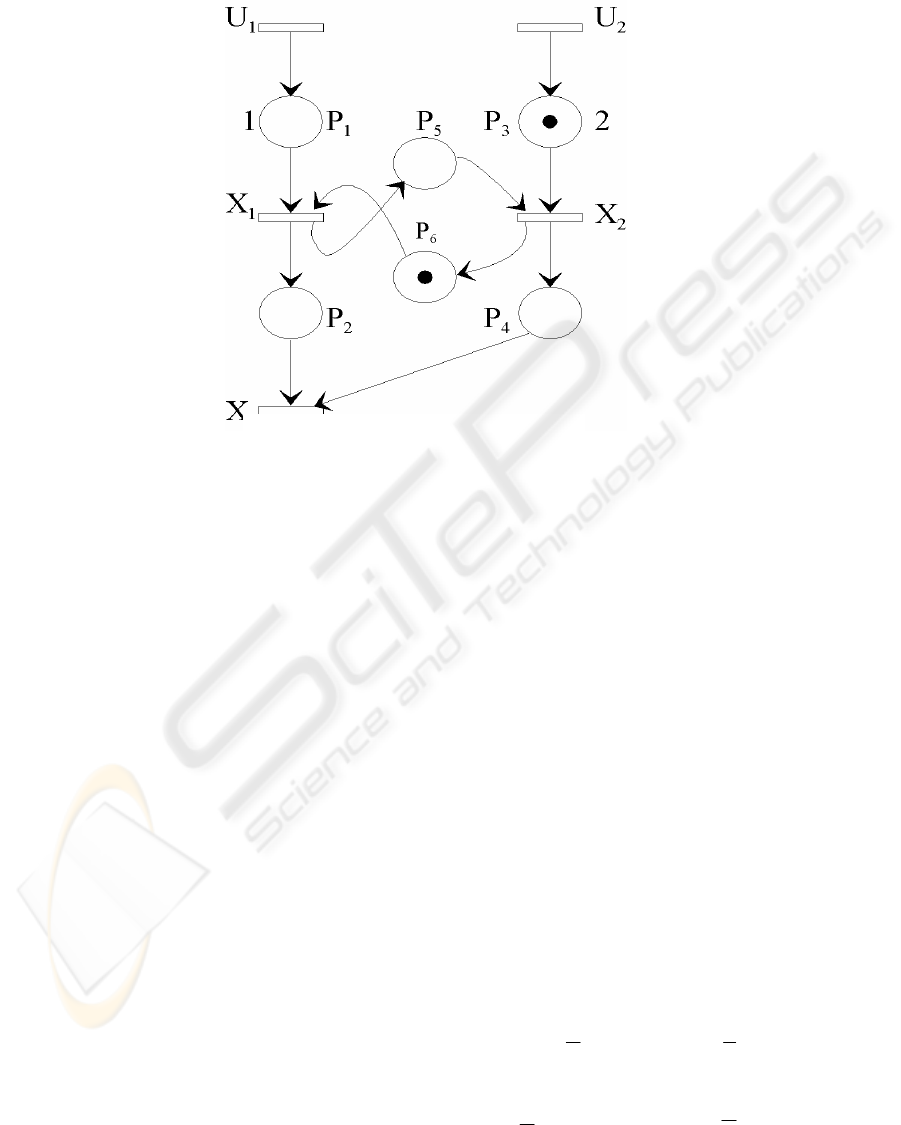

logical OR) cannot be represented. Figure (1) gives

an example of a P-timed event graph. Transition X

1

(resp X

2

) will be fired if there is a token in both

places P

1

and P

6

(resp P

3

and P

5

). In P

1

and P

3

,

token must spend a period of time equals

respectively to 1 and 2. This is the time assigned to

these tokens in these places before leaving.

3 MAX PLUS THEORY

The dioid IRmax = (IR∪{-∞},max,+) is an

algebraic structure with two operations, max as

addition (denoted by ⊕) and + as multiplication

(denoted by ⊗ or simply omitted). e= -∞ plays the

role of the null element for ⊕ (such that e⊕a=a)

and ε=0 plays the role of the unit element for ⊗

(such that a⊗ε=ε⊗a=a). We refer the reader to

(Cohen, 1989) (Spacek, 1998) to learn the main

properties of this structure.

The combinatorial properties of dioids (i.e.

associativity, commutativity of ⊕ and ⊗ and

distibutivity of ⊗ over ⊕), allow matrix

manipulations in a conventional way. It is no hard

to see that the following equations must hold for

the above example in figure 1.

X

i

(k) represents the date of the k

th

firing of

transition X

i

.

X

1

(k) ≥ U

1

(k) + 1 and X

1

(k) ≥ X

2

(k-1)

X

2

(k) ≥ U

2

(k-1) + 2 and X

2

(k) ≥ X

1

(k)

X

3

(k) ≥ X

1

(k) and X

3

(k) ≥ X

2

(k)

or

X

1

(k) ≥ max (X

2

(k-1),U

1

(k) + 1)

X

2

(k) ≥ max (X

1

(k), U

2

(k-1) + 2)

X

3

(k) ≥ max(X

1

(k), X

2

(k))

For instance X

2

(k) can be fired if the transitions

X

1

(k) and U

2

(k-1) have been fired and if the

minimum duration allowed to the places has been

respected.

X(k)≥

⎟

⎟

⎟

⎠

⎞

⎜

⎜

⎜

⎝

⎛

ε

εε

εεε

ee

e

X(k)⊕

⎟

⎟

⎟

⎠

⎞

⎜

⎜

⎜

⎝

⎛

εεε

εεε

εε e

X(k-1)

⊕

⎟

⎟

⎟

⎠

⎞

⎜

⎜

⎜

⎝

⎛

εε

εε

ε1

U(k) ⊕

⎟

⎟

⎟

⎠

⎞

⎜

⎜

⎜

⎝

⎛

εε

ε

εε

2

U(k-1)

We can easily write :

≥)k(X

v

0i=

⊕ A(i) X(k-i) ⊕

w

0j=

⊕ B(j) U(k-j)

We can solve this problem via rational methods

familiar in language theory (introducing “star”

operation A*=e ⊕ A ⊕ A

2

⊕ …⊕A

n

)

X(k) ≥

v

1i=

⊕ )ik(X)i(A − ⊕

w

0j=

⊕ )jk(U)j(B −

With

)i(A = (A(0))* A(i) and )j(B = (A(0))* B(j)

Figure 1:An event graph

ICINCO 2004 - ROBOTICS AND AUTOMATION

278

4 DESCRIPTION OF THE

PROBLEM

Production line fed with one or more hoists are

used in a large number of cyclic industrial

applications. The moving devices (hoists) transport

products from one station to another, according to

a sequence order. This problem is characterized by

the nature of the processing times, which are

variables of the model. Each of them has to take a

value in a given interval [t

i

, T

i

]. The result of a

schedule is firstly the sequence of the movements

and secondly the values of all processing times.

We consider a production line with 13 different

stations and one hoist. These stations are arranged

in a row and are fed with one hoist (Baptiste, 1993)

(Bloch, 1999).

The first station represented by tank (0), is a

shared station for both loading and unloading

purpose. A soak operation is performed in each

other station see figure 2. The hoist is programmed

to perform inter-process moves of the products.

Each one consists of four simple hoist operations:

− Raise a product from a process tank;

− Pause over the tank to allow drip-off;

− Transport the product to the next process tank

− Lower the product in that process tank

After performing an inter-process move, the

hoist travels to another process tank for the next

scheduled move. The following assumptions will

be respected throughout this presentation:

− The processing time in each tank is bounded

between a minimal and a maximum duration [t

i

, T

i

]

: i = 0 to 12;

− Each tank can receive only one product at the

same time;

− No buffer exists between tanks;

− We deal with mono-product case: each

product must respect the same sequence S=0,1,2,

3, …, 11, 12, 0.

5 SCHEDULING

Let us study the mono-products modeling case

(one hoist, tanks with unit capacity, same

processing for all the products, n products on the

line).Each product will be successively treated in

several tanks and then deposed into the load \

unloading station (tank(0)). There are two major

statuses: product transfer from a tank to another

one and processing. We will consider the notations

given below.

− X

i

(k) : the starting time to enable transition

Xi for the kth time;

− r

(i, i+1)

: the in charge hoist traveling time

from tank i to tank (i+1);

− t

i

, T

i

: minimum and maximum soak time

limits in tank i ;

− P

j

: Place number j

− Dv

(i, i+1)

: the empty hoist traveling time

from tank i to tank (i+1) ;

− U

i

(k) : command vector representing the

availability of the hoist;

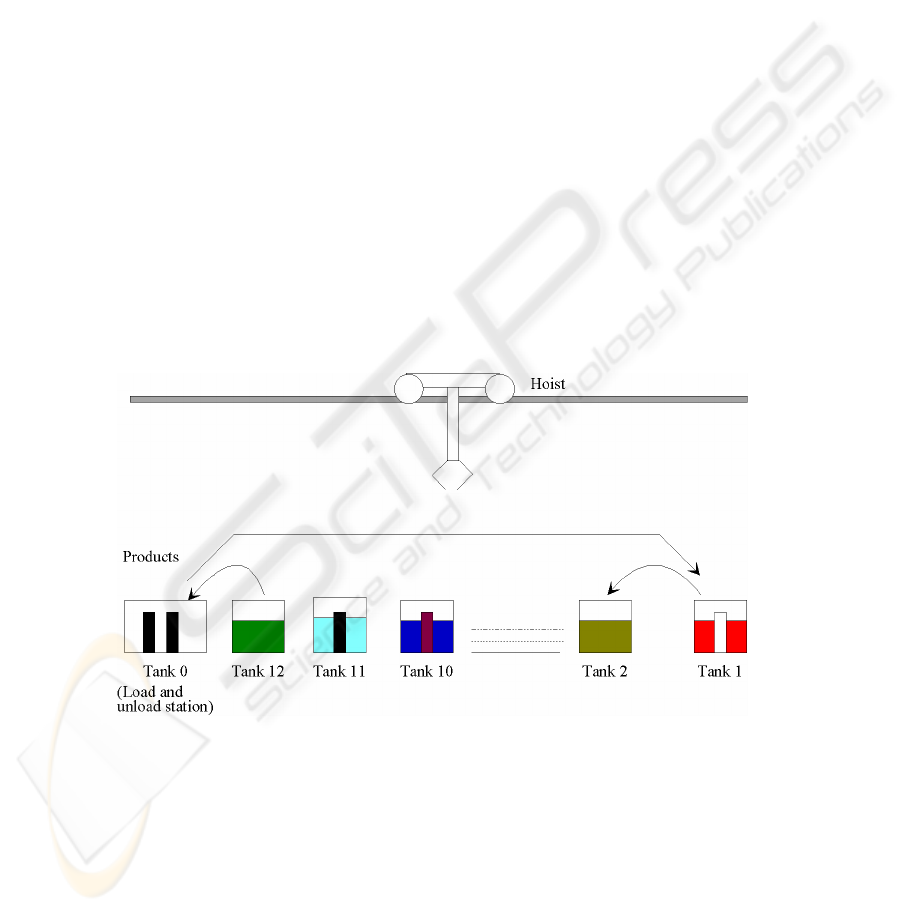

Figure 2: An Electroplating line (1 hoist and 13 tanks)

DYNAMIC TOOLS TO CONTROL COMPLEX SYSTEMS

279

5.1 P-Timed Event Graph

Two labels are given with each place. The first one

(t) is the minimum time that a token entering the

place must spend. The second label (T) is the

maximum time that this token can spend in this

place. Each tank has its own given bounded time

intervals. If a token enters a place of Timed

Colored Petri Nets (TCPN), it must spend a

minimum time t

i

in this place and leave it at a

maximum time T

i

at the latest. Each time a tank is

emptied, it is immediately available for the next

product on the line. The last operation of each

product sequence is to unload it. We represent this

problem by an event graph figure 3.

The first tank (token(0)) filling the unloading

and loading tank, we will assume that there is no

event before this.

In figure 3 each time a transition is fired, it will

mean either a product is being transported from a

tank to another or that it is processed. We suppose

that the hoist is always available (otherwise

concurrence will appears for resource utilisation)

5.2 Mathematical Model

According to the previous example, we can

represent the event graph presented on figure 3 by

the following equations:

X

1

(k) ≥ X

3

(k-1) ⊕ (X

2

(k)⊗(-T

1

)) ⊕ V(k)

X

2

(k) ≥ U

1

(k) ⊕ (X

1

(k)⊗t

1

) ⊕ (X

3

(k)⊗(-r

1,2

))

X

3

(k) ≥ X

5

(k-1) ⊕ (X

4

(k)⊗(-T

2

)) ⊕ (X

2

(k)⊗r

1,2

)

X

4

(k) ≥ U

2

(k) ⊕ (X

3

(k)⊗t

2

) ⊕ (X

5

(k)⊗(-r

2,3

))

.

.

X

26

(k) ≥ U

13

(k) ⊕ (X

25

(k)⊗t

13

) ⊕ (X

27

(k)⊗(-r

13,1

))

X

27

(k) ≥ X

26

(k)⊗r

13,1

This system can be also written with matrix

notations:

and gives the vector :

)k(Vb)k(UB)1k(XA)k(*X

1

⊗⊕⊗⊕−⊗=

These vectors (k=1, 2,…,n) are represented by

a matrix. In each column, we can find the starting

time of transport or processing for each product k.

Nevertheless, this solution must be performed

according to the hoist constraints (ie. only one

hoist is available in the line). The hoist availability

constraint is the most restrictive one as the hoist

corresponds to a critical resource of the problem.

Each move of product k from the tank where its i

th

treatment occurs to the tank where its i+1

th

one

occurs, takes place in the following interval [X

i

(k),

X

i

(k)+ r

(i, i+1)

]. As all the movements are realized

by the same hoist, we must express that all these

intervals are disjoined. The objective here is to find

an admissible schedule from the solution proposed

by the (max, +) theory and then improve it to find

an optimal or a near optimal solution.

For all couples of transport operations of the

product k (resp k+1) from tank (i) (resp j) to tank

(i+1) (resp. j+1) either transport operation of k

preceeds transport operation of k+1 (case 1) or

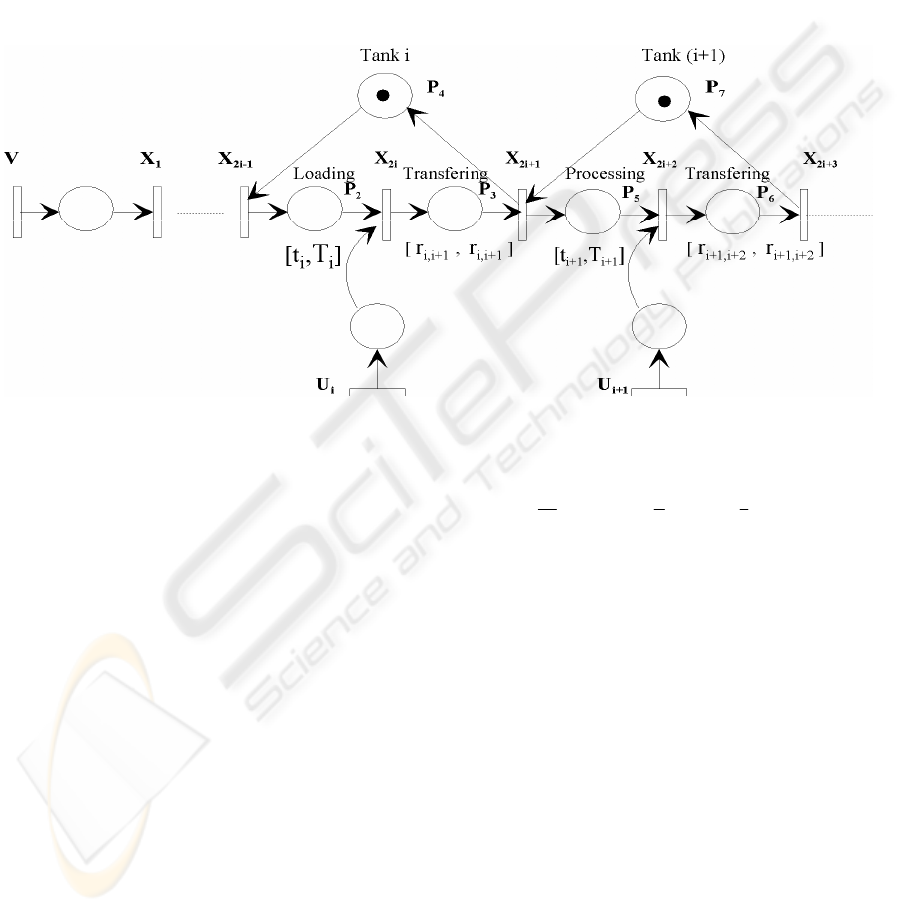

Figure 3: Hoist scheduling P-Timed event graph

))k(UB())1k(XA())k(XA()k(X

10

⊗⊕−⊗⊕⊗≥

))k(Vb( ⊗⊕

ICINCO 2004 - ROBOTICS AND AUTOMATION

280

transport operation of k+1 preceeds transport

operation of k (case 2).

This kind of constraints are called disjunctions,

it corresponds to two mutually exclusive

constraints.

As we can see on the example detailed on

figure 4, we have two products k and (k+1) and

two operations request the same resource (hoist)

during a period of time:

− Move product k from tank 4 to tank 5, during

the interval [461,485]

− Move product k+1 from tank 2 to tank 3,

during the interval [443,472]

To deal with this conflict, we have to choose

between two cases as seen before. In figure 4 we

choose the case 2: transport operation of k+1

preceeds transport operation of k. It means that a

delay will affect the others tasks for this product.

The question is: how to choose how a conflict can

be treated? The transcription of our model into a

computable version is simply the translation of all

linear equations. When a solution is found, we

check that the hoist constraints are respected, if not

we try to resolve this conflict by an adapted

heuristic. We can notice that each conflict

corresponds to two alternatives and needs to make

a choice during the resolution.

In fact, when the resolution procedure reaches

a choice point it divides the search space into two

branches. Exploring all these solutions will take us

a long time. The situation has led us to develop a

new robust method governed by stochastic

methods. These methods (not developed in this

paper) serve as a meta-strategy to choose the best

way to deal with the management of the hoist

conflicts. The objective of this work is to explain

how to build a dynamic link between a scheduling

solution and a simulation approach based on PN.

Before modeling the electroplating line we

should present how we can translate this schedule

to a polynomial. As a schedule represents a

sequence that contains a series of jobs, we can

obtain a corresponding polynomial by using

Lagrange interpolation. Then, this polynomial will

be used to valuate PN arcs.

5.3 Example

Let us consider a simple sequence S representing a

schedule:

S =(S

0

,S

1

,…,S

(p-1)

)

We can obtain the corresponding polynomial

P(X) by defining a finite ring structure with p

distinct elements {0, 1, 2, …, p-1} isomorphic with

Z/pZ (p: prime). On this set, we define a

polynomial function P(X) as an automorphism of

Z/pZ.

∑

−

=

=

1p

0i

P(X)

a

i

X

i

Fi

g

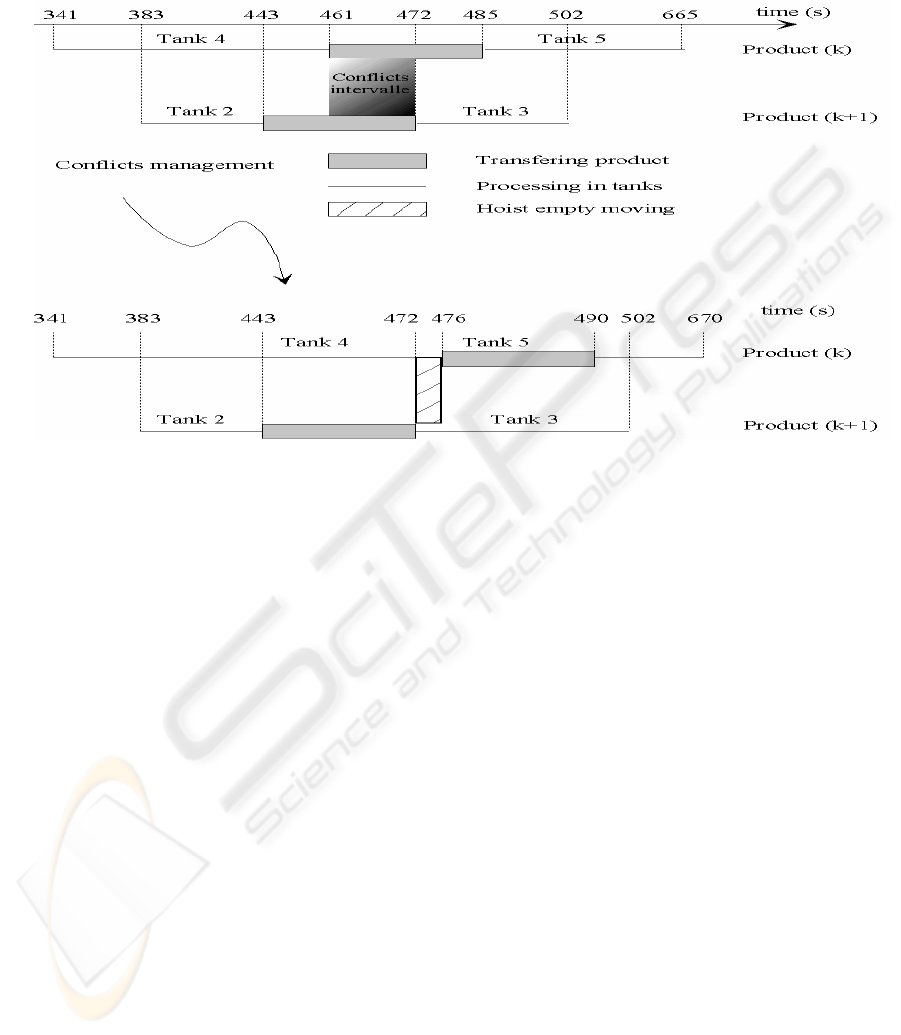

ure 4: How to deal with conflicts

(

case 2

)

DYNAMIC TOOLS TO CONTROL COMPLEX SYSTEMS

281

1p1p1p1p

1)2p()1p(0

1p)2p)(1p()1p)(1p(0

1)2p()1p(0

0001

)4p()4p(

)3p()3p(

)2p()2p(

−−−−

−−

−−−−−

−−

−−

−−

−−

K

KKKKK

K

K

K

K

6666666

1234560

6355360

1161660

6533560

1452360

0000001

A polynomial in Z/pZ[X] is completely given

by its coefficients A

0

to A

(p-1)

. We already prove

that a matrix [L

p

] exists there, making the

correspondence between the p elements of S.

t

[A

0

, A

1

, …, A

(p-1)

]=[L

p

].

t

[S

0

S

1

… S

(p-1)

]

[

p

k

L

(X)]= [1 X X

2

… X

(p-1)

]. [L

p

]. [I

k

]

Where I

k

is a column matrix whose elements: equal

1 in k

th

row and = 0 elsewhere.

[

p

k

L

(X)] is a (p-1) degree polynomial verifying the

conditions:

[

p

k

L (k)]=1 and [

p

k

L (X)]= 0, ∀ X≠k

This polynomial is the interpolation Lagrange

polynomial, which can be written, if considering

the first theorem of Fermat :

[

p

k

L (X)]= 1+(p-1)(X+p-k)

(p-1)

When we develop (X+p-k)

(p-1)

by Newton’s

binomial in Z/pZ, we obtain [L

p

] matrix:

[L

p

]=

Let us apply this method to the sequencing

vector S=(0,6,1,4,2,5,3), for p=7 the matrix [L

7

] is

:

[L

7

]=

P(X)= [1 X X

2

… X

6

].[L

7

].[F]

with [F]=

t

[P(0) P(1) P(2) P(3) P(4) P(5) P(6)] thus

equal to

t

[6 4 5 0 2 3 1].

We obtain P(X) =6+6.X+6.X

2

+X

4

+6.X

5

and easily verify that P(0)=6, P(6)=1, P(1)=4,

P(4)=2, P(2)=5, P(5)=3, P(3)=0;

As said before if the length of the sequence

does not correspond to a prime number (n<p), we

go back to the previous case and consider (p-m)

fictitious tasks that will not be used.

6 MODELING :Z/PZ TPN

REACTIVE MODEL

A complex system needs to be dynamically

controlled. Even, if the polynomials introduced in

this presentation show a clear evolution of the

standard functions used in traditional TCPN, a

characteristic does remain specific to all these

polynomials. It consists of the definition of the

color set. In Z/pZ TPN, there is only a global color

set and all the polynomials take its values in it.

This is why a circumstantial readjustment is

always possible (Mabed, 2003).The first tank

(token (0)) filling the unloading and loading tank,

we will assume that there is no event before this. In

this Petri Nets, tokens represent tanks. Each time a

transition is fired, it means either a product is being

transported from a tank to another, or that it is

processed.

We are interested here in modeling an

electroplating line with Z/pZ Timed Petri Nets

(TPN). It illustrates that these nets can be easily

applied to various industrial problems. Modifying

a sequence leads to change the Z/pZ TPN

parameters (i.e. polynomial) while the net structure

remains the same.

NB: For a simple use of Petri Nets parameters we

replace T

i

(the maximum duration in tank i) by δ

i

,

T

i

will represent the transition i.

Petri nets have been traditionally employed in

simulating approaches based on discrete event

systems. Here we create a dynamic link between

two fields:

− Scheduling approach: based on several

stochastic or deterministic methods.

− Simulation approach based on Petri nets.

We present in figure 5 a global model for the

HSP problem. This model was built in two

sections: first, we create a PN model and secondly

we assign polynomials to this PN. When we

elaborate this model, several difficulties were

encountered due to the two associated stations

(loading, unloading) represented by tank (0). The

first operation is to load the product, which is

represented by a processing (color (0) in place P

3

).

After a minimal duration of soak the product can

leave this tank (represented by color (0)) to another

one (represented by the successor of (0)+1=(1))

according to the set definition

E={0,1,2,3,4,5,…,10,11,12}. Each product will be

successively treated in several tanks and then

deposed into the load \ unloading station (tank(0)).

There are two major statuses:

ICINCO 2004 - ROBOTICS AND AUTOMATION

282

− Product transfer from a tank to another one:

The sequence representing the schedule has been

realized by the calculus of a polynomial SC. This

polynomial characterizes the results of max plus

approach.

− Processing

These operations will continue until we use the

color (12), its successor will be (0) and the

transition T

8

will be fired to unload the product.

Each evolution or disturbance lead this set

unchanged. Only the parameters are to be changed.

The model presented below allows a dynamic

management.

7 CONCLUSION

The originality of this study is mainly to apply

both: max plus algebra theory and Z/pZ TPN for

modeling and evaluating an industrial problem. We

have seen in this paper that a model can be

dynamically controlled by combining existing

tools.

We first use max plus algebra theory to find a

schedule for an industrial application known as a

hoist scheduling problem. Using the analogy

between timed event graphs and conventional

linear systems lead us to propose a schedule

approach. The critical point in this work is to

improve the results in order to find an optimal

solution. The use of stochastic methods to explore

more solutions can be the best way to reach this

objective.

After this, we present a model by using Z/pZ

Timed Petri Nets in order to control this system. A

structure of field Z/pZ is proposed to allow the

processing of colors succession with mathematics.

This mathematical structure allows an easy

modeling of sequences by polynomials and

symbolic calculation.

Furthermore, mathematical support may enable

us to consider various problem of optimization,

particularly those dealing with the resolution of

scheduling problems, one of our points of interest.

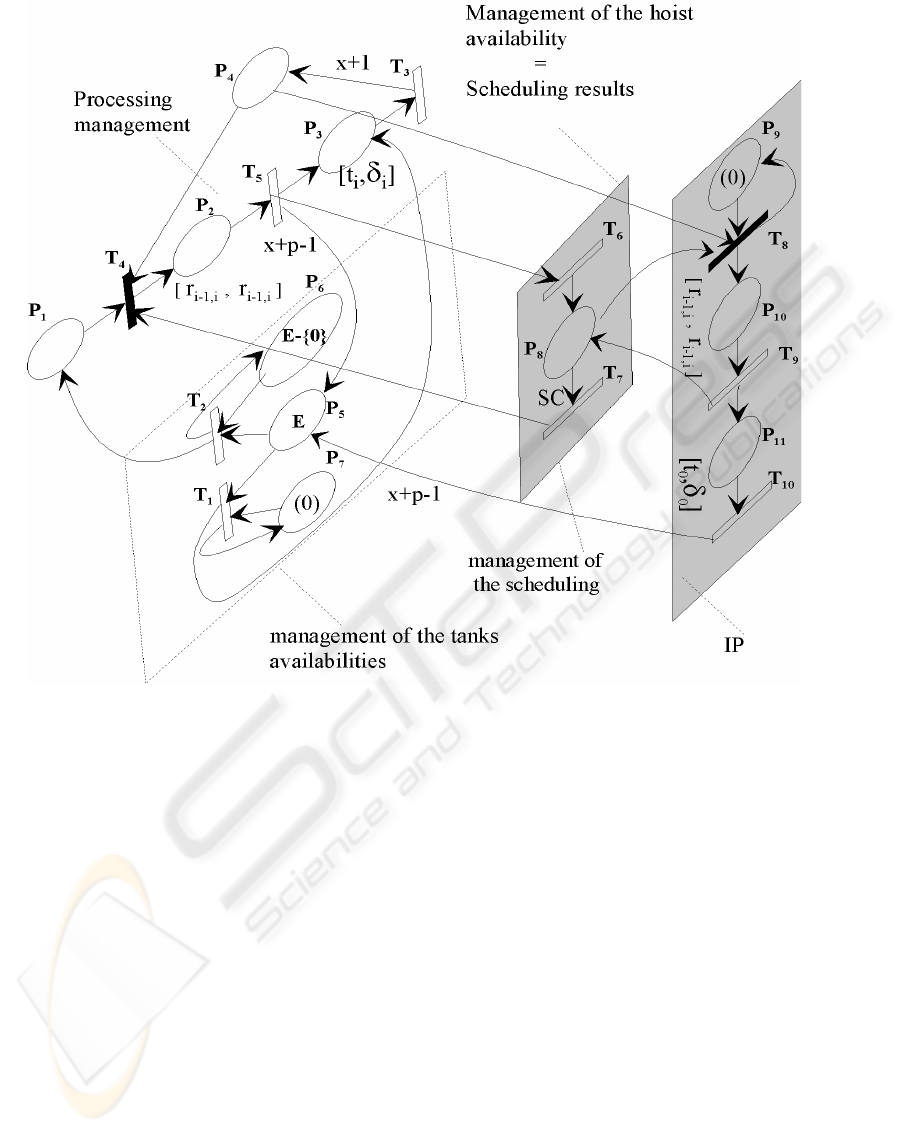

Figure 5: Z/pZ TPN Reactive Model

DYNAMIC TOOLS TO CONTROL COMPLEX SYSTEMS

283

We also note that this approach offers many

advantages to deal with complex models.

Developing these polynomials to evaluate models

facilitates modeling any kind of systems. This new

tool can be used as basis for further studies on

scheduling.

REFERENCES

Bacelli, F., Cohen, G., Olsder, G.J., Quadrat, J.P. (1992).

Synchronisation and linearity : An algebra for

discrete Event Systems. John Wiley and Sons, New

York.

Baptiste, P., Legeard, B. (1993). Optimisation with

constraint logic programming : The Hoist scheduling

problem solved with various solvers. 8th

International Conference on Applications of

Artificial Intelligence in Engineering, AIENG/93,

Toulouse, France.

Bloch, C. (1999). Contribution à l'ordonnancement

dynamiques de lignes de traitement de surface.

Thèse de Doctorat, Laboratoire d'Automatique de

Besançon (UMR CNRS 6596), Université de

Franche-Comté.

Borevitch, Z-I., Chafarevitch, I-R (1967). Théorie des

Nombres, (Gauthier-Villars), Paris.

Bourcerie, M., Morel, J-Y. (1997). Algebraically

structured coloured Petri nets to model sequential

processes. IEEE Transactions on Systems, Man and

Cybernetics, Part B : Cybernetics, Vol. 27, n°4.

Cohen, G., Dubois, Quadrat, J.P., Viot, M. (1985). A

linear system theoric view of discret-event processes

and its use for performance evaluation in

manufacturing. IEEE Trans. Automatic Control, 30 :

210-220.

Cohen, G., Moller, P.,Quadrat, J.P.,Viot, M.,: Algebraic

tools for the performance evaluation of discrete

event systems. Proceeding of the IEEE, Vol.77, pp.

39-58, 1989.

Gaubert, S. (1992). Théorie des systèmes linéaires dans

les dioïdes. Thèse de doctorat, Ecole des mines de

Paris.

Mabed, M. (2002).Thèse de doctorat intitulée,

Utilisation de l’Algèbre (Max, +) et des réseaux de

Petri Z/pZ dans l’étude d’un processus industriel.

Université d’Angers, octobre 2002.

Mabed, M., Bourcerie, M., Bousseau, F. (2001). Z/pZ

Petri nets model with application to an electroplating

line. IEEE International Conference on Systems,

Man and Cybernetics october 7-10, 2001, Tucson,

Arizona, USA.

Mabed, M., Bourcerie, M. (2003). Real-time model for

processing both scheduling and petri nets

approaches. European Simulation and Modelling

conference ESMC’03, October 27-29, 2003, Italy.

Marteau, S., Bourcerie, M. (1995).Complex sequencing

by methods of interpolation in Z/pZ colored Petri

nets, 4th International Conference on Emerging

Technologies and Factory Automation INRIA /

IEEE ETFA'95, p 573-581, France.

Marteau, S., Bourcerie, M. (1996). Dynamic evolution of

Z/pZ colored Petri nets models. In : Computational

Engineering in Systems Applications, Symposium

on Discrete Events and Manufacturing Systems

(IEEE-SMC CESA'96), p. 48-52, Lille, France.

Proth, J-M. Xie, X.(1994) Les réseaux de Petri pour la

conception et la gestion de systèmes de production,

Masson, Paris.

Spacek, P. (1998). Modélisation, analyse et commande

des systèmes à événements discrets par l'algèbre des

dioïdes, Application aux lignes de galvanoplastie.

Thèse de troisième cycle, Université de Franche

Comté

ICINCO 2004 - ROBOTICS AND AUTOMATION

284
