STRUCTURED DOCUMENTS REPRESENTED BY
CONCEPTUAL GRAPHS
A simple formalism for presenting structured documents
Vanyo G. Peychev
Computer Science Dept., Sofia University, 5 James Baucher, 1164 Sofia,Bulgaria
Jimmy C. Dubuisson
IT Division, Voltimum, Geneva, Switzerland
Vladimir T. Dimitrov
FMI, Sofia University, 1164 Sofia, Bulgaria
Zhechka A. Toteva
EP Department, CERN, CH-1211 Geneva, Switzerland
Keywords: structured document, conceptual graphs, formal
document model, XML, DTD
Abstract: Each structured document can be represented by means of XML and an associated DTD. The goal of this
article is to present a formal model of a structured document, and to make a representation of a document
described by the model with a conceptual graph and a related DTD.
1 INTRODUCTION
A text document usually has some structure on its
own. Such a document can be divided into chapters,
pages, sentences, paragraphs, sections, volumes,
lines, verses and stanzas. A document may include a
title, a preface, a summary, an epilogue, some
quotes, references, emphasized parts, digressions or
notes. The characteristics of documents vary a lot. A
document may have an identified author, or it may
be anonymous; it may be precisely dated, or not
dated at all; it may be part of a larger work, or it may
be a standalone document. Each document is
structured differently and this structure may even
vary from part to part inside the same document.
We could consider the document processing as
an
obligatory part of the contemporary information
systems. This means that a structured presentation of
document is a way for improving the document
processing. A structured presentation allows the
application of well-known search methods. Another
advantage of using a structured presentation of
documents concerns the data visualization, which is
achieved by processing operations. Defined structure
is a way for programming the possibilities for
visualization, especially for equipments with limited
resources, e.g. PDA, mobile devices, etc. The lack of
a formal model for structured presentation of a
document, as well as the mentioned advantages, is
another motif for researching the possibilities for
structural presentation of documents. The goal of the
work is to present a formal model for structured
documents.
This article concerns only documents containing
tex
t information, while hypertext documents will not
be considered in this article.
1.1 Related works
Researches made over structural documents are
oriented to the modeling of documents, either from
the point of view of operations over a document or,
257
G. Peychev V., C. Dubuisson J., T. Dimitrov V. and A. Toteva Z. (2004).
STRUCTURED DOCUMENTS REPRESENTED BY CONCEPTUAL GRAPHS - A simple formalism for presenting structured documents.
In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 257-262
DOI: 10.5220/0001383002570262
Copyright
c
SciTePress
from the point of view of subject area. Clarke
(Clarke, 1994) supposes that every structured
document is labeled and he defines a metric for it.
He creates a model for a text database as a string of
concatenated symbols drawn from a text alphabet
and a stoplist alphabet. The goal of his
investigations is the definition of operations over a
structured document. Query algebra is presented and
it expresses searches over structured texts.
Calvanese, De Giacomo and Lenzerini (Calvanese,
1999 and Groß-Hardt, 2002) consider structured
documents in terms of XML and DTD. Again, the
goal of their research is the definition of operations
over structured documents using description logic.
1.2 Article structure
The article consists of four parts. There is a formal
presentation of a structured document model in the
first one. The model presents a description of a
document, without taking into account the
operations over it, as the operations over different
types of documents are quite different. In the second
part the model is transformed into the language of
conceptual graphs. In the third one, there is a
summary algorithm presented for conversion of CG
in a related DTD.
2 STRUCTURED DOCUMENT
MODEL – A FORMAL
PRESENTATION
The information, which can be stored and
reproduced in an electronic format, is known as
document information. A document is assumed to be
a random text, stored on a holder as a single
information unit.
Every random text consists of a set of sentences,
which in turn consist of words. A sentence begins
with an upper-case letter and ends with a full stop,
denoting the end of it. A sentence with no words and
no ending point is an empty sentence. Sentences are
gathered together in logical structures, called
paragraphs. Each paragraph is a separate part of the
document. Paragraphs serve for separating
information into logically differentiated units. This
type of separation helps introduce a logical order in
a document, and process an information search.
Sentences exist only in paragraphs. A paragraph will
be called empty paragraph, if it consists of no
sentence or only empty sentences. The empty
paragraphs do not have information (meaningful)
contents. Therefore a document is an empty
document, if it consists of no paragraphs or only
empty paragraphs.
There are two document categories:
Documents that have a predefined logical
order of their paragraphs
free format documents, i.e. documents that
have no predefined logical order of their
paragraphs.
We are interested in creating a model for
documents, having a predefined logical order of
their paragraphs.
There is no exact definition for the term
structured document. There are only intuitive
assumptions, which are used depending on the
desired goals. For the goals of the present article we
shall introduce the following definitions:
Definition 1: A structured document is assumed
to be a document, for which the paragraphs can be
named and a relation ‘order’ is defined.
The relation ‘order’ applied for paragraphs can
be a strict one or a free one. Each document that has
paragraphs with a free order relation can be
transformed into a new document having a strict
order relation of the paragraphs by fixing the
paragraphs’ sequence. Paragraph naming and
paragraph ordering are called document labeling.
The document labeling consists in splitting up the
document into sets of tags, each of them consisting
of a part of the document text. Generally, repetition
of the same tags, consisting of the same part of the
text is allowable.
Let D be the set of structured documents.
Let X be the set of all elements (tags) for a given
set of documents D.
X = { nomenclature of elements (tags)
of a given document }
The tags are the metadata of a document. They
describe the document structure. This means that
every document can hold, besides its own
information tags, information part driven from outer
document of another type. Generally, the outer
document is not obligatory to be a structured one.
Hyperlinks can point toward a part of the document
itself.
Let T be the set of all paragraphs or texts for a
given set of documents D.
T = { paragraphs }
A document we assume to be a subset of the set
X
T
×
. Then for every document d that is a
member of the set
D it is true that . XTd ×
We assign
d
to be the set containing the
separate tags of a given document.
X
= Ν DX
x
ii
x
X
d
i
d
i
d I, [1]
or
ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES
258
seqXX
d
=
ˆ
[2]
or
NXX
d
a=
ˆ
[3]
The set
d
defines the type and the order of the
elements for each document
d. There is no
restriction that two different documents not have the
same elements order of the same type. A structured
document we assume to be a subset of the set
.
X
d
If
d is a document ( ), then d is a
structured document, if
.
XT ×
XTd ×
d
We define the representation of the set
T in the
set
as a sequence of the partial functions:
XTd ×
d
X
d
s
eqX
T
a [4]
We describe the structure and the text of a
random structured document
d by the set of partial
functions defined in eq. (4).
Let
T
t
i
be the elements of T. Then for each
document d, the text of the document is stored in the
elements of the set
.
:
d
T
Ν= TT
d
i
d
i
tiit
d
:
ˆ
,
Therefore
[5]
{}
dnddd
TtttTTT
d
n
dd
ttt :,...,,
ˆ
:,...,:,:
21
21
=
[6]
stores the text of a given document d. The whole
text of the document with the paragraphs order are
represented by
,...,:,:
21
dddd
XTXT
dd
tt aa
{}
ddndd
seqXTtttXT
d
n
t aa :,...,,
ˆ
:
21
=
[7]
3 REPRESENTATION OF A
STRUCTURED DOCUMENT
USING CONCEPTUAL GRAPHS
There are different models that can be used for
automatic processing of structured documents. Some
often-used models for structuring, storing and
processing of documents are: formatting languages
like SGML (Rubinsky, 1997) and XML (Hunter,
2000), textual DB, hypertext systems, etc.
We consider conceptual graphs in the terms
determined by Sowa (Sowa, 1984). A conceptual
graph is a net of conceptual and relational nodes.
Conceptual nodes present entities, attributes or
events. They are denoted with square brackets.
Relational nodes determine the type of the relation
between two conceptual nodes. They are denoted
with brackets (ISO, 2001).

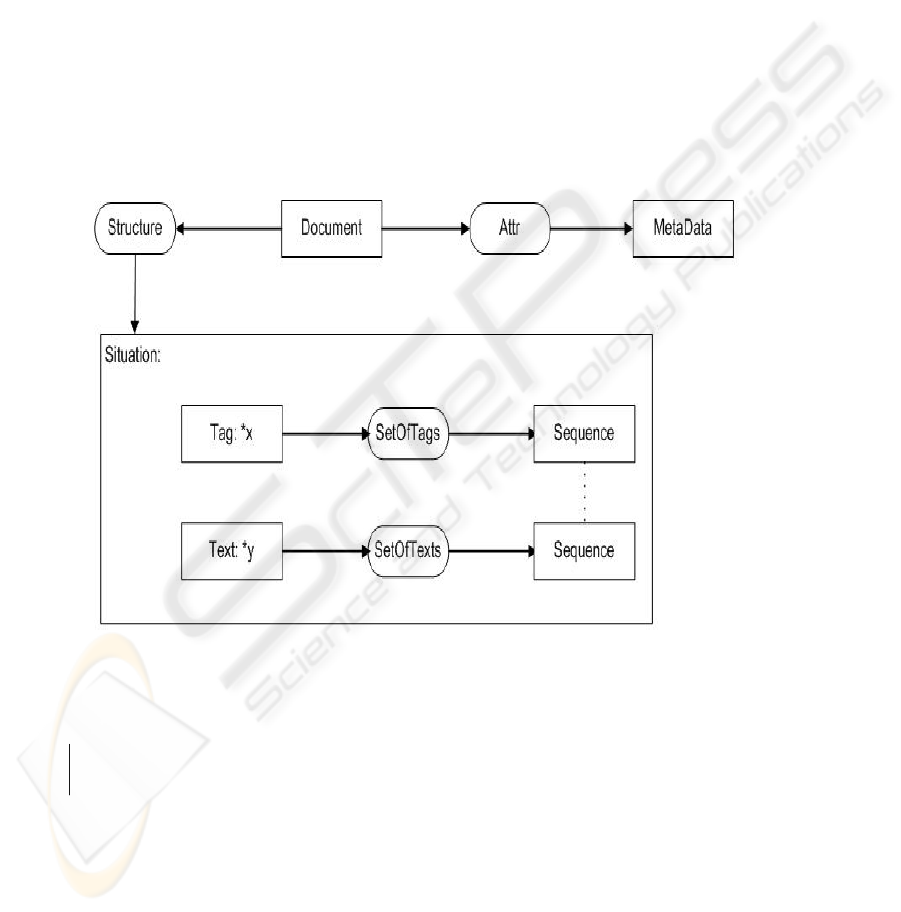

Figure1:A structure of a document represented by the usage of CG
The generated model is appropriate to be
presented by CG formalism. According to the
model, every structured document is an ordered set
of relations of the type:
<tag, text>
as the following restrictions are kept:
Each text is presented only in a tag
Each tag consists of either text, or tag, or is
empty
Metadata for each document are described
with tags
With the above made assumptions, each textual-
based document can be represented by CG, as it is
shown in fig. 1.
STRUCTURED DOCUMENTS REPRESENTED BY CONCEPTUAL GRAPHS - A simple formalism for presenting
structured documents
259

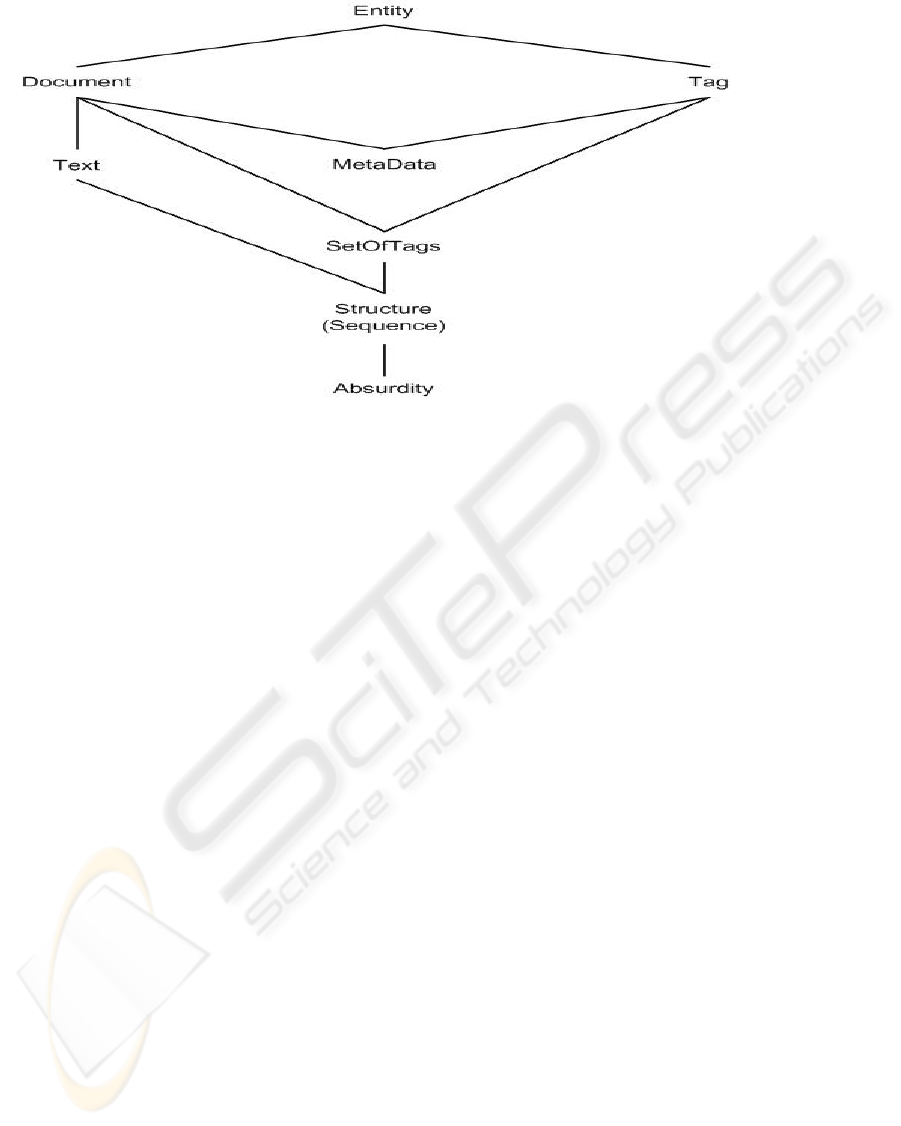

Figure 2: Hierarchy of types
For the formulated CG a hierarchy of types is
built, as it is shown on fig. 2
The description of the hierarchy types is as
follow:
1. Conceptual type
Tag. It represents the
elements of the set
X according to the
formulated model.
Type Tag is
[Tag: *x] –
´ (TagName) ´ [Name: ?x]
´ (Parent) ´ [Tag]
´ (Text) ´ [Text]
2. Conceptual type Text. It represents all the
texts of a document, i.e. the set T according to
the formulated model.
Type Text is
[Text: *x]
3. Conceptual type MetaData. It stores the
information for a document. Meta information
is stored in tags, which is analogous to the
storing of text in a document. The tags for
meta information are predefined.
Type MetaData is
[MetaData: *x]
´ (Attr) ´ [Tag: ?x]
4. Relational type SetOfTags. For each tag in
the document its parent is determined. In this
way a hierarchy of the tags is defined and as a
result a hierarchy of the document is defined
too.
Relation SetOfTags *x, *y is
[Tag: *x]
³ (Order) ³ [Sequence: ?y]
5. Relational type Structure. For each
document an order of its elements is
determined. An order set of relations of type
<tag, text> is defined. In this way the texts for
each tag of a document, with an already
defined structure, are set.
Relation Structure *x, *y, *z, *n is
[Document: ?x] -
´ (Attr) ´ [Tag: ?y]
´ (Attr) ´ [Text: ?z]
´ (Attr) ´ [Sequence: ?n]
6. Conceptual type Document. The document
d, according to the formulated model, is
presented as:
Type Document is
[Document: *x] –
´ (DocName) ´ [Name: ?x]
´ (Structure) ´ [Situation:
[Tag]
³ (SetOfTags) ³ [Sequence]
[Text]
³ (SetOfTexts) ³ [Sequence]
]
´ (Meta) ´ [MetaData]
Creating a CG for a concrete structured
document type, described with the presented model
is an algorithmical process. The algorithm for
presenting a structured document by CG is the
following one:
ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES
260
1. Create a CG for the declarative description of
tags and metadata of a document (the set
X).
2. Define a hierarchy for the already defined
conceptual types, i.e. the set
d
. The
hierarchy of the conceptual types defines the
document structure.
X
3. The texts of the document for the different
conceptual types are separated. The
separation of the texts for the different
concepts of the document could be made
automatically with a known precision.
4. There is an order relation created for the
conceptual types and their related texts. As a
result we get a structured presentation of a
document. The graphical representation of
document structure is shown on fig.3.
4 REPRESENTATION OF A
CONCEPTUAL GRAPH USING
XML
The document structure is described by CG. The
main purpose is the creation of DTD for a given
document type, described by CG. A valid XML is
generated from the created DTD. The text of the
XML document nodes is entered by a referent of the
relating conceptual types.
From the concept types and relation types
hierarchy a DTD is defined for the document types,
represented by CG as it is shown below:
1. To each concept type confront ELEMENT.
2. If concept type has Attr (attribute), which is a
text, i.e. the construction is like:
[Concept type] ´ (Attr) ´ [Text]
then we define the element as an element with
data, i.e.:
<!ELEMENT name (#PCDATA)>
3. If concept type has Attr (attribute), which is
not a text, i.e. the construction is like:
[Concept type] ´ (Thme) –
´ [Concept type 1]
……………………
´ [Concept type N]
then we define the element as an element with
sub-elements, i.e.:
<!ELEMENT name (ChildElement1, ….,
ChildElementN)>
4. A document type is defined, using the DTD
described above. A valid XML is generated
for it, using some of the specialized products
for XML generation, for example XMLSPY
(http://www.xmlspy.com), XMLwriter
(http://xmlwriter.net), etc.
5. The text of XML nodes is entered by a
referent in the conceptual nodes of CG. The
matching of XML nodes and CG nodes is
defined by the hierarchy of concept types.
As a result of the presented transformation, an
XML representation is produced for which a specific
structure is defined.
5 CONCLUSION
The article presented introduces a formal structured
document model. On the basis of the formulated
model there are conceptual types created for
Document
Tag 1 of level 1
Tag N of level 1
Tag 1 of level K Tag M of level K
Text
Text
Fi
g
ure 3: A structured re
p
resentation of a document
STRUCTURED DOCUMENTS REPRESENTED BY CONCEPTUAL GRAPHS - A simple formalism for presenting
structured documents
261
describing the structure and the hierarchy of the
document. As a result, for each structured document
a DTD and the related XML description of the
document are generated. The presentation of a
random document with XML is not a trivial task.
The authors consider that the creation of a formal
description of documents is a step towards automatic
generation of documents structure.
REFERENCES
Calvanese, D, G. de Giacomo, M. Lenzerini, 1999,
Representing and Reasoning on XML Documents: A
Description Logic Approach, Journal of Logic and
Computation, Vol. 9, Issue 3, pp. 295-318.
Clarke, C, G. Cormack, F. Burkowski, 1994, An Algebra
for Structured Text Search and A Framework for its
Implementation, Technical Report CS-94-30,
University of Waterloo, Canada.
Groß-Hardt, M., 2002, Concept based querying of
semistructured data, Proceedings of the workshop
XML technology for the Semantic Web, Lecture Notes
in Informatics, Bonner Köllen Verlag.
Hunter, D., 2000, Beginning XML, Wrox Press.
ISO, 2001, Conceptual Graphs, Draft, ISO/JTC1/SC
32/WG2 N000.
Rubinsky, Y., M. Maloney, 1997, SGML on the Web,
Prentice Hall PTR.
Sowa, J., 1984, Conceptual Structures: Information
Processing in Mind and Machine, Addison Wesley,
Reading, Mass.
Louis, R., 1999. Software agents activities. In ICEIS’99,
1st International Conference on Enterprise
Information Systems. ICEIS Press.
ICETE 2004 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES
262
