A MOBILE SERVICE GATEWAY FOR MOBILE ACCESS TO
ENTERPRISE DATA AND SERVICES
Xueshan Shan
Avaya Labs Research, 233 Mt. Airy Rd., Basking Ridge, NJ 07920, U.S.A.
Keywords: Wireless and mobile computing, Mobile access to enterprise services, Web services
Abstract: We present the architecture of an enterprise mobile service gateway for secure mobile access to distributed,
autonomous, and heterogeneous enterprise data and services using browser-based thin-client. Our goal is to
address key issues associated with mobile access to enterprise information, while minimizing the cost of
service integration by leveraging existing infrastructure and business applications. Our approach achieves
high extensibility and interoperability through Web Services based integration scheme and modularized
device and gateway adaptation. The security and firewall issues are addressed through the loose coupling
between the mobile service gateway and enterprise applications, the separation of mobile proxy and
presentation server, and the two-way access control. The combination of home-deck browsing, notification,
click-to-dial, and speech access interaction paradigms alleviates the limitations of small keypad and display
and brings mobile users rich and personalized user experience. A prototype system has been implemented
to demonstrate the significance of cost-effective mobile extension of enterprise services using our approach.
1 INTRODUCTION
With the advent of new wireless technologies and
enterprise networks over the past a few years, the
convenience of mobile access to distributed data and
services over the enterprise network has become
prominent. Enterprises are eager to extend their
wireline services to mobile environment to improve
the productivity and the efficiency of
communications and collaborations. Enabling
integrated and transparent mobile access to
distributed, autonomous, and heterogeneous
enterprise data and services is crucial for mobile
workforce. Currently mobile operators offer
services allowing corporate clients to access certain
corporate services, such as e-mail and calendar,
through mobile phones. However, the services are
limited and not adequate for delivering highly
confidential business information. Solutions that
allow enterprises to extend customized services to
mobile devices with full control over access to their
networks would benefit enterprises significantly.
There are technical challenges in building service
platforms to provide secure access to enterprise data
and services using mobile devices. Firewall and
security issues need to be resolved hence data can
remain secured between LAN’s and mobile devices.
The cost of service integration, the cross-platform
interoperability, and the service extensibility across
varieties of devices, networks, and applications
present practical challenges in the design and
implementation of such systems. In addition, the
service interaction and delivery mechanism needs to
be very efficient to overcome the restrictions
imposed by the limited on-device resources and the
narrow bandwidth of mobile networks.
In this paper we present a cost-effective
enterprise mobile service gateway, MiGate, for
secure mobile access to enterprise data and services.
It bridges the wireline services and wireless services
in enterprise environment by leveraging existing
infrastructure and business applications. We address
the security and access control issues through the
Mobile Proxy Server (MPS), the separation of
mobile proxy and presentation server, the loose
coupling between service logic and service delivery,
and the two-way access control. The Web Services
(W3C, 2003c) based integration scheme provides
seamless cross-platform integration with existing
and new services. The rich functionality of the
service platform complements browser-based thin-
client terminals, providing low-end device users
with full access to information and services. The
real-time data replication makes the system highly
scalable and eases the setup of redundant servers to
197
Shan X. (2004).
A MOBILE SERVICE GATEWAY FOR MOBILE ACCESS TO ENTERPRISE DATA AND SERVICES.
In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 197-202
DOI: 10.5220/0001386701970202
Copyright
c
SciTePress
avoid the single-point-of-failure. The event-triggered
backend synchronization mechanism enforces the
data consistency between service gateway and
enterprise applications. Moreover, the service
access through all possible communication modes
available on mobile terminals provides anytime
access for mobile workforce and makes mobile
phone an always-in-synch PDA.
The remainder of the paper is organized as
follows. Section 2 reviews the related work in
mobile access to enterprise data and services.
Section 3 introduces the MiGate approach to
addressing the issues brought up in this section and
briefly describes the implementation of a prototype
system. We conclude in Section 4.
2 RELATED WORK
There are a number of efforts that focus on various
aspects of building service platforms for mobile
access to enterprise data and services.
An enterprise mobile service platform, iMobile
EE (Chen et al, 2003), allows enterprise mobile
clients to securely access the Intranet information.
A client-application communicates with the platform
to establish a secure connection through either a
wireless modem or a VPN. We speculate this
approach is unsuitable for computing power-
constrained low-end devices. Our approach focuses
on secure access to enterprise data and services from
browser-based thin-client to minimize the
requirements for the functionality of terminals.
Another system, WMTIP (Chou, Shan and Li.,
2001), enhances the security in enterprise service
delivery by introducing a Wireless Secure Broker
(Li et al, 2003) between the end user devices and the
enterprise application server, providing another level
of security. It ensures that sensitive data only stays
on WSS for a pre-specified period of time to prohibit
unauthorized access. Our platform offers anytime
secure access through variety of communication
modes and ensures that no sensitive data resides
outside firewall either temporarily or persistently.
Some systems, for example, iMobile EE, use
different protocols to accommodate the access to
various information sources. It is not sufficient for
data exchange with a large amount of heterogeneous
information sources. Other systems use common
data interchange formats to cope with heterogeneity
of the resources. MDSS (Butrico et al, 2000)
addresses the heterogeneity of devices and data
sources and achieves interoperability by introducing
the MDSP. However, a client-side adaptor is
required to translate the client’s data into MDSP and
vice versa. A middleware-based architecture
(Pissinou, Makki and Kong-Ries, 2000) provides a
solution to allow access to distributed autonomous,
heterogeneous information sources from mobile
devices. CORBA (OMG, 2002) is used for data
exchange, which is considered to be complex and
rigid. Contrary to complex and rigid data exchange
interface and non-standard data exchange format, we
adopt Web Services and standard XML (W3C,
2003a) document format, providing a suitable
platform for service extension and interoperability
while keeping our assumption of thin-client intact.
A thin-client solution is proposed (Stajano and
Jones, 1998) to give mobile users access to central
resources through mobile phones, which benefits
from functionality and portability at the same time.
One of the limitations of the solution is that both
phone and server initiated services rely on SMS
(ICE, 2003), which is limited in size and not
interactive. Our thin-client based approach also
adopts mobile phone as access device to benefit
from both portability and rich functionality. The key
difference is that we provide interactive services
through the combination of different communication
modes and allow access to distributed services over
the entire enterprise network.
3 MIGATE APPROACH
In this section we introduce the MiGate approach of
secure mobile access to distributed, autonomous,
and heterogeneous enterprise data and services. We
overview the system architecture and discuss key
issues addressed by our approach.
3.1 System Architecture
MiGate is a service gateway for enterprises to
extend wireline services to mobile devices easily and
securely. Figure 1 illustrates the system architecture
and the data flows of the MiGate platform.
MPS resides in the DMZ of the corporate
network. It authenticates users and redirects
requests and responses to and from the Mobile
Image and Presentation Server (MIPS), which is
behind the firewall, to provide secure Intranet access
for mobile users. The gateway adaptors connect
MiGate to operator’s networks to deliver various
types of traffics over different bearers and networks.
MIPS server consists of three major components:
Mobile Service Broker (MSB), Mobile Content
Converter (MCC), and Mobile Service Images
(MSI), which implement functionalities of service
brokerage, content transformation, and mobile
service image creation and storage, respectively.
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
198
Web Services interface loosely couples the
distributed enterprise applications with MiGate. It
further separates the service logic from service
delivery, making the platform structurally extensible
and interoperable. MiGate can be deployed in
conjunction with any existing or new enterprise
applications through a Service Extender (SE).

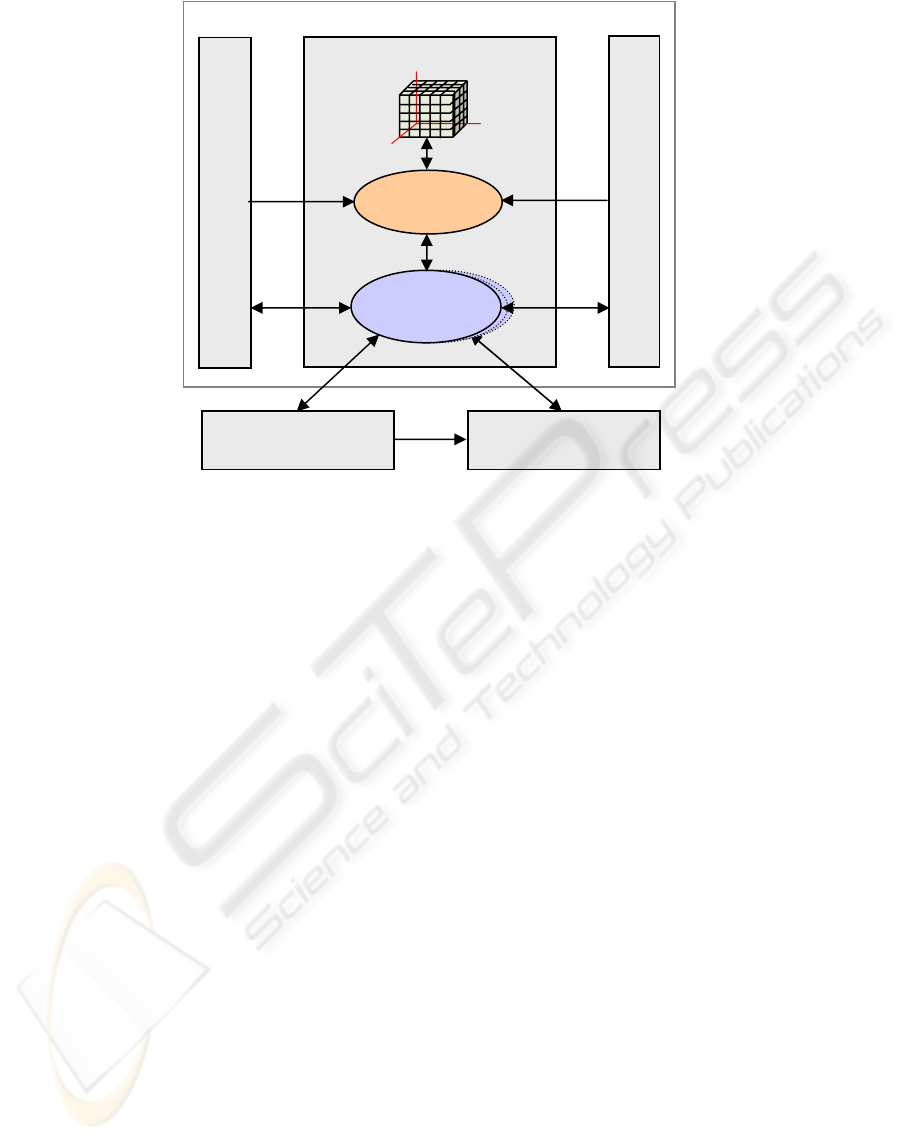

Figure 2 shows the major components of MIPS
and the interactions among them. MSB interfaces
with enterprise services and manages service access
control, mobile service image creation, backend
synchronization, and service coordination. The
Service Access Control (SAC) matrix is built, as part
of the service dispatcher (SD) initialization
procedure, according to the registration information
of users, devices, and services. It prohibits
unauthorized access to mobile services from both
mobile devices and enterprise applications. The
Mobile Service Images (MSI) is created
instantaneously from SAC in real-time therefore no
MIPS data backup is necessary. Furthermore, MSB
performs event-triggered as well as routine backend
synchronization between enterprise applications and
MIPS, updating MSI accordingly to maintain the
data consistency.
When a notification or a service request arrives,
SD checks for the accessibility against SAC and
dispatches the service request to a particular service
representative (SR). If the notification represents a
triggering event, for example, a location change, SD
chains the requests to other SRs to reflect the
change. Each SR in turn invokes the corresponding
Web Services to update the MSI. Finally SR relays
the notification to the appropriate gateway
connector. The delivery status, such as notification-
sent, content-retrieved, is sent back to the service
originators for reliability and session management.
MSI comprises all mobile service images that
users currently subscribed. It caches service content
for better performance and gets rebuilt upon service
context changes. MCC transforms the service
content into a format most suitable for the target
device in real-time. The content rendering is
governed by device profiles and user preferences
gathered through registration, service activation
(SA), and learning process. Adaptation to new
devices is achieved by adding device adaptors.
A corporate user registers a mobile device with
MiGate by providing the basic device information
and personal preferences. Upon the completion of
registration, an SA notification is sent to the newly
registered device to confirm user’s credentials and
service subscription. A home-deck is in turn created
on MIPS. The basic device profile is acquired from
the header of the SA form. A more advanced form
containing various fonts, images, and colour pallets
is made available to users to further evaluate the
device capabilities and the user preferences. In case
WAP push (WAP Forum, 2001a) is not supported,
the confirmation and evaluation will be performed
through the home-deck browsing.
Fi
g
ure 1: MiGate s
y
stem architecture and data flows
Internet
Enter
p
rise Networ
k
MIPS
WAP Pull
SMS
WAP Push
MMS
Mobile Gateway
Adaptors
MPS
MSB
Mobile
Network
(CDMA,
GSM,
GRPS...)
WAP
Gateway
SMSC
WAP
PPG
MMSC
O
p
erator Networ
k
User
Directory
MCC
MSI
DMZ
MMSC
PPG
WG
SMSC
Web Services
S
E
Presence
Location
S
E
Speech
Server
S
E
Voice
Mail
S
E
E-Mail
Se
r
ver
S
E
Web
Server
SOAP
/HTTP
A MOBILE SERVICE GATEWAY FOR MOBILE ACCESS TO ENTERPRISE DATA AND SERVICES
199
3.2 Security
Ensuring secure mobile access to corporate data is a
primary concern for enterprises. Wireless data
transmission and access to Intranet from mobile
devices add another set of security issues to those in
wireline services. Data needs to remain secured
between Intranet and mobile devices while allowing
data to pass through the corporate firewalls. Device-
side security is also a major concern since mobile
devices are prone to loss or theft.
In our approach, the separation of mobile proxy
and presentation server enhances the security and the
loose coupling between enterprise applications and
mobile service gateway through Web Services adds
an additional level of security. MPS serves as
mobile proxy and firewall to authenticate users and
to restrict users’ access to certain services. MPS
connects to mobile operator’s gateways through SSL
and provides secure browsing by redirecting
requests and responses between enterprise
applications and mobile users, effectively preventing
intruders from accessing sensitive service content.
The SAC matrix provides two-way access control
on per user, device, and service basis to prohibit
unauthorized access from mobile devices and
enterprise applications. The SA procedure enforces
a logon-based confirmation through notification or
home-deck. Notification is end-to-end secured if
WAP 2.0 is enabled. In the case of SMS a brief
notification is sent, which only reveals information
regarding the readiness of the service content to
ensure the privacy. The highly sensitive content can
then be retrieved from the logon-enforced home-
deck. The remote clear-cache operation on device
after a specified time further secures the service
content in case the device is stolen or lost.
3.3 Interoperability
Over the last decade, there have been numerous
attempts in building application integration
technologies towards interoperability. Those
technologies were progressively evolved towards
reducing the coupling between participating system
components. Replacing of synchronous transfer of
control with asynchronous message-based
communications and relaxation of the rigid
information exchange requirements by self-defining
data formats were introduced for loosely coupled
service-oriented architectures (He, 2003).
Web Services is a widely accepted industry
standard for application integration. It leverages
existing open standards, such as HTTP, TCP/IP,
XML, UDDI (UDDI.org, 2003), WSDL (W3C,
2001), and SOAP (W3C, 2003b), and it is language
and platform independent. A Web Service interface
is a document, or a contract written in XML. The
data exchanged can be any XML document such as
text, images, e-mail, or any type of information.
Contrary to the complex and rigid DCOM (MSDN,
2004) and CORBA interfaces, which try to capture
Service
Dispatcher
Notification Re
q
uest
Service Connector
Request
Response
Status
Mobile Content
Converte
r
Mobile Service
Ima
g
es
Gateway Connector
Service
R
ep
SAC
Service
User
Device
Mobile Service Broker
Notification
Response
Status
Figure 2: Major components of Mobile Image and Presentation Server (MIPS)
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
200
all of the application behaviour with assumption that
all data being exchanged is of fixed format, the Web
Services interface is simple and dynamic. The Web
Services based architecture is loosely coupled and
cross-platform interoperable, hence proving an
excellent approach to transparent access to
distributed and heterogeneous information sources.
MiGate adopts Web Services interfaces between
MIPS and enterprise applications to achieve high
extensibility and cross-platform interoperability.
The event generator of SE traps the service event
and relays the event to the Web Services wrapper
(WSW). The XML generator retrieves the service
content and converts it into a common format, XML
document. WSW assembles the event and content in
a deliverable form and sends them as SOAP
messages over HTTP. Although all Web Services
interfaces in MiGate are exclusively used for inner-
corporate data exchange, additional security can be
achieved at the SOAP level using authentication,
digital signature, and encryption.
3.4 Device and Network Adaptation
The advances in mobile devices, wireless networks,
and messaging technologies have been creating great
opportunities to a vast range of new services for
heterogeneous user environment. However, it also
brings significant challenges for the design and
development of new service platforms. A robust
service platform should have the ability of adapting
across different devices, networks, and applications.
We achieve those objectives through modularized
device and network adaptations.
Adding a new device adaptor allows MiGate to
adapt to a new device with a different set of
capabilities. The independence of content
presentation is accomplished through the use of
XML and XSLT. The service content received from
enterprise applications is in the form of generic
XML document. The content is then transformed in
real-time to a format best suitable for the
presentation on the target device.
MiGate gathers device profiles and user
preferences from three different sources. The basic
user and device information is collected during the
registration. The device profile is retrieved from the
request header in the process of SA. More
subjective information is acquired in a learning-
based query procedure. An evaluation form, with
various fonts, images, and colour pallets, is provided
to user through push or home-deck to learn more
about device capabilities and user preferences.
Gateway adaptor layer extends mobile services
across different mobile networks, different service
providers, and different service types, such as SMS,
WAP pull/push (WAP Forum, 2001b), MMS (3GPP,
2004). The gateway adaptor assembles the service
information in a format suitable for a particular
messaging technology and a particular network type.
3.5 Service Interaction and Access
The small keypad and limited on-device resources
pose serious limitations on service interaction and
access. Simple, intuitive, and personalized user
interface and the ability of adapting users’ mode of
communications based on their need are key factors
towards success. We adopt different interaction
paradigms and combine notification, browsing,
speech-access, and click-to-dial to accommodate
enterprise users’ extensive needs and to provide
effective access to rich enterprise data and services.
There are several design considerations that lead
to the enhanced user experiences. The one-handed
user experience is achieved via data and voice
channel switching. Two approaches, dialogue
combined with content-push and click-to-dial, offer
the capability of modality switching. Push
notification delivers urgent information and services
timely. The backend synchronization mechanism
triggers home-deck to update upon changes of
context, such as location, presence, calendar, tasks,
etc., to guarantee the data consistency. A link to
home-deck is pushed to the device for book marking
during the SA to eliminate the needs for user input.
The proliferation of the mobile devices requires
highly adaptable accessibility in mobile
environment. Our browser-based thin-client
solution bridges the gap between low-end devices
and rich enterprise services. Simple messaging,
such as SMS, combined with home-deck alleviates
the requirements for device functionalities without
compromising the service accessibility. This
approach, thin-client complemented by rich server-
side functionalities, promises low-end device users a
similar user experience as high-end device users and
provides access to the same information and similar
services from low-end devices.
3.6 Implementations
We implemented and deployed a prototype system
and two mobile enterprise services to demonstrate
how enterprise services can be flexibly and securely
extended to mobile environment and how mobile
users access those services efficiently via different
interaction paradigms. We adopt Microsoft Mobile
Information Server (MIS) as MPS. WAP-over-
GPRS is used as bearer for both browsing and
notification traffics. We created a mobile service for
A MOBILE SERVICE GATEWAY FOR MOBILE ACCESS TO ENTERPRISE DATA AND SERVICES
201
corporate e-mail and an extension that allows speech
access to corporate e-mail.
4 CONCLUSIONS
In this paper, we identified the key issues and
technical challenges in the area of mobile access to
enterprise and proposed the architecture of a mobile
service gateway, MiGate, with the aim of bridging
distributed, heterogeneous wireline enterprise
services to mobile devices securely and effectively.
The security and firewall issues are addressed
through MPS and the separation of mobile proxy
from the presentation server, which keeps user
information and enterprise data behind firewall. The
loose coupling of enterprise applications and MiGate
provides an additional level of security. The two-
way access control blocks unauthorized access from
both outside users and enterprise applications. We
adopt Web Services as our integration scheme to
achieve high interoperability across platforms and
languages. The advanced device and gateway
adaptation add to the system great flexibility and
extensibility. The backup-free data replication
scheme facilitates high scalability and fault
tolerance. The event-triggered backend
synchronization scheme guarantees the data
consistency. The thin-client solution, enabling
different modes of access to enterprise data and
services, makes MiGate a general mobile service
platform for a wide range of mobile devices.
The implementation of a prototype system and
two mobile services demonstrates the feasibility and
effectiveness of the MiGate approach.
ACKNOWLEDGEMENTS
The author would like to thank Xiao Ma for his
contributions to the implementation and deployment
of the initial prototype system, and Lookman Fazal,
Terak Warraky, and Eniko Kovacs for the assistance
in network planning and server deployment.
REFERENCES
3GPP, 2004, Multimedia Messaging Service (MMS),
Retrieved from
http://www.lebodic.net/
Butrico, M., Cohen, N., Givler, J., Mohindra, A.,
Purakayastha, A., Shea, D., Cheng, J., Clare, D.,
Fisher, G., Scott, R., Sun, Y., Wone, M. and
Zondervan, Q. 2000, Enterprise Data Access from
Mobile Computers: An End-to-end Story, Proc. of
IEEE 10
th
International Workshop on Research Issues
in Data Engineering, pp. 9-16.
Chou, W., Shan, X. and Li, J. 2001, An Architecture of
Wireless Web and Dialogue System Convergence for
Multimodal Service Interaction over Converged
Networks, Proc. of IEEE ICCCN, pp. 69-74.
Chen, Y., Huang, H., Jana, R., Jim, T., Hiltunen, M., John,
S., Jora, S., Muthumanickam, and Wei, B. 2003,
IMobile EE – An Enterprise Mobile Service Platform,
ACM Journal on Wireless Networks, vol. 9, no. 4, pp.
283-297.
He, H. 2003, What is Service-Oriented Architecture?
Retrieved from
http://webservices.xml.com/
ICE, 2003, Wireless Short Message Services (SMS),
Retrieved from http://www.iec.org
Li, J., Chou, W., Shan, X., Liu, F., Wong, E. and Rathi, N.
2003,An Adaptable Architecture for Secure Delivery
of Converged Services, Proc. of IEEE ISADS, pp. 45-
52.
MSDN, 2004, COM, DCOM, and Type Libraries,
Retrieved from http://msdn.microsoft.com
OMG, 2002, CORBA/IIOP Specifications, Retrieved from
http://www.omg.org
Pissinou, N., Makki, K. and Kong-Ries, B., 2000, A
Middleware-Based Architecture to Support
Transparent Data Access by Mobile Users in
Heterogeneous Environments, Proc. of IEEE 10
th
International Workshop on Research Issues in Data
Engineering, pp. 63-70.
Stajano, F. and Jones, A., 1998, The Thinnest of Clients:
Controlling It All via Cellphone, ACM Mobile
Computing and Communications Review, vol.2, no. 4,
pp. 1-8.
UDDI.org, 2003, UDDI Version 3 Specification, Retrieved
from
http://www.uddi.org/
W3C, 1999, XSL Transformations (XSLT), Retrieved from
http://www.w3.org/TR/xslt
W3C, 2001, Web-Service Description Language (WSDL),
Retrieved from http://www.w3.org/TR/wsdl
W3C, 2003a, Extensible Markup Language (XML),
Retrieved from http://www.w3c.org/XML/
W3C, 2003b, Simple Object Access Protocol (SOAP),
Retrieved from
http://www.w3c.org/TR/soap
W3C, 2003c, Web Services Architecture, Retrieved from
http://www.w3.org/TR/ws-arch/
WAP Forum, 2001a, Push Architectural Overview,
Retrieved from http://www.wapforum.org
WAP Forum, 2001b, Wireless Application Protocol
Specification, Retrieved from
http://www.wapforum.org/
ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS
202
