REAL-TIME AUDIO CAPTURE, COMPRESSION & STREAMING

SERVICE ON A PDA

C. Garcia, F.J. Suarez

Universidad de Oviedo

Campus de Viesques, 33204 Gijon SPAIN

Keywords:

Mobile Multimedia Service, Audio Compression, Audio Streaming, Performance Tunning.

Abstract:

This paper shows how a PDA (Personal Digital Assstant)can be converted into an audio source within a private

network or the web, providing capture, compression and streaming of audio as a real-time mobile service.

Once the sound around the PDA has been captured and compressed to mp3 format, the service allows it to

be broadcast to a Streaming Server. Once the audio reaches the Streaming Server, anyone with a network

connection is able to receive and play it. The service provides different conﬁguration parameters to control

audio quality and broadcasting performance. For audio quality, different bitrate and frecuency values can

be chosen. For broadcasting performance, different packet-length values can also be chosen, and the bitrate

mode can be automatically controlled. The paper also includes the performance tunning of the compressor

and experimental results using both wired and wireless networks.

1 SERVICE DESCRIPTION

PDAs provide now a wide variety of mobile connec-

tions, from standard modem connections to wireless

connections. Taking advantage of their mobility and

connection capability, a PDA can be converted into

an audio source within a private network or the web,

providing capture, compression and streaming of au-

dio as a real-time service. For instance, this kind of

service could be useful to broadcast live interviews,

news reports or press conferences.

Once the sound around the PDA has been cap-

tured and compressed to mp3 format (Robinson and

Hawksford, ) (Branderburg and Popp, ) (Rangachar,

2001), the service allows it to be broadcast to a

streaming server. The service uses Real-time Trans-

port Protocols (RTP/RTCP) and Session Description

Protocol (SDP). These protocols allow the audio to

reach the streaming server. The streaming server must

be RTP and SDP compatible, which is the case of the

Darwin Streaming Server (Apple) (Computer, ) and

the Helix Server (RealNetworks) (RealNetworks, ).

Once the audio reaches the streaming server, anyone

with a network connection is able to receive and play

it.

Instead of broadcasting to a streaming server, the

audio can be saved in a ﬁle and broadcast later. An

improved use of free memory and long-time record-

ing capability are the proﬁts of saving voice messages

in this way.

The service provides different conﬁguration pa-

rameters to control audio quality and broadcasting

performance. For audio quality, different bitrate and

frequency values can be chosen. For broadcasting

performance, different packet-length values can also

be chosen, and the auto-bitrate mode can be activated.

One of the main advantages of the service is the

auto adaptable control of the bitrate (in the auto-

bitrate mode), which provides the best bitrate com-

pression at all times. This means the bitrate will lower

or rise as the available bandwidth does.

The rest of the paper is structured in the follow-

ing sections: service operation, audio compression

(including compressor performance tuning), audio

streaming, protocols (RTSP, RTP, RTCP & SDP), im-

plementation details, experimental results (with both

bluetooth and modem communication), concluding

remarks and references.

2 SERVICE OPERATION

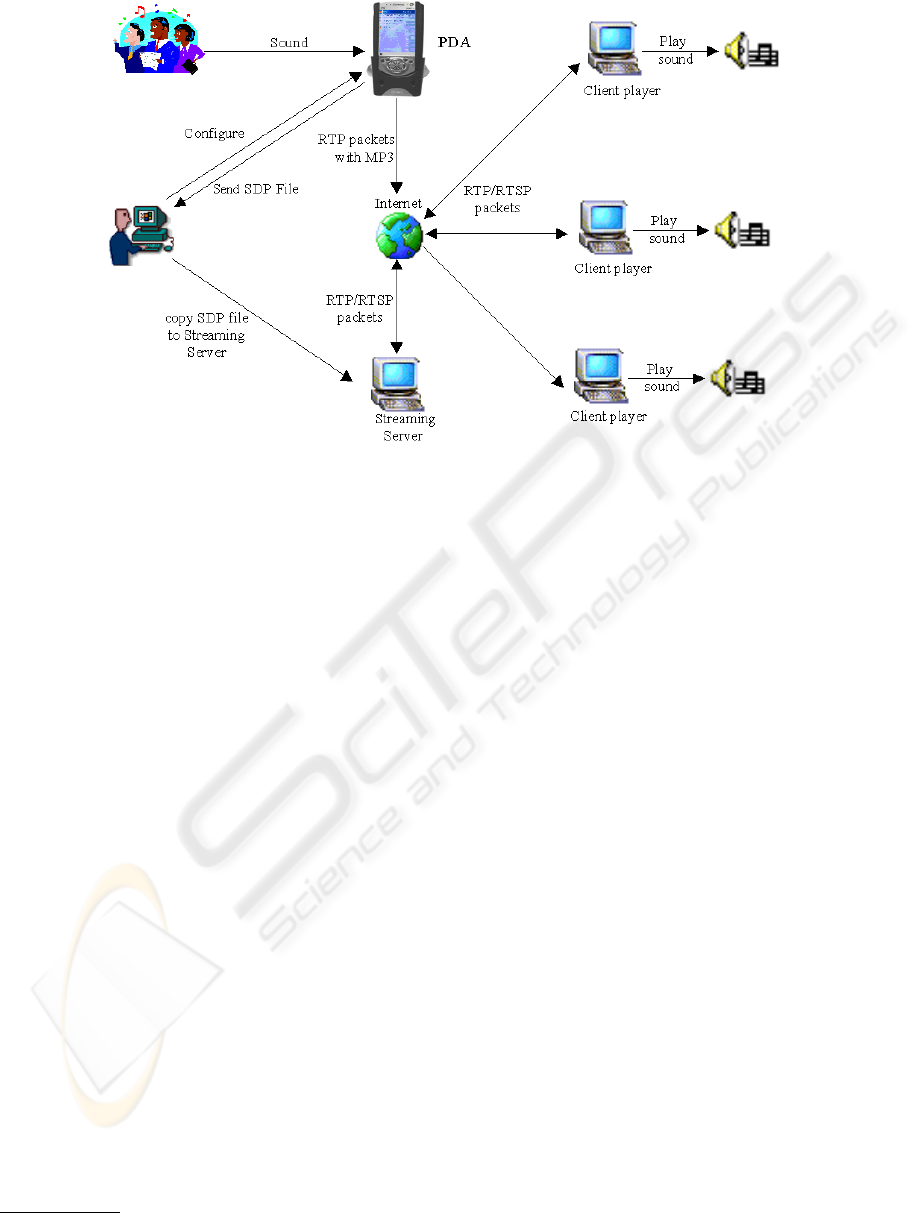

Figure 1 shows what can be achieved with the service.

Obviously, the system is simpler for recording voice

345

J. Suarez F. and Garcia C. (2004).

REAL-TIME AUDIO CAPTURE, COMPRESSION & STREAMING SERVICE ON A PDA.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 345-350

DOI: 10.5220/0001391203450350

 SciTePress

Figure 1: Service overview

messages only, but when an audio-conference takes

place, the whole system comes into play. The SDP

ﬁle must be copied to the streaming server public di-

rectory. It need not be copied again unless a different

streaming server is used. Mp3 frames travel within

RTP packets

, ﬁrst from the PDA to the streaming

server, and then from the streaming server to the

clients. The clients send a request to the streaming

server using RTSP protocol in order to start receiving

the RTP packets.

The Streaming Server and the client’s players must

be compatible with the protocols used. The Apple

Quicktime or Darwin Streaming Server 3 work well,

as does the latest version of the Real Server (Helix).

The Winamp player with an RTP plug-in and the Re-

alOne player also work well. RealOne is also avail-

able in Pocket PC.

So this service is capable of broadcasting the sound

around the PDA to anyone with a PDA or a PC with

an appropriate client player.

3 AUDIO COMPRESSION

The open source mp3 encoder used is Gogo-no-Coda

3.01, which is the highest speed mp3 encoder avail-

able. It has many optimizations and is derived from

Lame 3.88. In the context of this work, the source

code has been modiﬁed, changing some parts of the

RealOne is only compatible with one mp3 frame per

RTP packet.

assembler code to C code, Linux code to Windows

and Pocket PC code, and deleting some unnecessary

code, such as stereo, joint stereo and VBR sections.

The performance of the encoder has been tested on

an AMD K6-2 450MHz and also on the slower Pen-

tium 60MHz. using the AMD the encoding speed is

5X. However, using the Pentium, the encoding speed

reaches only 0.8X. Unfortunately, although the PDA

processor is an StrongARM 206 MHz, it’s encoding

speed is below 0.5X. To explain these poor results,

some integer and ﬂoating point operations have been

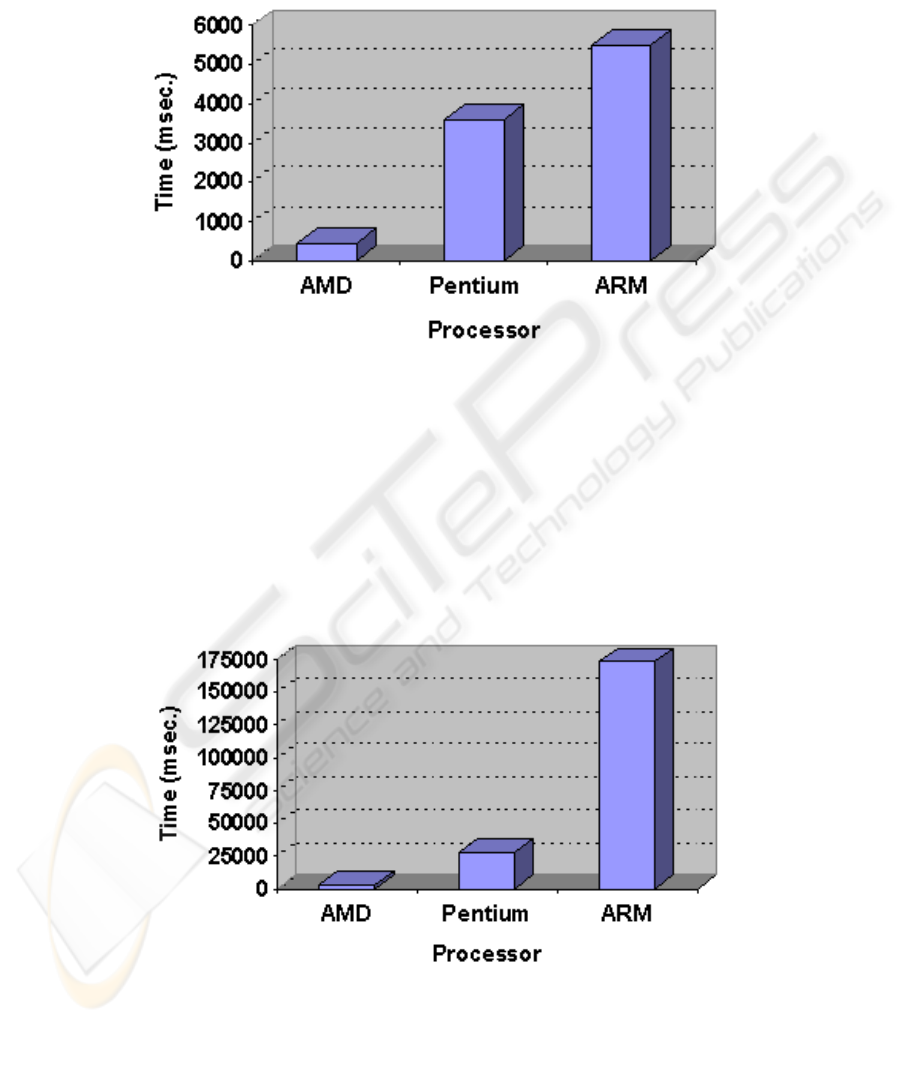

tested (see Figures 2 and 3). Using integer operations,

the StrongARM processor is slower than the Pentium

although it has three times more MHz. But the differ-

ence is greatly exaggerated when dealing with com-

plex ﬂoating point operations. The absence of a FPU

and a memory cache of only 16 KBytes explain the

bad performance. This could also explain the current

lack of mp3 encoders for PDAs.

3.1 Compressor performance tuning

Two optimizations were carried out to create a Real-

Time mp3 encoder.

• The most complex function is the fast Fourier

Transform (FFT). This is executed once per frame,

and analyzes every block of samples to be encoded.

The improvement consists of executing it with only

the ﬁrst block of samples, the remaining blocks us-

ing the results of the ﬁrst block analysis.

• X raised to 3/4 is the next most time consum-

ing function, because it is executed once per sam-

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

346

Figure 2: Integer performance

Figure 3: Floating point performance

REAL-TIME AUDIO CAPTURE, COMPRESSION & STREAMING SERVICE ON A PDA

347

ple. Thus, if the frequency of capture is 11,025

Hz, the function is executed 11,025 times per sec-

ond. Furthermore, this function is implemented

with two SQRT calls and a multiplication using

ﬂoating point arithmetic. By joining different lin-

eal functions, a new, much less complex function

replaces the original one with minimum error.

4 AUDIO STREAMING

Audio streaming allows users to play audio without

previously downloading an audio ﬁle. They simply

listen to the audio data as they receive it.

A user can start a live streaming session by mak-

ing a RTSP

(Schulzrinne et al., 2002) request to the

streaming server for the required SDP ﬁle

. As soon

as the streaming server receives the request, the user

can begin to receive RTP packets sent by the PDA ap-

plication and listen to the audio.

4.1 Real-Time Transport Protocol

(RTP)

RTP (Schulzrinne et al., 1996) (Schulzrinne, 1996)

is suitable for real time transmissions, like audio or

video. It usually runs on top of UDP protocol, so

it does not guarantee quality delivery service. This

means packets can be lost or disordered, however it

does provide a way to detect these events.

RTP uses an auxiliary control protocol (RTCP),

which provides feedback about service quality, and

basic user information.

The application developed has a basic unicast im-

plementation, in order to consume the lowest cpu

power. As mentioned in Section 3, StrongARM cpu

power is poor. RTCP has also been implemented, but

seems to be unnecessary. RTCP allows the stream-

ing server to know whether a user is active; if a user

doesn’t send RTCP packets to the streaming server,

the server stops sending him RTP packets. However,

in this service the streaming server doesn’t actually

need to receive RTCP packets to know the encoder ap-

plication is active, because the streaming server is al-

ready receiving the RTP packets. As a result, the ser-

vice also works without sending RTCP packets. Fur-

thermore, RTCP packets sent by the streaming server

are also unnecessary (see (Schulzrinne et al., 1996)

for more details).

Real-Time Streaming Protocol

SDP ﬁles are used for live streaming sessions in Quick

Time Streaming Server and they are also compatible with

Real Helix Server.

4.2 Session Description Protocol

(SDP)

SDP (Handley and Jacobson, 9968) is necessary for

the streaming server to receive the audio packets and

reﬂect them to clients. It is also necessary in order for

the clients to be able to request from the streaming

server live streaming audio packets.

The application developed generates the SDP ﬁle

needed to start a live streaming session.

5 IMPLEMENTATION DETAILS

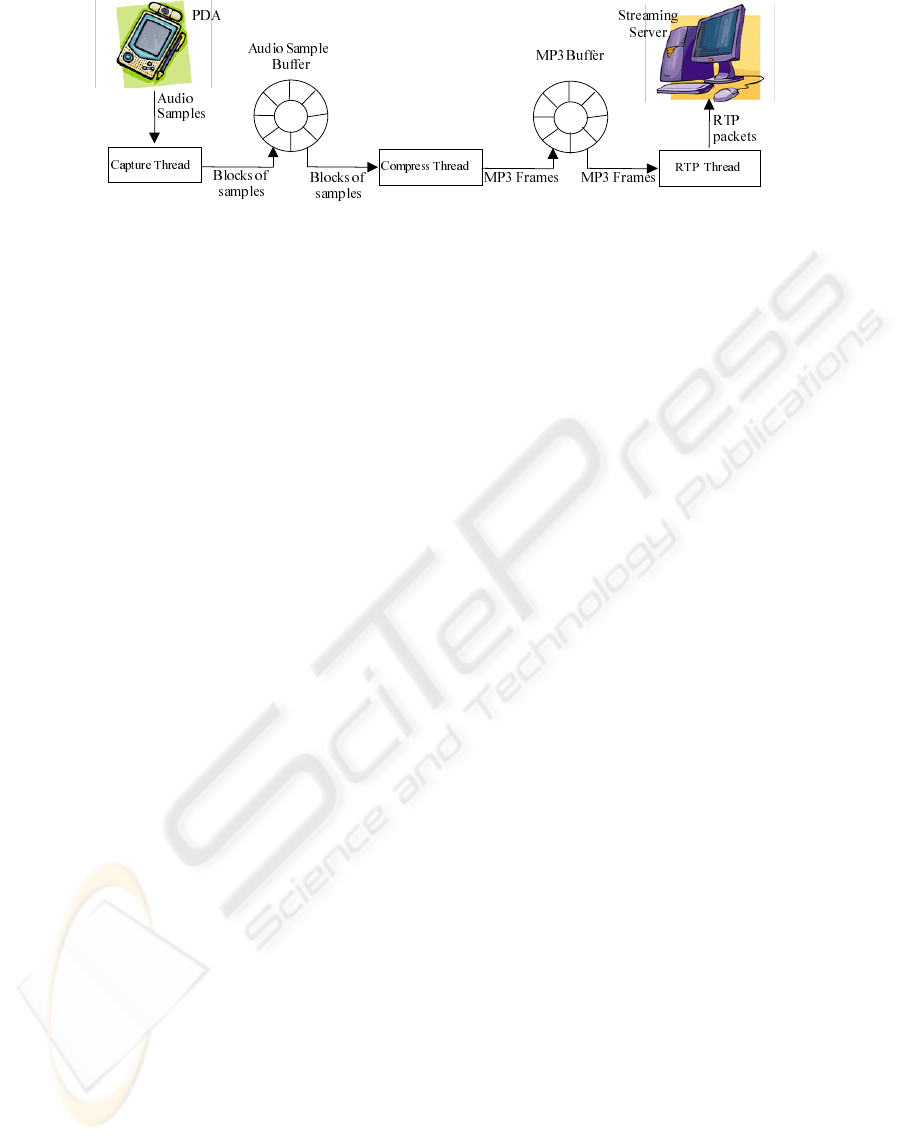

Fig. 4 shows how the service implementation works.

It has been simpliﬁed for better understanding. For

instance, it doesn’t show how it treats RTCP packets

or mp3 ﬁles.

The application is multithreaded and uses synchro-

nization between threads. First of all, there is a thread

that captures audio samples using API functions. It

saves blocks of samples in a buffer and signals an-

other thread which compresses the audio samples of

the shared buffer. When the audio compression ﬁn-

ishes, it stores mp3 frames in another buffer, and sig-

nals a ﬁnal thread whose task is to generate RTP pack-

ets containing the mp3 frames and send them to the

streaming server.

This behaviour corresponds to ideal conditions. If

conditions are degraded, such as a degradation of the

available bandwidth or CPU, then the buffers will

ﬁll. At this point the auto-bitrate mode will start to

operate, if it is activated, changing the bitrate to a

lower value if a degradation appears. This has two

advantages, the mp3 compression is faster and the

bandwidth requirement descends. On the contrary, if

the buffers are nearly always empty, the auto-bitrate

mode will change the bitrate to a higher value in or-

der to get more audio quality. So, in fact, this option

provides the best audio quality for the available band-

width at all times.

Development for Pocket PC (Microsoft O.S. for

PDAs) (Grattan and Brain, ) is slower than for Win-

dows O.S. This is mainly because the source code is

written in the Embedded Visual Tools environment

and then the binaries are generated and downloaded

to the PDA. This process is necessary each time the

source code is changed in order to test the execution

in the PDA. There is also a Pocket PC emulator for

Windows, but is unable to emulate all the PDA func-

tions, for example some communication functions.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

348

Figure 4: Service implementation

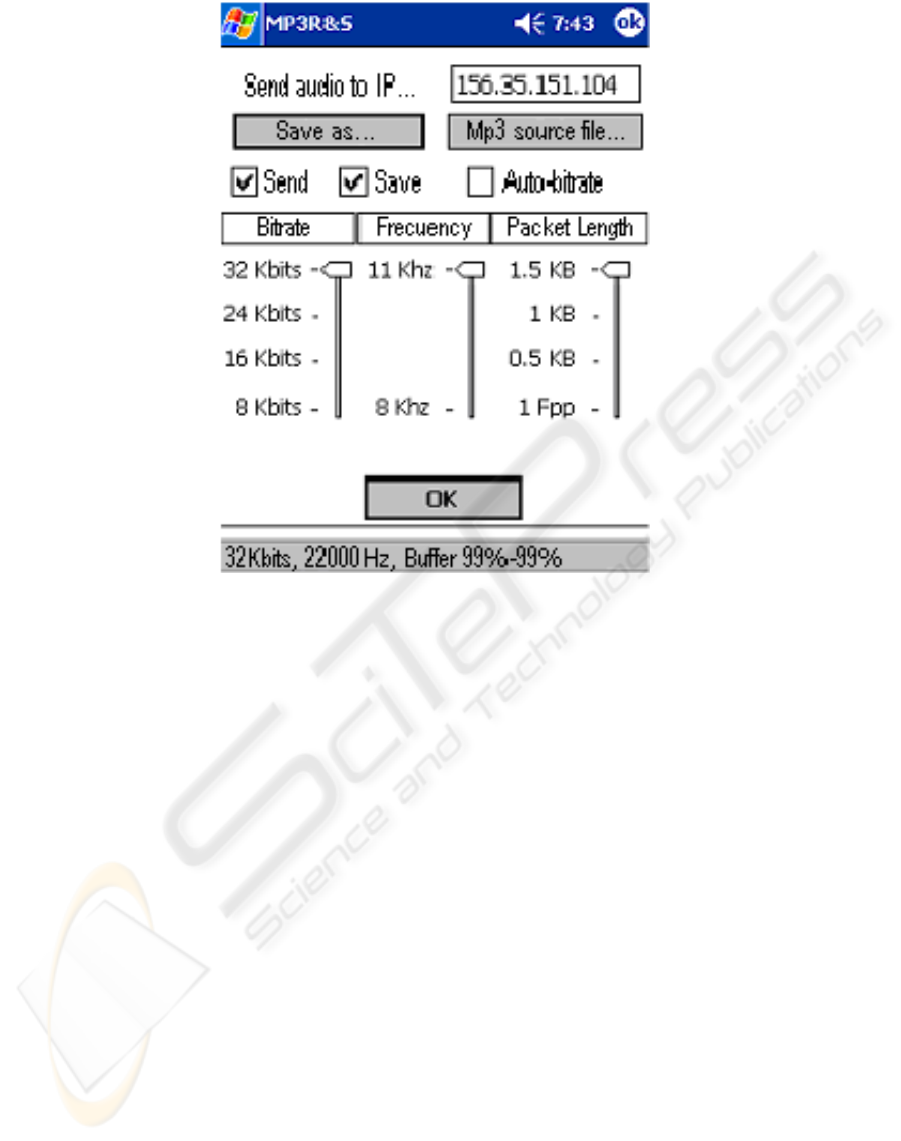

6 USER INTERFACE

The application interface consists of a main menu that

presents various options and help. From this menu,

users can start and stop a recording, start a mp3 ﬁle

transmission instead of sending live audio, or generate

an SDP ﬁle. Many options can be conﬁgured, as can

be seen in Fig. 5.

The streaming server IP must be placed in the

textbox. A name can be chosen for the mp3 ﬁle in

which audio is to be saved, and for the mp3 audio

source ﬁle. There are three checkboxes, which can be

checked for live transmissions, ﬁle recordings and to

activate the auto-bitrate mode. There are also three

sliders, with which users can choose the compression

bitrate, the audio frequency and the number of frames

within an RTP packet. This number goes from one

frame per packet, to the number of frames that ﬁt in

1.5 Kbytes. If only one frame per packet is chosen,

many packets per second will be sent. Each packet

has an RTP header, so more data is sent and more re-

sources are required.

There is also a status bar which shows important in-

formation during the recording process, such as the

bitrate status, the audio frequency and the buffer sta-

tus.

7 EXPERIMENTAL RESULTS

The service has been tested with two Compaq iPAQ

PDAs: one 3800 (206MHz CPU) and one 3950

(400MHz CPU). A bluetooth and modem connections

have been tested in order to check the audio stream-

ing. In every experiment, three computers were used:

one with the Darwin Streaming Server installed, and

the other two with client players; a Winamp player

and a RealOne player.

First a network connection is established. Then, the

IP of the PC where the Darwin Streaming Server is

running is introduced into the PDA application. The

auto-bitrate mode option is always activated and the

bitrate value is always set to the maximum before

starting recording. The best RTP packet length is the

maximum, as was said in Section 5, but for RealOne

compatibility it has to be set to the minimum, that is,

one frame per packet.

The auto-bitrate mode is unnecessary for ﬁle

recordings only. In addition, StrongARM 206MHz

has enough performance for recording audio to a mp3

ﬁle with the maximum quality provided.

7.1 Bluetooth communication

The bluetooth connection provides bandwidth enough

for the maximum audio quality. Under normal cir-

cumstances the application maintains maximum qual-

ity until it is stopped. The auto-bitrate rarely needs

to change the bitrate in the iPAQ 3950. However,

with the iPAQ 3800, for maximum audio quality, there

should be a higher RTP packet length value than only

one frame per packet.

7.2 Modem communication

The modem connection does not assure the minimum

bandwidth at every moment; sometimes the real band-

width may be 24 kbps, going down as low as 0 kbps

for some seconds, then raising to 16 kbps, and so on.

For RealOne compatibility, 8 KHz is advisable in or-

der to balance the higher resources consumed for the

minimum value of the RTP packet length. If RealOne

compatibility is not needed, the maximum value of

the RTP packet length is more appropriate. Modem

connections truly beneﬁt from the auto-bitrate mode,

which ensures the audio leaving the PDA in real-time

in the event of the bandwidth going down, avoiding

the bitrate being higher that the available bandwidth.

It is preferable for audio to reach clients with lower

quality than not at all or with many breaks.

REAL-TIME AUDIO CAPTURE, COMPRESSION & STREAMING SERVICE ON A PDA

349

Figure 5: Preferences window

8 CONCLUDING REMARKS

This service converts a PDA to an audio source

within a network, and also provides a stand-alone

mp3 recorder. A PDA could be placed, for example,

in a conference room and it would capture the audio,

compress it to mp3 and send it to a streaming server

to be delivered to users with access to the server. In

summary, the service includes:

• A stand-alone mp3 audio recorder.

• A mp3 live audio source for all users connected to

Internet.

• A deferred audio transmission of mp3 audio ﬁles

previously recorded.

• An auto-bitrate mode which guarantees the maxi-

mum quality of live audio transmission for the re-

sources available at any given moment.

REFERENCES

Branderburg, K. and Popp, H. An introduction to mpeg

layer-3. Technical report, Fraunhofer Institut für Inte-

grierte Schaltungen (IIS).

Computer, A. Quicktime streaming. Technical report, Ap-

ple Computer, Inc.

Grattan, N. and Brain, M. Windows CE 3.0 Applicattion

Programming. Prentice Hall.

Handley, M. and Jacobson, V. (19968). Sdp: Session de-

scription protocol. Technical Report RFC 2327.

Rangachar, R. (2001). Analysis and improvement of the

MPEG-I audio layer III algorithm at low bit-rates.

PhD thesis, Arizona State University.

RealNetworks. Media delivery, the helix server. Technical

report, RealNetworks, Inc.

Robinson, D. J. and Hawksford, M. O. Psychoacustic mod-

els and non-linear human hearing. Technical report,

Centre for Audio Research and Engineering, Depart-

ment of Electronic Systems Engineering, The Uni-

versity of Essex, The University of Essex, Wivenhoe

Park, Colchester CO4 3SQ, United Kingdom.

Schulzrinne, H. (1996). Rtp proﬁle for audio and video con-

ferences with minimal control. Technical Report RFC

1990, Columbia University.

Schulzrinne, H., Casner, Frederick, and Jacobson (1996).

Rtp: A transport protocol for real-time applications.

Technical Report RFC 1889, Columbia University.

Schulzrinne, H., Rao, A., and Lanphier, R. (2002). Rtsp:

Real time streaming protocol. Technical Report RFC

2326-bis2, Columbia University.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

350
