A MIDDLEWARE FOR THE MANAGEMENT OF LARGE

UTILITIES PLANTS

S. Cavalieri, F. D’Urso, C. Floridia, A.Rossettini

University of Catania, Faculty of Engineering, Department of Computer and Telecommunications Engineering, Viale

A.Doria, 6 - 95125, Catania (ITALY)

Keywords: Middleware, Gas and water distribution utilities, Wastewater treatment systems, XML, Web Services,

SCADA, GIS, DSS.

Abstract: The paper presents the main features of the

European project Mobicossum IST 1999-57455, still running.

The project is a CRAFT one approved inside the Fifth Framework Programme. It aims to define a

middleware offering services for the management of large plants, in the field of gas and water distribution

and wastewater treatment systems. In the paper, the main features of the project will be explained, focusing

on the description of the implementation of the core of the middleware, called Generalised Interface.

1 INTRODUCTION

The Mobicossum project, IST 1999-57455, is a

CRAFT project (V European Framework

Programme) involving medium and small European

enterprises working in the field of gas and water

distribution and wastewater treatment. One of the

RTD performers inside the project is the Department

of Computer and Telecommunications Engineering

at the University of Catania (Italy), to which the

authors of the paper belong. The main objective of

the Mobicossum project is to design and implement

software technologies that allow the use of wireless

mobile device as client of IT systems to control and

manage large utilities plants. The main feature of the

proposed technology is the definition of a common

interface between mobile applications, running in

mobile devices like palm PCs, and data stored in

SCADA (Supervisory Control and Data

Acquisition), GIS (Geographic Information System)

and DSS (Decision Support System) applications.

Common interface is not linked to a specific

application, product or vendor. Further, platform

independency is guaranteed. The common interface

provides for several services useful in utilities

management, like localisation, user authorisation,

and business logic. The research focuses on

satisfying requirements present in utilities for water

and gas distribution and wastewater treatment

systems, the three interest areas of the partners

involved in the project. It must be clear that the

results obtained can be easily transferred to other

kind of utilities, e.g. electricity distribution. The

common interface between mobile devices and

applications like SCADA, GIS and DSS is realised

defining a Middleware.

The paper will focus on the description of the

iddleware from the implementation point of view,

highlighting the software technologies adopted. In

particular the description will be limited to the core

of the Middleware called Generalised Interface.

2 MAIN FEATURES OF

MOBICOSSUM PROJECT

Mobicossum aims to define a Middleware conceived

to offer specialised services in the field of water/gas

distribution and wastewater treatment systems.

Services are mainly dedicated to mobile users (i.e.

users connected to mobile devices, like mobile

phones and PalmPCs). Middleware is placed

between (mobile) users and the applications

providing for information coming from water/gas

distribution and wastewater treatment systems.

These applications are SCADA, GIS and DSS, three

kinds of applications featuring very different

services and usage. Mobicossum is made up by the

following subsystems: Presentation Manager (PM),

Central Services (CS), Logical View (LV), Data

Management (DM) and the Generalised Interface

(GI).

Cavalieri S., D’Urso F., Floridia C. and Rossettini A. (2004).

A MIDDLEWARE FOR THE MANAGEMENT OF LARGE UTILITIES PLANTS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 99-104

DOI: 10.5220/0002601200990104

 SciTePress

The Presentation Management is responsible to

generate the pages presented to the users as a

function of the user (name), the location of the user,

the used presentation device (Pocket PC, WAP

phone, etc.), the application status, etc.

The Central Services provide for different

features. One of this is User Access Management, as

access from not authorised users must be avoided,

providing for secure access logging. Furthermore,

when a particular user accesses the system by a

secure logging, it is required that the middleware

identifies its profile (e.g. technician, manager, and so

on). In this way, the Mobicossum system may be

automatically aware of the data needed by the user,

avoiding the need to explicitly request the data

desired. Other Central Services are those concerning

Localisation. Localisation of each mobile worker is

a very important requirement in large plant, like

those related to water/gas distribution and

wastewater treatment systems. Localisation is very

important, for example, concerning alarm problems;

a warning system, being aware of the location of

each mobile worker, would allow mobile workers

nearest to the warning area to be alarmed.

Localisation may be used also for data selection

based on the position of the user inside or outside

the plant; only the data relevant to the geographical

area nearest to the user are sent to him, avoiding

transmission of useless information.

The Logical View provides for high-level

services. It contains the business logic of

Mobicossum application. The LV must be seen as a

library of macro-level functions able to perform

complex transformation on the real data available at

the SCADA, GIS and DSS level. The type and

complexity of the transformation depends on the

kind of user calling the function.

The Data Management is in charge of providing

data brokerage. It collects data from the different

application connected to Mobicossum. The data can

be retrieved in function of logical names or in

function of a position specification.

The Generalised Interface is the core of the

Middleware. This subsystem directly interfaces to

the SCADA, GIS and DSS applications maintaining

the real data needed by the Mobicossum clients. The

main aim of the GI is that to offer a common

interface to every SCADA, GIS and DSS

application. This mainly means the definition of a

unique set of services to access data maintained in

SCADA, GIS and DSS applications and unique way

to access these data. Decoupling with the real

SCADA, GIS and DSS application is performed in

this way. Services offered by the GI may be

accessed directly by a user, but can also be used by

the other components of Mobicossum Middleware,

when they need to access the real data.

In order to understand the exchange of

information between the components of

Mobicossum, Figure 1 summarises its internal

architecture. As can be seen, the GI is placed at the

lowest level in order to provide for basic accesses to

the SCADA, GIS and DSS applications. Exchange

of information between Mobicossum components

may occur from the top towards the bottom of the

architecture (and vice versa) and inside each sub

layer (between Data Management, Logical View and

Central Services). A direct exchange of information

between Presentation Management and the GI may

be possible. Further, direct exchange of information

between Mobicossum client and the GI is foreseen.

In any case the access to the real data maintained to

SCADA, GIS and DSS applications has no sense in

Mobicossum, as all the query to these applications

must be realised through the Generalised Interface.

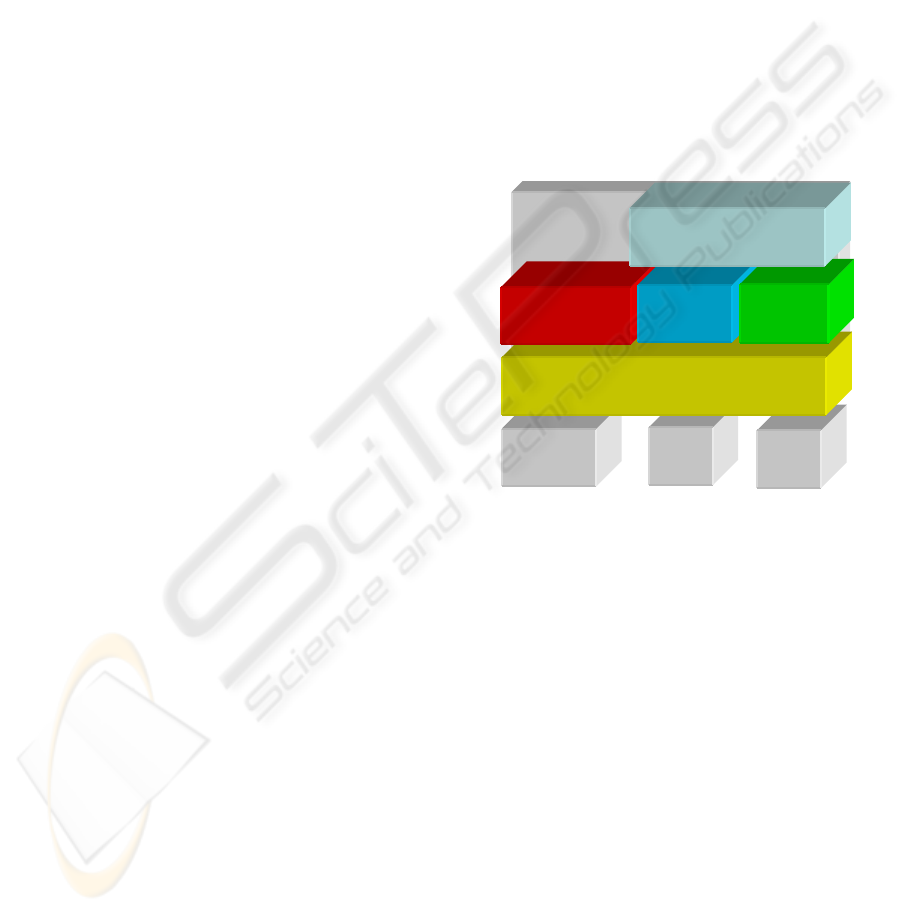

Figure 1: Mobicossum Middleware Architecture.

3 GENERALISED INTERFACE

Client applications interact with the Generalised

Interface, which is in charge of receiving incoming

messages containing requests for a particular

service, parsing the messages, and dispatching the

request to the appropriate method of a specific

application such as a SCADA system, a GIS or DSS.

When the service returns a response, the GI is also

responsible for packaging the response into a

message and sending back to the client. Definition of

client applications must be clearly stated.

Mobicossum project mainly focuses on definition of

services (in the area of water/gas distribution and

wastewater treatment systems) mainly available

from mobile devices. In particular very simple

mobile devices are considered, like mobile phones

and PalmPCs. So client applications must be strictly

GIS

DSS

SCADA

Generalised Interface

Data

Mana

ement

Mobicossum

Middleware

Presentation

Mana

ement

Central

Service

Logical

View

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

100

considered as very "simple" applications running on

the mobile devices above mentioned. A browser

running on a PalmPC must be considered an

example of a very "simple" application running on a

mobile device. However, the description of the

implementation of the GI, contained in the following

sections, will point out that extension (outside the

aim of Mobicossum project) of client applications to

more "intelligent" applications (let think, for

instance, to a SCADA applications which has to

collect information from other SCADA applications

through Mobicossum infrastructure) is quite trivial.

Definition of the GI has been made taking into

account two main requirements of

control/monitoring problems in the area of water/gas

distribution and wastewater treatment systems. The

first concerns the Definition of Common Services.

SCADA, GIS and DSS applications offer specialised

services, whose meaning and scope is common to

the most part of the products available in the market.

But, their implementation is strictly linked to the

particular SCADA, GIS and DSS application.

Considering for example a SCADA application, it's

always be possible to find groups of services

conceived to retrieve and update information from/to

field devices, but the names, the relevant syntax, the

number of parameters, the error codes returned by

the services are totally different changing from one

SCADA application to the other. The main aim in

the definition of the Generalised Interface is that to

offer to client applications (including the other

Mobicossum modules, seen as client for the GI) a

unique set of services for each SCADA, GIS and

DSS applications. Each service defined in the GI

must be easily mapped into the real corresponding

service offered by the particular SCADA, GIS and

DSS application. The definition of the services for

the GI has been based (in Mobicossum project) on a

study carried on during the first months of the

project. It pointed out the user requirements, in the

sense of services real needed by users in the field of

water/gas distribution and wastewater treatment

systems.

The other requirement taken into account in the

development of the GI is related to the Definition of

a Common Access to the Services. One of the

problems strongly felt when accessing to different

SCADA, GIS and DSS applications, is linked to the

different mechanisms used to achieve the access.

Different solutions, like COM, DCOM, OPC

currently exist and development of different

accesses for different application is often required.

In particular, development of a client application

often means including different access schema

according to the SCADA, GIS, DSS application the

client application needs to access. Accessing to a

new SCADA, GIS, DSS application implies to add

new accessing schema for the specific application.

For this reason, definition of Middleware and in

particular definition of the GI has been performed

with the aim of making platform and language

independent the way of access to industrial

applications by the client. The paper mainly focuses

on this last aspect, i.e. the definition, inside

Mobicossum project, of a common access to the

services provided for by the GI.

4 GI ARCHITECTURE

The need of a common access mechanism to the

services available at the SCADA, GIS and DSS level

has led to the definition of an internal architecture of

the GI featuring a unique access mechanism to all

the applications below the GI, integrated into the

Mobicossum environment.

Current literature presents several approaches for

definition of communications between distributed

applications, but that based on Web Services

technology features a lot of advantages, due to the

platform- and language-independence, and to the

low configuration complexity and costs. For this

reason, development of the GI was mainly based on

Web Service technology. In particular it was

assumed that the GI exports the own services using

the Web Service technologies (Web Services, 2002).

These services are those defined trying to generalise

the services generally offered by SCADA, GIS and

DSS applications available on the market. Due to the

use of Web Service technology, these services have

been defined in terms of Web Methods. Web Service

technology has been used also for the exchange of

information between GI and the SCADA, GIS and

DSS applications. It is assumed that the only

requirement for the integration of existing

applications into Mobicossum environment is that

these applications export their own functionalities

through Web Services in order to establish the data

exchange with Mobicossum Middleware.

XML/SOAP based communications has been

assumed to send/receive request/response to/from

the Generalised Interface and to realise the exchange

of information between the Generalised Interface

and the Web Services related to each application.

Figure 2 shows the integration between GI and

the SCADA, GIS and DSS applications through the

Web Services.

A MIDDLEWARE FOR THE MANAGEMENT OF LARGE UTILITIES PLANTS

101

4.1 Integration with Existing

Applications

As said before, the main hypothesis on the basis of

Mobicossum Middleware is that integration of

existing application is realised through Web Service-

based technology. This means that each SCADA,

GIS and DSS application has to provide for Web

Services in order to be integrated into Mobicossum

framework. Mobicossum Middleware, and in

particular the GI, has to acquire a complete know-

how about the applications below it and their

available Web Services, including all the Web

Methods offered. This is realised through the

definition of a Web Service Specification for each

application. A Web Service specification is an XML-

Schema file (XML Schema, 2003) describing both

Web Methods offered by Web Services related to

each SCADA, GIS and DSS application, and the

format of the XML/SOAP messages to be

exchanged with these Web Services. According to

the Web Service-based philosophy, also the

Generalised Interface has to provide for a

Generalised Interface Specification, describing the

generalised services offered by the GI, using

XML-Schema.

Figure 2: Integration between GI and SCADA, GIS and

DSS Applications

On the basis of the Generalised Interface

Specification and the Web Service Specification

related to application registered inside Mobicossum,

particular mapping files must be defined. In

particular, two mapping files are needed for each

application as they will be used by a particular

component of the GI (the Mapper) to map the

request/response written according to Generalised

Interface Specification, into request/response written

according to Web Service specification of the

specific application, as will be explained in the

following. It was assumed to realise the mapping of

XML/SOAP document using XSLT language. So,

suitable Mapping files written in XSLT language,

are available to realise the translation, as already

said before.

4.2 Main Components of the GI

The GI is made up by the following internal

components: Parser, Mapper and Dispatcher, as

shown by Figure 3. The Parser receives the

XML\SOAP request coming from the client of the

GI and checks if the XML document is valid. For the

document validation, the Parser verifies that the

XML/SOAP message is well formed and has been

prepared according to an XML-Schema describing

the correct structure of the incoming requests. The

XML-Schema is the Generalised Interface

Specification, as said before. If the request doesn’t

match, an error message will be returned; on the

other hand, if the document is valid, the request will

be sent to the Mapper module. For each response

coming from the application, the Parser will receive

a document from the Mapper component (described

in the following). In this case the Parser will check

that the format of the document has been prepared

according to the XML-Schema for the response,

passing the valid document to the client.

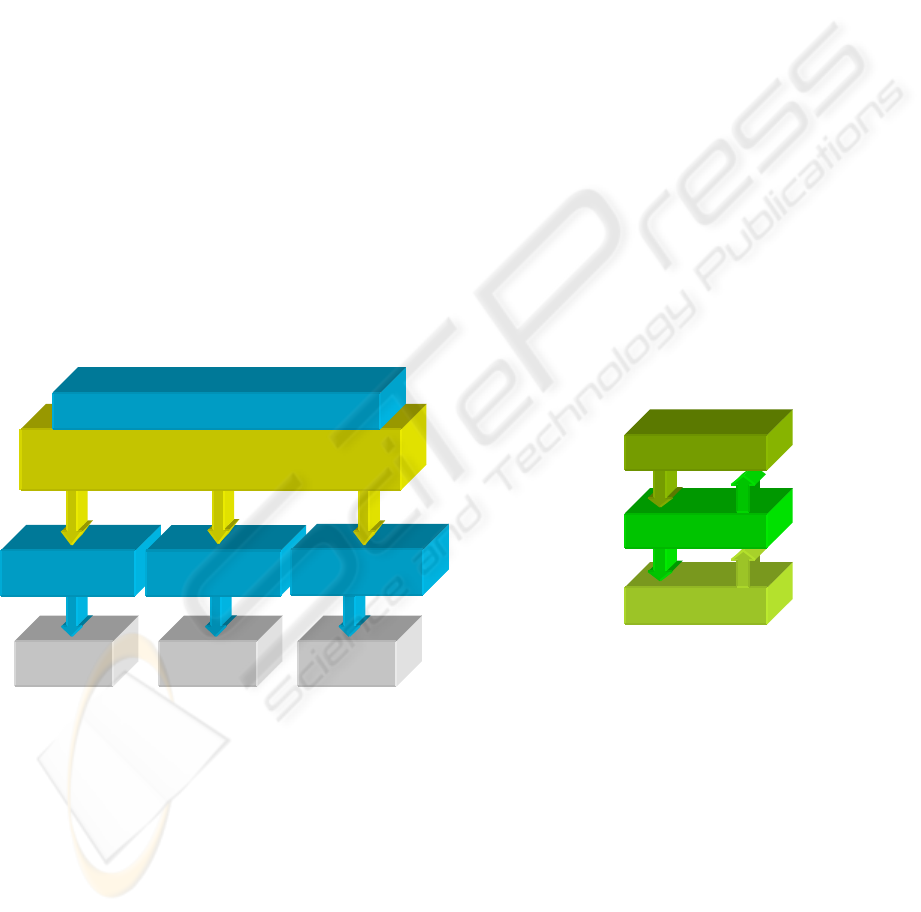

Figure 3: Generalised Interface Internal Architecture

The Mapper performs the translation of

XML/SOAP request, sent to GI, into the format

recognised by destination application. As said

before, this mapping has been realised on the basis

of suitable Mapping files written in XSLT language

(XSLT, 2003). When the Mapper receives a request,

written according to Generalised Interface

Specification, it maps the request in the XML/SOAP

request format of the destination application, using a

Request Map file, that is the map file (in XSLT

language) related to the specific application. The

document resulting by mapping represents the

format of the request that must be delivered to the

specified destination application. Once the Mapper

has processed a request, the request is passed to the

DSS GIS SCADA

Web Services

Generalised Interface

Dis

atche

Parse

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

102

Dispatcher. The same process is made for the

response, coming from the application. To map the

response, coming from application, the Mapper uses

another map file (Response Map file) that allows

translating the message wrote according to the

format of the specific application in the format

defined by GI specification.

For each request forwarded by the Mapper, the

Dispatcher makes the following steps. It finds the

correct HTTP address of Web Service relevant to the

requested application and it establishes the HTTP

connection with web service. Then, it sends request

and receives response. Finally, it handles the

cookies, as explained in the following.

In principle, each instance of SCADA, GIS and

DSS application may feature more than one Web

Services, each of these exporting different Web

Methods relevant to the same application. It's clear

that client cannot know the address of each Web

Service, but it can know the application instance.

This information is specified by the client in a

particular field, the ApplicationID, contained in a

field of the XML/SOAP request sent to the GI.

Moreover the client obviously can specify the

method (expressed in terms of the Generalised

Interface Specification) to be invoked. The service

name is contained in the XML/SOAP request sent to

the GI, too. Identification of the right Web Service

address is performed by the Dispatcher on the basis

of the ApplicationID and the GI service name

requested by the client, using a database local to the

Dispatcher. This database contains for each

ApplicationID and for each GI Web Method, the

corresponding Web Service Address. When the

Dispatcher finds the right Web Service Address, it

opens an HTTP connection to the correct web

service. Then it performs the remote procedure call

to the suitable web method and waits for the

response. When the response arrives, the Dispatcher

closes the connection and delivers the response to

the Mapper.

A particular problem concerning the

communication between Dispatcher and the Web

Services of each application instance is that the

HTTP is a stateless protocol. Each request to a Web

Service is independent, and the application retains

no memory of a client’s past requests. To overcome

this limitation, management of the sessions state has

been realised using HTTP cookies.

The idea behind HTTP cookies is that when the

Dispatcher sends a request, the Web Service sends

back a response with an HTTP Set-Cookie header

that has a name/value pair in it. For all subsequent

requests to the same Web Service, the Dispatcher

sends the name/value pair in an HTTP Cookie

header. The Web Service then can use the value to

associate the subsequent requests with the initial

request. The Web Service automatically processes

this cookie and uses it to restore the values saved in

the memory for this particular client. For each

service requested by a client, the application will

preserve the information stored for the client's

session. This session information is stored in

memory on the Web Service of the application. The

client is provided with a unique cookie that the

application uses to match client requests with the

information specific to that client's session. A

session state ends when the client does not make any

HTTP requests to the application for a specified

time-out period. When the Dispatcher sends the first

request for a client, it receives the cookie from Web

Service and stores it in a local database. For all the

subsequent requests coming from the same client,

the Dispatcher gets the cookie related to the client.

Since the GI connects to several applications, it is

necessary to keep the connection state for each client

and for each application requested by the client.

4.3 Management of Multiple

Connections

GI must be able to handle concurrent multiple

connections concerning different requests by the

same client or by different clients. For each request,

it's required that an instance of the GI modules

(Parser, Mapper, Dispatcher) is created. The instance

must be deleted when the request has been satisfied.

5 GI IMPLEMENTATION

The architecture of the GI described in the previous

section has been implemented in such a way to be

not linked to a specific platform, but it has been

realised using freeware libraries.

The implementation was realised on Windows

2000 Operating System. This is only an

implementation choice, not existing constraints on

the use of this OS, as it will be pointed out in the

next.

An analysis of the state of the art about free

software/libraries useful to manipulate XML files

for the parser, mapper and dispatcher has been done,

during the first stage of the project. It highlighted the

advantages in using DOM libraries to realise parsing

of XML documents and Dispatcher functionalities,

and XSLT engine to realise the Mapper.

DOM presents an easy processed standardised

interpretation of an XML document to applications

and scripts. Different free implementations of the

DOM exist in different languages. We have used the

Microsoft XML Core Services (MSXML), realised

as DLL implementing the parser DOM in a COM

component (MSXML, 2003).

A MIDDLEWARE FOR THE MANAGEMENT OF LARGE UTILITIES PLANTS

103

In order to implement the Mapper, use of the

XSLT engine has been considered. The XSLT

engine can be an external component, a library or a

class. Different free implementations of this engine

exist, among which the MSXML library used in the

implementation (MSXML, 2003).

Dispatcher has been implemented as class. It is

instanced after the Mapper has performed the SOAP

request transformation. The Dispatcher exports one

method that implements the routine to handle the

communication with the Web Service of each

specific SCADA, GIS and DSS application. Also for

this implementation we have used the MSXML

library; in particular we have used the

ServerXMLHTTP interface. It provides methods and

properties that enable establishment of an HTTP

connection between files or objects on different Web

servers (MSXML, 2003). The ServerXMLHTTP

object is used to handle the HTTP protocol, such as

to post SOAP documents to a remote Web Service

(HTTP POST), to read and to insert cookie in the

Header HTTP, read the response status code, etc

(MSXML, 2003).

5.1 Software Requirements

Implementation based on the use of DOM and

XSLT Engine is featured by very few constraints on

the software requirement. DOM and XSLT Engine

are not linked to a specific Operating System, as it's

possible to find libraries for Windows and for Unix

platform. Management of Web Services can be

realised by IIS or by Apache for example, but there

is no constraints on this item. From the

implementation point of view, the GI has been

developed assuming to use: Windows 2000

platform, Visual Studio .NET development

environment. This has implied the following

choices: a DOM library compliant with Windows

2000 and Visual Studio .NET (one of the libraries

available on the web is the Microsoft MSXML

library, that has been used in the implementation)

and IIS for developing and support the Web

Services. If the solution based on DOM and XSLT

Engine isn't linked to a specific platform, on the

other hand it requires particular tools (Editor and

Mapper), and in same cases they are not free. Used

tools in this implementation were: XML Spy5 Editor

and TIBCO XMLTransform 1.1.0 (this last in order

to produce map file).

5.2 Management of Multiple

Connections

The implementation of the GI carried out is able to

receive and process many requests at the same time.

The Web Services exporting the functionalities of

the GI are published in Internet through a web

server. We have chose Internet Information Services

(IIS) as web server. When a client of the GI calls a

GI method, it sends an HTTP/SOAP request to the

web server that publishes the web method. The web

server receives the request and allocates a thread to

process it. For each request, a thread is allocated, so

the web server doesn’t block and can accept other

coming requests. In order to implement the web

services, we have chosen the ASP.NET technology

offered by the .NET Framework. In this case the

web server allocates a thread of the .NET Run-Time

to process the request. The thread loads and executes

the class implementing the web service. In the

execution of the web service, instances of the objects

processing the SOAP request (Parser, Mapper and

Dispatcher) are created. The Dispatcher sends the

mapped request to the destination application web

service. After, it waits for the web service response.

When the response comes back, the Dispatcher

forwards it to the client. At this point, the request of

the client is completely satisfied, so the thread is

destroyed together the instances of Parser, Mapper

and Dispatcher.

6 CONCLUSIONS

The paper has presented an overview on the main

features of the CRAFT IST 1999-57455 project,

highlighting the internal architecture and

implementation of the GI, which is the component in

charge to offer to clients a set of services not linked

to a specific product and implementation. The

choice of a platform/language technology allowed

overcoming the main limit of the current

SCADA/GIS/DSS applications currently available,

making vertical and horizontal integration of those

applications possible. Vertical integration means that

a generic client application is able to access any

information maintained in a particular SCADA, GIS

and/or DSS application without be linked to the

access mechanism and syntax of the particular

application. Horizontal integration means that a

client application is allowed to acquire information

coming from different SCADA/GIS and DSS

applications.

REFERENCES

Web Service, 2002, http://www.w3.org/2002/ws/

XML-Schema, 2003, http://www.w3.org/XML/Schema

XSLT, 2003, http://www.w3.org/Style/XSL/

MSXML,2003,http://msdn.microsoft.com/library/default.a

sp?url=/library/en-us/xmlsdk/htm/sdk_intro_6g53.asp

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

104
