A DATA WAREHOUSE ARCHITECTURE FOR BRAZILIAN

SCIENCE AND TECHNOLOGY ENVIRONMENT

André Luís Andrade Menolli, Maria Madalena Dias

Department of Computer Science, University of St. Maringá ,579 Colombo Av., 87020-900, Maringá, Brazil

Keywords: Data Warehouse, Data Integration, Science & Techolog

Abstract: Science and technology in Brazil are areas that have few available resources and many times these scarce

resources are badly used. The data warehouse is a tool that can make possible a better distribution of these

resources. In this article are considered some issues in the development of a data warehouse for Science &

Technology management. The paper describes the necessity of a supporting system to the decision taking

regarding the distribution of the resources destined to Science & Technology in Brazil, and also shows a

data warehouse architecture that is being developed to support this system. data modeling characteristics

defined for the proposed data warehouse architecture are presented too.

1 INTRODUCTION

The data warehouse (DW) technology has been

widely used in companies with the aim of offering

organization, management and database integration.

In the data knowledge discovering process, the first

step is the data preparation, where the data must be

organized and stored in the DW.

The research in DW area had a big increase in

e nineties, mainly after 1996. This can be verified

in the study made by Vassiliadis (2000).

Despite this increase in DW area research, it is

still

very difficult to have support in developing a

DW , because the research are still turned to the

academic area. The gap between a practical DW and

a research one became obvious (Vassiliadis, 2000).

Another important point is the lack of project

d structure in the DW development. According to

Demarest (1997), the DW project has some failure

factors, such as:

• Prob

lematic data engineering.

• Unrealistic sche

ma design.

• No desi

gn method is used.

Due to these reasons it is of extreme importance

to ha

ve an architecture project with well defined

steps assisting the DW designer in the conclusion of

the project successfully and in the expected time.

The main objectives of the work presented in this

paper are the definition of an architecture and the

construction of a DW for the Brazilian Science &

Technology system.

The construction of this DW brings as benefit a

etter acquaintance of the brazilian research reality,

making easy the investments exploitation in this

area.

Therefore, the DW is used as a knowledge

tracting tool, with the objective of reducing cost

and optimize the quality of its products and services

(Dias et al., 1998), thus obtaining more and better

results with less resources.

The remainder of this paper is organized as it

follows: Section 2 presents a brief vision of Science

& Technology in Brazil, as a motivation for the

development of this work. Section 3 presents the

developing proposed DW architecture for the

project. Section 4 presents the data modeling that

was used in the staging area and in the DW. Section

5 concludes this paper.

2 SCIENCE AND TECHNOLOGY

IN BRAZIL

In Brazil or any other developing country, a key-

point is to optmize scarce resources destined to

Science & Technology, minimizing wastefulnesses

and making the expenses follow a previous

planning. An alternative to obtain this, according to

Romão (2002), is to increase the investments in

Research and in Development, getting to know in

details the infrastructure and potential reality of

522

Luís Andrade Menolli A. and Madalena Dias M. (2004).

A DATA WAREHOUSE ARCHITECTURE FOR BRAZILIAN SCIENCE AND TECHNOLOGY ENVIRONMENT.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 522-525

DOI: 10.5220/0002604305220525

 SciTePress

research in the country, as well as researchers and

research profile. To obtain more and better results

from little resources is a great challenge for

developing nations as Brazil.

The brazilian Science & Technology

environment possesses important databases that are

consolidated and trustworthy, from which is possible

to trace a Science & Technology panorama in any

region of the country.

The Science & Technology evaluation is a

process tied to the promotion, that is to say, it is

necessary an analysis that produces subsidies for the

decision taking, determining the levels of resources

distribution. To carry through any type of

information analysis, it is necessary to use complete

information that represents on a concise form the

reality that is intended to analyze.

That being so, the DW projected has as its

objective to serve as a support for knowledge

discovery on Science & Technology that can be used

to analyse the researchers, research groups, courses

and institutions performance, by identifying which

are the areas that are bringing investments back and

which need new investments.

3 THE PROPOSED DATA

WAREHOUSE ARCHITECTURE

The architecture strategy of this project is mainly to

replace data sources of diverse formats for new

standardized analytical databases, facilitating then,

the data integration. The architecture is constituted

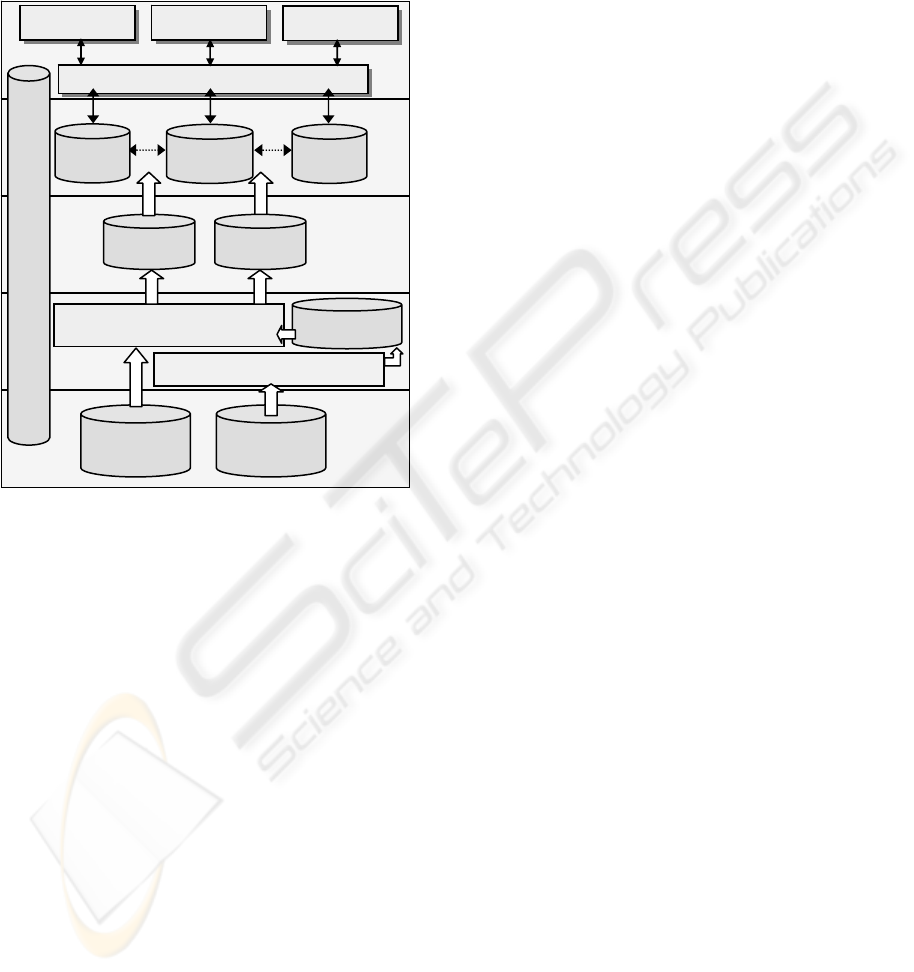

of several layers, as it's shown in Figure 1. The thick

arrows represent the data shipment while the fine

arrows represent the data access. The architecture is

constituted of five layers, so that the layer 2 can be

subdivided into two other layers, depending on the

data source type existing in layer 1.

Data Sources ETL Staging Area Data Warehouse Analysis Area

3.1 Data Sources

This layer stores the original data sources, which

could be in two formats:

• Standard Format.

• Distinct Formats.

A standard database was chosen, that in this

project is a relational normalized data model and

data in this format are in the standard format. Data

that are in another type of database, or in other

formats (files, text, etc), are migrated to the

normalized model in the chosen standard format.

3.2 Extraction, Transformation And

Loading (ETL)

The first step in this layer is the verification of the

data source format. If the data are not in a standard

format, the data source will go through a process of

data migration, where the data source will be

integrated and transformed into the standard format.

This process will facilitate the data manipulation,

data consistency and data integration.

3.3 Staging Area

According to Dumoulin (2003), a fundamental

concept that greatly simplifies DW projects and

ongoing maintenance is the use of data staging areas.

From the staging area logical project, data

modellers have a good idea of the necessity of

attributes and sources to populate the DW. The data

staging area serves as a dividing line between the

systems sources and the DW, containing only

information necessary to populate warehouse. The

staging area defined in this work uses a normalized

data model, to allow a high data consistency, and to

facilitate the integration process among distinct

databases.

3.4 Data Warehouse

The DW is the storage area and follows the model

approach proposed by Kimbal et al (1998), using the

BUS implementation, which needs standardized

dimensions and facts. This project uses de

Figure 1: The project DW architecture

Metadata Repository

Data extraction, transformation and

Migration for Standard Database

Work

DB 1

OLAP and Data Mining Tools

New Data Source

Standard Data

Source

Data Mart 1

Source in other

formats

Work

DB 2

Common Data Data Mart 2

Research Groups

Researcher

Education

Institutions

A DATA WAREHOUSE ARCHITECTURE FOR BRAZILIAN SCIENCE AND TECHNOLOGY ENVIRONMENT

523

dimensional modeling, because according to Song et

al (2001) there are two main advantages in the use of

dimensional models in DW environments. Firstly, a

dimensional model provides a multidimensional

analysis space in relational database environments;

we are analyzing factual data using dimensions.

Secondly, a typical denormalized dimensional model

has a simple schema structure, which simplifies the

final user query processing and improves

performance.

3.5 Analysis Area

In this layer, consult and mining tools can be

utilized, although they are not in the scope of the

present project. These tools will access the data

marts or materialized views, based in metadata

repository.

4 MODELING PROJECT DATA

The modeling process used in our project is based on

the classical database modeling process that

distinguishes the conceptual, logical and physical

models extended by the implementation model

approach proposed by Kimball et al (1998).

From the data sources until the data in the

formats that appear in the model, showed in the

Figure3, the following steps are executed:

1. Separating the data by granularity.

2. Cleaning values of attributes.

3. Transforming the data.

4. Changing the operational keys by

substitute keys.

5. Guaranteeing the quality of the data.

The use of these steps give the follows benefits

to the data: quality, standardization and consistency.

Thus facilitating the data integration and the data

load in the DW.

The DW was projected according to the star

schema. This modeling has been chosen for the

already presented advantages in this paper and

because dimensional modeling is widely accepted as

the viable technique for delivering data to end users

in a DW (Kimball et al, 1998), (Meyere & Cannon,

1998), (Axel & Song, 1997), (Dinter et al., 1997).

However, the star schema does not accept many-

to-many relationships, and this type of relationship

presented in the staging area of our project, will be

transformed into many-to-many relationships

between facts and dimensions in the DW. According

to Song et al (2001), those relationships in a

dimensional model causes several difficult issues,

such as losing the star schema structure, increasing

complexity in forming queries, and degrading query

performance by adding more joins. Therefore, it is

desirable that we handle the many-to-many

relationships while still keeping the structure of the

star schema. There are some works to resolve this

problem, as (Krippendorf & Song, 1997),

(Theodoratos & Sellis, 1998) (

Lehner, Albrecht, &

Wedekind,

1998), (Pedersen & Jensen, 1999),

(Kimball et al, 1998). Among these solutions, the

chosen one was presented by Kimball, because it is

ideal for dimensions with no upper limit in many

side and it is a clean solution (Song et al., 2001), that

is adjusted to this project.

These many-to-many relationships between facts

and dimensions and the relationships between

dimensions and mini-dimensions presented

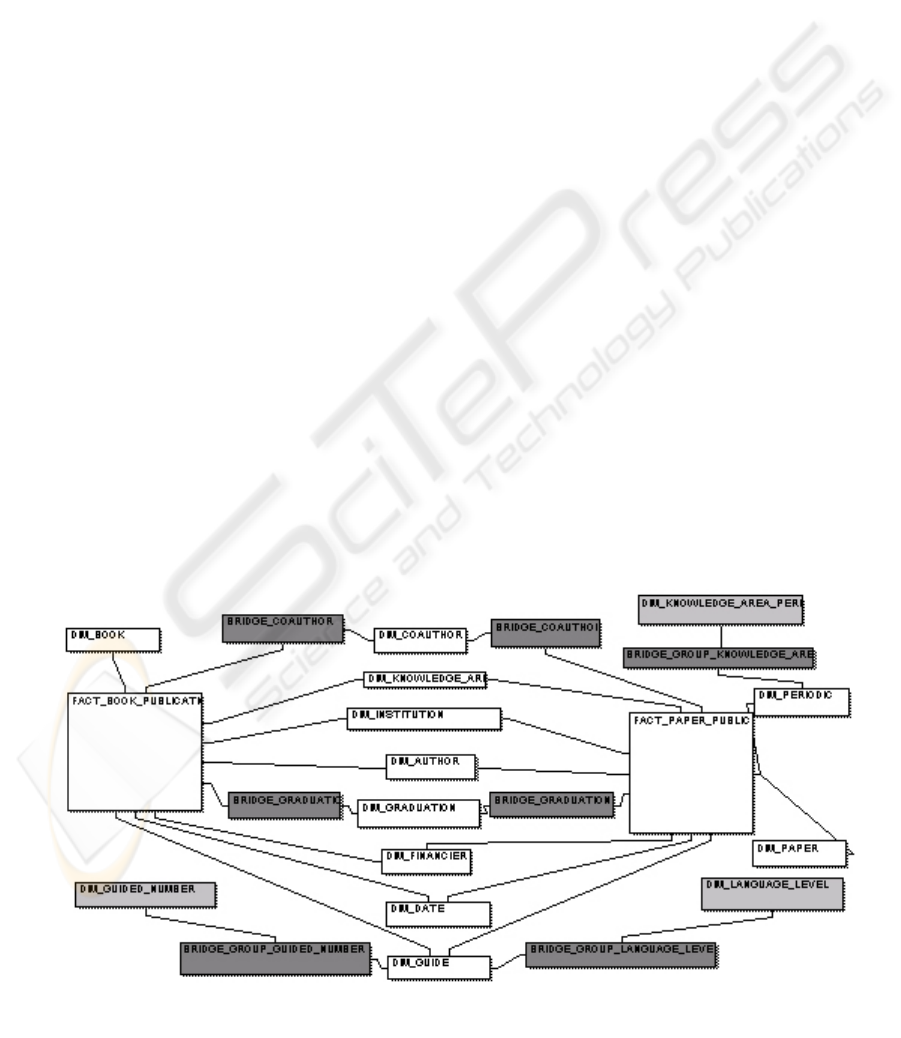

previously, can be seen in Figure 3. In this figure is

also possible to verify that more than one fact uses

Figure 3: Partial modeling of DW.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

524

the same dimension, according to what was

proposed with the use of the DW Bus architecture

matrix.

The use of the star schema altogether with many-

to-many techniques of modeling between facts and

dimensions and among multivalued dimensions, it is

expected to obtain a simplified and denormalized

dimensional model, improving the inquiry

processing of final users and raising the

performance.

5 CONCLUSIONS

In this project it was defined a DW architecture

giving support to the decision taking in Science &

Technology in Brazil. This architecture is divided

into diverse independent layers, facilitating the

resolution of problems in each one of the DW

development stages. In this architecture, diverse DW

technologies and classical relational database

technologies are used. The DW data modeling was

defined considering that the knowledge to be

obtained is related, mainly, to the Brazilian

researchers scientific production .

It is expected that with the proposed DW in the

project, it is possible to minimize existing problems

in the resources distribution destined to the Science

& Technology in Brazil.

REFERENCES

Axel, M., & Song, Y. (1997). Data Warehouse Design

for Pharmaceutical Drug Discovery Research.

Proceedings of 8th International Conference and

Workshop on Database and Expert Systems

Applications (DEXA97), 644-650, Toulouse, France.

Dias, M. M., Mattos, M. M., Romão, W., Todesco, J. L.,

& Pacheco, R. C. S. (1998). Data Warehouse -Presente

e Futuro. Proceedings of Revista Tecnológica, 7, 59-

73, Brazil.

Demarest, M. (1997). The politics of data warehousing.

Retrieved September 10, 2003, from

http://www.dmreview.com/whitepaper/wid293.pdf

Dinter, B., Sapia, C., Hofling, G., & Blaschka, M. (1998).

The OLAP Market: State of the Art and Research

Issues. Proceedings of Int’lWorkshop on Data

Warehousing and OLAP, 22-27, Washington, USA.

Dumoulin, R. (2003). Architecting Data Warehouses for

Flexibility, Maintainability, and Performance.

Retrieved August 9, 2003, from

http://www.olap.it/Articles.htm

Kimball, R., Reeves, L., Ross, M., & Thornthwaite, W.

(1998). The Data Warehouse Lifecycle Toolkit. New

York: John Wiley & Sons, Inc.

Krippendorf, M., & Song, Y. (1997). Translation of Star

Schema into Entity-Relationship Diagrams.

Proceedings of 8th International Conference and

Workshop on Database and Expert Systems

Applications (DEXA97), 390-395, Toulouse, France.

Lehner, W., Albrecht, J., & Wedekind, H. (1998). Normal

Forms for Multidimensional Databases. Proceedings

of SSDBM, 63-72.

Meyere, D., & Cannon, C. (1998). Building a Better Data

Warehouse. Prentice-Hall.

Pedersen, T. B., & Jensen, C. S. (1999). Multidimensional

Data Modeling for Complex Data. Proceedings of

15th ICDE, 336-345, Sidney, Australia.

Romão, W. (2002). Descoberta de conhecimento

interessante em banco de dados sobre ciência e

tecnologia. Doctoring Thesis. Retrieved May 24,

2003, from Santa Catarina Federal University,

Production Engineering Postgraduation Program Web

site: http://teses.eps.ufsc.br/defesa/pdf/3079.pdf

Song, Y., Rowen, W., Medsker, & C., Ewen, E. (2001).

An Analysis of Many-to-Many Relatioships Between

Fact and Dimension Tabels in Dimensional Modeling.

Proceedings of Int’lWorkshop on Design and

Management of Data Warehouse(DMDW2001),

Interlaken, Switzerland.

Theodoratos, D., & Sellis, T. (1998). Data Warehouse

Schema and Instance Design. Proceedings of 17th

International Conf. On Conceptual Modeling (ER98),

363-376, Singapore.

Tombros, D., & Häberli, C. (2001). A Data Warehouse

Architecture for MeteoSwiss: An Experience Report.

Proceedings of the International Workshop on Design

and Management of Data Warehouses (DMDW2001),

Interlaken, Switzerland.

Vassiliadis, P. (2000). Guliver in the land of data

warehousing: pratical experiences and observations of

a researcher. Proceedings of the International

Workshop on Design and Management of Data

Warehouses (DMDW'2000), Stockholm, Sweden.

A DATA WAREHOUSE ARCHITECTURE FOR BRAZILIAN SCIENCE AND TECHNOLOGY ENVIRONMENT

525
