OBTAINING E-R DIAGRAMS SEMI-AUTOMATICALLY FROM
NATURAL LANGUAGE SPECIFICATIONS
Farid Meziane and Sunil Vadera
School of Computing, Science and Engineering
Salford University, Salford M5 4WT, UK.
Keywords:
Software engineering, Entity relationship models, Specifications, Natural language processing.
Abstract:
Since their inception, entity relationship models have played a central role in systems specification, analysis
and development. They have become an important part of several development methodologies and standards
such as SSADM. Obtaining entity relationship models, can however, be a lengthy and time consuming task for
all but the very smallest of specifications. This paper describes a semi-automatic approach for obtaining entity
relationship models from natural language specifications. The approach begins by using natural language
analysis techniques to translate sentences to a meaning representation language called logical form language.
The logical forms of the sentences are used as a basis for identifying the entities and relationships. Heuristics
are then used to suggest suitable degrees for the identified relationships. This paper describes and illustrates
the main phases of the approach and presents a summary of the results obtained when it is applied to a case
study.
1 INTRODUCTION
Since their inception, entity relationship models
(ERMs) have played a central role in systems specifi-
cation, analysis and development. They have become
an important part of several development methodolo-
gies and standards such as SSADM (Ashworth and
Goodland, 1990). Obtaining ERMs, can however,
be a lengthy and time consuming task for all but the
very smallest of specifications. This paper describes
a semi-automatic approach for obtaining ERMs from
natural language (NL) specifications.
The overall approach, summarised in Figure 1, is
based on the view that nouns often denote entities
and verbs often denote relationships. However, as we
will see later, picking out just the nouns and verbs
using string matching is not adequate for producing
an ERM. We need also to identify the arguments and
the degrees of the relationships. To enable this, the
approach begins by using NL analysis techniques to
translate sentences to a meaning representation lan-
guage called logical form language (LFL). The logi-
cal forms (LFs) of the sentences are then used as a ba-
sis for identifying the entities, and relationships. The
quantifiers in the LFs are then used to suggest suitable
degrees for the identified relationships. The paper is
Specification
Natural language
analysis
Selection of entities
and relationships
Identification
of degrees
Grammar
Quantifier
based
selection
criteria
E-R Model
logical forms
logical forms
partial
E-R model
sentences

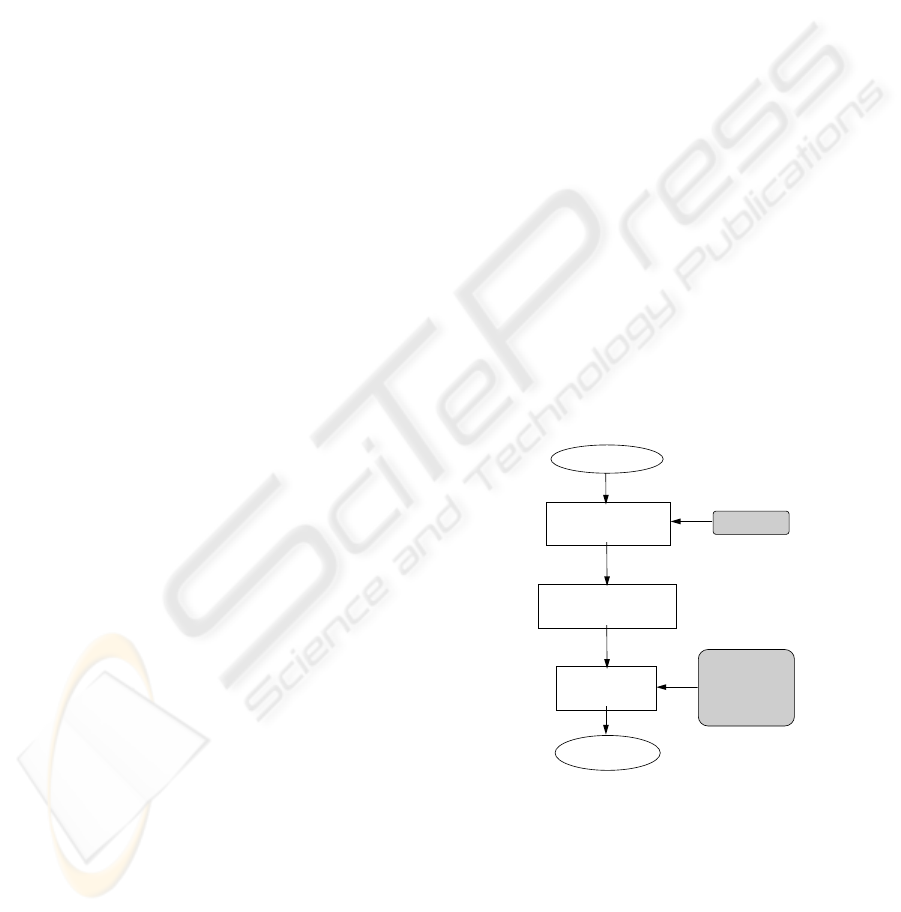

Figure 1: Identifying E-R models semi-automatically
organised in a manner that follows the main phases
of the approach: section 2 describes the translation to
LFL; section 3 illustrates the identification of the en-
tities and relationships; and section 4 shows how the
degrees can be identified. The paper concludes with
a summary of the results obtained when the approach
is applied to a case study.
638
Meziane F. and Vadera S. (2004).
OBTAINING E-R DIAGRAMS SEMI-AUTOMATICALLY FROM NATURAL LANGUAGE SPECIFICATIONS.
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 638-642
DOI: 10.5220/0002606106380642
Copyright
c
SciTePress
2 TRANSLATING SENTENCES
TO LFL
As mentioned above, each sentence of a specification
is first analysed and translated to a statement in LFL.
In this section we summarise the syntax of LFL and
the translation process. We refer the reader to (Mc-
Cord, 1990; Meziane, 1994) for further details.
In general, each sentence can be translated to a LF
statement of the form:
determiner(Base, F ocus)
Typically, the base comes from the remainder of the
noun phrase (NP) in which the determiner appears,
and the focus comes from the sisters of the NP such
as verb phrases (VP), and other NP.
In LF, nouns, verbs, adjective, and pronouns are rep-
resented as follows, where we use the Prolog conven-
tion that variables begin with a capital letter:
Nouns Nouns are usually represented as one
place predicates (aircraft, aircraft(X)). Re-
lational nouns take two arguments (mother,
mother(X, Y )).
Verbs Depending on their category, verbs may be
represented by predicates having nil, one, two
or three arguments. Hence, the verbs snow,
crash, write and give are represented by: snow,
crash(X), write(X, Y ) and give(X, Y, Z).
Adjectives We distinguish two categories of adjec-
tives, extensional adjectives and intensional adjec-
tives. An adjective is intensional if it cannot be dis-
sociated from the noun it modifies. An extensional
adjective can be dissociated from the noun it mod-
ifies. The following two examples illustrate these
two situations respectively:
1
The pilot uses a moving map display.
the(pilot(X),the(moving(map(display(Y))), use(X,Y))).
A complex aircraft uses a radar.
ex(aircraft(X) & complex(X), ex(radar(Y), use(X,Y))).
Pronouns There is no general rule on how to inter-
pret pronouns. Basically they are supposed to be
replaced by the nouns they represent. However, re-
solving pronoun references is a very difficult prob-
lem. Our current implementation omits this aspect
of NL understanding.
The translation process can take English sentences
and produce LFs in the above representation. It does
this in two main phases. First, a syntax analysis is per-
formed to produce all possible parsings (syntax trees)
of the sentence according to the defined grammar.
Each syntax tree is then transformed into a unique
LFL expression. This latter transformation forms the
1
ex denotes the usual existential quantifier.
semantic interpretation of the English sentence and
involves the use of logical operators to combine the
different parts of the syntax tree to produce the de-
sired LF (see (McCord, 1990) for details). This pro-
cess has been implemented in Prolog and a suitable
grammar has been developed. For example, the gram-
mar rule used for a VP is:
vp(Infl,E,X) ==>
vhead(Infl,E,X,Slots):
postmods(Slots).
This rule defines a VP to be composed of a verb
head and a list of postverbal modifiers. The job of
vhead is to find a verb with an inflection Infl,
subject marker X, verb type E and a list Slots of
postverbal modifiers which contains verb modifiers
such as objects, indirect objects and prepositional
phrases. The grammar also includes prepositions
2
as well as the other categories mentioned above.
Sentences may be ambiguous, and may therefore
have several meanings. In such cases, the NL anal-
yser results in alternative LFs and an analyst will be
required to select the intended meaning. Although,
this makes the process less automatic, this is helpful
since it enables ambiguities to be detected.
3 E-R MODELS FROM LOGICAL
FORMS
The first task in identifying an ERM is to obtain a list
of entities in the specification and the relationships
between them. There is no clear definition of what
constitutes an entity. In SSADM for example (Ash-
worth and Goodland, 1990), an entity is defined as
something of importance to the system about which
information can be held. The same definition is also
used by Bowers (Bowers, 1988), who further suggests
that entities can be objects (person, car, events (birth,
scoring a goal), activities (production, playing) and
associations (marriage).
Grammatically speaking, the above list gives types
which define entities that are related. They all belong
to the same grammar category of nouns. Likewise,
a number of authors have reported that relations are
mainly described by verbs (Ashworth and Goodland,
1990; Gane and Sarson, 1979). We therefore base our
identification process on the view that entities are de-
noted by nouns and relationships by verbs. However,
just scanning for nouns and verbs alone is not ade-
quate. There are three significant problems that we
now illustrate with the following sentences:
1. A company maintains a description for each item of
stock.
2
Handling prepositions is non-trivial and details are
given in (Meziane, 1994)
OBTAINING E-R DIAGRAMS SEMI-AUTOMATICALLY FROM NATURAL LANGUAGE SPECIFICATIONS
639
2. A computer-assisted flight planning system is used
by a complex aircraft.
3. The system of a simple aircraft is considered to
comprise the plan of the pilot.
The entities and relations can easily be picked out
in the first sentence as the nouns: company, de-
scription, item, stock and verb maintains. How-
ever, we still need to find what entities are related by
maintains and we don’t know the degree of the rela-
tions. In the second sentence, selection of nouns alone
as entities is inadequate since we need to identify the
compound noun computer-assisted flight planning
system. The third sentence has two verbs, comprise
and consider. How can we identify that comprise is
the one that relates the entities and that consider is
only a subsidiary relation?
Fortunately, by first translating sentences to LFL,
we are able to overcome these problems. So, for in-
stance, the above three sentences result in the follow-
ing LFs (where all and ex are the usual universal and
existential quantifiers):
1. all(item(X,stock),the(company(Y),ex(description(Z),
for(X,maintain(Y,Z)))))
2. ex(aircraft(X) & complex(X), ex(computer-
assisted(flight(planning(Y))),use(X,Y)))
3. ex(aircraft(X)& simple(X),the(system(Y,X),
the(pilot(Z), the(plan(T,Z), (comprise(Y,T)))))
Given these LFs, the required information can be rel-
atively easy to extract:
1. The term maintain(Y,Z), in the first LF, gives the
relationship between Y and Z which themselves are
qualified in the focus as the company and the de-
scription;
2. the compound noun computer-assisted flight
planning system is easily identified from the term
computer-assisted(flight(planning(system(Y)))).
3. In the third LF, the relation ’comprise’ is correctly
identified by extracting the inner verb relationship
comprise(Y,T) from the LF.
At this stage, its worth emphasising that this pro-
cess produces only an initial list of entities and rela-
tionships. The model may well be incomplete since
the informal description may be incomplete and may
contain irrelevant entities and relationships.
4 USING QUANTIFIERS TO
DETERMINE THE DEGREES
This section shows how the degrees of relationships
can sometimes be identified from the quantifiers in the
LFs of sentences. This approach to identifying the de-
grees is therefore highly dependent on the process of
identifying the quantifiers in the English sentences.
Hence, section 4.1 looks at the process of identify-
ing the quantifiers in some detail. Section 4.2 then
describes how the quantifiers help to identify the de-
grees.
4.1 Identifying Implicit Quantifiers
The English language has two articles: the definite ar-
ticle “the” and the indefinite article “a” (“an”) It has
been assumed for a long time that both articles can
be interpreted as existential quantifiers. Some authors
have shown that this is not always true, and these
articles can sometimes lead to the universal quanti-
fier(Hess, 1985). In the following subsections we will
identify some cases where the quantifiers can be iden-
tified from the articles.
The Definite Article “the”
The definite article is often translated into the unique
existensial quantifier (ie., there exists one and only
one). It is, for instance, correct to assume that in the
sentence:
The student passed the exam.
we are talking about a particular student who passed
a particular exam. However, in the sentence:
The students passed the exam.
we cannot assume the unique existence for the first
definite article. McCord (McCord, 1990) also recog-
nises that interpreting the definite article only as the
unique existence is not adequate but does not suggest
any alternatives. In our approach we use the singular-
ity or plurality of the noun to determine if it should
be interpreted as the unique existence or normal exis-
tence. It is interpreted as the unique existence only if
the noun quantified is in the singular form.
The Indefinite Article “a”
There seems to be general agreement that the use of
the indefinite article is always a source of ambiguities
(Allen, 1987). The indefinite article can sometimes be
translated to the existential quantifier and sometimes
to the universal quantifier. According to Hess (Hess,
1985) the most important way to determine the quan-
tification of a sentence is through the choice of the
verb. For example, consider the following sentences:
1. A text editor makesmodifications to a text file.
2. A text editor is making modifications to a text file.
3. A text editor made modifications to a text file.
4. A text editor has made modifications to a text file.
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
640
The present tense is used in example (1) to say that a
text editor makes modifications to a text file in gen-
eral. The main use of the present tense is to express
habitual actions. In examples (2) to (4) we say that
there is, or was, a case of a text editor making modi-
fications to a text file. Therefore, Hess suggested that
because the present tense is used in the first sentence,
text editor must be universally quantified. Likewise,
because of the tenses used in the other sentences, text
editor must be existentially quantified in the remain-
ing sentences.
In some cases the future is preferred over the
present tense for general statements as in the follow-
ing example:
A man who loves a woman will stroke her.
Dynamic verbs, such as to stroke, seem to call for
the future tense, whereas static verbs such as to re-
spect seem to go better with the present tense. Hence,
Hess formulated the following rules:
Rule 1:
The subject of a sentence is existentially quantified
if the VP is in the past tense, in the progressive as-
pect, or in the perfective aspect.
Rule 2:
Otherwise the subject is universally quantified, in
particular if it is in the present tense or in the future
tense.
Once we have determined the quantification of the
subject of the sentence, we have to do the same thing
to the other components of the sentence. Let us con-
sider the following examples:
1. A man who loves a woman is happy.
2. A man that loves a woman respects her.
Intuitively, we can see that woman should be ex-
istentially quantified in the first sentence and univer-
sally quantified in the second sentence. To observe
the difference, Let us consider the LFs of these sen-
tences:
1. all(man(X),ex(woman(Y)&love(X,Y),happy(X)))
2. all(man(X),all(woman(Y)&love(X,Y),respect(X,Y)))
The main verb of the first sentence is happy and does
not refer to the NP woman. In the second sentence
the main verb respects refers to the NP woman.
This is the reason why the NP “woman” should be ex-
istentially quantified in the first sentence and univer-
sally quantified in the second. Hence, Hess suggested
a third rule which is:
Rule 3:
In a restrictive NP those arguments that are referred
to by the main verb are universally quantified and
those that are not referred to by the main verb are
existentially quantified.
This rule now enables the correct interpretation of
the above sentences. However, it does not hold for
non-restrictive NPs. In particular, when a NP appears
at the right of a verb, the kind of sentences we
have encountered suggest that the indefinite article
should be interpreted as an existential quantifier. For
example in the sentence:
A complex aircraft uses a radar.
The second indefinite article is interpreted as the
existential quantifier and not as the universal quan-
tifier. There are two exceptions to the above rules
which are analysed in the following cases:
As an exception to rule 2, the past tense can
express a universally quantified assertion, as in the
following example:
A student read books when I was young.
This universal quantification is possible because
the main verb (read) requires a spatial or temporal
post modifier(when).
As an exception to rule 1, the progressive aspect
can express universal quantification as in:
John is always coming late
This is only possible when the verb is modified by
expressions such as “always”, “in general”, “regu-
larly”.
To cover these exceptions, we can suggest the fol-
lowing fourth rule which takes precedence over rules
1 and 2.
Rule 4:
1. The past tense can express a universally quanti-
fied assertion if the main verb requires a spatial
or a temporal post modifier.
2. The progressive aspect can express a universal
quantification if the verb is modified by expres-
sions such as “always”, “in general” and “regu-
larly”.
4.2 Identifying the Degrees from the
Quantifiers
This section illustrates how we can make use of
the quantifiers identified in the previous section to
identify the degrees of some relations. Consider the
following examples and their LFs:
A complex aircraft uses a radar.
all(aircraft(X) & complex(X), ex(radar(Y), use(X,Y)))
OBTAINING E-R DIAGRAMS SEMI-AUTOMATICALLY FROM NATURAL LANGUAGE SPECIFICATIONS
641
The students passed the exam.
all(student(X), the(exam(Y), pass(X,Y)))
In the first example, the first entity in the relation is
quantified by the universal quantifier and the second
by the existential quantifier. Based on our current ex-
perience, and the examples encountered, usually only
one occurrence of the variable quantified by the exis-
tential quantifier is involved in the relation. In such
cases the LF quantifier “ex” is interpreted as a unique
existential quantifier. We are therefore in a case were
many occurrences of the first variable are related to
one occurrence of the second variable. By definition,
this is a many-to-one relationship. In the second ex-
ample, the interpretation is much more stronger since
we have a unique existence interpretation for the sec-
ond “the”. We have again a case of a many-to-one
relationship. Let us now consider the following set of
sentences and their LFs:
The company maintains a description for each item
of stock.
all(item(X,stock), the(company(Y), ex(description(Z),
for(X,maintain(Y,Z)))))
The student passed all exams.
the(student(X), all(exam(Y), pass(X,Y)))
The NP each item of stock, in the first sentence,
suggests that we are talking about a particular stock
that contains many items. Therefore wa have a one-
to-many relation between the entity “stock” and the
entity “item”. In general, sentences where the first
entity is singular and quantified by the definite article
and when the second entity is quantified by the uni-
versal quantifier define one-to-many relationships. A
typical example is the second sentence. Let us con-
sider now the following sentence and its LF:
The student passed the exams.
the(student(X), the(exam(Y), pass(X,Y)))
The previous rule does not apply because the sec-
ond entity is itself singular and quantified by the
unique existential quantifier. As this example suggest,
we are talking about a particular student who passed
a particular exam. In this case, we infer a one-to-one
relationship between the entities.
These are the main cases where our approach can
help in identifying the degrees of the relations from
the LFs of the sentences. In other cases, when it is
difficult to predict the degree of a relation, we let the
user determine it.
5 CONCLUSION AND FUTURE
WORK
This paper has presented a novel approach that can
help an analyst produce an initial ERM from specifi-
cations written in NL. The approach makes use of NL
analysis techniques to translate sentence to LFs which
are then used as a basis for identifying the entities
and relationships. The quantifiers in the LFs also en-
able the identification of the degrees of relationships
in some common cases.
The approach has been implemented in Prolog and
tested on some examples. To date, the most interest-
ing application has been to a specification of a flight
planning system that was written independently of our
work (Hepworth, 1988; Vadera and Meziane, 1994).
In that case study, the approach worked well in that:
The majority of entities and relationships were cor-
rectly identified. The system identified 55 entities
of which only 1 was thought to be spurious and
none had been missed. It identified 52 relationships
of which were incorrect and none overlooked.
Most of the degrees were correctly identified. The
degrees for 49 of the 52 identified relations were
correctly predicted.
Future research aims to develop the techniques so that
a wider range of sentences and more structured ob-
jects, like tables, can be handled by the NL process-
ing phase. This should enable a broader evaluation
of the approach on larger specifications. The results
obtained with our current implementation are encour-
aging and suggest that further research may lead to an
invaluable practical aid for producing ERMs.
REFERENCES
Allen, J. (1987). Natural language understanding. The
Benjamin/Cummings Publishing Company, Inc.
Ashworth, C. and Goodland, M. (1990). SSADM: A practi-
cal approach. McGraw-Hill Book company.
Bowers, D. (1988). From data to data base. Van Nostrand
reinhold (U.K) Co. Ltd.
Gane, C. and Sarson, T. (1979). Structured System Analysis.
Prentice-hall Software series.
Hepworth, B. (1988). An introduction to Z. Technical Re-
port BAe-WIT-RP-GEN-SWE-152, Systems Comput-
ing Department, British Aerospace Ltd.
Hess, M. (1985). How does natural language quantify? In
Second Conference of the European Chapter of the as-
sociation for Computational Linguistics, pages 8–15.
McCord, M. (1990). Natural language processing in Prolog.
In Adrian, W., editor, A logical approach to expert sys-
tems and natural language processing Knowledge sys-
tems and PROLOG, pages 391–402. Addison-Wesley
Publishing company.
Meziane, F. (1994). From English to Formal Specifications.
PhD thesis, University of Salford.
Vadera, S. and Meziane, F. (1994). From English To Formal
Specifications. The Computer Journal, 37(9):753–
763.
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
642
