CONNECTING VIRTUAL SPACES

Shadow Objects as key elements for weaving the cooperative space

Thomas Bopp, Thorsten Hampel, Bernd Eßmann

Heinz Nixdorf Institute,University of Paderborn, Fuerstenallee11, Paderborn, Germany

Keywords: CSCW, MUD, virtual environment, distribut

ed knowledge, area, multi-server, peer-to-peer

Abstract: Cooperative knowledge areas are a well-proved

approach to support process of cooperative work and E-

Learning. The Paderborn Open-Source system sTeam establishes cooperative knowledge spaces so far as a

single server implementation. This paper presents our architecture of distributed cooperative knowledge

areas. The main conceptual idea of the sTeam system is a combination of a document management system

and a MUD. The goal of a distributed architecture of cooperative knowledge spaces is the ability to create

one world of connected virtual knowledge spaces over various servers. Something, which is especially

important, when thinking of new scenarios of integrating peer-to-peer clients into a multi-server

architecture. Distributed knowledge spaces also have to cover concepts for a multi-server group and user

management, which allow to move users transparently from one server to another. Materials should be

structured independently of their location on a server. The following paper first discusses the idea of

structuring a virtual world into zones or areas, which is also found in multi-user virtual environments. After

that our architecture of distributed cooperative knowledge areas is presented. In the field of user

management two different approaches of a peer-to-peer and master-server group and user-management are

possible and discussed in detail. Our trial implementation will be a fusion of both concepts and prototypes.

1 INTRODUCTION

The WWW is currently the standard way of

accessing documents on the Internet. However, it

does not support any cooperative structuring or

working with documents. Due to this there are some

isolated applications like CSCW or CSCL systems,

but there are mostly no standard interfaces to access

the materials.

When there are multiple servers the situation

ofte

n arises where a user wants to reference

materials on a different server. On web servers this

can be accomplished by using the URL of a

document. While this is also possible for objects in a

CSCW system, we might want to reference distant

objects transparently and work cooperatively with

users on other servers. Our goal is to create a

distributed cooperative knowledge space (Hampel,

2003) by joining individual servers.

Since our current sTeam system is area based

and a

vatars move through gates from one knowledge

area to another, this idea should be extended to

create gates between servers. Thus users can access

materials on other servers and they do not even have

to know about their location.

The following issues are addressed in this paper

as key

features of a distributed knowledge space:

– Consistent group- and user-management over a

cluster of servers.

– Distribution of areas on a cluster of servers.

The most important part is the partitioning of

reas. Users work cooperatively in groups inside

group’s work areas and can move between them

through gates. Figure 1 shows a number of areas on

a single server. One area is the private workplace of

a user named “Carsten”, which is connected to the

group “Documentation” work area by a gate.

When there are lots of materials inside an area the

cont

ent can be further structured using containers

(folders).

475

Bopp T., Hampel T. and Eßmann B. (2004).

CONNECTING VIRTUAL SPACES - Shadow Objects as key elements for weaving the cooperative space.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 475-479

DOI: 10.5220/0002610504750479

 SciTePress

sTeam currently uses a client-server architecture

where all clients are connected to one central server.

Any action is executed inside this server and then

distributed among clients using an event system.

This mixture of document repository and

synchronous communication with the integration of

the latest standards and protocols has proven to be a

sound approach to distributed knowledge

management (Hampel, 2003). The underlying

architecture is strictly object-oriented with every

class derived from the class “Object” providing the

basic functionality of any object. This includes

access, events and attributes. Apart from that any

object is persistently stored inside a database.

The open source sTeam server is designed as a

rather small kernel with pluggable modules.

However, the components are all written with a

single monolithic server in mind and thus some parts

have to be re-designed in order to fit the

requirements of a distributed server system.

In order to find a flexible design, we first have to

inspect all requirements of a distributed server

architecture.

2 MULTI SERVER ISSUES

There are several reasons to create a Multi-Server

cluster. As described above our main reason is to

have a single world of knowledge areas with all

users working cooperatively together through server

boundaries. A more common reason in virtual

environments is to improve the performance of the

overall system. Thus the initial situation might be

there is one server that should be split on different

machines. Each machine could have a subset of

objects of the initial server or each server could

replicate the whole content. The latter case would

require some sort of master or proxy server to

balance the load between all available machines. On

the other hand, if each server in the cluster contains

native objects then a user would connect to that

server where the requested resource is available. Of

course the server cluster should be hidden to the user

in order to be able to transparently access materials.

The research about distribution of virtual

environments mostly regards graphical 3D systems.

NPSNET (Zyda et al, 1992) and Massive

(Greenhalgh et al, 2000) use Area of Interest

Management because of performance reasons – in

3D environments something like the line of sight

plays an important part and a lot of events take place

in such a virtual world. Therefore events are filtered

and only the relevant notifications are send to a

client.

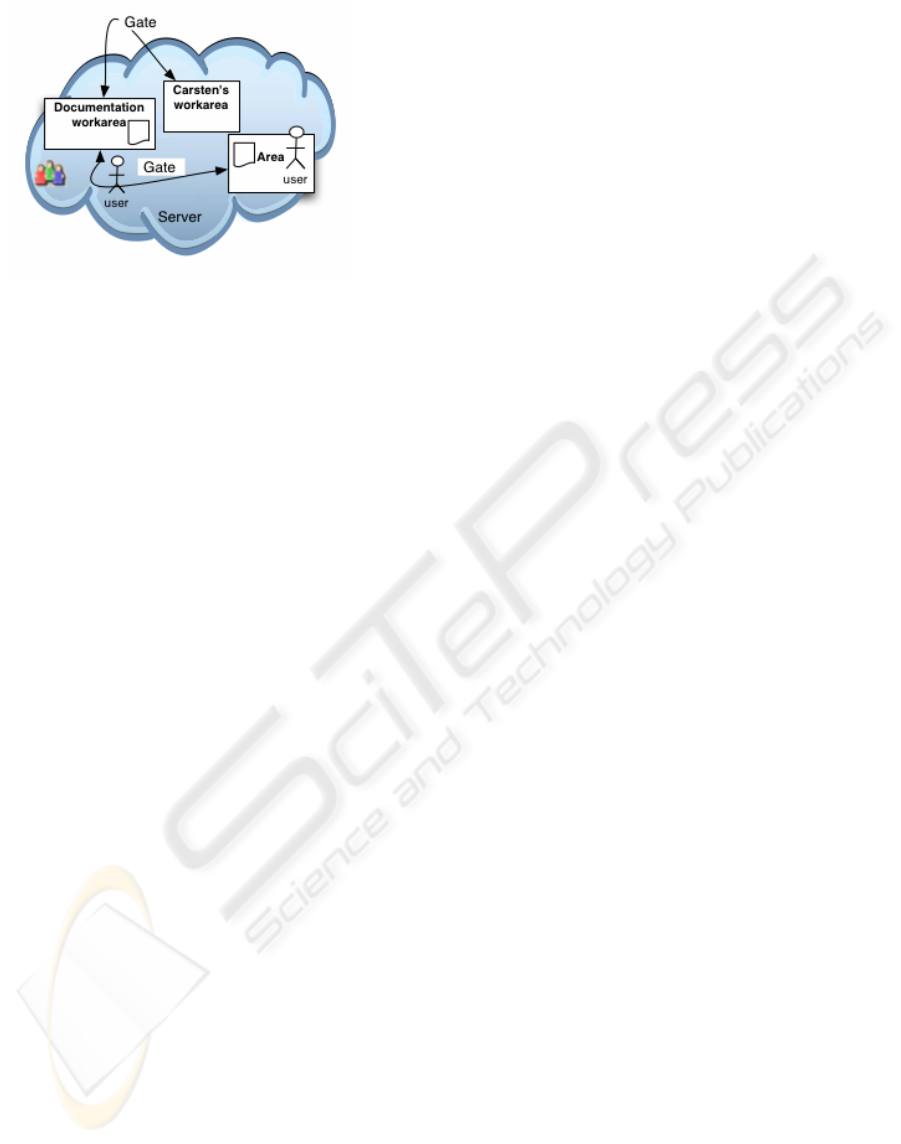

Figure 1: Knowledge Area

In our approach the performance reasons do not

play an important role, nevertheless the semantic

area concept can be used to improve performance, as

well as getting informed about what is going on

inside an area. Furthermore it allows distributing

different areas on different servers. In this sense the

sTeam server is already partitioned and might be

distributed to multiple servers. The problem is how

to deal with references to objects, which are on

different servers and with groups and users, which

exist on any server of the cluster.

When it comes to synchronous tools like chat and

whiteboard we only have 2D environments, which

do not demand full processing power. All interaction

takes place on a central server, which notifies other

applications about events. This means a lot of

network traffic and the requirement of notifying a

client only about events that are of interest.

Events can be seen as synchronisation objects

that notify other clients, or objects in general, that

something has happened. Any object can respond to

such a notification in its own matter. A solid event

model is required for a middleware and distributed

objects (Lewandowski, 1998).

On a CSCW system it should be possible to

reference materials on different servers. Supposing a

scenario where several departments at a university

host their own server and where many relationships

between departments and the provided materials

exist. So instead of performance scalability we need

some kind of semantic scalability on a CSCW

server, which means we need one world of

cooperative knowledge spaces with a coherent group

structure valid on all servers. Due to that a user just

has to create a single account and is able to access

all the materials provided within the cluster.

Taking into account all the issues mentioned

above the server design for a cluster of CSCW

systems needs to be very flexible and adaptable on

different situations. In the next chapter some

different approaches are described.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

476

3 STEAM MULTI-SERVER

ARCHITECTURE

The most central part of the architecture is the so-

called shadow (see figure 2), which makes possible

to reference objects on distant sTeam servers. To do

so the shadow only keeps the object ID and the

server ID. Apart from that it only functions as a

wrapper object to transparently call methods on

distant servers. The shadow works effectively as a

middleware – a replicated object on the local server

with minimal data. All function calls are handled by

the COAL (Client Object Access Layer) protocol,

which invokes remote methods. This is in a sense

related to the proxy (or wrapper) design pattern,

which is generally used in the sTeam core server.

For each object in sTeam a proxy is used as a

placeholder for the actual object containing the

whole data. It must be assured that any stored

reference points to the proxy instead of the object

itself.

This mechanism allows the implementation of

swapping algorithm and dynamically upgrading of

an objects source code, because we can just drop any

object and then create a new instance with the same

data. Especially the upgrade functionality is a crucial

feature of a virtual environment, since it allows

adding features and fixing bugs on the fly, without

having to reboot the whole system.

Every time a method is called inside the shadow

object the call is forwarded to the distant server. The

current action then waits for the result and so the

latency between the servers is crucial for response

times. Moreover the server needs to be multi-

threaded in order to still be able to respond to other

requests, as the active thread needs to wait for the

data from the distant server and the server might get

into some dead lock situation.

Apart from the integration of the COAL

middleware, the only difference between a proxy

and a shadow is that the shadow additionally needs

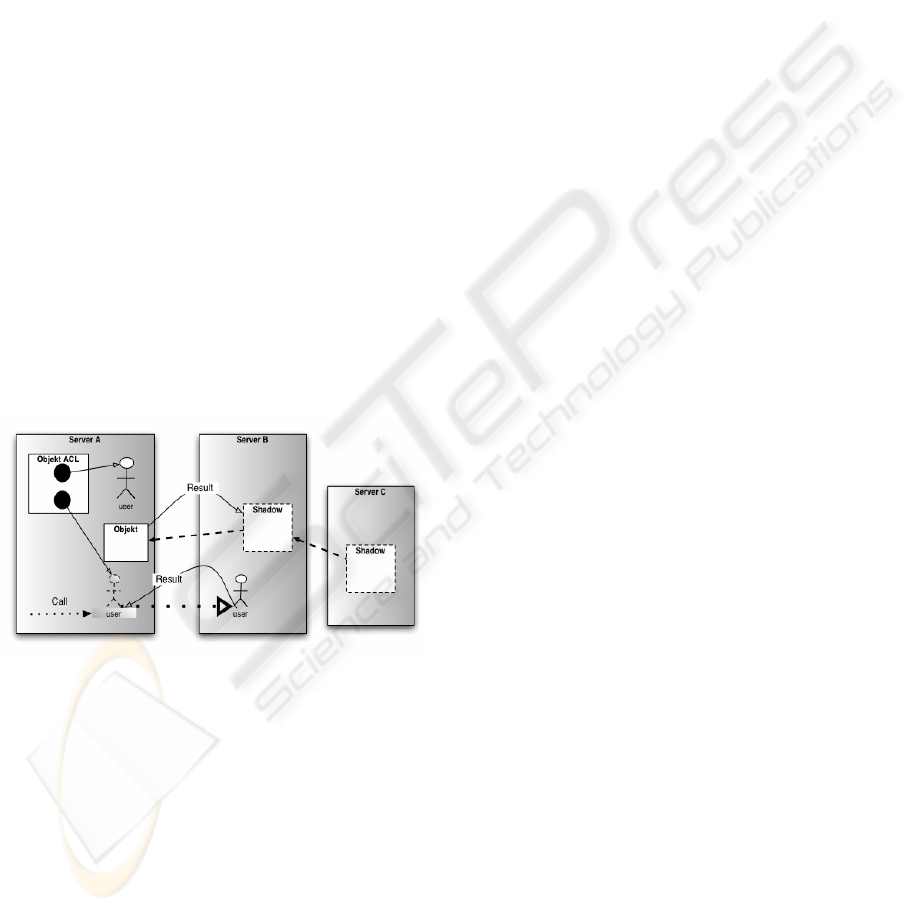

to store the distant servers ID. Figure 2 shows how

function calls on shadows take place.

Shadows can be references of every kind. So it is

not only possible to have shadows inside an

inventory listing (actually this is never the case, if

objects are always on the same server as their

environment), but also in an object ACL.

Furthermore even a user could be a shadow, which

points to a user on a different server. Here the object

reference of being a member of a group comes to

mind.

So whenever a shadow object is called, the server

needs to create a connection to the distant server. In

order to have an overview of all connections and

limit the number of connections at a time, there has

to be a special connection handler module keeping

track of all connections. Also, there should be a pool

of connections, since the number of connections

should not grow out of bounds.

Furthermore it is required to keep the area

partitioning of a server and retain any object inside

an area locally. It is also required to move objects

between servers. Any object inside sTeam has a

unique environment. Moving an object from one

area to another might move the object to another

server, if the area is located on a different one. Such

a movement might also involve the creation of a new

shadow on that server as replacement of the object

just leaving this server. Due to that it is possible that

there are chains of shadows. Following such a chain

should resolve the chain and directly store the target

location and thus update the shadows.

A quite different behaviour is required when a

user is moved, since we don’t want to move user

objects from one server to another in general. The

solution is to create a temporary shadow for the

users current environment and the objects inside of

it. So instead of moving the user we create a new

virtual environment for this user locally.

The architecture described above has already

been implemented as a prototype and has been

successfully tested. Inspecting the issues more

closely we can distinguish between two main

approaches at this point. The peer server approach

and the master server approach:

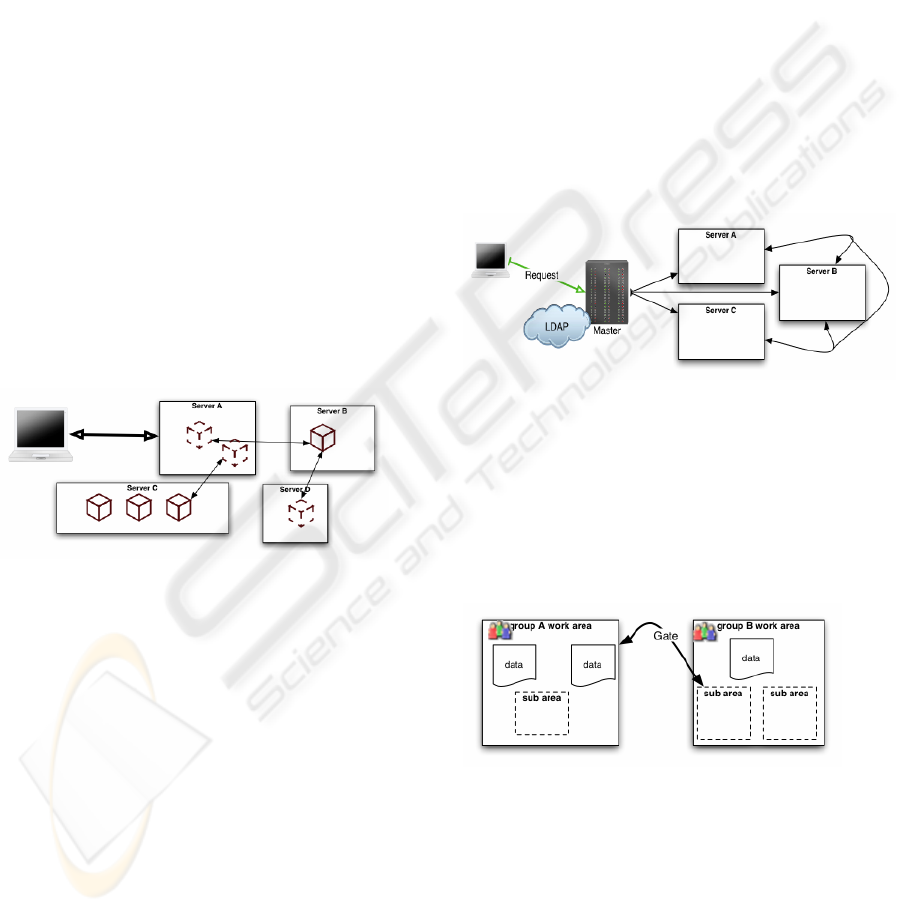

Figure 2: Shadows – References on distant objects

3.1 Peer-Server Approach

The Peer-Server approach keeps user data on each

server. A user’s home area is located on that server

on which the user was initially created. Although all

groups are spread through the server cluster, there is

one virtual group of all users on each sTeam server.

Due to the transparency of the whole cluster, the

„sTeam“ group might also just have the meaning of

giving any sTeam user of the cluster the appropriate

CONNECTING VIRTUAL SPACES: Shadow Objects as key elements for weaving the cooperative space

477

permissions. However, this would involve giving

access permissions to a group of people, which may

change unpredictable. The concept of self-

administration (Hampel, 2003) might apply on some

servers of the cluster in terms of allowing everyone

to freely join a server. On the other hand some other

servers might be much more restrictive. Also

technical difficulties apply because there is already a

work area of the “sTeam” group on every server.

This area would then be distributed between a lot of

servers and needs to be synchronized. This does not

fit into the concept of having areas distributed

between servers and not distributing the content

inside one area (by keeping the inventory of an area

locally). Due to that a “sTeam” group should always

be a local group of each server. Additionally the

shadow of a “sTeam” group can be used on a server

in order to give users of specific servers access

permissions.

The Peer-Server approach can be described as a

couple of previously independent servers being

loosely connected by shadows (see figure 3). Each

of these servers keeps its own user- and group-base

and is still under a local administration. By giving

access to group-shadows users are able to allow

distant groups to work cooperatively with local

groups.

Figure 3: Peer-Server approach

Any object reference stored inside one server

could be the direct reference to the object itself or to

a shadow. The location of the real object addressed

remains invisible to the client.

Unfortunately this causes problems with the

naming of groups, because a group named „users“

on server A is not distinguishable from a group with

the same name on server B. This is especially

harmful since it affects security. When a user gives

access permissions to some groups, identification

takes place just by the groups’ name. A solution

would be to add the servers name to the name of the

group. So something like

serverA.<group> could be

an identifier. Of course this is not an ideal solution,

as it leads to less transparency and might also

confuse the user. This whole matter also applies for

user names.

3.2 Master-Server Approach

A different approach would be to move all user data

to one master server, which also handles the initial

connection of a client (see figure 4). The Master-

Server updates it’s peer connection depending on the

environment of the user. That is when a user moves

from one area to another this might mean the user is

also moved to a different server and thus also

connected to that server.

To meet load-balancing issues areas should also

be moved from one server to another. For example if

an area on server A, which already has the most

load, is accessed very often, then it should be moved

to some other server with less load.

We need to keep this in mind when it comes to

dynamic server clusters, because in general a server

administrator don’t want any of the server’s data

moved to some unknown server.

Figure 4: Master-Server approach

Moving an area actively by a user is a different

matter though, because then the MOVE bit of the

areas access control list is used. As described above

an ACL could also contain shadows of groups of

other servers, enabling members of distant groups to

move an area from one server to another.

Figure 5: Group Work Areas

Observing the whole structure including the

gates, we get a quite complex graph. Areas can have

sub-areas in their inventory and gates connecting

different areas (see figure 5). Also the graph

contains a couple of trees with root nodes being the

groups’ work areas, as those work areas do not have

an environment and are just set to be the private area

of a certain group – they can be seen as starting

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

478

points into the sTeam virtual world. Apparently this

leads to a partitioning of group work areas if we

want to keep the locality criterion, which means

keeping any object in an areas’ inventory on the

same server as the area (see figure 6).

Furthermore since gates connect one area with

another, the distribution of areas through different

servers leads to gates, which will transparently move

a user to a distant server. Obviously this can be

accomplished by just using a shadow as the gates

destination.

This approach has some similarities to NetEffect

(Tapas, 1997), which handles the partitioning of a

server using communities. On each server of a

cluster are a couple of usually independent

communities. If a user is part of more than one

community he has to specify the community he

wants to use. A switch of the active community

might include a connection to a different server.

Due to the fact that there is one master server

keeping all the user and group data, this architecture

cannot dynamically expand to new servers unless

some hybrid solution of the Peer- and Master-Server

approach is applied. In that case new peer servers

have to be handled differently, as they have their

own user base.

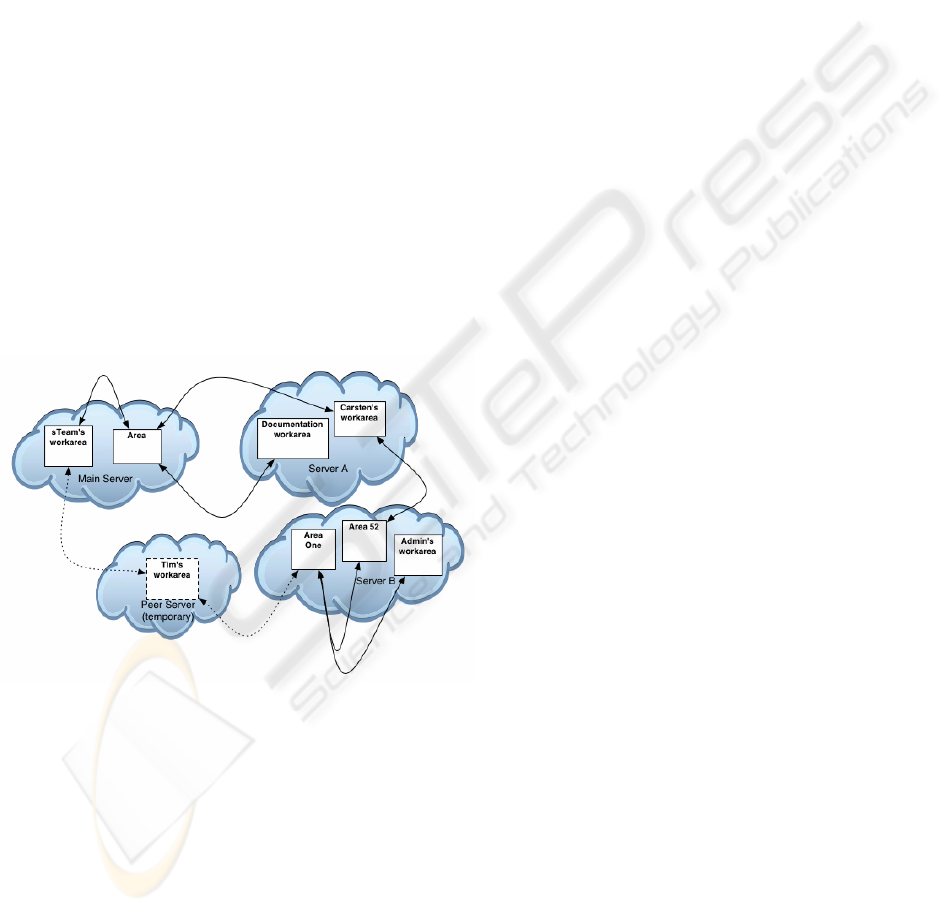

Figure 6: Area Partitioning of sTeam Server Cluster

4 CONCLUSION

This paper described the issues and different

approaches to distribute areas between previously

independent servers. Our goal is to connect those

servers in a cluster where transparent access on

distant areas is possible. Performance is less

important here, so multi-server solutions using

replication of data is of less interest to create a

sTeam server cluster.

The most challenging problem in such a virtual

world of areas is to keep a coherent access and

group structure for all groups and users on any

server. A central solution with a sophisticated

user/group server is not sufficient for mobile

environment where peer-servers on mobile devices

join and leave the cluster regularly. However, we

want to create a coherent solution, which should

work in most scenarios. Thus hybrid architecture is

the only possible approach.

Apart from that the sTeam cooperative

knowledge area is an ideal base for partitioning a

server into a cluster of servers, since it provides

independent connected areas.

REFERENCES

Hampel T.,Bopp T. (2003): Combining Web Based

Document Management and Event-Based Systems -

Integrating MUDS and MOOS Together with DMS to

Form a Cooperative Knowledge Space. ICEIS 2003,

Proceedings of the 5th International Conference on

Enterprise Information Systems, pages 218-223.

Hampel, T., Keil-Slawik, R. (2003): Experience With

Teaching and Learning in Cooperative Knowledge

Areas. Proceedings of the Twelfth International World

Wide Web Conference, CDROM 1-8.

Hampel, T. (2003): Our Experience With Web-Based

Computer-Supported Cooperative Learning.Self-

Administered Virtual Knowledge Spaces in Higher

Education. In: Proc. of Site 2003. Society for

Information Technology and Teacher Education -

International Conference, pages 1443-1450.

Zyda M., Pratt D., Monahan, J., Wilson K.(1992):

NPSNET: constructing a 3D virtual world

Proceedings of the 1992 symposium on Interactive 3D

graphics, pages 147-156.

Greenhalgh C., Purbrick J., Snowdon D.(2000):

Inside MASSIVE-3: flexible support for data consistency

and world structuring. Proceedings of the third

international conference on Collaborative virtual

environments, pages 119-127.

Tapas D., Singh G.,Mitchell A.,Kumar S., McGee K.

(1997). NetEffect: a network architecture for large-

scale multi-user virtual worlds. Proceedings of the

ACM symposium on Virtual reality software and

technology, pages 157-163.

Vellon, M., Marple, K., Mitchell, D., Drucker, S. (1998):

The Architecture of a distributed Virtual Worlds

System. Microsoft Research:

http://www.research.microsoft.com/vwg/#papers.

Lewandowski S. (1998): Frameworks for Component-

Based Client/Server Computing. ACM Computing

Surveys, Vol. 30, No. 1, pages 3-27.

CONNECTING VIRTUAL SPACES: Shadow Objects as key elements for weaving the cooperative space

479
