A TRANSACTIONAL MULTIMODE MODEL TO HANDLE
OVERLOAD IN DISTRIBUTED RTDBSs
Samia Saad-Bouzefrane, Sofiane Bourenane
Laboratoire CEDRIC, Conservatoire National des Arts et Métiers, 292, rue Saint Martin, 75141 , Paris, France
Keywords Real-time database management system, real-time scheduling, commit process, overload, real-time
transaction.
Abstract: Current applications, such as Web-based services, electronic commerce, mobile telecommunication systems,
etc. are distributed in nature and manipulate time-critical databases. In order to enhance the performance and
the availability of such applications, the major issue is to develop efficient protocols that cooperate with the
scheduler to manage the overload of the distributed system. In order to help real-time database management
systems (RTDBS) to maintain data logical consistency while attempting to enhance concurrency execution of
transactions, we introduce a transactional multimode model to let the application transactions adapt their
behavior to the overload consequences. In this paper, we propose for each transaction several execution
modes and we derive an overload controller suitable for the proposed multimode model.
1 INTRODUCTION
Current applications, such as Web-based services,
electronic commerce, mobile telecommunication
systems, etc. are distributed in nature and manipulate
time-critical databases. In order to enhance the
performance and the availability of such
applications, the major issue is to develop efficient
protocols that cooperate with the scheduler to
manage the distributed-system overload.
Data are structured and managed by a real-time
database management system (RTDBS) which
implements functionalities ensuring the data logical
consistency and the respect of temporal constraints
(Duvallet et al. 1999; Ramamritham 1993; Xiong et
al., 1996) for transactions.
In a distributed real-time environment, the
occurrence of an overload situation within a site is
due to the shortage of processor time, at a given
moment, to ensure the execution on time of all the
transactions activated on this site. This situation
generates an abortion of several transactions and
involves, consequently, the loss of resources and a
degradation of the quality of service. In order to
avoid the undesirable effect of the overload on the
distributed transactional treatment, many researchers
propose to integrate mechanisms that manage and
control the processor load by introducing the
concept of importance. In fact, to each transaction is
associated an importance value used to alleviate the
processor load by removing the least-important
transactions of the application (Kaiser et al. 1998,
Saad et al.. 2003). Unfortunately, the concept of
importance is not sufficient to express the semantic
primordiality of the treatment carried out by the
transactions. In fact, the abortion of the least-
important transactions can also generate a loss in
term of data logical and temporal performances. To
resolve this problem, we present in this paper a
multimode transactional model inspired by the
multimode model of tasks proposed by J. Delacroix
et al. in (Delacroix et al. 2000). Our model specifies
a multimode transactional behavior that allows
distributed real-time transactions to adapte their
behavior to the overload consequences by starting
palliative actions in a degraded mode, instead of
being simply aborted.
Our study is concerned with “firm-deadline”
transactions because many current applications such
as Web-based services use communication protocols
with timeout features. In firm-deadline applications,
each transaction that misses its deadline is useless
and is then aborted immediately. The remainder of
this paper is organized as follows : Section 2
presents the related work. Section 3 defines the
architecture of the distributed RTDBS. Section 4
proposes a transactional model with several modes
associated to transactions to adapte their behavior to
the overload situation. Section 5 describes, at a
328
Saad-Bouzefrane S. and Bourenane S. (2004).
A TRANSACTIONAL MULTIMODE MODEL TO HANDLE OVERLOAD IN DISTRIBUTED RTDBSs.
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 328-336
DOI: 10.5220/0002612303280336
Copyright
c
SciTePress
global level, the consequences generated by a
transaction that switches to another execution mode.
Section 6 derives overload-management algorithms
that take into account the multimode transactional
model. Before concluding in Section 8, Section 7
presents a simulation framework.
2 RELATED WORK
Many authors have designed real-time scheduling
algorithm
s that are resistant to the effects of system
overload (Cottet et al. 2002). In fact, some
algorithms deal with periodic task sets and allow the
system to handle variable computation times which
cannot always be bounded (Atlas et al. 1998,
Buttazo et al. 1998, Mok et al. 1997). Other
algorithms deal with hybrid task sets where tasks are
characterized by an importance value (Delacroix
1996, Kaiser et al. 1998, Koren et al. 1995).
Designing algorithms to manage overload in
RTDBSs has received comparatively little attention,
however, and the few efforts in this area have
assumed a centralized real-time database system. For
example, Hansson et al. in (Hansson et al. 1998,
Hansson et al. 2001) propose an algorithm denoted
OR-ULD (Overload Resolution-Utility Loss
Density) that resolves transient overloads by
rejecting non critical transactions and replacing
critical ones with contingency transactions. The
overload resolver cooperates with an EDF
scheduling algorithm (Liu et al. 1973) that uses SRP
(Stack Resource Policy (Baker 1991)) to handle
blocking since the database is main-memory
resident. Hansson et al., in (Hansson et al. 1999),
improve OR-ULD algorithm to bias the execution
among transaction classes such that the minimum
completion ratio constraints are satisfied. OR-ULD
algorithm has been also evaluated in (Hansson et al.
2000) for imprecise tasks where tasks are
decomposed into one mandatory task that has hard
deadline and one optional task that has firm
deadline.
Bestavros et al., in (Bestavros et al. 1996),
consider overl
oad management for soft deadline
transactions where primary transactions have
compensating transactions. Transactions are
guaranteed to complete either by successful
commitment of the primary transaction or by safe
transaction of the compensating transaction. Datta et
al., in (Datta et al. 1996), developed a scheduling
mechanism to perform admission control both for
managing transient overloads and to bias towards
particular transaction classes. Among the techniques
that use the concept of importance, Saad et al., in
(Saad et al. 2003), have proposed a protocol to
control the transactions load in a distributed
RTDBS. Transactions are assigned values used to
define the importance degree of each transaction
with respect to the application. In order to decrease
the transactions load, only the transactions declared
"important" by the application developer have their
execution maintained, the other transactions
considered as less important are aborted. However,
even the abortion of the least-important transactions
may generate a loss in term of data logical and
temporal performances. In order to resolve this
problem, we propose in this paper a model that
specifies a multimode transactional behavior that
allows the least-important transactions to start
palliative actions in overload situations, instead of
being aborted as in (Saad et al. 2003; Kaiser et al.
1998). This model will be used to derive algorithms
that manage processor overload.
3 THE SYSTEM ARCHITECTURE
In this paper, we are interested only in “firm-
d
eadline” transactions. Each transaction is submitted

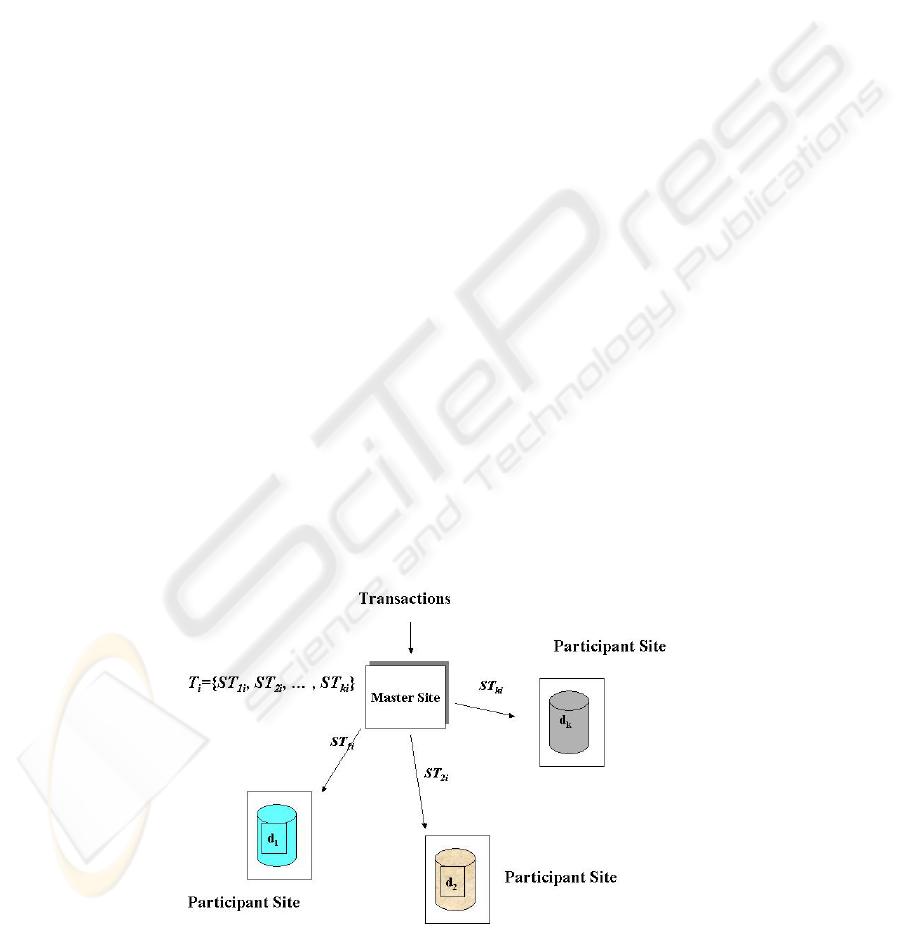

on a site called master site. It is splitted into
subtransactions submitted to sites called participant
sites (see Figure 1).
Each participant site is composed of four
m
odules:
- a transactional manager that manages the
val
idation of the subtransactions using a traditional
two-phase commit protocol (2PC) (Samaras et al.,
1995; Bernstein et al.. 1987),
- an EDF scheduler (Liu et al., 1973) that
allo
cates the processor to the highest-priority
transaction that is, to the transaction that has the
nearest deadline,
- a data manager that manages the data-access
con
flicts using a two-phase locking strategy 2PL
(Bernstein et al.. 1987) and
- an overload controller.
A global transaction, as wel
l as a subtransaction,
is characterized by its arrival time, its deadline and
its importance value that expresses the criticality of
the transaction compared to the other application
transactions. The arrival time of a subtransaction
corresponds to the time at which it is submitted to
the participant site. The deadline and the importance
value of a subtransaction are inherited from the
global transaction to which the subtransaction
belongs. The importance value is a fixed integer. It
will be used by the overload controller to select the
least-important transactions to consider during the
overload-resorption process.
A TRANSACTIONAL MULTIMODE MODEL TO HANDLE OVERLOAD IN DISTRIBUTED RTDBSS
329
4 THE MULTIMODE
TRANSACTIONAL MODEL
Within a participant site, an overload occurs when
the time needed to execute all the ready
subtransactions exceeds the available processor
time. In this situation, one or more subtransactions
may not finish their execution before the expiration
of their deadline and consequently may be aborted.
It becomes then necessary to have a multimode
transactional model that defines a behavioral
structure for each subtransaction so that a degraded
mode is triggered each time a processor overload is
detected. In the adapted model of transaction, a
subtransaction is made up of at most four execution
modes : the normal mode which is executed when
the subtransaction begins to execute. It takes care of
normal execution of the subtransaction. Three
survival modes are executed when the normal mode
is rejected, adjourned or revoked. The computation
time of a survival mode should be short because it
contains only actions that set the application in a
safe state. Such specific actions, are for example,
release of data locks, validation or abortion of
update operations.
4.1 Normal mode
A global transaction T is in normal mode if all its
subtransactions STi i { 1, n } executed on
participant sites are in normal mode. Initially, each
subtransaction STi activated by the local
transactional manager, starts its execution in normal
mode. STi preserves its normal execution mode as
long as the overload manager has not selected it as a
victim. A subtransaction is considered as a victim if
its normal mode is cancelled by the overload
manager.
4.2 Survival mode
This mode is handled by subtransactions executed
on an overloaded site. A subtransaction STi activates
its survival mode when it undergoes, at the time of
its execution in normal mode, an action of the
overload resorption. The activation of this mode lets
the subtransaction to execute palliative actions in a
degraded mode. The survival mode is composed of
three submodes: a rejection mode, an adjournment
mode and a revocation mode. Each submode defines
a program code with a level of degradation specified
by the programmer. A subtransaction cannot switch
to a survival mode as long as its global transaction
does not support this type of mode in its multimode
contract. The program code associated with the
survival mode of a subtransaction must be executed
imperatively. As illustrated in Figure 2, the
submodes are described in the following :
- Rejection Mode : a subtransaction STi is
switched from the normal mode to a rejection mode
if the overload manager chooses STi as a victim
when STi is requesting for the processor for the first
time (STi has not yet begin its execution in normal
mode). Indeed, its insertion into the ready queue
with a normal mode generates an overload situation.
The rejection mode is made up of a program code
smaller than that of the normal mode. STi, in
rejection mode, can be aborted if its insertion in the
ready queue may generate also an overload.
- Adjournment Mode : a subtransaction STi
switches from the normal mode to the adjournment
mode when it undergoes an adjournment of its
execution by the overload controller. An
adjournment action is the operation of stopping the
normal mode of STi when STi is executing before
the preparation phase of 2PC protocol (Bernstein et
al., 1987).
- Revocation Mode : a subtransaction STi
switches from the normal mode to the revocation
mode when it undergoes an action of the overload
controller during its preparation phase and before
beginning the commit phase. At this advanced
execution level, the subtransaction switched to the
revocation mode can:
- either execute the data requests in a degraded
mode. The behavior of STi may be the same either
in the revocation mode or in the adjournment mode.
- or stop the preparation phase and vote by YES
in order to accelererate the passage to the commit
phase so that the updates are directly posted on the
database. The subtransaction STi, in revocation
mode, ensures the temporal consistency without
guaranteeing the data logical consistency.
Example :
The following transaction T defines two modes,
a normal mode and a rejection mode. If T is rejected,
it will execute a smaller program code.
T.NormalMode {Begin_Transaction
Req1 : Update Company_quotation
SET Course = Course + Variation
WHERE Company_identity = FR0006
or Company_identity = FR0011
Company_identity = FR0028 or
Company_identity = FR0031
Req2 : Update Statistical_quotation
SET High = Van [1], Low = Van [2]
WHERE Company_identity = FR0006
or Company_identity = FR0011
Company_identity = FR0028 or
Company_identity = FR0031
End_Transaction }
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
330
T.RejectionMode {Begin_Transaction
Req1 : Update Company_quotation
SET Course= Course + Variation
WHERE Company_identity >= FR0010
And Company_identity <= FR0030
End_Transaction }
4.3 Multimode demarcation point
The multimode demarcation point is defined by an
ex
ecution instant from which a subtransaction
cannot support any changing of mode. A
subtransaction STi reaches its demarcation point
when it finishes its preparation phase and sends a
message YES to the master site. At this execution
level, the transaction cannot be cancelled to switch
to a survival mode. Figure 2 locates the demarcation
point relatively to the activation levels in the life
time of a subtransaction.
4.4 A behavioural contract
A global transaction, as well as a subtransaction, is
characte
rized by a contract determining the
supported survival modes. The multimode contract
includes three properties and is declared in a
properties file that respects an XML format (see the
following DTD). This file represents the multimode
properties of all the transactions classes : a class
gathers all the transactions which have the same
behavioral contract.
The DTD of the XML file that defines the
m
ultimode contract
<!ELEMENT Contract(Class)>
<!ELEMENT Class(Rejection, Adjournment,
Revocation)>
<!ATTLIST Class type #PCDATA #REQUIRED>
<!ELEMENT Rejection (#PCDATA)>
<!ELEMENT Adjournment (#PCDATA)>
<!ELEMENT Revocation (#PCDATA)>
This is an example of a file that declares
m
ultimode classes.
< Contract>
<Class type = j >
< Rejection> No < / Rejection >
<Adjournment> Yes< /Adjournment>
<Revocation > Yes < /Revocation >
</Class >…………
<Class type = k >
< Rejection> No < / Rejection >
<Adjournment> No < /Adjournment>
<Revocation > Yes < /Revocation >
</Class>
</Contract>
In the example above, the class j gathers all the
no
n-rejectable, adjournable and revocable
transactions. The class k includes all the revocable,
non-rejectable and non-adjournable transactions.
5 THE CONSEQUENCES OF A
SUBTRANSACTION-MODE
CHANGING
A subtransaction STk that changes its execution
m
ode can generate one of the two following
scenarios:
1. all th
e subtransactions STi i {1,n}-{k}
executed on the other participant sites switch to the
same survival mode m. We say that the global
transaction T supports a synchronized multimode
behavior. This cooperation model for a global
switching is suitable for the transactions that require
the atomicity of their distributed transactional
treatments. STk that causes the global mode
switching does not await for the agreement of the
other subtransactions.
Mode (STi) = normal, for any STi i
{1…n} of T
When STk goes to a survival mode m
Mode (STk) = m
For any STi i {1…n}-{k} of T do
Switch Mode (STi) to mode m
EndFor
We introduce a protocol that allows the overload
cont
roller to synchronize the switching mode of
subtransactions that belong to the same global
transaction. This protocol implements three
messages: ·
- Mo
de_Changed (STk, T, Mode = m): message
sent by the overload controller of a participant site to
inform the master site that subtransaction STk has
switched to its survival mode m.
- C
hange_Mode (STi, T, Mode = m): message
broadcasted by the master site to all the non-
overloaded participant sites to invite them to switch
their subtransaction to the mode m.
- C
hange_Mode_Ok (STi, T): message sent by
each participant site to the master site once the local
switching has been done.
A TRANSACTIONAL MULTIMODE MODEL TO HANDLE OVERLOAD IN DISTRIBUTED RTDBSS
331
2. A local switching of the execution mode of
STk without changing the mode of the other
subtransactions STi i {1, n}-{k}. This local
non-synchronized switching is supported by a
transaction which a cancellation of the normal mode
does not affect the logical consistency of the
database but degrades the data QoS. This relaxation
principle avoids the loss of resources.
6 THE OVERLOAD
CONTROLLER
The overload controller is composed of two
modules: an admission controller and an overload
manager. These modules cooperate with the
scheduler to set up a scheduling and an overload-
management policy which, in overload conditions,
favours the execution of the most important
transactions and which removes the least important
ones by switching them to the survival mode. Each
overload controller manages the overload situations
within each participant site without communicating
its state to the other local overload controllers.
However, with the introduction of the multimode
transactional model, the overload controllers of the
participant sites communicate to ensure the global
mode switching by using the protocol described
above. The overload controller manages two queues.
We denote by:
ReadyQueue
s
: the ready queue of a participant
site S that contains the subtransactions that are
waiting for the processor. They are sorted by
increasing their deadlines. At time t, ReadyQueue
s
has the following state :
ReadyQueue
s
(t) = {ST
0,m0
, ST
1,m1
,
ST
2,m2
,…,ST
n,mn
}, m
i
is the execution mode of
subtransaction STi.
ImportanceQueue
s
: the importance queue of a
participant site S is composed of ready
subtransactions executing in normal mode, sorted by
increasing their importance values. The state of the
queue at time t is the following : ImportanceQueue
s
= {ST
k,normal
, Imp
STk
} k {1,…,d} (dn).
At the arrival of a new subtransaction STn
requiring the processor on a participant site S, the
scheduler invokes the admission controller. This
latter has the role of detecting the overload and
deciding the admission or the rejection of STn. The
overload manager is called by the admission
controller to resorb the overload situation generated
by the insertion of STn into ReadyQueue
s
. The
scheduler is triggered at the end of each overload-
management module to allocate the processor to the
highest-priority ready subtransaction.
6.1 The admission controller
The admission controller is made up of two phases:
a detection phase and an admission phase. The
detection phase detects overload situations. At the
arrival of a new subtransaction ST
n,normal
, a
parameter called processor laxity (denoted by LP(t))
is computed for the new configuration of
ReadyQueue
s
{T
n,normal
}. The processor laxity
corresponds to the minimal value of the conditional
laxities of the ready subtransactions.
LP(t) = Min (LC
STi,mi
(t)) i {0,.., n} / ST
i,mi
of (ReadyQueue
s
{T
n,normal
})
LC
STi,mi
(t) is the conditional laxity of the
subtransaction ST
i,mi
. It is equal to the time interval
during which ST
i,mi
can be delayed, from time t,
without missing its deadline. A negative value of
LC
STi,mi
means that ST
i,mi
cannot finish its execution
in mode m
i
before its deadline expires. If LP(t)
corresponds to a positive value, then the admission
of ST
n,normal
in ReadyQueue
s
does not generate an
overload situation. Thus, ST
n,normal
is accepted and
inserted in ReadyQueue
s
. Otherwise, the acceptance
of ST
n,normal
generates an overload situation. In this
case, the controller starts its second phase which
consists in rejecting or accepting ST
n,normal
. If
ST
n,normal
is more important than one or several
normal-mode subtransactions, then it is accepted by
the admission controller. The overload manager is
called then by the admission controller to stabilize
the processor load (Section 6.2 will describe the
principle of stabilization process). Otherwise, STn
switches to the rejection mode. If the execution in
this latter mode does not cause an overload situation
ST
n,rejection
is accepted. Otherwise, it is aborted
causing the abortion of the global transaction.
Module Overload_detection (ReadyQueue
s
,T
n,normal
)
Begin
Compute Processor_laxity (ReadyQueue
s
, t)
If Processor_laxity (ReadyQueue
s
, t) < 0 then
Overload_value= |Processor_laxity
(ReadyQueue
s
, t)| ;
Call Admission Phase ;
Else
Call the scheduler to insert T
n,normal
into
ReadyQueue
s
;
EndIf End
Admission Phase
Begin
If Imp
Tn
> Imp
ST
ST ImportanceQueue
s
Then
T
n,normal
is admitted ;
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
332
Call the scheduler to insert T
n,normal
to ReadyQueue
s
;
Call the overload manager to stabilize ReadyQueue
s
;
Else
Tn is switched to rejection mode T
n,rejection
If (Mode
normal
(Tn)-Mode
rejection
(Tn) Overload_value)
Call the scheduler to insert T
n,Rejection
into
ReadyQueue
s
;
Else Tn is aborted
EndIf
EndIf
End
6.2 The overload manager
This module is called by the admission controller
whe
n the overload occurs. It proceeds to the
resorption of the overload situation generated by the
insertion of a new subtransaction STn in
ReadyQueue
s
. The overload manager implements a
mechanism called a stabilization process. When an
overload occurs, the stabilization process is executed
to release the least-important transactions that are in
normal mode, by switching them to the survival
mode in order to alleviate the site processor. The
stabilization process builds an overload-resolution
plan denoted by P. The plan P is made up of a subset
of ReadyQueue
s
, denoted ORset, including the least-
important subtransactions that execute in normal
mode, that support the survival mode and that have
not reached yet their demarcation point.
ORset = {STk} STk is a subtransaction of
Rea
dyQueue
s
chosen in the plan P
The stabilization process removes all the
subt
ransactions of ORset chosen in the plan P to
alleviate the processor time, ensuring the deadline
meeting for the most important subtransactions. In
our transactional model, the removal of a
subtransaction means its switching from the normal
mode to a survival mode m which is adequate to its
execution state. That is, (see Figure 2):
- its switching to the revocation mode if it is in
t
he preparation phase of 2PC protocol,
- or its switching to the adjournment mode if it is
in its data-processing phase. Process
or time freed
thanks to this switching is equal to the difference
between the remainder execution time in normal
mode and its computing time in survival mode m.
Processor time freed= [Mode
normal
(STk) -
Mode
m
(STk)].
The use of the resolution plan P stabilizes
Rea
dyQueue
s
and generates a new configuration of
ready subtransactions denoted by ReadyQueue
s
stable
.
P(Re
adyQueue
s
) = ReadyQueue
s
stable
with
Processor_laxity(ReadyQueue
s
stable
)>0
The stabilization process stops when one of the
fo
llowing conditions is satisfied:
- the plan P has stabilized Read
yQueue
s
: P
(ReadyQueue
s
) = ReadyQueue
s
stable
and the processor
laxity is a positive value : Processor_laxity
(ReadyQueue
s
stable
)>0. In this case, the overload
situation is resorbed completely.
- all the subtransactions STk of ORset verifying
th
e selection rules are inserted in the plan P and the
processor laxity is always negative. In this case, the
stabilization process cannot resorb the overload
situation completely. Consequently, the
subtransactions of ReadyQueue
s
, having a negative
conditional laxity, will be aborted.
7 THE SIMULATION
FRAMEWORK
7.1 The Java platform
The simulation platform is based on Java technology
and m
akes use of MySQL databases. Its architecture
is composed of a master site and three participant
sites over which the database system is distributed.
Transactions are sent via HTTP requests to the
master site which splits them into subtransactions
and distributes them to appropriate participant sites,
where they are processed into SQL statements and
executed. Furthermore, the communication
framework is based on socket primitives, rather than
CORBA, for performance reasons and messages are
modelled as objects.
The master site is implemented as a Java Servlet
and sits on a
TomCat Server. Transaction requests
are made via HTTP and each request is handled by
an instance of the Servlet. A transaction request
contains one or more data operations. The number of
the global transaction is calculated as an addition of
the arrival time of the transaction at the master site
and a random number ranging from 0 to one million.
The transaction deadline is calculated from the
arrival time of the transaction at the master site and
the execution time of all its data operations. The
execution time of each data operation is determined
by its type (read or write). An additional time is also
included to cater for communication time between
sites. The importance value of the transaction is
determined from the number of the data operations
of the transaction and from the type of each
A TRANSACTIONAL MULTIMODE MODEL TO HANDLE OVERLOAD IN DISTRIBUTED RTDBSS
333
operation. To each subtransaction is associated a
normal mode and a survival mode.
The participant site is composed of various
modules, implementing the Overload Manager, the
EDF Scheduler and the Data Manager. All these
modules are defined like threads and work
concurrently.
The application developed to evaluate the
performance of our platform under various working
conditions is composed of three modules:
- the Execution Module : that gets the
transactions to be executed from a file and sends
them simultaneously, in the form of HTTP requests,
to the master site and waits for the execution results.
- the Configuration Module that enables the user
to change the execution parameters of the
distributed
system. These parameters allow the user to
determine the conditions under which the
transactions would be executed. For example, the
user can determine whether the importance value of
transactions should be considered during the
stabilization process or not, etc.
- the Statistics Module has the purpose of
analysing the series of execution grouped according
to the type of configuration under which they have
been executed and to display graphically the results
of the analysis.
7.2 Simulation analysis
During the simulation phase, several series of
execution have been used to measure the
performance of the system under different working
conditions. The series vary in terms of the number of
transactions (50, 100, 150, 200, 250, 300) in order
to allow one to evaluate the behavior of each
simulation configuration vis-à-vis a linear increase
of the number of requests. The series have also been
designed in a way to ensure several conflicting data
access between read and write operations and few
conflicts between write operations. All the tests have
been carried out on a platform consisting of
participant sites, each having a local database of 30
records. Also, each distributed transaction contains
three subtransactions, one for each participant site,
and each sub-transaction has at most 3 data
operations. The tests presented in Figure 3 have been
carried out to evaluate the system under various
configurations, comprising the multimode concept
and that of the importance value.
The results of Figure 3 show that the system
achieves the best performance when the multimode
concept is applied and when the importance value of
transactions is considered during the stabilization
process.
8 CONCLUSION
In this paper, we have focused on the design of a
model which defines a transactional behaviour
adapted to the context of real time. The behavioural
and the structural specifications of this model
involving several execution modes for real-time
transactions is an efficient solution to manage
overload situations. A simulation platform based on
a commit processing protocol that manages
transient-overload situations of the distributed
system has been developed. When an overload is
detected within a participant site, the transactions
that are important for the application are favoured.
The less important ones are switched into degraded
modes or discarded if the degraded modes are not
sufficient to resorb overload. The simulation
platform is based on Java technology and makes use
of MySQL databases. Transactions are sent via
HTTP requests to the master which is implemented
as a Java Servlet on TomCat server. Each participant
site implements an overload manager, an EDF
scheduler and a data manager. This platform
integrates a graphical interface to submit
transactions, a configuration module to fix a certain
number of parameters and a statistical module that
displays the simulation tests in a graphical way. The
simulation results show good performances under
overload and multimode execution.
REFERENCES
(Atlas et al. 1998) A. Atlas and A. Bestavros, "Statistical
Rate Monotonic Scheduling", in proc. of IEEE Real-
Time Systems Symposium, Madrid, dec. 1998.
(Bernstein et al. 1987) P. Bernstein, V. Hadzilacos and N.
Goodman, "Concurrency Control and Recovery in
Database Systems”, Addison Wesley, 1987.
(Baker 1991) T. P. Baker, "Stack-based Scheduling of
Real-Time Processes", in Real-Time Systems Journal,
3(1), pp. 67-99, march 1991.
(Bernstein et al., 1987) P. Bernstein, V. Hadzilacos and N.
Goodman, "Concurrency Control and Recovery in
Database Systems”, Addison Wesley, 1987.
(Bestavros et al., 1996) A. Bestavros and S. Nagy,"Value-
cognizant Admission Control for RTDB systems",
Proc. of the 17th Real-Time Systems Symp., pp. 230-
239, IEEE Computer Society, dec. 1996.
(Buttazo et al., 1998) G. C. Buttazo, G. Lipari and L.
Abeni, "Elastic Task Model for Adaptive Rate
Control", in Proc. of IEEE Real-Time Systems
Symposium, Madrid, dec. 1998.
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
334
(Cottet et al., 2002) F. Cottet, J. Delacroix, C. Kaiser and
Z. Mammeri, "Scheduling in Real-Time Systems",
Edition J. Wiley & Sons, 2002.
(Kaiser et al., 1998) C. Kaiser, C. Santellani, "Pétrarque.
Une Plate-forme d'Expérimentation pour
l'ordonnancement temps réel strict d'applications
réparties", Technique et Science Informatique Journal,
17(1), pp.39-62, 1998 (French).
(Datta et al., 1996) A. Datta and et al., "Multiclass
Transaction Scheduling and Overload Management
Real-Time Database Systems", Information Systems,
21(1), pp. 29-54, 1996.
(Koren et al., 1995) G. Koren and D. Shasha, "Dover : An
Optimal On-Line Scheduling Algorithm for
Overloaded Uniprocessor Real-Time Systems",
SISAM J. Comput., 24(2), pp.318-339, 1995.
(Delacroix et al. 2000) J. Delacroix and C. Ménival,
"Intégration d’un Contrôle de Charge par Importance
au sein du système RT-Linux”, RTS’2000
Conference, pp. 47-63, march 2000, Paris.
(Liu et al., 1973) C. Liu and J. Leyland, "Scheduling
Algorithms for Multiprogrammig in Hard Real-Time
Environment", Journal of the ACM, 20(1), 1973. (Duvallet et al. 1999) Claude DUVALLET, Zoubir
MAMMERI, Bruno SADAG., « les SGBD Temps
réel », edition Hermes, 1999.
(Mok et al., 1997) A. K. Mok and D. Chen, "A multiframe
model for real-time tasks", IEEE transactions on
Software Engineering, 23(10), p. 635-645, 1997. (Hansson et al., 1998) J. Hansson, S. H. Son, J.A.
Stankovic and S. F. Andler,"Dynamic Transaction
Scheduling and Reallocation in Overloaded Real-
Time Database Systems", Proc. of the 5th Conference
on Real-Time Computing Systems and Applications
(RTCSA'98), pp. 293-302, IEEE Computer Press,
1998.
(Ramamritham 1993) Ramamritham K., "Real-time
databases", J. of Distributed and Parallel Databases,
1(2), pp. 199-226, 1993.
(Saad et al., 2003) S. Saad-Bouzefrane and C. Kaiser,
“Distributed Overload Control Control for Real-Time
Replicated Database Systems”, 5th Int. Conf. On
Enterprise Information Systems, april 2003, Angers,
France.
(Hansson et al., 1999) J. Hansson, S. F. Andler and S. H.
Son, "Value-driven Multi-class Overload
Management", Inter. Conf. on Real-Time Systems
and Applications, dec. 1999, Hong Kong.
(Samaras et al., 1995) G. Samaras et al., “Two-Phase
Commit Optimization in a Commercial Distributed
Environment”, Journal of Distributed and Parallel
Databases, 3(4), 1995.
(Hansson et al., 2000)J. Hansson, M. Thuresson and S. H.
Son,"Imprecise Task Scheduling and Overload
Management using OR-ULD", Inter. Conf. on Real-
Time Computing Systems and Applications}, Korea,
dec. 2000.
(Xiong et al., 1996) M. Xiong, J. A. Stankovic, K.
Ramamritham, D. Towsley and R. M. Sivasankara,
“Maintaining Temporal Consistency : issues and
algorithms”, 1st Int. Workshop on RTDBS: Issues and
Applications, pp. 1-6, California, 1996.
(Hansson et al., 2001) J. Hansson and S. H. Son,"Real-
Time Database Systems: Architecture and
Techniques", K. Lam and T. Kuo (eds.), Kluwer
Academic Publishers, pp. 125-140, 2001.
Figure 1: The transactional model
A TRANSACTIONAL MULTIMODE MODEL TO HANDLE OVERLOAD IN DISTRIBUTED RTDBSS
335
Figure 2: The life time of a multimode subtransaction STi
0
20
40
60
80
100
50 100 150 200 250 300
No. of Transactions
% of transactions
meeting their deadline
No Ex. modes - No
Importance
No Ex. modes -
Importance
Ex. modes -
Importance
Figure 3: Percentage of transactions meeting their deadline in different situations
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
336
