AUDIOVISUAL ARCHIVE WITH MPEG-7 VIDEO

DESCRIPTION AND XML DATABASE

Pedro Almeida, Joaquim Arnaldo Martins, Joaquim Sousa Pinto, Helder Troca Zagalo

IEETA – Instituto Engenharia Electrónica e Telemática de Aveiro, Departamento de Electrónica e Telecomunicações,

Universidade de Aveiro – Campus Universitário de Santiago, 3800-193 Aveiro

Keywords: MPEG-7, XML, NXDB, Audiovisual Arch

ive, Multimedia, Digital Libraries

Abstract: This article presents the development of an audiovis

ual archive that uses the MPEG-7 standard to describe

video content and a XML database to store the video descriptions. It presents the model adopted to describe

the video content, the framework of the audiovisual archive information system, a video indexing tool

developed to allow the creation and manipulation of XML documents with the video descriptions and an

interface to visualize the videos over the Web.

1 INTRODUCTION

This article describes the work developed in the

creation of an audiovisual archive that allows to

index and store the content of the parliamentary

video records of the Portuguese Parliament. This

project appears as part of the digital library for the

Portuguese Parliament, mainly associated with the

system Electronic Diaries of the Portuguese

Parliament (Pinto, 2001). The main objective of this

project is to allow the visualization of a video of a

complete session of the parliamentary debates or a

small video segment of one session that corresponds

to the intervention of a specific orator.

In more detail, the intention is to characterize a

ovie of a parliamentary session from the

Portuguese Parliament, split the video in several

segments and characterize them in a temporary and

descriptive level. This way it is later possible to

visualize segments that correspond to parliamentary

interventions that contain specific characteristics.

Primarily are described the base technologies over

ich lays the information system, namely XML,

XML Schemas, XML databases and Web Services.

It is presented the model, built with MPEG-7

ele

ments, that allows a detailed characterization of

an audiovisual content of a video from a

parliamentary session of the Portuguese Parliament.

After the model it is presented the framework of the

nformation system that has been developed, as well

as its characteristics, with a special note to a video

indexing tool that allows several users to index

different videos from different parliamentary

sessions and to the Web Viewer that makes it

possible to view the videos over the web.

2 TECHNOLOGIES

2.1 XM

XML, eXtensible Markup Language, is a World

Wide Web Consortium (W3C, 2002)

recommendation and comes as an evolution of

SGML, Standard Generalized Markup Language

(ISO, 2001), a markup language. Initially, its

objective was to overcome some limitations of

HTML, HyperText Markup Language (W3C, 1999).

XML comes as a markup language that allows

relating text content with the marks by which it is

delimitated.

The main difference between XML and HTML is

at while in HTML all the marks that appear in a

document are defined by the HTML standard in

XML its possible to create marks whose syntax and

semantic are specific, bringing great extensibility to

this markup language.

2.2 XML Schemas

Despite the fact that an XML document presents its

data delimitated by marks, nothing stops that a user

interpretation is different from the one intended, not

taking in regard the semantic of the marks. This

536

Almeida P., Arnaldo Martins J., Sousa Pinto J. and Troca Zagalo H. (2004).

AUDIOVISUAL ARCHIVE WITH MPEG-7 VIDEO DESCRIPTION AND XML DATABASE.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 536-540

DOI: 10.5220/0002614605360540

 SciTePress

brings the need for a language that permits

describing the structure of a XML document.

Initially came the DTD’s (Document Type

Definition) (W3C, 2000) proposed by the W3C as a

way of defining a structure to the XML documents.

Later, due to some limitations of the DTD’s came

the XML Schemas (W3C, 2001) as a W3C

recommendation.

The goal of a XML Schema is to define a way to

build a XML document according to a defined

structure. XML Schemas permit defining the

elements and attributes of a XML document, the

positions where they appear, the order of the child

elements, the number of child elements, if a element

may be empty or not, data types to the elements and

attributes, default values to elements and attributes,

etc.

2.3 XML Databases

The video descriptions are stored in a XML

document with a structure as the one defined in

section 3.2 and it is used a XML database to store

these documents.

The DBMS (Database Management System) used is

a NXDB (Native XML Database). It is called

XIndice (Apache, 2003) and is based on an open-

source platform developed by the Apache

Foundation Software.

The use of an XML database was justified by the

fact that the video descriptions were stored in XML

documents, taking advantage of the functionalities

associated to native NXBD’s in storing and

searching XML data.

2.4 Web Services

In a conceptual level Web Services (W3C, 2002) are

services offered via the Web (Armstrong, 2003).

The main objective of using Web Services in the

information system of the audiovisual archive is to

create an abstraction level that allows establishing

inter-application communications in a transparent

way, ensuring that the system has the best

modularity as possible. This kind of approach

allows, in the future, the use of other DBMS’s

without the need to rebuild or recompile the code

that builds the information system.

3 MPEG-7

The MPEG-7 standard permits the description of

various types of multimedia information. One of the

objectives of this standard is to permit efficient

characterization of audiovisual material.

This standard does not cover the area of

automatic extraction of descriptors neither specifies

a search engine that can use the descriptors,

permitting that software factories build their own

tools raising this way the competition and

functionality of the available tools.

The MPEG-7 standard uses XML and XML

Schemas as a descriptive language, permitting this

way high extensibility and easiness of use. This fact

also allows a high interoperability, creating

independence of the standard from a specific

software platform or software vendor. (Martinez,

2002)

3.1 MPEG-7 Elements

The MPEG-7 standard is composed of three

elements that permit creating descriptions of

audiovisual content: (Martinez, 2002)

1. Descriptors (D) – Representations of

characteristics, define the syntax and the semantic of

each representation to each characteristic.

2. Description Schemes (DS) - Specifies the

structure and semantic of the relations between

components. These components can be either

Descriptors or Description Schemes.

3. Description Definition Language (DDL) – Permits

the creation of new Description Schemes and

Descriptors and the extension or modification of

existing Description Schemes.

MPEG-7 consists of seven parts (Martinez, 2002).

The Multimedia Description Schemes part was used

in the creation of the model presented further ahead.

3.2 MPEG-7 model

Figure 1 presents the model of description built with

MPEG-7 elements and shows the Description

Schemes that where used to describe the video

content of a parliamentary session.

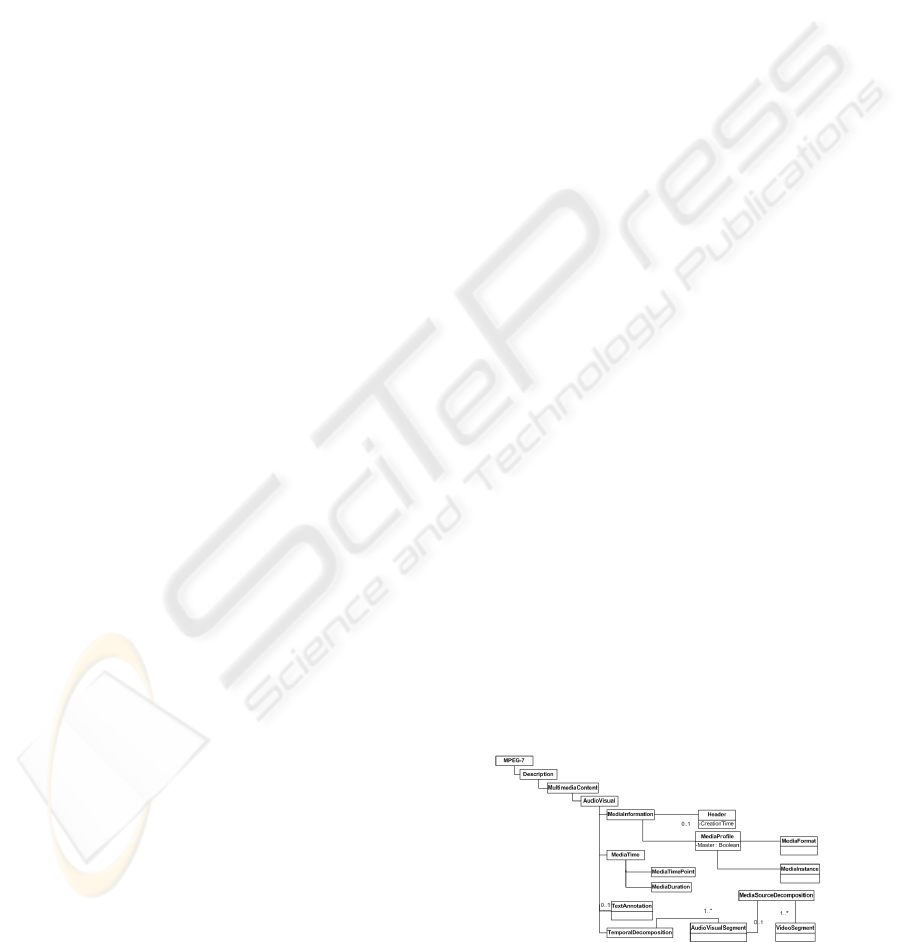

Figure 1: MPEG-7 description model

AUDIOVISUAL ARCHIVE WITH MPEG-7 VIDEO DESCRIPTION AND XML DATABASE

537

The first element in the model is the MPEG-7

element. This element indicates that the content of

the XML file is a MPEG-7 description. After this

element appears the Description element followed

by a MultimediaContent element, which indicates

the type of content that is going to be described. The

fallowing element is the AudioVisual element. This

element represents the total audiovisual content, in

this particular case a complete video of a

parliamentary session of the Portuguese Parliament.

The MediaInformation element contains information

about the video codification and the location of the

audiovisual content and the MediaTime element

contains information about the duration of the

complete video. The TemporalDecomposition

element indicates that there is a temporal

decomposition of the audiovisual content. From this

element derives one or more AudioVisualSegment

elements that represent each segment of the

audiovisual content described. Each segment

contains the necessary information for its correct

characterization and identification. Associated with

the audiovisual content may exist a TextAnnotation

element that permits adding textual information that

characterizes the audiovisual content, namely textual

notes and keywords. Finally the

MediaSourceDecomposition and VideoSegment

element permit the characterization of sub-segments

of a video segment, increasing the granularity of the

audiovisual archive system.

A more detailed explanation of the model can be

obtained in a previous article (Almeida, 2003).

4 AUDIOVISUAL ARCHIVE

INFORMATION SYSTEM

FRAMEWORK

Figure 2 presents the audiovisual archive

information system framework. This framework is

based in the classic model of three layers: data layer,

logic layer and presentation layer.

The data layer is composed of three components

that store information. The first repository is a video

collection with the debates from the Portuguese

Parliament. The second is a relational database that

contains information about the interventions of

orators from the parliament. The third component is

a XML database that stores the video descriptions.

The logic layer is composed of a group of

technologies that have been used in order to permit

the construction of a distributed information system

for the audiovisual archive, based on the client-

server model.

Finally, the presentation layer presents the video

indexing tool and the web viewer, being this

interfaces available to interact with the audiovisual

archive.

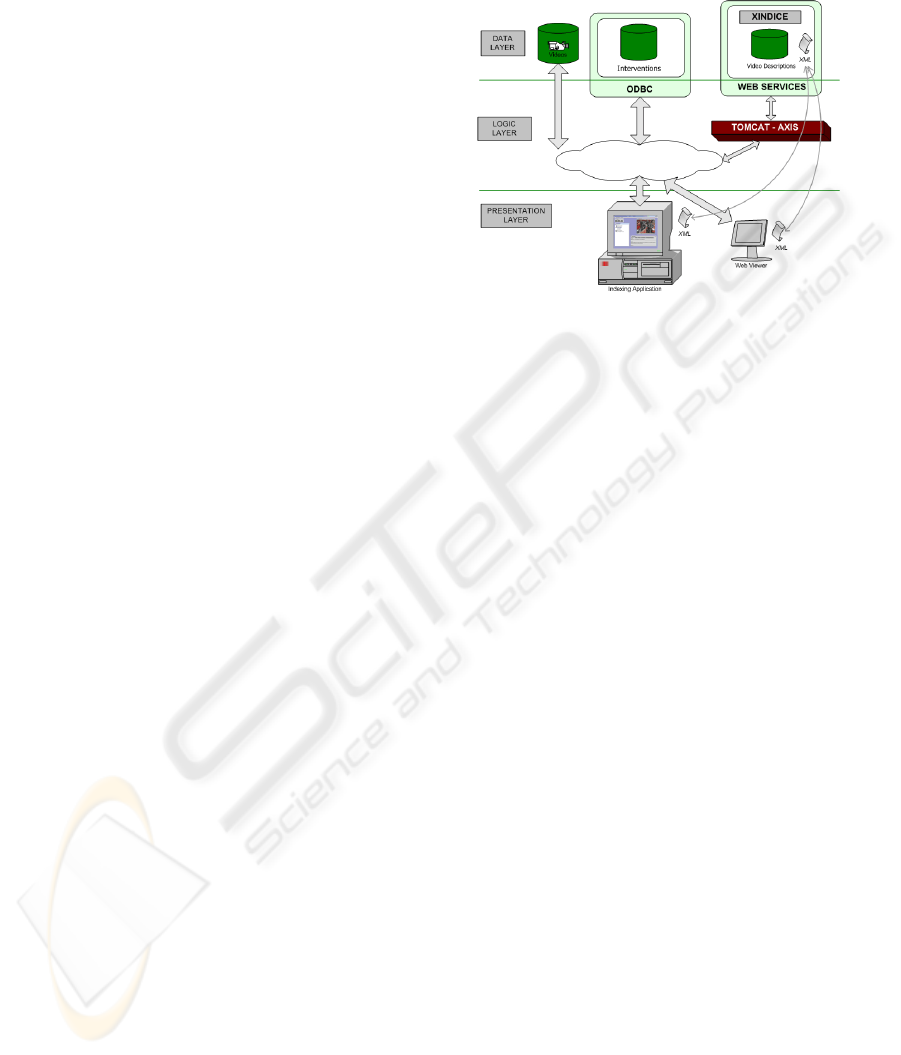

Figure 2: Audiovisual Archive information system

framework

4.1 Data layer

4.1.1 Videos

The parliamentary videos are stored in a video

server and organized according to a hierarchic

structure to allow the use of an automatic method of

recovery. The videos names can be obtained by the

expression S[ns]L[nl]SL[nsl]N[nsp] , where ns , nl ,

nsl and nsp correspond to the number of the series,

legislature, legislative session and parliamentary

session. For example, in the case of a video from

session number 2, 8.

legislature, 1.

legislative

session, 1.

series the name of the video will be

S1L8SL1N2.

4.1.2 Interventions database

The interventions database is stored in a legacy

system. This database has information about the

interventions of orators in each session of the

Portuguese Parliament. From this database it is

possible to obtain information about the name of the

speaker, the summary and the pages where the

intervention is written in the paper Diaries of the

Portuguese Parliament.

4.1.3 Video description database

The database with the video description is a native

XML database. This database is where the indexed

video descriptions are stored. For each indexed

video there is a record in the database, represented

by a XML file that contains all the information

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

538

necessary to decompose and characterize a video of

a parliamentary session.

4.2 Logic layer

This layer guaranties independence between the data

layer and the presentation layer.

In the connection to the relational database with the

interventions information’s it is used the familiar

technology of ODBC (Microsoft, 2003).

In the case of the XML database with the video

descriptions it was created a Web Service, xmldbws,

to allow the communication with the presentation

layer.

To implement the Web Service it was used AXIS

(Apache, 2003 A) with the TOMCAT (Apache,

2003 B) HTTP server.

AXIS is a SOAP (W3C, 2003) implementation of

the W3C.

The Web Service was used to ensure that the

manipulation of the records of the XML database is

done independently of the XLM DBMS. It has a

series of methods that allow manipulating XML

documents in the XML database.

4.3 Presentation layer

The presentation layer is where the applications that

permit interaction with the audiovisual archive

system are located.

4.3.1 Video Indexing Application

With the use of this application it is possible to

create, alter and eliminate video descriptions of a

video collection being indexed.

The application is an MDI (Multiple Document

Interface) composed by four internal windows, each

one with a specific functionality.

Figure 3: Video Indexing Application Interface

Figure 3 presents the video indexing application

Interface.

The application was developed in JAVA and some

JAVA packages were used to permit a quicker and

more efficient development. The JMF (Java Media

Framework) (Sun, 2003) package was used in the

creation of the internal window that presents the

video.

Another important package used was the JAXB

(Java API for XML Binding) (Sun, 2003) package.

With this package it was possible to compile an

XML Schema with the model of the XML document

and was created a group of JAVA classes. These

classes were later used in the Video Indexing

Application to allow an easy manipulation of the

XML documents.

The information presented in the Intervenções

window is used as a guide during the indexing

process. It indicates the name of the orators, the

scenes that have been indexed and the scenes that

are not yet indexed. This helps the technician’s job

of the indexing the video.

The Anotações window is where the user adds

temporal and textual information to a video segment.

The information inserted in this window is stored in

a MPEG-7 compliant XML record in the XML

database.

4.3.2 Web viewer

The web viewer was developed using Microsoft

.NET (Microsoft, 2003) programming environment.

The main objective of developing the web viewer in

.NET was to test the interoperability between

programs built in different platforms. Figure 4

presents the interface of this part of the system.

Figure 4: Web Viewer interface

This viewer consists of an aspx developed with C#

and basically is composed by a tree view object with

a media player object.

The information presented in the tree view is

obtained from the intervention database and the

video descriptions XML database. To create the tree

view it was implemented a Web Service Client in

the .NET platform that connects to the Web Service

Server implemented in JAVA.

Figure 8 presents the communication architecture of

the Web Viewer interface.

AUDIOVISUAL ARCHIVE WITH MPEG-7 VIDEO DESCRIPTION AND XML DATABASE

539

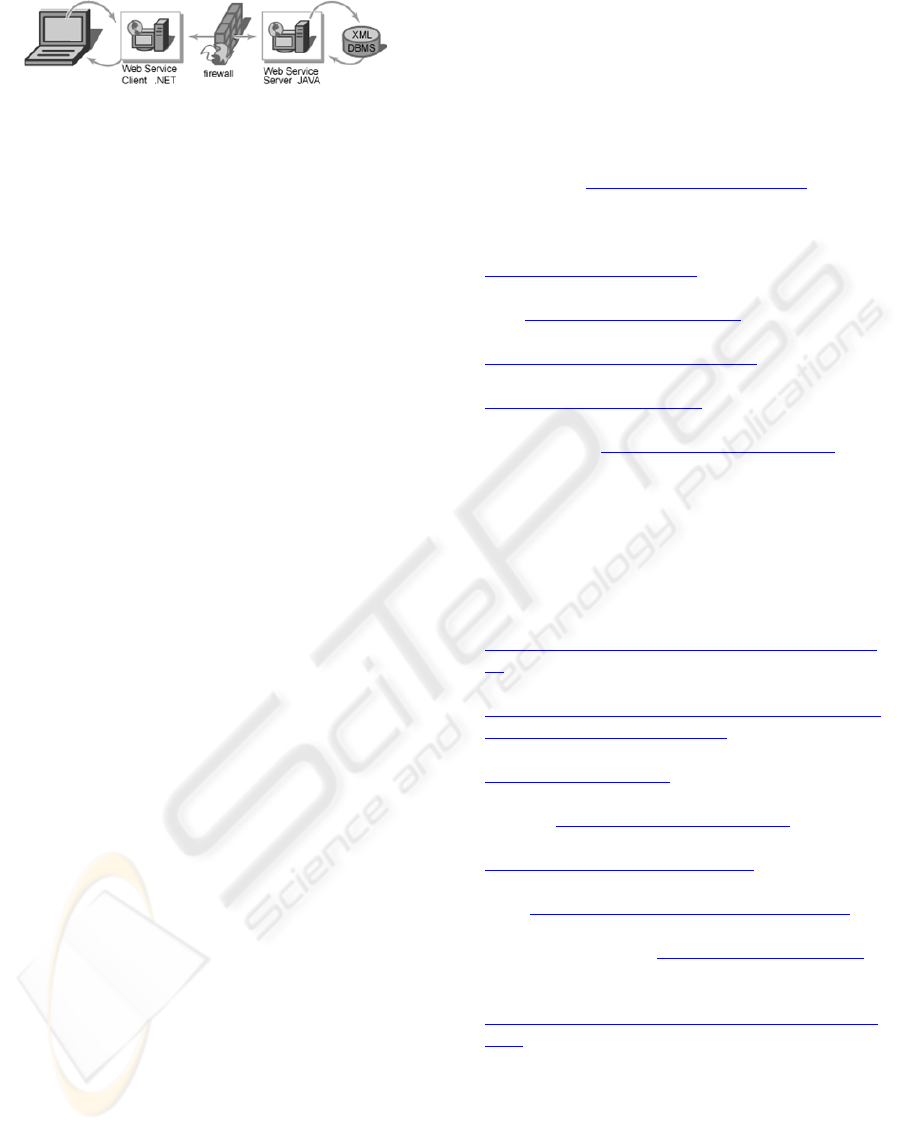

Figure 8: Web Viewer communication architecture

[Source: adapted from MSDN]

The Web Viewer is represented by the Web Service

Client .NET and the XML DBMS represents the

videos descriptions XML database. When Web

Services are used, normally, there is no need to

configure the firewall. This fact is represented by the

arrow that transverses the firewall.

This example shows that interoperability between

applications of different platforms can be obtained

using Web Services.

With this kind of approach the client only connects

to the XML database once to obtain the video

description. As long as the user doesn’t change to

another video, all the processing to obtain

information to other scenes in the same video is

done on the client side.

5 CONCLUSIONS AND FUTURE

WORK

Building an information system that permits to

describe video content is not a trivial task. It’s

necessary to study carefully the characteristics

needed to describe the content or else it may become

an unpractical system.

The audiovisual archive presented in this work is a

particular example for a need of the Portuguese

Parliament, but with little modifications it can be

used to create a more generic system. The essential

part of the work presented is the framework itself

and the modularity and scalability of the system.

The MPEG-7 standard has answered completely to

the needs of the system in terms of the video

description. There are a vast number of descriptors

in the standard that permit to describe video content

in a very complete manner.

The Web Services in the logic layer permitted to

create a very important abstraction level between the

data layer and the presentation layer. This kind of

approach permits having a high modularity in the

information system of the audiovisual archive,

allowing to have different technologies to support

different components of the information system.

In the near future it is needed to study the behaviour

of the XML DBMS in terms of search performance.

REFERENCES

Pinto, Joaquim Sousa, et. al., February 2001, “Portuguese

Parliamentary Records Digital Library” , In Ahmed

K. Elmagarmid , William J. McIver Jr, “The Ongoing

March Toward Digital Government”, Computer, Vol.

34, N.º 2, p. 38, IEEE Computer Society.

W3C, October 2002, “Extensible Markup Language

(XML) 1.1” ,

http://www.w3.org/TR/xml11/ .

ISO, August 2001, "Standard Generalized Markup

Language (SGML)", ISO 8879:1986 .

W3C, December 1999, "HTML 4.01 Specification",

http://www.w3.org/TR/html4.

W3C, January 2000, ” Datatypes for DTDs (DT4DTD)

1.0”,

http://www.w3.org/TR/dt4dtd.

W3C, May 2001, “XML Schema Part 0: Primer”,

http://www.w3.org/TR/xmlschema-0/.

Apache, March 2003, “Apache XIndice”,

http://xml.apache.org/xindice/.

W3C, November 2002, “Web Services Architecture

Requirements”,

http://www.w3.org/TR/wsa-reqs .

Armstrong, Eric. et al , February 2003, “ The Java Web

Services Tutorial ”, Sun Microsystems Press.

Martinez, José M. , July 2002, “MPEG-7 Overview

(version 8.0)”, ISO/IEC.

Almeida, Pedro et al . , January 2003, “Descrição de

vídeo com Multimedia Content Description Interface

(MPEG-7)”, ISSN : 1645-0493 , Vol. 3 , N. 8 .

DSTC, March 2003, “XMLdbGUI - Download”,

http://titanium.dstc.edu.au/xml/xmldbgui/download.sh

ml .

Microsoft, June 2003, “ODBC - Overview”,

http://msdn.microsoft.com/library/default.asp?url=/libr

ary/en-us/odbc/htm/odbc01pr.asp.

Apache, January 2003 A, “Apache Axis”,

http://ws.apache.org/axis/ .

Apache, January 2003 B, “The Jakarta Site - Apache

Tomcat”,

http://jakarta.apache.org/tomcat/.

W3C, June 2003, "SOAP Version 1.2 Part 0: Primer",

http://www.w3.org/TR/soap12-part0/.

Sun Microsystems, June 2003, “Java Media Framework

API”,

http://java.sun.com/products/java-media/jmf.

Sun Microsystems, March 2003, “Java Architecture for

XML Binding (JAXB)”,

http://java.sun.com/xml/jaxb.

Microsoft, June 2003 , “Product Information for Visual

Studio .NET 2003 ”,

http://msdn.microsoft.com/vstudio/productinfo/default

.aspx.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

540
