WISH QUERY COMPOSER

Vivien Liang, Greg Butler

Department of Computer Science, Concordia University

1455 de Maisonneuve Blvd. West, Montreal, Quebec, H3G1M8, Canada

Keywords:

database, schema browser, form-based query, report generator, XML, Java, JAXB, Eclipse

Abstract:

The WISH (With Intuitive Search Help) Query Composer is a software tool for composing form-based queries

and their associated reports for relational databases. It incorporates the SQL and XML industry standards to

generate user-friendly customizable queries and reports. It uses the very simple but ﬂexible XML semantics

to represent database schemas, SQL queries and result datasets, regardless of in which relational database

management system (RDBMS) the data is stored. The tool is developed in the Eclipse development environ-

ment using the Java programming language with Swing components, and connects to the database through

Java Database Connectivity (JDBC). The Java Architecture for XML Binding (JAXB) is used to automate the

mapping between XML documents and Java objects.

1 INTRODUCTION

Relational databases today are essential to every busi-

ness. The use of traditional query languages, such

as SQL, are, in practice, restricted to Database Ad-

ministrators (DBA) and software developers. Most

end users access databases through applications with

pre-programmed query statements. End users with no

programming background or database knowledge do

not have the ﬂexibility to specify their own search cri-

teria. Furthermore, the different DBMS vendors each

have their own query interface and extensions to the

SQL syntax.

The main motivation for constructing this tool was

to support advanced users, who understood the notion

of a query, to construct HTML forms which end-users

could use to search a database and generate reports.

The HTML forms provide either a single “canned”

query, or a template for a family of queries. In the

template, the end-user could have options to set the

data attributes to be included in the report, and to set

particular search criteria. The range of options is de-

cided by the advanced user when creating the form.

The tool includes a browser for the database

schema, so the advanced user has readily at hand all

the information required to correctly create the query.

The tool also allows the creation of the “speciﬁcation”

of the structure of the report that is generated from the

result set of the query.

The tool is called the WISH Query Composer,

where WISH stands for “With Intuitive Search Help”

since it provides an intuitive search tool for end-users,

and provides the advanced user with an intuitive envi-

ronment to create the forms and report speciﬁcations

for the end-user.

One requirement was to use XML as the basis of

all information transfer between the DBMS and the

tool. This freed us from the particularities of any sin-

gle DBMS platform, and gave us a powerful set of

development tools in Java that greatly simpliﬁed our

task.

This short paper discusses the system requirements,

design, and components, as well as the technologies

used in its development. The paper is organized to

present the background on the technologies, then the

requirements and design of WISH.

2 BACKGROUND

The power of databases comes from a body of

knowledge and technology that has developed over

several decades and is embodied in specialized

software called a Database Management System

(DBMS) (Garcia-Molina et al., 2000). One of

the most common operations a DBMS supports is

566

Liang V. and Butler G. (2004).

WISH QUERY COMPOSER.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 566-569

DOI: 10.5220/0002624505660569

 SciTePress

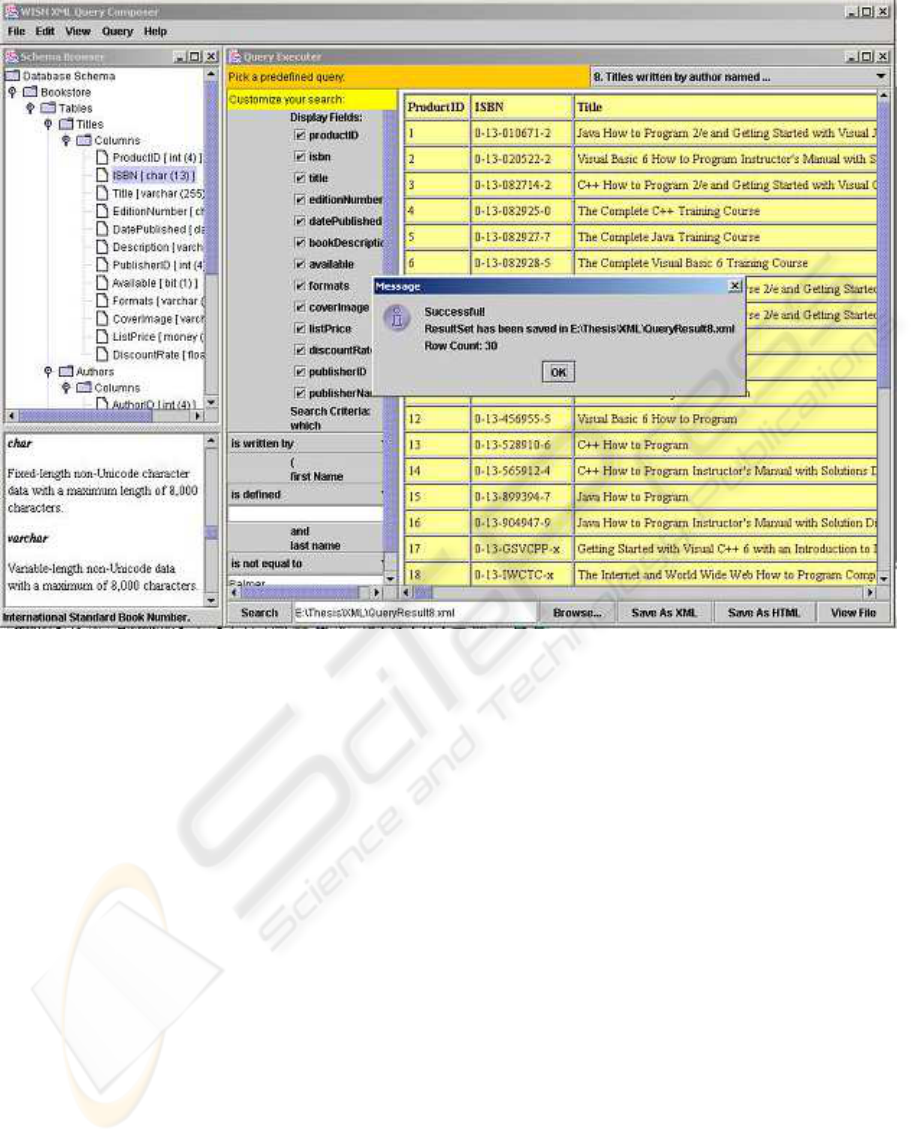

Figure 1: Schema Browser and Query Composer

database query, an operation to extract speciﬁed

data from databases. For this purpose, database

query languages, such as Structured Query Lan-

guage(SQL), were developed. SQL has a large num-

ber of capabilities, including statements that query

the database. Queries are generally expressed with

a select-from-where statement.

In this version of WISH, relational DBMS’s and

SQL are the main objects of data queries. In WISH,

the queries submitted to the relational databases are

compatible with SQL standards, including supports

for aggregation, duplicate names and sub-query.

For many people it is much easier to express a

query visually than to write a set of statements in a

language such as SQL. The advantage of form-based

queries is that many users are comfortable with forms

and tables (Zloof, 1977). When the schemas of the ta-

bles are visible on the screen, the users do not have to

remember column names, semantics and other details

of a query.

The eXtensible Markup Language (XML) is a

meta-language deﬁned by the World Wide Web Con-

sortium (www.w3c.org) as a subset of SGML. An

XML Schema is an XML document that deﬁnes the

valid format of an XML dataset. Schemas describe

structural relationships and data types. The eXtensi-

ble Stylesheet Language (XSL) is a family of W3C

recommendations for deﬁning XML document trans-

formation and presentation. An XSL style sheet is a

ﬁle that describes how to display an XML document

of a given type. A style sheet can be used to transform

any instance of the XML Schema it is designed for.

There are at least four beneﬁts to use XML as the

format of the database schema, the database query and

result dataset (Quin, 2000).

1. Mobility of data: The XML representations of the

database schema, query and report provide a single

format independent of the DBMS thus simplifying

data exchange and portability of databases.

2. Browser Views: As more browsers support XML

directly, the XML query or result can be displayed

on the web with XSL transformation.

3. Databases into Documents: For interoperability

with a document-based system, the XML docu-

ments from a relational database can be loaded

into a document repository or an object-oriented

database.

WISH QUERY COMPOSER

567

4. XML Tools: Expressing database metadata,

queries and results as XML allows the processing

of this information in standalone XML-based tools,

such as formatting or statistics packages.

A new Java API called Java Architecture for XML

Binding (JAXB) (Ort and Mehta, 2003) makes it eas-

ier to access XML documents from applications writ-

ten in the Java programming language. This API is

available in the Java Web Services Developer Pack

(JWSDP) pass 1.1. JAXB is a Java technology that

generates Java classes from XML schemas. As part

of this process, the JAXB technology also provides

methods for unmarshalling an XML instance docu-

ment into a content tree of Java objects, and mar-

shalling the content tree into an XML document.

JAXB provides a fast and convenient way to bind an

XML schema to a representation in Java code, making

it easy for Java developers to incorporate XML data

and processing functions in Java applications.

3 WISH TOOL

The development of the WISH Query Composer

adopted an object-oriented approach using the Uni-

ﬁed Modeling Language (UML). Requirements were

captured as use cases, and the design mainly consisted

of developing several XML schemas (for representing

database schemas, query forms, SQL queries, and re-

sult sets) as the JAXB binding of the corresponding

XML documents provided our Java objects in the de-

sign.

The design of WISH is an object-oriented approach

that follows the Uniﬁed Modeling Language (UML)

methodology. The Use Case Diagram in Figure 2

shows the relationships between actors and use cases

of WISH.

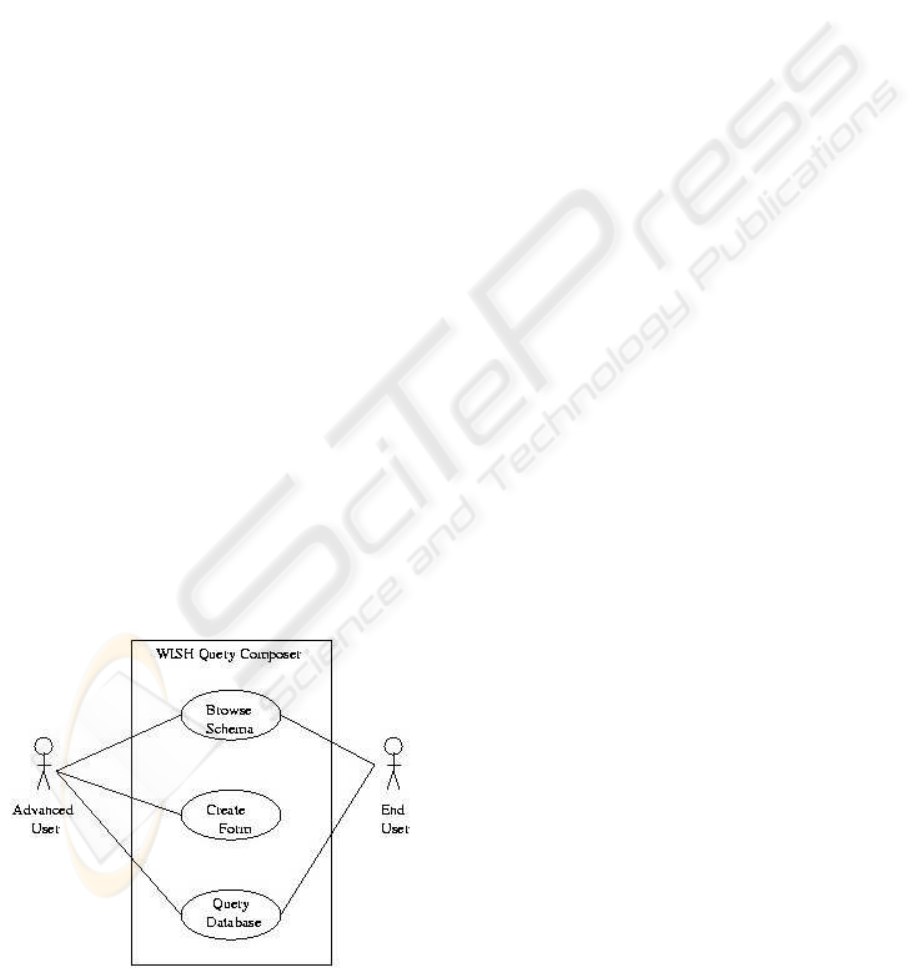

Figure 2: Use Case Diagram

The Use Case Diagram in Figure 2 shows the re-

lationships between actors and use cases of WISH.

There are two types of actors:

1. End-users who may be very unsophisticated in their

knowledge of relational database technology. They

do not wish to write SQL queries nor to be shown a

database schema as a collection of SQL table deﬁ-

nitions.

2. Advanced-users who may not be as expert as

a Database Administrator (DBA) in relational

database technology, but they do know SQL, XML,

HTML, and the application domain so they can

comprehend the database schema for the domain.

The use cases are

1. Browse a Database Schema, where the advanced

user consults the existing schema for a database

created by the DBA, in order to compose the query

correctly. An end-user may consult the database

schema in order to select which attributes to include

in the report (provided the query form has that op-

tion).

2. Create a Query Form, where the advanced user

composes a form and report speciﬁcation for a fam-

ily of queries.

3. Pose a Query to the Database, where the end user

completes the query form, submits it to the DBMS,

and receives the report based on the result set.

When debugging the query form, an advanced user

may also pose the query to the database, and see the

result set displayed in the default tabular representa-

tion. When debugging the report speciﬁcation, an ad-

vanced user may also pose the query to the database,

and see the result set displayed as a report.

WISH is designed as three subsystems:

1. a Schema Browser;

2. a Form Composer; and

3. a Query Executer.

The Schema Browser, which is shown at the left

of both Figure 1 and ﬁg:screen2, provides a tree view

of the information about tables, attributes, keys and

types; as well as documentation (bottom left of the

Figures) on them.

The Form Composer, which is shown at the top

right of Figure 1, allows the advanced user to design

an XML/HTML form for query, an XML report for

the database results, and a style sheet for presenta-

tion. The advanced user needs to decide on the SQL

query and its parameters. In this version of WISH,

the XML itself is created in an editor (as shown);

however, more graphical “builders” are planned fu-

ture work. To aid debugging, the advanced user may

click on the Translate button (see Figure 1) to see

the equivalent SQL statement displayed in the pane

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

568

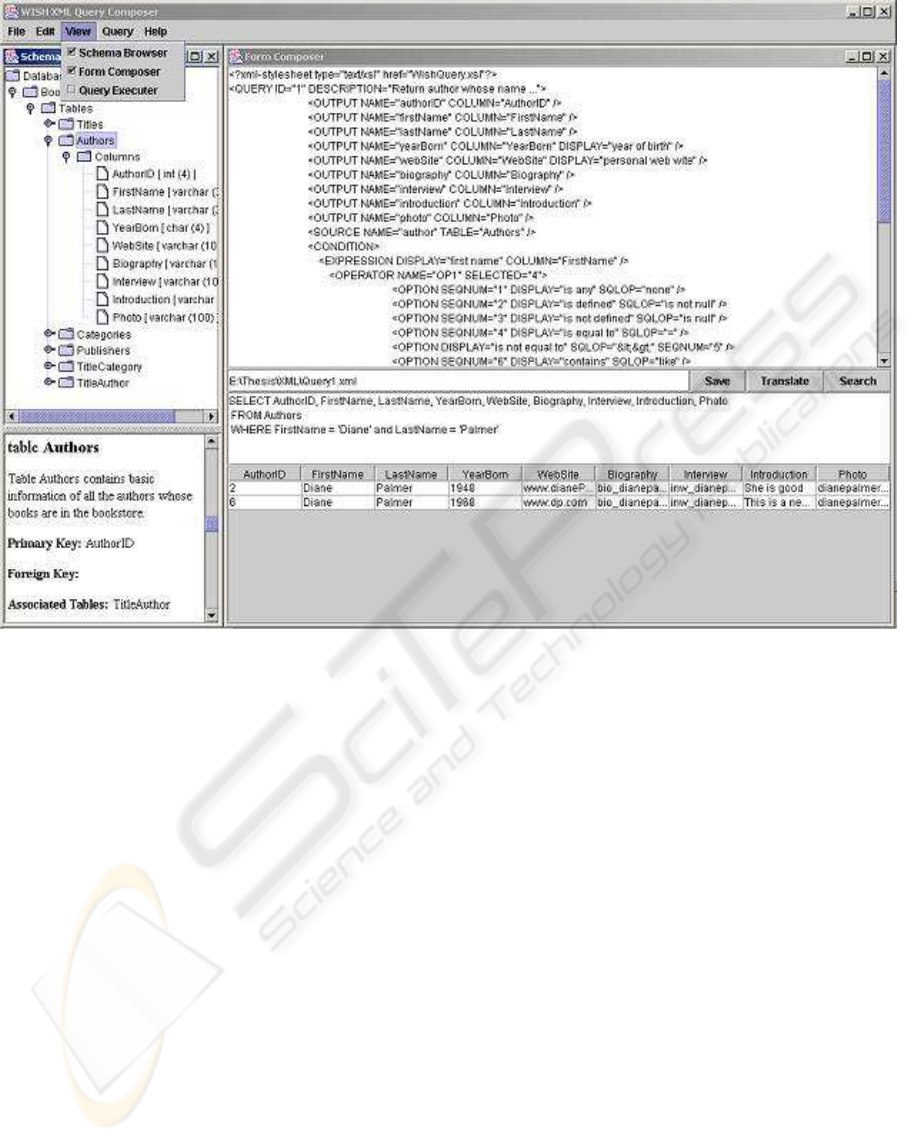

Figure 3: Example of Report

below. This validates the XML text complies with its

schema, and translates it to SQL for perusal by the ad-

vanced user. By clicking on the Search button, the

query is submitted to the database, and the result set if

displayed in tabular form in the pane below the SQL

query.

A highly customizable query form is shown in the

centre of Figure 3: it has checkboxes for selecting

which attributes to include in the report, and slots for

entering attribute values (or ranges). The query forms

are saved in a repository. They are accessed by the

end-user as “canned” queries from a pull-down list in

the Query Executer.

The Query Executer, which is shown at the top right

of Figure 3, allows the end-users to customize a query

(using checkboxes and slots as shown in the centre

of the Figure) and to submit it to the database. The

corresponding SQL query is sent to the database. Re-

sults can be seen immediately in tabular form, as in

Figure 3. The query results can then be saved into

an XML document in the report format designed by

the advanced user, so it may be rendered by a browser

using the speciﬁed stylesheet.

4 CONCLUSION

The WISH Query Composer has proven to be a highly

useful tool. The use of XML, Java, and JAXB meant a

very short development time (less than two months by

one person). Our future plans are to construct graph-

ical builders for the XML forms and report speciﬁca-

tion as alternatives to the existing the text editors.

REFERENCES

Garcia-Molina, H., Ullman, J. D., and Widom, J. (2000).

Database System Implementation. Prentice-Hall.

Ort, E. and Mehta, B. (2003). Java architecture for xml

binding(jaxb). Technical Article, java.sun.com.

Quin, L. (2000). Open Source XML Database Toolkit. Wi-

ley.

Zloof, M. (1977). Query by example: A database language.

IBM System Journal, 16(4):324–343.

WISH QUERY COMPOSER

569
