A DYNAMIC AGGREGATION MECHANISM FOR AGENT-BASED

SERVICES

Makram Bouzid

ome Picault

David Bonnefoy

Motorola Labs

Parc les Algorithmes - Saint-Aubin, 91193 Gif-sur-Yvette, France

Keywords:

Dynamic Service Aggregation, Agents, Multi-agent Systems, Constraint Satisfaction.

Abstract:

At a time when the web is switching from a data-oriented view to a service-oriented view, we can envision

an environment where services are dynamically and automatically combined to solve new problems that one

single service cannot solve. Agent technology provides a good basis for creating such an environment but

many issues remain to be solved. This paper presents a step towards a dynamic service aggregation mecha-

nism, introducing a pragmatic approach and an implementation. This work was carried out in the context of

the Agentcities.RTD project.

1 INTRODUCTION

The web is switching from a data-oriented view to a

service-oriented view, through initiatives such as the

Semantic Web (W3C, 2001a) or the Web Services

(Mc Ilraith et al., 2001).

Pushing this vision further, we can envision a revo-

lutionary way of accessing Internet services. The re-

sult of a service should seamlessly derive from users’

wishes rather than from users’ skills. The ultimate

step is to break the limitations of existing Web ser-

vices, to enable them to combine themselves in order

to solve new problems that one single service cannot

solve. Intelligent agents represent a promising tech-

nology to face these challenges, since they enable to

hide much of the complexity of accessing Web ser-

vices, while bringing additional value by customizing

and composing the services.

A fully dynamic service aggregation mechanism

would provide a lot of beneﬁts:

• New services, potentially unanticipated during de-

sign time, can be constructed to address a speciﬁc

problem, on demand of the system or its users;

• A relatively large number of services can be con-

structed from a set of basic service components;

• The human involvement can be minimized, as well

as the system disruptions to perform upgrades and

addition of new functionality.

This paper presents a ﬁrst step towards such a dy-

namic service aggregation. This work was conducted

in the context of the Agentcities project, and carried

out in the same spirit: working both at the theoretical

and practical levels. A ﬁrst prototype of the system

described here was implemented.

The paper is organized as follows. Part 2 describes

the context of this work and deﬁnes more precisely

what we mean by dynamic service aggregation. Part 3

gives an overview of our aggregation mechanism and

a detailed description as well. In part 4 a ﬁrst appli-

cation of this mechanism, called Evening Organizer,

is presented. We ﬁnally conclude with some future

directions of that work.

2 CONTEXT

2.1 Agentcities

The Agentcities project (Agentcities, 2003) is de-

veloping a foundation for the vision of an ambi-

ent proactive environment where heterogeneous, au-

tonomous and increasingly intelligent systems repre-

senting businesses, services and individuals are able

to interact with each other and enable dynamic com-

position of services. Agentcities is creating a realistic,

decentralized and open environment based on agent

technology, which will enable high-level semantic in-

teroperability between systems and build knowledge

and understanding of dynamic open environments for

eventual transition to usage in reliable commercial

Bouzid M., Picault J. and Bonnefoy D. (2004).

A DYNAMIC AGGREGATION MECHANISM FOR AGENT-BASED SERVICES.

In Proceedings of the Sixth International Conference on Enterpr ise Information Systems, pages 10-15

DOI: 10.5220/0002638900100015

 SciTePress

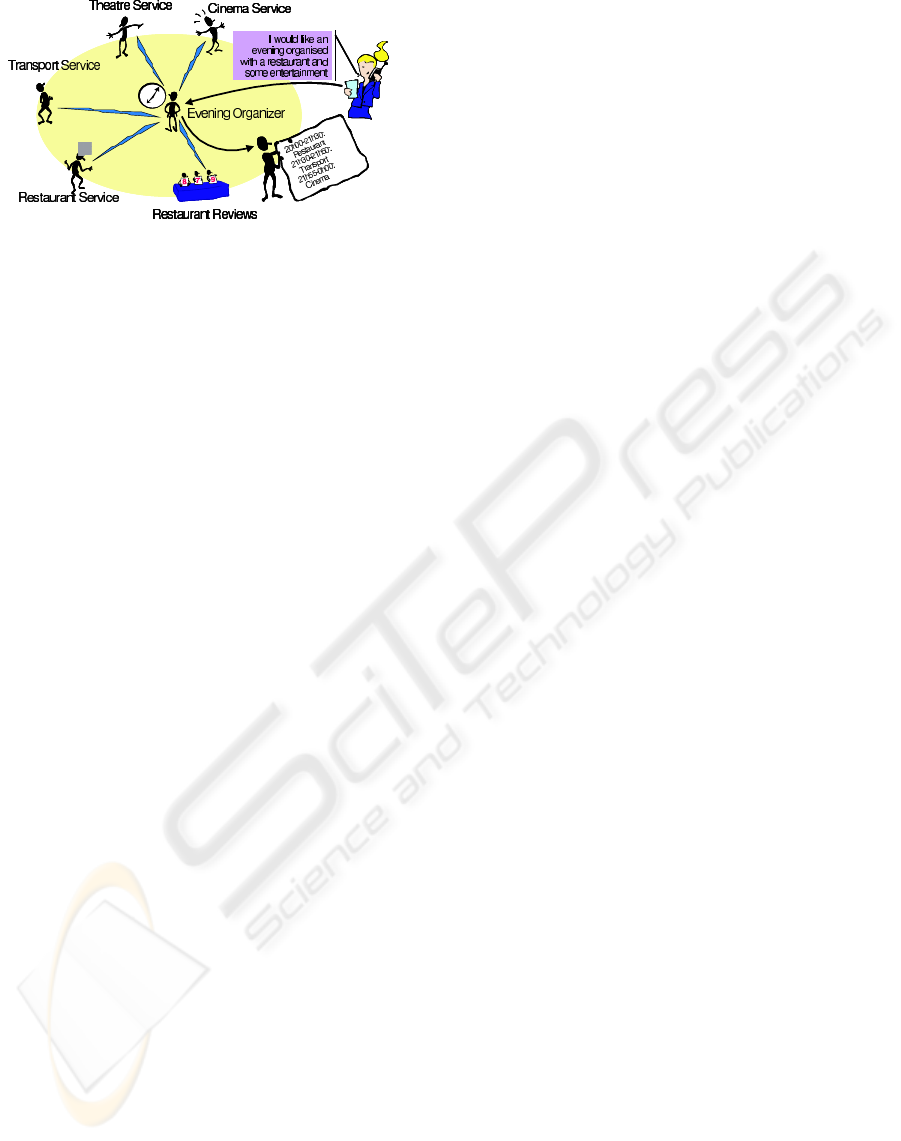

Figure 1: EO service aggregation

grade systems. Agentcities goes beyond Web Ser-

vices by taking advantage of the interaction models,

formal languages characteristics of agent technology.

Platforms and services in the environment are pub-

licly accessible and form a public resource for the

testing, deployment and usage of dynamic services.

One of the demonstration scenarios of Agentcities

is an Evening Organizer (EO), which is an agent en-

tity that enables dynamic composition of entertain-

ment services such as cinemas, restaurants, etc. and

integration with business services (Figure 1).

2.2 Service Aggregation and

Composition

In the domain of services, many activities (research

and standardization) aims at providing solutions for

the description of services, the interoperability of ser-

vices and the automation of their invocation and ag-

gregation. We may distinguish three levels of ambi-

tion in those works.

The ﬁrst level provides collaborating services with

knowledge of their speciﬁcation and interaction de-

tails at design-time. Web services with XML-based

languages such as UDDI (UDDI, 2001) (repository

of businesses) and WSDL (W3C, 2001b) (Web Ser-

vice Description Language) represent those types of

services. Service invocation and interoperability are

possible by exchange of SOAP messages (Box et al.,

2000). The speciﬁcations of such exchanges are de-

tailed in the WSDL description of the service. How-

ever a computable part must still be hand-coded. A

complex service can be described through WSFL

(Web Service Workﬂow Language) (IBM, 2001) by a

composition of primitive services. This description is

made by hand and there is for the moment no propo-

sition to perform dynamic service aggregation.

The second level provides collaborating services

with knowledge of their speciﬁcation details at

design-time, but their interactions are deﬁned at run-

time. Those services are principally represented by

agent services, which have ﬂexible communication

capabilities, but there are some non-agent proposals

at this level, allowing a kind of dynamic composition

of services. For example, the SWORD toolkit (Pon-

nekanti and Fox, 2002) allows doing such dynamic

composition based on a combination of service inputs

and outputs of elementary and ﬁnal services as the

principal constraints.

The third level provides collaborating services with

knowledge of their speciﬁcation and interaction de-

tails only at run-time. This is the highest level and the

most interesting one, but the more complex to obtain

as well.

While the terms aggregation and composition are

usually used indifferently, we would like to make a

distinction. Service composition is reserved for the

case when services are chained one after the other,

each service using as input the output of the previous

service, as in a mathematical composition. Service

aggregation is the general case when one service is

built from several other services, though there may

or may not be direct interaction between the different

services. Services are combined into a new, compos-

ite service.

2.3 Scope of the work

In our work, we focused on service aggregation as de-

scribed above, positioning our architecture between

the second and third levels of automation. Indeed, ser-

vices interactions are provided at run-time but in ad-

dition their speciﬁcations are also discovered at run-

time (e.g. looking at a repository).

We have made some simplifying assumptions. We

suppose the environment is composed of a large num-

ber of services, several potentially being interchange-

able. The services that are aggregated do not interact

with each other directly, even if what is found for a

particular service may inﬂuence the choice of another

service. In addition, the aggregation mechanism is

centralized: though the ”execution” of the new com-

pound service is distributed.

3 DYNAMIC AGGREGATION

ARCHITECTURE

3.1 General considerations

The aggregation of agent services can be seen as

a kind of distributed problem solving and planning,

which necessitates communication, negotiation, and

planning capabilities between agents to aggregate a

service, as well as coordination abilities for its later

execution. Several models for distributed problem

solving through agents have been proposed in the lit-

A DYNAMIC AGGREGATION MECHANISM FOR AGENT-BASED SERVICES

erature, using either centralised or distributed plan-

ning methods for distributed or centralised plans gen-

eration (Weiss, 1999). But the proposed models are

either too theoretical to be completely and success-

fully implemented, or implementation-oriented, like

those proposed for cooperative robots, and cannot

easily be generalised to be applied for agent ser-

vices aggregation. HP proposed a framework called

DySCo, consisting in a service model and a reference

infrastructure for system implementation (Piccinelli

and Mokrushin, 2001). This framework allows dy-

namic aggregation of e-services (not agent-based ser-

vices), using the concept of service incompleteness,

in terms of implementation, and multiparty orchestra-

tion.

We decided to adopt a more pragmatic approach,

keeping the notion of service aggregation as a kind of

planning problem.

3.2 Overview of the aggregation

process

In our model, an aggregated service is represented by

a plan that at ﬁrst will be partial and non-instantiated,

and gradually reﬁned until a complete and instantiated

plan is obtained.

Our approach is similar to the one described by

Wooldridge and Jennings in (Wooldridge and Jen-

nings, 1999) for cooperative problem solving, in

terms of process stages, but we focus here on the team

formation and plan formation phases.

At a high level view, our aggregation mechanism is

thus composed of the following ﬁve stages:

1. Understanding the deﬁnition of the new service and

design of its structure. According to the taxonomy

of services, their policies and the interrelationships

among them, this deﬁnition may be useful to limit

the scope of the services needed, or to build the new

service skeleton. This will allow building e.g. a

parallel structure for an emergency service that in-

teracts with ﬁremen and police services at the same

time and a sequential structure for a succession of

entertainment services;

2. Creation of a partial and non-instantiated plan (i.e.

a skeleton) that is expected to solve the problem.

This plan is built from the user’s requirements and

the deﬁnition of the new service;

3. Finding the types of services that will compose the

ﬁnal service; this requires some reasoning capabil-

ities;

4. Finding and selecting the associated service

providers, i.e. agents delivering the services, ac-

cording to pre-deﬁned constraints and policies;

5. Finding the right combination of service instances,

supplied by service providers, allowing to build a

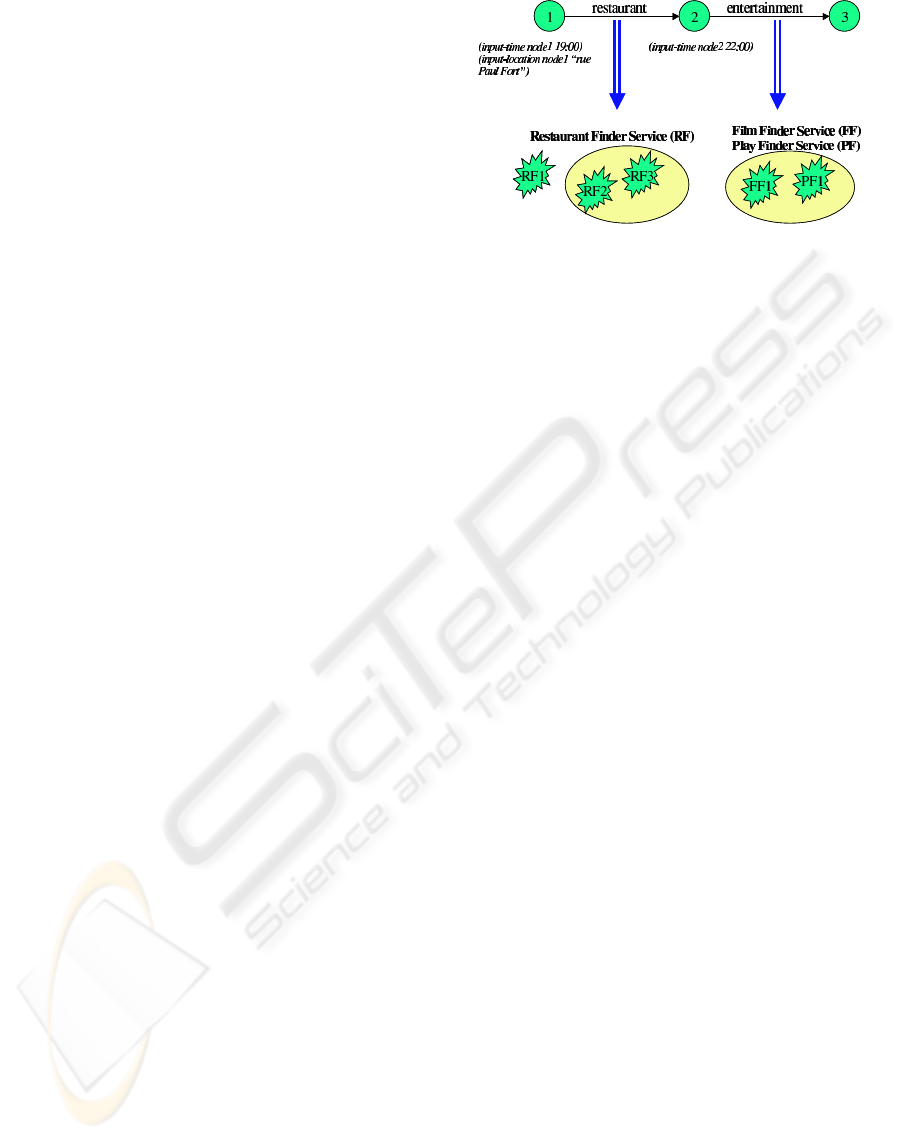

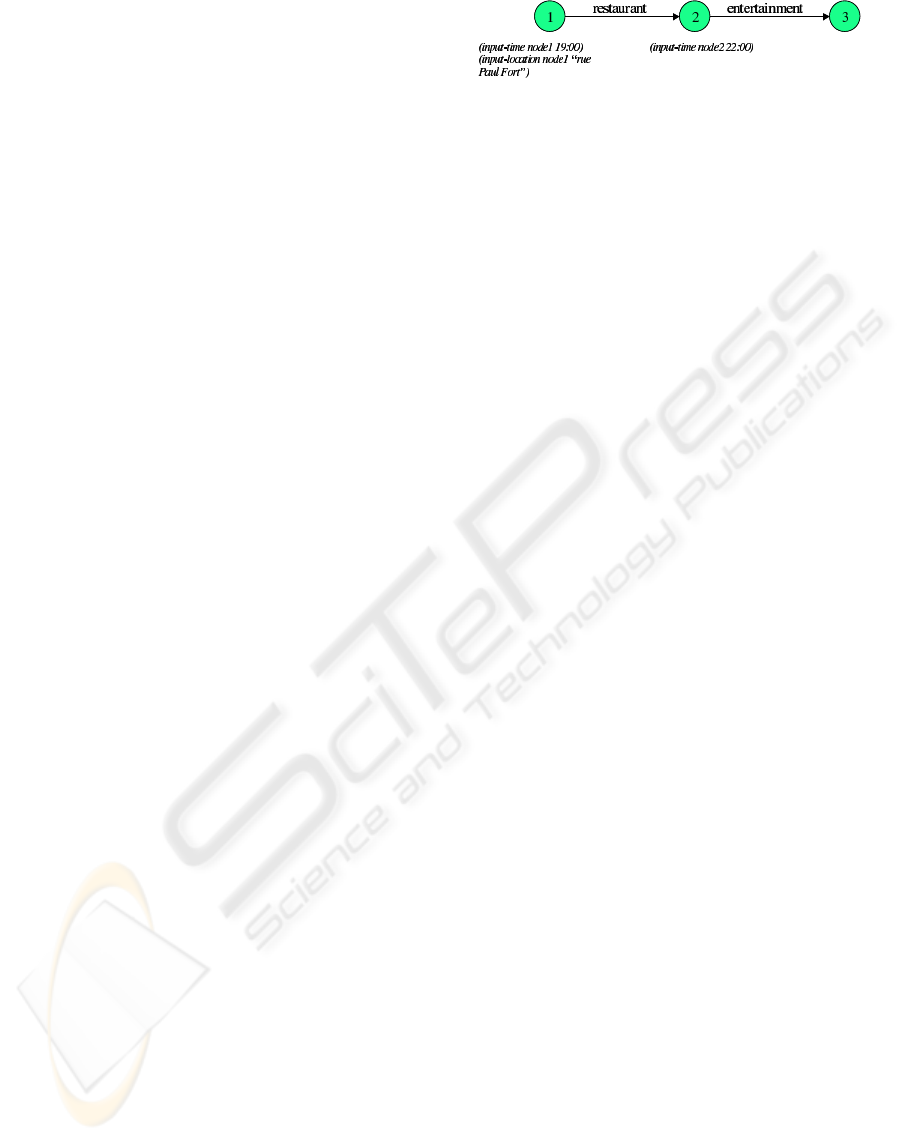

Figure 2: Non-instantiated plan

complete and coherent plan while respecting all the

user constraints. This is a constraint satisfaction

problem, which we can solve by using constraint

programming techniques, such those proposed in

the artiﬁcial intelligence (AI) or operational re-

search (OR) domains. The algorithms should be

chosen according to the application type and do-

main, and depending on the user request, we can

either return all the solutions or the optimal one(s).

Our aggregation mechanism is dynamic since:

• Searching the agents offering a given service is per-

formed on the ﬂy;

• Some services may be dynamically inferred and in-

serted to a plan instance by the aggregating entity

(i.e. a special service performed by an agent) with-

out being asked for by the user;

• New services and new types of services can be

added dynamically too without interrupting the ex-

istent system.

We detail in the following section the ﬁve steps of our

aggregation mechanism.

3.3 Aggregation process details

The ﬁrst step consists in reasoning about the user re-

quested compound service. This service will consist

in a set of elementary services. This set is currently

provided by the service requester (i.e. a person, an-

other service or an agent).

The second step concerns the partial plan creation

that we will describe in details in the following sec-

tion given its importance to the aggregation process.

Plan Description

A plan is an ordered set of event resource ob-

jects that are restricted by appropriate constraints on

their properties and the interrelationships among such

properties. A plan is represented by a precedence

graph. If we refer to the evening organizer (EO) ex-

ample, a plan will contain the services the user will

use during an evening (Figure 2).

According to (Blum and Furst, 1997), a plan-

ning graph allows explicitly encoding all the planning

problem constraints, reducing the amount of search

needs, and permitting to construct plans quickly. We

adopted a similar representation of plans using a

graph for aggregated services. It allows encoding the

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

planning constraints and backtracking too, but plans

are managed in a slightly different manner.

Each node represents the user state at a given

moment during the execution of the aggregated

service, e.g. in the EO before and after having a

dinner states. These states are represented by a set of

constraints. Each edge is labelled with an event. An

event represents a type and/or an instance of a service

resource (e.g. ”Restaurant”, ”Entertainment”). A

hierarchy between the different kinds of services

needs to be deﬁned (e.g. ”Cinema” and ”Theatre” are

”Entertainment”). In the EO example, we can deﬁne

events of type hotel, dinner, walking, taking the bus,

etc. Events provoke some changes into the user’s

state, e.g. changes in the location, the time, etc. We

also attribute to each edge (event) a set of constraints

representing user preferences.

Representation of constraints

As deﬁned in (Rajpathak et al., 2001), we deﬁne a

hierarchy between the constraints:

• Hard constraints cannot be violated under any cir-

cumstances;

• Soft constraints can be relaxed if necessary in order

to reach the ﬁnal schedule.

All these constraints are expressed using ﬁrst-order

logic expressions. A constraint will be expressed

by a predicate. In the EO example (Figure 2), user

state level constraints relate to the time and to the ad-

dress: (input-time <node> <value>) and

(input-location <node> <value>).

The predicates should refer to a speciﬁc node in

order to ease the detection of inconsistencies. A

weight can be attributed to each constraint in order to

express the degree of preference to the realisation of

the condition, encoding the hard and soft constraints.

Moreover, rules between these predicates can be

deﬁned according to the kind of service that is used.

All the constraints will be used for checking the plan

coherence and possibly resolve conﬂicts.

Resolution of the plan

This section details the second main part of the

aggregation process, which corresponds to the res-

olution phase of the previous plan. This means that

the non-instantiated plan has to be instantiated and

veriﬁed according to the results provided by services.

From event to service types

In the third step, the aggregating entity should in-

fer service types from events, by looking in the de-

ﬁned services hierarchy. For example, in the EO, we

can use a mechanism that enables us to know that a

restaurant event is the result of information given by

a restaurant ﬁnder service, and that an entertainment

could be the result of a ﬁlm or play ﬁnder service.

Figure 3: Selection of service providers

This mechanism can be a simple lookup table, or a

more complex inferencing.

The fourth step will be divided into two sub-steps:

Selection of a service provider and querying elemen-

tary service providers.

Selection of a service provider

Once the service type has been identiﬁed, providers

of this service type, i.e. agents delivering this kind of

service, should be selected among the possible can-

didates. The aggregating entity starts by searching in

the DF (yellow pages service) the registered services.

A pre-selection among different providers might be

done thanks to some properties of the service descrip-

tion of agents registered within the DF (Figure 3).

If the aggregating agent ﬁnds no provider for

a given service type, several possibilities may be

considered: the plan can be rejected; or the plan

can be revised: the user may be asked to review his

choices, or the event for which there is no available

service provider can even be removed from the

original plan.

Querying elementary service providers

For each type of service that is selected, the

constraint processor generates a query or a request

that the service can understand, compliant with

the constraints of the user (e.g. for the restaurant

event, the constraints processor may generate a query

including the type of cuisine and the facilities). This

query is sent to the agent that returns the possible

results (service instances such as a particular restau-

rant, a particular route, etc.) to the aggregating entity

(Figure 4). Again, if no result is found at this sub-step

for a given service type, the plan can be rejected or

revised according to pre-deﬁned rules.

Instantiated plan

This is the last step of the aggregation process.

When getting back the results from the service agents,

the aggregating entity will construct a set of graphs

representing potential solutions. The coherence of

these graphs has to be checked; only correct graphs

A DYNAMIC AGGREGATION MECHANISM FOR AGENT-BASED SERVICES

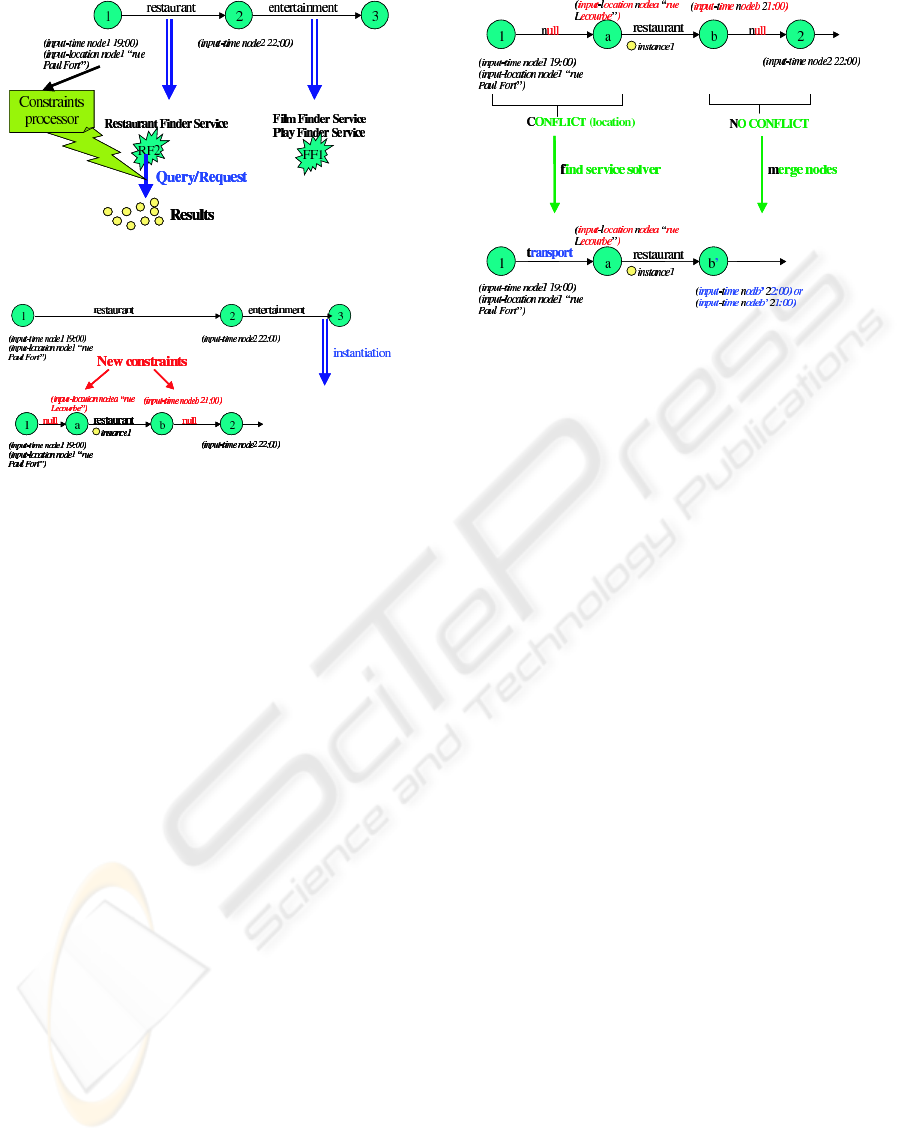

Figure 4: Retrieving results from service components

Figure 5: Instantiation of the plan

are kept. As mentioned in the aggregation process

overview, according to the application domain and

type we can use the right algorithm (from AI or OR

domains) to return the ﬁrst solution, all the possible

solutions, or the optimal one(s). We call the obtained

plans (if any) instantiated plans. A graph that may

correspond to an instantiated plan is built from the

abstract plan as follows:

• For each edge, two additional nodes are inserted

with empty transitions (edges), in order to help in

ﬁnding conﬂicts between planning constraints and

in resolving these conﬂicts. Conﬂicts can arise

from having different values for a given param-

eter (e.g. different locations for two successive

nodes linked by an empty transition). These new

nodes (Figure 5) may contain new constraints that

are introduced because of the service instance re-

sults (e.g. a new input address, additional time con-

straints, etc.).

• If there is no conﬂict among the constraints be-

tween two nodes related by an empty edge, the two

nodes are merged (see Figure 6, right part). Other-

wise, we try to infer from this conﬂict the kind of

event that could solve this issue, e.g. a transport can

be added between a restaurant and a cinema located

far from each other (see Figure 6, left part). If no

event solving the issue is found, the plan should be

rejected or revised. A rule-based engine, initiated

by the designer, enriched from user interactions and

by learning mechanisms, could perform the infer-

ence of the kind of event solving a conﬂict.

Figure 6: Detection and resolution of potential conﬂicts

Selection of a service instance

We should notice that the detection of conﬂicts is

very difﬁcult: constraints are represented by predi-

cates and the potential conﬂicts can be detected using

a theorem prover (like JTP (Frank, 1999)). The most

difﬁcult part of the aggregating entity resides in the

level of intelligence the conﬂict solver is able to have.

For example, in the EO case, if the user wants to go

to a restaurant and then to a theatre, the evening orga-

nizer should not propose a transport if the two events

are located in the same area.

4 EVENING ORGANIZER

EXPERIENCE

This section presents a ﬁrst application of our ag-

gregation mechanism developed in the context of the

Agentcities project.

A protoype of the aggregation architecture de-

scribed above has been implemented, using the JADE

(JADE, 1999; LEAP, 2001) agent platform. A JTP

(Frank, 1999) engine provides some reasoning ca-

pabilities to our agents and a KIF support (Gene-

sereth and Fikes, 1994) to exchange messages be-

tween them. This allows also agents to manipulate

ontologies expressed in DAML+OIL (DAML+OIL,

2001), which have been written within the Agentci-

ties project.

Our evening organizer agent interacts with a num-

ber of services (restaurants, route guidance, cinemas,

hotels...) which allow to plan a complete evening.

The interactions between the Evening Organizer and

the services are quite simple, nonetheless we have im-

plemented some basic negotiation schemes for select-

ing the most appropriate service. A simple Personal

Agent acts as an interface between the user and the

Evening Organizer. The evening plan is progressively

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

reﬁned through interactions between the Evening Or-

ganizer and the Personal Agent, under the supervision

of the user.

Currently, the taxonomy of services is poor, so

the link between the event and the service type is

static. We also used only basic reasoning capabilities

to solve conﬂicts, but we will conceive and develop a

more powerful reasoner for future versions. We tried

some examples with this ﬁrst prototype, and we ob-

tained quite good results (like inferring and inserting

a non-requested service to the proposed plan for user,

e.g. a transport service for solving a location conﬂict).

5 CONCLUSION

In this paper, we have shown some steps towards a dy-

namic aggregation of agent-based services and a con-

crete achievement through the implementation of our

Evening Organizer prototype.

During the development and experimental usage of

the Evening Organizer architecture we have obtained

valuable experience and a number of insights related

to dynamic service aggregation. Nevertheless, our

prototype shows that some issues remain. Thus, sev-

eral areas requires further work:

• We currently rely on a very basic taxonomy of ser-

vices for ﬁnding the relevant ones. We are investi-

gating using DAML-S (DAML-S, 2002) for a more

advanced service description, which would allow to

have better reasoning capabilities;

• Improvements of the planning algorithms to choose

the optimal or right aggregated services for the

user, by keeping track of failed aggregation, for ex-

ample, and reduce then their complexity;

• Improvements in the interactions between the

Evening Organizer and the services.

While some of these improvements are only relevant

to our implementation, others require some standard-

isation and agreement between researchers and de-

velopers involved in agent-based services design (ser-

vices, user representatives, etc.)

ACKNOWLEDGEMENTS

The research described in this paper is partly sup-

ported by the EC project Agentcities.RTD (IST-2000-

28385). The opinions expressed in this paper are

those of the authors and are not necessarily those of

the EU Agentcities.RTD partners.

REFERENCES

Agentcities (2003). http://www.agentcities.org.

Blum, A. L. and Furst, M. L. (1997). Fast planning

through planning graph analysis. Artiﬁcial Intelli-

gence, 90:281–300.

Box, D., Ehnebuske, D., Kakivaya, G., Layman, A.,

Mendelsohn, N., Nielsen, H. F., Thatte, S., and Winer,

D. (2000). Simple Object Access Protocol (SOAP)

1.1. http://www.w3.org/TR/SOAP.

DAML-S (2002). DAML-S Version 0.7.

http://daml.org/services.

DAML+OIL (2001). DAML+OIL Speciﬁcation.

http://www.daml.org.

Frank, G. (1999). A General Interface for Interaction of

Special-Purpose Reasoners within a Modular Reason-

ing System. In Question Answering Systems, AAAI

Symposium, pages 57–62.

Genesereth, M. R. and Fikes, R. E. (1994). Kif version

3.0 reference manual. Technical Report Logic Group

Technical Report Logic-92-1.

IBM (2001). Web Services Flow Language Ver-

sion 1.0. Technical Report, http://www-

4.ibm.com/software/solutions/webservices/pdf/WSFL.pdf.

JADE (1999). Java Agent Development Framework.

http://jade.tilab.com.

LEAP (2001). Lightweight Extensible Agent Platform.

http://leap.crm-paris.com. IST-1999-10211.

Mc Ilraith, S., Son, T. C., and Zheng, H. (2001). Semantic

Web Services. IEEE Intelligent Systems, 16(2):46–53.

Piccinelli, G. and Mokrushin, L. (2001). Dynamic Service

Aggregation in Electronic Marketplaces. HP Labs

Technical Report, HPL-2001-31.

Ponnekanti, S. R. and Fox, A. (2002). SWORD: A De-

veloper Toolkit for Web Service Composition. In

WWW2002: The Eleventh International World Wide

Web Conference.

Rajpathak, S., E., M., and Roy, R. (2001). A Generic

Task Ontology for Scheduling Applications. In In-

ternational Conference on Artiﬁcial Intelligence (IC-

AI’2001), pages 1037–1043, Las Vegas, Nevada,

USA.

UDDI (2001). Universal Description Discovery and Inte-

gration. http://www.uddi.org.

W3C (2001a). Semantic Web. http://www.w3.org/2001/sw.

W3C (2001b). Web Services Description Language Version

1.1. http://www.w3.org/TR/wsdl.

Weiss, G., e. (1999). Multiagent systems: A Modern Ap-

proach to Distributed Artiﬁcial Intelligence. The MIT

Press, Cambridge, MA.

Wooldridge, M. and Jennings, N. R. (1999). The Cooper-

ative Problem-Solving Process. Journal of Logic and

Computation, 9(4):563–592.

A DYNAMIC AGGREGATION MECHANISM FOR AGENT-BASED SERVICES
