Q-ONLINE
Integrating a questionnaire system in an organization
Cláudio Sapateiro, Hugo Gamboa, Nuno Pina Gonçalves
Escola Superior de Tecnologia de Setúbal,
Rua Vale de Chaves – Campus do IPS,Estefanilha,
2910-761 Setúbal,
Portugal
Keywords: Internet, Questionnaire, Platform, Human Computer Interaction, Data Mining
Abstract: Organizations are increasingly using questionnaires as a form of collecting data. Our work
1
focus in a
creation of a web based questionnaire platform, Q-Online, that managed a multi-questionnaires projects on a
multi-users environment. The project goal is to provide a standard structure to collect data in several
organization situations, particularly answering the needs of our organization: a school of technology.
Examples of application of the platform are the collection of data from students or teachers and the usage
inside of an Elearning system. The system was tested in a major school questionnaire focusing the entire
school population. We present preliminary results from this questionnaire. The user interaction during the
answering of the questionnaire was monitored in order to enable future retrieve of behavioural information.
The data analysis developed permits a first overview of the questionnaire answers while Data Mining
techniques will be provided to identify relevant information in the answers data.
1 INTRODUCTION
In the last years we have noticed that organisations
have paid a great attention to collect and organise
useful information to their activity areas. Present
state of Web applications and technologies allows
the easy distribution of questionnaires, becoming a
current way of collecting information used in several
departments and organisations (Nichols et al, 1998).
Analysis, processing and consolidation of
received information between departments could not
be easy, losing this way (or at least becoming more
difficult) the chance to obtain information that can
represent a real profit of the total information got.
Also users are confronted with different formats,
structures and possible repeated questions. All this
factors doesn’t promote the right filling of the
questionnaires and information reliability (Robert D.
et al., 1998; Don A.Dilman et al., 1999).
This paper reports the creation of the Platform Q-
Online, a web application that allows creating and
generating questionnaires in an environment that is
multi-user, multi-questionnaire and with security
layer having the internet as support. This platform
will allow the reutilisation of already developed
projects, as well as the profit of the compatibility of
the information, also allowing the eventual crossing
of inter-projects information.
The interaction behaviour of the user, while
answering a questionnaire is monitored by the
platform Q-Online. This is done by integrating a
system called Web Interaction Display and
Monitoring (WIDAM) that remotely monitors the
human computer interaction of a user while visiting
the several questionnaire pages. Our research goal is
to obtain a richer understanding of the several user
answers by comparing his interaction behaviour
while he is exposed and give answers to the
questions.
Another objective of the Q-Online platform will
be, considering the uniformization of the
information structure, to give an improved analyse
of the recovered information. Immediate basic
results of the obtained information are given. Based
on these first analyses the information will be
filtrated and sent to future consolidation, using Data
Mining techniques.
In reality we have nowadays several systems to
create and generate questionnaires, some of them
free of charge and at our disposal in a web-based
format, and others are commercial products. In a
general way all of them present almost complete
1
Part of the implementation of Q-Online was possible due to João Daniel graduate student work, from
ESTSetúbal, to whom, we would like to express our thanks, for his work and commitment.
543
Sapateiro C., Gamboa H. and Pina Gonçalves N. (2004).
Q-ONLINE - Integrating a questionnaire system in an organization.
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 543-547
DOI: 10.5220/0002640505430547
Copyright
c
SciTePress
functionalities and similar among them. However
the Q-Online aims to add some extra functionalities
to the ones we are used to. First of all developing
our own product will easily allow the integration we
intend with other systems like the E-learning
platform (RoBling, G. et al. 2000; Gamboa, H. et al.
2001), which exists in ESTSetúbal, and with the
Intelligent Miner to the Data Mining analysis (IBM
Redbooks 2003). In fact this last point is also an
innovation to the usual results processing of the
existing tools. The major test to the system was done
with a questionnaire, involving all the ESTSetúbal
2500 student population. At last the monitoring of
the questionnaires filling integrated in a tool with
these characteristics is not usual too.
2 SYSTEM ARCHITECTURE
The Q-Online platform architecture is based on a
questionnaire management tool that enables users
edit, test, visualize, and fill the questionnaire by the
authenticated users. Other questionnaires, from the
platform can be totally or partially reused, as well as
sections, or simple questions. Authors can also
permit other authenticated users to access and use
their existing questionnaires.
Figure 1 presents a use case for Q-Online
platform. There are several actors that interact with
the system. Administrators, with full access to the
platform, manage new users and configure their
privileges. Authors create and manage their
questionnaires. Users fill questionnaires created by
authors, and visitors visualize obtained results from
the questionnaires.
Authors, after their authentication, start
questionnaire creation with sections definition and
their associated questions. For each question it is
possible to define some attributes: type, properties,
possible answers and dependencies.
When users Access the platform, Q-Online
engine dynamically generates the questionnaire to
fill, from the structure created by authors. Visitors
can access questionnaires results created by the
Result Engine, based on the obtained answers.
2.1 Users and authentication
Q-Online platform has an initial authentication
system for administrators, authors, users and
visitors. This system is managed by the
administrator.
Questionnaire may be public or private
depending on the author’s choice. If it is public, the
filling will not need the authentication system
management.
As well as filling, results visualization can also
be managed by the author, and can be public or
private. If it is public, any visitor may have access to
results without authentication.
2.2 Q-Online structure
Q-Online is based on a structure with questionnaires
and their contents. From these contents the Q-Online
engine generates the wanted questionnaire. This
structure has, for each questionnaire, one or many
sections, and inside each sections their
correspondent questions.
Conceptually, as it is possible to observe in
figure 2, questions can only exist if sections exist.
Each question has possible answers, dependencies
and other properties. These properties can be
managed by the author and are related to question
types and if they are mandatory or not.
Each question has many possible types, from
multiple answers, single or multiple classification
answers and text answers.
Questionnaire results are obtained and stored for
each question, inside each section, for a given
questionnaire.
Figure 1: A use case for the Q-Online Platform
ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
544
2.3 Dependencies
Dependencies are an important issue among
questions and sections because, many times,
questionnaires have a large number of questions and
only a subset of them are applied to a specific user,
due to answers given in other questions. For
example, if a questionnaire has 100 questions,
maybe only 60% of them are to be asked to the user.
The best way to avoid having the user to see all the
questions is to create dependencies among questions
and sections, and showing him only the questions he
need to fill.
Having in mind the platform’s concept, a section
may depend from one or many answers to a
question. In this context, a section may only appear
if a certain condition – a specific answer to a given
question - is true. This condition can be a
conjunction or a disjunction or both. Questions may
have the same kind of dependencies.
Figure 3 shows created dependencies structure.
2.4 WIDAM system
The Web Interaction Display and Monitoring system
(WIDAM) (Gamboa, H. et al., 2003) is a web based
client-server application that offers the capability to
record the user interaction. The WIDAM system
allows the usage of an interaction monitoring system
directly over a web page, without the need of any
installation, requiring low bandwidth.
The client script collects several interaction
events and evokes the remote procedure in the server
via XML-RPC sending the interaction data. For each
event the data passed is:
Event Id; X position; Y position; Object-id;
Extended data; Timestamp. The X-Y positions are
the mouse coordinates where the event occurred.
The Object-ID identifies the DOM object in the web
page where the event was called, used to identify the
text or picture in the page related to the generation
of the event. The extended data carries information
about the pressed key. The time stamp identifies the
time when the event occurred.
Figure 2: Q-Online structure
The WIDAM system was also used in a
biometric verification system, where the user
interaction with a web page was monitored and
analyzed to validate the identity of the user. The
results were comparable to other behavioural
biometric techniques like voiceprint and signature
verification. The work is reported in (Gamboa, H. et
al., 2003a).

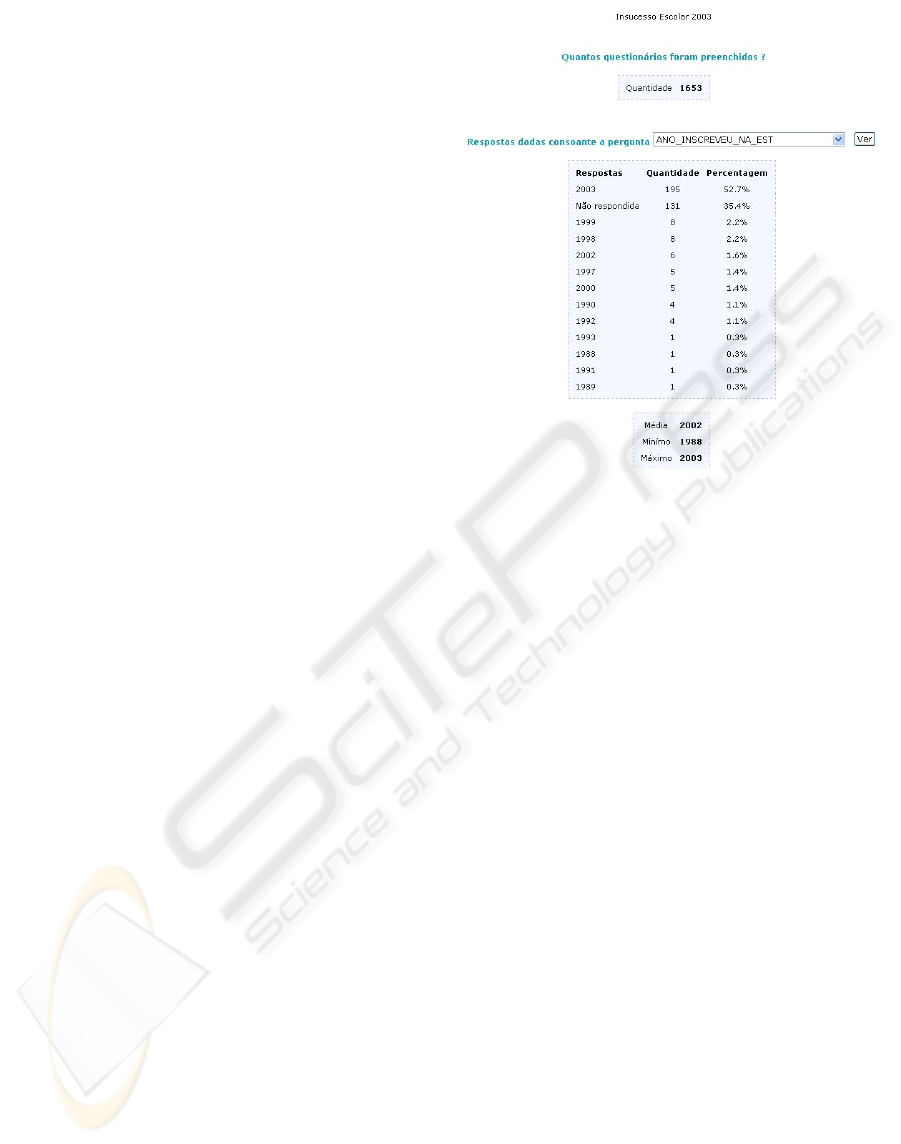

2.5 Results analysis
Users obtain questionnaire results after their filling.
Users may view the most and less answered
questions, ignored questions, as well as obtained
percentages for each possible answer and for each
question with no answers at all.
The system has three types of possible answers:
categorical, numerical and free text. In case of
numerical type, the system offers simple statistics
like average, standard deviation, maximum value,
minimum value, modal value, mean value.
This statistical results offered by Q-Online
platform help visitors making a first selection to
data, giving a higher confidence level to the selected
answers.
Figure 3: Dependencies structure
Questionnaire results will be later imported to a
data mining tool, where some mathematical analysis
will be done to help validating the results, and to
give some patterns and associations related to the
obtained data.
Data Mining which is also referred to as
knowledge discovery in databases means a process
as non trivial extraction of implicit, previous
unknown and potential useful information (such as
knowledge rules, constrains, regularities) from data
in databases (
Piatetsky-Shapiro et al., 1996).
With this kind of studies, visitors, authors and
authenticated users will be able to identify some
Q-ONLINE: INTEGRATING A QUESTIONNAIRE SYSTEM IN AN ORGANIZATION
545
clusters where data have the same characteristics.
Visitors may also identify associations between data,
and may also associate all this information with
statistical information obtained from Q-Online
platform. The Data Mining tool can also help users
to identify more complex statistical information,
such as bivariate statistics and correlation analysis of
the given answers.
3 EXAMPLE OF APPLICATION
The High School of Technology of Setúbal
(ESTSetúbal) part of the Polytechnic Institute of
Setúbal is an example of organisation in which the
several departments produce questionnaires to
retrieve information, using each one his own
structure and technology.
Every year, in the beginning of the scholar year
the students fill in a questionnaire which, later,
allows the school to take new measures to improve
the school conditions and promote the students
success.
Figure 4: Q-Online results screenshot
About two years ago, ESTSetúbal have started a
project of receiving and analysing the student’s
information using Data mining tools.
With the platform Q-Online we constructed the
questionnaire scholar success 2003 to be filled on-
line. This questionnaire consisted of a list of
questions used in previous years combined with a
list of questions that the work group of Data Mining
has considered important.
The scholar success questionnaire target, was a
total of approximately 2500 students. We obtained
1800 questionnaire fills. After checking the
questions, based on the elimination of the non
correct answered questionnaires or not answered at
all we obtained 1653 questionnaires to analyse.
To each asked question Q-Online provide two
kinds of answer, the categorical and the numerical.
In the categorical is possible to obtain the quantity of
given answers for each category as well as the
associated proportion. To the numerical ones is
possible to obtain some simple statistics, like the
average, the highest and the lowest value. It is also
possible to create a top-ten and a bottom-less with
the given answers to each question.
In the figure 4 is shown a snapshot of Q-Online
results analysis. The text of the picture is in
Portuguese since the organization is a Portuguese
school.
4 CONCLUSIONS AND FUTURE
WORK
The project of the platform Q-Online has been
validated with the above mentioned practical case.
In reality the described questionnaire has been
obtained with an inter-departments effort from
ESTSetúbal that ended with the isolated creation of
questionnaires and the repeated
information collection. In fact the obtained result
serves the required specifications from the different
involved departments, since each of them can
analyse the questions they have elaborated. The use
of a common structure makes possible the analysis
of eventual crossing of all the obtained information.
The developed system proved that the
application has always been stable, even when the
number of users has been around 500.
The collected interaction will be analyzed using
pattern recognition methods in order to detect a set
of behavioural characteristics. We have the goal of
producing probabilistic statements about the user
behaviour while answering a question. One of the
first tasks is to construct the set of the behavioural
states we will be able to detect. The results of the
study could be extended to different questionnaires
and testing environments with a particular interest in
ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
546
Intelligent Learning Environments where the
detection of behavioural states would be used to give
feedback to the learner and better conduce the user
activity and experience.
The future work will be the integration with a
data mining server, allowing that results of a data
mining analysis be available to users that access the
platform from their machines.
REFERENCES
Nichols E.; Sedivi, B..1998. In press “Economic data
collection via Web: A census bureau case study”.
Proceedings of Survey Methods Section. American
Statistical association annual meetings, Dallas, Texas.
RoBling, G.; Freisleben, Bernd. 2000. “Topkapi: A tool
for performing Knowledge tests over the WWW”.
Interdisciplinary Conference on Electrical, Electronics
and computer Engineering in the third millennium
(ICEECEE)2000.
Robert D.; Toratora, Jon Conradt; Don
A.Dilman.1998.“Influence of plain vs fancy design on
response rates”. Proceedings of Surveys methods
section. American Statistical Association Annual
Meetings. Dallas, Texas.
Don A.Dilman, Robert D. Toratora, Jon Conradt, Dennis
Bowker.1999. “Principals for constructing Web
surveys”. Technical report. Washington State
University.
Integrating IBM DB2 Intelligent miner visualization into
your web application. IBM Redbooks.2003.
Gamboa, Hugo; Ribeiro, Nuno V.; Holt Anatol, Fred, Ana.
2001. An e-learning Platform Concept, 2a
Conferência Internacional em Tecnologias de
Informação e Comunicação na Educação: Chalanges
2001.
Gamboa, Hugo; Ferreira, Vasco. 2003.WIDAM - Web
Interaction Display and Monitoring. 5th International
Conference on Enterprise Information Systems,
ICEIS'2003.
Gamboa, Hugo; Fred, Ana. 2003a. An Identity
Authentication System Based on Human Computer
Interaction Behaviour. Proceeding of the 3rd
Workshop on Pattern Recognition in Information
Systems PRIS 2003.
Piatetsky-Shapiro, G.; Fayyad, U.; Smith P..1996. From
data mining to knowledge discovery: An overview. In
U.M. Fayyad, G. Piatetsky-Shapiro, P. Smith, and R.
Uthurusamy, editors, Advances in knowledge
Discovery and Data Mining, pages 1-35. AAAI/MIT
Press, 1996
Q-ONLINE: INTEGRATING A QUESTIONNAIRE SYSTEM IN AN ORGANIZATION
547
