A CONNEXIONIST APPROACH FOR CASE BASED REASONING
Antonio B. Bailón Miguel Delgado Eva Gibaja
Dpto. Ciencias de la Computación e Inteligencia Artificial
E.T.S. Ingeniería Informática, Universidad de Granada
c/ Daniel Saucedo Aranda s/n, 18071 Granada (Spain)
José María de la Torre
Dpto. Economía Financiera y Contabilidad
Facultad de Ciencias Económicas, Universidad de Granada
Campus Universitario de La Cartuja, 18071 Granada (Spain)
Keywords:
Case Based Reasoning, Associative Memories, Connexionist Model
Abstract:
Case Based Learning is an approach to automatic learning and reasoning based on the use of the knowledge
gained in past experiences to solve new problems. To suggest a solution for a new problem it is necessary
to search for similar problems in the base of problems for which we know their solutions. After selecting
one or more similar problems their solutions are used to elaborate a suggested solution for the new problem.
Associative memories recover patterns based on their similarity with a new input pattern. This behaviour made
them useful to store the base of cases of a Case Based Reasoning system. In this paper we analyze the use
of a special model of associative memory named CCLAM (Bailón et al., 2002) with this objective. To test
the potentiality of the tool we will discuss its use in a particular application: the detection of the “health” of a
company.
1 INTRODUCTION
In real life, when we have to deal with a problem our
memory evokes past similar situations. Those simi-
lar problems were solved in the past and now we re-
member the actions that helped us to solve them (or at
least we remember the actions that we tried but didn’t
solve the problems). If a new problem is similar to a
problem that was previously solved we can reuse its
solution (possibly after revising it) to solve the current
problem. If our actions are successful we will remem-
ber them if we need to solve a similar problem.
Case based reasoning relies on the existence of a
base of cases that stores our experience in a particular
problem. When a new problem arrives, the base is
searched for a similar case to reuse its solution. New
cases are stored in the base of cases when they are
solved (Aamodt and Plaza, 1994).
The role of the memory is very important because
the process relies on its behaviour storing cases and
retrieving cases based on their similarity with a new
one. Associative memories receive an input patern
and retrieve the most similar stored pattern. This is
the expected behaviour of the base of cases in case
based reasoning and that’s why we use associative
memories.
2 CONTINUOUS CLASSIFYING
ASSOCIATIVE MEMORY
The Continuous Classifying Associative Memory
CCLAM is a memory model which allows the stor-
age of arbitrary analogical patterns which have con-
tinuous components in the interval [0, 1].
a
1
1
b b
2
a
3
a
2
a
b
n
p
CLASSIFICATION
RECOVERY
F
B
F
A

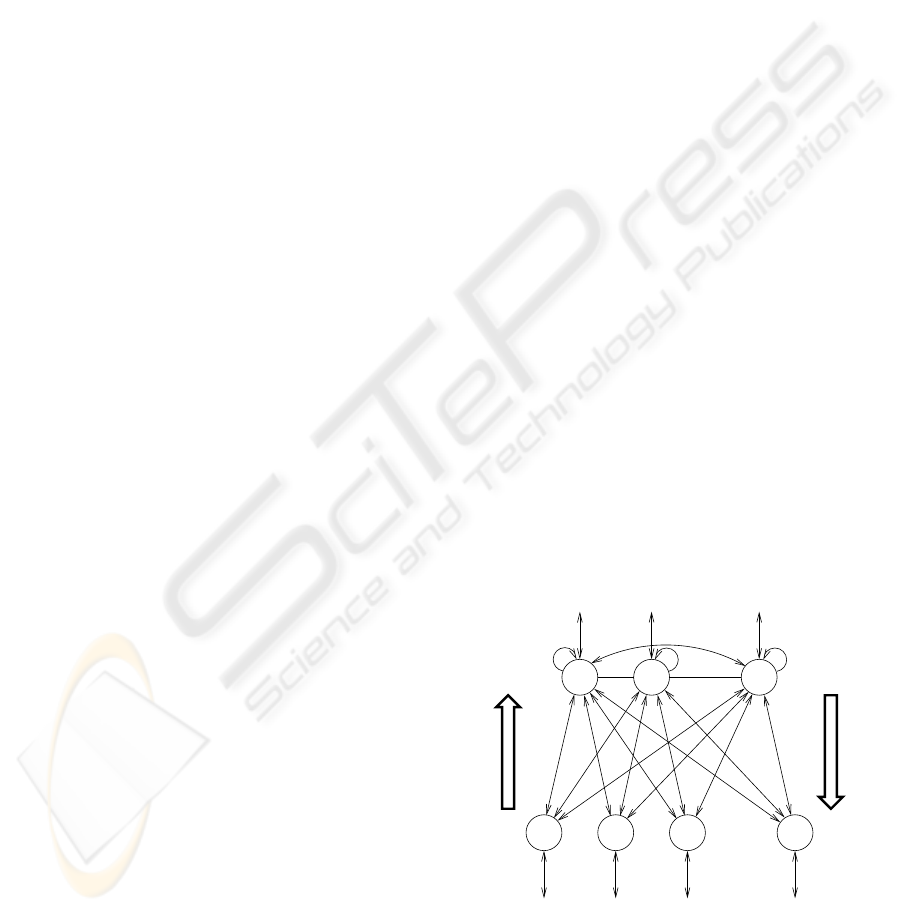

Figure 1: Continuous Classifying Associative Memory
(CCLAM).
In the operation of the CCLAM we can distinguish
two processes: classification and recovery. The clas-
369
B. Bailón A., Delgado M., Gibaja E. and María de la Torre J. (2004).
A CONNEXIONIST APPROACH FOR CASE BASED REASONING.
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 369-374
DOI: 10.5220/0002641403690374
Copyright
c
SciTePress
sification process receives an input pattern in the F
A
layer (Fig.1) and obtains a value in each processing el-
ement (PE) of F
B
which indicates the degree to which
the input pattern is similar to the stored pattern repre-
sented by this PE. The recovery process receives in
F
B
the extent to which we refer to each of the stored
patterns and recovers a combination of these patterns
in F
A
.
The F
B
layer is competitive. The weights of the
competition signals between the PEs of the F
B
layer
are represented in the matrix β
n×n
, with n being the
number of stored patterns and β
ij
being the weight of
the connection which exists from b
i
to b
j
. The win-
ning element is the one whose activation state Y
i
ver-
ifies Y
i
Y
j
β
ji
j. For the competition we can
establish whether the winning PE will retain its acti-
vation state or take the value 1 as its new state.
The behavior of the CCLAM depends on:
The weigths of the connections made between the
layers F
A
and F
B
, represented in the matrix M
np
.
The functions Υ and Ψ that control the propagation
of the information between the layers.
The weigths of the competition connections made
in the F
B
layer.
Whether the winning PE in F
B
will retain its value
or take value 1.
This behavior of the classification and recovery
processes may be different. To distinguish the
weights and functions used in each process we will
name them using the superscripts C and R appropi-
ately.
2.1 Learning
In the learning process, the memorization of a pat-
tern entails the creation of a new PE in F
B
and the
appropriate adjustment of the weights of the connec-
tions which are carried out towards it. Learning has
the following steps:
1. Arrival at F
A
of a pattern to be memorized.
2. Verification that the pattern was not previously
stored.
3. Creation of a new PE in F
B
associated to the pat-
tern.
4. Adjustment of the competition weights of the F
B
layer.
5. Adjustment of the weights of the connections made
between F
A
and the new PE.
2.2 Classification
In the classification process the PEs send activation
signals from the F
A
layer towards the F
B
layer. Given
an input pattern presented in the F
A
layer activation
states are obtained in the F
B
layer which represent the
similarity which exists between the input pattern and
each of the stored patterns. The classification process
has the following steps:
1. A pattern X = (x
1
, . . . , x
p
) arrives at the F
A
layer.
2. The signal propagates towards the F
B
layer so that
the PE b
i
receives the activation signal:
(a) y
i
= Ψ
C
©
Υ
C
¡
x
i
, m
C
ij
¢ª
j=1...p
(b) Υ
C
and Ψ
C
are functions bounded to the interval
[0, 1]. The choice of these functions depends on
the behavior which we would like the memory to
present.
3. The PEs of the F
B
layer compete amongst them-
selves with the intensity reflected in the weights
matrix β
C
.
4. We obtain the result of the classification process in
the F
B
layer. The activation state obtained in the
PEs of the F
B
layer indicates the degree to which
the input pattern is classified by each of the classes
represented by the stored patterns.
2.3 Recovery
In the recovery process, the information flows from
F
B
to F
A
. In the F
B
layer is presented an input pat-
tern which represents the degree to which recovery
involves each of the stored patterns. The recovery has
the following steps:
1. A pattern Y = (y
1
, . . . , y
n
) arrives at the F
B
layer.
2. The PEs of the F
B
layer compete amongst them-
selves with the weights matrix β
R
. The new acti-
vation states form the pattern Y
0
= (y
0
1
, . . . , y
0
n
).
3. The signal propagates from the F
B
layer towards
the F
A
layer so that the PE a
i
receives the activa-
tion signal:
(a) x
i
= Ψ
R
©
Υ
R
¡
y
0
j
, m
R
ji
¢ª
j=1...n
(b) Υ
R
and Ψ
R
are functions bound to the interval
[0, 1].The choice of these functions depends on
the behavior which we would like the memory
to present.
4. We obtain the pattern resulting from the recovery
process in the F
A
layer. This might be one of the
stored patterns or a combination of them.
3 CASE BASED REASONING
USING CCLAM
Our goal is to use the CCLAM in case-based reason-
ing to allow to:
ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
370
Store the patterns included in the set of known
cases.
Compute the similarity that exists between a new
case and each of the stored cases.
Select the cases that will take part in the elaboration
of the solution proposed for a new case.
Obtain the proposed solution as the solution or
combination of solutions of several known cases.
Store the new cases.
Forget the cases that don’t provide a solution dif-
ferent from those provided by a large number of
the nearest known cases.
The CCLAM can store arbitrary continuous pat-
terns while other associative memories present spu-
rious states and have a strong dependency on the kind
of patterns that they can store. For that reason the
CCLAM can be used in case based reasoning allow-
ing the storage and correct retrieval of known cases.
In each case X = (x
1
, x
2
, . . . , x
n
) we can dis-
tinguish the attributes that define the problem from
those attributes that define the solution. Each case
X is formed by two patterns (P, S) such as P =
¡
p
1
, p
2
, . . . , p
n
p
¢
, p
i
{x
j
}
j=1...n
, is the pattern
that contains the attributes of the problem and S =
(s
1
, s
2
, . . . , s
n
s
),s
i
{x
j
}
j=1...n
, contains the at-
tributes of the solution of case X.
Let’s suppose that each problem has only one solu-
tion. If we find the same problem with two different
solutions it is possible that:
One of the solutions embeds the other because it is
more general. We shoul decide if it is better to store
the more general or the more particular solution.
The solutions are incompatible. The solution of a
problem can’t be used to solve the other one al-
thougt the two problems are expressed using the
same attributes. This conflict arises when the at-
tributes that define the problems aren’t enough to
distinguish them. To solve the conflict we must
augment the attributes used to represent a problem
to include those in what the actual cases differ.
To store the cases we will use three CCLAM.
One of them will store the patterns that encode the
attributes of the problems and will be named P-
Memory. Other memory will store the attributes of
the solutions and will be named S-Memory. The
two memories will be connected by means of a third
CCLAM that selects the solution that is recovered
based on the similarities found between the stored

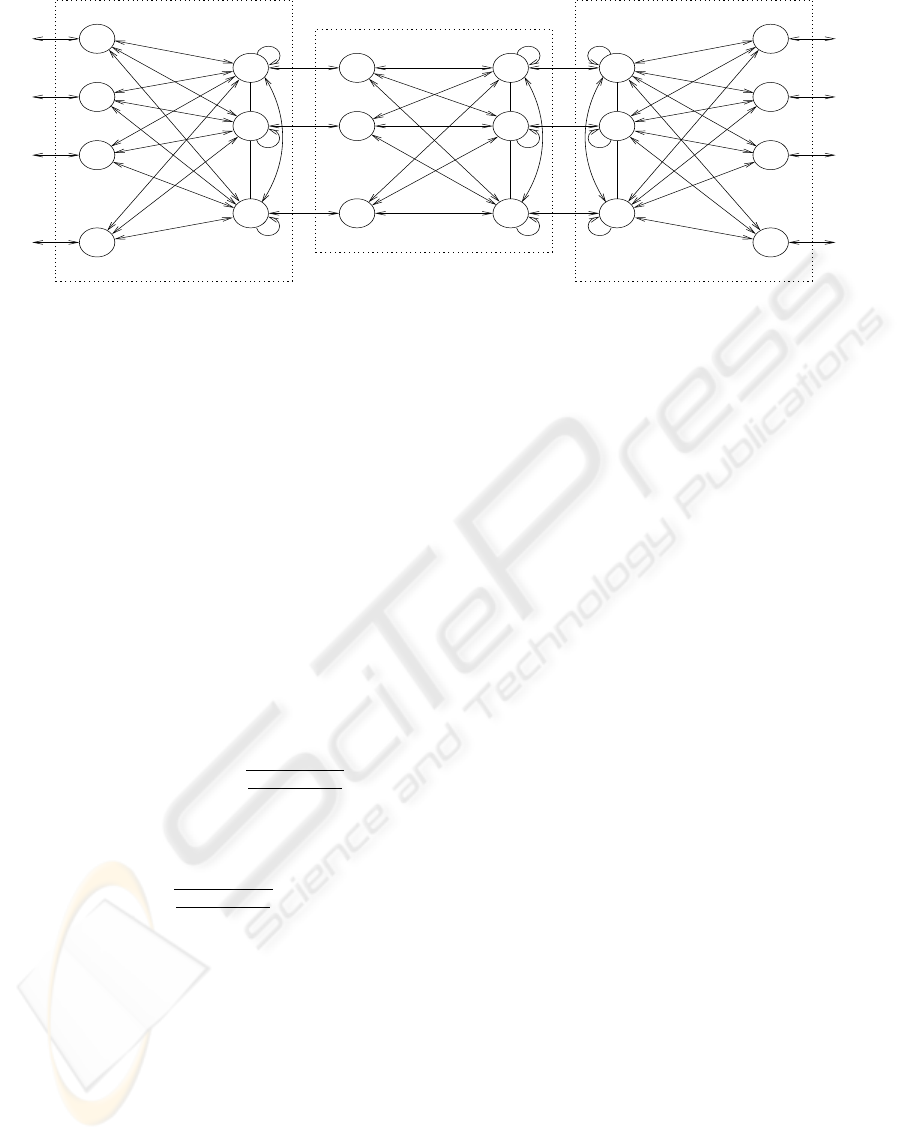

cases and a new problem (Fig. 2). This CCLAM that
links the P-Memory and the S-Memory will be named
L-Memory.
3.1 P-Memory
The P-Memory has as many processing elements (PE)
in the F
A
layer as attributes of the problem. In the F
B
layer has as many PE as stored problems.
The weight of the connection that links the a
i
PE in
the F
A
layer to the b
j
PE of layer F
B
represents the
value of the i-th attribute in the j-th stored problem.
In the classification process the memory receives in
F
A
a pattern that represents a new problem and will
provide in the F
B
layer the degree of similarity that
exists between the new problem and each of the stored
problems.
3.1.1 Similarity between problems
In case-based reasoning it’s neccessary to compare a
new problem with all the stored problems to obtain
the similarity that exists between them. We need a
function that computes the similarity that exists be-
tween the problems. We use a function that measures
the distance between the patterns (the greater the dis-
tance between the patterns, the lower the simiarity be-
tween the problems). The most commonly used func-
tions are euclidean and manhattan distance.
We can configure the P-Memory to compute the
distance between the new problem and each known
problem. Depending on the configuration we can
compute any particular instance of the Minkowski
distance ( 1 ). When p = 1 it computes the manhattan
distance and when p = 2 it computes the euclidean
distance.
D
p
(A, B) =
Ã
N
X
i=1
|a
i
b
i
|
p
!
1
p
(1)
To compute the similarity that exists between the
patterns we must take into account that the attributes
can have different relative importance. For example
lets represent the problem of selecting people to form
a basketball team based on their height and weight.
Candidates will be represented with two attributes
that measure their height in meters, weight in kilo-
grams and classification as good or bad candidate. We
store the following cases:
Case 1 : (1.9m, 70kg, good)
Case 2 : (1.4m, 65kg, bad)
(2)
We recognize in case 1 a tall slim person and in case
2 a short fat person. When a new candidate arrives we
have to decide wether to select him for the team. The
new case (1.89m, 67kg) will be compared with cases
1 and 2 to decide its classification. The manhattan and
euclidean distances show that the nearest stored pat-
tern is case 2. But intuitively we recognize in the new
case a tall slim person that is more similar to case 1.
A CONNEXIONIST APPROACH FOR CASE BASED REASONING
371
1
p
2
p
3
p
p
np
1
a
2
a
a
u
a
1
a
2
a
u
b
v
b
2
1
b
1
b
b
2
b
v
s
ns
3
s
2
s
1
s
F
A
F
B
F
A
F
B
F
A
F
B
PROBLEM SOLUTION
LINK
Figure 2: Case Based Reasoning using CCLAM.
This happens because we have assigned the same im-
portance to the height and the weight of the person but
in this particular problem of selecting people to play
basketball the height of a person is more important
than his weigth.
D
1
((1.89, 67) , (1.9, 70)) = 3.01
D
2
((1.89, 67) , (1.9, 70)) 3
D
1
((1.89, 67) , (1.4, 65)) = 2.49
D
2
((1.89, 67) , (1.4, 65)) 2.06
(3)
We need to assign a relative importance to each at-
tribute so that the distance between patterns reflects it.
If we assign wheight w
i
to attribute p
i
we must con-
figure the CCLAM to compute the similarity between
patterns:
Υ
C
(x
i
, m
ij
) = |x
i
m
ij
|
Ψ
C
(a
1
, . . . , a
n
) = 1
p
q
P
n
i=1
(w
i
a
i
)
p
P
n
i=1
w
p
i
(4)
The attributes of the problems are normalized to
give patterns that can be stored in the memory.
Each attribute takes its value in [0, 1] and then the
Minkowski distance
p
q
P
n
i=1
(w
i
a
i
)
p
P
n
i=1
w
p
i
takes its value in
[0, 1] too. The value computed by the Ψ
C
function
is the similarity between the patterns measured in the
interval [0, 1].
The weights used to represent the relative impor-
tance of the attributes can be established by an ex-
pert or can be learned from the known cases. We can
use cross validation to adjust the weights. If the num-
ber of cases is high enough, when case C is removed
from the memory the rest of the cases can give the
correct solution to problem C. The goal is a weight
assignment that maximizes the number of cases that
are correctly solved if they are removed from mem-
ory. To learn the weights we can use several methods
such as simulated annealing or genetic algorithms.
The weights can be revised periodically to reflect the
knowledge adquired with the new cases learned after
the previous assignment of weights.
3.2 L-Memory
The CCLAM that links the P-Memory and the S-
Memory has in the F
A
layer one PE for each stored
problem and one PE in the F
B
layer for each stored
solution. There is a connection with weight 1 between
the PE in F
A
that represents a problem and the PE
in F
B
that represents the solution associated to that
problem. The rest of connections have weight 0.
The CCLAM receives in the F
A
layer the degree
of similarity that exists between a new problem and
each stored problem (this information comes from the
P-Memory). After the classification process the only
active element in F
B
represents the proposed solu-
tion.
In some situations we can obtain the solution as
a combination of several stored solutions of similar
problems. Then we can obtain in F
B
the degree with
which the solutions can be combined. This can be
useful in problems where the solution is a real num-
ber that represents a physical magnitude.
3.2.1 Wheight of the environment of the
problem
Let’s suppose that a new problem P arrives. The P-
Memory finds one case with similarity 0.6 that sug-
gests solution A. It also finds 100 cases with similar-
ity 0.59 and all of them suggest solution B. Which
solution should be proposed?
The answer depends on the problem. In general we
can use a voting system. Each known problem sug-
gests its own solution with a degree that depends on
its similarity to the new problem. Then the proposed
solution will be that with the highest number of votes.
To compute the weight of a vote from the similarity
of the problem we use a non decreasing function :
ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
372
[0, 1] [0, 1] with the properties:
(0) = 0
(1) = 1
(5)
The L-Memory computes the sum of the degrees
with which the stored problems vote for each solu-
tion. Let’s suppose that a new case arrives and the
CCLAM that stored the problems computes the sim-
ilarities (s
1
, s
2
, . . . , s
n
). The L-Memory receives the
similarities in the layer F
A
. The weight of the con-
nection made between the i-th PE in F
A
and the j-th
PE in F
B
is m
ij
. The memory is configured with:
Υ
C
(s
i
, m
ij
) = (s
i
) m
ij
Ψ
C
(x
1
, x
2
, . . . , x
n
) =
1
n
P
n
i=1
x
i
(6)
After the classification process we obtain in F
B
layer the degree with which each solution is sugested
by the stored cases.
If we can’t combine several solutions to obtain a
new one then we select the PE that represents the most
voted solution to be the only PE that will remain ac-
tive.
If we will combine several solutions we must adjust
the degrees with which each one is voted so that the
sum of all of them equals one to ensure that we obtain
the wheighted mean of the solutions. The result is
sent to the S-Memory.
3.3 S-Memory
The S-Memory has in the F
A
layer a PE for each at-
tribute of the solutions and one PE in the F
B
layer for
each stored solution.
The weight of the connection made between ele-
ment i in F
B
and element j in F
A
represents the value
of the j-th attribute of the i-th solution.
The recovery process obtains in F
A
layer the so-
lution sugested by the activation degrees received in
F
B
.
3.3.1 Recovery of the solution
To obtain in F
A
the solution that will be suggested
to solve the new problem we must configure the
CCLAM with:
Υ
R
(s
i
, m
ij
) = s
i
m
ij
Ψ
R
(x
1
, x
2
, . . . , x
n
) =
1
n
P
n
i=1
x
i
(7)
This configuration computes the weighted average
of the stored solutions. The weight of each solution
depends on the similarity that exists between its prob-
lem and the new case. If only one PE in F
B
is ac-
tive with activation 1 and the rest remain inactive the
CCLAM recovers the most voted solution.
With the recovered solution the CCLAM can show
the degree with which it was recalled. This can be
interpreted as a confidence measure.
3.4 Case Pruning
The set of problems that share the same solution can
be found grouped in clusters. Those problems ly-
ing in the perimeter of the cluster are more important
because they give more information than the others.
Then if we need to reduce the number of stored cases
we can remove the cases that give less information.
To store only the new cases that give new infor-
mation we must study the solutions suggested by our
CCLAM-based CBR system. Let the solution of the
new case be A and the suggested solutions A,B,C...
suggested with degrees s(A), s(B), s(C), . . .. The
new case will be stored if the difference between the
degree of the correct solution and the sum of the de-
grees of the incorrect solutions is lower that a estab-
lished threshold.
A pattern located in the interior of a cluster makes
the correct solution be suggested with a high degree
because there are many near patterns with the correct
solution. If the pattern is near the perimeter of the
cluster then the influnce of patterns with wrong solu-
tions is high.
Setting the threshold to a convenient value will for-
bid the store of patterns that are clearly in the interior
of a cluster of patterns with which it shares the same
solution.
The prune of cases must be done very carefully be-
cause we lose information when we don’t store a pat-
tern.
4 APPLICATION: A CASE STUDY
One problem that is receiving an increasing attention
in the literature is that of prediction of a company
health (behaviour).
The idea is to represent any company by a vector
(x
1
, . . . , x
n
) of attribute values and try from that to
detect the company health.
Let us consider this health is represented in this turn
by a new boolean variable, h, such that h = 0 repre-
sents a bad health and h = 1 represents a good helth.
Clasical prediction (classification) models try
to identify an input-output relation like h =
H (x
1
, . . . , x
n
), where function H is learned from a
set of examples by some inductive procedure.
This approach has shown some inefficiency be-
cause it’s very difficult to capture the knowledge
about the health of a company as contained in a set
©¡
x
i
1
, x
i
2
, . . . , x
i
n
, h
i
¢ª
i=1...T
of training examples.
Semantics, scales, degree of importance, etc. of this
variables troubles us with this task. For this reason
some different approaches have raised in last years
(artificial neural networks, Kohonen maps, ...).
A CONNEXIONIST APPROACH FOR CASE BASED REASONING
373
Here we will investigate the use of our CBR ap-
proach by CCLAM to classify enterprises in the above
described sense. In the following we describe a sum-
mary of our experiment and its conclusions, being im-
possible to include here a detailed description of them
because the size and the amount of data and algorith-
mic steps.
Te interested reader may consult
http://decsai.ugr.es/ to obtain the whole set of data
and the complete discussion about the experiment.
The training set contains information about 1500
companies each described by 53 attributes. That is in
our case n = 53 and T = 1500.
The variables have very different semantics and ac-
cording to that different domains and scales. In fact
we have:
36 continuous attributes (ex. debt level)
9 integer attributes (ex. number of employees)
6 boolean attributes (ex. whether the company has
been audited)
2 categorial attributes (ex. economic activity code)
To take into account the different distance functions
(or similarity functions) needed to compare different
kinds of attributes we must configure the P-Memory
so that there will be different Ψ
C
and Υ
C
functions
depending on the kind of attribute that represents each
processing element.
We don’t know the degree of influence of each at-
tribute in the health of a company. To estimate the
relative importance of the attributes we measure the
goodness of a set of weights as the amount of correct
classifications of cases in a cross validation process.
We assume that similar companies have the same
classification (this assumption is the key of case based
reasoning). We also assume that the number of known
cases is high enough. If the weights were right then
when we extract a case from the memory and use it as
a new problem there will be similar problems that will
classify it correctly. We repeat this operation with all
the cases and the percentage of correct classifications
is the value that measures the goodness of the set of
weights.
To find an appropiate set of weights for the train-
ing set of cases we have used genetic algorithms to
find initial good solutions that were then refined us-
ing simulated annealing.
Once configured our CCLAM based CBR system
with the appropiate weights it was tested with a set of
764 new cases to measure the number of correct clas-
sifications obtaining a 73% of success that represents
a good result that justifies the use of the system.
5 CONCLUSIONS
The CCLAM is a good choice for case based rea-
soning because it can store any number of arbitrary
cases and it don’t recover cases not stored previ-
ously because of the absence of spurious states.
The use of two CCLAM to store the problems and
the solutions in different memories allows the cor-
rect computation ofthe similarity of the problems
and the correct retrieval of the suggested solution.
The L-Memory allows the use of a voting system
to select the most voted of the solutions proposed
by the stored cases.
The similarity between problems is computed by
means of the generalized minkowsky distance with
the correct configuration of the P-Memory.
When the solution is expressed with attributes that
can be aggregated we can obtain a lineal combina-
tion of the sugested solutions.
REFERENCES
Aamodt, A. and Plaza, E. (1994). Case-based reasoning:
Foundational issues, methodological variations and
system approaches. AI Communications, 7(1):39–59.
Aha, D. W. (1998). The omnipresence of case-based rea-
soning in science and application. Knowledge-Based
Systems, 11(5-6):261–273.
Aha, D. W., Kibler, D., and Albert, M. K. (1991). Instance-
based learning algorithms. Machine Learning, (6):37–
66.
Bailón, A., Delgado, M., and Fajardo, W. (2002). Con-
tinuous classifying associative memory. International
Journal of Intelligent Systems, 17(4):391–407.
Bartsch-Sprl, B., Lenz, M., and Hbner, A. Case-based rea-
soning – survey and future directions.
Globig, C. and Wess, S. (1995). Learning in case-
based classification algorithms. In Jantke, K. P.
and Lange, S., editors, Algorithmic Learning for
Knowledge-Based Systems, volume 961, pages 340–
362. Springer-Verlag.
Leake, D. B. (1996). Case-Based Reasoning: Experiences,
Lessons, and Future Directions. MIT Press.
Richter, M. M. (1992). Classification and learning of simi-
larity measures. Technical Report SR-92-18.
Wilson, D. R. and Martinez, T. R. (1997). Instance pruning
techniques. In Proc. 14th International Conference
on Machine Learning, pages 403–411. Morgan Kauf-
mann.
ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
374
