AGENT-ORIENTED DESIGN OF E-COMMERCE SYSTEM

ARCHITECTURE

Stéphane Faulkner, Manuel Kolp, Adrien Coyette, T. Tung Do

Information Systems Research Unit, University of Louvain,

1 Place des Doyens, 1348 Louvain-la-Neuve, Belgium

Keywords: Agent Systems, Architectural Description Language, Organizational Styles, BDI Agent Model, System

Architecture, E-commerce Application.

Abstract: Agent architectures are gaining popularity for building open, distributed, and evolving software required by

e-commerce applications. Unfortunately, despite considerable work in software architecture during the last

decade, few research efforts have aimed at truly defining patterns and languages for agent architectural

design. This paper proposes a modern approach based on organizational structures and architectural

description languages to define and specify agent architectures notably in the case of e-commerce system

design

1 INTRODUCTION

The meteoric rise of Internet and World-Wide-Web

technologies has created overnight new application

areas for enterprise software, including e-commerce

applications. These areas demand software that is

robust, can operate within a wide range of

environments, and can evolve over time to cope with

changing requirements. Moreover, such software has

to be highly customisable to meet the needs of a

wide range of users and sufficiently secure to protect

personal data and other assets on behalf of its

stakeholders.

Not surprisingly, researchers

are looking for new

software designs that cope with such requirements.

One promising source of ideas for designing such e-

commerce software is the area of agent

architectures. They appear to be more flexible,

modular and robust than traditional including object-

oriented ones. They tend to be open and dynamic in

the sense they exist in a changing organizational and

operational environment where new components can

be added, modified or removed at any time.

To cope with the ever-increasing complexity of

he design of software architecture, architectural

design has received through the last decade

increasing attention as an important field of software

engineering.

Practitioners have come to realize that getting an

architecture ri

ght is a critical success factor for

system life-cycle and have recognized the value of

making explicit architectural descriptions and

choices in the development of new software.

To this end, a number of architectural description

anguages (ADL) and architectural styles (Garlan,

1994) have been proposed for representing and

analyzing architectural designs. An architectural

description language provides a concrete syntax for

specifying architectural abstractions in a descriptive

notation while an architectural style constitutes an

intellectually manageable abstraction of system

structure that describes how system components

interact and work together.

Unfortunately, despite this considerable work

(see e.

g., Shaw, 1996), few research efforts have

aimed at truly defining styles and description

languages for agent architectural design. To fill this

gap, we have defined, in the SKwyRL

project,

architectural styles for agent systems based on an

organizational perspective (Do, 2003) and have

proposed in (Faulkner, 2003) SKwyRL-ADL, an

agent architectural description language. This paper

continues and integrates this research: it focuses on

Socio-Intentional ArChitecture for Knowledge Systems

and Requirements Elicitation

(http://www.isys.ucl.ac.be/skwyrl/)

372

Faulkner S., Kolp M., Coyette A. and Tung Do T. (2004).

AGENT-ORIENTED DESIGN OF E-COMMERCE SYSTEM ARCHITECTURE.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 372-379

DOI: 10.5220/0002646103720379

 SciTePress

an agent perspective for designing and specifying e-

commerce software architecture based on

organizational styles and SKwyRL-ADL. The

structure-in-5 organizational style will be

instantiated to design the architecture of the system

and the specifications will be expressed in a formal

way with SKwyRL-ADL.

The rest of the paper is organized as follows.

Section 2 introduces some perspectives of SKwyRL

insisting on the BDI model, our ADL and

organizational styles. Section 3 describes our agent

oriented approach on e-commerce system

development, including the design of the global

architecture with organizational styles, its formal

specification with SKwyRL-ADL and the

corresponding implementation on an agent-oriented

platform. Finally, Section 4 concludes the research.

2 ADL AND STYLES IN SKWYRL

We have detailed in the SKwyRL project an agent

ADL called SKwyRL-ADL (Faulkner, 2003) that

proposes a set of abstractions that are fundamental to

the description and specification of agent

architectures based on the BDI (Belief-Desire-

Intention) agent model. To help the reader to

understand our ADL specification in the rest of the

paper, we briefly present the main elements of

SKwyRL-ADL including the BDI agent model.

SKwyRL-ADL is composed of two sub-models

which operate at two different levels of abstraction:

internal and global. The internal model captures the

states of an agent and its potential behavior. The

global model describes the interaction among agents

that compose the agent architecture. We will also

introduce organizational styles through the

description of one of them, the structure-in-5, that

will be used later on in the paper.

2.1 The BDI Agent Model

An agent defines a system entity, situated in some

environment that is capable of flexible autonomous

action in order to meet its design objective

(Wooldridge, 1996).

An agent can be useful as a stand-alone entity

that delegates particular tasks on behalf of a user.

However, in the overwhelming majority of cases,

agents exist in an environment that contains other

agents. Such environment is a agent system that can

be defined as an organization composed of

autonomous and proactive agents that interact with

each other to achieve common or private goals

(Kolp, 2001).

In order to reason about themselves and act in an

autonomous way, agents are usually built on

rationale models and reasoning strategies that have

roots in various disciplines including artificial

intelligence, cognitive science, psychology or

philosophy. An exhaustive evaluation of these

models would be out of the scope of this paper or

even this research work. A simple yet powerful and

mature model coming from cognitive science and

philosophy that has received a great deal of

attention, notably in artificial intelligence, is the

Belief-Desire-Intention (BDI) model (Bratman,

1996). This approach has been intensively used to

study the design rationale of agents and is proposed

as a keystone model in numerous agent-oriented

development environments such as JACK (JACK).

The main concepts of the BDI agent model are in

addition to the notion of agent itself we have just

explained:

- Beliefs that represent the informational state of a

BDI agent, that is, what it knows about itself and the

world;

- Desires (or goals) that are its motivational state,

that is, what the agent is trying to achieve;

- Intentions that represent the deliberative state of

the agent, that is, which plans the agent has chosen

for possible execution.

2.2 Internal Model

Figure 1 illustrates the main entities and

relationships of the internal model of SKwyRL-

ADL. The agent needs knowledge about the

environment in order to reach decisions. Knowledge

is contained in agents in the form of one of many

knowledge bases. A Knowledge base consists of a

set of beliefs that the agent has about the

environment and a set of goals that it pursues. A

belief is a finite set of objects, things with individual

identities and properties, that represents a view of

the current environment states of an agent. However,

beliefs about the current state of the environment are

not always enough to decide what to do. In other

words, as well as a current state description, the

agent needs some sort of goal information, which

describes an environment state that are (not)

desirable.

The intentional behavior of an agent is

represented by their capabilities to react to events.

An event is generated either by an action that

modifies beliefs or adds new goals, or by services

provided from another agent. Note that these

AGENT-ORIENTED DESIGN OF E-COMMERCE SYSTEM ARCHITECTURE

373

services are represented in the global model because

they involve interaction among agents that compose

the agent system.

An event may invoke (trigger) one or more

plans; the agent commits to execute one of them,

that is, it becomes intention. A plan defines the

sequence of action to be chosen by the agent to

accomplish a task or achieve a goal. An action can

query or change the beliefs, generate new events or

submit new goals.

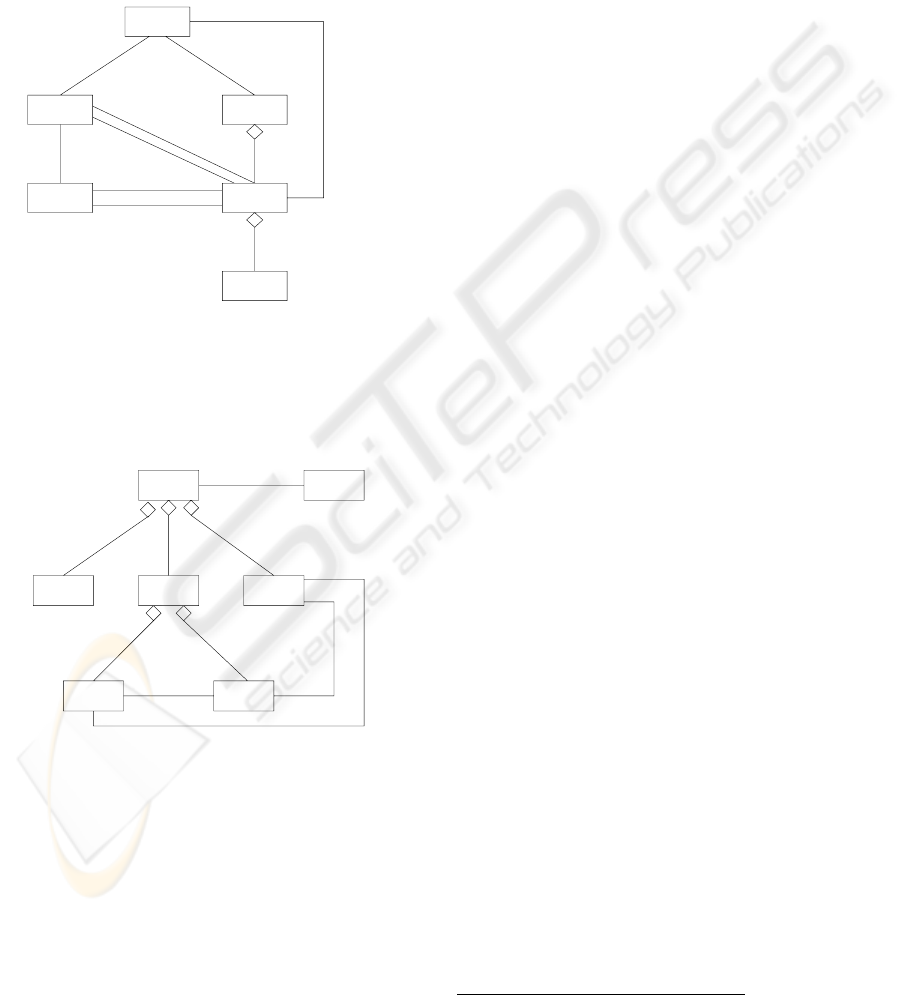

Figure 1: Conceptual Representation of the Internal Model

2.3 Global Model

Figure 2 conceptualizes the global model which

describes the interaction among agents that compose

the agent system.

Agent Interface

Effector

Service

Configuration Architecture

require

1..n 1

1..n

1..n1..n

contains

provide

1..n

Sensor

connect_to

Figure 2: Conceptual Representation of the Global Model

Configurations are the central concept of

architectural design, consisting of an interconnected

set of agents. The topology of a configuration is

defined by a set of bindings between provided and

required services.

An agent interacts with its environment through

an interface composed of sensors and effectors. An

effector provides to the environment a set of

services. Then, a sensor requires a set of services

from the environment. A service is an action

involving an interaction among agents.

The whole agent system is specified with an

architecture which contains a set of configurations.

An architecture represents agents by one or more

detailed, lower-level configuration descriptions.

2.4 Agent Architectural Styles

A key aspect to conduct architectural design in

SKwyRL is the specification and use of

organizational styles (see e.g., [KGM01, DFK03] )

These are socially-based design alternative inspired

from models and concepts from organizational

theories that analyze the structure and design of real-

world human organizations.

Belief

Agent

Event

Goal

Plan

Action

post

handle

post query

modify

has pursue

selec

1..n

0..n

1..n

0..n

0..n0..n

1..n

0..n

For instance, the agent architecture we propose

in Figure 3 has been designed following the

structure-in-5 organizational style detailed in

[DFK03]. In a few words, the structure-in-5 style is

a meta-structure that defines an organizational

architecture that as an aggregate of five sub-

structures, as described by Minztberg (Mintzberg,

1992). It consists of five typical strategic and logistic

components found in many organizations. At the

base level one finds the Operational Core where the

basic tasks and operations -- the input, processing,

output and direct support procedures associated with

running the system -- are carried out. At the top lies

the Apex composed of strategic executive

components. Below it, sit the

control/standardization, management components

and logistics: Coordination, Middle Agency and

Support, respectively.

3 AGENT ARCHITECURE FOR E-

COMMERCE SYSTEM

E-Media

is a typical business-to-consumer

application we have developed using the

architectural concepts explained in Section 2. The

application offers an e-commerce architecture

supporting the creation of information sources that

facilitate the on-line transaction of products,

services, and payments resulting in an effective and

efficient interaction among sellers, buyers and

intermediaries.

This section describes how we have applied the

structure-in-5 style to design the architecture of E-

media and used SKwyRL-ADL to formally specify

http://www.isys.ucl.ac.be/skwyrl/emedia

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

374

each architectural aspect (belief, goal, plan, action,

interface, configuration, service …) of the

application.

Based on this

architectural specification, we have

implemented the application using JACK, a JAVA

agent-oriented development environment.

3.1 E-Media Architecture

E-Media includes the following features:

- An on-line web interface allows customers to

examine the items in the E-Media catalogue, and

place orders;

- Customers can search the on-line store by

either browsing the catalogue or querying the item

database. An online search engine allows customers

to search title, author/artist and description fields

trough keywords or full-text search;

- If an item is not available in the catalogue,

the customer has the option to order it;

- Internet communications are supported;

- On-line financial transactions including credit

card and anonymity are protected;

- All web information (e.g., product and

customer turnover, sales average, …) of strategic

importance is recorded for monthly or on-demand

statistical analysis;

- Based of this statistical and strategic

information, the system permanently manages and

adapts the stock, pricing and promotions policy. For

example, for each product, the system can decide to

increase or decrease stocks or profit margins. It can

also adapt the customer on-line interface with new

product promotions.

Figure 3 models the architecture of E-Media

using the i* model (Yu, 1995) following the

structure-in-5 organizational style we have

introduced in Section 2 . i* is a graph, where each

node represents an actor (or system component) and

each link between two actors indicates that one actor

depends on the other for some goal to be attained. A

dependency describes an “agreement” (called

dependum) between two actors: the depender and

the dependee. The depender is the depending actor,

and the dependee, the actor who is depended upon.

The type of the dependency describes the nature of

the agreement. Goal dependencies represent

delegation of responsibility for fulfilling a goal;

softgoal dependencies are similar to goal

dependencies, but their fulfilment cannot be defined

precisely; task dependencies are used in situations

where the dependee is required.

As show in Figure 3, actors are represented as

circles; dependums – goals, softgoals, tasks and

resources – are respectively represented as ovals,

clouds, hexagons and rectangles; dependencies have

the form depender → dependum → dependee.

Figure 3: The E-Media Architecture in Structure-in-5

The Store Front plays the role of the structure-in-5’s

Operational Core. It interacts with customers and

provides them with a usable front-end web

application for consulting, searching and shopping

media items.

The Back Store constitutes the structure- in-5’s

Support component. It manages the product database

and communicates to the Store Front relevant

product information. It stores and backs up all web

information about customers, products and sales to

be able to produce statistical information (e.g.,

analyses, average charts and turnover reports). Such

kind of information is computed either for a

predefined product (when the Coordinator asks it) or

on a monthly basis for every product. Based on this

monthly statistical information, it provides also the

Decision Maker with strategic information (e.g.,

sales increase or decrease, performance charts, best

sales, sales prevision, …).

The Billing Processor plays the role of the

structure-in-5’s Technostructure in handling

customer orders and bills. To this end, it provides

the customer with on-line shopping cart capabilities.

It also ensures the secure management of financial

transactions for the Decision Maker. Finally, it

handles, under the responsibility of the Coordinator

component, stock orders to avoid shortages or

congestions.

As the structure-in-5’s Middle Agency, the

Coordinator assumes the central position of the

architecture. It is responsible to implements strategic

decisions for the Decision Maker (Strategic Apex).

It supervises and coordinates the activities of the

Billing Processor (initiating the stock and pricing

policy), the Front Store (adapting the front end

interface with new promotions and

recommendations) and the Back Store

(parametrizing statistical computing) ensuring that

the system fulfills its mission in an effective way.

AGENT-ORIENTED DESIGN OF E-COMMERCE SYSTEM ARCHITECTURE

375

Finally, the Decision Maker assumes the

Strategic Apex role of the structure-in-5. It defines

the Strategic Behavior (e.g., sales and turnover,

product visibility, hits, …) of the system ensuring

that objectives and responsibilities delegated to the

Billing Processor, Coordinator and Back Store are

consistent with respect to their capabilities.

3.2 E-Media Formal Specification

The architecture described in Figure 3 gives an

organizational representation of the system-to-be

including relevant actors and their respective goals,

tasks and resource inter-dependencies. This model

can serve as a basis to understand and discuss the

assignment of system functionalities but it is not

adequate to provide a precise specification of the

system details. As introduced in Section 2,

SKwyRL-ADL provides a finite set of formal agent-

oriented constructors that allow to detail in a formal

and consistent way the software architecture as well

as its agent components and their behaviors.

Figure 4 shows a high-level formal description of

the Back-Store agent. Three aspects of this agent

component are of concern here: the interface

representing the interactions in which the agent will

participate, the knowledge base defining the agent

knowledge capacity and the capabilities defining

agent behaviors.

SkwyRL-ADL allows to work at different levels

of architectural abstractions (i.e., different views of

the system architecture) to encapsulate different

components of the system in independent

hierarchical descriptions. For instance, in Figure 4

the Back Store agent has three knowledge bases

(KB) and three capabilities (CP), but the description

level chosen here does not specify the details of the

beliefs composing the KB or the plans and events

composing each capability.

The rest of the section focuses on the Back Store

agent to give an example of a refinement

specification with our ADL for each of the three

aspects of the agent: interface, KB and capabilities.

Interface. The agent interface consists of a number

of effectors and sensors for the agent. Each of them

represents an action in which the agent will

participate. Each effector provides a service that is

available to other agents, and each sensor requires a

service provided by another agent. The

correspondence between a required and a provided

service defines an interaction. For example, the Back

Store provides the statistical_info service that the

Coordinator requires.

Such interface definition points two aspects of

an agent. Firstly, it indicates the expectations the

agent has about the agents with which it interacts.

Secondly, it reveals that the interaction relationships

are a central issue of the architectural description.

Such relationships are not only part of the

specification of the agent behavior but reflect the

potential patterns of communication that

characterize the ways the system reason about itself.

Agent:{Back-Store

Interface

Effector[provide(strategic_info)]

Effector[provide(statistical_info)]

Effector[provide(product_info)]

Effector[provide(back-up)]

Sensor[require(stategic_behavior)]

KnowledgeBase:

Product_KB Statistical_KB

BS_System_KB BS_Customer_KB

Capabilities:

Statistical_CP Strategic_CP

Data_Management_CP

}

Figure 4: Agent Structure Description of the Back-Store

Service: {Ask(statistical_info)

sender: Coordinator

parameters: (tw: TimeWindows), (id: Id_product)

reply_with: to: Turnover ∨ sl: Sales

receiver: Back-Store

Effect: Add(Statistical_KB,

Achieve(statistic(“today”,“on_product”)

}

Figure 5: A Service Specification

The specification of a service is given in Figure 5.

Each provided or required service is detailed by

specifying the sender agent that initiates the service,

the set of receiver agents that interact with the

sender, the reply-with and content statements that

define the information about which the service

expresses an interaction and optionally a set of

parameters to define the information required to

execute the service. Like the parameters the reply-

with information is represented with a belief or a set

of terms (e.g., function, constant or variable).

Knowledge Bases. A knowledge base (KB) is

specified with a name, a body and a type. The name

identifies the KB whenever an agent wants to query

or modify them (add or remove a belief). The body

represents a set of beliefs in the manner of a

relational database schema. It describes the beliefs

the agent may have in terms of fields. When the

agent acquires a new belief, values for each of its

fields are specified and the belief is added to the

appropriate KB as a new tuple. The KB type

describes the kind of formal knowledge used by the

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

376

agent. A Closed world assumes that the agent is

operating in a world where every tuple it can express

is included in a KB at all times as being true or false.

Inversely, in an open world KB, any tuple not

included as true or false is assumed to be unknown.

Figure 6 specifies the Product_KB:

KnowledgeBase: {Product_KB

Kb_body:

product(Id_Prod,Title,Class,Description,Price)

purchase(Id_Card,Id_Prod,Date,Quantity,Pay_Means)

audio(Id_Prod,Artist(+),Compositor(+))

book(Id_Prod,ISBN,ISNN,Author(+),Publisher)

dvd(Id_Prod,Actor(+),Realizator(+))

…

- the plan body, that specifies either the sequence

of formulae that the agent needs to perform, a

formula being either an action or a service to be

executed;

kb-type: closed_world

}

Figure 6: A Knowledge Base Specification

For instance, the predicate purchase with four

arguments represents the customer and product ids,

the quantity and the means of payment. The ‘+’

symbol means that the attribute is multi-valued.

Capabilities formalize the behavioral elements of an

agent. They are composed of plans and events that

together define the agent’s abilities. They can also

be composed of sub-capabilities that can be

combined to provide complex behavior.

Capability: {Data_Management_CP

CP_body:

Plan Send_Product_Data

Plan Backup_Database

Plan Check_Identification

Plan I nterface_Custom_Id

endEvent update_interface

PostEvent backup

}

Capability: {Statistic_CP

CP_body:

Plan Prov_Turnover_On_Demand

Plan Prov_Turnover

Plan Sales_Average

}

Figure 7: Capabilities Specification

Figure 7 shows the Data_Management and the

Statistical capabilities of the Back-Store agent. The

body contains the plans the capability can execute

and the events it can post to be handled by other

plans or it can send to other agents. For example, the

Data_Management capability is composed of four

plans: Send_Product_Data is used to send product

information to the Store-Front, Backup_Database

backs up all information about customers, products

and sales in order to provide statistical information,

Interface_Custom_Id allows user registration and

Check_Identification checks the customer

A plan defines the sequence of actions and/or

services (i.e., actions that involve interaction with

other agents) the agent selects to accomplish a task

or achieve a goal. A plan consists of:

- an invocation condition detailing the

circumstances, in terms of beliefs or goals, that

cause the plan to be triggered;

- an optional context that defines the preconditions

of the plan, i.e., what must be believed by the

agent for a plan to be selected for execution;

- an end state that defines the post-conditions

under which the plan succeeds;

- and optionally a set of services or actions that

specify what happens when a plan fails or

succeeds.

Figure 8 specifies the Prov_TurnOver_On

_demand plan that gives the turnover on every

product.

Plan:{Prov_TurnOver_On_demand

Invocation: Achieve(stat_Comput(“today”,“on_produc »))

Context:

¬newproduct(id,“today-15d”)

∧ ¬is_done(“prov_turnover_on_demand",Today)

∧ ¬day(now =“25”)

Body:

action: compute_turnover(tw, id) as to: Turnover

//with id: Id_product From

Coordinator.Ask(statistical_info).parameter/

//with tw:TimeWindows From

Coordinator.Ask(statistical_info).parameter/

effect: Add(Statistical_Kb, product_turnover(tw, id,to))

service: {Tell (statistical_info)

sender: Back-Store content: to: Turnover

receiver: Coordinator

effect: Add(System_KB,

is_done(“prov turnover_on_demand”,Today))

∧ Add(Statistical_Kb,

stat_comput(“today”,“on_product”, id))

Endstate:

Add(Statistical_Kb,

stat_comput(“today”, “on_product”, id))

Suceed:

action: compute_sales(tw, id) as sl: Turnover

//with tw:TimeWindows From

Coordinator.Ask(statistical_info).content/

effect: Add(Statistical_Kb, product_sales(tw, id, to))

service: {Tell(statistical_info)

sender: Back-Store content: sl: Sales

receiver: Coordinator

Fail:

action: search_set(prov_turnover(),id,tw1))

as set_of to: Turnover

// with tw1 ∈ [today-12mth;today] /

action: extrapol_turnover(set_of to) as to1: Turnover

service: {Tell(statistical_info)

sender: Back-Store content: to1: Turnover

receiver: Coordinator

effect: Add(Statistical_Kb,

stat_comput(“today”,“on_product”,id)

}

AGENT-ORIENTED DESIGN OF E-COMMERCE SYSTEM ARCHITECTURE

377

Figure 8: A Plan Specification

The invocation condition is defined with the goal

Achieve meaning that the today’s computation of

product statistics must be true in the current or in

some future state. The agent then determines the

applicability of the plan by analyzing its context.

The context states that the product must be on

sale for at leat 15 days and that the current day is not

the 25

th.

of the month. The plan could not have been

executed today.

The body is composed of a sequence of an action

and a service. The Back-Store first computes the

product turnover from data (id and tw) transmitted

during the execution of the Ask(statistical_info)

service (see Figure 3). The result (to) is then sent to

the Coordinator. The service effect results in

satisfying the goal event.

In case of failure, the Back-Store searches in its

KBs the turnovers that have been previously

computed during the last twelve months in order to

extrapolate a current value. The extrapolation is sent

to the Coordinator. With respect to the case of a

successful plan execution, the service effect satisfies

the goal event but it does not prevent the re-

execution of the plan during the same day.

Configuration To describe the complete

topology of the system architecture, the agents of an

architectural description are combined into a

SkwyRL configuration.

Configuration E_Media

Agent DecisionMaker Agent Coordinator

Agent BackStore Agent StoreFront

…

Service Ask(strategic_info)

Service Tell(strategic_info)

Service Import(product_info)

Service Export(product_info)

Service Achieve(back-up)

Service Do(back-up)

…

Instances

DM: DecisionMaker CO: Coordinator

BS: BackStore ST: StoreFront

Askstrat: Ask(strategic_info) Tellstrat:

Tell(strategic_info)

Importprod: Import(product_info)

Exportprod: Export(product_info)

Achievebkup: Achieve(back-up)

Dobkup: Do(back-up)

…

Collaborations

DM. Askstrat --- Tellstrat.BS;

ST.Exportprod --- Importprod.BS;

ST. Achievebkup --- Dobkup.BS;

…

End E_Media.

Figure 9: The E-Media configuration

Instances of each agent or service that appear in

the configuration must be identified with an explicit

and unique name.

The configuration also describes the

collaborations (i.e., which agent participates in

which interaction) through a one-to-many mapping

between provided and required service instances.

Part of the E-Media configuration with instance

declarations and collaborations is given in Figure 9.

To allow dynamic reconfiguration and

architecture evolvability at run-time, configurations

separate the description of composite structures from

the description of the elements that form those

compositions. This permits to reason about the

composition as a whole and to reconfigure it without

having to examine each component of the system.

3.3 E-Media Implementation

Based on the structure-in-5 architecture described in

Section 3.1 and the formal SKwyRL-ADL

architectural specification overviewed in Section

3.2, the E-Media application has been implemented

with JACK (JACK), a BDI agent-oriented

development environment for JAVA. We briefly

describe the E-Media implementation to illustrate

the role of the agents and their interactions.

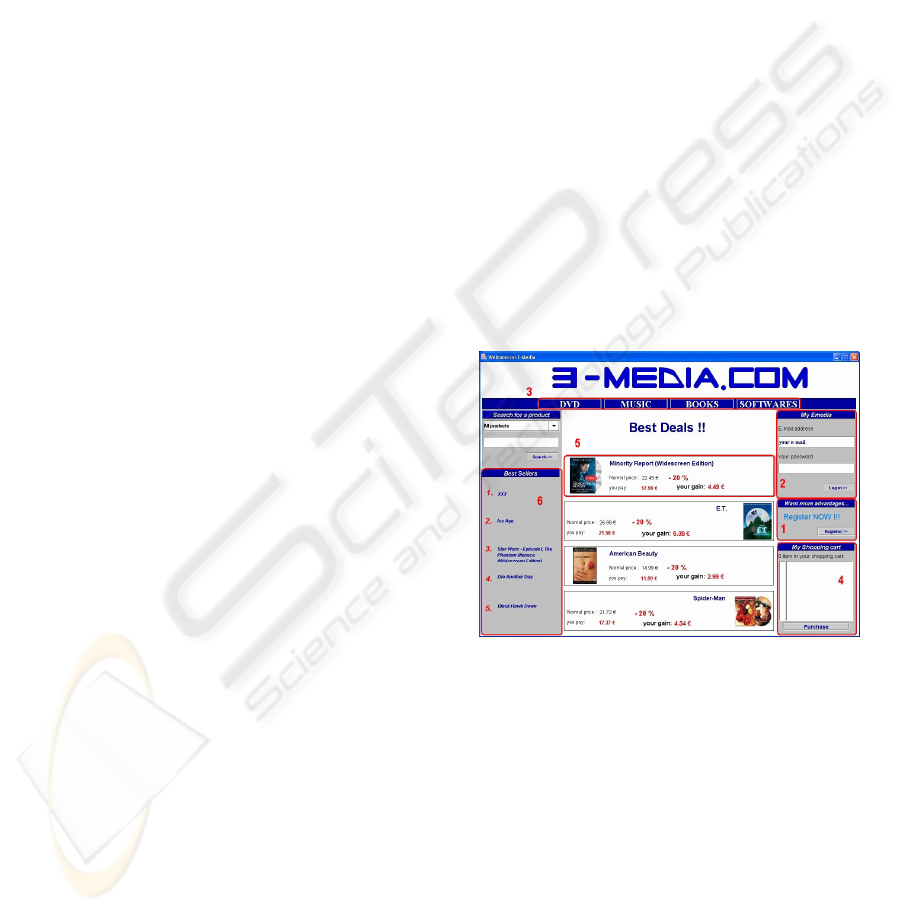

Figure 10: E-media Main Interface

When an on-line customer gets connected to

E-media, an instance of the Front-Store is created to

display the interface depicted in Figure 10. It allows

the new coming user to register (1). The Back-Store

handles the information provided by the user and

checks its validity (2). If the access is granted, the

user can purchase products on E-Media by adding

catalogue items to the shopping cart (4) managed by

the Billing-Processor. At any time the user can use

the navigation-bar (3) to switch from one section of

the website to another. Promotions (5) and best

sales (6) are part of the strategic behaviour objective.

The promotions policy is initiated by the Decision-

Maker based on the strategic information provided

by the Back-Store. The Coordinator chooses the best

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

378

promotions and consequently adapts the Store Front

layout. The Coordinator acts similarly for the best

sales: the Back-Store computes the five best sellers

and the Coordinator accordingly updates the Store-

Front.

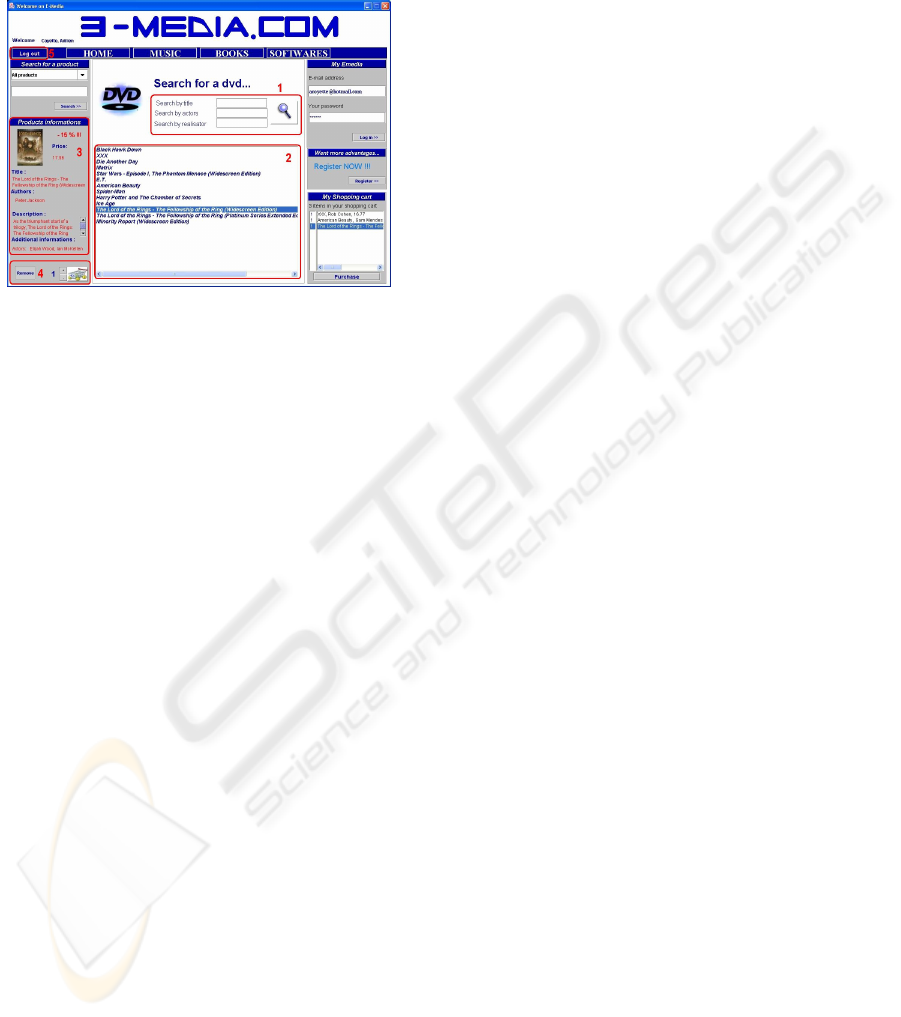

Figure 11: Interface of E-Media DVD Section

Figure 11 describes the Store-Front interface

for the DVD section, i.e., when the “DVD” button of

the navigation-bar is activated. To search E-Media

DVD catalogue, the user must fill at least one field

of the search engine (1). The Store-Front sends the

query parameters to the Back Store which provides

the results back to the Store-Front (2). At any

moment during the session, the user can click on a

product (best seller, query result, shopping cart…), a

request is then sent to Back Store to provide more

information on this product (3). When the user

activates the billing process, the Billing-Processor

displays the items in the shopping cart and computes

the total and sub-total for each product. It then

checks the validity of the user’s credit card number.

4 CONCLUSION

Nowadays, software engineering for new enterprise

application domains such as eBusiness is forced to

build up open systems able to cope with distributed,

heterogeneous, and dynamic information issues.

Most of these software systems exist in a changing

organizational and operational environment where

new components can be added, modified or removed

at any time. For these reasons and more, agent

architectures are gaining popularity in that they do

allow dynamic and evolving structures which can

change at run-time.

Architectural design has received

considerable attention for the past decade which has

resulted in a collection of well-understood

architectural styles and formal architectural

description languages. Unfortunately, this work has

focuses on object-oriented rather than agent-oriented

systems. This paper has described an approach based

on organizational styles and an agent architectural

description language we have defined to design

agent architectures in the context of e-commerce

system engineering. The paper has proposed a

validation of the framework: it has been applied to

develop E-Media, an e-commerce platform

implemented on the JACK agent development

environment.

REFERENCES

Bratman, M . E., Intention, Plans and Practical Reason.

Harvard University Press, 1987.

Faulkner, S. and Kolp, M., Towards an Agent

Architectural Description Language for Information

Systems. In Proc. of the 5th Int. Conf. on Enterprise

Information Systems (ICEIS 03), Angers, France,

April 2003.

Do, T. T., Faulkner, S. and Kolp, M., organizational

Multi-Agent Architectures for Information Systems. in

Proc. of the 5th Int. Conf. on Enterprise Information

Systems (ICEIS 2003), Angers, France, April 2003.

Garlan, D., Allen, R. and Ockerbloom, J., Exploiting Style

in Architectural Design Environments. In Proc. of

SIGSOFT’94: Foundations of Software Engineering,

New Orleans, Louisiana, USA, Dec. 1994.

JACK Intelligent Agents. http://www.agent-

software.com/.

Kolp, M., Giorgini, P. and Mylopoulos, J., An Orga-

nizational Perspective on Multi-agent Architectures. In

Proc. of the 8th Int. Workshop on Agent Theories,

architectures, and languages, ATAL’01, Seattle, USA,

Aug. 2001.

Mintzberg, H., Structure in fives: designing effective

organizations. Prentice-Hall, 1992.

Shaw, M. and Garlan, D., Software Architecture:

Perspectives on an Emerging Discipline, Prentice Hall,

1996.

Yu, E., Modeling Strategic Relationships for Process

Reengineering, Ph.D. thesis, Department of Computer

Science, University of Toronto, Canada, 1995.

Wooldridge, M. and Jennings, N.R., editors. Special Issue

on Intelligent Agents and Multi-Agent Systems.

Applied Artificial Intelligence Journal. Vol. 9(4),

1996.

Louis, R., 1999. Software agents activities. In ICEIS’99,

1st International Conference on Enterprise Informa-

tion Systems. ICEIS Press.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

AGENT-ORIENTED DESIGN OF E-COMMERCE SYSTEM ARCHITECTURE

379
