Khodakaram Salimifard
Department of Industrial Management, Persian Gulf University, Booshehr 75168, Iran
Keywords: Workflow, Organisational Modelling, Coloured Petri Nets, Component-based Modelling
Abstract: Collaborative software applications such as workflow management systems require a clear separation
between process model and resource model. The process model realises the partial order of business
processes while the organisation model provides the structure of the resources to be utilised. In this paper,
we propose a CPN-based framework for modelling organisational functioning units. The models are
developed independent of the process layer. Maintaining the flexibility and scalability, the model, hence, is
capable to be modified without altering the process model.
The term “workflow modelling” implies the
requirement to represent the processes through
which the work is accomplished. This requirement
becomes a vital issue in designing and re-designing
a workflow system. A workflow model defines what
has to be done. That is, it represents a functional
perspective (Koulopoulos, 1995). On the other hand,
the model frames the behavioural and organisational
perspectives (Jablonski et al., 1996). Many of the
existing approaches to workflow modelling are
based on using Petri nets (Ellis et al., 1993)
(Ferscha, 1994) (Aalst, 1998) (van He et al., 2000)
(Salimifard and Wright, 2001). The standardisation
of model elements has captured less attention,
although the compositionality of Petri nest has been
discussed in (Voorhoeve, 2000). Recently, the
requirements for modelling workflow have been
investigated (www.minicom,com). The requirements
have been classified into modelling patterns
representing comprehensive functionality necessary
for workflow software. In this paper, we introduce a
CPN-based compositional approach for modelling
workflow processes and organisational units.
The behavioural perspective (Koulopoulos, 1995) of
a workflow is represented by control flows (Aalst,
1998). A control flow specifies the execution order
(Jablonski et al., 1996) and dependencies between
workflows. It determines all the possible execution
orders of embedded workflows. A control flow
construct is either an elementary or composite. A
composite control flow construct is a composition of
the other control flow constructs. This hierarchical
representation allows the workflow designer to
design a complex workflow using a set of control
flow constructs.
In order to have a standard definition, a formal
specification of the semantics of control flow
constructs is required. The formal definition makes
it possible to validate the proposed constructs and to
extend any construct, if it is necessary. In our
approach, we define the semantic of control flow
constructs in Coloured Petri Nets (CPNs) (Jensen,
1997). Each control flow construct is modelled as a
Coloured Petri Net (CPN) model, namely a
workflow component. A component is constructed
according to the following modelling rules:
The component is framed between an input place
and an output place,
A place holds the unique identification code for
the component,
Apart from the input and output places, a
component may have other places which are
local to the component,
Components can be linked (chained) using their
input and output places.
A component may contain other components.
This characteristic allows modelling of a very
complex workflow. The modelling approach we
present in this paper is a high level representation of
Salimifard K. (2004).
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 577-580
DOI: 10.5220/0002652005770580
control flow constructs. We introduce different
modelling components and their semantics using
CPNs. The CPN models have been designed using
Design/CPN software tool (Design/CPN Reference
Manual for X-Windows, 1993).
The capability of thorough representation of
organisational resource has become an important
feature of workflow management systems. While
the researchers have mainly focused on structural
modelling of organisational resource, the dynamic
aspects such as resource efficiency and non-
operational behaviour of human resources have
captured less attention.
In our approach an organisation model is
composed of four parts which are modelled as CPN
pages. In general, an employee as a human being has
a very complex behaviour. We draw a model
representing the abstract behaviour of employees in
an organisation. The model is depicted in Figure 1.
Figure 1: Staffs’ abstract behaviour
Any available member of staff may have either
of three abstract class of behaviour at a time. Job
fetching refers to a situation where an employee is
dealing with the selecting (assigning) an available
work-item. A member of staff may be processing a
work-item, which he already has been assigned to.
This behaviour is represented by the Job processing
entity. Behaviours that are not productive have been
classified under the term Non-Operational
behaviour. The term implies that such behaviour is
not part of the employee’s organisational duties.
3.1 Player Query and Scheduling
Work Items
In a workflow system environment, an organisation
unit, e.g. Accounting department, processes those
workflow activities that require a service from that
organisation unit. An organisation unit offers its
services to the system through the exchange of
request for service (RfS). That is, the process level
submits a work item to the organisation unit as an
RfS. A work item is a representation of a workflow
activity modelled as a CPN binding element. It
carries information about processing requirements
such as department, role needed, and the estimated
processing time.
The generic model of the query part of the
organisation model is depicted in Fig. 2. The figure
is modified for the department with the code 1, as it
is appeared as D1 in Fig. 2. The place D1ID holds
the department identification code as the initial

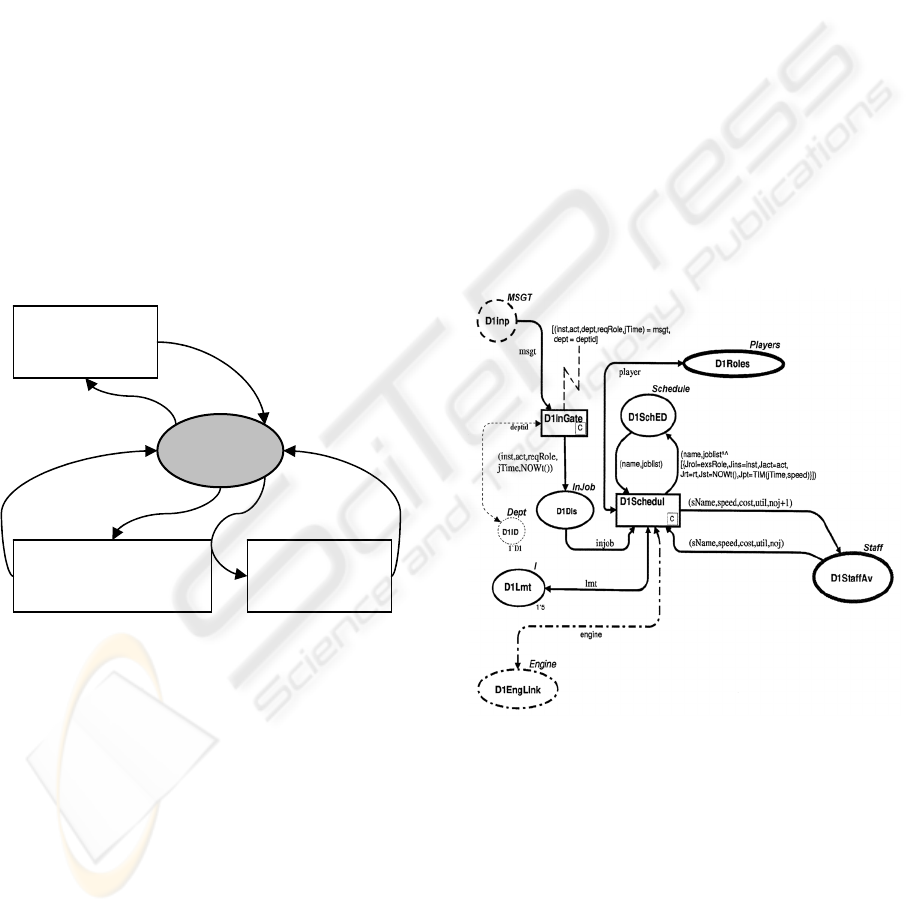

Figure 2: CPN model of query part
Upon receiving an a msgt token through D1inp,
the transition D1inGate is enabled. Occurrence of
this transition consumes a token from D1inp and
creates a new token in D1Dis. The created token is
of color-The function NOWt() determines the arrival
time of the work item.
The place D1StaffAv holds all the staffs available
at the department. Based on the organisation policy,
the maximum number of jobs each staff is assigned
to is determined as the initial marking for D1Lmt.
The initial marking of D1StaffAv determines
off work
back work
employees who are initially available. The role
classification for the department is defined as the
marking of D1Roles.
3.2 Work Item Assignment
All the work items have been accepted to be
processed by the department are kept in the
department in-tray, accessible by employees. A
work item in the in-tray can be fetched via the
occurrence of the transition D1Schedul. It has a four-
facet and complex behaviour described as follows:
Role matching: upon the availability of a token
in D1Dis, it checks whether any role defined in
D1Roles matches with the reqRole parameter of
the work item.
Staff availability if a player is found, the
availability of the player is checked.
Quota checking: if the result of the previous
check is positive, it checks the number of jobs
currently the employee is assigned to, i.e. noj,
against the maximum number of jobs an
employee can be assigned to, i.e. [noj lmt].
Job list updating: if the results of both previous
tests are positive, the job list associated with the
employee has to be updated.
The newly work item selected will be appended
at the end of the employee’s job list. The actual
processing time of the work item is determined
using the function TIM().
3.3 Processing Work Items
The processing of a work item is diagrammatically
represented in Fig. 3. The start of the execution of a
work item is modelled using the transition
D1JobStart. Its occurrence is explicitly conditioned
by the exact matching of the player whose job list is
available in D1SchEd and the employee available in
A job list is in fact a simple queue from which
the owner selects the work items to process. The
selection can be done using different queue
disciplines (Kleinrock, 1975). In our approach, we
assume that the organisation committed to use the
FIFO discipline. The output arc between D1JobStart
and D1JobinPro (see Fig. 3) inscribed with the work
item and its “end_of_process” time, i.e. #Jpt job.
This arc also carries the information about the
employee who is processing the work item.

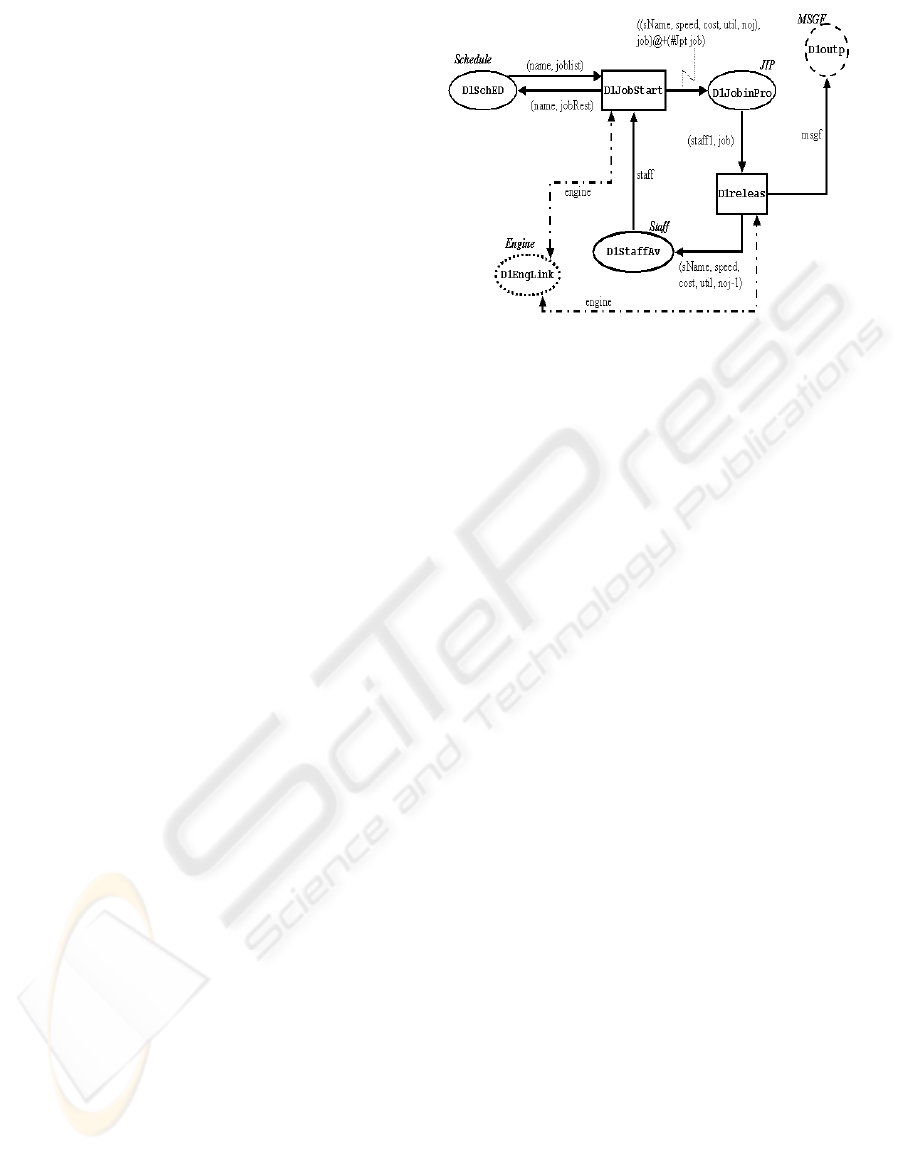

Figure 3: The job execution model
3.4 Releasing Resources
The sojourn time of the token in D1JobinPro
indicates the processing time of the corresponding
work item. The transition D1releas occurs and an
msgf token is sent to D1outp indicating that the work
item has been successfully processed. Additionally,
the employee who was performing the job is
released and the corresponding token is sent back to
The need to represent the behaviour of individual
employee as well as organisations has been
expanding as a result of the increasing use of
simulation and systems analysis. The generic model
of non-operational behaviour of human resources is
depicted in Fig. 4. Transitions D1off and D1back
model the off-work and back-to-work behaviour,
respectively. The time duration between two
successive off-works is a stochastic random variable.
The place D1NoE is a counter keeps the current
number of available employees.
The occurrence of D1off has three effects on the
rest of the model. Firstly, it takes a staff token from
D1StaffAv and decreases the counter value by one.
Secondly, it determines the next time that another
off-work happens. Thirdly, it specifies the duration
of the off-work period using the function offDur on
the output arc to D1Ret. For the employee who is
off-work his corresponding token is kept in D1Away
while D1Ret keeps the corresponding off-work
period. The occurrence of D1back takes the staff
token from D1Ret and sends the token back to

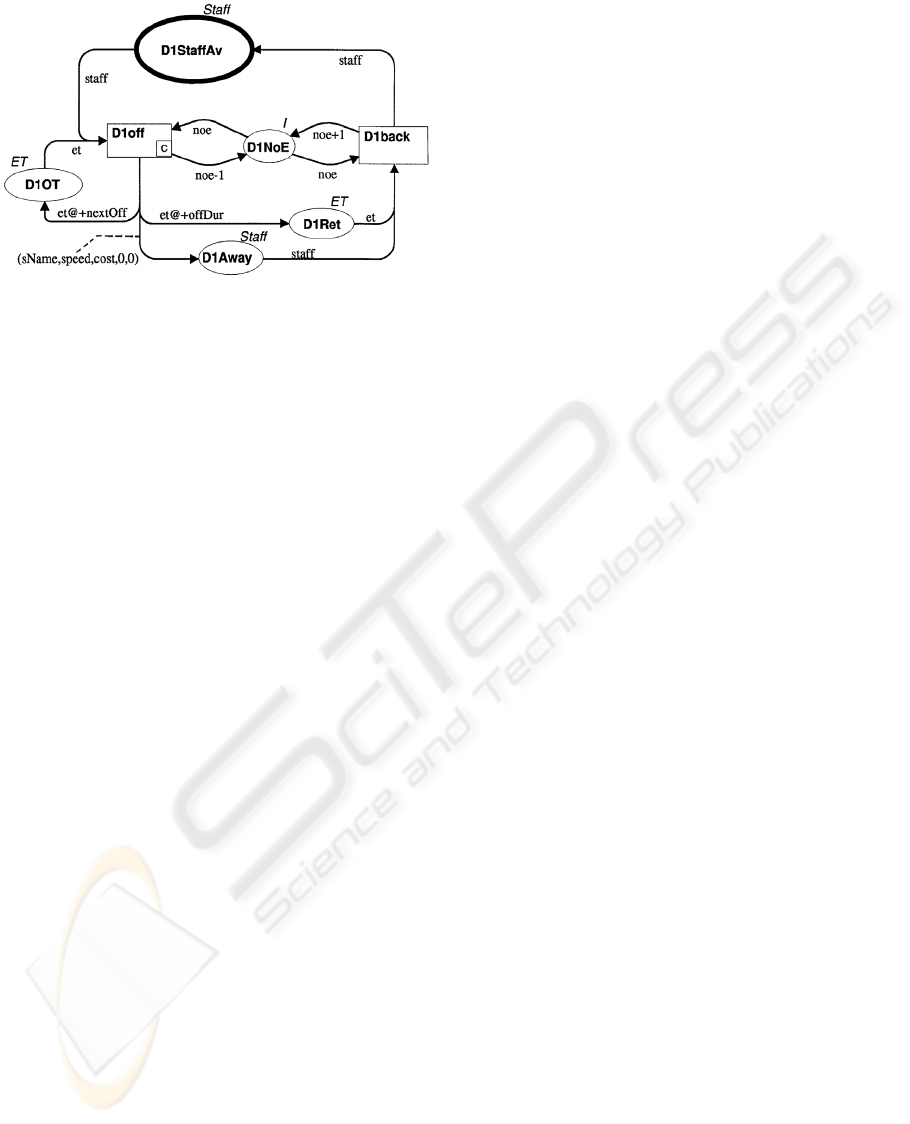

Figure 4: Model of non-operational behaviour
In this paper, we have presented a component-based
resource model. This method incorporates both the
static and the dynamic issues of human resources.
Role-based classification as it is required by most of
leading workflow management systems, as well as
the individual efficiency of employees has been
taken into account. The behaviour of human
resources has been classified into fetching work
items, processing work items, and non-operational
behaviour. Each class of behaviour has been used to
derive an appropriate CPN representation.
Using the CPN as the modelling schema, allows the
separation between the process model and the
organisation model. This separation gives much
flexibility in modelling and modification.
Additionally, CPN-based modelling characterises
the proposed method with powerful expressiveness
and capable to be linked to the process model.
In this paper we mainly focused on the designing a
workflow process regardless of the performance of
the model. To finalise a workflow process model,
the performance of the model has to be studied. The
performance of a workflow model depends on the
WfMS and the management of resources. Therefore,
it is required to integrate a workflow process model
into organisational model, in order to study the
performance of the workflow process.
T.M. Koulopoulos, The Workflow Imperative, Van
Nostrand Reinhold, New York, USA, 1995.
S. Jablonski, C. Bussler, Workflow Management:
Modeling Concepts, Architecture, and
Implementation, International Thompson Computer
Press, 1996.
C.A. Ellis, G.J. Nutt, Modelling and Enactment of
Workflow Systems, 14
International Conference on
Application and Theory of Petri Nets, Chicago,
Illinois, USA, 1993, pp 1-16.
A. Ferscha, Qualitative and Quantitative Analysis of
Business Workflows Using Generalized Stochastic
Petri Nets, in G. Chroust and A. Benezur (Eds),
Proceedings of CON’94: Workflow Management,
Paradigms and Products, pages 222-234, Oldenburg
Verlag, 1994.
W. M. P. van der Aalst, The Application of Petri Nets to
Workflow Management, The Journal of Circuits,
Systems and Computers, 8 (1) 1998, 21-66.
K.M. van Hee, H.A. Reijers, Using Formal Analysis
Techniques in Business Process Redesign, in van der
Aalst, Oberweis (Eds.), Business Process
Management, Lecture Notes in Computer Science
1806, Springer, 2000, pp 142-160.
K. Salimifard, M. Wright, MORaD-net: A Visual
Modelling Language for Business Processes, in N.
Krivulin (editor) Proceedings of International
Workshop “New Models of Business: Managerial
Aspects and Enabling Technology”, St. Petersburg,
Russia, June 28-29 2001, pp 213-222.
M. Voorhoeve, Compositional Modelling and Verification
of Workflow Processes, in van der Aalst, Oberweis
(Eds.), Business Process Management, Lecture Notes
in Computer Science 1806, Springer, 2000, pp184-
Workflow Template Site at
K. Jensen, Coloured Petri Nets, Basic Concepts, Analysis
Methods and Practical Use, Vol. 1, Springer, 1997.
Design/CPN Reference Manual for X-Windows, version
2.0, Meta Software Corporation, 1993.
L. Kleinrock, Queuing Systems, Vol. 1: Theory,
John Whily & Sons, 1975.
