DATA EXTRACTION AND TRANSFORMATION WITH FLAT
FILE FOR BUSINESS INTEGRATION
Sheng YE, Wei SUN, Zhong TIAN
IBM China Research Lab
Keywords: Flat file, XML, data extraction, data transformation, app
lication integration
Abstract: With the development of e-business, the capability of exchanging data in different formats is necessary for
integrating heterogeneous enterprise applications. Though XML is becoming the standard communication
protocol over the Internet, most enterprise applications today can only process a specific format text data,
mostly in a flat file. This paper introduces a round trip transformation technology between flat file and XML,
Flat File Adapter. This technology employs a systematic data extraction and formatting method to support
the processing of complex format flat file. By using Flat File Adapter, developer can quickly design
templates containing the data transformation rules. It can be easily updated when requirements change later.
In this paper, we introduce the system architecture, detailed components, and particular data extraction and
transformation method. Finally, a sample application in B2B e-procurement solution is also described.
1 INTRODUCTION
Data exchange is the most widely applied business-
to-business integration (B2Bi) pattern. Data
exchange B2Bi is effective because it is simple in
concept and has been in use since the days of
Electronic Data Interchange (EDI).
(Andre, 2001)
Different application has its own data management
method and in-house data format. Although
Extensible Markup Language (XML) can serve as a
universal data communication language, most
business applications can only produce and process
flat files. Flat file is defined as data with fixed
format rule and typically encoded as printable
characters. We can divide the flat file in three types
according to their format characteristics. The first
type has strict space position rule, for example, the
recognized results by scanning traditional tables or
forms. The second type has strict logic rule, for
example, inquiry results list of a database, EDI
messages, SAP IDOC. The third type aggregates
both logic and space rule, for example, the general
reports used for reading, transmitting or printing. To
enable the flat file based documents to exchange
between heterogeneous enterprises' backend
applications, data extraction and transformation
between different types of flat file and XML is in
great demand.
In prior arts, developers design specific adapter from
scrat
ch for each possible application to be integrated
with, and it’s difficult to update when application or
data change. Such a data exchange technology is
inefficient and wastes time and human resources.
Unidex XML Converter could transform flat file into
XML, and vice versa by process a same template
based on XFlat schema
(Unidex, 2003)
. XFlat schema
demands that flat file consists of records with
delimiter or with fixed length. XML Converter is
mainly designed to process flat file with delimitated
format. Additionally, Zamora devised a data
transformation method to analyze data files by using
the structural, syntactic and semantic knowledge
about the data files
(Zamora, 1990)
. This technology is
particularly appropriated to extract information from
business correspondence documents. Richard and
Shin-Ywan have respective patent on data extraction
fr
om printed form or image but not flat file
.
(Casey et al.,
1992)(Wang et al., 1998)
These existing solutions can only
handle some types of flat file, especially for data
format has strict logic rules. Flat File Adapter (FFA)
technology is a template driven dual-way engine for
data extraction and transformation between flat file
and XML. FFA features flexible data markup,
extraction and output formatting mechanism for flat
file and XML, it also features data fusion and
processing extension mechanism, which make FFA
differentiate with the existing techniques.
643
YE S., SUN W. and TIAN Z. (2004).
DATA EXTRACTION AND TRANSFORMATION WITH FLAT FILE FOR BUSINESS INTEGRATION.
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 643-646
DOI: 10.5220/0002652106430646
Copyright
c
SciTePress
2 SYSTEM ARCHITECTURE
As depicted in the figure 1, a data extraction and
transformation system comprises the data locating
component, the format mapping component, the data
extracting and the data transforming component.
The data locating component generates the location
descriptions of data units. The format mapping
component builds up the correspondence between
the data units and the target format. The data
extracting component extracts the data which
position has been determined. The data transforming
component transforms the extracted data into data in
the target data file. According to the architecture,
FFA is invented to facilitate the transformation from
flat file to XML and vice versa. FFA includes three
core function components, Flat File Reader(FFR),
Flat File Writer(FFW), and Extension Controller.
According to the predefined data extraction and
transformation rule, the FFR could transform flat file
to XML. The FFW could transform XML file to flat
file. The responsibility of Extension Controller is to
invoke external extension programs during the
transformation process to fulfill complex data
processing.
Two different types of template, FFR and FFW,
define the data extraction and transformation rules.
FFR introduces multi-dimension data extraction and
transformation technique to support complex format
flat file processing. According to the difference of
the problem addressed, FFR and FFW don’t adopt
symmetrical template.
Developer designs a FFR or FFW template mapping
source flat file to target XML file or vice verse. FFA
loads the corresponding template, reads a source flat
file or XML, performs the extraction, and transforms
to target XML or flat file according to the loaded
template definition.
3 FUNCTION COMPONENTS
3.1 Flat File Reader
FFR engine comprises data extracting unit and data
transforming unit. The FFR template design covers
data locating and data format mapping. FFR Engine
interprets a FFR template and applies to an input flat
file, extracts required data and transforms into
designated objective format XML.
Data Markup and Locating
According to the FFR template design, the data in a
flat file is identified by predefined different data
units. The “data units” are located by location
description and may include “sub data units”.
Figure 1: FFA Architecture

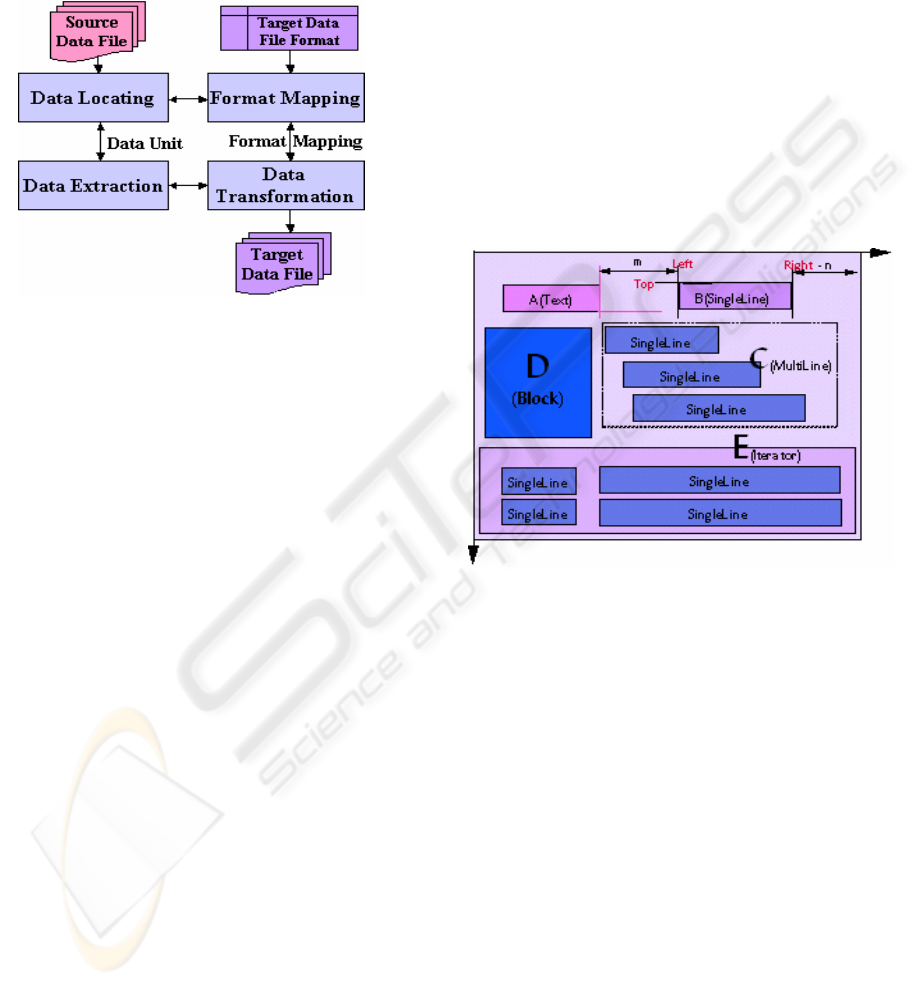

Figure 2: FFR Data Markup and Locating
As shown in figure 2, the “data units” mainly consist
of five types, that is, the “Text”, “SingleLine”,
“MultiLine”, “Block” and “Iterator”. In particular,
the “Text” represents the string capable of being
located and matched. The “SingleLine” represents
the defined data unit is arranged in a line. The
“MultiLine” represents the defined data unit is
arranged in multiple lines consisting of plurality of
single lines. The “Block” represents a rectangular
area in the file. The “Iterator” represents the data
unit arranged in such a manner that the data unit
includes several sub data units with same form
feature and iteratively presenting. For example, the
data unit E in figure 2 is defined as an “Iterator” data
unit, including the sub data units “SingleLine”
having the same type and iteratively presenting. The
“Iterator” is used to define the list data.
After the data units are defined, the position
descriptors of data units need to be determined by
the location elements, except that the “Text” data
unit is directly defined by string matching. By
design, four location elements are used to determine
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
644
the position of a data unit, that is, the “Top, Bottom,
Left, and Right”, representing the uppermost
position, lowest position, most left position, and
most right position of the data unit respectively.
Each location element has several attributes, they are:
“Base” which is another data unit as a location
reference; “From”, which is a position in the “Base”
data unit for referring; “Skip”, which represents the
offset of the location element from the “From”
position. The positive offset “+N” represents moving
N columns/rows in the down/right direction; the
negative offset “-N” represents moving N
columns/rows in the up/left direction.
The value of the attribute “Base” may be the ID of a
“data unit” having been located, such as the ID of
the data unit having the type of “Text”, or “the start
of a row (RB)”, “the end of a row (RE)”, “the start
of a column (CB)” and “the end of a column (CE)”.
Here row or column refers to the row or the column
of the “Base” currently located. The “Base” may
also be an original point in an absolute coordinate.
For example, as show in figure 2, the data unit A
may be defined as a “Text” data unit by string
matching. The location element “Left” of the data
unit B may be defined by using the attributes:
Base=”A”, From=”End”, Skip=”+m”. The data unit
B may be described by the basic attributes of the
location elements, when using XML language based
on the FFR Template XML schema, as followings:
<SingleLineSpan>
<Top BASE=“A”, from=“Start”/>
<Left BASE=“A”, from=“End”, SKIP=“+m”>
<Right BASE=“RE”, from=“Start”, SKIP=“-n”>
</SingleLineSpan>
Data Format Mapping and Transformation
According to the FFR template XML schema design,
each data unit location element has attributes
"TargetTag" and "PrintFormat", which would be
used to formulate the output document structure.
Through this approach, FFR can put extracted data
into XML file with predefined format.
Attribute “TargetTag” defines the XML tag name of
the data in the objective XML file. Attribute
“PrintFormat” determines the format of extracted
data which is output into target XML, such as
keeping or trimming space and line break.
FFR output simple structured XML. Through XML
transformation technology, the simple FFR output
can be transformed to standard conformance or any
complex structure, such as CXML, RossetaNetXML.
3.2 Flat File Writer
Data exchange is always round trip. Many legacy
systems require data conforming to some specific
format, such as SAP IDOC, CVS or form style file.
XSLT can transform XML text file. But XSLT is
very weak in describing space position.
FFW is designed for generating plain text with strict
position requirements. Table 1 illustrates different
types of transformation rules of FFW template.
Table 1: Flat File Writer Template Elements
Type Elements
Retrieve Data ForEach Variable
Output Text Row Cell
Logic Switch Loop
Structure Head PageNum Body Tail
“Retrieve” type elements can be used to retrieve data
from source XML using XPath expression. As
shown in figure 3, “Output” and “Structure” type
elements can work together to facilitate output with
specified position and generating required page
structure. This enables the user experience of design
FFW template is just like designing HTML form.

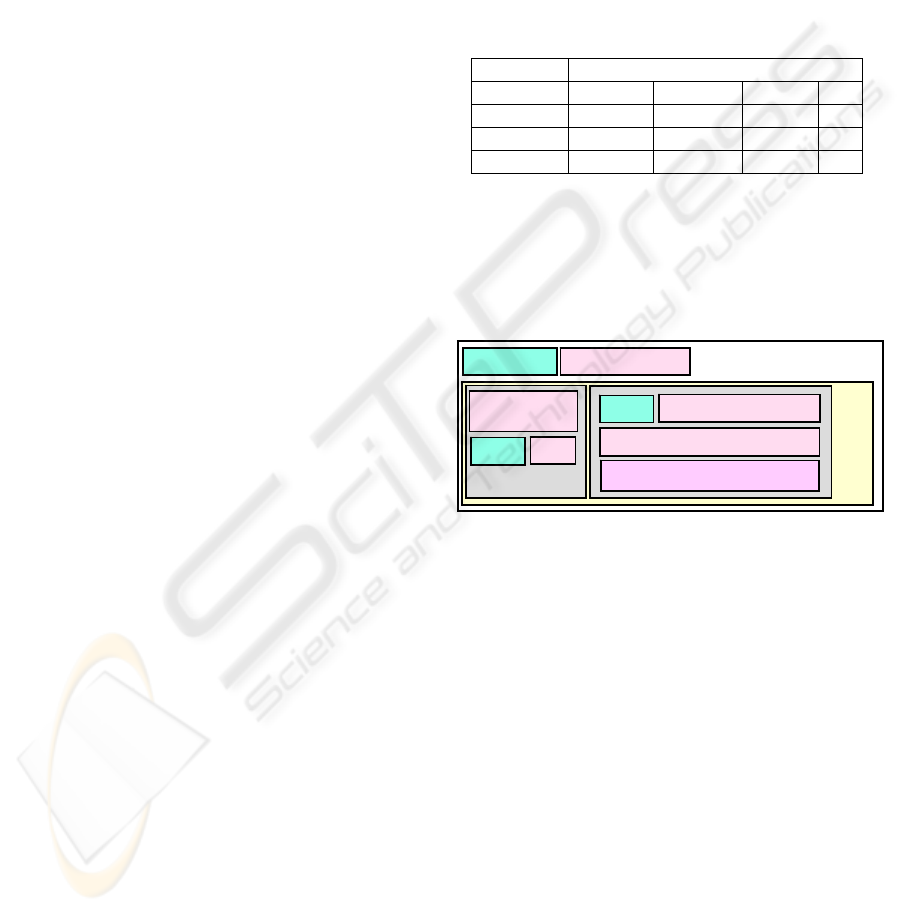

Figure 3: Flat File Writer Template Structure
“Logic” elements can describe complex rule of data
retrieving and output, it facilitates the dynamic
generation of output according to input instance data.
3.3 Extension Controller
Though FFA template is designed to cover most
transformation pattern, FFA does not include
semantic rules on data. The extension mechanism of
Flat File Adapter can help in this situation.
Extension is a piece of code developed by user. The
extension code can perform a specific complex
processing on retrieved data and return the result to
the FFA to fill into target. The FFA template defines
extension type, extension URL, and reference name,
so as to let FFA engine reach and invoke the
extension code. Extension code can be called
anywhere in the template. The input arguments of
extension usually are data extracted from source file.
Text Data
D
a
t
a
Text
Data
D
a
t
a
T
e
xt
D
a
t
a
Row
Cell
Data
Cell
DATA EXTRACTION AND TRANSFORMATION WITH FLAT FILE FOR BUSINESS INTEGRATION
645
3.4 Advantages of Flat File Adapter
Flat File Adapter can be used to bridge XML with
flat file, which is a common requirement of business
integration application. FFA technology introduced
in this paper provides the following advantages:
FFA provides a complete solution for round trip
transformation between flat file and XML.
FFA employs pattern matching plus two
dimensional position data locating method. This
facilitates the data extraction from data sources
with diverse layout format.
FFW template combines the user experience of
XSLT, XPath expression and HTML form
design together, makes it has low study barrier.
The transformation logic is separated from
engine. This makes the transformation rule easy
to design and flexible to change.
To those applications which can only process flat
file, the FFA application would be a great choice for
fulfilling XML based data exchange without need to
be upgraded to XML capable system, which would
help to protect the existing IT investment.
4 FLAT FILE ADAPTER
APPLICATION
FFA technology has been included in the Data
Fusion component of our business integration
platform, eDocXchange. It has been successfully
deployed in several production systems. One of the
sample applications is described as follow.
IBM China Procurement Center (CPC) serves as
general and product procurement brokering house
for 4 IBM manufacturing joint ventures in China.
The e-procurement (e-Proc) solution for CPC is a
lightweight solution, supports ordering and
invoicing functions for 4 JVs. Each JV has its own
ERP/MRP systems. The e-Proc system connects the
4 JVs and suppliers to CPC on the Internet.
To reduce the investment and impact to exiting
enterprise backend system, JVs prefer to export their
Purchase Orders as flat files from their ERP and
upload into e-Proc system. The FFA component on
the e-Proc system combines information extracted
from the flat files with information from other
sources (e.g. Buyer profile, trading partner profile)
to formulate a formal PO in XML/EDI format.
Suppliers can connect to the e-Proc system through
messaging systems, or directly review and process
messages from CPC on the Web with a browser. PO
Acknowledgment (PO ACK, either accept or reject)
against PO, PO Change, PO Cancel and Invoice
against PO, PO Change ban be sent back to CPC.
Each document from the ERP systems has a
different format. As most JVs were suffering major
business transformations, e-Proc system has to
survive a number of major file format changes as the
JV’s adjust their order printout or switch from one
ERP to another as part of overall IT transformation.
This actually prompted our design of the FFA. The
successful experience demonstrated that FFA is an
effective and lightweight approach and solution for
rapid and cost effective business integration.
5 SUMMARY
Data exchange is the most effective business
integration pattern. XML has been becoming the
B2B transaction protocol, however most enterprise
legacy systems can only handle specific flat file. To
enable the effective data exchange between the
heterogeneous enterprise applications of different
trading partners or even different divisions within
one enterprise, a flexible and easy solution for
transformation between flat file and XML is in great
demand. Flat file adapter has been designed to tackle
this problem. It provides the capability of round trip
transformation between XML and flat file. The
system architecture and core function components,
Flat File Reader, Flat File Writer, Extension, have
been introduced in detail. One real application
sample in B2B e-procurement solution is presented
also to demonstrate how this technology can be used
in a business solution. This technology’s advantages
have been summarized in this paper.
REFERENCES
Andre Yee, 2001. E-Business Integration pattern,
Retrieved Oct. 8, 2003, from http://www.informIT.com
Unidex Inc., Overview of XML Convert and XFlat,
Retrieved Oct. 8, 2003, from
http://www.unidex.com/
Zamora, Elena M., 1990. Computer method for automatic
extraction of commonly specified information from
business correspondence, US Patent 4,965,763
Casey, Richard G., Ferguson, David R., 1992. Computer-
implemented method for automatic extraction of data
from printed forms, US5140650
Wang, Shin-Ywan; Yagasaki, Toshiaki, 1998. Feature
extraction system for identifying text within a table
image, US5848186
ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
646
