oup Hierarchies with Constrained User Assignment

in Linux

Gail-Joon Ahn

and Seng-Phil Hong

University of North Carolina-Charlotte, Charlotte, NC, USA

LG-CNS, Seoul, Korea

Abstract. In this paper we investigate one aspect of RBAC administration con-

cerning assignment of users to roles. A user-role assignment model can also be

used for managing user-group assignment. We overview a constrained user-group

assignment model and describe its implementation in the Linux system. Rather

than set user and ﬁle rights individually for each and every user, the adminis-

trator can give rights to various groups, then place users within those groups in

Linux. Each user within a group inherits the rights associated with that group. We

describe an experiment to extend the Linux group mechanism to include group hi-

erarchies and decentralized user-group assignment can be implemented by means

of setgid programs.

1 INTRODUCTION

Role-based access control (RBAC) has received considerable attention as a promis-

ing alternative to traditional discretionary and mandatory access controls (see, for ex-

ample, [NO95,FCK95,GI96,SCFY96,JGAS01]). In RBAC permissions are associated

with roles, and users are made members of appropriate roles thereby acquiring the roles’

permissions. This greatly simpliﬁes management of permissions. Roles are created for

the various job functions in an organization and users are assigned to roles based on

their responsibilities and qualiﬁcations. Users can be easily reassigned from one role

to another. Roles can be granted new permissions as new applications and systems are

incorporated, and permissions can be revoked from roles as needed.

Sandhu and Bhamidipati [SB97] introduced the URA97 model for decentralized

administration of user-role membership (URA97 stands for user-role assignment 1997).

They simply focused on user-role assignment without consideration of the important

constraints such as separation of duty (SOD) constraints. An example of SOD policy

may be “the patent submitted to a patent authorization agency can be reviewed only by a

member of its patent review committee.” This simple role-based access control may not

be adequate for expressing many business policies. An example of such policy is “none

of the applicants of the patent is eligible to review a patent, even though the applicant

is a patent review committee member.” These policies, also known as SOD constraints

should be dealt with user-role assignment.

Constraints are an important aspect of RBAC and are often regarded as one of the

principal motivations behind RBAC. Although the importance of constraints in RBAC

Popp G. (2004).

Towards a Systematic Development of Secure Systems.

In Proceedings of the 2nd International Workshop on Security in Information Systems, pages 13-22

DOI: 10.5220/0002654400130022

 SciTePress

has been recognized for a long time, they have not received much attention. [AS00]

recently showed that role-based authorization constraints can be expressed by the spec-

iﬁcation language called RCL 2000. We use the concept of static separation of duty

(SSOD) borrowed from this work. The central contribution of this article is to describe

how we can achieve this kind of constraints during user-role assignment named con-

strained user-role assignment as an extension of URA97.

A user-role assignment model can also be used for managing user-group assignment

and therefore has applicability beyond RBAC. The notion of a role is similar to that of

a group, particularly when we focus on the issue of user-role or user-group member-

ship. For our purpose in this paper we can treat the concepts of roles and groups as

essentially identical. The difference between roles and groups was hotly debated at the

ACM Workshop [YCS95,San97]. There exists the consensus that a group is a named

collection of users (and possibly other groups). Groups serve as a convenient shorthand

notation for collections of users and that is the main motivation for introducing them.

Roles are similar to groups in that they can serve as a shorthand for collections of users,

but they go beyond groups in also serving as a shorthand for a collection of permissions.

Assigning users to roles or users to groups are therefore essentially the same function.

The rest of the paper is organized as follows. In section 2, we review the URA97

grant model. Section 3 discusses role-based authorization constraints. Section 4 de-

scribes constrained user-group assignment (CONUGA) including implementation de-

tails. Section 5 concludes the paper.

2 OVERVIEW OF URA97 MODEL

This section reviews URA97. We often use the term group as an identical notion of role.

Our description of URA97 is informal and intuitive. A formal statement of URA97 is

given in [SB97]. In this section we s imply give a quick overview of the grant model

which is dealing with granting a user membership in a group.

2.1 User-Group Grant Model

URA97 imposes restrictions on which users can be added to a group by whom. URA97

requires a hierarchy of groups (such as in Figure 1) and a hierarchy of administrative

groups (such as in Figure 2). The set of groups and administrative groups are required to

be disjoint. Senior groups are shown toward the top and junior ones toward the bottom.

Senior groups inherit permissions from junior groups. We write x > y to denote x is

senior to y with obvious extension to x ≥ y. The notion of prerequisite condition is a

key part of URA97. User-group assignment is authorized in URA97 by the can-assign

relation.

Deﬁnition 1.

A prerequisite condition is a boolean expression using the usual ∧ and

∨ operators on terms of the form x and

x where x is a regular role (i.e., x ∈ R). A

prerequisite condition is evaluated for a user u by interpreting x to be true if (∃x

≥

x)(u, x

) ∈ U A and

x to be true if (∀x

≥ x)(u, x

) 6∈ U A. For a given set of roles R

let CP R denotes all possible prerequisite conditions that can be formed using the roles

in R.

(QE2)

Quality

Engineer 2

(PE1)

Engineer 1

Production Quality

Engineer 1

(QE1)

Engineering Department (ED)

Employee (E)

Director (DIR)

Project lead 1 (PL1)

Engineer 1 (E1)

Project lead 2 (PL2)

Engineer 2 (E2)

Project 1 Project 2

Production

(PE2)

Engineer 2

Fig.1. An example group hierarchy

Project Security Officer 1 (PSO1) Project Security Officer 2 (PSO2)

Department Security Officer (DSO)

Senior Security Officer (SSO)

Fig.2. An example administrative group hierarchy

Deﬁnition 2. The URA97 model controls user-role assignment by means of the relation

can-assign ⊆ AR × CP R × 2

The meaning of can-assign(x, y, {a, b, c}) is that a member of the administrative

role x (or a member of an administrative role that is senior to x) can assign a user

whose current membership, or non-membership, in regular roles satisﬁes the prerequi-

site condition y to be a member of regular roles a, b or c.

2.1.1 Range Notation

URA97 also deﬁnes can-assign by identifying a range within the role hierarchy by

means of the familiar closed and open interval notation.

Deﬁnition 3.

Role sets are speciﬁed in the URA97 model by the notation below

[x, y] = {r ∈ R | x ≥ r ∧ r ≥ y}

(x, y] = {r ∈ R | x > r ∧ r ≥ y}

[x, y) = {r ∈ R | x ≥ r ∧ r > y}

(x, y) = {r ∈ R | x > r ∧ r > y}

3 ROLE-BASED AUTHORIZATION CONSTRAINTS

Constraints are an important aspect of access control and are a powerful mechanism

for laying out higher level organizational policy. Consequently the speciﬁcation of con-

straints needs to be considered. So far this issue has not received enough attention in the

area of role-based access control. [AS00] identiﬁed the major classes of constraints in

RBAC such as Prohibition Constraints and Obligation Constraints, including Cardinal-

ity Constraints. We brieﬂy overview these identiﬁed classes of constraints in role-based

systems.

3.1 Prohibition Constraints

In organizations, we need to prevent a user from doing (or being) something that he is

not allowed to do (or be) based on organizational policy. Prohibition Constraints are

constraints that forbid the RBAC component from doing (or being) something which

it is not allowed to do (or be). A common example of prohibition constraints is SOD.

SOD is a fundamental technique for preventing fraud and errors, known and practiced

long before the existence of computers. We can consider the following statement as

an example of this type of constraint: if a user is assigned to purchasing manager, he

cannot be assigned to accounts payable manager. This statement requires that the same

individual cannot be assigned to both roles which are declared mutually exclusive.

3.2 Obligation Constraints

We also need to force a user to do (or be) something that he is allowed to do (or be)

based on organizational policy. We derived another class of constraints from this mo-

tivation. Obligation Constraints are constraints that force the RBAC component to do

(or be) something. The motivation of this constraints is from the simulation of lattice-

based access control in RBAC. There exists a constraint which requires that certain

roles should be simultaneously active in the same session. There is another constraint

which requires a user to have certain combinations of roles in user-role assignment. We

classify this kind of constraints as obligation constraints.

3.3 Cardinality Constraints

Another constraint is a numerical limitation for the number of users, roles, and sessions.

For example, only one person can ﬁll the role of department chair; similarly, the number

of roles (sessions) an individual user can belong to (activate) could be constrained.

4 CASE STUDY: CONSTRAINTS AND USER-GROUP

ASSIGNMENT

Most of role-based constraints work have focused on separation of duty constraints

which is a foundational principle in computer security. As a security principle, SOD

is used to formulate multi-user control policies, requiring that two or more different

users be responsible for the completion of a transaction or set of related transactions.

The purpose of this principle is to minimize fraud by spreading the responsibility and

authority for an action or task over multiple users, thereby raising the risk involved in

committing a fraudulent act by requiring the involvement of more than one individual.

A frequently used example is the process of preparing and approving purchase orders.

If a single individual prepares and approves purchase orders, it is easy and tempting to

prepare and approve a false order and pocket the money. If different users must prepare

and approve orders, then committing fraud requires a conspiracy of at least two, which

signiﬁcantly raises the risk of disclosure and capture.

Although separation of duty is easy to motivate and understand intuitively, so far

there is no formal basis for expressing this principle in computer security systems.

Several deﬁnitions of SOD have been given in the literature. We have the following

deﬁnition for interpreting SOD in role-based environments [AK01].

Role-Based separation of duty ensures SOD requirements in role-based sys-

tems by controlling membership in, activation of, and use of roles as well as

permission assignment.

Separation of duty constraints can be determined by the assignment of individuals to

roles at user-assignment time. Consider the case of initiating and authorizing payments.

The separation of duty constraints could require that no individual who can serve as

payment initiator could also serve as payment authorizer. This could be implemented

by ensuring that no one who can perform the initiator role could also be assigned to

the authorizer role. This static separation of duty can apply to the user-role assignment.

Therefore, we adapt the grant model in URA97. User u can be explicitly assigned to

role r

where (u,r

) ∈ UA. Also user u can be implicitly assigned to role r

where

(∃r

¹ r

)[(u, r

) ∈ U A]. Let CR be a set of roles which are needed to be in static

SOD. CR is said to be a conﬂicting role set. The static SOD requirement is that the

same user cannot be assigned explicitly or implicitly to more than one role in CR.

We can enforce static SOD as we check each assignment task with a given CR. We

have AT-SET (assignment time set) table which includes SOD sets used to enforce SOD

requirements at assignment time. The example of AT-SET table with CR is described

below. This table tells us that role pay

initiator and pay

authorizer are conﬂicting

each other so a user cannot be assigned to both roles.

SET-NAME

ELEMENT

{ pay

initiator, pay

authorizer }

Whenever System Security Ofﬁcer (SSO) does assignment tasks, each assignment

task should be checked with AT-SET table and satisfy the constraints in the table. Fig-

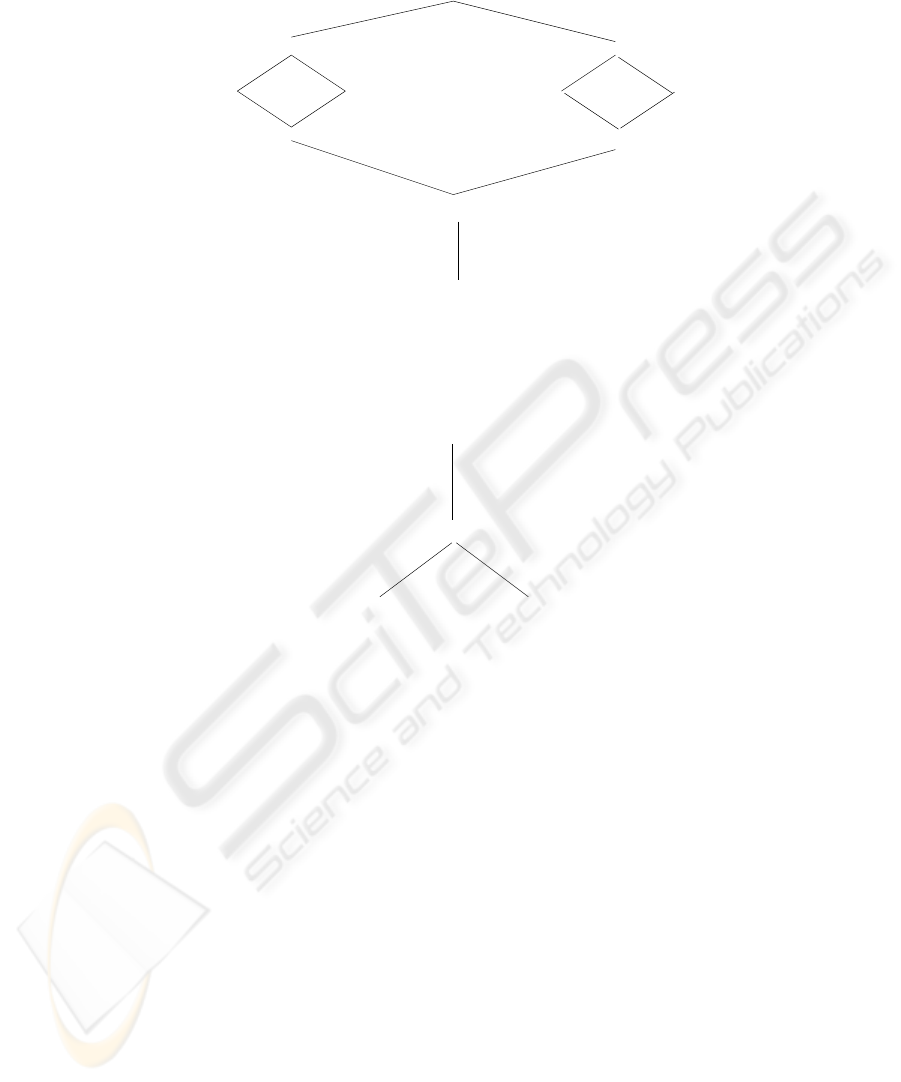

ure 3 describes an algorithm which achieves desired behavior of CONUGA. There are

Grant Algorithm

Let invoker be an initiator of user-role assignment and let assign

DB have three attributes such

as assign

DB.admin, assign

DB.cond and assign

DB.range to construct a table as shown in

Table 1.

invoker

role

set ← Membership(invoker)

target

role ← role to be assigned

user ← user to which target

role is assigned

assign

DB ← can-assign relation table

set ← AT

SET table

grant

Flag ← false

assign

role

set = φ

While (assign

DB 6= EOF)

if invoker

role

set exists in assign

DB.admin then

if target

role exists in assign

DB.range then

user

role

set ← Membership (user);

if user

role

set exists in assign

DB.cond then

grant

Flag = true;

return;

endif

End

if grant

Flag = true then

assign

role

set ← JuniorList (target

role);

if assign

role

set ∩ CR

set = φ then

do the assignment of role in assign

role

set;

else

exit;

endif

Procedure Membership (user)

Take all assigned roles to a user

Procedure JuniorList (role)

Take all junior roles to a speciﬁed role in role-hierarchies

Fig.3. Grant Algorithm in CONUGA

two procedures called Membership and JuniorList. Membership procedure

allows us to have all assigned roles to a user and JuniorList procedure returns all

junior roles to a speciﬁed role by walking down the hierarchy. This grant algorithm

checks can-assign table and AT-SET table to enforce constrained user assignment.

4.1 Implementation Details

Every account in Linux contains a group membership list indicating which groups

the account belongs to. Users belonging to a group are explicitly enumerated in ei-

ther /etc/passwd(for the primary group) or /etc/group (for secondary groups).

Many commercial database management systems, such as Informix, Oracle and Sybase,

provide facilities for hierarchical groups (or roles). Commercial operating systems,

however, provide limited facilities at best for this purpose.

To maintain the group hierarchy we use the ﬁle /etc/grouphr to store the chil-

dren and parents of each group. The group hierarchy of Figure 1 is represented in

/etc/grouphr as shown in Table 1. The ﬁrst column gives the group name, the

second column gives the (immediate) parent groups of that group, and the third column

gives the (immediate) children. The null symbol “−” means that the group has no par-

ent or child as the case may be. Using /etc/grouphr, we can ﬁnd all seniors and

juniors for a group by respectively chasing the parents and children.

We say a user is an explicit member of a group if the user is explicitly designated

as a member of the group. A user is an implicit member of a group if the user is an ex-

plicit member of some senior group. To simulate a group hierarchy we use information

about explicit and implicit membership in /etc/group. If Alice belongs explicitly or

implicitly to a group she will be added to that group’s member list in /etc/group.

However, /etc/group is not sufﬁcient to distinguish the case where Alice is both an

explicit and implicit member of some group from the case where she is only an implicit

member of the group. For this purpose we introduce another ﬁle /etc/explicit

that keeps information about explicit membership only.

In order to enforce separation of duty constraints, we maintains /etc/at

set

which includes conﬂicting roles. This table also can contain conﬂicting users and per-

missions. Table 2 illustrates how we can accommodate such sets to support constrained

user assignments.

There are two issues that need to be addressed in decentralized management of

group membership. Firstly we would like to control the groups that an administrative

group has authority over. Recall ﬁgures 1 and 2 which respectively show the regular and

administrative groups of our example. We would like to say, for example, that the PSO1

administrative group controls membership in project 1 groups, i.e., E1, PE1, QE1 and

PL1. Secondly, it is also important to control which users are eligible for membership

in these groups.

URA97 addresses these two issues respectively by means of a group range and a

prerequisite group or more generally a prerequisite condition. URA97 has a can

assign

relation which we store in the ﬁle /etc/can

assign. We put a colon between the

columns to indicate the boundary. Table 3 illustrates the general case of /etc/can

assign

with prerequisite conditions. Let us consider the PSO1 rows. The ﬁrst row authorizes

PSO1 to assign users with prerequisite group ED into E1. The second one authorizes

Table 1. The example group hierarchy of Figure 1

Group Name

Parent Group(s)

Child Group(s)

DIR

PL1, PL2

PL1

DIR

PE1, QE1

PL2

DIR

PE2, QE2

PE1

PL1

QE1

PL1

PE2

PL2

QE2

PL2

PE1, QE1

PE2, QE2

E1, E2

Table 2. The example AT-SET table: /etc/at

set

Set Name

Elements

conf-roles-1

QE1, QE2

conf-roles-2

PE1, PE2

conf-roles-3

PL1, PL2

Table 3. Example of /etc/can

assignwith Prerequisite Conditions

Administrative Group Prerequisite Condition Group Range

PSO1: ED : [E1,E1]:

PSO1: ED ∧

QE1: [PE1,PE1]:

PSO1: ED ∧

PE1: [QE1,QE1]:

PSO1: PE1 ∧ QE1: [PL1,PL1]:

PSO2: ED: [E2,E2]:

PSO2: ED ∧

QE2: [PE2,PE2]:

PSO2: ED ∧

PE2: [QE2,QE2]:

PSO2: PE2 ∧ QE2: [PL2,PL2]:

DSO: ED: (ED,DIR):

SSO: E: [ED,ED]:

SSO: ED: (ED,DIR]:

PSO1 to assign users satisfying the prerequisite condition that they are members of ED

but not members of QE1 to PE1. Taken together the second and third rows authorize

PSO1 to put a user who is a member of ED into one but not both of PE1 and QE1.

The fourth row authorizes PSO1 to put a user who is a member of both PE1 and QE1

into PL1. Note that, a user could have become a member of both PE1 and QE1 only

by actions of a more powerful administrator than PSO1. The rest of table 3 is similarly

interpreted.

Table 4. The permission of reference ﬁles

PERMISSION OWNER Setgid GROUP FILE NAME

U:rw- G:rws W:--x root YES rbac assign

U:rw- G:rws W:--x root YES rbac weak

revoke

U:rw- G:rws W:--x root YES rbac strong

revoke

U:rw- G:rw- W:r-- root NO rbac /etc/group

U:rw- G:rw- W:r-- root NO rbac /etc/explicit

U:rw- G:rw- W:r-- root NO rbac /etc/can

assign

U:rw- G:rw- W:r-- root NO rbac /etc/can

revoke

U:rw- G:rw- W:r-- root NO rbac /etc/grouphr

U:rw- G:rw- W:r-- root NO rbac /etc/at

set

Assignment of a user to a group in URA97 means explicit assignment. Implicit

assignment to junior groups happens as a consequence and side-effect of explicit as-

signment. In other words /etc/can

assign applies only to explicit membership.

We use the setgid feature of Linux to enforce this behavior. The setgid (set group

ID or SGID) ﬁle access modes provide a way to grant users access to which they are

not otherwise entitled on a temporary, command level basis via a speciﬁed program.

When a ﬁle with SGID access is executed, the effective group ID of the process is

changed to the group of the ﬁle, acquiring that group’s access rights for duration of the

program contained in this ﬁle. Using setgid a user who is working as an administra-

tive group can read and write the reference ﬁles: /etc/group, /etc/explicit,

/etc/grouphr, /etc/can

assign and /etc/can

revoke. Thereby we can

enforce desired behavior of URA97 with respect to different administrative groups.

To implement CONUGA in Linux we use several reference ﬁles introduced in the

previous sections and set their permission bits as shown in table 4. The three procedures

assign, weak

revoke and strong

revoke are setgid to the special group rbac deﬁned for

this purpose. These procedures can read and write the ﬁve reference ﬁles. We previously

described the structure of ﬁles /etc/group, /etc/explicit, /etc/grouphr,

/etc/at

set, /etc/can

assign and /etc/can

revoke. For simplicity all

these ﬁles in our implementation are owned by root. We assume that the rbac group

has no members.

In our implementation a user invokes the procedure call to grant or revoke a group

from or to another user. The parameters specify which user is to be assigned to tar-

get

group, or to be weakly or strongly revoked from target

group. This implementation

is convenient for administrative groups since they only need to deﬁne the group hier-

archy and the relations /etc/can

assign and /etc/can

revoke. These proce-

dures are called at the Linux command line prompt as follows.

[usage] assign username target

group

[usage] weak

revoke username target

group

[usage] strong

revoke username target

group

5 CONCLUSION

In this paper we have described how to extend the Linux group mechanism supporting

constrained user group assignment model that is useful in managing group-based access

control. When a user is assigned to a group the system checks constraints including

prerequisite conditions and conﬂicting role set, and automatically adds the user to all

junior groups to the group. We have extended the URA97 model and implemented it in

Linux by means of setgid programs. Our result indicates that (static) separation of duty

constraints can be determined by the assignment of individuals to groups at user-group

assignment time and this behavior can be achieved by accommodating sophisticated

access control model to some extent.

References

[AK01]

Gail-Joon Ahn and Kwangjo Kim. CONUGA: Constrained User Group Assignment.

Journal of Network and Computer Applications, 24(2), April 2001.

[AS00]

Gail-Joon Ahn and Ravi Sandhu. Role-based authorization constraints speciﬁcation.

ACM Transactions on Information and System Security, 3(4):207–226, November

2000.

[FCK95]

David Ferraiolo, Janet Cugini, and Richard Kuhn. Role-based access control (RBAC):

Features and motivations. In Proceedings of 11th Annual Computer Security Applica-

tion Conference, pages 241–48, New Orleans, LA, December 11-15 1995.

[GI96]

Luigi Guiri and Pietro Iglio. A formal model for role-based access control with con-

straints. In Proceedings of IEEE Computer Security Foundations Workshop 9, pages

136–145, Kenmare, Ireland, June 1996.

[JGAS01]

James Joshi, Arif Ghafoor, Walid G. Aref, and Eugene H. Spafford. Digital govern-

ment security infrastructure design challenges. IEEE Computer, 34(2):66–72, Febru-

ary 2001.

[NO95]

Matunda Nyanchama and Sylvia Osborn. Access rights administration in role-based

security systems. In J. Biskup, M. Morgernstern, and C. Landwehr, editors, Database

Security VIII: Status and Prospects. North-Holland, 1995.

[San97]

Ravi Sandhu. Roles versus groups. In Proceedings of the 1st ACM Workshop on

Role-Based Access Control. ACM, 1997.

[SB97] Ravi Sandhu and Venkata Bhamidipati. The URA97 model for role-based administra-

tion of user-role assignment. In T. Y. Lin and Xiaolei Qian, editors, Database Security

XI: Status and Prospects. North-Holland, 1997.

[SCFY96]

Ravi S. Sandhu, Edward J. Coyne, Hal L. Feinstein, and Charles E. Youman. Role-

based access control models. IEEE Computer, 29(2):38–47, February 1996.

[YCS95] Charles Youman, Ed Coyne, and Ravi Sandhu, editors. Proceedings of the 1st ACM

Workshop on Role-Based Access Control, Nov 31-Dec. 1, 1995. ACM, 1995.
