GRIDBLOCKS – WEB PORTAL AND CLIENT FOR DISTRIBUTED

COMPUTING

Juho Karppinen, Marko Niinim

aki, John White

Helsinki Institute of Physics

P.O. Box 64, 00014 University of Helsinki, Finland

Tapio Niemi

University of Tampere

Kalevantie 4, 33014 Finland

Keywords:

Grid, distributed computing

Abstract:

GridBlocks is an architecture and a reference implementation of a distributed computing platform for het-

erogenous computer clusters. It can be used when there is a need to analyze vast amounts of data that is stored

in a distributed fashion. The computing and storage resources can be used both by a Web interface or by a

standalone Java client. Grid Security Infrastructure (GSI) is used for secure authentication and communica-

tion.

1 INTRODUCTION

Foster and Kesselman describe the Grid concept as

follows: “The Grid is a software infrastructure that

enables ﬂexible, secure, coordinated resource shar-

ing among dynamic collections of individuals, insti-

tutions and resources.” (Foster et al., 2001)

The driving force behind the Grid is to use and

share computing resources and to make it as ubiqui-

tous as the World Wide Web is currently. However,

a problem with current Grid implementations (e.g.

Globus, (Foster and Kesselman, 1997)) is that they

are difﬁcult to install and maintain. This is mostly

due to their large scope and generality, which implies

complexity. Therefore, using the Grid is still far away

from “surﬁng” on the Web.

Our partial solution is the GridBlocks platform,

which consists of a web server and a Java client. It

is very easy to install and use because of its architec-

ture that conforms to Java standards. Java also en-

sures that the same program code can be executed

in different computer platforms. The web server cur-

rently used by GridBlocks is the Tomcat (The Apache

Project, 2002) servlet container. The installation of

GridBlocks does not need any special privileges and

an ordinary user can deploy it and the Tomcat server

in their own home directory. The GridBlocks server

needs to access only one TCP port that can be conﬁg-

ured by the user to reduce security problems.

The most important advantages of GridBlocks are

the following:

• Being purely Java-based, it supports truly heteroge-

neous environments (Solaris, Linux, Windows, ...).

• Using GSI (Foster and Kesselman, 1997) in user

authentication, it increases security and enables in-

tercommunication with other certiﬁcate based sys-

tems.

• Gains computing power by distributing the jobs to

multiple computers.

• Saves bandwidth because of no need to transfer

large amounts of data.

• Enables easy and user friendly access to Grid ser-

vices.

• Utilizes Web interface and therefore can be used

without any installations, too.

In this paper, we discuss the overall architecture in

Section 2. In Section 3 we present the functionality

of the server and in Section 4 the functionality of the

Java agent. Section 5 discusses applications, and Sec-

tion 6 a summary and items for future research.

2 GRIDBLOCKS

ARCHITECTURE

GridBlocks is a centralized platform that consists of

server(s), client(s) and analysis (computing) nodes.

The basic architecture of the system is shown in Fig-

ure 1. The GridBlocks server serves the requests of

Karppinen J., Niinimäki M., White J. and Niemi T. (2004).

GRIDBLOCKS – WEB PORTAL AND CLIENT FOR DISTRIBUTED COMPUTING.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 36-40

DOI: 10.5220/0002654600360040

 SciTePress

Database

Computer with

Globus gatekeeper

GB−Server

description

Job

transfer

Data

−Provides a web interface

GridBlocks Server

Java Agents or web GUI

−Executes and delegates jobs sent by

Job

delegation

Computing and storage resources

Resources accessible with Grid security

GB−Server

Job delegation

Results

GB−Agent GB−Agent GB−Agent

Java Agent Clients

Send jobs, receive and visualize the results.

Runs on PC, mobile phone and PDA

Figure 1: The overall system architecture.

clients and dispatches jobs to the correct computing

node using the information stored inside the lookup

server. The analysis servers are just the computing

power and data storage for the jobs and they can be

easily multiplied. The client computer is an access

point to the GridBlocks network and it does not per-

form any computation-intensive tasks. This architec-

ture allows the GridBlocks access point to be a web

client or other thin clients such as a PDA or a mobile

phone.

3 THE GRIDBLOCKS SERVER

The GridBlocks server fulﬁlls following tasks:

1. It provides the GridBlocks users an access point to

Grid;

2. It hosts the dispatcher component of GridBlocks;

3. It acts as computing node for agents.

The Grid software infrastructure is a middleware

package that, ideally, functions in a heterogeneous

computing environment. There are multiple middle-

ware packages, among them Globus (Foster and

Kesselman, 1997), Legion (Grimshaw and Wulf,

1997) and GridEngine (Grid Engine, 2002). These

packages provide services such as resource manage-

ment, authentication and authorization of users, se-

cure (encrypted) ﬁle transfers and remote program ex-

ecution. In the Globus middleware package: comput-

ing resources are managed by the Globus Resource

Allocation Manager (GRAM) and Monitoring and

Discovery Service (MDS) (Foster and Kesselman,

1997); the authentication and authorization of users

are based on X.509 certiﬁcates (ITU X.509, 2000)

and public key infrastructure; and for ﬁle transfer

and remote program execution the Globus package is

Global Access to Secondary Storage (GASS) (Foster

and Kesselman, 1997).

The Grid Portal Development Kit (Novotny, 2002)

(GPDK) provides a web interface to Grid services.

The GPDK combines proven web technologies and

the Commodity Globus (Cog) (The Globus project,

2002) Java API. The GridBlocks website relies

mainly on the GPDK API based on CoG, as follows:

• CoG and GPDK classes communicate with

GRAM, MDS and GASS services and enable user

authentication and authorization, job submission

and ﬁle transfer;

• Java Servlet Pages (JSP) call the COG and GPDK

classes, provide them with user input and show

their output in HTML form;

• A Java Servlet Container, in this case a Tom-

cat (The Apache Project, 2002) web server, runs

the JSPs.

A demonstration of the default user interface of the

server is shown in Figure 2.

In addition to hosting the user interface, the server

is an access point to agents that work on a Grid. The

server runs a dispatcher by which the Java Agents can

submit jobs to other computing nodes and recover the

results. The computing nodes run the same software

as the GridBlocks servers which means that multi-

level distributed chains can be performed. The Grid-

Blocks agent is explained in Section 4.

GRIDBLOCKS - WEB PORTAL AND CLIENT FOR DISTRIBUTED COMPUTING

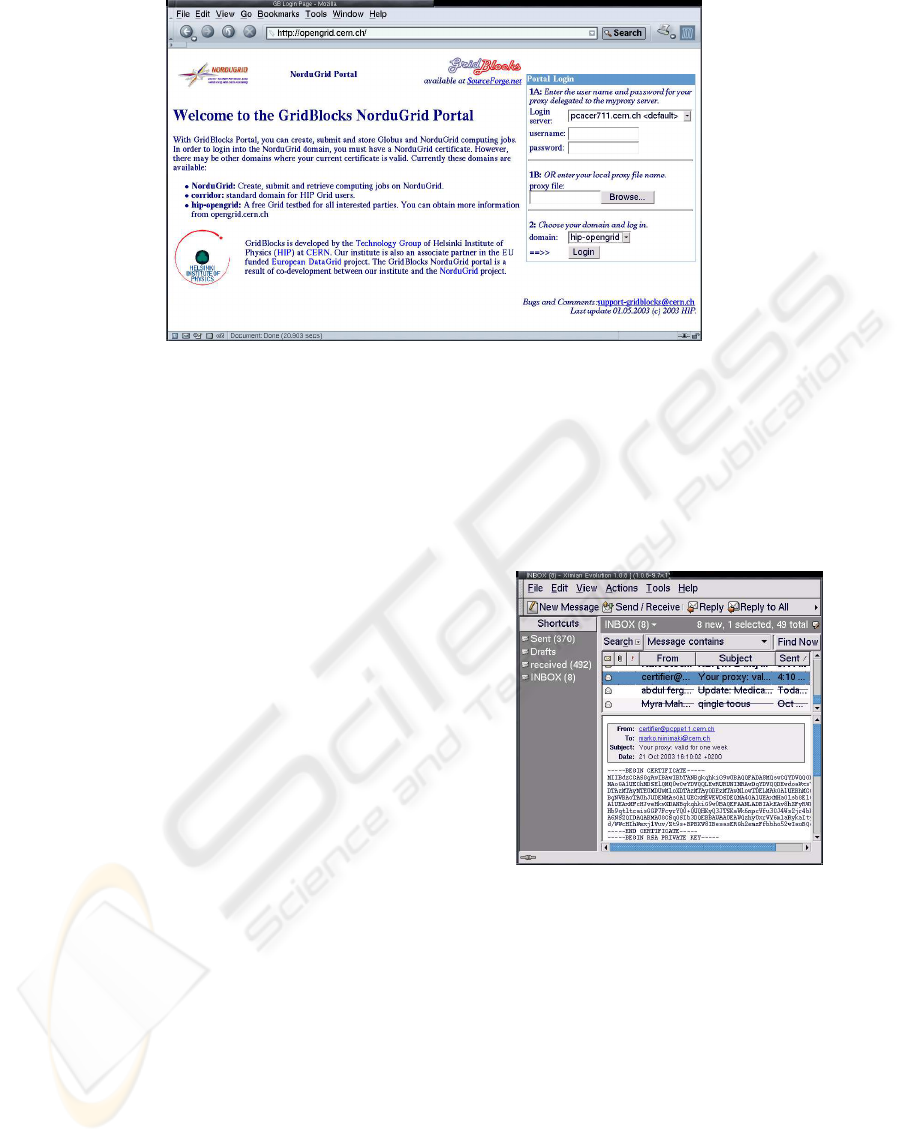

Figure 2: GridBlocks server (Opengrid.cern.ch demo site).

3.1 Authorization and

authentication

A Grid user is identiﬁed by a certiﬁcate and private

key, these may be combined to form a “proxy” certiﬁ-

cate that is valid for a limited amount of time. Proxy

certiﬁcates are widely used in the Grid context as they

can be easily created and presented to Grid comput-

ing resources as an identity. The prerequisite for a

proxy certiﬁcate is that the user has an identity certiﬁ-

cate that has been signed by a certiﬁcation authority.

Moreover, he needs to have a proxy generation pro-

gram that combines the user’s identity certiﬁcate and

password (pass phrase) into a proxy certiﬁcate.

In GPDK, two ways of authenticating a user to

the portal have been implemented; logging in using

an existing proxy certiﬁcate ﬁle and “proxy hosting”,

where a user’s proxy certiﬁcate is retrieved from a

server. For newcomers, the amount of work needed

to install the programs and getting an identity certiﬁ-

cate can be overwhelming. With GridBlocks, we use

a different approach, as follows:

• A user can order a personal proxy ﬁle by email,

simply by submitting his email address with a web

form;

• The “certiﬁer” program that processes the

web form request has the capability to cre-

ate new personal identiﬁcation certiﬁcates and

sign them (our certiﬁcation authority ID is

/C=CH/O=HIP/OU=TECH/CN=112 Test

CA);

• The certiﬁer creates and signs

a certiﬁcate for a “user”

/C=CH/O=HIP/OU=TECH/CN=hillaX,

where ‘X’ is an iterator, but this certiﬁcate is not

sent to the user;

• Instead a proxy ﬁle, valid for 7 days, is generated

using the “user’s” certiﬁcate. This proxy ﬁle is then

sent to the user by email, as shown in Figure 3.

Figure 3: Obtaining a proxy certiﬁcate by mail.

Using this proxy ﬁle, an GridBlocks user can

log into the Grid portal and access the ba-

sic services of some (limited) resources (com-

puters). These computers are conﬁgured to ac-

cept Grid requests where the user certiﬁcate is

/C=CH/O=HIP/OU=TECH/CN=hillaX and the

certiﬁcate has been signed by an authority named

/C=CH/O=HIP/OU=TECH/CN=112 Test CA.

An GridBlocks user can use the Globus MDS to

view the attributes (CPU, RAM disk space etc.) of

GridBlocks computers. They can also use the Globus

GRAM and GASS functions to transfer ﬁles between,

and run compiled jobs on, GridBlocks computers.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

3.2 Shared resources

The GridBlocks website accesses a Globus MDS

server that publishes the attributes of GridBlocks re-

sources. This MDS server can also accept any pub-

licly available service directory where any organiza-

tion can promote their resources. If an GridBlocks

user has a Globus installation on their computer, they

can add their computing resources to GridBlocks by

publishing attributes to the MDS server. This pro-

cedure is detailed on the GridBlocks website and, in

short, includes:

• Conﬁguring the user’s MDS daemon (grid-info-

resource-register) report the computer to the Grid-

BlocksMDS server;

• Making the computer’s Globus installation accept

/C=CH/O=HIP/OU=TECH/CN=112 Test

CA as a certiﬁcate authority;

• Modifying the local Globus authorization ﬁle

(grid-mapﬁle) to map proxy certiﬁcates with

subject /C=CH/O=HIP/OU=TECH/CN=hillaX to

some user account.

4 THE GRIDBLOCKS AGENT

Here, we consider that the user has received or gener-

ated a personal proxy certiﬁcate, and starts their Grid-

Blocks Agent (GB Agent) software, as in Figure 4.

After that, the work ﬂow proceeds as follows:

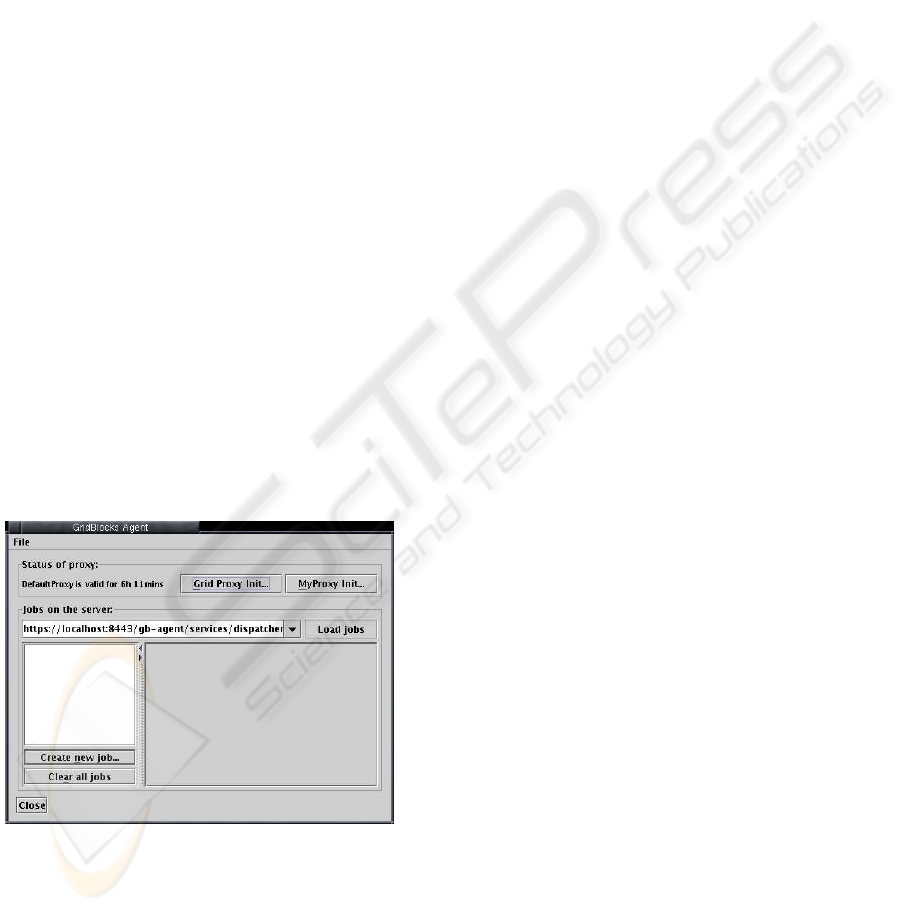

Figure 4: GridBlocks Agent.

1. The client sends a job request to the “primary”

server with a JAR package of all analysis code.

The client can disconnect right after this step, or

stay connected and receive progress reports from

the server.

2. The request can deﬁne which computing servers

will be used. If this is not the case, primary server

can contact a lookup server, locate the data, and dis-

patch the job to the target computers that perform

actual computation.

3. The job is executed on the remote locations, and

status messages are regularly sent to the primary

server. When the analysis is completed, the results

are sent back to the primary server where they are

combined and stored.

4. The client can fetch the results from the primary

server at any time.

The users code, the “agents”, are divided into three

parts. The ﬁrst part is for actual execution which is

done on remote servers. The second part is used for

combining the results from multiple servers. This can

be seen also as post-processing of results before they

are sent back to the user. The last part of the agent is

for presenting the results to the user in a visual format,

if necessary. This means that results are not limited to

certain formats and the visualization code can contain

some intelligent features, like sending new jobs auto-

matically based on the users input.

Simple Object Access Protocol (SOAP) (Simple

Object Access Protocol, 2002) is used as a transport

media for consistency reasons. The communication

protocol does not use any speciﬁc standard, such as

the Foundation for Intelligent Agents (FIPA, 2003)

standards for communication. This fact has been rec-

ognized and the possibility of adhering to a such a

standard in the future is being investigated. The user

authentication and all communication between clients

and servers are secured by the Grid Security Infras-

tructure (GSI). This is achieved by using Java CoG

Kit (The Globus project, 2002) and European Data-

Grid Java Security components (Security Coordina-

tion Group, 2003). Thus, GB Agent is fully compati-

ble with existing Globus security platforms.

5 APPLICATIONS

Originally, GridBlocks was designed for the analy-

sis of high energy physics data, as in Figure 5 (Ni-

inimaki et al., 2003). Recently the software has

been generalised for generic data analysis and dis-

tributed computing applications. We have, for exam-

ple, implemented the distributed aggregation calcula-

tion for OLAP (On-Line Analytical Processing) using

GB Agent and Spitﬁre (a web front end for relational

databases (Hoschek and McCance, 2001)). We have

also tested the use of neural network-based distributed

optimization applications.

Implementing new applications is very easy be-

cause of the mobile Java code. The user must only

GRIDBLOCKS - WEB PORTAL AND CLIENT FOR DISTRIBUTED COMPUTING

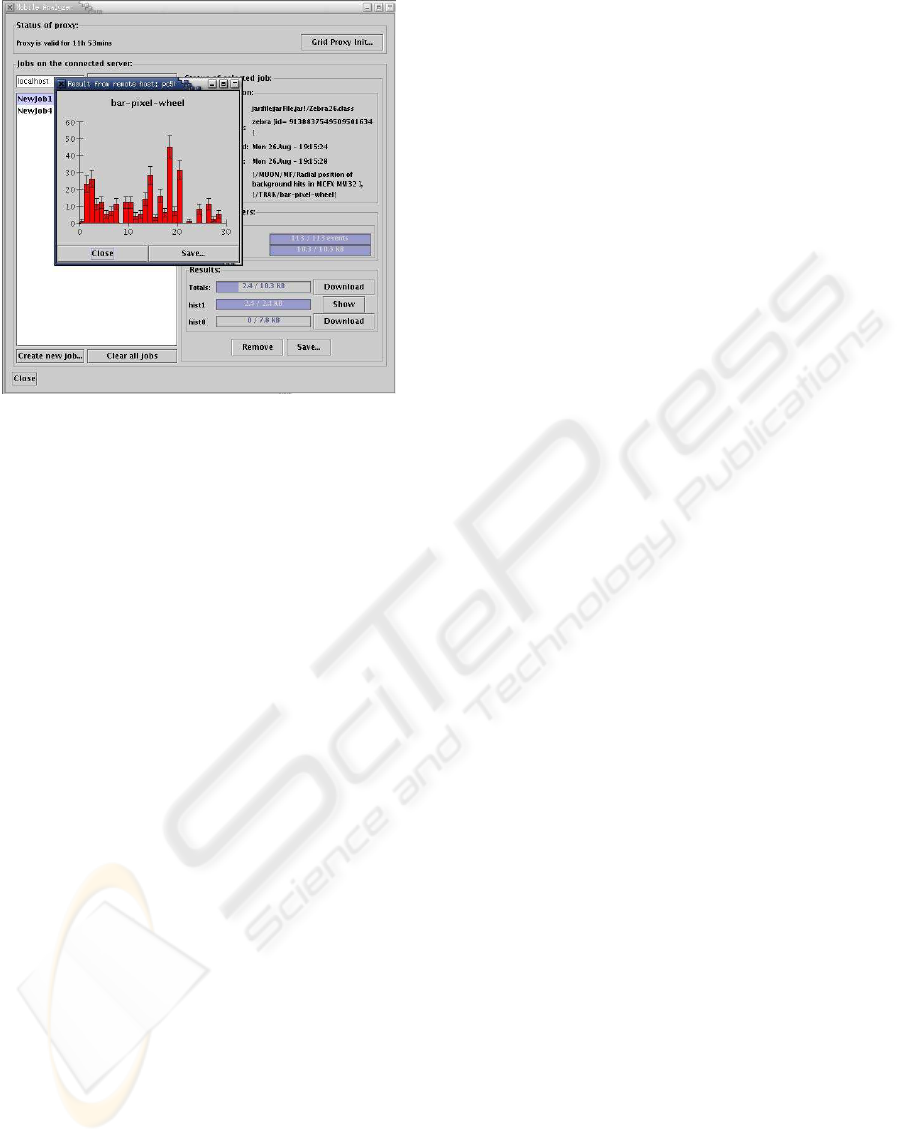

Figure 5: GridBlocks Agent visualising the results of

physics simulations.

write the required functionalities inside the class im-

plementing the remote job interface and send it within

the job request. There is no need to update or install

anything on the server side.

With only couple of lines of code, it is possible, for

example, to use GB Agent as a remote shell console.

The user’s code simply executes given shell com-

mands using Java’s Runtime class and returns the tex-

tual output back to the user. This can be repeated au-

tomatically for multiple hosts and the job request can

even give separate parameters for every host. Simi-

larly, it is possible to implement distributed comput-

ing for any application.

6 CONCLUSIONS

The GridBlocks portal offers new Grid users an easy

way to test Grid functions. The Grid functions are

presented separately to encourage the GridBlocks

user to see how they could be combined to form com-

plete Grid applications. Service providers, interested

in the Grid, can use GridBlocks to test and promote

their computing resources by publishing to the Grid-

Blocks MDS server. For academic organizations the

GridBlocks is ideal for testing research software

GridBlocks is a new concept for distributed Grid

computing based on the idea of mobile code. It has

a simple and efﬁcient Java implementation, which

makes it easy both to install and use.

Both the client and the server are available at

http://gridblocks.sourceforge.net.

REFERENCES

FIPA (2003). Foundation for intelligent physical agents.

Available on: http://www.ﬁpa.org.

Foster, I. and Kesselman, C. (1997). Globus: A metacom-

puting infrastructure toolkit. International Journal of

Supercomputer Applications, 11(2).

Foster, I., Kesselman, C., and Tuecke, S. (2001). The

anatomy of the Grid: Enabling scalable virtual organi-

zations. International Journal of Supercomputer Ap-

plications, 15(3).

Grid Engine (2002). Welcome to grid engine. Available on:

http://gridengine.sunsource.net/.

Grimshaw, A. and Wulf, W. (1997). The legion vision of a

worldwide virtual computer. Communications of the

ACM, 40(1).

Hoschek, W. and McCance, G. (2001). Grid enabled rela-

tional database middleware. In Global Grid Forum.

ITU X.509 (2000). Information technology - open systems

interconnection - the directory: Public-key and at-

tribute certiﬁcate frameworks. Technical report, ITU.

Niinimaki, M., White, J., and Herrala, J. (2003). Executing

and visualizing high energy physics simulations with

grid technologies. In proceedings of Second Interna-

tional Symposium on Parallel and Distributed Com-

puting, Ljubljana, Slovenia. IEEE.

Novotny, J. (2002). The grid portal development kit. Con-

currency and Computation: Practice and Experience,

14(13-15).

Security Coordination Group (2003). Datagrid se-

curity design, deliverable 7.6. Technical re-

port, European DataGrid Project. Available on

https://edms.cern.ch/document/344562.

Simple Object Access Protocol (2002). SOAP - a XML

based lightweight protocol for exchange of informa-

tions in a distributed environments. Available on:

http://www.w3.org/TR/SOAP.

The Apache Project (2002). Apache tomcat. Available on:

http://jakarta.apache.org/tomcat.

The Globus project (2002). Commodity Grid Kits. Avail-

able on: http://www-unix.globus.org/cog/.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING
