SECURING A WEB-BASED EPR

An approach to secure a centralized EPR within a hospital

Ferreira A, Correia R, Costa-Pereira A

Department of Biostatistics and Medical Informatics, Faculty of Medicine, University of Porto

Al. Prof. Hernâni Monteiro 4200-319 Porto, Portugal

Keywords: Electronic Patient Record; Information Security

; Standards & Internet Technology;

Abstract: The introduction of new technologies such as the EPR stresses the importance of healthcare information

security

. The Biostatistics and Medical Informatics Department of Porto’s Faculty of Medicine is

developing a centralized Electronic Patient Record at Hospital S. João, in Portugal, the HSJ.ICU. The main

objective is to electronically integrate heterogeneous departmental information in a secure way, using

Internet technology. The methodology used takes into consideration user-driven security issues in terms of

confidentiality, integrity and availability of information. This was achieved using CEN/TC251

prestandards, Internet security protocols (e.g. TLS) and digital signature protocols. Having in mind the CIA

(Confidentiality, Integrity and Availability) structure helps organizing and in a way, separating concepts

that can be assessed in a more direct and efficient way. Security issues are already rooted and constitute a

good basis for any enhancements that will be made in the future.

1 INTRODUCTION

The Electronic Patient Record (EPR) is a

fundamental information system for healthcare

organizations, enabling a single point of entry and

access to patient-related, administrative and research

information (Shortliffe, 1999). It provides for easier

and faster access to patient information. Further, it

helps for the creation of a more complete and better

quality record (Hassey, 2001)(Stausberg, 2003).

The introduction of new technologies such is the

EPR also stresses

for the importance of healthcare

information security. New challenges (to face old

problems) need to be dealt with new measures, and

these must be evaluated for its effectiveness.

Several pressures during the development of IT

sol

utions often imply that security is an afterthought.

It is quite often overlooked so that the system can be

easier to work with (Godoy, 2002). This and other

factors make the integration of the EPR into medical

processes within large environments, such as

hospitals, very difficult

(Benson, 2002).

The Biostatistics and Medical Informatics

Depart

ment of Porto’s Faculty of Medicine has

started to develop and implement the HSJ.ICU

project, a centralized Electronic Patient Record

(EPR) at Hospital S. João, the second biggest

hospital in Portugal with about 1.350 beds. The main

objective is to electronically integrate heterogeneous

departmental information in a secure way, using

Internet technology. Many people and services, as

well as a complex infrastructure, are involved in this

process (Kurtz, 2003). There is the need to provide

for confidentiality (avoiding unauthorized access

(Salazar-Kish, 2000)), integrity (information needs

to be accurate, valid and complete (Bemmel, 1997))

and availability (Bemmel, 1997) of patient’s

information. That is why learning from previous

experiences, specifically in Portugal and in the same

hospital, can be very important and rewarding whilst

saving time and avoiding the most common mistakes

(Ferreira, 2002). In summary, information security is

fundamental for the success of the EPR.

This paper describes the methodology to assess

system

infrastructure, healthcare professionals’

attitudes and patient’s information workflow

affecting information security. It also presents some

results, analysis and procedures to be implemented

so that this project is successful.

2 METHODS

Prior to any action, it is important to assess the

infrastructure where the system HSJ.ICU is going to

A F., R C. and A C. (2004).

SECURING A WEB-BASED EPR - An approach to secure a centralized EPR within a hospital.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 54-59

DOI: 10.5220/0002655000540059

 SciTePress

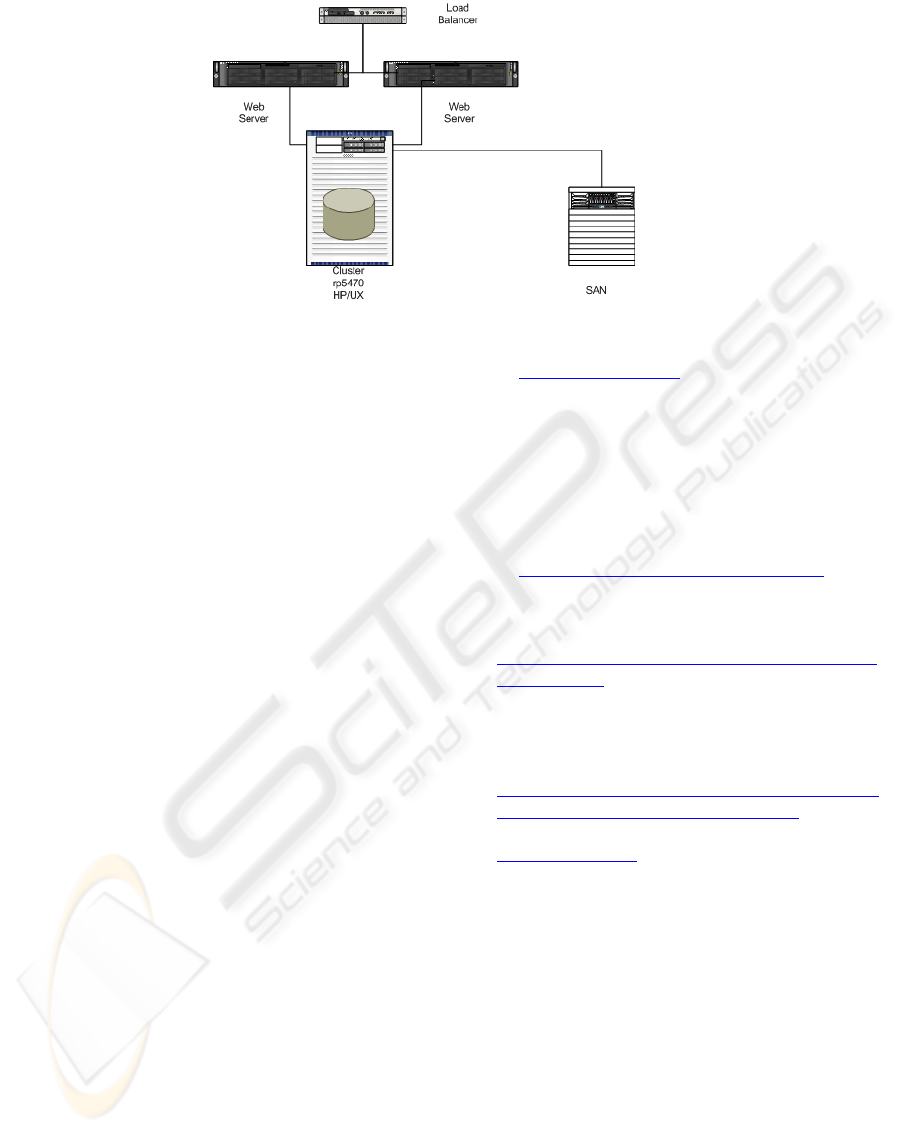

Figure 1: HSJ.ICU Generic Infrastructure

be integrated. Figure 1 presents a generic

architecture of the EPR system to be implemented.

It shows the heterogeneity of the infrastructure that

supports the healthcare information flow within the

hospital. The departmental systems presented above

have different infrastructures and types of workflow.

In some of these departments, patient records are still

paper-based while others have a mixture of

procedures and technology that make the integration

of a common platform not straightforward.

Another important step is to assess what are the

main concerns of the healthcare professionals

involved. This is done with several meetings with

each department’s staff. Other contacts made

afterwards during the development of the project are

also taken into consideration.

In summary, security services will be

implemented so that information security (mainly

user-driven) can be effectively achieved whilst still

allowing for the proper use of the system. It follows

the description of the security services and problems

that need to be taken into consideration whilst

developing this project.

2.1 Confidentiality

In terms of user-driven security issues,

confidentiality can be provided by controlling access

to the system and make sure that only authorized

users access information. When this rule is breached,

unauthorized users’ actions along with their

identification should be recorded for further

responsibility and subsequent legal actions.

Also, this project involves the integration of

several physical places making it crucial that all

communication channels are protected. This will

provide for the secure information flow. Any breach

that may occur (e.g. eavesdropping) should not allow

for unauthorized access to sensitive information.

The following two sections will explain the

methodology used for both these issues (access

control and secure communications) in more detail.

2.1.1 Access Control

Controlling the access to sensitive information is

fundamental; moreover when that information relates

to healthcare patient sensitive information. The

heterogeneous environment, such is the healthcare

environment where different people and services are

required to interact, make it more difficult to control

and provide for its proper use. Nevertheless, there

are ways to provide for proper access control.

The main step is to make sure every user can be

uniquely identified so that his actions can be easily

traced. Usually, every healthcare professional within

the hospital has his reference number, which is

unique.

In order to provide for an efficient way for

identification and authentication, the development of

access control tools is based on a European

prestandard, ENV 12251 (CEN/TC251, 2000). This

allowed for a better understanding and definition of

some basic, standard rules pertaining to the use of

For this purpose, the standard protocol LDAP

(IETF, 2003) was introduced. In this specific case,

due to institutional policy demands, the chosen tool

to provide for that protocol is the Microsoft Active

Directory (MSDN, 2003). Some results from this

implementation are described in section 3.

2.1.2 Secure Communications

The same issue about heterogeneity applies to this

section (Figure 1). Each departmental system is

positioned in a different physical location within the

hospital while the database server and file system are

placed somewhere else. It becomes very difficult to

both protect and monitor every part that comprises

the system. Internet technology is the most

appropriate in this case because several platforms

and processes need to be integrated (Correia, 2001).

This technology is cost-effective, easy to implement

and has standards that a wide number of people

nowadays is used to interact with.

However, it is very hard to protect this

infrastructure against eavesdropping, tampering or

message forgery, when all the wiring and equipment

is spread all over a big hospital. Means to prevent (or

SECURING A WEB-BASED EPR: AN APPROACH TO SECURE A CENTRALIZED EPR WITHIN A HOSPITAL

at least minimize) malicious and/or accidental

actions were implemented.

2.2 Integrity

One of the main security issues that healthcare

professionals specified (and is implicit) is the trust or

confidence put into the information withheld by the

patient’s reports they need to access. The alteration

or corruption of these reports needs to be avoided.

The healthcare environment, probably more than any

other environment, requires that information is valid,

correct and complete (e.g. provide for integrity).

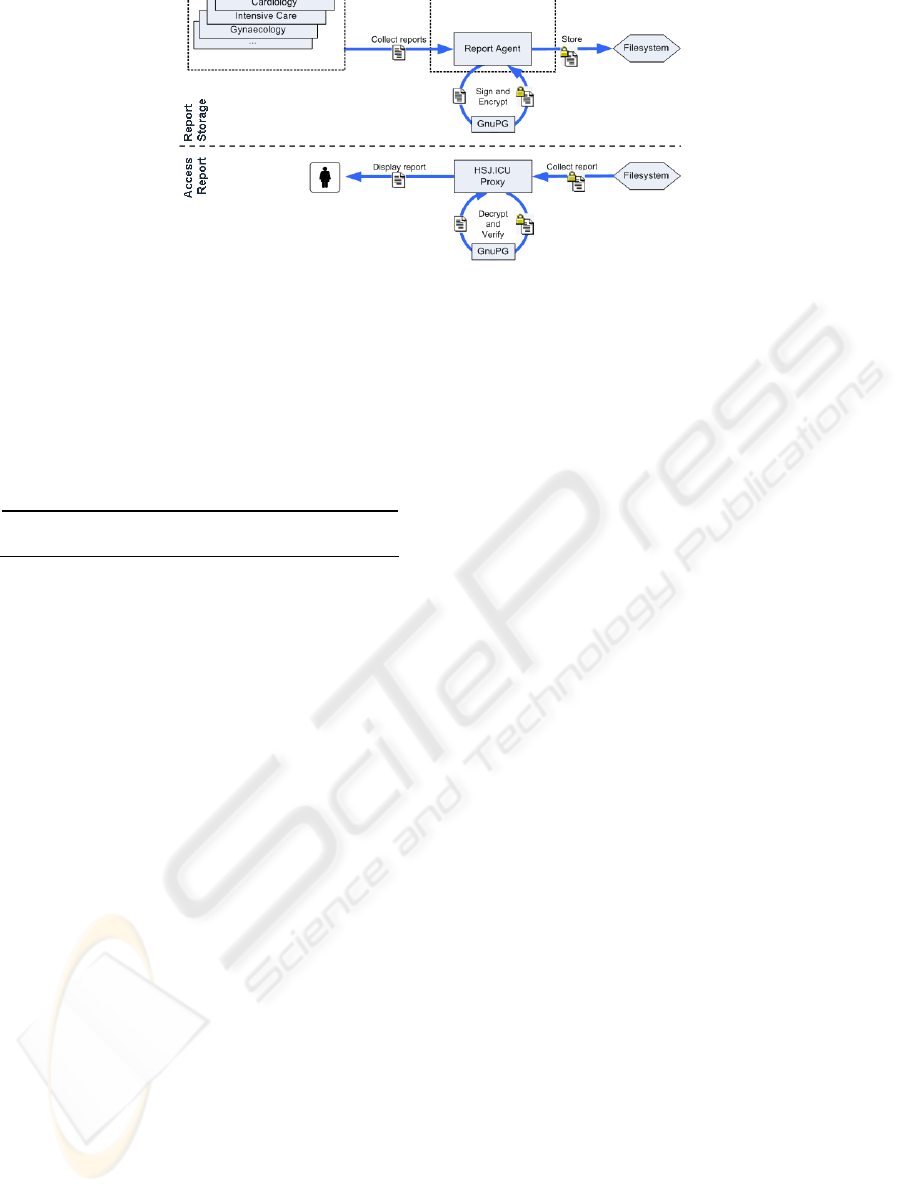

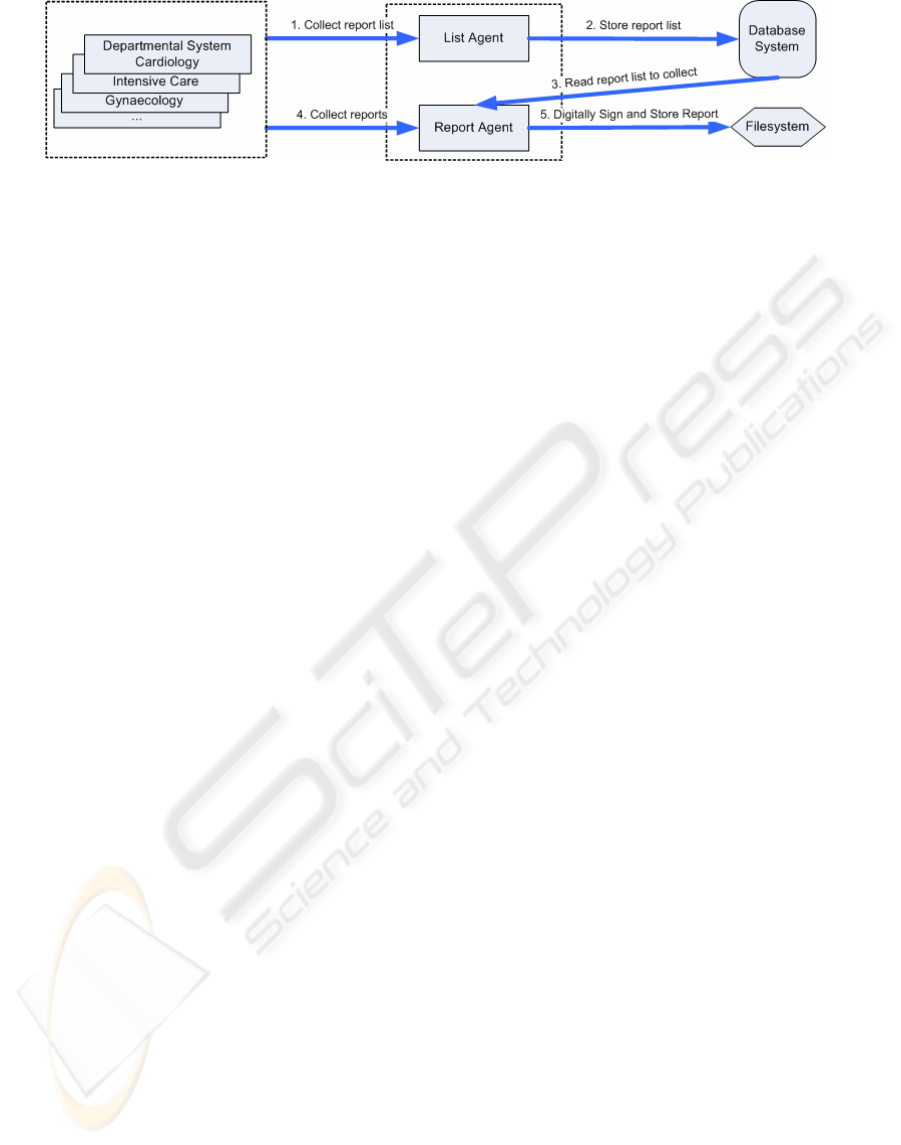

In order to achieve this, the reports that are

automatically generated from the departmental

systems (Figure 1) are all digitally signed and

encrypted before being stored in the file system

server. More details about how this is done and some

performance tests are presented in section 3.

2.3 Availability

As was already mentioned, availability is a

fundamental part of information security but often

overlooked. Having user-driven security measures in

mind, availability issues need to focus on means to

provide for the continuous information availability

for authorized users of the HSJ.ICU.

It is then important to provide for equipment

redundancy, with the use of action-specific machines

and other redundant power equipment; the recording

of the most important actions and errors that may

occur during system’s usage (so that the system can

be always updated and corrected); and finally, there

is the need for backups so that information resources

can easily be replaced if anything damages them.

3 RESULTS

Each departmental system can generate several

reports daily (some up to 30 reports per minute).

These reports are collected by the EPR HSJ.ICU and

Figure 2: User Authentication to the HSJ.ICU

stored within a file system. Further information

about their location, date and time, exceptions, errors

and so on, are stored in a database system. This will

enhance and speed their retrieval.

Most healthcare professionals’ concerns assessed

by the project’s team relate with secure auditing for

further notification and responsibility of

unauthorized users’ access; the integrity and

reliability of the generated reports; and the provision

for the confidentiality of the sensitive information

involved within the whole process. These issues map

very well with what the project’s team assessed as

user-driven security problems. Also, apart from the

concerns mentioned above, there is also a main issue

not to be overlooked: availability (Barrows, 1996).

Some implementation tools, technologies and

performance tests will be now presented.

3.1 Confidentiality

3.1.1 Access Control

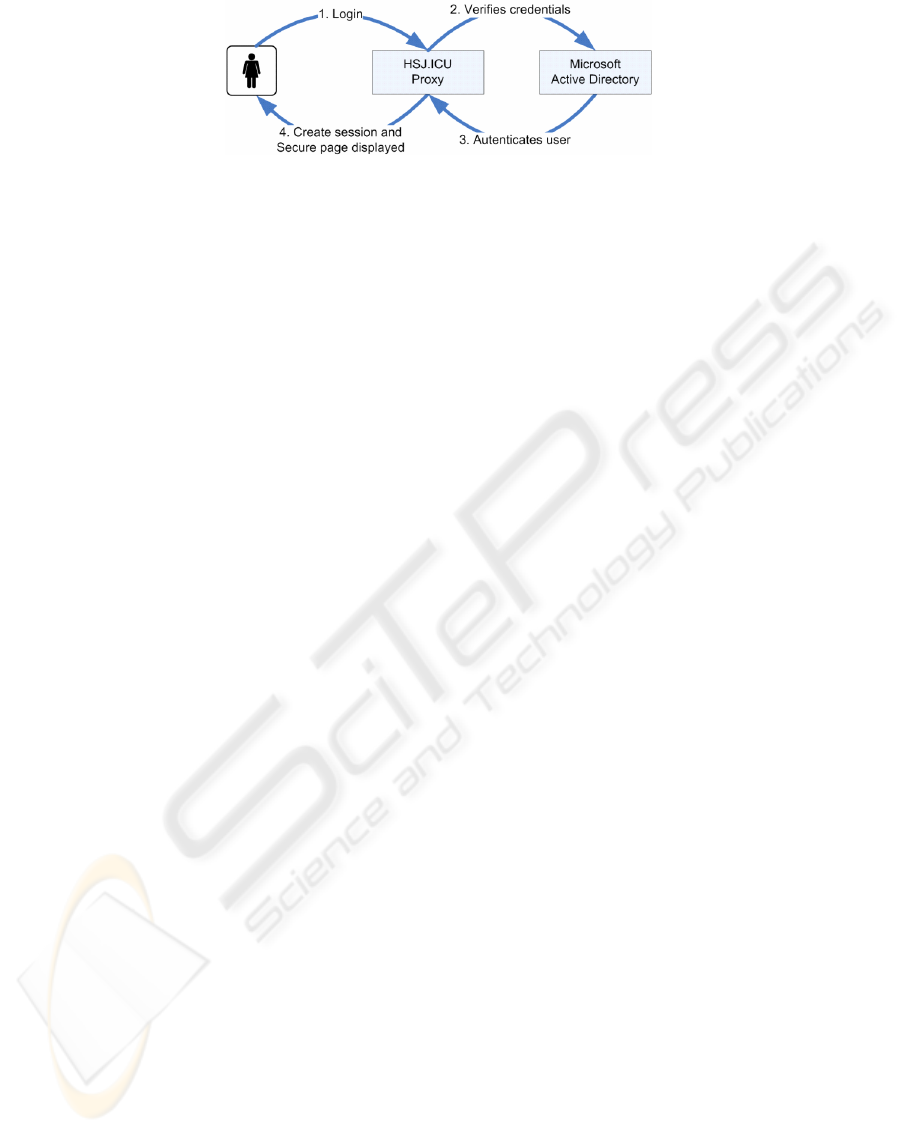

Figure 2 shows how the user authenticates to the

Microsoft Active Directory by presenting a login and

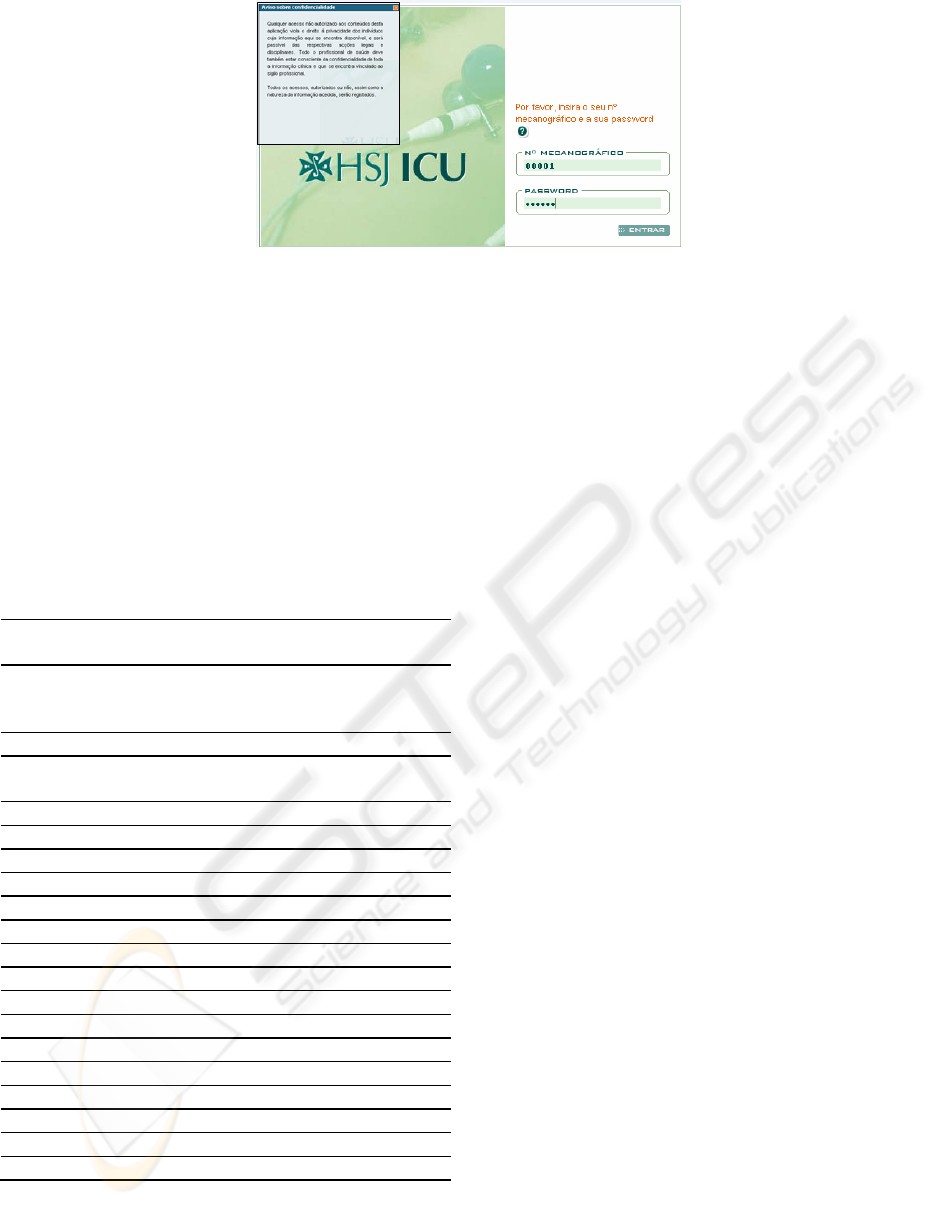

a password (Figure 3 presents the web page where

the user gives his credentials for authentication.).

These credentials are verified in the Active Directory

server to allow (or not) the access to the HSJ.ICU.

The main advantage for the use of Microsoft

Active Directory (Microsoft implementation for the

LDAP protocol) is the separation between access

control and access to the requested information

stored in the database. Using technologies dedicated

to specific services that can easily integrate among

each other improves performance and establishes

separation of concerns. Further, the Microsoft Active

Directory contains other tools that allow configuring

security policies in accordance to the ones specified

within the prestandard ENV 12251.

Table 1 (AD=Active Directory) shows the

requirements that were implemented from the

prestandard. Only two of the requirements are still

being implemented. It is also important to refer that

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

all these tasks are quite transparent to the user when

he tries to authenticate himself to the system.

Other issues such as maintaining the identity of

active users, is achieved by creating and managing

sessions with PHP (PHP, 2003). This registers a

unique and temporary session for each user that

logs-on allowing the control of user’s activity. Also,

whenever each user logs to the system, a flag in the

Active Directory (e.g. isLoggedIn) is set to TRUE,

and the opposite when he logs out. Information

about date, time and user’s identity is also recorded

in the Oracle Database for future actions, if needed.

Table 1: Prestandard ENV 12251 requirements

Requirement Tools

Unique identification & authentication

(user reference number)

Y AD

Identification and Authentication prior to all

other interactions

Oracle

PHP

Associating unique identity with users (ref. no) Y AD

Maintaining the identity of active users

(flag isloggedin in AD)

PHP

Log-on message (Figure 3 – top left corner) Y HTML

Number of log-on trials (3 times) Y AD

Incorrectly performed log-on procedure Y AD

Display of log-on statistics Y AD

Password sharing Y AD

Password storage (one-way encryption tools) Y AD

Logging of passwords N

Password display suppression Y HTML

User-changeability of passwords Y AD

Default passwords N/a N/a

Initialised passwords Y AD

Temporary passwords Y AD

Password expiration (2 months) Y AD

Password expiration notification (before expires) Y AD

Password reuse N

Password Complexity Y AD

The only part of the process that breaches the access

control rules explained before is when an authorized

user (already logged-on to the system) wants to

access some resources he is not authorized to. In a

case like this (e.g. break the glass), he has the option

to proceed or not whilst all his actions are properly

recorded for future notification.

Figure 3: Form for user authentication to the HSJ.ICU

In summary, the access control is a security

service that was thought from the beginning and

simple rules were applied so that no extra effort

would be asked to the user. Still, its transparency

does not allow for security relaxation. There are a

series of procedures that provide and support for the

monitoring, notification and prevention of

unauthorized access and usage of the system.

3.1.2 Secure Communications

Encryption is a security mechanism that allows for

the transformation of plaintext information to a

sequence of non-understandable characters.

In order to provide for the encryption of all

information whilst in transit the system uses the TLS

authentication protocol (IETF, 1999). This protocol

is a standard and is widely used for client/server

secure transactions among the most common

browsers, using internet technology. It has a

selection of encryption algorithms to be chosen

according to the type of authentication (e.g.

mutual/unilateral) required.

3.2 Integrity

The process of digitally signing, along with

signature verification of the generated reports by the

departmental systems can be seen in Figure 4.

A digital signature, allied to a digital timestamp

(particularly helpful in enhancing the integrity of a

digital signature system) is applied before the reports

are stored. This means that if someone or something

tries to tamper with the report, that signature will not

be valid any more.

Without getting in too much detail, the

technology used for this process is the GnuPG

(GnuPG, 2003), an open source that is based on the

PGP standard email encryption software. It uses

SECURING A WEB-BASED EPR: AN APPROACH TO SECURE A CENTRALIZED EPR WITHIN A HOSPITAL

Figure 4: Report’s Digital Signature and Signature Verification process

public key DSA algorithm with key size 1024 bits,

impossible to break with today’s technology

(Silverman, 2000). Table 2 presents some

performance results to both apply and verify the

digital signature. It is important to mention that

different technologies are used for each of these

processes.

Table 2: Performance tests for a report’s digital signature

Process (Mean N=5) Without DS With DS

Store report 5 ms 33 ms

Access report 35 ms 48 ms

According to the results presented in Table 2, the

process of signing reports is generally slower than

the process of verifying their digital signatures.

Nevertheless, the process of signing and storing a

report is only done once, while the process of

accessing reports will be done numerous times.

Further, the digital signature and storage of the

reports is an automatic process and does not require

any user interaction. It is programmed to do it at the

least workload time.

In conclusion, the time difference registered

between both processes (signing and verification of

the digital signature) is not that relevant and does not

compromise system’s usability.

3.3 Availability

According to what was already mentioned about

availability, Figure 5 shows the generic hardware

architecture of the HSJ.ICU.

The extra equipment such is the load balancer,

allows for the balance of the work load to the

available web servers (two in this case). This will

enhance the availability of resources and will

provide access redundancy whilst increasing speed

retrieval of users’ requests.

All connections started directly or indirectly by

users are registered. Information about the user, date,

time and a unique session identifier are also

recorded. Apart from the usual file and database log

mechanisms supplied, user actions are recorded into

a file (at real time), ready to be inserted in a

structured way in the database system.

Other unsuccessful actions or errors generated by

the system are also registered because the HSJ.ICU

is still in the development stage and there is the need

to know what the weakest points are and what

problems still need to be corrected. Further, this will

allow following all important steps of the system’s

execution and guaranteeing that it does what is

supposed to do (or not).

Even more important than redundant equipment

is the need for data redundancy. Regular backups are

being made with database structure, data and file

system stored information so that it can be easily

replaced if anything corrupts or damages the original

information. This will allow minimizing the

unavailability time, and if possible, preventing any

outage of the system.

4 DISCUSSION

The development and implementation of the

HSJ.ICU project has been a very good learning

process for everyone involved in it. Although is still

work in progress, very important results were

already obtained.

One important conclusion is the fact that the

introduction of security from beginning as part of the

systems’ features and capabilities is essential. It

makes the process much simpler and transparent to

the normal user. Furthermore, having always in mind

the CIA (Confidentiality, Integrity and Availability)

structure helps organizing and in a way, separate

concepts that can be assessed in a more direct and

efficient way.

However, this is not enough. People (specially

future users) must be involved in the whole process.

Healthcare professionals have a higher sense for

providing for information security and patient

privacy. However, there is the need to make sure

security does not interfere with their work.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Another important consideration is the use of

standards. This helps and speeds any project’s

implementation, whilst benefiting from the already

thought, tested and implemented procedures.

Another relevant aspect of this project’s

implementation is the use of cost-effective tools,

mainly web based, and the fact that it is still possible

to build security that works and is usable.

Finally, this project needs to be tested and

evaluated on a real environment. There is the need to

analyze some more performance and usability issues

that involve security. It is a project that will never be

completed as management support and updates will

be essential to apply. Nevertheless, security issues

are already rooted and constitute a good basis for

any enhancements that will be made in the future.

REFERENCES

Barrows, C., 1996. Barrows C, Clayton P. Privacy,

Confidentiality and electronic medical records.

JAMIA. 3:139-148.

Bemmel, V., 1997. Handbook of Medical Informatics. M.

A. Musen Editors. Springer.

Benson, T., 2002. Why general practitioners use

computers and hospital doctors do not-Part2:

scalability. BMJ. 325:1090-1093.

CEN/TC251, 2000. ENV 12251: Health Informatics -

Secure user identification for health care

management and security of authentication by

passwords.

Correia, R., 2001. Acquisition, processing and storage of

vital signals in an electronic patient record system.

Presented at Mednet 2001.

Ferreira, A., 2002. Electronic Patient Record Security.

Msc in Information Security. Information Security

Group. Royal Holloway, University of London.

GnuPG, 2003. Gnu Privacy Guard, Open PGP. Available

at:

http://www.gnupg.org

Figure 5: Generic HSJ.ICU hardware architecture

Godoy, C., 2002. A privacidade e o registro informatizado

na Faculdade de Medicina de Marília. Encontro

Paulista de Pesquisa em Ética Médica 2002.

Hassey, A., 2001. A survey of validity and utility of

electronic patient records in a general practice. BMJ.

322:1401-1405.

IETF, 1999. TLS – Transport Layer Security. RFC 2246.

Internet Engineering Task Force - IETF. Available

at:

ftp://ftp.rfc-editor.org/in-notes/rfc2246.txt.

IETF, 2003. LDAP – Lightweight Directory Access

Protocol . RFC 2251. Internet Engineering Task

Force - IETF. Available at:

http://www.ietf.org/internet-drafts/draft-ietf-ldapbis-

protocol-18.txt.

Kurtz, G., 2003. EMR confidentiality and information

security. Journal of Healthcare information

management. 17(3):41-48.

MSDN, 2003. Microsoft Active Directory. Available at:

http://msdn.microsoft.com/library/default.asp?url=/li

brary/en-us/netdir/ad/active_directory.asp.

PHP, 2003. PHP Hypertext Preprocessor. Available at:

http://www.php.net.

Salazar-Kish, J., 2000. Development of CPR Security

Using Impact Analysis. AMIA Annual Symposium.

Shortliffe, E., 1999. The Evolution of Electronic Medical

Records. Academic Medicine;74(4):414-419.

Silverman, R., 2000. A Cost-Based Security Analysis of

Symmetric and Asymmetric Key Lengths. RSA

Laboratories Bulletin, 13.

Stausberg, J., 2003. Comparing paper-based with

Electronic Patient Records: Lessons Learned during a

Study on Diagnosis and Procedure Codes. J Am Med

Inform Assoc. 10:470-477.

SECURING A WEB-BASED EPR: AN APPROACH TO SECURE A CENTRALIZED EPR WITHIN A HOSPITAL
