Authentication and Authorisation for Integrated SIP
Services in Heterogeneous Environments
Dorgham Sisalem, Jiri Kuthan
Fraunhofer Institute for Open Communication Systems (FhG Fokus)
Kaiserin-Augusta-Allee 31, 10589 Berlin,
Abstract: In order to provide secure and high quality IP-based communication
in heterogeneous environments there is a clear need to couple the signalling
protocols used for establishing such communication sessions with supporting
components and services providing QoS control, security and mediations
between different technologies. In this paper we will be investigating the issue
of providing an authorization infrastructure for VoIP based sessions that
allows the establishment of VoIP sessions and coupling those sessions with a
row of supporting services.
1 Introduction
The session initiation protocol (SIP) [1] was primarily designed as a tool for
establishing and controlling communication sessions between two or more end
systems or users. With this regard, SIP is increasingly being hailed as the standard
protocol for VoIP and instant messaging in both the Internet as well as 3G UMTS
networks as part of the IP-based multimedia subsystem (IMS).
In a perfect world, having access to an IP network paired with a signalling protocol
such as the session initiation protocol (SIP) [1] would be sufficient to establish end-to-
end communication between any two users. However, in reality and especially in
wireless environments such as UMTS networks, a row of other supporting services is
required to transparently establish a communication session between mobile users
with an acceptable QoS level. Further, as depicted in
Figure 1 various translation and
transcoding services are needed to allow the establishment of a communication
session in heterogeneous environments. The heterogeneity might be caused by the
following factors:
End devices: This includes end devices using different media representation
approaches. This involves different compression styles or text or audio
capabilities only.
Communication protocols: This involves establishing communication sessions
between entities using different protocols for establishing these sessions. This
includes establishing a call between a SIP-based device and an ISDN/GSM
phone or SIP to H.323.
Security policies: This involves establishing a session between a user in a
private IP network and a user in the public Internet for instance.
Sisalem D. and Kuthan J. (2004).
Authentication and Authorisation for Integrated SIP Services in Heterogeneous Environments.
In Proceedings of the 2nd International Workshop on Security in Information Systems, pages 88-98
DOI: 10.5220/0002661700880098
To overcome this heterogeneity and allow transparent session establishment a row
of so-called supporting services is required. These supporting services include the
following examples:
QoS Establishment Services:. This indicates mechanisms for providing assured
resources in terms of bandwidth for the media sessions established with SIP.
Especially in networks with scarce but valuable bandwidth resources such as
wireless networks, the session establishment needs to be coupled with the
mechanisms that are provided by mobile network operators (MNOs) for
ensuring the availability of the needed resources for the session.
Connection Services for Heterogeneous Networks: When contacting users in
a non-SIP environment, i.e., users not using SIP as their signalling protocol such
as PSTN and GSM users, the SIP signalling needs to be terminated at the one
side and translated to the other protocol. Thereby to achieve transparent
communication between the users of the two environments a service provider
needs to support gateways between these environments.
Firewall and Network Address Translation Services: These services indicate
components that are used to protect private networks form attackers as well hide
their internal structure. Such components include firewalls and network address
translators (NATs). Firewalls usually have a set of fixed rules indicating which
ports and addresses can be reached from the outside as well as which addresses
and port numbers the users are allowed to connect to from the inside. NATs are
used to map a row of private addresses and port numbers to a smaller number of
public IP addresses and port numbers. This has effect of hiding the internal
addressing structure of the private network and reduces the expenses of buying
larger sums of public IP addresses. As SIP users dynamically negotiate
addresses and port numbers static firewall rules cannot be used, as the system
administrator has no advance knowledge of addresses and port numbers to be
used for the communication [2]. Thereby, to allow SIP signalling and media
exchange over firewalls and NATs some interaction between the SIP
infrastructure and the firewalls and NATs is needed to allow dynamically
changing the firewall rules and mirror possible address translations in the SIP
messages [3].
Media Transcoding and Translation Services: This type of service can be
used to allow users using devices with incompatible compression styles for
example to communicate with each other. As a possible supporting service, a
service provider might offer translation and transcoding services such as speech
to text transcoders to allow a hearing impaired person to contact another person
that is using a voice only device.
Conference Services: As a further supporting service, a service provider might
offer a conference server for enabling small to medium sized conference
sessions. This service might include a media mixer and a centralized
conferencing site at which users might login, initiate a session and invite other
users to join the conference.
Thereby, providing a SIP-based communication infrastructure implies some sort of
integration between the above mentioned services and SIP. This might involve some
modification and enhancement of the SIP signalling itself but also a tight correlation
in the authentication, authorization and accounting (AAA) procedures. In this paper
we will be investigating the issue of providing authentication and authorization
mechanisms for SIP based sessions that allow establishing SIP sessions and coupling
those sessions with a row of supporting services. In a first step, see Sec. 2, we will
briefly describe the common approaches for authenticating a user’s identity. The
major part of the work, see Sec. 3, will then be dedicated for describing possible
approaches for authorizing a user’s request for a service consisting not only of the SIP
session but also of supporting services. The described mechanisms will then be
evaluated in terms of their applicability, scalability and security among other features
in Sec. 4.
Public Internet
SIP Signaling
AAA Signaling

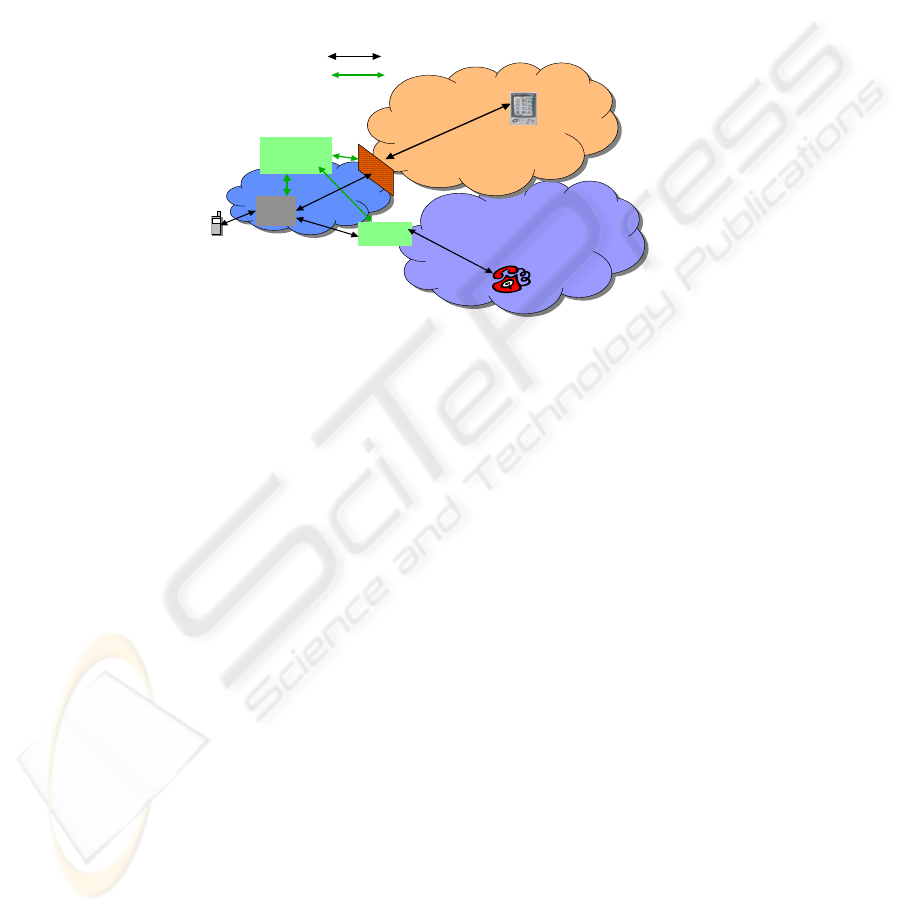

Figure 1. SIP in heterogeneous environments
2 Authenticating Service Requests
The main goal of the authentication procedure is to provide a proof of identity of both
the users and providers. For proving the identity of a provider, schemes based on
trusted digital certificates are usually used such as with TLS, see [8].
For authenticating users, we can in general distinguish two approaches:
Request-based authentication: With this mechanism the service provider
authenticates each request issued by the user. This in general involves a
challenge-reply kind of mechanisms such as HTTP Digest, which was specified
to be use with SIP.
Session-based authentication: With this approach the authentication procedure
is carried out once before the user starts sending any requests. During this phase
the user and provider establish a temporary key that can be used to sign and
possibly encrypt all requests sent by the user until the termination of the session.
UMTS AKA as described in 3GPP [4] present such approaches
For some support services such as QoS for which the user might issue explicit
requests as well, similar authentication mechanisms might be used.
3 Coupling SIP Sessions with Supporting Services
When coupling supporting services with a SIP session there are mainly two
possibilities for realizing the authentication and authorization actions: SIP dependent
and SIP independent authorization. In the SIP dependent scenario, the authorization
actions are dealt with as part of the SIP signalling and the information needed for
carrying AAA related information are transported as part of the SIP messages. In the
SIP independent scenario, the supporting services use their own protocols for carrying
out the required AA steps.
3.1 SIP Dependent Authentication and Authorization
In this case the user gets authenticated and authorized to use a supporting service
during the session establishment phase using SIP.
3.1.1 User Initiated Services
In this scenario the end user requests explicitly the service. In order to get authorized
to use the service the user needs to present some credentials. These credentials are
generated during the SIP session establishment and are often called authorization
tokens, see [5] and [6] for more details.
Figure 2 shows a simplified message flow in which the user initiates a SIP session
and a service such as QoS is coupled with this session.
1. In the first step the user initiates a SIP session by sending an INVITE message
indicating that he would like to use QoS resources. This can be indicated
through an extension to the session description protocol (SDP), see [9].
2. The proxy might want to check with a AAA server whether the user is eligible
for initiating calls with the indicated message content. The AAA server takes its
decision based on local policies as well as the user’s profile, which governs
which services the user is allowed to utilize. In case the user is not eligible for
using the service, the invitation is rejected.
3. In case of a positive reply the INVITE message gets forwarded towards the
4. The reply to the INVITE message indicates the callee’s media characteristics
and QoS preferences.
5. After receiving the callee’s reply, the proxy has the complete information about
the IP addresses and port numbers of the communicating end points as well as
the media types, compression styles and bandwidth to be used. This information
is then used by the AAA server to create an entry for this session. This entry is
indexed by an authorization token that identifies the entry as well as the AAA
server generating it and is then given to the proxy.
6. The proxy includes the token into the reply and forwards it to the user.
7. The user can issue a service request, e.g. QoS reservation, which includes the
authorization token.
8. To authorize the service request, the service control entity, here a QoS router,
can use this token to verify the eligibility of the user to request these resources.
This is done by contacting the AAA server identified by the token and informing
it about the user’s wishes and the token delivered by the user. The token is then
used as a reference for the authorization information generated during the SIP
session establishment. The answer of the AAA server is then made based on the
comparison of the parameters of the requested service and the values contained
in the entry generated during the session setup.
QoS router
1) INV
3) INV
5) Auth. Request /reply
4) 200 OK
6) 200 OK
auth. Token
7) QoS request /Auth. Token
8) Check Auth.
2) Auth. Request /reply

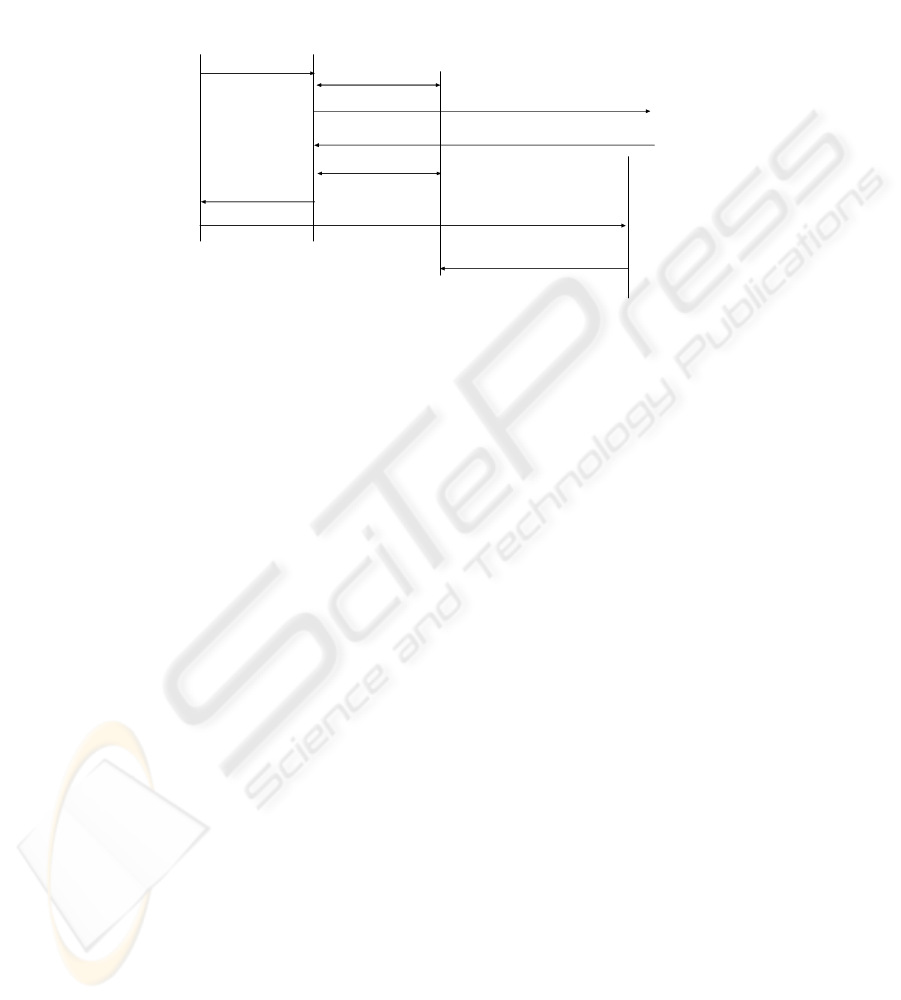

Figure 2. Initiated call in the user initiated services model
In case of session based authentication, the authorization token can be exchanged
securely between the SIP proxy either by using an encrypted communication link
between the two entities or by encrypting the token using a temporal shared key. The
same approach can then be used for exchanging the token between the user and the
QoS components. This approach is similar to the one described for 3GPP [4].
In case a mechanisms such as HTTP digest is used for authenticating the user, then
the proxy can send the token to the user encrypted with the secret key shared between
the user and the SIP provider. The token can then be encrypted with the shared key
used between the QoS components and the user for authenticating the user. As the
shared keys in this scenario are usually rather short, using tokens in scenarios with
request authentication is less secure than for the case of session-based authentication.
3.1.2 Proxy initiated services
In this case the SIP proxy itself initiates the service request and there is no need for
exchanging authorization information with the user. This scenario is especially
interesting for controlling firewalls and NATs or using a gateway to another network.
In this scenario we can distinguish two initiation methods: proxy controlled and proxy
routed services. Proxy controlled services
This scenario includes the case for controlling a firewall or a NAT in a midcom like
scenario, see [3].
Figure 3 depicts a scenario in which a network is protected by a
firewall. This firewall can be controlled by a SIP proxy, which can issue requests to
dynamically open certain holes in the firewall and thereby change the filtering rules.
1. After receiving a SIP request the proxy checks with the AAA server whether the
user is allowed to make outside calls.
2. If yes, the INVITE gets forwarded to the receiver
3. After receiving the call, the receiver accepts the call and replies with a 200 OK
4. Upon receiving the 200 OK the proxy has the complete information about the
addresses and port numbers of the caller and callee. This information is then
used to instruct the firewall to change the filtering rules to allow the media
traffic of the established session to traverse the firewall.
5. The OK 200 is forwarded
6. Sending an ACK completes the session initiation. Traffic can now flow through
the firewall.
Note that in this case no tokens need to be exchanged between the user and the
proxy. Thereby both session and request based authentication mechanisms are equal
2) INV
4) Open port
3) 200 OK
5) 200 OK
7) RTP traffic
6) ACK
1) Auth. Req/repl
AAA Server

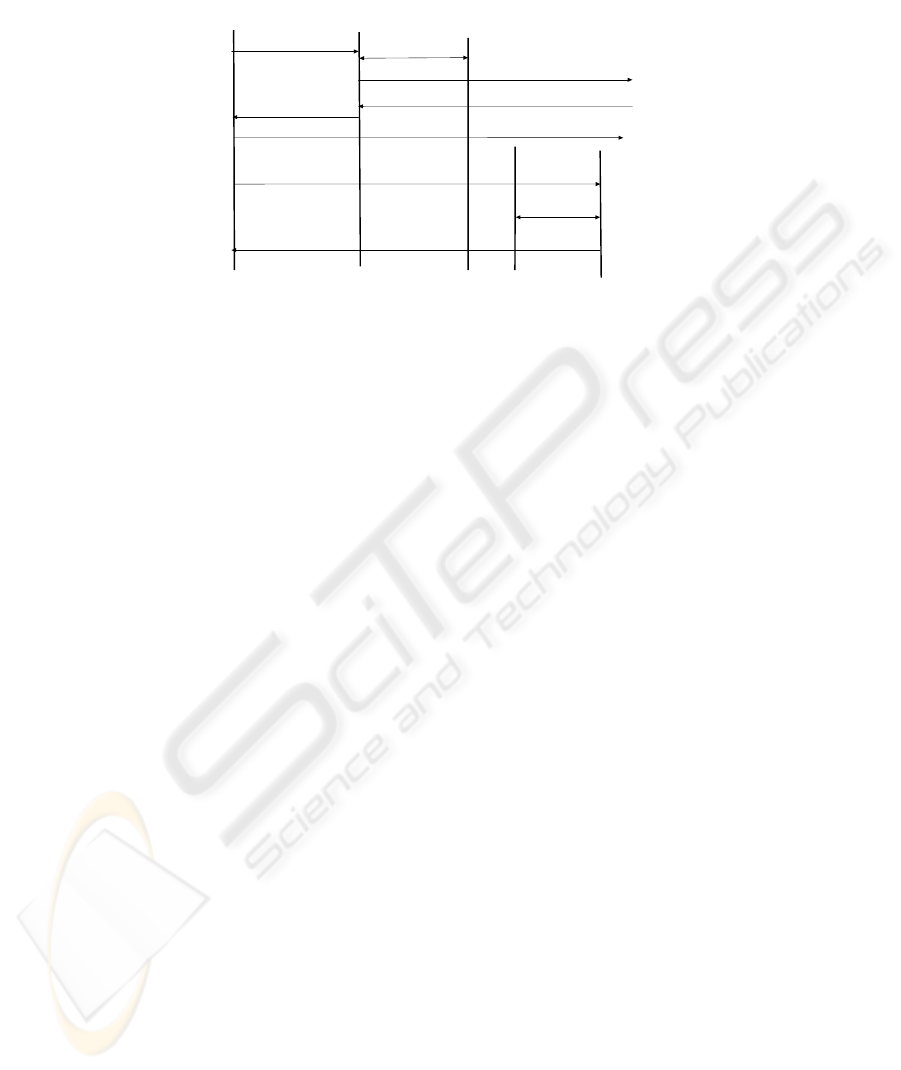

Figure 3 Proxy controlled service Proxy Routed Services
In this scenario, a SIP proxy forwards authenticated and authorized requests to
another SIP entity that actually delivers the service. This entity could be a PSTN
gateway or some other kind of a transcoding gateway. Figure 4 depicts a scenario in
which the user would like to reach a PSTN phone over a gateway.
2) INV
3) 200 OK
200 OK
6) RTP traffic
4) ACK
1) Auth. Req/repl
AAA Server
5) ACK

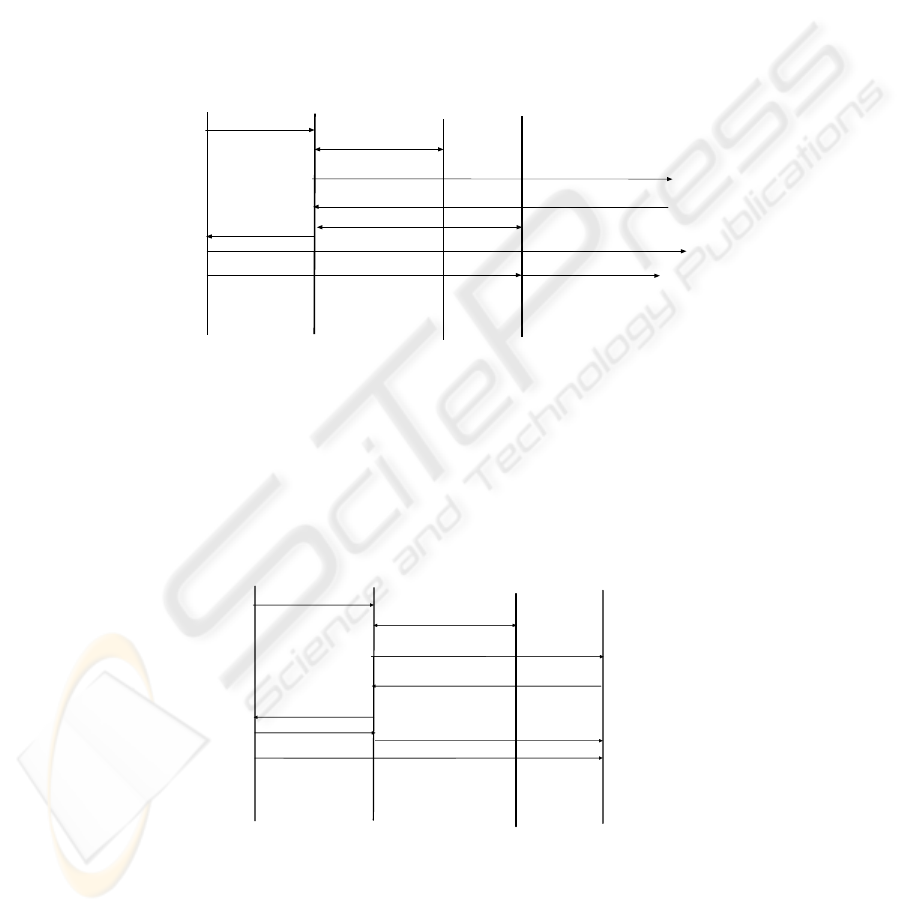

Figure 4 Proxy routed service
1. After receiving a SIP INVITE request for example, the proxy receives the
INVITE and checks with the AAA server whether the user is allowed to contact
the gateway
2. If the user is authorized to make calls to PSTN destinations the INVITE gets
forwarded to the gateway. In this scenario the proxy acts as a kind of a firewall
in front of the gateway. Actually it is often the case, that gateways reject all calls
not coming from a dedicated proxy. The authenticity of the requests and the
assurance that they actually come form a certain trusted proxy, which checks the
authorization of the users before forwarding a request, should be guaranteed
through a network level security association such as TLS [8] or IPSec between
the proxy and the gateway. In order to make sure that all subsequent requests in
the session traverse the proxy, the proxy adds a Record-route entry into the
INVITE message.
3. The gateway answers with a 200 OK, which is forwarded by the proxy
4. The session establishment is finalized by sending an ACK after which media
traffic can be sent to the gateway.
Note that this scenario could also have been realized with the user initiated service
scenario, see Sec. 3.1.1. That is the user would receive an authorization token from
the proxy and then contact the gateway directly. However, in this case the processing
load on the gateway would be increased, as the gateway would need to contact the
AAA server to check the correctness of the authorization token.
3.2 SIP Independent Authorization
In this case the user needs to authenticate and authorize himself twice. Once during
the SIP session establishment and once during the service request. As depicted in
Figure 5 the coupling of the SIP session and the service request is achieved as follows:
1. The user starts the session by issuing a SIP INVITE message.
2. The proxy authenticates and authorizes the user with the help of the AAA
3. The INVITE gets forwarded to the destination.
4. The receiver accepts the call by issuing a 200 OK message
5. The OK message gets forwarded to the user.
6. The session establishment is completed by issuing the ACK message.
7. At this stage the user asks for the service.
8. The entity providing the service, e.g., a QoS router, authenticates and authorizes
the user. The way this authentication is realized depends very much on the used
QoS reservation protocol. For example RSVP proposes the usage of COPs [10]
objects, others might use digest authentication similar to SIP.
9. If the user is authorized to use the service then a positive answer is sent.
Notice that the message flow depicted in Figure 5 is only one possibility. As the
SIP proxy is not offering expensive services it might not need to authenticate the user
at all and thereby we would drop steps 2 and 3. Also, the service request could be
established before the SIP session or correlated with it as described in [7].
Service entity
1) INV
3) INV
4) 200 OK
5) 200 OK
7) Service request
6) ACK
2) Auth. Req/repl
SIP AAA Server
AAA Server
8) Auth. Req/repl
9) Service reply
Figure 5. SIP-independent authorization
4 Summary and Conclusions
In this paper we have described various possibilities for enhancing SIP services with a
number of supporting services such as QoS, transcoding components and many more.
To finalize our work we compare the advantages and disadvantages of the different
approaches regarding issues such as performance, security and applicability among
others. We will see that choosing the optimal approach for realizing AAA in such a
scenario is difficult and depends often on the natures of supporting service.
Performance: In case the user needs to be authorized for both the SIP session
and the service usage, the SIP independent approach requires a higher overload
in terms of exchanged messages and time. The exact difference depends very
much on the authentication mechanisms used by the service entities. For
example for the case of the user initiated services and with mechanisms similar
to those used for SIP (HTTP DIGEST) we can assume twice the authentication
delay and the same time for checking the AAA server. That is in the case of
SIP-independent authorization, the service entity would contact the AAA server
to check the eligibility of the user. In the case of dependent authorization, the
service entity would also need to check the authorization token with the AAA
server that generated it. For the case that the SIP session establishment does not
require authentication and authorization, both schemes have similar
performance. This scenario is especially valid when a user utilizes a public SIP
provider which does not require authentication for issuing invitations but still
wants to use the QoS infrastructure provided by the network access provider.
Applicability: The applicability of both SIP dependent and independent
authorization to the different service scenarios identified in Sec. 2 depends
greatly on the service.
QoS establishment service: Both approaches are applicable to the scenario
of coupling QoS reservations with a SIP session. For the case of SIP
independent authorization, the QoS protocols need, however, to incorporate
user authentication and authorization more closely with the QoS reservation
protocols. This would further increase the complexity of such protocols.
With the dependent approach, either the proxies can instruct the QoS
components to provide certain QoS features, or the QoS protocols would
carry the authorization tokens.
Network security and translation service: For the case of traversing a
firewall, SIP independent authorization does not apply easily as controlling
the middle box requires knowledge about all the communicating end
systems. NAT traversal is not possible with the SIP independent scenario, as
the SIP proxy needs to know the results of the address translation of the
media flows already during the signalling phase.
Connection services: For the case of gateway usage, using the SIP
dependent scenario is preferred. The SIP proxy provides a kind of a firewall
in front of the gateway filtering unauthorized requests and reducing the load
on the gateways that would have been otherwise required to authenticate
and authorize the users. The SIP independent scenario is applicable as well
but would require the user to authenticate himself directly with the gateway.
This would imply, that the gateway needs to maintain its own AAA
infrastructure and relation with the user.
Security: This aspect indicates whether the used solution would have negative
effects on the security of the communication session or the signalling protocol.
Also we need to avoid introducing new possibilities for denial of service attacks
or data manipulation
For a proxy to authorize a QoS reservation for example, it needs to extract the
media description data from the SIP messages and analyze them. This means
that SIP messages cannot use end-to-end encryption in the SIP dependent
scenario. This is not an issue for the SIP independent scenario.
Another aspect is the security of the exchanged authorization token between
the proxy and the user in the user initiated scenario. This data usually
indicates the entity that generated the token as well as a special entry to the
authorization data generated at that entity during the SIP signalling. Stealing
this data could allow an interceptor to generate QoS requests under the
identity of the actual user involved in the SIP session establishment. As
described in Sec. 3.1.1, this can be avoided by encrypting the exchanged
tokens. Further, this risk can be reduced by indicating in the AAA entries
created during the session establishment phase the exact addresses of the
communicating entries. Thereby during the QoS reservation phase only
reservations between those addresses can be established. However, this still
allows for a denial of service attack. By sending data to the callee and putting
the IP address of the caller in the data packets an attacker can reduce the
share used by the actual caller of the QoS resources and thereby incur costs
on him for resources he did not use. To avoid this case, the communication
link between the proxy sending the authorization token and the end systems
needs to be secured. This involves establishing a shared key between the
involved entities and signing sent packets with this key, which further
complicates the session set-up and initial authentication procedures. Another
option would be protect the token so that only the end system that has
initiated the session can decipher it. In this case, the SIP provider would
encrypt the token using a key shared with the user. The user would decrypt
the token and add it to his QoS reservation request. For a better protection,
the user might again encrypt the token using a key shared with the QoS
Complexity: The aspect of complexity describes here the changes needed to
existing components and the additional overhead required for managing new
For a proxy to authorize a QoS reservation for example, it needs to not only
parse and understand the headers of the SIP message but also the session
description part as well. This increases the complexity of the SIP proxy and
increases the processing overhead.
Another aspect is the authorization part itself. In case the user is authenticated
and authorized using SIP then the protocols needed for requesting the
supporting services might be simplified and do not require such mechanisms.
The token mechanism requires extensions to both SIP as well as the service
protocols with headers to include the token. Further, the end user needs to
coordinate the usage of both SIP and the supporting service by taking the
token from SIP and adding it to the service signalling part.
Flexibility: For supporting SIP-dependant service coupling, there always needs
to be some trust relation between the SIP provider and the service provider. This
can take the form of a secure connection or might be realized using a trusted
AAA infrastructure. Thereby, in order to provide new services, the new service
provider needs first to establish this trust relation with the SIP provider. This
might lead to delays in the introduction of the service or creating dependencies
that might make the entry of new service providers more difficult. With the SIP
independent AAA scenario, there is no need for a trust relation between the SIP
provider and the service provider. However, this scenario requires trust relations
between the user and the service provider.
Convenience: The SIP dependent authorization scenario has the big advantage
that the user only needs to establish a trust relation with one provider and is only
presented with one bill for the resources he is using. With the SIP independent
authorization scenario, the user would need to maintain a contractual relation to
the providers of each supporting service he would like to use and establish a new
relation for each new service.
[1] J. Rosenberg, H. Schulzrinne, G. Camarillo, A. Johnston, J. Peterson, R. Spark,
M. Handley, E. Schooler, “Session Initiation Protocol”, RFC3261
, June 2002
M. Holdrege and P. Srisuresh "Protocol complications with the IP network address
translator (NAT)", RFC 3027, January 2001.
[3] P. Srisuresh, J. Kuthan, J. Rosenberg: “Middlebox Communication Architecture
and framework”, February 2001, IETF, Internet Draft
[4] 3GPP Technical Specification 3GPP TS 33.102 V3.6.0: "Technical Specification
Group Services and System Aspects; 3G Security; Security Architecture (Release
1999)", 3rd Generation Partnership Project, November 2000
[5] W. Marshall, F. Andreasen, D. Evans, “SIP Extensions for Media Authorization”,
Internet draft, May, 2002
[6] Sinnreich, Rawlins, Gross, Thomas, "QoS and AAA Usage with SIP based IP
communication", Internet Draft, Internet Engineering Task Force, October 2001
[7] Camarillo, Marshall, Rosenberg, “Integration of Resource Management and SIP”,
Internet Draft, April 2002
[8] Dierks, C. Allen, "The TLS Protocol Version 1.0" RFC 2246, January 1999.
[9] M. Handley and V. Jacobson, "SDP: session description protocol," RFC 2327,
Internet Engineering Task Force, Apr. 1998
[10] Boyle, J., Cohen, R., Durham, D., Herzog, S., Raja, R. and A. Sastry. "The COPS
(Common Open Policy Service) Protocol", RFC 2748, January 2000
