Giving Meaning to GI Web Service Descriptions
Florian Probst and Michael Lutz
Institute for Geoinformatics, Robert Koch Str. 26-28,
48149 Münster, Germany
Abstract. Composition of web services based on currently available descrip-
tions such as WSDL are error-prone because the meaning (or semantics) of the
labels used in these syntactic descriptions is unclear. We identify three types of
problems that can result from semantically heterogeneous descriptions during
service composition. These problems call for a Semantic Reference System for
semantically annotating symbols, i.e. referencing symbols to concepts and se-
mantically grounding these concepts. We present a three-level architecture for
such a Semantic Reference System and illustrate how it can be used for solving
the problems identified. Our example for illustration purposes is taken from the
domain of disaster management and focuses on the composition of geographic
information services.
1 Introduction
Composability is often seen as one of the main strengths of web services. In the geo-
spatial domain, after focusing mainly on services providing data and maps, the first
(geo) processing services are currently emerging.
To enable meaningful composability of web services not only syntactic descrip-
tions such as WSDL [1] are needed. A further step has to be taken in providing the
user with descriptions telling him what the labels of data types and operations used in
a syntactic service description actually mean. This calls for a Semantic Reference
System [2] allowing for semantic annotation of symbols, referencing of symbols to
concepts and semantic grounding of concepts with image schemata (Fig. 1).

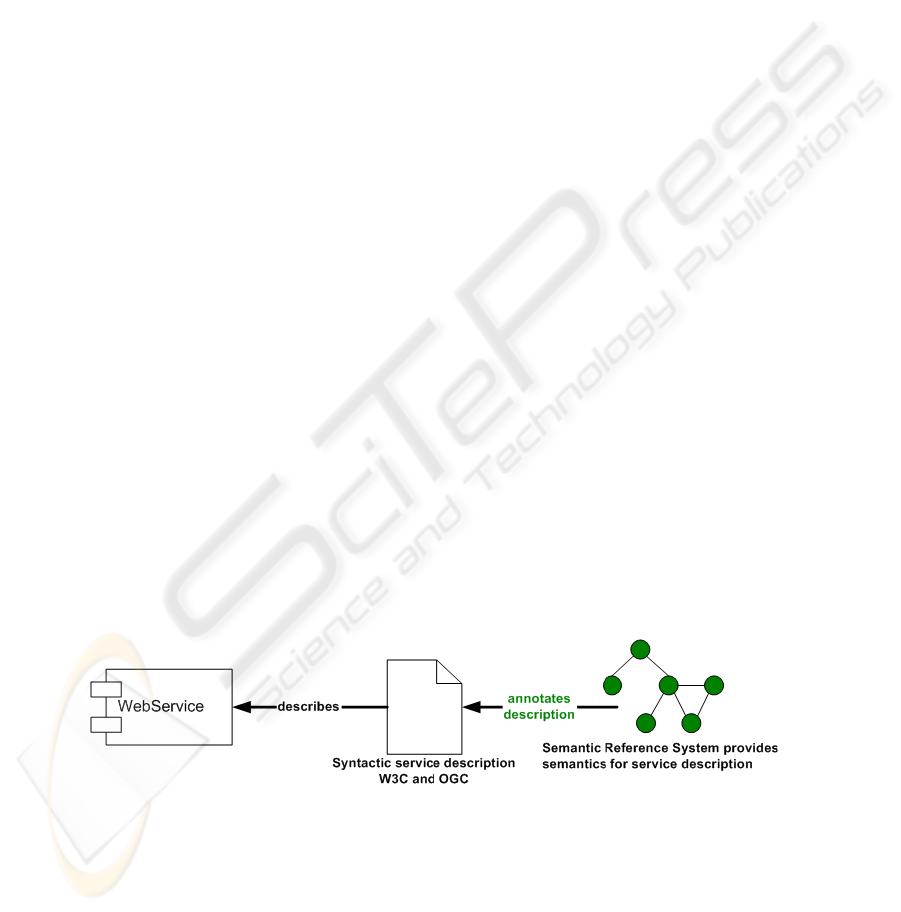

Fig. 1. A Semantic Reference System provides (grounded) semantics for standard service de-
scriptions
Probst F. and Lutz M. (2004).
Giving Meaning to GI Web Service Descriptions.
In Proceedings of the 2nd International Workshop on Web Services: Modeling, Architecture and Infrastructure, pages 23-35
DOI: 10.5220/0002665700230035
Copyright
c
SciTePress
In this paper we introduce the architecture for a three-level Semantic Reference Sys-
tem consisting of application ontology, domain ontology and semantic grounding
levels. We focus on data types that are used as operation input and output, rather than
on the functionality of the operation. We illustrate the conceptual results with a real
world example. We show that, by evaluating references of service descriptions to a
Semantic Reference System, meaningful interoperability between services can be
ensured during service discovery.
The following short scenario
1
is used to explain in which context we encountered
and solved semantic problems: A service provider is about to build a composite ser-
vice for the management of accidents involving toxic gas releases from a chemical
plant. He builds the composite service starting with the most specialized service
2
and
subsequently adding further services until the composite service meets the user’s
requirements. The user already has the central, most specialized service of the com-
posite service available. This is a service for calculating a toxic plume (subsequently
called CalculateGasDispersionService). The first step is to check the input and output
of the plume service. It requires information about the wind speed, the wind direction,
the location of the gas emission and the emission rate as input. The output is a poly-
gon indicating the dispersion of the gas. The user chooses as next step to find an addi-
tional service providing information on the wind direction and therefore searches for
services providing weather information in a UDDI registry [3]. He discovers two
services: the GlobalWeatherService and the AirportWeatherService provided by
CapeScience (http://www.capescience.com). The user now has to determine whether
these services actually match (syntactically and semantically) the requirements of the
CalculateGasDispersionService. The semantic problems he encounters are explained
in the following chapter.
2 Types of Semantic Problems
Currently service discovery relies on the labels of input and output descriptions and
on the labels of data types given in WSDL (or similar service metadata) descriptions.
It is generally assumed that if the labels are the same, the transported information is,
too. However, this is not always the case. Different types of semantic heterogeneity
have been identified for GIS [4] and GI web services in general [5]. In the following,
we present three types of heterogeneity problems that play a role during GI web ser-
vice composition. Each problem type is illustrated by relating it to the scenario given
above (Fig. 2).
1
This scenario was developed in conjunction with the ACE-GIS e-Emergency composite
service (http://www.acegis.net/).
2
To keep things simple, we assume that each web service has only one operation. We therefore
use the terms web service and operation interchangeably.
24
2.1 Problem Type I (Naming Heterogeneity)
The output of a web service and the input of a second web service are represented
with the same data type and refer to the same domain concept, but have different
labels (names).
The AirportWeatherService and the GlobalWeatherService both provide informa-
tion about the wind direction. However, the labels of the data types containing the
required information are different. The GlobalWeatherService refers to the informa-
tion as prevailing_direction while the AirportWeatherService labels the information
as wind. However, both elements represent the same (domain) concept of wind direc-
tion.
This problem can be solved by annotating the elements used in the WSDL descrip-
tions with concepts from an application ontology. The application concepts are al-
ways referenced to (or derived from) more general domain concepts. The reference
includes additional restrictions on the properties of the domain concept, thus con-
straining the meaning of the application concept. If two application concepts refer to
the same domain concept and their restrictions are identical, the meaning of the anno-
tated symbols is the same.

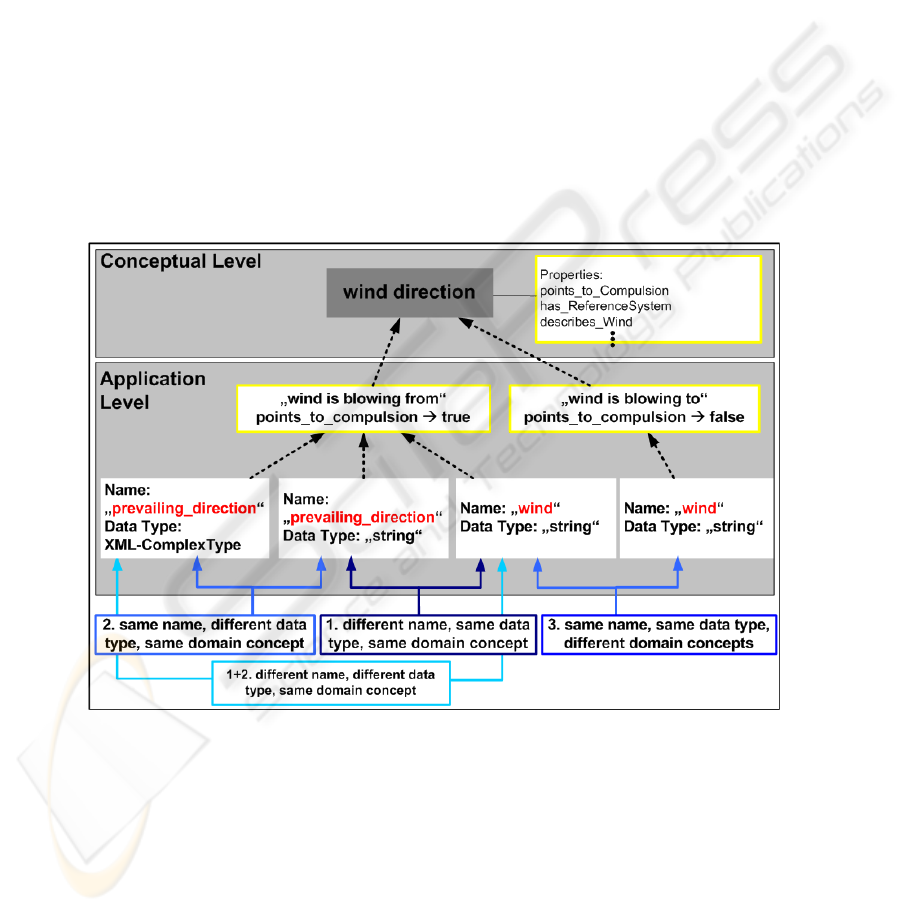

Fig. 2. Types of semantic problems. Restrictions on a domain concept change its meaning
25
2.2 Problem Type II (Data Type Heterogeneity)
The output of a web service and the input of a second web service have the same
labels (names) and refer to the same domain concept, but are represented with differ-
ent data types.
The example given above is further complicated by a second source of heterogene-
ity. The GlobalWeatherService provides the wind direction information represented
as a complex type labeled Direction. The AirportWeatherService provides this infor-
mation contained in a String. However, both elements represent the same domain
concept
3
.
This problem is not simply to be considered syntactical heterogeneity since the
meaning of the information contained in a complex type is not explicit to the user.
When dealing with complex data types, a semantic description of their structure and
content can help in supplying rules for transforming them or for extracting the re-
quired information. How to semantically describe complex types such that these rules
can be generated automatically from the descriptions will be a topic for future re-
search. In our current approach we assume that appropriate parsers are available for
transforming the information into the required data type of the preceding service.
2.3 Problem Type III (Conceptual Heterogeneity)
The output of a web service and the input of a second web service have the same
labels (names), are represented with the same data type, but refer to different domain
concepts.
Consider now the wind information represented as a String provided by the Air-
portWeatherService as described above. And consider further that the CalculateGas-
DispersionService also requires wind information represented as a String. However,
the CalculateGasDispersionService interprets the provided String not as degrees
characterizing the direction the wind is blowing from. Instead it interprets the String
as characterizing the direction the wind is blowing to. This misinterpretation intro-
duces a 180-degree mismatch.
This can lead to the creation of composite services that produce results not in-
tended by the user. This is due to the fact that currently most composite services are
built manually using WSDL-based service descriptions. If inputs and outputs of op-
erations have the same name and data type, the user cannot tell that these operations
refer to different domain concepts. The underlying assumption causing this problem is
that if something is described identically, it must have the same meaning.
By referencing the application level concepts to different domain concepts, or by
using different restrictions on the same domain concepts, it can be prevented that
services whose inputs and outputs do not match (on the conceptual level) are com-
bined in a service chain.
3
Note that in the example which is taken from existing web services, problem types I and II
occur simultaneously. For clarification, the example problem is split into two problems types.
26
3 Semantic Reference System
This chapter gives a brief introduction of the three levels of the Semantic Reference
System and how they are related to each other. The application and domain levels
consist of ontologies, i.e. “explicit specifications of a conceptualization” [6]. The
necessity of introducing three levels is explained in the following section, which re-
lates the user’s tasks during service composition to the semantic problems identified
in the previous section. For better comprehension we start with describing the middle
section on the architecture, the Conceptual Level. Fig. 3 gives an overview of the
three-leveled architecture of a Semantic Reference System.

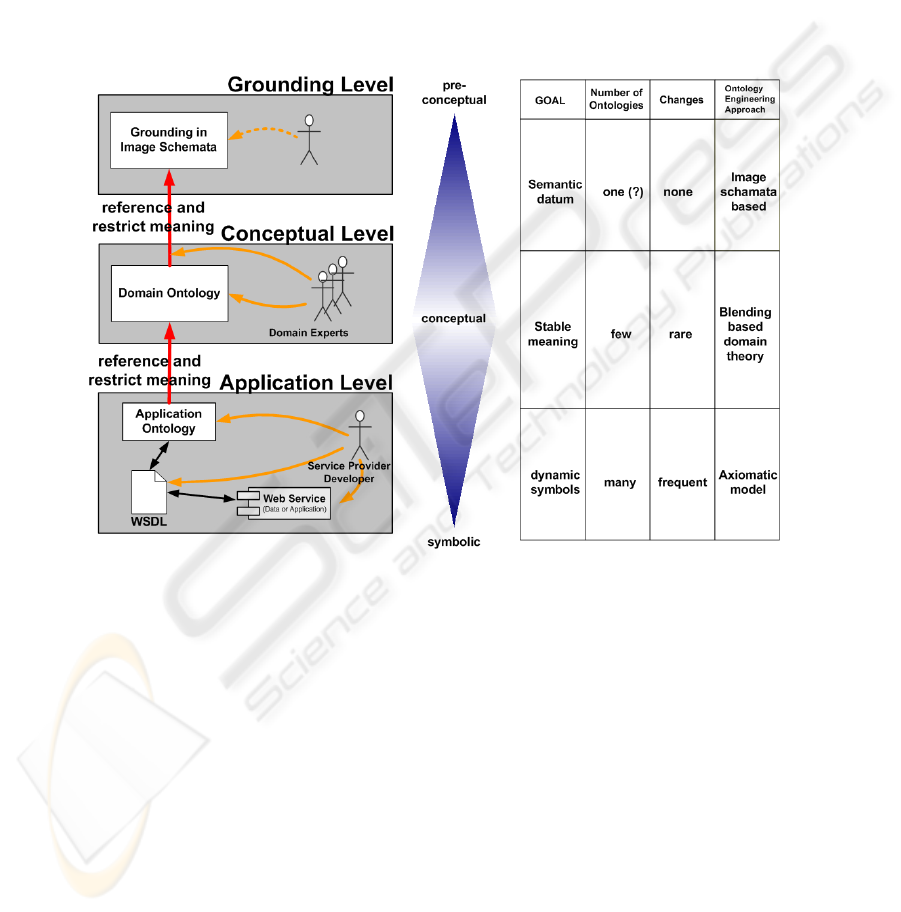

Fig. 3. Three-level Semantic Reference System; left: the levels meet different requirements
3.1 Conceptual Level
The Conceptual Level is the level of human concepts. A domain ontology provides an
agreed-upon conceptualization of a certain part of the world; in our example a small
part of the domain of meteorology. Such a domain ontology will never be complete
since the meteorological knowledge evolves and the terms used change. But it will
serve to describe a particular worldview on this domain and the vocabulary humans
use to communicate about it.
The domain ontology makes a world view explicit and presents it in a machine- in-
terpretable way. It is important to note, that the task of connecting a symbol with a
concept in the human mind, in other words assigning meaning to a symbol, remains
partly with the user. However, the important contribution of a domain ontology is that
27
the many possible conceptualizations an English speaking user could assign to sym-
bols such as wind are restricted via a set of relations to other symbols and by classify-
ing the symbols in a subsumption hierarchy. In this way, the domain ontology re-
stricts the meaning of a known symbol (term).
Thus, while the domain ontology assigns meaning to a symbol by providing a con-
ceptualization for it, this conceptualization is based on the use of other symbols. The
meaning of these symbols is either given by yet other symbols or by assuming that the
user knows the meaning of these symbols. The latter may work within a small user
community, but for larger communities this assumption will not hold.
3.2 Semantic Grounding Level
To escape the vicious circle of defining concepts with other concepts on an ever
higher level of abstraction or by assuming the user knows the meaning of symbols a
Semantic Grounding Level is required. Semantic grounding is the process of referenc-
ing a concept described on the conceptual level to concepts form which is assumed
that their meaning is common to the user and thus needs no further definition.
We propose image schemata to semantically ground the concepts used on the Do-
main Ontology Level. Image schemas fall between abstract propositional structures
(such as predicates) and concrete images (such as the spatial mental images in [7]).
They are developed through bodily experiences and influence our reasoning through
the recurrence of form and function. They stand in a long tradition of representing
elements of knowledge into patterns or schemas. An image schema can be seen as a
generic and abstract structure that helps people establish a connection between differ-
ent experiences that have this same recurring structure. Therefore, meaning involves
image-schematic structures [8, 9].
After defining the meaning of a symbol via the restrictions posed on it on the Con-
ceptual Level, references to image schemata which are represented using similar
methods as employed for the domain ontologies will further reduce semantic ambigu-
ity. These references will be based on non-taxonomic relations, avoiding the sub-
sumption of domain concepts under image schemata. We intend to restrict the mean-
ing of domain concepts by using the shared and thus common understanding of image
schemata. Image schemata are seen as semantic datum in a Semantic Reference Sys-
tem, in analogy to the datum of spatial reference systems.
3.3 Application Level
On the application level, meaning is assigned to web service descriptions, i.e. the
symbols (labels) used in the WSDL-based service description are captured in an ap-
plication ontology. The method to build an application ontology is similar of such for
building domain ontologies. However, in the domain ontology the meaning for the
general vocabulary of a certain domain is captured. The application ontology now
makes use of the symbols to which meaning is already assigned and connects these to
the semantics-free symbols of the WSDL descriptions.
The reason for introducing an application level is that the domain ontology may
define concepts in a way which is to general for a certain application. Therefore the
28
application level provides a possibility for further restricting the meaning of domain
ontology concepts. It is also possible to introduce concepts not contained in the do-
main ontology by using non-taxonomic relations to domain ontology concepts. This is
why application ontologies should not be understood as specializations of domain
ontologies as could be inferred from [10; figure 4].
Since meaning is passed from the Groundling Level via the Conceptual Level to
the Application Level consistency issues are to be considered on the Grounding and
Conceptual Level. We argue that domain and grounding ontology provider are re-
sponsible for keeping updates of their ontologies consistent with prior versions. Ex-
tending domain or grounding ontologies with new concepts will cause no problems on
application level. However extending existing concepts with new restrictions or
changing existing restrictions can cause consistency problems on the application
level. Since domain and grounding ontologies are considered to be relatively stable
constructs with only few changes after an initial development phase, comparable to
agreed upon meta data standards. Therefore we consider the three-leveled architecture
as good solution for guaranteeing consistency and at the same time allowing for
evolving semantics over time.
4 Semantic Problem Types Related to User Tasks during Service
Composition
The types of semantic problems identified in the previous section will now be related
to the user’s tasks during service composition in order to explain the need of a three-
level semantic reference system. Each of the levels and the references between them
will be illustrated by providing formal definitions of concepts for the example sce-
nario. The ontologies containing these definitions can be found at http://musil.uni-
muenster.de/onto/.
For enhanced readability these concepts are imported from the different ontologies
(e.g. grounding.owl or domain1.owl) into one ontology. The prefixes of the concepts
(e.g. grounding:) shown indicate from which ontology they are taken (Fig. 4 and 5).
The prefixes, e.g. domain1 can be extended to the full XML namespace.
The ontology language employed is the Web Ontology Language OWL [11]. To
build the ontologies we employed the ontology editor Protégé 2.0 [12] in combination
with an plug-in supporting OWL [13].
29
Defining the concept of “wind direction”. As starting point of service discovery, the
user needs the possibility to specify his concept of wind direction. This is performed
by querying a domain ontology (for meteorology). In the example, the user will find
the concept WindDirection with all properties relevant in the domain of meteorology
(Fig. 4). The property hasReferenceSystem relates WindDirection to the concept
ReferenceSystem. Its sub-concept DirectionReferenceSystem in turn has the properties
rotation, origin, and unit of measure. Via the concept DirectionReferenceSystem the
user could, for example, specify that the concept of WindDirection he is looking for
takes north as origin, turns clockwise and uses degrees as a unit of measure.
To further decrease the ambiguity of domain ontology concepts, properties using or
based on image schemata are employed. For example, compulsion is identified as an
image schema by [8]. The domain ontology property pointsToCompulsion is therefore
referenced to the grounding level. The possibility of referencing domain ontology
concepts to image schemata decreases the likelihood of ambiguously interpreted do-
main ontology concepts. The (yet incomplete) set of image schemata, their internal
structure and how they can serve as semantic grounding level need further investiga-
tion. However, the possibility to break the vicious circle of defining concepts with
other (undefined) concepts is appealing.

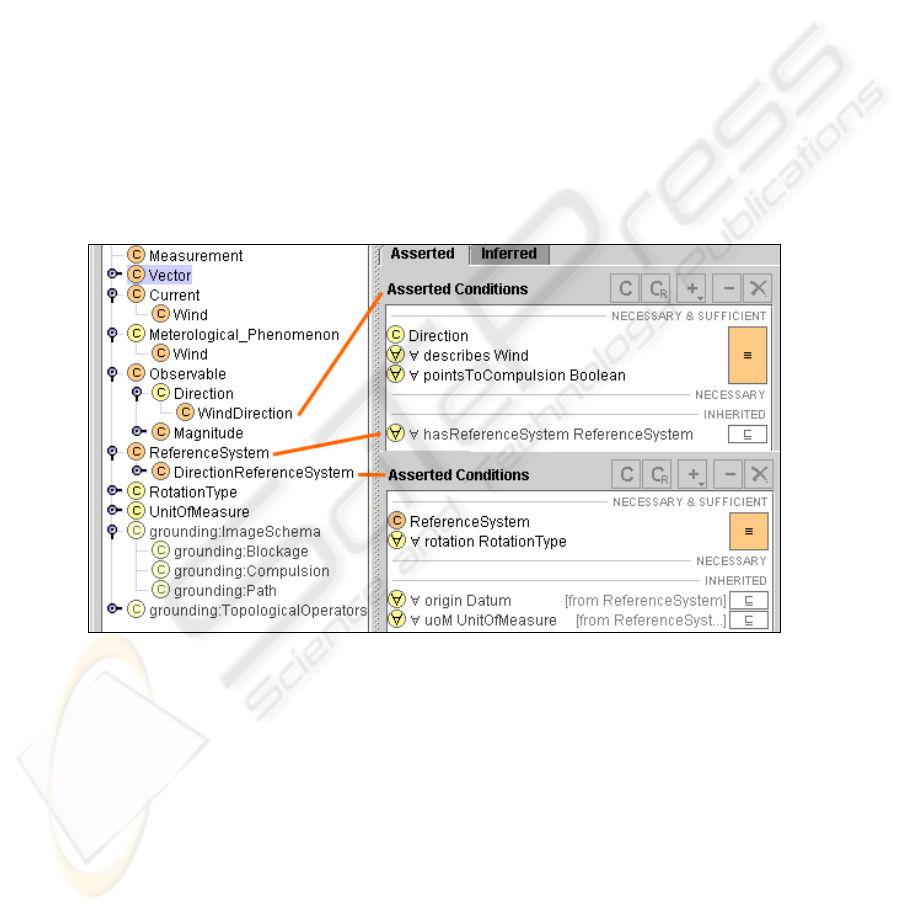

Fig. 4. Definition of the domain ontology concept wind direction in the ontology editor Protégé
using the OWL plug-in (modified screenshot).
Finding services dealing with the identified concept. With the chosen concept
“wind direction” the user discovers all three services in an application ontology
registry since the labels used in their WSDL service descriptions refer to application
ontology concepts. The WSDL labels wind (from AirportWeatherService) and
prevailing_direction (from GlobalWeatherService) both refer to the application
ontology concept application1:WindDirection. The WSDL label wind (from
CalculateGasDispersionService) refers to application2:WindDirection.
30
Although both application ontology concepts are defined using the same domain
ontology concept, the restrictions put on their references reveal that the two concepts
are different. They represent the direction in which respectively from which the wind
is blowing. Discovering whether two concept definitions are equivalent or similar and
whether concepts are related in a subsumption hierarchy is easy in the simple example
we use for illustration. However, when using more complex definitions, it becomes
much more difficult. In such cases a reasoning engine such as RACER [14] can be
used to compute a subsumption hierarchy and to identify equivalent concepts.
With the currently existing WSDL descriptions the user has to judge whether the
application concepts differ in such a way that chaining the services will produce
wrong results. In this example, chaining the AirportWeatherService or the Global-
WeatherService to the CalculateGasDispersionService both would result in a 180-
degree mismatch.

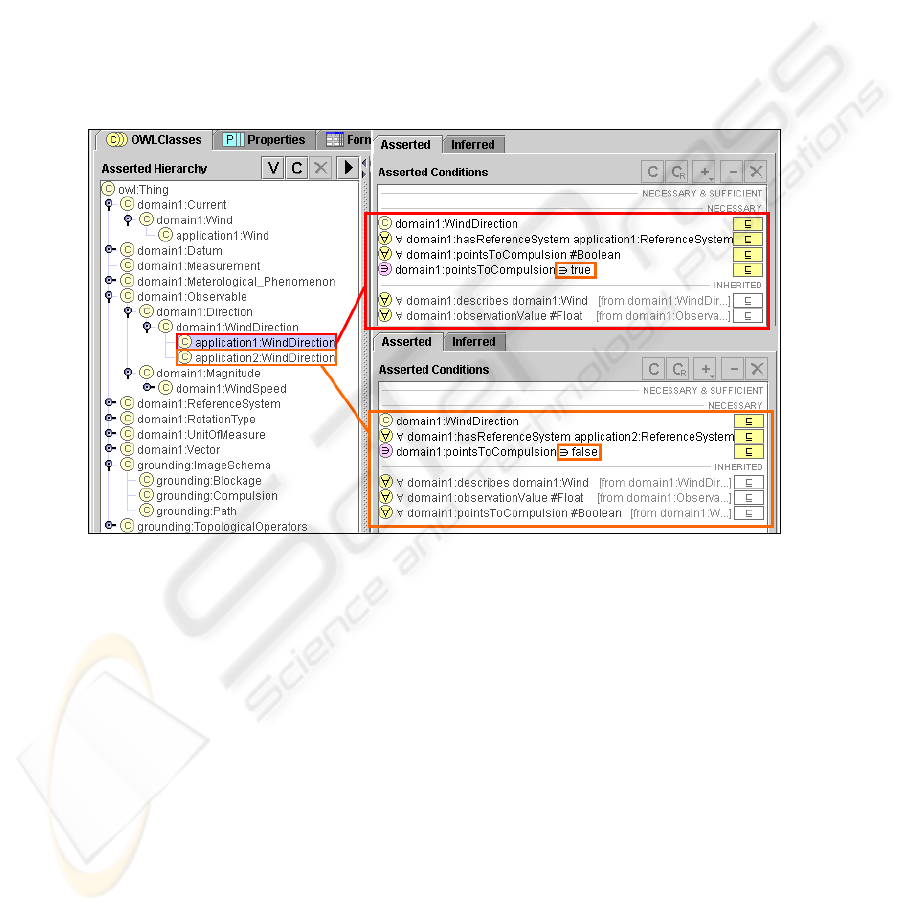

Fig. 5. Definition of two application ontology concepts representing two different conceptuali-
zation of wind direction
The domain ontology concept plus the restrictions on its interpretation provide mean-
ing to the labels used in the WSDL service descriptions. Here it becomes obvious why
domain ontology and application ontology need to form separate levels. The domain
ontology provides a stable source of broadly defined (domain) concepts. The applica-
tion ontology provides the service developer with a flexible means to restrict the
meaning of the domain ontology concepts. Finding services using the same restric-
tions on domain concepts solves naming problems (problem type I). The possibility
for the user to be aware of different restrictions solves conceptual problems (problem
type III).
31
Alternative Search. Consider a user which belongs to a user community different
form that which built the domain ontology. It is likely that such a user has difficulties
in “finding the right words” to start a search on a domain ontology which is based on
unfamiliar vocabulary. Instead he specifies a query “find concepts which describes
wind”, by using the describes property and the wind concept from the domain
ontology. This approach follows the user-defined query concept introduced by [15].
The reasoning engine RACER returns application ontology concepts which
implement such property. Our ontology architecture application ontologies contain
references to the services they describe. Finding an application ontology concept
which is a sub-concept of the user-defined query immediately indicates a web service
potentially interesting to the user. The two application ontologies in our example can
be distinguished by a user-defined query which is asking for a service which
understands a wind direction as pointing to the compulsion the wind creates. This is
achieved by searching for concepts implementing the pointsToCompulsion property
with the value true.
Learn how the service represents the needed information. Consider the user
searches for services dealing with wind direction where the property
domain1:pointsToCompulsion is true. Such a query would result in finding the
AirportWeather-Service and the GlobalWeatherService which reference to the
application ontology called application1. Now the user needs to know which data
types are used to represent the information he requires. For this purpose the
application ontology of the services is queried. The resulting human-readable
description of the data types employed in the service can be used to deal with
problems of type II. How to automatically derive rules for transforming complex
types or for extracting the required information automatically from the descriptions
will be a topic for future research.
5 Related Work
With the maturation of service-oriented computing, several approaches to service
discovery that are based on service descriptions referring to ontologies have been
proposed (e.g. [16-18]). We share with these approaches the use of inference engines
for evaluating subsumption relationships between the ontology concepts that are used
for annotating syntactic service descriptions. However, we differ from these ap-
proaches in the ontology architecture applied.
In [19] a classification of different ontology architectures used for making the se-
mantics of information sources explicit is introduced (Fig. 6).
32

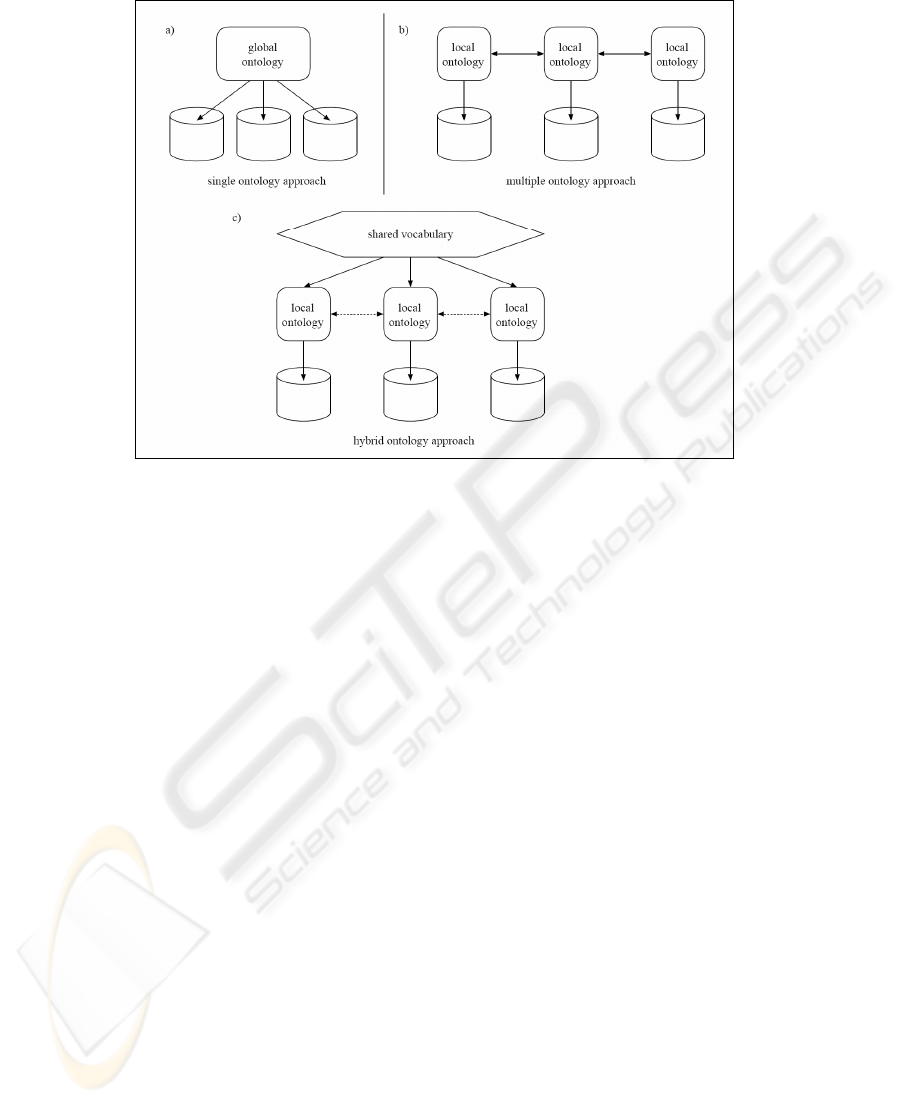

Fig. 6. Different ontology architectures for information integration [19]
( ) Single Ontology approaches use one global ontology providing a shared vocabu-
lary for the specification of the semantics. All information sources are related to
the global ontology. Such approaches can be applied to problems where all in-
formation sources to be integrated provide a very similar view on a domain.
( ) In multiple ontology approaches, each information source is described by its own
ontology. In principle, each of these application ontologies can be a combination
of several other ontologies. However, it can not be assumed that several applica-
tion ontologies share the same vocabulary. While each application ontology can
be developed independently, the lack of a common vocabulary makes it difficult
to compare different application ontologies.
( ) Hybrid approaches are similar to multiple ontology approaches in that the se-
mantics of each source is described by its own ontology. But in order to make the
local ontologies comparable to each other they are built from a global shared vo-
cabulary. The shared vocabulary contains basic terms (the primitives) of a do-
main which are combined in the local ontologies in order to describe more com-
plex semantics. Sometimes the shared vocabulary is also an ontology.
The approaches currently proposed for semantic service discovery employ simple
ontology architectures that can be classified as single ontology approaches. The use of
ontologies on multiple levels is not intended. In contrast, the ontology architecture in
this paper can be seen refinement of the hybrid ontology approach. Our domain on-
tology corresponds to a shared vocabulary as shown in Fig. 6c. In addition, the image-
schemata-based ontology on the grounding level provides a means for comparing
concepts form different domains on the one hand, and for grounding domain concepts
in human cognition on the other hand.
33
6 Conclusion and Future Work
We have identified three types of semantic problems that may occur during web ser-
vice composition: Naming heterogeneity, conceptual heterogeneity and data type
heterogeneity. We have illustrated these types by relating them to a real world exam-
ple based on services employed in a composite service for the management of acci-
dents involving toxic gas releases from a chemical plant. Meaningful composability
of web services needs semantic interoperability between web services. We argue that
semantic interoperability needs a sound theory of semantic grounding.
Therefore we have introduced a three-level Semantic Reference System for tack-
ling the identified problem types. It allows the user to
discover appropriate services, even when they are named differently than expected,
identify data type heterogeneity and take further syntactical integration steps, and
Discover conceptual heterogeneity problems and thus avoid the construction of
composite services producing unintended results.
We have shown in an example ontology how to give meaning to the symbols (labels
of data types) used in WSDL descriptions. This is done by referencing the symbols to
an application ontology, which in turn derives meaning for its concepts from a do-
main ontology, which in turn grounds its concepts on an image schemata-based
grounding level.
We argue that the introduced Semantic Reference System allows for the different
degrees of flexibility, unambiguity and stability such a system has to provide. Apart
from the grounding of meaning with image schemata on the grounding level, the
innovation of this approach lies in the flexibility of the application ontology level. On
this level, a service developer can model virtually anything (including totally fictive
worlds) using restrictions on domain ontology concepts. Likewise, a user can find a
certain concept based on a domain ontology vocabulary and learn how its meaning is
restricted on the application ontology level. While this avoids that statements that are
valid in a certain application ontology need to be valid in another one, they can still be
traced back to their common domain ontology concept.
Future work includes the exploration of the reliability and usability of image sche-
mata for grounding the semantics of domain ontology concepts. Also, we aim to es-
tablish a working prototype of the described Semantic Reference System. This in-
volves the implementation of an environment for testing the semantics of inputs and
outputs of composite services.
Acknowledgements
The work presented in this paper has been supported by the European Commission
through the ACE-GIS project (grant number IST-2002-37724) and the German Fed-
eral Ministry for Education and Research as part of the GEOTECHNOLOGIEN pro-
gram (grant number 03F0369A). It can be referenced as publication no. GEOTECH-
52.
34
References
1. Chinnici, R., Moreau, J.-J., Gudgin, M., Schlimmer, J., Weerawarana, S. Web Services
Description Language (WSDL) Version 2.0 Part 1: Core Language.[Online]. Available:
http://www.w3.org/TR/2003/WD-wsdl20-20031110/
2. Kuhn, W.: Semantic Reference Systems. International Journal of Geographical Information
Science (2003)
3. Bellwood, T., Clément, L., von Riegen, C. (2003) UDDI Version 3.0.1.[Online]. Available:
http://uddi.org/pubs/uddi-v3.0.1-20031014.htm
4. Bishr, Y.: Overcoming the semantic and other barriers to GIS interoperability. International
Journal of Geographical Information Science 12 (1998) 299-314
5. Lutz, M., Riedemann, C., Probst, F.: A Classification Framework for Approaches to
Achieving Semantic Interoperability. In: S. Timpf, (ed.) COSIT 2003 (Conference on Spa-
tial Information Theory). Springer (2003) 200-217
6. Gruber, T.: A Translation Approach to Portable Ontology Specifications. Knowledge Ac-
quisition 5 (1993) 199-220
7. Barkowsky, T.: Mental Processing of Geographic Knowledge. In: D. Montello, (ed.) Spa-
tial Information Theory - Foundations of Geographic Information Science, Proceedings of
COSIT 2001, Morro Bay, CA, USA, September 2001. Springer (2001) 371-386
8. Johnson, M.: The Body in the Mind: The Bodily Basis of Meaning, Imagination, and Rea-
son. The University of Chicago Press, Chicago (1987)
9. Gärdenfors, P.: Conceptual Spaces - The Geometry of Thought. Bradford Books, MIT
Press, Cambridge, MA (2000)
10. Guarino, N.: Formal Ontology and Information Systems. In: Proc. Formal Ontology in
Information Systems (1998) 3-15
11. McGuinness, D. L., Van Harmelen, F. (2004) OWL Web Ontology Language, W3C Can-
didate Recommendation.[Online]. Available: http://www.w3.org/TR/2003/CR-owl-
features-20030818/
12. Noy, N. F., Sintek, M., Decker, S., Crubezy, M., Fergerson, R. W., Musen, M. A.: Creating
Semantic Web Contents with Protege-2000. IEEE Intelligent Systems 16 (2001) 60-70
13. Knublauch, H. (2004) Editing OWL Ontologies with Protégé.[Online]. Available:
http://protege.stanford.edu/plugins/owl/tutorial/index.html
14. Haarslev, V., Möller, R. (2003) RACER User’s Guide and Reference Manual Version
1.7.7.[Online]. Available: http://www.sts.tu-harburg.de/~r.f.moeller/racer/racer-manual-1-
7-7.pdf
15. Visser, U., Stuckenschmidt, H.: Interoperability in GIS - Enabling Technologies. In: Proc.
5th AGILE Conference on Geographic Information Science (2002) 291-297
16. Kawamura, T., De Blasio, J.-A., Hasegawa, T., Paolucci, M., Sycara, K.: Preliminary Re-
port of Public Experiment of Semantic Service Matchmaker with UDDI Business Registry.
In: Proc. First International Conference on Service-Oriented Computing (ICSOC 2003)
(2003)
17. Paolucci, M., Kawamura, T., Payne, T. R., Sycara, K.: Semantic Matching of Web Service
Capabilities. In: Proc. 1st International Semantic Web Conference (ISWC2002) (2002)
333-347
18. Sirin, E., Hendler, J., Parsia, B.: Semi-automatic Composition of Web Services using Se-
mantic Descriptions. In: Proc. "Web Services: Modeling, Architecture and Infrastructure"
Workshop (in Conjunction with ICEIS2003) (2003)
19. Wache, H., Vögele, T., Visser, U., Stuckenschmidt, H., Schuster, G., Neumann, H., Hüb-
ner, S.: Ontology-Based Integration of Information — A Survey of Existing Approaches.
In: Proc. IJCAI-01 Workshop: Ontologies and Information Sharing (2001) 108-117
35
