An
User and Location Management System for Wireless
Networks
Andrei Oliveira da Silva
1
, Daniel Waldman
1
, Paulo Henrique de Souza Schneider
1
,
Fabricio D’Avila Cabral
1
, Ana Cristina Benso da Silva
2
, and Jo
˜
ao Batista de Oliveira
2
1
CPSE - Research Center on Embedded Software
Av. Ipiranga, 6681 - Building 30 - Block 4 - Room 242,
90619-900 Porto Alegre, Brazil
Abstract. This work presents a wireless user low-grain position management
system (up to 5 meters) for Wi-Fi networks. The location system is based on
access point identification, where the user’s device is associated, through the
events generated by the access point. In this context, the access point is a sta-
tion managed with SNMP. Hence, the system receives information from other
SNMP agents that interact with the wireless user authentication system to pro-
vide information about users, at what time the client uses to get in the network,
among others. These information will be to refine the management system for
users and resources.
1 INTRODUCTION
Wireless networks have been used in different enterprises and projects to provide In-
ternet access and ubiquitous computing environments [8]. Examples of such projects
are Carnegie Mellon University’s AURA project [8], Massachusetts Institute of Tecnol-
ogy’s Oxygen [7], Hewlett-Packard’s Cooltown [3] and IBM’s ContextSphere [1].
The management of pervasive computing environments is an important task because
of its dynamic nature. In this context, users handle mobile devices and services must be
offered in a plug-and-play fashion. In these environments the monitoring and manage-
ment of users and resources are vital for the network use and its security. The monitoring
of user behavior offers many possibilities at system control and service personalization
levels, which are provided by the environment. An example of such scenario is the
knowledge of the user’s movement through the network, where it is possible to predict
his future location based on this information. This kind of data can be used in many
scenarios, from security to CRM (Costumer Relationship Management) applications.
This work presents a user management system for Wi-Fi networks operating in in-
frastructure mode. The system uses an authentication system and SNMP (Simple Net-
work Management Protocol), respectively validating users in the network and gathering
Supported
by the Hewlett-Packard Brazil/ PUCRS (Pontif
´
ıcia Universidade Cat
´
olica do Rio
Grande do Sul).
The authors are with CPSE (Centro de Pesquisa em Software Embarcado).
§
The authors are with Faculdade de Inform
´
atica, PUCRS.
Oliveira da Silva A., Waldman D., Henrique de Souza Schneider P., D’Avila Cabral F., Cristina Benso da Silva A. and Batista de Oliveira J. (2004).
An User and Location Management System for Wireless Networks.
In Proceedings of the 1st International Workshop on Ubiquitous Computing, pages 160-169
DOI: 10.5220/0002666301600169
Copyright
c
SciTePress
information about them, where its goal is to discover the user location using the identi-
fication of the access point which user’s device is associated. Through this system, it is
possible to discover the estimated position of a user, based in the access point coverage
area, which can be a range of 5 or 10 meter depending on the device model.
This paper is organized using the following structure: Section 2 shows the related
works; Section 3 shows the authentication system [11] that were used and extended to
support SNMP operations; Section 4 describes the location management system, the
developed MIB and SNMP agents; Section 5 shows a study case and the Section 6
presents the conclusions and future works.
2 RELATED WORKS
According to [8] location management and context awareness are challenges for the
mobility area. Amongst the related projects there is Cricket, part of MIT’s Oxygen
project [7]. This project uses devices, called beacons, that combine radio frequency
and ultra-sound signals to determine the location of devices and applications. Cricket
is focused on the user’s physical location and provides a reasonable precision inside
environments. Beacons can estimate the user’s position based on its signal strength,
identifying user’s position and movement.
Another related project is Cooltown [3], based in an web services architecture and
service location protocols, such as UPnP (Universal Plug’n’Play), which allows the user
to remotely access a service through an URL. This project also uses beacons, but they
are not used to determine the device’s location. These devices are used to divulge a ser-
vice URL. It is also a possibility the use of GPS (Global Positioning System) as a mean
to provide the precise user location in open areas. Kindberg [3] also presents a rather
different perspective from Cricket. Cooltown project describes the use of web services
to provide applications in wide environments, such as a city. This work’s described
system is being initially developed for restricted environments, such as a museum or a
smart room.
The work presented in this paper focus on extracting user’s logical position, iden-
tifying which access point the user is connected and extracting information about his
movement in the system. A log is maintained when the user enters and exit from the
network, how much time he spent online, among other information. Through this in-
formation, it is possible to determine the user’s physical location, based on the access
point’s position. The described system is being initially developed for restricted envi-
ronments, such as a museum or a smart room.
2.1 Motivation
Location sensitivity is an important feature in an ubiquitous environment. A set of ser-
vices can be created and deployed within this context, such as real time marketing and
load balance systems. This feature can be explored by two different approaches: physi-
cally, which is aided through special hardware devices, and logically, which uses access
point where the device is connected to estimate his position.
161
Physical positioning is more precise, compared to the logical approach, since it can
predict the user location with few meters, or even centimeters, of error rate. A disad-
vantage of this method is that it is necessary to build specific hardware and protocols to
manage the positioning, such as on GPS systems.
Logical position management deals with a broader range of user location, usually
predicting its position in a range of 10 meters from the access point. A few methods
can be applied for the access point triangulation, where the signal strength between the
device and the nearby access points are measured and mapped in a database.
Another approach using access points is the use of SNMP information provided by
these devices. The location prediction might not be as precise as the previous methods,
since it is based in a database mapped information and positioning relative to the access
point. On the other hand, it is not necessary to build specific hardware and it also allows
to use public standards, such as SNMP messages. Thus, the logical position manage-
ment can be more feasible, considering development and scalability. It is cheaper to
develop software, since devices do not need to have a new hardware attached, making
this system more extensible.
3 AUTHENTICATION SYSTEM
Whole system was built over an authentication system [11], and some components had
to be adapted and others created to support the user and location management. This sys-
tem protects services from unauthenticated users, in a similar fashion to NoCat [5]. All
events are transmitted through SNMP messages and a few agents and managers were
built to manage users in the network and to gather information about their behavior. The

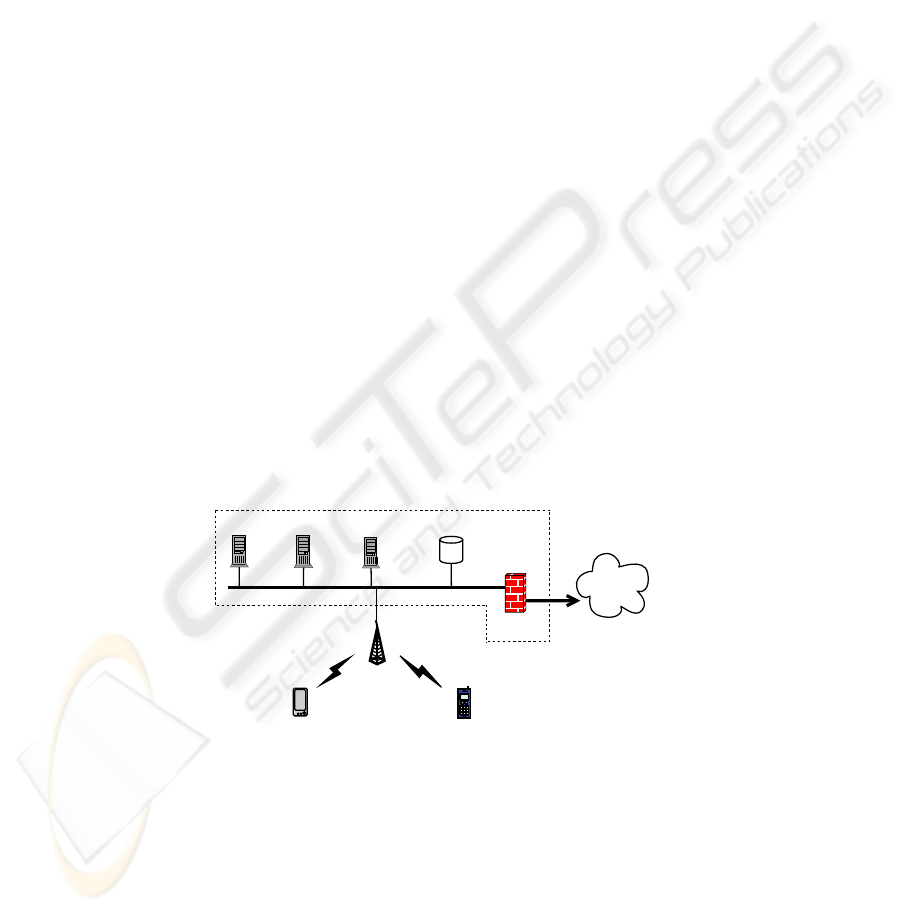

authentication system’s components are presented in Figure 1:
DHCP
Login
Service
Authentication
Server
Directory
Server
Firewall
Wireless
access point
Wireless
station
Wireless
station
Internet
Intranet
Web services
Fig.1. Authentication system
Web services [3] were used to implement the user access control mechanism. It
is important to notice that the network project must predict the access to the wireless
network through a firewall in order to prevent the improper network use.
162
3.1 Components
In order to achieve such authentication system, a range of servers and services are
needed. The components shown on Figure 1 are described below:
DHCP provides dynamic IP address allocations to wireless devices that are entering
the network;
Login Service provides the authentication web page interface, where the users are redi-
rected to be authenticated;
Authentication Server takes place of most of the management tasks. It is responsible
for receiving authentication requests from the Login Service, querying the Direc-
tory Server for user profile and password, configuring the firewall to allow and deny
the user access to the network and services;
Directory Server used to store user information, more specifically username, pass-
word and profile, which contains the service names that the user can access;
Firewall control which services the user can make use and which ones are not available
for a given user.
3.2 Events
This authentication system presents a few events that are related to the network safety
and, afterwards, the information gathering process. This subsection will briefly explore
the events related to the authentication process, when the user enters the network.
1. Entering the network: the user enters in the range of the wireless network access
point range and an IP address is set to the device, through the DHCP server;
2. Login Server redirection: after having a valid IP address, the user is automatically
redirected for a server to be authenticated and make use of the services;
3. Authenticate: in the authentication server, the user logs through a web service

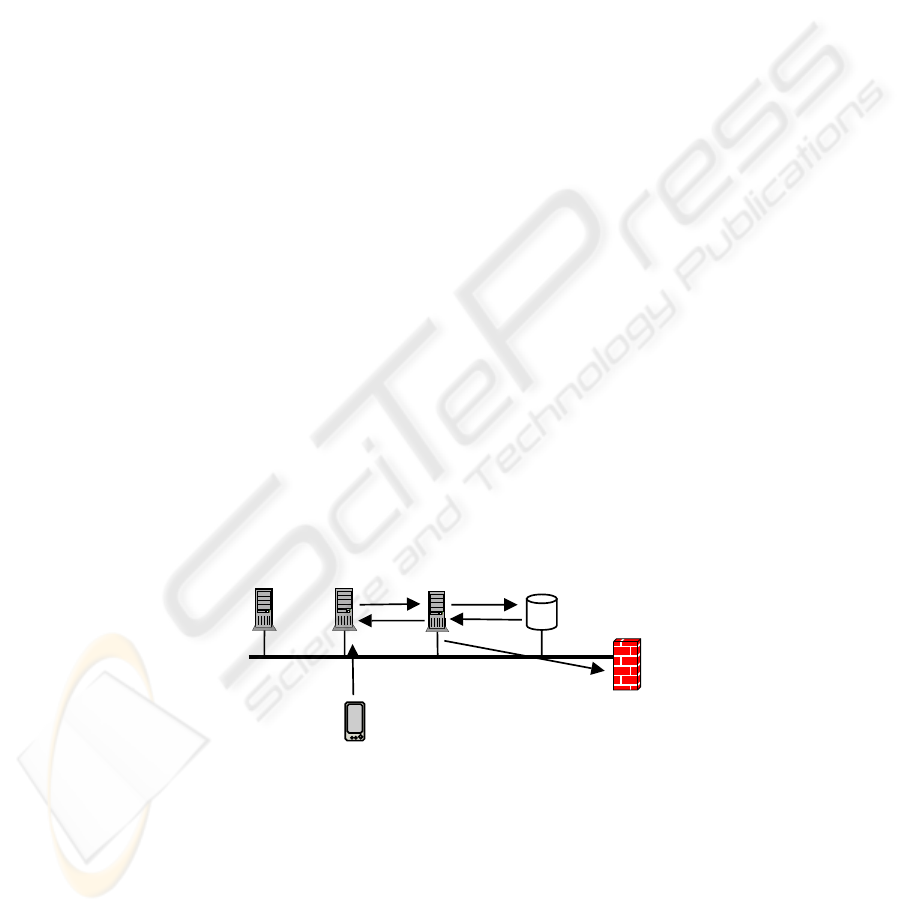

(events 1,2,3 and 6 of Figure 2), which will sets the firewall user’s rules (event 5)
of his profile (event 4).
DHCP
Login
Service
Authentication
Server
Directory
Server
Firewall
Wireless
Station
1
2
3
4
5
6
Fig.2. User authentication
The device disassociation and user deauthentication will be better explained in an
upcoming section, dealing with this system integration with the management features.
163
4 USER MANAGEMENT AND LOCATION SENSITIVITY
The previously described system proposed a mechanism to allow only authorized users
to access the network and make use of its services. However, it’s possible to aggre-
gate other functionalities and information to this architecture within the authentication
process.
Therefore, the management system presented in this work is based on user access
control and user location sensitivity. Its main goals are to:
Identify user permissions;
Apply restriction policies;
Service allocation policies (e.g. services which are physically closer to the user);
Provide environment personalization;
Allow resource allocation management.
The management of the user access control is based on the previously presented
authentication system. In order to accomplish its goals, SNMP agents [6] and propri-
etary mechanisms were employed for the information gathering process in entities and
processes related to the authentication procedure.
The location sensitivity management is accomplished through the periodic monitor-
ing of the user movement in a Wi-Fi network, configured in infrastructure mode. Access
points who have embedded SNMP agents and send association/desassociation SNMP
traps can be used to monitor device’s behavior. Therefore, if a device is associated with
an access point it is certain that he is in the access point’s range, which is usually 10
meters. This information can be used to identify the user’s estimated position, related
to the physical location of the access point.
Besides the management systems described above, the system generated events are
stored in a MIB, where they can be easily accessed and updated through SNMP re-
quests (get or set). This section will explore the implementation of a user management
system based on the access point coverage range, as well as present the base of gath-
ered information and the steps taken to integrate this management with the previous
authentication system.
4.1 User’s MIB
The authentication system provides a collection of user information, such as username,
device’s IP and MAC address, access point which the user is associated, for example.
Combining these features with traps sent by the access point’s embedded SNMP agents,
it is possible to capture the time when the user enters and leaves the network and series
of information that can help in determining the user profile, such as places where he
usually goes, how long does he stay in a given place and so on. These information are
described in a MIB whose attributes are updated whenever a system event occurs. Table
1 presents how this base was modelled.
In order to implement a MIB for user management a Net-SNMP agent [4] was used,
which make it possible to create and support a new repository path. This modified agent
handles MIB requests, updating and recovering information provided by the authenti-
cation system.
164
Index Information Use Provided by
1 Device’s MAC ad-
dress
Identify the device being used in the
network
Association traps to the ac-
cess point
2 Device’s IP address Identify the IP address associated
with the device, and can be used to
detect network intrusions
DHCP
3 Username The user making use of the network Authentication server
4 Access point’s IP
address
Determine in which access point the
device is associated, making possible
to estimate the device location
Association traps to the ac-
cess point
5 Deauthentication
mode
Determine how a user was deauthen-
ticated.
DHCP or disassociation
traps for the access point
6 Device’s entry time Indicate when the device entered the
network
Association traps to the ac-
cess point
7 Device’s exit time Indicate when a device left the net-
work
DHCP or disassociation
traps for the access point
Table 1. User’s Management MIB
4.2 Authentication system integration
The extension of a Net-SNMP agent can be done through scripts referenced by the
configuration files. Therefore, in order to integrate the authentication system with the
user management, a SNMP agent was devised to receive system information.
The access point was configured to send association/desassociation traps to the au-
thentication server, which will update these information to the SNMP agent. This be-
havior is executed every time a new event occurs.
Some original authentication system components had to be modified for the integra-
tion of the location sensitivity management, and a few had to be created. The following
items enumerate the required modification:
Modify the authentication server in order for it to act as an agent (receiving infor-
mation from other agents/managers, such as traps from access points) and to update
the MIB, as shown in Table 1;
Event handling by the authentication server, such as dealing with association/disassociation
traps;
Creation of a SNMP agent, with an implemented MIB 1, which stores events in a
database 2.
In the following sections, the events generated by the system integration will be
studied, exploring its purposes and motivations.
Device association When a device is associated in the access point, the access point’s
embedded SNMP agent will send a trap message, indicating this association to the
authentication server, as can be seen in Figure 3. This event is sent to the agent, which
combines this information in a database containing the previously stored events.
165
The events and messages generated by this association are the following, in chrono-
logical order:
1. When entering the access point range a trap message is sent to the authentication
server, containing the device’s MAC and IP addresses and access point’s IP address
which is associated with this device;
2. It is verified if a user is transiting between networks or if he is reassociating in
the same network, depending on disassociation events. In both cases, the transition
time between networks is calculated. If this time is higher then the defined timeout,
the user must reauthenticate itself as it is the first time it gets in the network;
3. If it’s a new user, DHCP must return a valid IP address, binding it to the device’s
MAC address, and must authenticate itself in the network;
Device disassociation When the access point’s SNMP agent detects a device which
left his access range, as seen in Figure 3, it generates a SNMP trap indicating the disas-
sociation of this device. The trap message will carry information such as MAC and IP
address of the device. When the SNMP agent receives this message, it will update the
database with this event. When the device returns to the network the timeout between
events is calculated, thus blocking the firewall for the device or not. This block is based
on the device’s MAC address, in order to avoid unwanted accesses by other devices
who might try to use the same IP address.
Wireless
access point
Wireless
station
Authentication
Server
Association/
Desassociation
trap
Temporal
Database
Log event
SNMP
agent
SNMP set

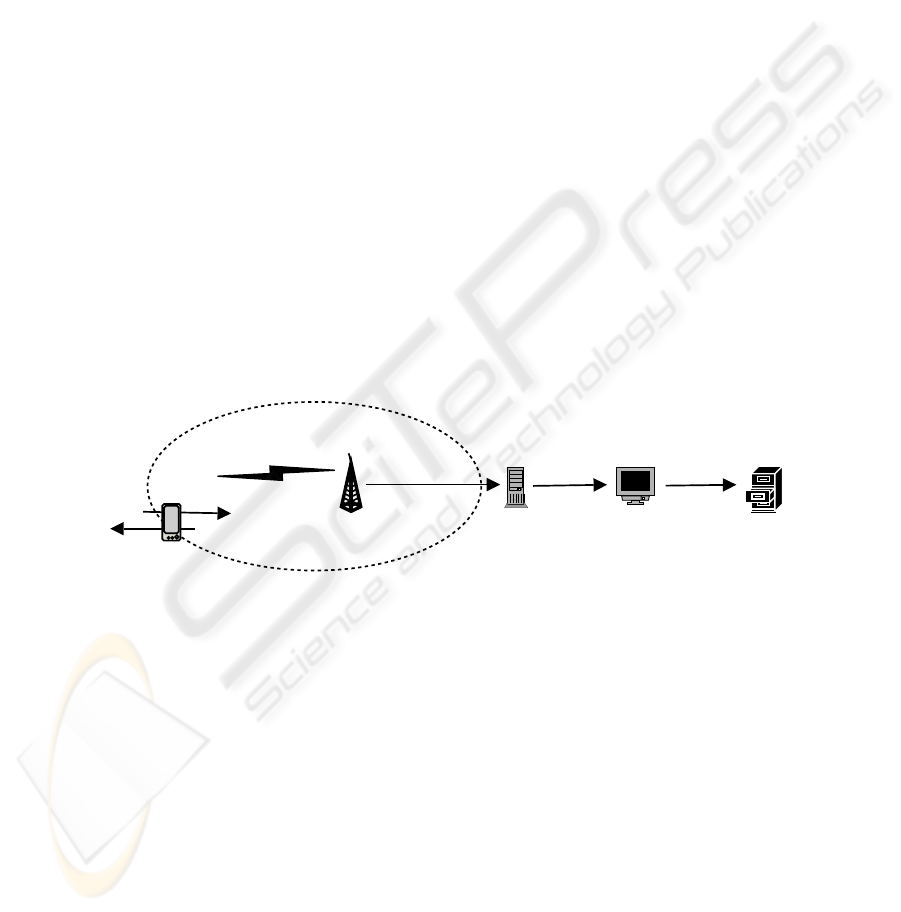

Fig.3. Device (des)association
Device turned off The action of turning off a device does not represent an disassocia-
tion for the access point’s SNMP agent. In order to avoid a scenario where another user
makes use of the same device, thus inheriting the access privileges of the previous user,
the firewall rules must be configured based on the device’s MAC address. Therefore,
when a device, which was turned off, retries to associate in the network, all its rules
will be blocked by the firewall. The same case happens when tries to enter the net-
work with a fake IP address, since the firewall rules are configured based on the MAC
address, forcing the authentication process.
166
Data storage A desirable feature in managements system is the user and network
statistics processing. To make it easier in identifying the user behavior, an event registry
was built based on the agent’s integration with a database. The updated information is
recovered in the user management MIB through database queries sent by the SNMP
agent. This process is done using scripts that handle communication with the MIB, and
store the information on a temporal database [10].
Device’s MAC
address
Device’s IP
address
Username Access Point IP
address
Deauthentication
mode
Entry
time
Exit
time
MAC1 IPDEV1 Claudia IPAP1 DHCP 15:30 15:35
MAC1 IPDEV2 Eugenio IPAP1 TRAP 15:35 15:37
MAC1 IPDEV2 Eugenio IPAP2 TRAP 15:37 NULL
Table 2. Temporal database example
The database registers the event occurrences, such as an user authentication and
the start and end time for this event. Table 2 exemplifies this scenario. In the first en-
try, Claudia is deauthenticated through the DHCP lease. Afterward, Eugenio, using the
same device, associates itself in an access point I P AP 1 and, minutes later, changes it
to access point IP AP 2.
This process is executed for all information contained in the MIB, where new up-
dates are recovered every time a request is made.
5 CASE STUDY
A simple model that exemplify the use of the presented system is a university campus
or an office building, where the scenario focuses on an user who wants to print a doc-
ument in the nearest color printer. When this user access the network, his device will
be associated with an access point and will be authenticated through the authentication
server.
The access points and printers have their physical position and descriptions mapped
in a database. Matching the user’s position with the printer’s description and location it
is possible to send a printer job to the nearest printer through a web service [9].
Moreover, the events generated by the system can determine which places are being
frequently visited by a given user, thus allowing resource allocation based on his move-
ment patterns. It is possible to imagine the implementation of this system in a mall or
super market, where the clients can receive announcements through their PDA based
on the their most visited places or favorite products.
When the user access the network, his device is associated with one access point
that sends a trap to the authentication server indicating the MAC address of the user’s
device. This event updates the user management MIB with the MAC address of the
user’s device and the access point’s IP address. Thus, the user goes to the authentication
step, where the authentication server updates the MIB with the device’s user name and
IP address.
167
A disassociation trap indicates that the user has left the access point’s range. It
indicates that the user is moving, thus when the device reassociates with another access
point a new trap is sent to the authentication server, which updates the MIB. All these
events are stored in a temporal database and they can be analyzed in the search for
movement patterns in order to place services for the user.
Authentication
Server
Printer 1
Printer 2
Access
Point 2
Access
Point 1
Wireless
station 1
Wireless
station 2
SNMP
Agent
Temporal
Database
MIB Requests
SNMP set/get
Association
trap
Association
trap

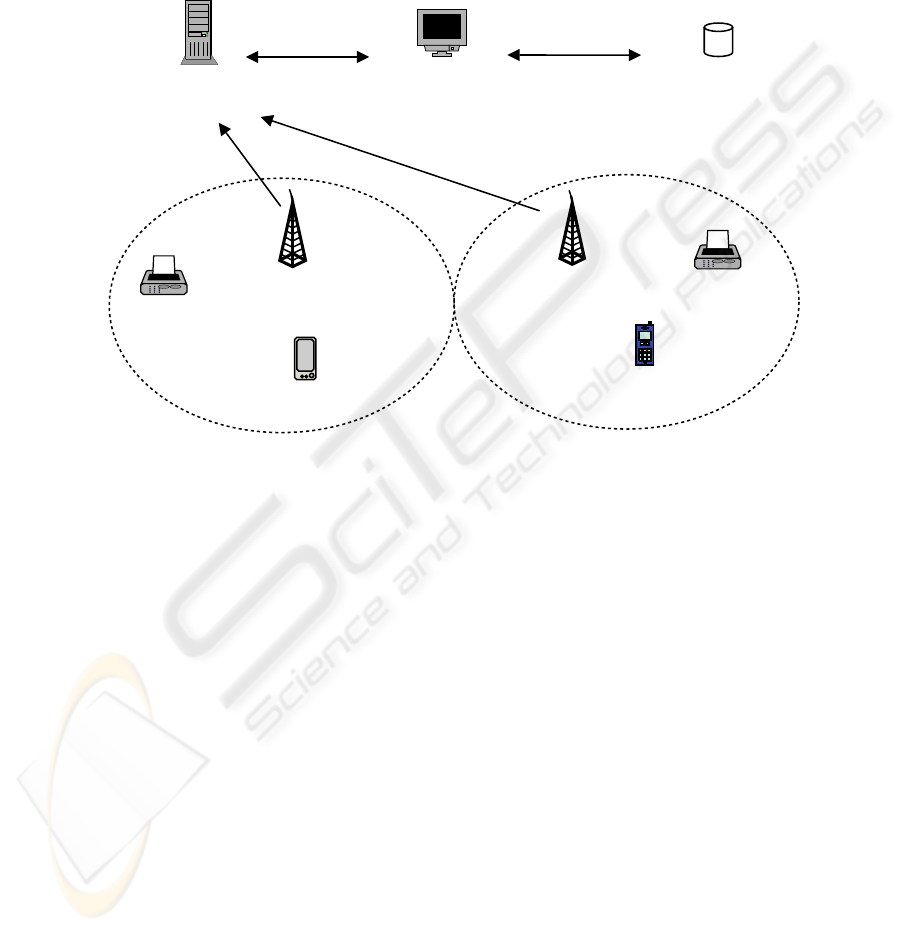

Fig.4. Case study
Figure 4 presents the events in an environment with two access points. The system
would redirect the printer job of Station 1 to the nearest printer, based in the location
information mapped in the database. If the station enters the range of the Access Point
2, a trap will be generated to the authentication server indicating that Station 1 has left
Access Point 1 and its printer jobs must be sent to Printer 2, since it is closer to (Access
Point 2).
Trough the analysis of the temporal database events, it is possible to determine the
behavior of each user on every week’s day, thus offering discounts in printer jobs and
placing more services inside the most used network printers.
6 FINAL CONSIDERATIONS
The system presented in this work allows the management of the user’s access control,
the network access and its resources and services, as well as being able to identify the
approximate position of users and devices in a wireless environment. The integration of
these proposals will allow, in the future, the creation of an integrated user management
168
environment, based on locations, in order to personalize and manage the use of services
in a ubiquitous environments.
The collected information can be used to create models that allow the prediction of
environment needs, as well as to model user profiles. But it depends on the specifica-
tion of the access point, if it supports association/desassociation traps, what can be an
disadvantage of the proposed system.
This work must still be validated in a real environment, with more users access-
ing the network and its services. Based on these results, it will be possible to better
validate the system. However, it’s necessary, foremost, to aggregate security into the
authentication system, through the use of SNMPv3.
The future work is focused in integrating this system with sensor devices (such as
beacons) in order to obtain a precise information about the user and device location,
thus allowing to upgrade the management process.
References
1. Bisdikian, C., Christensen, J., Ebling, M. R., Hunt, G., Jerome, W., Lei, H., Maes, S., Sow,
D.: Enabling location-based applications. First international workshop on Mobile commerce,
Rome, Italy (2001)
2. Congdon, P., Aboba, B., Smith, A., Zorn, G., Roese, J.: Ieee 802.1x remote authentication
dial in user service (radius). RFC 3580. (2003)
3. Kindberg, T., Barton, J., Morgan, J., Becker, G., Caswell, D., Debaty, P., Gopal, G., Frid, M.,
Krishnan, V., Morris, H., Schettino, J., Serra, B., Spasojevic, M.: People, places, things: Web
presence for the real world. Mobile Networks and Applications, 7. (2002)
4. NET-SNMP: The NET-SNMP home project. http://www.netsnmp.com (2003)
5. NoCatNet: NoCat. http://www.nocat.net (2003)
6. Perkins, D., McGinnis, E: Understanding SNMP MIBs. 1st edition. Prentice-Hall, Upper
Saddle River, New Jersey (1997)
7. Priyantha, N. B., Chakraborty, A., Balakrishnan, H.: The cricket location-support system.
Proc. of the Sixth Annual ACM International Conference on Mobile Computing and Net-
working (MOBICOM), Boston, United States. (2000)
8. Satyanarayanan, M. (ed.): Pervasive computing: Vision and challenges.. IEEE Personal
Communications, August. (2001)
9. Silva, A. O., Meneguzzi, F. R., Schneider, P. H. S., Barcelos, R. B., Rodrigues, V. O., Wald-
man, D., Silva, A. C. B.): Providing printing web services. Fifth IEEE InternationalWorkshop
on Networked Appliances, Liverpool, England. (2002)
10. Simonetto, E. O., Ruiz, D. D. A: Temptool: A tool for temporal data modelling in: Advances
in databases and information systems. 5th East-European Conference ADBIS’2001 Profes-
sional Communications, Vilnius, Lituania (2001)
11. Waldman, D., Silva, A. O., and Silva, A. C. B.: An extensible authentication architecture for
wireless networks. VIII Simp
´
osio de Inform
´
atica, Uruguaiana, Brazil (1995)
169
