An Hybrid Approach for Spoken Natural Language

Understanding Applied to a Mobile Intelligent Robot

Mário Rodrigues

, António Teixeira

, and Luís Seabra Lopes

Escola Superior de Tecnologia e Gestão de Águeda, Universidade de Aveiro,

3754-909 Águeda, Portugal

Departamento de Electrónica e Telecomunicações/IEETA, Universidade de Aveiro,

3810-193 Aveiro, Portugal

Abstract. The greater sophistication and complexity of machines increases the

necessity to equip them with human friendly interfaces. As we know, voice is the

main support for human-human communication, so it is desirable to interact with

machines, namely robots, using voice. In this paper we present the recent evo-

lution of the Natural Language Understanding capabilities of Carl, our mobile

intelligent robot capable of interacting with humans using spoken natural lan-

guage. The new design is based on a hybrid approach, combining a robust parser

with Memory Based Learning. This hybrid architecture is capable of performing

deep analysis if the sentence is (almost) completely accepted by the grammar,

and capable of performing a shallow analysis if the sentence has severe errors.

1 Introduction

Recent developments For these robots to emerge it’s essential the development of nat-

ural language interfaces, regarded as the only acceptable for a high level of interac-

tion [1]. Voice allows hands free communication even without visual contact, great

advantages if the machine is a mobile robot. In this line of research, we are develop-

ing a mobile intelligent robot named Carl. Currently the development of such robots

is still a challenge due to limitations of current technologies and the nature of input

information: speaker independent speech recognition is not very reliable, even in quiet

environments; performance degrades considerably with background noise; spontaneous

spoken language is often highly disﬂuent.

The use of spoken language interfaces in robots requires analysis components robust

to various types of disﬂuencies that can extract the most complete interpretation possi-

ble from a given input, grammatically correct or not [2]. It would be of little application

a robot that in all the cases the speech recognizer makes an error doesn’t react.

In this paper we present the current status of the spoken natural language interface of

robot Carl focusing in our implementation of a robust Natural Language Understanding

(NLU) module. We start by a brief presentation of the robot, in Section 2. Next, in

Section 3 we describe the previous NLU modules, for an easier understanding of our

new approach. The new approach is presented in Section 4, and results obtained with

these new developments are the object of Section 5. Paper ends with results discussion

and indications of ongoing and future work.

Rodrigues M., Teixeira A. and Seabra Lopes L. (2004).

An Hybrid Approach for Spoken Natural Language Understanding Applied to a Mobile Intelligent Robot.

In Proceedings of the 1st International Workshop on Natural Language Understanding and Cognitive Science, pages 145-150

DOI: 10.5220/0002667001450150

 SciTePress

2 Robot Carl

Carl is based on a Pioneer 2-DX indoor platform from ActivMedia Robotics. This mo-

bile platform includes an on-board Pentium based computer. A ﬁberglass structure was

added on the top of the mobile platform, making Carl 1.10 m tall. It carries a laptop

computer, a microphone array, a speaker and a webcam.

With this platform we are developing an autonomous robot capable of navigate in

unstructured environments, making decisions, executing tasks and learning. Human-

robot communication is achieved through spoken and written language dialog as well as

touch interactions. High-level reasoning, including inductive and deductive inference,

is mostly based on the Prolog inference engine.

2.1 Speech Interface Goals

The goal Carl’s speech interface is to map each sentence to one of the performatives

from the Human Robot Communication Language (HRCL) (deﬁned in [1]). For exam-

ple, a sentence like “Turn left.” should result in performative Achieve().

Carl is a robot designed to wander autonomously in an indoor environment inter-

acting with English speaking humans, so the speech interface must be robust enough to

allow the robot to engage communication with any person anywhere.

The communication with any person implies a user independent speech recognizer.

The voice models of such recognizers are not so speciﬁc as the ones of user dependent

systems and their performance is not as good, but they are more suitable to be used

by a broader population. Communicating anywhere implies that Carl has to operate in

uncontrolled environments like exhibition pavilions where the background noise level

can be very high. This fact makes the speech recognition an even more difﬁcult task to

accomplish.

These conditions make the task of ﬁnding the appropriate HRCL performative from

each spoken sentence a challenging problem. The ﬁrst step is to determine the recog-

nized sentence performative type. After that, semantic information must be extracted in

order to ﬁll the HRCL message to pass to the reasoning module of the robot [3].

3 Previous Approaches

In one of the ﬁrst versions of the voice interface, IBM ViaVoice ASR performed speech

recognition and the NLU module was built with CPK-NLP tools. Both speech recog-

nition and NLU used a uniﬁcation grammar deﬁned in Augmented Phrase Structure

Grammar (APSG) formalism.

With this approach each recognized sentence had a valid analysis. However, codi-

fying the linguistic knowledge as a set of rules is a labor-intensive task. Also, with the

grow of the grammar it becomes increasingly difﬁcult to maintain and expand the rule

set. Another problem is that the speech recognition is performed based on a rigid set of

possible sentences. If the user does not pronounce a sentence accepted by the grammar,

it is not possible to recognize it. Obviously, the goal of developing a friendly easy to

use robot was not accomplished, motivating a ﬁrst change of approach.

146

The ﬁrst step was to allow the recognizer to accept any word sequence. The ap-

proach with better tradeoff between ﬂexibility and accuracy is to use an n-gram lan-

guage model in the speech recognizer. The use of n-grams allows any sequence of

words from the lexicon, while making some sequences more likely than others.

A new speech recognizer was selected, Nuance 8.0, and the grammar was built with

bigrams trained from the complete set of utterances of the previous grammar. A new

module based on the Attribute Logic Engine (ALE) [4]was developed. ALE still uses a

grammar in its syntactic and semantic analysis.

4 New Approach

Having a system that is good at understanding correct sentences, we decided to develop

a new system that makes use of the existing one in the cases it is adequate and uses a

new sub-module to handle the deﬁciencies. To be able to apply such a divide to conquer

approach, we ﬁrst developed a module capable of deciding if the speech recognizer

output was adequate to be processed by ALE. The system at this stage is represented in

Fig. 1(a). After that, we worked on the semantic analysis of badly structured sentences.

Then we replaced ALE by a more ﬂexible parser.

11

p

22

p

33

p

44

p

12

p

23

p

34

p

13

p

24

p

11

p

22

p

33

p

44

p

12

p

23

p

34

p

13

p

24

p

11

p

22

p

33

p

44

p

12

p

23

p

34

p

13

p

24

p

Speech Recognizer

word

1

,...,word

N

Memory-Based

Learning (MBL)

Sentence non-Sentence

Attribute-Logic

Engine

The other

utterances?

Forget?

(a) A ﬁrst stage in the development

word POS tagging

sentence is

gramatical?

parser

shallow analysis

no

yes

score >

threshold?

no

Legend:

knowledge based

data based

score >

threshold?

yes

yes

semantic

information

extraction

sentence

(b) Complete version

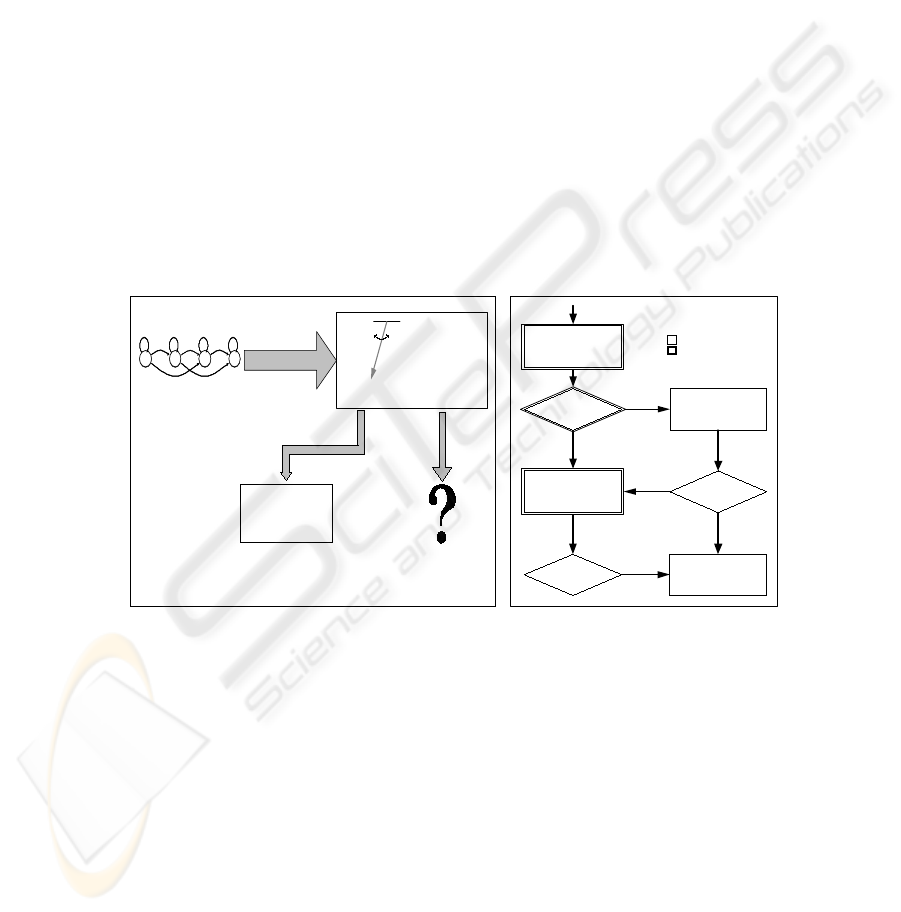

Fig. 1. Our new natural language interface approach scheme

4.1 Sentence/Non-sentence Decision

For this sub-problem, a Memory-Based Learning (MBL) approach was adopted. The

classiﬁcation program TiMBL [5] was used. Words coming from the speech recognizer

are complemented with part-of-speech (POS) tags. With 762 examples in the training

set, correct decisions are above 90%. 3000 examples were enough to obtain 95% correct

decisions [3].

This success motivated us to extend the importance and the amount of information

extracted with MBL approach.

147

4.2 Robust Parsing

Another instance of TiMBL was used to extract information from the previously ignored

sentences. However, MBL is not suitable for a deep syntactic analysis, and so, even for

sentences that only slightly deviate from the grammar, it was only possible to perform

shallow analysis. Also, traditional parsing algorithms as the ones of CPK-NLP and

ALE are designed to parse only completely grammatical input sentences. It is desirable

to have a tool that in the presence of a sentence with a small deviation from the grammar

is able to perform a deep analysis: a robust parser.

Because the robust parsers are able to parse also completely correct sentences, such

a tool could replace ALE. Tests are being made to a parser called LCFLEX[6]. LCFLEX

is a ﬂexible left-corner parser designed for efﬁcient robust interpretation that uses the

Lexical Functional Grammar (LFG) formalism for grammar deﬁnition. It supports word

skipping, insertion of non-terminal grammar rules and selective ﬂexible feature uniﬁca-

tion.

4.3 The New System

To build the syntactic structure of a sentence, the information used is the role of each

word in the sentence and not the word itself so the lexical entries of the grammar used

by LCFLEX are POS tags instead of words. The POS tags are assigned on-the-ﬂy by

two taggers: Brill Tagger [7] and LTPOS [8]. The reason for using two taggers is that

no tagger has 100% accuracy. If both taggers assign the same tag, the system considers

that the tag is correct; otherwise the system it treats specially the word and the sen-

tence. Both taggers use the Penn Treebank tagset that has 36 tags, so the lexicon of

our grammar has just 36 entries which allows us to have a very small, easy maintained

grammar.

The new natural language interface architecture is represented in Fig. 1(b). First

a module determines the POS tags of the words of the sentence. Then an instance of

TiMBL decides if the sentence retrieved by the speech recognizer is grammatical or

not. If both taggers agree in more than 75% of the tags and the sentence is grammatical,

the sentence is passed to LCFLEX to perform a deep syntactic analysis, otherwise it is

passed to another instance of TiMBL that makes a shallow analysis. Since the decision

made by the ﬁrst instance of TiMBL as an error of around 5% ([3]), LCFLEX can receive

some incorrect sentences. Usually these sentences are almost grammatical and LCFLEX

is capable of analyse them.

If the sentence syntactic structure returned by LCFLEX includes more then 75% of

the total words of the sentence, the threshold, the analysis is passed to the semantics ex-

traction module. Otherwise the system considers that the sentence has a great deviation

from the grammar and the ﬁnal analysis is shallow and made by the second instance of

TiMBL. This instance of TiMBL can also ignore the sentence if it cannot get a valid

analysis.

If the speech recognizer passes more than one hypothesis to the NLU module, in or-

der to have the best global solution, every hypothesis is analyzed and the partial scores

are collected. The partial scores are, if applicable, the percentage of equal tags assigned

148

by both taggers, ﬁrst and second TiMBL instances scores and percentage of words in-

cluded in sentence syntactic structure returned by LCFLEX. TiMBL scores are computed

as the ratio between the number of neighbors of the most frequent valid sentence class

and the number of neighbors of the most frequent class. In the end of the analysis, the

partial scores are weighted with the speech recognition score and the best overall scored

analysis is chosen.

With this hybrid architecture we have developed an interface capable of performing

deep analysis if the sentence is completely or almost completely accepted by the gram-

mar, and capable of performing a shallow analysis if the sentence has severe errors.

5 Some Results

In Table 1 we present a summary of a preliminary test of the new proposed approach. A

total of 162 sentences from a randomly selected list generated from the ALE grammar

was read aloud by one speaker in an environment with some background noise (a com-

mon research laboratory). In average each sentence had 5.53 words. The speech recog-

nizer used was the Nuance with bigrams language model. The ﬁrst two best alternatives

were kept from Nuance. Only 13 times in these alternatives the intended sentence was

present without errors. Speech Recognizer errors are presented in Table 1(a). The Word

Error Rate (WER) shows that speech recognizer results are full of errors.

Table 1. Test results

(a) Speech Recognizer errors

replaced

deleted

inserted

WER

1.21

0.56

0.69

44.42

(b) Robust parser results

adequate

processed

sentences

to ALE

by LCFlex

by TiMBL

with analysis

type results

total

LCFlex

TiMBL

correct

incorrect

A little more than the 13 correct sentences at the speech recognizer output were

adequate to be processed by ALE. The 8 (21 − 13 = 8) incorrect sentences processed

by ALE came from subtle changes, especially in articles. At the end, Table 1(b), our

system obtained analysis for 70, an 233.33% increase.

Regarding type of sentence, 52 of the 70 were correct. Partial results from TiMBL

and LCFLEX are presented in Table 1(c). It is also interesting to look at the constructed

semantic relations. In 209 constructed relations 156 were judged by a human as correct.

Relations constructed for sentences accepted by ALE were correct in 59 of a total of 60

cases. The failure was also made by ALE due to the loss of a coordinative conjunction.

After passing all the processing, the system was incapable of extracting any infor-

mation from 27 sequences.

149

6 Conclusion

In this paper we presented the recent evolution of the NLU module of the mobile intel-

ligent robot Carl. This new module is based on a hybrid approach combining a robust

parser with MBL-based modules to complement and select cases appropriate for the ro-

bust parser use. With this hybrid architecture we have developed an interface capable of

performing deep analysis if the sentence is completely or almost completely accepted

by the grammar, and capable of performing a shallow analysis if the sentence has severe

errors.

Results of a preliminary test performed indicate that our new approach is capable

of handling an increased number of word sequences coming from the speech recog-

nizer. For the sequences grammatically correct or almost correct, the new system has

a performance equivalent to the previous ALE based approach. Sentences with errors

are handled mainly by LCFLEX, but MBL contribution is not irrelevant. Results from

both ALE and MBL are around 74% correct regarding the type of performative, and

aprox. 75% regarding constructed semantic relations. It is clear from the results that

both components, MBL and the robust parser, perform a part of the task, contributing

to the overall performance.

As an ongoing work, many evolutions are possible. We consider as prioritary the

ﬁne tuning of all the decision levels in the processing, improvement of the training

material for MBL bases tasks, better control of the LCFLEX ﬂexibility parameters.

References

1. L. S. Lopes and A. Teixeira. Teaching Behavioral and Task Knowledge to Robots through

Spoken Dialogues. In S. LuperFoy and D. Miller, editors, My Dinner with R2D2: Natural

Dialogues with Practical Robotic Devices, AAAI-2000 Spring Symposium Series, pages 35–

43. Stanford University, Stanford, California, March 2000.

2. C. P. Rosé and A. Lavie. Balancing Robustness and Efﬁciency in Uniﬁcation-Augmented

Context-Free Parsers for Large Pratical Applications. In J.-C. Junqua and G. van Noord,

editors, Robustness in Language and Speech Technology. Kluwer Academic Publishers, 2001.

3. L. Seabra Lopes, A. Teixeira, M. Rodrigues, D. Gomes, C. Teixeira, L. Ferreira, P. Soares,

J. Girão, and N. Sénica. Towards a Personal Robot with Language Interface. In Proc. Eu-

roSpeech, pages 2205–2208, 2003.

4. B. Carpenter and G. Penn. ALE - The Attribute Logic Engine User’s Guide. Technical report,

Department of Computer science of University of Toronto, 10 King’s Colledge Rd., Toronto

M5S 3G4, Canada, December 2001. http://www.cs.toronto.edu/ gpenn/ale/ﬁles.

5. W. Daelemans, J. Zavrel, A. van den Bosch, and K. van der Sloot. TiMBL: Tilburg Memory-

Based Learner Reference Guide, version 4.2. Technical report, P.O. Box 90153, NL-5000 LE,

Tilburg, The Netherlands, June 2002.

6. C. P. Rosé and A. Lavie. LCFlex: An Efﬁcient Robust Left-Corner Parser. Technical report,

University of Pittsburgh, 1998.

7. E. Brill. Transformation-Based Error-Driven Learning and Natural Language Processing: A

Case Study in Part of Speech Tagging. Computational Linguistics, December 1995.

8. http://www.ltg.ed.ac.uk/ mikheev/tagger_demo.html.

150
