Integrating local services and applications into
external user home environments
Helder Pinto and Rui Jos´e
University of Minho, Information Systems Department
Campus de Azur´em, 4800-058 Guimar˜aes, Portugal
Abstract. Users moving between different ubiquitous computing envi-
ronments should be able to take a full profit of the resources existent
there, if their home environment (e.g. a mobile portal) could seamlessly
integrate with local infrastructure. Pursuing such goal, this paper fo-
cuses on the aspects of integrating local applications and services into
an external user home environment, with particular emphasis on the
interoperability and performance issues. Based on the concept of Value
ADded Environment (VADE), as an administrative and physical domain,
where the locally available facilities can be combined with external user
home environments, the paper presents a middleware solution support-
ing the integration of local services and applications available in VADE
environments into an external portal.
1 Introduction
Research in ubiquitous computing has resulted in prototype ubiquitous comput-
ing environments that are often characterized by a strong integration between
the computational infrastructure and the physical environment. The main ad-
vantage of this strong coupling with the physical environment is essentially the
possibility to support functionality that is very specific to that particular en-
vironment. The main limitation, however, is that such level of integration can
only be reasonably achievable for systems aimed at small and specific physical
infrastructures, meaning that, in the course of a day, a user will have to interact
with a multitude of independent ubiquitous environments, one for each visited
location. This limitation is even more important due to the lack of an adminis-
trative infrastructure that could be used across domains to support key features,
such as authentication, user profiling or billing.
Mobile network operators (MNO) are also launching services, usually by
means of a mobile portal, that use the position of mobile terminals to provide
users with information that is associated with their particular location. These
location-based services are available everywhere and have a strong administra-
tive framework, but they require from the server to provide information for any
of the potential locations of the client, which implies the ability to consolidate all
location-based contents into large warehouses, posing operational and data in-
tegrity issues that are costly to overcome [1]. Furthermore, these applications are
Pinto H. and JoSÉ R. (2004).
Integrating local services and applications into external user home environments.
In Proceedings of the 1st International Workshop on Ubiquitous Computing, pages 119-128
DOI: 10.5220/0002679601190128
Copyright
c
SciTePress
not able to explore resources that may be available in the physical environment.
Without the assistance of a local infrastructure, these applications do not have
the potential for reaching the same level of richness and context-awareness as the
ubiquitous computing applications created for a specific physical infrastructure.
This research aims to combine the two previous approaches, and is specifi-
cally targeted at the issues of interoperability and seamless integration between
a user home environment (e.g. a MNO portal) and the ubiquitous computing
environments corresponding to the physical locations visited by the user. Our
approach introduces the concept of Value ADded Environment (VADE) as an
administrative and physical domain, e.g. a shopping center or an airport, where
the locally available ubiquitous computing facilities can be combined with the
external home environment of visiting users. The overall scenario is that when
entering a VADE, mobile users are provided with functionality that corresponds
to the dynamic combination of predefined user preferences, currently active ap-
plications, current user context and locally available services and applications.
While this research copes with multiple challenges, this paper focuses only on
the integration of lo cal resources into an external environment. The paper de-
scribes the main issues implied in the integration between local and external
environments, namely interoperability and performance, using the VADE sys-
tem as a representative example of the integration challenges. The paper argues
for the need for an integration middleware dealing with the identified issues, and
describes the solution we developed for the VADE system. For a more complete
description of the VADE system and other aspects covered by this research,
please refer to [2].
The next section describes the VADE concept, its application models, and
the system architecture. Section 3 introduces the issues of dynamically integrat-
ing local applications and services into the user home environment. Section 4
explains how we dealt with those integration issues by the use of a VADE-aware
integration middleware.
2 Value Added Environment
The VADE concept is here presented as an example of integration between local
and external environments. The idea behind this concept is that when a user
enters a ubiquitous computing environment that also happens to be a VADE sys-
tem, the functionality available to that user should be the combination of global
and local functionality. In order to clarify these relationships, we have grouped
the overall system functionality into three separate domains, more specifically:
User, VADE, and External domains. The User domain corresponds to the physi-
cal and logical elements carried by a p er son that is within the physical b oundaries
of a VADE. The VADE domain corresponds to elements constituting the local
infrastructure and directly supporting the VADE functionality (e.g., services,
applications, and all sorts of devices sensors, input/output, etc.). Finally, the
External domain corresponds to all the other elements that interact with the
VADE but are not part of the VADE, or user domains. Our main assump-
120
tion about the External domain is the existence of a structured framework for
customer relationship that is able to support key horizontal services, such as
personal context management, user profiles, and a personal information space,
possibly in the form of a mobile portal.
2.1 Application models
VADE-aware global applications. A VADE-aware global application is an
external application that, when the user enters a VADE, is able to enhance
its functionality by taking advantage of the locally available services. A global
application is not aimed at any VADE in particular and may be used regularly
outside a VADE. We assume that these applications are context-aware, and also
that, as users move, they are continuously searching for additional location-
based resources. Entering a VADE is thus a major opportunity for finding new,
probably much more specific, resources and context information that will allow
them to improve their relationship with the physical environment of the user,
and thus the value of the provided functionality. For example, it is simple for a
global map application to present a detailed map of the area where a shopping
center is located, but for the people inside the shopping what would be real value
would be to have access to a detailed plan of the shopping. The main challenge
is to be able to discover, recognize and use the potentially very vast range of
services that may be found at different environments.
VADE Local Applications. A VADE local application provides function-
ality that is s pecifically associated with a particular VADE. When a user enters
a VADE, these applications should seamlessly integrate with the users mobile
information space. i.e. the user should not need to look for them, configure them
or study their functionality. The main advantage of this application model over
the VADE-aware model is that, since these are local applications, they can be
tailored for the particular environment for which they were pr oduced. The main
challenge for this type of application is how to manage their integration into the
user external environment.
2.2 System architecture

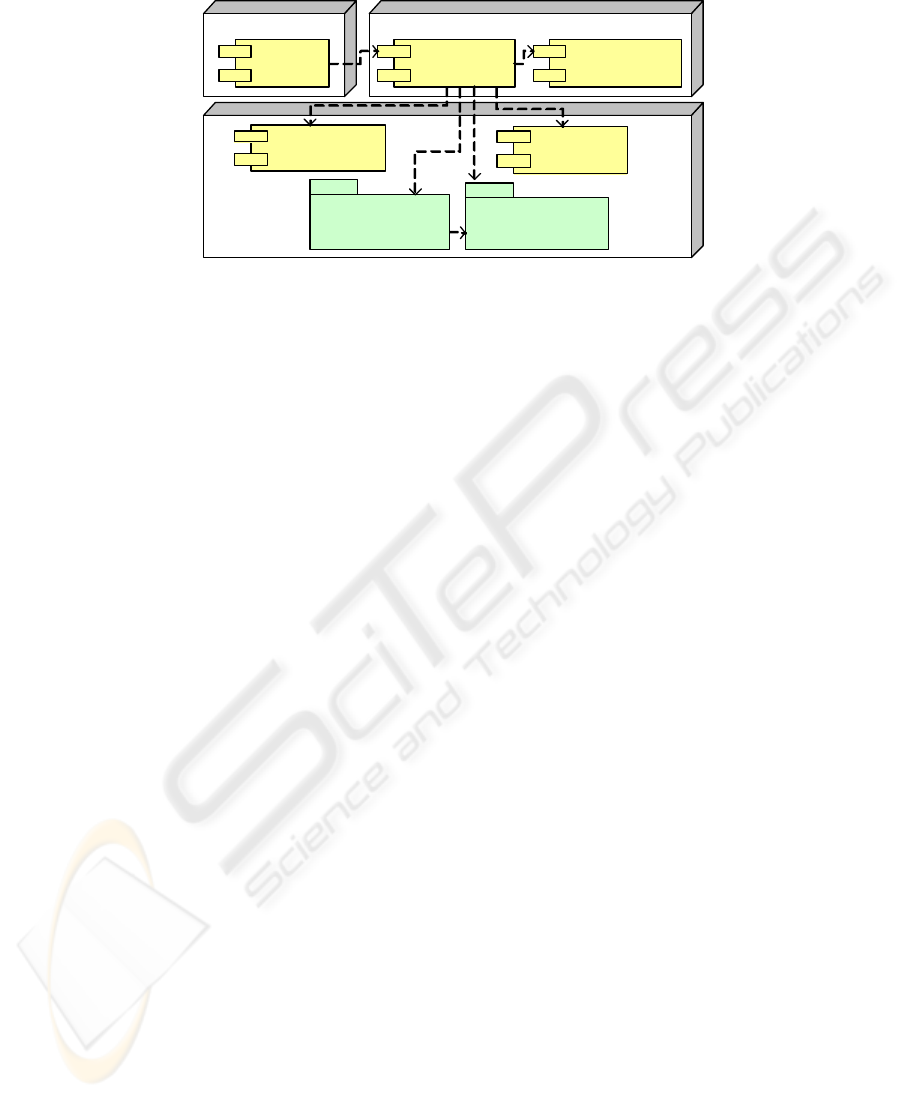

Figure 1 depicts the VADE system architecture. The main components of the
VADE architecture are a browser (User domain), a personal portal and a per-
sonal context manager (External domain), and a s et of applications and services
in the Vade domain (some of which are not stated in this paper for the sake of
conciseness).
Each mobile user has her/his own Context Manager, which gathers and ag-
gregates context information (e.g. location, activity, etc.) from several context
sources. The Personal Portal relies on the Context Manager to obtain user con-
text information, possibly influencing the content produced by each portal appli-
cation (also called portlet). The context information may contain a notification
of the user entrance in some VADE domain. This notification contains a refer-
ence to the VADE’s internet domain name, which is a basis to access the VADE
121
VADE domain
UDDI Registry
<<web service>>
Location-based
Services
<<web service>>
Local Applications
Providers
<<WSRP producer>>
VADE Entry Point
<<WSIL document>>
User Device External domain
Personal PortalBROWSER Context Manager
Fig. 1. General architecture of the VADE system
Entry Point at a well-known URL. The VADE Entry Point is a Web Services
Inspection Language (WSIL) [3] document providing references for the VADE
core services. One of the VADE core services is a UDDI registry that is used
by the Personal Portal and its VADE-aware global applications to discover local
resources (applications and services respectively). VADE Local applications cor-
respond to Web Services for R emote Portlets (WSRP) [4], a standard allowing
for the integration of remote portlets into a portal. Location-based Services are
also Web Services that implement a well-known interface used by VADE-aware
global applications.
3 Integrating local resources into external environments
This section describes the main problems of integrating local ubiquitous infras-
tructures with external environments: interoperability and performance. These
issues are analyzed in the scenario considered in our work, where essentially two
forms of integration between local and external environments take place: VADE
location-based services are used by VADE-aware global applications running on
external portals; and VADE local applications are integrated into external per-
sonal portals. We believe the issues raised by this scenario represent the general
cases of integration between local and external environments, and thus our work
should be viewed as a model of how to deal with these specific issues.
3.1 Interoperability
Interoperability is an unavoidable challenge for the integration between hetero-
geneous environments. However, external user home environments should not be
faced with several different integration mechanisms for each local environment
the user moves in. A homogeneous ground for local resource discovery and ac-
cess should exist between all local environments, so that interoperability with
external environments is possible.
122
For example, VADE-aware global applications are continuously searching for
local resources in order to provide finer-grained information to mobile users.
The need for interoperability essentially comes from service discovery and ac-
cess. VADE-aware global applications must rely on widely accepted protocols
for service discovery and access. Furthermore, local services interfaces should
be well-known, so that VADE-aware global applications developers can assume
some level of homogeneity in the different services their applications interact
with.
The discovery of local VADE applications requires the same homogeneity
than service discovery. Moreover, local VADE applications must b e clearly dis-
tinguished from other types of applications, requiring conformance to a given
application format. Integrating local VADE applications functionality and user-
interface into an external environment also requires agreed protocols.
3.2 Performance
Integrating external environments with local resources implies multiple, often
time-consuming interactions (e.g. discovering and interacting with local resources).
Continuous changes in the user context originate correspondent interactions with
the local environment in order to keep contents up to date with the context.
Fur thermore, the external home environment may be physically distant from
the local infrastructure, which implies a cost on the time required for the inter-
actions. Using physically near resources (from the user’s viewpoint) should not
result in visibly worse performance, otherwise users may think out of a proximity
paradox.
VADE-aware global applications are particularly affected by the performance
issue. Since the moment a user enters a VADE domain, several time-consuming
steps are undertaken until the information is presented by each application to a
portal user: a) obtaining the user context from the Context Manager; b) access-
ing the VADE Entry Point to obtain the URL of the local registry; c) querying
the local registry for a service type available at the user location; d) interacting
with the service to extract relevant information; and e) integrating it into the
information to be presented to the user. Furthermore, the last two steps are re-
peated every time the user physical location inside the VADE domain changes. If
we consider that dozens of VADE-aware global applications may be constantly
performing those operations, multiplied by hundreds of us ers moving inside a
VADE domain, performance becomes a first-class issue. Therefore, some mech-
anism must be implemented to alleviate VADE-aware global applications from
all that burden.
The integration of local VADE applications into an external environment is
also time-consuming. When a user enters a VADE domain, local applications are
discovered and integrated into the running external environment. These opera-
tions should not have an impact on the user experience, i.e., they should occur
as invisibly as possible, so that the user does not have to hang on waiting for
the integration operations to conclude in order to proceed with the experience.
123
Likewise, when leaving the VADE domain, the removal of local applications from
the external environment should not annoy the user.
3.3 Solving the integration issues
Fr om this analysis, we conclude that a solution for the integration between local
and external environments must guarantee interoperability and an acceptable
level of performance at all levels of the integration. The solution we propose
to deal with interoperability issues is based on widely accepted standards: all
components of different domains interact with each other over HTTP and SOAP;
local applications and services are discovered using UDDI; finally, local VADE
applications are implemented as WSRP portlets, a standard allowing for remote
access to user-facing p ortal components.
Our solution for managing the performance issue consists of an integration
middleware coupled to the external user home environment. Such a middleware
intermediates the interaction with the local environment, acting on behalf of
the external environment components, and thus saving a considerable number
of time-consuming operations. In the next section, we describe the integration
middleware solution we developed in the context of the VADE system.
4 Personal VADE-aware Middleware
The Personal Vade-Aware Middleware (PerVAM) is a component of the exter-
nal environment whose main functionality is to mediate interactions with the
VADE system. The PerVAM middleware provides mechanisms improving the
performance of local applications and services integration into external portals.
The PerVAM functionality is to: 1) manage the integration of local applications
into the portal every time the VADE domain entrance/exit is detected; 2) act
on behalf of VADE-aware global applications in the process of discovering and
interacting with VADE core and location-based services, each time the user lo-
cation changes; and 3) intermediate interaction between global applications and
Context Manager.
The PerVAM middleware is especially useful for dealing with the time-
consuming operations performed by VADE-aware global applications (see Sect.
3.2) each time a local service is needed. Redundant operations, like VADE core
services discovery, are performed by PerVAM only once, just after a user enters
the VADE domain. This relieves applications from repeating unnecessarily the
same operation. Other operations are only needed when the Context Manager
notifies context change. Obtaining user context, discovering local services, or in-
teracting with local services are examples of such operations. Without PerVAM,
most of these operations would be performed by VADE-aware global applica-
tions, each time the user loads the portal page in her/his browser, even if the
context had not changed. This results in significant and unnecessary overhead,
specially if a portal page is composed of multiple VADE-aware global applica-
tions. The PerVAM middleware relieves applications from those time-consuming
124
operations, by pre-fetching, in the background, context and application-specific
information, each time the Context Manager notifies a user context change (when
in the VADE domain). This information is further directly accessed (at the user
profile) by applications only when they are invoked by the user, drastically im-
proving their performance.
4.1 Architecture and functionality
The PerVAM architecture (see Fig. 2) is composed by the PerVAM servlet, the
portal database, the VADE-aware global applications surrogates, and the Per-
VAM API. The PerVAM servlet is responsible for managing user context changes
and its influence on the integration of local resources. The portal database stores
the profile for each registered user, containing portal- and VADE-related in-
formation. Each VADE-aware global application surrogate pre-fetches, in the
background, location-based information for the application it represents. Finally,
the PerVAM API provides a higher-level interface for both the p ortal and the
VADE-aware global applications to use PerVAM functionality, such as access
to application-specific content, access to user context, local service discovery, or
mediation of interactions with WSRP producers.
PerVAM
servlet
Portal
database
VADE-aware
global
applications
surrogates
PerVAM
API

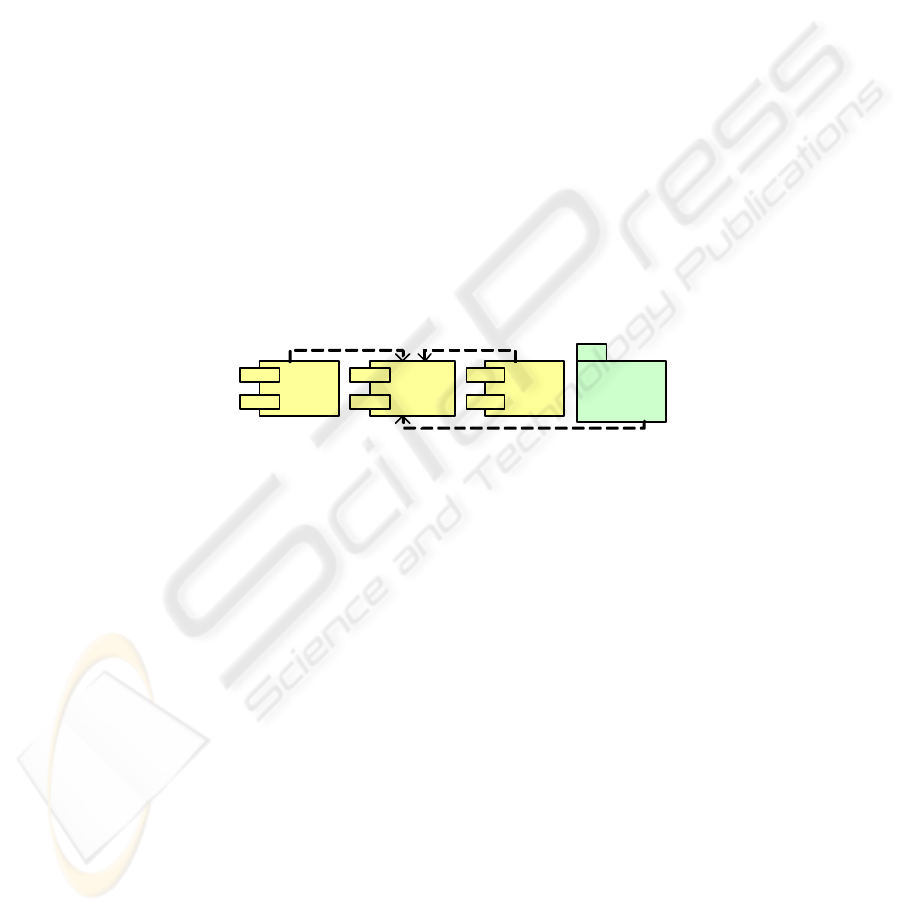

Fig. 2. PerVA M architecture
When the PerVAM servlet is initialized (or whenever a new user registers
to the portal), it subscribes portal users for context update notifications in its
respective Context Manager. When the Context Manager sends a notification to
the PerVAM servlet, PerVAM asks the Context Manager for the corresponding
user’s context and checks if the user has entered/left a VADE domain, or if the
location of a user that previously entered the VADE has changed.
If the user has entered a VADE, PerVAM performs all the neces sary integra-
tion steps (see Fig. 3). This happens only once for each VADE the users moves
in. It starts by discovering VADE core services through the VADE Entry Point.
Among other core service URLs, the URL of the local UDDI registry is stored in
the user profile for further reuse. PerVAM then searches for local applications,
by querying the UDDI registry for WSRP producers. The local WSRP producer
is then queried to obtain the references to the portlets it offers. PerVAM fi-
nally integrates each WSRP portlet reference in the user’s portal. If the user has
left a VADE domain, PerVAM simply erases references to previously integrated
WSRP portlets.
125
Context
Manager
VADE Entry
Point
User
profile
WSRP
Producer
PerVAM
getContext()
context info
store core services URLs
void
update notification
get core services URLs
core services URLs
register()
registration handle
getPortletsDescription
portlets description
UDDI
registry
findService(“WSRP Producer”)
local WSRP Producer info

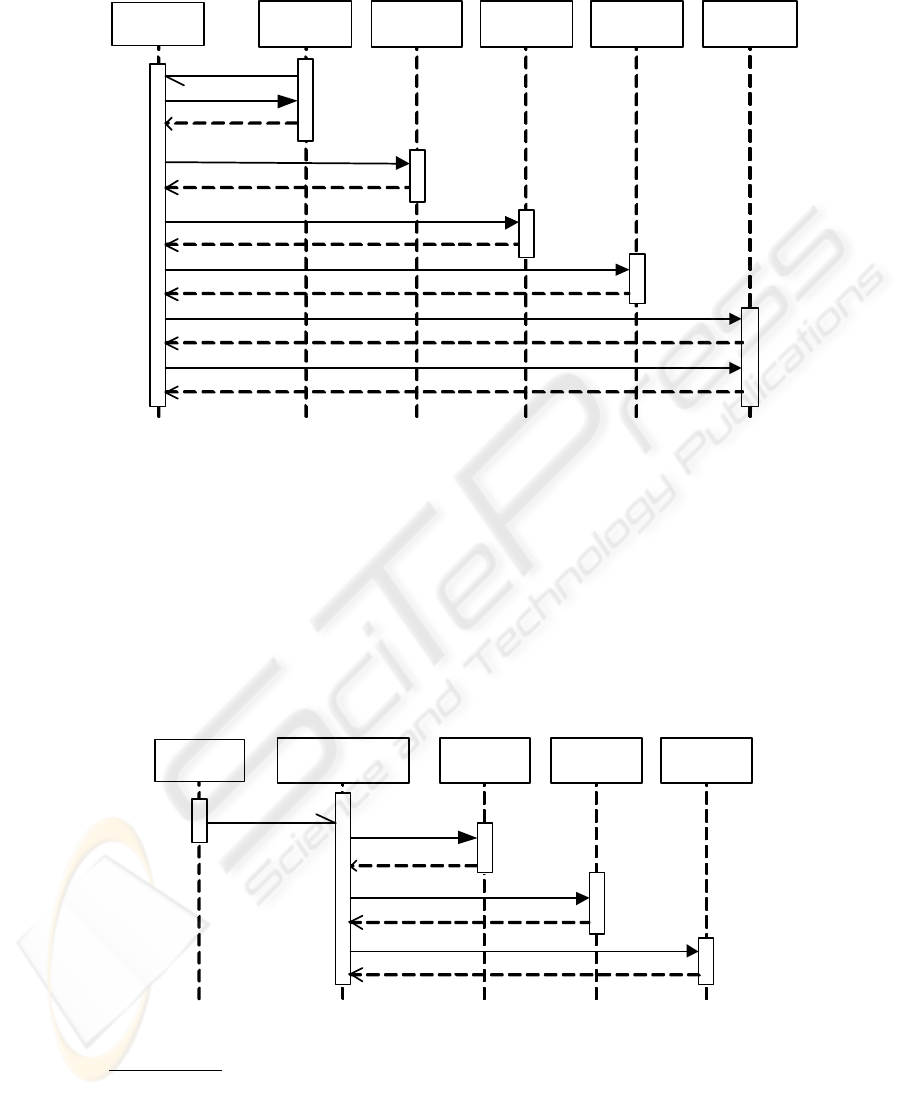

Fig. 3. Sequence diagram for the integration of local VADE applications
Each time the user location is updated
1
, PerVAM notifies every VADE-aware
global application surrogate (see Fig. 4). Each s urr ogate then queries the UDDI
registry for needed services associated to the new user location. The surrogates
then interact with those services and store the collected information in the user
profile. Finally, each time a user portal page is displayed, VADE-aware global
applications ask PerVAM to extract from the user profile the latest information
their respective surrogates collected from location-based services.
VADE-aware global
apps surrogates
UDDI
registry
Local
services
PerVAM
findService(...)
service info
collect information
context update
notification
location-based information
User
profile
store collected information
void
Fig. 4. Sequence diagram for the location-based information pre-fetching
1
entrance in a VADE domain is regarded as a location update
126
Global VADE-aware applications implement location-based information pre-
sentation, while their surrogates gather the required information from each
VADE. Each sur rogate’s functionality depends on the application it represents,
both parties agreeing on some protocol to represent the collected information.
Surrogates do not implement any other location-based functionality than those
related to VADE environments. Information whose scope is outside a VADE is
gathered by applications themselves.
4.2 Prototype
The prototype we have been developing is composed of a VADE system serving
the university campus, two external portals, and a number of mobile devices
(laptops, PDAs, and mobile phones). The VADE system offers a set of local
services and applications, and different types of contextualization mechanisms.
The external portals include some VADE-aware global applications supported
by their own PerVAM middleware.
Portal development was based on the Jetspeed op en-source platform [5]. For
location-based services we used Axis [6], and for WSRP portlets development
and production we used WSRP4J [7].
5 Related work
The MIDAS project [8] explores the proactive, dynamic functional extension of
mobile devices, by means of a local infrastructure, and using the aspect-oriented
programming paradigm. The supporting scenario proposes that when mobile
devices enter a new computing environment, the environment provides the nec-
essary extensions so that the device can operate in that location at that moment.
The scenario assumes that mobile devices must carry a platform that is able to
dynamically acquire, apply, and discard extensions as needed. While MIDAS sets
the initiative of extending functionality to the local infrastructure, our approach
confers the active behavior to the external environment. Besides that, MIDAS
only allows for extending a specific functionality with local characteristics. Our
approach goes beyond that, making possible to add new, different functionality,
augmenting the functional scope of the external environment.
The second perspective relating our work to others is the pre-fetching mech-
anism. Pre-fetching has been proposed as a valuable strategy to increase perfor-
mance in Web usage. The performance increase can be accomplished by pr e-
fetching hyperlinks [9]. This technique corresponds to pre-fetching web doc-
uments referred by hyperlinks in another web document. The decision about
which documents to pre-fetch derives mainly from the evaluated access prob-
ability of each hyperlinked document. The approach we implemented in the
PerVAM middleware for augmenting the performance of VADE-aware global ap-
plications is very similar to pre-fetching in the WWW. However, location-based
information access probability is not considered in PerVAM. As future work, we
could consider this topic and also take into account the relevance of updating
127
location-based information in specific situations. For example, a VADE-aware
global application providing map information should not require from its surro-
gate to search for a local map service each time the user location changes, as the
user may be moving in a region that may be well represented by a single map.
6 Conclusions
This paper has described part of an ongoing work in which the concept of a
value-added environment (VADE) is explored as a mechanism for enabling the
combination of functionality between a local ubiquitous computing infrastruc-
ture and external user home environments. We focused on the integration of local
services and applications into external environments, with particular emphasis
on the interoperability and performance issues. The paper presents the PerVAM
middleware, a solution to support the integration of local VADE applications
and services into an external portal. Based on Web Services standards, and thus
promoting interoperability, PerVAM also improves integration performance, by
means of a lo cation-based pre-fetching mechanism.
7 Acknowledgements
This work was carried out as part of the VADE project supported by the Por-
tuguese Foundation for Science and Technology (Ref. POSI/CHS/38475/2001).
References
1. OGC: In support of an open location services (OpenLS) testbed. Technical report,
Open GIS Consortium (2000)
2. Jos´e, R., Pinto, H., Meneses, F., Boas, N.V., Rodrigues, H., Moreira, A.: System
supp or t for integrated ubiquitous computing environments. In: System Support
for Ubiquitous Computing Workshop (UbiSys) at the 5th Annual Conference on
Ubiquitous Computing (UbiComp 2003), Seattle, United States (2003)
3. I BM: Web services inspection language (2001) http://www-
106.ibm.com/developerworks/webservices/library/ws-wsilspec.html.
4. OASIS: Web services for remote portlets (2003) http://www.oasis-
op en.org/committees/wsrp.
5. A pache: Jakarta Jetspeed (2003) http://jakar ta.apache.org/jetspeed.
6. A pache: Webservices Axis (2003) http://ws.apache.org/axis.
7. A pache: Webservices WSRP4J (2003) http://ws.apache.org/wsrp4j.
8. Pop ovici, A., Frei, A., Alonso, G.: A proactive middleware platform for mobile com-
puting. In: 4th ACM/IFIP/USENIX International Middleware Conference (Mid-
dleware 2003), Rio de Janeiro, Brazil (2003)
9. Duchamp, D.: Prefetching hyperlinks. In: 2nd Usenix Symposium on Internet
Technologies and Systems, Berkeley, United States (1999)
128
